mostag.cpp File Reference

#include <string.h>
#include <iostream>
#include <TROOT.h>
#include <TStyle.h>
#include <TEnv.h>
#include <TH2F.h>
#include <TCanvas.h>
#include <TPad.h>
#include <TText.h>
#include <TEllipse.h>
#include "EdbLog.h"
#include "EdbAlignmentV.h"
#include "EdbRunAccess.h"
#include "EdbScanProc.h"
#include "EdbMosaic.h"
#include "EdbMosaicIO.h"
#include "EdbLinking.h"

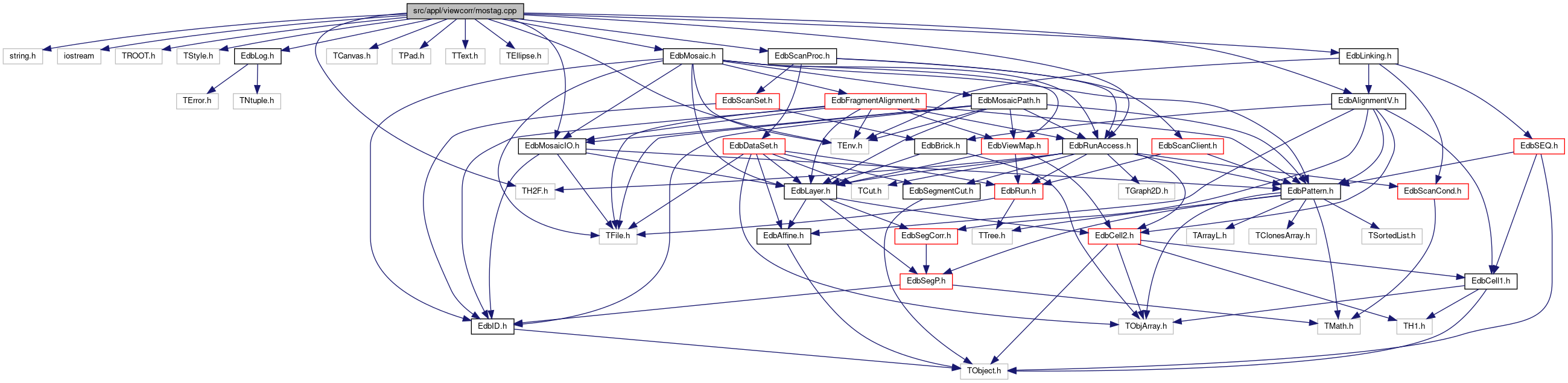

Include dependency graph for mostag.cpp:

Classes
struct	OutHist

Functions
void	DoubletsFilterOut (EdbPattern &p, EdbMosaicIO &omio)
void	DrawEllipse (const EdbPattern &ptag, int col, float tsize)
void	DrawOut (const EdbPattern &ptag, EdbMosaicIO &omio)
void	FindPeaks (EdbH2 &h2p, EdbPattern &ptag, int npmax, float minVol)
void	Link (EdbID id, EdbPattern &p1, EdbPattern &p2, EdbPattern &p0)
int	main (int argc, char *argv[])
void	Pat2H2 (const EdbPattern &p, EdbH2 &h2p, float thetaMin, float thetaMax, float bin)
void	print_help_message ()
void	set_default (TEnv &cenv)
void	TagSide (EdbID id, EdbPattern &pat, int from, int nfrag, int side, TEnv &cenv, EdbMosaicIO &mio, EdbMosaicIO &omio)

Variables
bool	do_save_canvas =false
bool	do_save_gif =false
OutHist	gOH = {0,0,0,0,0,0}
int	nPatMin =0

Function Documentation

DoubletsFilterOut()

void DoubletsFilterOut	(	EdbPattern &	p,
		EdbMosaicIO &	omio
	)

{
  int   checkview =1;
  int   fillhist  =1;
  float dr        =1;
  float dt        =0.008;
  TH2F *hxy=0, *htxty=0;
  if(fillhist)  {
    gOH.dblxy   = new TH2F("dblXY"  ,"Doublets DX DY"  ,50,-dr,dr,50,-dr,dr);
    gOH.dbltxty = new TH2F("dblTXTY","Doublets DTX DTY",50,-dt,dt,50,-dt,dt);
  }
  EdbAlignmentV adup;
  adup.eDVsame[0]=adup.eDVsame[1]= dr;
  adup.eDVsame[2]=adup.eDVsame[3]= dt;
  adup.FillGuessCell(p,p,1.);
  adup.FillCombinations();
  adup.DoubletsFilterOut(checkview, gOH.dblxy, gOH.dbltxty);   // assign flag -10 to the duplicated segments

  //omio.SaveFragmentObj(   hxy, p.Plate(), p.Side(), p.ID(), "dblxy");
  //omio.SaveFragmentObj( htxty, p.Plate(), p.Side(), p.ID(), "dbltxty");

  //if(eDoDumpDoubletsTree) DumpDoubletsTree(adup,"doublets");
  //SafeDelete(hxy);
  //SafeDelete(htxty);
}

DrawEllipse()

void DrawEllipse	(	const EdbPattern &	ptag,
		int	col,
		float	tsize
	)

{
  int np = ptag.N();
  TText t(0,0,"a");
  for(int i=0; i<np; i++) {
    EdbSegP *s = ptag.GetSegment(i);
    TEllipse  *el = new TEllipse( s->X(), s->Y(), 300,300);
    el->SetFillStyle(0);
    el->SetLineColor(col);
    el->Draw();
    t.SetTextColor(col);
    t.SetTextSize(tsize);
    t.DrawText(s->X(), s->Y()+300, Form("%d",i) );
  }
}

DrawOut()

void DrawOut	(	const EdbPattern &	ptag,
		EdbMosaicIO &	omio
	)

{
  gROOT->SetBatch();
  TCanvas *c = new TCanvas(Form("peaks%d_%d_%d",p.Plate(), p.Side(), p.ID() ),
               Form("peaks%d_%d_%d",p.Plate(), p.Side(), p.ID() ),
               1100,600);
  c->Divide(2,1);
  c->cd(1)->SetGrid();
  gOH.xy->Draw("colz");
  gStyle->SetOptStat("n");
  DrawEllipse(p, kBlack, 0.02 );

  TVirtualPad *pad2 = c->cd(2);
  pad2->Divide(1,2);
  pad2->cd(1)->SetLogy();
  gOH.spectrOriginal->Draw();
  gOH.spectrSmooth->SetLineColor(2);
  gOH.spectrSmooth->Draw("same");
  gOH.spectrProc->SetLineColor(3);
  gOH.spectrProc->Draw("same");

  TVirtualPad *pdb = pad2->cd(2);
  pdb->Divide(2,1);
  pdb->cd(1);  gOH.dblxy->Draw("colz");
  gStyle->SetOptStat("n");
  pdb->cd(2);  gOH.dbltxty->Draw("colz");
  gStyle->SetOptStat("n");

  if(do_save_canvas) omio.SaveFragmentObj( c, p.Plate(), p.Side(), p.ID(), "peaks");
  if(do_save_gif) c->Print( omio.FileName( p.Brick(), p.Plate(), p.Side(), p.ID(), "", ".gif").c_str() );
  delete c;
}

FindPeaks()

void FindPeaks	(	EdbH2 &	h2p,
		EdbPattern &	ptag,
		int	npmax,
		float	minVol
	)

{
  EdbPeak2 pf(h2p);
  pf.InitPeaks(npmax);
  gOH.spectrOriginal = pf.DrawSpectrumN( Form("spO%d_%d_%d",ptag.Plate(), ptag.Side(), ptag.ID()),"original spectrum");
  pf.Smooth();
  gOH.xy     = pf.DrawH2N( Form("xy%d_%d_%d",ptag.Plate(), ptag.Side(), ptag.ID()),Form("plate:%d side:%d id:%d microtracks xy plot",ptag.Plate(), ptag.Side(), ptag.ID()));
  gOH.spectrSmooth = pf.DrawSpectrumN( Form("spS%d_%d_%d",ptag.Plate(), ptag.Side(), ptag.ID()),"smoothed spectrum");

  int ir[2] = {2,2};
  pf.ProbPeaks(npmax, ir);
  //pf.Print();
  for(int i=0; i<npmax; i++)
  {
    //printf( "peaks: %d  %f %f \n",i, pf.ePeak[i], pf.eMean3[i] );
    if( pf.ePeak[i] > minVol ) ptag.AddSegment( i, pf.eXpeak[i], pf.eYpeak[i],0,0, pf.ePeak[i] );
  }
  gOH.spectrProc = pf.DrawSpectrumN( Form("spP%d_%d_%d",ptag.Plate(), ptag.Side(), ptag.ID()),"processed spectrum");
}

Link()

void Link	(	EdbID	id,
		EdbPattern &	p1,
		EdbPattern &	p2,
		EdbPattern &	p0
	)

{
  EdbID idset=id; idset.ePlate=0;
  EdbScanProc sproc;
  sproc.eProcDirClient="..";
  EdbScanSet *ss = sproc.ReadScanSet(idset);
  EdbPlateP *plate = ss->GetPlate(id.ePlate);
  plate->ResetCorr();
  p1.SetZ( plate->GetLayer(1)->Z());
  p2.SetZ( plate->GetLayer(2)->Z());
  p1.SetSegmentsZ();
  p2.SetSegmentsZ();

  TEnv cenv;
  cenv.SetValue("fedra.link.Sigma0",  "100 100 0.1 0.1");
  cenv.SetValue("fedra.link.shr.ThetaLimits", "0.  1.");
  cenv.SetValue("fedra.link.DoCorrectAngles",      0);
  cenv.SetValue("fedra.link.DoCorrectShrinkage",   0);

  EdbLinking link;
  link.InitOutputFile( Form("p%3.3d/%d.%d.%d.%d.%d.tag.cp.root",
                id.ePlate, id.eBrick, id.ePlate, id.eMajor, id.eMinor, 0) );
  link.Link( p1, p2, *(plate->GetLayer(2)), *(plate->GetLayer(1)), cenv );
  link.GetFillPattern(p0);
  link.CloseOutputFile();
}

main()

int main	(	int	argc,
		char *	argv[]
	)

{
  if (argc < 2)   { print_help_message();  return 0; }

  TEnv cenv("mostagenv");
  gEDBDEBUGLEVEL     = cenv.GetValue("mostag.EdbDebugLevel" , 1);
  const char *env    = cenv.GetValue("mostag.env"            , "mostag.rootrc");
  const char *outdir = cenv.GetValue("mostag.outdir"         , "..");

  bool      do_single   = false;
  bool      do_set      = false;
  EdbID     id;
  int       from_fragment=0;
  int       n_fragments=0;

  for(int i=1; i<argc; i++ ) {
    char *key  = argv[i];

    if(!strncmp(key,"-set=",5))
    {
      if(strlen(key)>5) if(id.Set(key+5))   do_set=true;
    }
    else if(!strncmp(key,"-id=",4))
    {
      if(strlen(key)>4) if(id.Set(key+4))   do_single=true;
    }
    else if(!strncmp(key,"-from=",6))
    {
      if(strlen(key)>6) from_fragment = atoi(key+6);
    }
    else if(!strncmp(key,"-nfrag=",7))
    {
      if(strlen(key)>7) n_fragments = atoi(key+7);
    }
    else if(!strncmp(key,"-v=",3))
    {
      if(strlen(key)>3) gEDBDEBUGLEVEL = atoi(key+3);
    }
  }

  if(!(do_single||do_set))   { print_help_message(); return 0; }
  if(  do_single&&do_set )   { print_help_message(); return 0; }

  set_default(cenv);
  cenv.SetValue("mostag.env"            , env);
  cenv.ReadFile( cenv.GetValue("mostag.env"   , "mostag.rootrc") ,kEnvLocal);
  cenv.SetValue("mostag.outdir"         , outdir);

  EdbScanProc sproc;
  sproc.eProcDirClient = cenv.GetValue("mostag.outdir","..");
  cenv.WriteFile("mostag.save.rootrc");
  do_save_gif   = cenv.GetValue("fedra.tag.save_gif"            ,  false   );
  do_save_canvas = cenv.GetValue("fedra.tag.save_canvas"          ,  false   );
  nPatMin = cenv.GetValue("fedra.tag.nPatMin"          ,  1000 );

  printf("\n----------------------------------------------------------------------------\n");
  printf("mostag  %s\n"      ,id.AsString()    );
  printf(  "----------------------------------------------------------------------------\n\n");


  if(do_single)
  {
    EdbMosaicIO  mio;  //input
    EdbMosaicIO omio;  //output
    mio.Init( Form("p%3.3d/%d.%d.%d.%d.mos.root",
           id.ePlate, id.eBrick, id.ePlate, id.eMajor, id.eMinor) );
    omio.Init( Form("p%3.3d/%d.%d.%d.%d.tag.root",
            id.ePlate, id.eBrick, id.ePlate, id.eMajor, id.eMinor),"RECREATE");
    EdbPattern pat0,pat1,pat2;
    TagSide(id, pat1, from_fragment, n_fragments, 1, cenv, mio,omio);
    TagSide(id, pat2, from_fragment, n_fragments, 2, cenv, mio,omio);
    Link(id, pat1, pat2, pat0);
    omio.SaveFragmentObj( &pat1, id.ePlate, 1, 0, "gpat");
    omio.SaveFragmentObj( &pat2, id.ePlate, 2, 0, "gpat");
    omio.SaveFragmentObj( &pat0, id.ePlate, 0, 0, "gpat");
    Log(1,"mostag","save %d + %d => %d to %s",pat1.N(), pat2.N(), pat0.N(), omio.GetFileName() );
  }

  cenv.WriteFile("mostag.save.rootrc");
  return 1;
}

Pat2H2()

void Pat2H2	(	const EdbPattern &	p,
		EdbH2 &	h2p,
		float	thetaMin,
		float	thetaMax,
		float	bin
	)

{
  float xbin=bin, ybin=bin;
  float minx = p.Xmin();
  float maxx = p.Xmax();
  float miny = p.Ymin();
  float maxy = p.Ymax();
  int nx = (maxx-minx)/xbin;
  int ny = (maxy-miny)/ybin;

  h2p.InitH2(nx, minx, maxx, ny, miny, maxy);

  int n= p.N();
  for(int i=0; i<n; i++)
  {
    EdbSegP *s = p.GetSegment(i);
    if(s->Flag()>=0) {
      float t = Sqrt( s->TX()*s->TX() + s->TY()*s->TY() );
      if( t>=thetaMin && t<=thetaMax )
    h2p.Fill( s->X(),s->Y() );
    }
  }
}

print_help_message()

void print_help_message

(

)

{
  cout<< "\nUsage: \n";
  cout<< "\t  mostag  -id=ID  [-from=frag0 -nfrag=N -v=DEBUG] \n";

  cout<< "\t\t  ID    - id of the raw.root file formed as BRICK.PLATE.MAJOR.MINOR \n";
  cout<< "\t\t  frag0 - the first fragment (default: 0) \n";
  cout<< "\t\t  N     - number of fragments to be processed (default: upto 1000000, stop at first empty) \n";

  cout<< "\n If the data location directory if not explicitly defined\n";
  cout<< " the current directory will be assumed to be the brick directory \n";
  cout<< "\n If the parameters file (mostag.rootrc) is not presented - the default \n";
  cout<< " parameters will be used. After the execution them are saved into mostag.save.rootrc file\n";
  cout<<endl;
}

set_default()

void set_default

(

TEnv &

cenv

)

{
  // default parameters for showers tagging
  cenv.SetValue("fedra.tag.save_gif"         ,  false   );   // save gif with plots
  cenv.SetValue("fedra.tag.save_canvas"      ,  false   );   // save canvas objects into root file

  cenv.SetValue("fedra.tag.NPeaksMax"        , 40);                 // max number of peaks/fragment
  cenv.SetValue("fedra.tag.MinPeakVolume"    , 50.);                // depends on the bin size
  cenv.SetValue("fedra.tag.ThetaLimits"      , "0. 1.");            // use for tagging tracks in this limits
  cenv.SetValue("fedra.tag.Bin"              , 100 );               // bin size
  cenv.SetValue("fedra.tag.RemoveDoublets"   , "1    2. .01   1");  // yes/no   dr  dt  checkview(0,1,2)
  cenv.SetValue("fedra.tag.DumpDoubletsTree" , false );
  cenv.SetValue("fedra.tag.nPatMin"          , 1000 );              // min fragment to run tagging

  cenv.SetValue("mostag.outdir"          , "..");
  cenv.SetValue("mostag.env"             , "mostag.rootrc");
  cenv.SetValue("mostag.EdbDebugLevel"   , 1);
}

TagSide()

void TagSide	(	EdbID	id,
		EdbPattern &	pat,
		int	from,
		int	nfrag,
		int	side,
		TEnv &	cenv,
		EdbMosaicIO &	mio,
		EdbMosaicIO &	omio
	)

{
  float minVol = cenv.GetValue("fedra.tag.MinPeakVolume", 50.);
  int   npmax  = cenv.GetValue("fedra.tag.NPeaksMax", 40);
  float bin    = cenv.GetValue("fedra.tag.Bin" , 100);
  float thetaMin=0, thetaMax=1;
  const char *str = cenv.GetValue("fedra.tag.ThetaLimits" , "0.02 0.5");
  if(str) sscanf(str,"%f %f", &thetaMin,&thetaMax);
  Log(1,"TagSide","%d %d with bin= %.1f theta: (%.3f %.3f)  npmax=%d minVol=%.1f",
      nfrag, side, bin, thetaMin,thetaMax, npmax,minVol);

  EdbScanProc sproc;
  sproc.eProcDirClient="..";

  EdbID id0=id; id0.ePlate=0;
  EdbScanSet *ss = sproc.ReadScanSet(id0);
  EdbPlateP *plate = ss->GetPlate(id.ePlate);

  EdbLayer *mapside = mio.GetCorrMap( id.ePlate, side );
  int nc=mapside->Map().Ncell();
  if(from==0&&nfrag==0) nfrag=nc;

  for( int i=from; i<from+nfrag; i++ )
  {
    printf("i=%d\n",i);
    EdbPattern *p = mio.GetFragment( id.ePlate, side, i, true); // (plate,side,id)
    printf("n= %d\n",p->N());
    if(p) if(p->N()>nPatMin)
    {
      p->SetScanID(id);
      DoubletsFilterOut(*p, omio);

      EdbH2 h2p;
      Pat2H2(*p, h2p, thetaMin,thetaMax,bin);
      //printf("Integral = %d \n",h2p.Integral());
      //gOH.xy = h2p.DrawH2("h","original mt");
      //omio.SaveFragmentObj( gOH.xy,  p->Plate(), p->Side(), p->ID(), "hxy");

      EdbPattern ptag;      ptag.SetScanID(id); ptag.SetSide(side); ptag.SetID(i);

      FindPeaks(h2p,ptag, npmax, minVol);

      pat.AddPattern(ptag);
      Log(1,"TagSide","%d add fragment %d with %d peaks => %d", side, i, ptag.N(), pat.N() );

      gOH.xy->SetTitle(Form("%s theta:[%.3f,%.3f] bin=%.0f",gOH.xy->GetTitle(),thetaMin,thetaMax,bin));
      DrawOut(ptag,omio);
      SafeDelete(gOH.xy);
      SafeDelete(gOH.spectrOriginal);
      SafeDelete(gOH.spectrSmooth);
      SafeDelete(gOH.spectrProc);
      SafeDelete(gOH.dblxy);
      SafeDelete(gOH.dbltxty);
    }
    if(p) delete p;
  }
}

Variable Documentation

do_save_canvas

bool do_save_canvas =false

do_save_gif

bool do_save_gif =false

gOH

OutHist gOH = {0,0,0,0,0,0}

nPatMin

int nPatMin =0
