mosalignbeam.cpp File Reference

#include <string.h>
#include <iostream>
#include <TRint.h>
#include <TEnv.h>
#include <TChain.h>
#include <TList.h>
#include <TSystem.h>
#include "EdbLog.h"
#include "EdbRunAccess.h"
#include "EdbLinking.h"
#include "EdbScanProc.h"
#include "EdbPlateAlignment.h"
#include "EdbMosaic.h"
#include "EdbMosaicIO.h"
#include "EdbAttachPath.h"

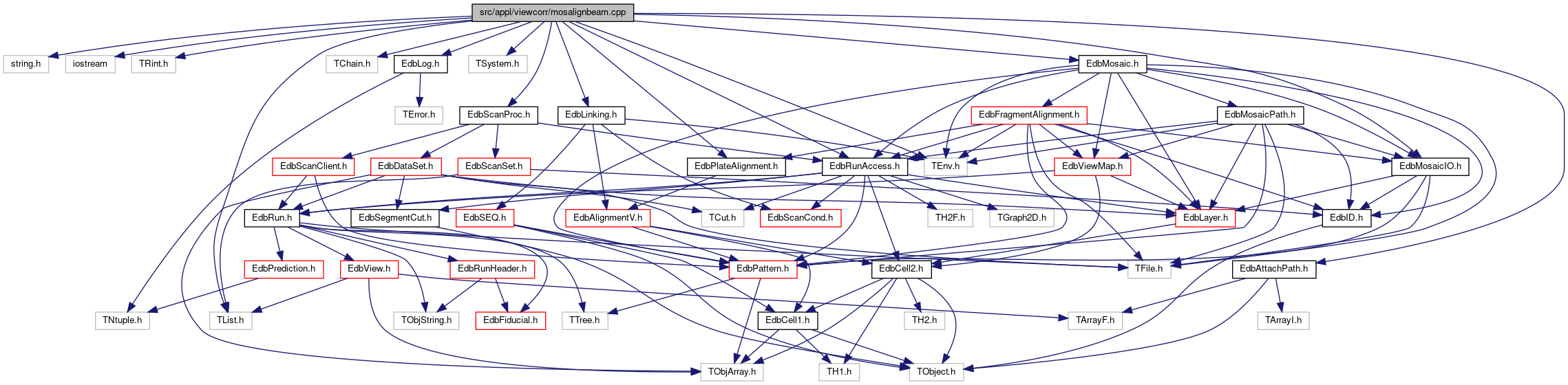

Include dependency graph for mosalignbeam.cpp:

Functions
bool	AlignFragmentToBeam0 (EdbPattern &p1, EdbPattern &p2, EdbLayer &l1, EdbLayer &l2, float offMax, int flag=0)
void	AlignToBeam (EdbID id, TEnv &env)
int	main (int argc, char *argv[])
void	print_help_message ()
void	set_default_link (TEnv &cenv)
void	TuneShrinkage (EdbPattern &p1, EdbPattern &p2, EdbLayer &l1, EdbLayer &l2, TEnv &env)

Variables
bool	do_make_ab0
bool	do_make_ab1
int	from_fragment =0
int	n_fragments =0

Function Documentation

AlignFragmentToBeam0()

bool AlignFragmentToBeam0	(	EdbPattern &	p1,
		EdbPattern &	p2,
		EdbLayer &	l1,
		EdbLayer &	l2,
		float	offMax,
		int	flag = 0
	)

{
  // Assume 0 angle beam here
  //
  bool success=false;
  int eMinPeak=100;
  bool do_transform = true;

  EdbPlateAlignment av;
  av.eNoScale     = 1;         // calculate shift and rotation
  av.eNoScaleRot  = 0;         // calculate shift only
  av.eOffsetMax   = offMax;
  av.eDZ          = 0.;
  av.eDPHI        = 0.0;
  av.eDoFine      = 1;
  if(do_make_ab0) av.eSaveCouples = 1;
  else            av.eSaveCouples = 0;
  av.SetSigma( 0.3, 0.025 );
  av.eDoublets[0] = av.eDoublets[1]=0.01;
  av.eDoublets[2] = av.eDoublets[3]=0.0001;
  av.eDoCorrectAngle = false;
  av.eSaveCouples=0;

  if(do_make_ab0)
    av.InitOutputFile( Form( "p%.3d/%d_%d.ab0.root", p1.ScanID().ePlate, p1.ID(), p2.ID() ) );
  av.Align( p1, p2, 0, flag); //-190
  EdbAffine2D *affXY = av.eCorrL[0].GetAffineXY();
  EdbAffine2D *affTXTY = av.eCorrL[0].GetAffineTXTY();

  float dtx1 = av.CalcMeanDiff2Const(2,0,0);
  float dty1 = av.CalcMeanDiff2Const(3,0,0);
  float dtx2 = av.CalcMeanDiff2Const(2,1,0);
  float dty2 = av.CalcMeanDiff2Const(3,1,0);

  EdbAffine2D aa1; aa1.ShiftX(-dtx1); aa1.ShiftY(-dty1);
  EdbAffine2D aa2; aa2.ShiftX(-dtx2); aa2.ShiftY(-dty2);

  //printf("\n angular offsets found: %f %f %f %f\n\n", dtx1,dty1,dtx2,dty2);

  if(av.eNcoins > eMinPeak )
  {
    if(do_transform) {
      p1.Transform( affXY );
      p1.TransformA( &aa1 );
      p2.TransformA( &aa2 );
    }
    l1.GetAffineXY()->Transform( affXY );
    l1.GetAffineTXTY()->Transform(aa1);
    l2.GetAffineTXTY()->Transform(aa2);
    success=true;
  }

  if(do_make_ab0) av.CloseOutputFile();
  return success;
}

AlignToBeam()

void AlignToBeam	(	EdbID	id,
		TEnv &	env
	)

{
  EdbMosaicIO mio;
  TString file;
  file.Form("p%3.3d/%d.%d.%d.%d.mos.root",
        id.ePlate, id.eBrick, id.ePlate, id.eMajor, id.eMinor);
  mio.Init( file.Data() );

  bool use_saved_alignment=true;

  EdbLayer *mapside1 = mio.GetCorrMap( id.ePlate, 1 );
  EdbLayer *mapside2 = mio.GetCorrMap( id.ePlate, 2 ); // align side 2 to side 1
  mapside1->SetZ( 97.5); // TODO take it from set.root
  mapside2->SetZ(-97.5);

  int first,last;
  int nc=mapside2->Map().Ncell();
  if(from_fragment==0&&n_fragments==0)
  {
    first=0;
    last=first+nc;
  } else
  {
    first=from_fragment;
    last=first+n_fragments;
  }
  Log(1,"mosalignbeam::AlignToBeam","with %d fragments [%d:%d] out of %d",
      last-first, first,last-1,nc);

  for( int i=first; i<last; i++ )
  {
    EdbLayer   *l1 = mapside1->Map().GetLayer(i);
    EdbLayer   *l2 = mapside2->Map().GetLayer(i);
    if(l1&&l2)
    {
      if(!use_saved_alignment)
      {
    l1->GetAffineXY()->Reset();
    l2->GetAffineXY()->Reset();
    l1->GetAffineTXTY()->Reset();
    l2->GetAffineTXTY()->Reset();
      }
      l1->SetZ( mapside1->Z() );   // base thickness is considered fixed...
      l2->SetZ( mapside2->Z() );
      EdbPattern *p1 = mio.GetFragment( id.ePlate, 1, i, use_saved_alignment ); //get side 1
      EdbPattern *p2 = mio.GetFragment( id.ePlate, 2, i, use_saved_alignment ); //get side 2
      if(p1&&p2)
      {
    p1->SetScanID(id);
    p2->SetScanID(id);
    p1->SetSegmentsFlag(0);
    p2->SetSegmentsFlag(0);
    Log(1,"mosalignbeam::AlignFragmentToBeam","fragment %d: %d & %d", p1->ID(), p1->N(),p2->N() );

    AlignFragmentToBeam0(*p2, *p1, *l2,*l1, 10  );  //align 2 to 1 using parallel beam tracks
    AlignFragmentToBeam0(*p2, *p1, *l2,*l1,  5  );  //align 2 to 1 using parallel beam tracks
    AlignFragmentToBeam0(*p2, *p1, *l2,*l1,  3, -10);  //align 2 to 1 using parallel beam tracks, exclude segs by flag

    TuneShrinkage(*p2, *p1, *l2,*l1, cenv); // shrinkage correction using non-beam tracks
      }
      SafeDelete(p1);
      SafeDelete(p2);
    }
  }
  mio.Close();
  if( !gSystem->AccessPathName(file.Data()) )
  {
    if( !gSystem->AccessPathName(file.Data(),kWritePermission ) )
    {
      mio.Init( file.Data(), "UPDATE" );
      mio.SaveCorrMap( id.ePlate, 1, *mapside1 );
      mio.SaveCorrMap( id.ePlate, 2, *mapside2 );
      mio.Close();
      Log(1,"mosalignbeam","%s maps saved into %s",id.AsString(),file.Data());
    } else Log(1,"mosalignbeam","Error: file %s is not writable!",file.Data());
  } else Log(1,"mosalignbeam","Error: file %s is not accessible!",file.Data());
}

main()

int main	(	int	argc,
		char *	argv[]
	)

{
  if (argc < 2)   { print_help_message();  return 0; }

  TEnv cenv("mosalignbeamenv");
  gEDBDEBUGLEVEL     = cenv.GetValue("mosalignbeam.EdbDebugLevel" , 1);
  const char *env    = cenv.GetValue("mosalignbeam.env"            , "mosalignbeam.rootrc");
  const char *outdir = cenv.GetValue("mosalignbeam.outdir"         , "..");

  bool      do_single   = false;
  bool      do_set      = false;
  bool      do_merge    = false;
  EdbID     id;

  for(int i=1; i<argc; i++ ) {
    char *key  = argv[i];

    if(!strncmp(key,"-set=",5))
    {
       if(strlen(key)>5) if(id.Set(key+5))   do_set=true;
    }
    else if(!strncmp(key,"-id=",4))
    {
      if(strlen(key)>4) if(id.Set(key+4))   do_single=true;
    }
    else if(!strncmp(key,"-from=",6))
    {
      if(strlen(key)>6) from_fragment = atoi(key+6);
    }
    else if(!strncmp(key,"-nfrag=",7))
    {
      if(strlen(key)>7) n_fragments = atoi(key+7);
    }
    else if(!strncmp(key,"-merge",6))
    {
      do_merge=true;
    }
    else if(!strncmp(key,"-v=",3))
    {
      if(strlen(key)>3) gEDBDEBUGLEVEL = atoi(key+3);
    }
  }

  if(!(do_single||do_set))   { print_help_message(); return 0; }
  if(  do_single&&do_set )   { print_help_message(); return 0; }

  set_default_link(cenv);
  cenv.SetValue("mosalignbeam.env"            , env);
  cenv.ReadFile( cenv.GetValue("mosalignbeam.env"   , "mosalignbeam.rootrc") ,kEnvLocal);
  cenv.SetValue("mosalignbeam.outdir"         , outdir);

  EdbScanProc sproc;
  sproc.eProcDirClient = cenv.GetValue("mosalignbeam.outdir","..");
  cenv.WriteFile("mosalignbeam.save.rootrc");

  printf("\n----------------------------------------------------------------------------\n");
  printf("mosalignbeam  %s\n"      ,id.AsString()      );
  printf(  "----------------------------------------------------------------------------\n\n");

  do_make_ab0 = cenv.GetValue("fedra.mosalignbeam.make_ab0",0);
  do_make_ab1 = cenv.GetValue("fedra.mosalignbeam.make_ab1",0);

  if(do_single)
  {
    AlignToBeam(id, cenv);
  }
  else if(do_set)
  {
    EdbScanSet *ss = sproc.ReadScanSet(id);
    if(ss) {
      int n = ss->eIDS.GetSize();
      for(int i=0; i<n; i++) {
    EdbID *id_pl   = ss->GetID(i);
    if(id_pl) AlignToBeam(*id_pl, cenv);
      }
    }
  }

  cenv.WriteFile("mosalignbeam.save.rootrc");
  return 1;
}

print_help_message()

void print_help_message

(

)

{
  cout<< "\nUsage: \n";
  cout<< "\t  mosalignbeam  -id=ID   [-from=frag0 -nfrag=N  -merge -v=DEBUG] \n";
  cout<< "\t  mosalignbeam  -set=ID  [-from=frag0 -nfrag=N  -merge -v=DEBUG] \n";

  cout<< "\t\t  ID    - id of the data piece or data set formed as BRICK.PLATE.MAJOR.MINOR \n";
  cout<< "\t\t  frag0 - the first fragment (default: 0) \n";
  cout<< "\t\t  N     - number of fragments to be processed (default: upto 1000000, stop at first empty) \n";
  cout<< "\t\t  merge - merge all fragments into one cp file \n";

  cout<< "\n If the data location directory if not explicitly defined\n";
  cout<< " the current directory will be assumed to be the brick directory \n";
  cout<< "\n If the parameters file (mosalignbeam.rootrc) is not presented - the default \n";
  cout<< " parameters will be used. After the execution them are saved into mosalignbeam.save.rootrc file\n";
  cout<<endl;
}

set_default_link()

void set_default_link

(

TEnv &

cenv

)

{
  // default parameters for the new linking


  cenv.SetValue("fedra.mosalignbeam.make_ab0"   ,  0   );   // produce debug output (beam)
  cenv.SetValue("fedra.mosalignbeam.make_ab1"   ,  0   );   // produce debig output (shrinkage)

  cenv.SetValue("fedra.link.AFID"                ,  1   );   // 1 is usually fine for scanned data; for the db-read data use 0!
  cenv.SetValue("fedra.link.DoImageCorr"         , 0  );
  cenv.SetValue("fedra.link.ImageCorrSide1"      , "1. 1. 0.");
  cenv.SetValue("fedra.link.ImageCorrSide2"      , "1. 1. 0.");
  cenv.SetValue("fedra.link.DoImageMatrixCorr"   , 0  );
  cenv.SetValue("fedra.link.ImageMatrixCorrSide1", "");
  cenv.SetValue("fedra.link.ImageMatrixCorrSide2", "");

  cenv.SetValue("fedra.link.CheckUpDownOffset"   ,  1   );   // check dXdY offsets between up and correspondent down views
  cenv.SetValue("fedra.link.BinOK"               ,  6.   );
  cenv.SetValue("fedra.link.NcorrMin"            , 100  );
  cenv.SetValue("fedra.link.DoCorrectShrinkage"  , true );
  cenv.SetValue("fedra.link.read.UseDensityAsW"  , false  );
  cenv.SetValue("fedra.link.RemoveDoublets"      , "1    2. .01   1");  //yes/no   dr  dt  checkview(0,1,2)
  cenv.SetValue("fedra.link.DumpDoubletsTree"    , true );
  cenv.SetValue("fedra.link.shr.NsigmaEQ"        , 7.5  );
  cenv.SetValue("fedra.link.shr.Shr0"            , .85  );
  cenv.SetValue("fedra.link.shr.DShr"            , .3   );
  cenv.SetValue("fedra.link.shr.ThetaLimits"     , "0.05  1." );
  cenv.SetValue("fedra.link.DoCorrectAngles"     , true );
  cenv.SetValue("fedra.link.ang.Chi2max"         , 1.5  );
  cenv.SetValue("fedra.link.DoFullLinking"       , false );
  cenv.SetValue("fedra.link.full.NsigmaEQ"       , 5.5  );
  cenv.SetValue("fedra.link.full.DR"             , 20.  );
  cenv.SetValue("fedra.link.full.DT"             , 0.1  );
  cenv.SetValue("fedra.link.full.CHI2Pmax"       , 3.   );
  cenv.SetValue("fedra.link.DoSaveCouples"       , false );
  cenv.SetValue("fedra.link.Sigma0"              , "1 1 0.007 0.007");
  cenv.SetValue("fedra.link.PulsRamp0"           , "6 9");
  cenv.SetValue("fedra.link.PulsRamp04"          , "6 9");
  cenv.SetValue("fedra.link.Degrad"              ,  5   );

  cenv.SetValue("fedra.link.LLfunction"     , "0.256336-0.16489*x+2.11098*x*x" );
  cenv.SetValue("fedra.link.CPRankingAlg"   , 0 );

  cenv.SetValue("emlink.reportfileformat"   , "pdf" );
  cenv.SetValue("emlink.outdir"          , "..");
  cenv.SetValue("emlink.env"             , "link.rootrc");
  cenv.SetValue("emlink.EdbDebugLevel"   , 1);
}

TuneShrinkage()

void TuneShrinkage	(	EdbPattern &	p1,
		EdbPattern &	p2,
		EdbLayer &	l1,
		EdbLayer &	l2,
		TEnv &	env
	)

{
  EdbLinking link;
  if(do_make_ab1)
  {
    link.InitOutputFile( Form( "p%.3d/%d_%d.ab1.root", p1.ScanID().ePlate, p1.ID(), p2.ID() ) );
  }
  else env.SetValue("fedra.link.DumpDoubletsTree"    , false );
  link.Link( p1, p2, l1, l2, env );
  l1.SetShrinkage( l1.Shr()*link.eL1.Shr() );
  l2.SetShrinkage( l2.Shr()*link.eL2.Shr() );
  Log(1,"mosalignbeam:TuneShrinkage","%f %f",l1.Shr(),l2.Shr());
  if(do_make_ab1) link.CloseOutputFile();
}

Variable Documentation

do_make_ab0

bool do_make_ab0

do_make_ab1

bool do_make_ab1

from_fragment

int from_fragment =0

n_fragments

int n_fragments =0
