EdbLinking Class Reference

microtracks linking in one plate More...

#include <EdbLinking.h>

Inheritance diagram for EdbLinking:

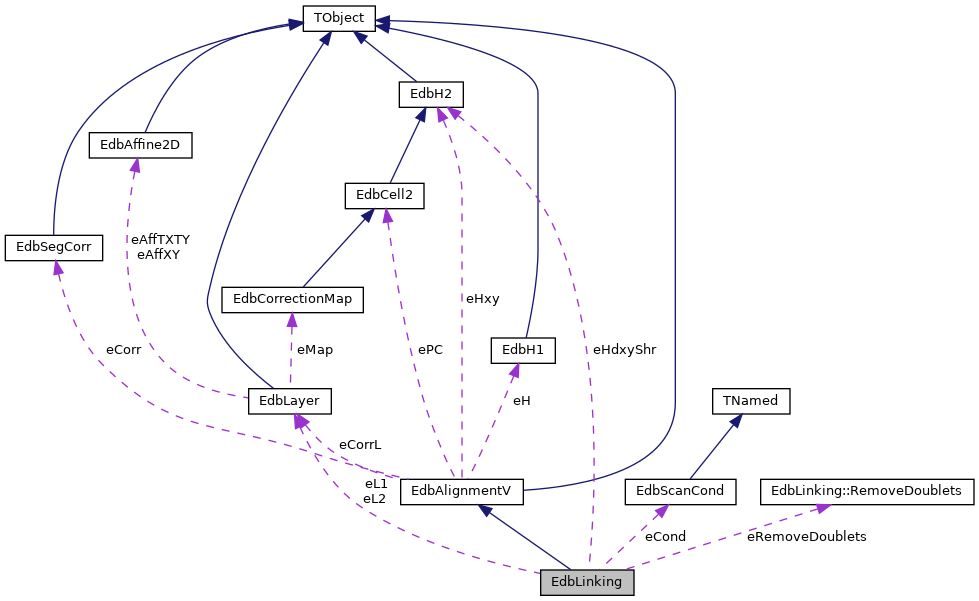

Collaboration diagram for EdbLinking:

Classes
struct	RemoveDoublets

Public Member Functions
void	CloneCouplesTree (const char *ifile, const char *ofile, EdbAffine2D *aff=0, TCut *cut=0)
void	CorrectAngles (TObjArray &p1, TObjArray &p2)
void	CorrectShrinkage (EdbPattern &p1, EdbPattern &p2, float dshr)
void	CorrectShrinkage (float dshr)
void	CorrectShrinkage (TObjArray &p1, TObjArray &p2, float dshr)
void	DoubletsFilterOut (TObjArray &p1, TObjArray &p2, bool fillhist=0)
void	DumpDoubletsTree (EdbAlignmentV &adup, const char *name)
	EdbLinking ()
Double_t	EstimatePatternArea (EdbPattern &p)
void	FillCombinationsAtMeanZ (TObjArray &p1, TObjArray &p2)
void	FullLinking (EdbPattern &p1, EdbPattern &p2)
void	FullLinking (TObjArray &p1, TObjArray &p2)
void	GetDoubletsPar (TEnv &env)
void	GetPar (TEnv &env)
void	GetPreselectionPar (EdbSEQ &seq, TEnv &env)
void	Link (EdbPattern &p1, EdbPattern &p2, EdbLayer &l1, EdbLayer &l2, TEnv &env, Double_t area1=-1, Double_t area2=-1)
void	ProduceReport ()
void	RankCouples (TObjArray &arr1, TObjArray &arr2)
void	SaveCouplesTree (const char *file=0)
void	SetApplyCorr (bool corr)
bool	VerifyShrinkageCorr (int side)
void	WriteShrinkagePlots ()
virtual	~EdbLinking ()
Public Member Functions inherited from EdbAlignmentV
void	AddSegCouple (EdbSegP *s1, EdbSegP *s2)
void	ApplyLimitsOffset (float &xmin1, float &xmax1, float &xmin2, float &xmax2, float offsetMax)
Int_t	CalcAffFull ()
Int_t	CalcApplyFractMeanDiff ()
Int_t	CalcApplyMeanDiff ()
Float_t	CalcFractMeanDiff (int ivar, float fraction)
Float_t	CalcMeanDiff (int ivar)
Float_t	CalcMeanDZ (float tmin=0.1, float tmax=2.)
Float_t	CalcMeanShr (float tmin=0.1, float tmax=2.)
Int_t	CalculateAffTXTY (EdbAffine2D &aff)
Int_t	CalculateAffTXTY (TObjArray &arr1, TObjArray &arr2, EdbAffine2D &aff)
Int_t	CalculateAffTXTYTurn (TObjArray &arr1, TObjArray &arr2, EdbAffine2D &aff)
Int_t	CalculateAffXY (EdbAffine2D &aff)
Int_t	CalculateAffXY (TObjArray &arr1, TObjArray &arr2, EdbAffine2D &aff)
Int_t	CalculateAffXYTurn (EdbAffine2D &aff)
Int_t	CalculateAffXYTurn (TObjArray &arr1, TObjArray &arr2, EdbAffine2D &aff)
void	CloseOutputFile ()
void	Corr2Aff (EdbLayer &layer)
void	Corr2Aff (EdbSegCorr &corr, EdbLayer &layer)
void	CorrToCoG (int side, EdbPattern &p)
	functions alpplied to the individual patterns More...
void	CorrToCoG (int side, TObjArray &p)
float	CoupleQuality (EdbSegP &s1, EdbSegP &s2)
void	DefineGuessCell (float xmin1, float xmax1, float ymin1, float ymax1, float xmin2, float xmax2, float ymin2, float ymax2, int np1, int np2, float binOK)
	Selector functions. More...
int	DoubletsFilterOut (int checkview, TH2F *hxy=0, TH2F *htxty=0)
	EdbAlignmentV ()
void	FillCell (int side, EdbPattern &pat)
void	FillCell (int side, TObjArray &pat)
int	FillCombinations ()
int	FillCombinations (float dv[4], float dxMax, float dyMax, bool doFill)
void	FillGuessCell (EdbPattern &p1, EdbPattern &p2, float binOK=1., float offsetMax=2000.)
void	FillGuessCell (TObjArray &p1, TObjArray &p2, float binOK=1., float offsetMax=2000.)
void	FillThetaHist (int side, EdbH2 &htxy)
Int_t	FindCorrDiff (float dvsame[4], int side=0, int nlim=10)
Float_t	FindDensityPeak (TArrayF &arr, float fraction)
Int_t	FindDiff (TObjArray &arr1, TObjArray &arr2, float dvlim[4], float dvfound[4])
float	FineCorrPhi (TObjArray &sel1, TObjArray &sel2)
float	FineCorrZ ()
float	FineCorrZ (TObjArray &sel1, TObjArray &sel2)
void	HDistance (EdbPattern &p1, EdbPattern &p2, float dxMax, float dyMax)
void	InitHphi (int n, float min, float max)
void	InitHshr0 (int n, float min, float max)
void	InitHshr1 (int n, float min, float max)
void	InitHx (int n, float min, float max)
void	InitHy (int n, float min, float max)
void	InitHz (int n, float min, float max)
void	InitOutputFile (const char *file="report_al.root", const char *option="RECREATE")
	IO, initialization and finalization functions. More...
void	InitPatCellBin (int side, EdbPattern &pat, float binx, float biny)
void	InitPatCellN (EdbCell2 &cell, EdbPattern &pat, int nx, int ny)
Bool_t	IsInsideDVsame (EdbSegP &s1, EdbSegP &s2)
Int_t	Ncoins (float dvlim[4], EdbH2 *hdxy=0, EdbH2 *hdtxty=0, TObjArray *sel1=0, TObjArray *sel2=0)
Int_t	Ncp ()
	Functions applied to the selected parallel arrays. More...
int	OptimiseVar1 (int side, int ivar, EdbH2 *hdxy=0, EdbH2 *hdtxy=0)
void	OptimiseVar2 (int side1, int ivar1, int side2, int ivar2, EdbH2 &h12, EdbH2 *hdxy=0, EdbH2 *hdtxty=0)
int	SelectBestCouple ()
int	SelectIsolated ()
Bool_t	SideOK (int side)
char *	StrDVsame () const
float	TX (int side, EdbSegP &s)
float	TY (int side, EdbSegP &s)
Bool_t	ValidCoinsidence (EdbSegP &s1, EdbSegP &s2, float dvlim[4], float dvfound[4])
float	Var (int side, EdbSegP &s, int ivar)
float	Var (int side, int iseg, int ivar)
float	X (int side, EdbSegP &s)
	Correction parameters handling. More...
float	Xmax (int side, EdbPattern &p)
float	Xmax (int side, TObjArray &p)
float	Xmin (int side, EdbPattern &p)
float	Xmin (int side, TObjArray &p)
float	Y (int side, EdbSegP &s)
float	Ymax (int side, EdbPattern &p)
float	Ymax (int side, TObjArray &p)
float	Ymin (int side, EdbPattern &p)
float	Ymin (int side, TObjArray &p)
virtual	~EdbAlignmentV ()

Public Attributes
float	eBinOK
	mean cell occupancy More...
float	eChi2Acorr
	acceptance to save into couples tree More...
float	eCHI2Pmax
	acceptance to save into couples tree More...
EdbScanCond	eCond
	scanning conditions for couples ranking More...
int	eCPRankingAlg
	couples ranking algorithm (0-default, 1-likelihood used) More...
bool	eDoCorrectAngles
bool	eDoCorrectShrinkage
bool	eDoDumpDoubletsTree
bool	eDoFullLinking
bool	eDoSaveCouples
float	eDRfull
float	eDShr
	range for the shrinkage correction More...
float	eDTfull
	acceptance for the full linking More...
EdbH2	eHdxyShr [2]
	service histograms used for the shrinkage correction More...
EdbLayer	eL1
EdbLayer	eL2
	layers with the geometry and corrections More...
int	eNcorrMin
	min number of segments for the correction calculation More...
int	eNshr [2]
	number of coins found for shrinkage correction More...
float	eNsigmaEQlnk
	equalization cut for linking More...
float	eNsigmaEQshr
	equalization cut for shrinkage More...
struct EdbLinking::RemoveDoublets	eRemoveDoublets
TObjArray	eSegCouples
	segment couples objects to fill couples format tree More...
float	eShr0
	starting value for shrinkage correction search More...
Public Attributes inherited from EdbAlignmentV
EdbSegCorr	eCorr [2]
	corrections for side 1 and 2 (v[7]) - the result of the alignment More...
EdbLayer	eCorrL [2]
	corrections in form of affine transformations - the final output More...
TH1I *	eDoubletsRate
	can be filled in FillCombinations() More...
Float_t	eDVsame [4]
	(dx,dy,dtx,dty) condition for the coinsidence More...
EdbH1	eH [2][7]
EdbH2	eHxy
	position 2d histo to be used in OptimiseVar2 More...
TFile *	eOutputFile
EdbCell2	ePC [2]
	2-d position cells with patterns segments More...
TObjArray	eS [2]
	"parallel" arrays with the selected combinations of segments More...
Bool_t	eUseAffCorr
	if "true" - use eCorrL for corrections More...
Float_t	eXmarg
Float_t	eYmarg
	margins for the cell definition More...

Additional Inherited Members
Static Public Member Functions inherited from EdbAlignmentV
static Int_t	CheckEqualArr (TObjArray &arr1, TObjArray &arr2)

Detailed Description

microtracks linking in one plate

Constructor & Destructor Documentation

EdbLinking()

EdbLinking::EdbLinking

(

)

{
}

~EdbLinking()

virtual EdbLinking::~EdbLinking ( )

inlinevirtual

{}

Member Function Documentation

CloneCouplesTree()

void EdbLinking::CloneCouplesTree	(	const char *	ifile,
		const char *	ofile,
		EdbAffine2D *	aff = 0,
		TCut *	cut = 0
	)

---

{
  //read tree using eCut, apply affine transformation if any and write tree
  EdbPattern pat, p1, p2;

  EdbCouplesTree ict;
  if(cut) ict.eCut = (*cut);
  ict.InitCouplesTree("couples",ifile,"READ");
  int n = ict.GetCPData(eSegCouples);
  ict.Close();

  if(aff) {
    for(int i=0; i<n; i++) {
      EdbSegCouple *sc = (EdbSegCouple*)(eSegCouples.UncheckedAt(i));
      if(sc->eS) sc->eS->Transform(aff);
      if(sc->eS) sc->eS1->Transform(aff);
      if(sc->eS) sc->eS2->Transform(aff);
    }
  }

  SaveCouplesTree(ofile);
}

CorrectAngles()

void EdbLinking::CorrectAngles	(	TObjArray &	p1,
		TObjArray &	p2
	)

{
    Log(2,"EdbLinking::CorrectAngles","arrays with %d and %d segments",p1.GetEntries(),p2.GetEntries());

    eCorr[0].SetV(2,0);  eCorr[1].SetV(2,0);
    RankCouples( eS[0], eS[1] );

    int nc=0;
    double dtx1=0, dty1=0,dtx2=0, dty2=0;
    int ncp = eSegCouples.GetEntries();
    for(int i=0; i<ncp; i++) {
      EdbSegCouple *sc = (EdbSegCouple*)(eSegCouples.At(i));
      if(sc->CHI2P()>eChi2Acorr) continue;
      dtx1+= TX( 0, *(sc->eS1) ) - sc->eS->TX();
      dty1+= TY( 0, *(sc->eS1) ) - sc->eS->TY();
      dtx2+= TX( 1, *(sc->eS2) ) - sc->eS->TX();
      dty2+= TY( 1, *(sc->eS2) ) - sc->eS->TY();
      nc++;
    }
    if(nc<eNcorrMin) {Log(1,"EdbLinking::CorrectAngles","Warning: number of the selected segments too small: %d < %d do not correct angles",
         nc,eNcorrMin); return;}

    float cc=1.8;
    dtx1 /= nc;  dty1 /= nc;  dtx2 /= nc;  dty2 /= nc;
    eCorr[0].AddV(3,-cc*dtx1);     eCorr[0].AddV(4,-cc*dty1);
    eCorr[1].AddV(3,-cc*dtx2);     eCorr[1].AddV(4,-cc*dty2);

    Log(2,"EdbLinking::CorrectAngles","using %d segments dx1,dy1:( %6.3f %6.3f )  dx2,dy2:( %6.3f %6.3f )",
    nc, dtx1*cc, dty1*cc, dtx2*cc, dty2*cc );
}

CorrectShrinkage() [1/3]

void EdbLinking::CorrectShrinkage	(	EdbPattern &	p1,
		EdbPattern &	p2,
		float	dshr
	)

{
  float dz = eL2.Z()-eL1.Z();
  Log(2,"EdbLinking::CorrectShrinkage","patterns with %d and %d segments and z1 = %f  z2 = %f",p1.N(),p2.N(),eL1.Z(),eL2.Z());
  if(p1.N()<1||p2.N()<1) return;
  //DoubletsFilterOut(p1,p2);
  eCorr[0].SetV(2,dz/2.);  eCorr[1].SetV(2, -dz/2.);
  FillGuessCell(p1,p2,eBinOK,0);

  CorrectShrinkage(dshr);
}

CorrectShrinkage() [2/3]

void EdbLinking::CorrectShrinkage

(

float

dshr

)

{
  EdbSegCorr c0 = eCorr[0], c1 = eCorr[1];  //save initial values
  float dz = eL2.Z()-eL1.Z();

  eDVsame[0] = eDVsame[1] = 50;  eDVsame[2] = eDVsame[3] = 0.03;
  InitHshr0(   25,  eCorr[0].V(5)/(1+dshr),   eCorr[0].V(5)*(1+dshr) );
  InitHshr1(   25,  eCorr[1].V(5)/(1+dshr),   eCorr[1].V(5)*(1+dshr) );

  eHdxyShr[0].InitH2(7, -35, 35, 7, -35, 35);
  eCorr[0].SetV(2,dz);  eCorr[1].SetV(2,   0);
  eNshr[0] = OptimiseVar1( 0, 5, &eHdxyShr[0] );              // variate shr1
  EdbSegCorr c0_opt = eCorr[0];

  eHdxyShr[1].InitH2(7, -35, 35, 7, -35, 35);
  eCorr[0]=c0;                                     // to remove the dependency on the correction order
  eCorr[0].SetV(2, 0);  eCorr[1].SetV(2, -dz);
  eNshr[1] = OptimiseVar1( 1, 5, &eHdxyShr[1]);               // variate shr2
  eCorr[0]=c0_opt;                                 // return to the optimized value

  Log(2,"EdbLinking::CorrectShrinkage","side1: %f (%f)   side2: %f (%f)", eCorr[0].V(5), c0.V(5), eCorr[1].V(5), c1.V(5) );
}

CorrectShrinkage() [3/3]

void EdbLinking::CorrectShrinkage	(	TObjArray &	p1,
		TObjArray &	p2,
		float	dshr
	)

{
  float dz = eL2.Z()-eL1.Z();
  int n1 = p1.GetEntries(), n2=p2.GetEntries();
  Log(2,"EdbLinking::CorrectShrinkage","arrays with %d and %d segments and z1 = %f  z2 = %f",n1,n2,eL1.Z(),eL2.Z());
  if(n1<1||n2<1) return;
  //DoubletsFilterOut(p1,p2);
  eCorr[0].SetV(2,dz/2.);  eCorr[1].SetV(2, -dz/2.);
  FillGuessCell(p1,p2,eBinOK,0);

  CorrectShrinkage(dshr);
}

DoubletsFilterOut()

void EdbLinking::DoubletsFilterOut	(	TObjArray &	p1,
		TObjArray &	p2,
		bool	fillhist = 0
	)

{
  TH2F *hxy1=0, *htxty1=0, *hxy2=0, *htxty2=0;
  if(fillhist)  {
    hxy1   = new TH2F("dblXY1","Doublets DX DY",50,-eRemoveDoublets.dr,eRemoveDoublets.dr,50,-eRemoveDoublets.dr,eRemoveDoublets.dr);
    htxty1 = new TH2F("dblTXTY1","Doublets DTX DTY",50,-eRemoveDoublets.dt,eRemoveDoublets.dt,50,-eRemoveDoublets.dt,eRemoveDoublets.dt);
    hxy2   = new TH2F("dblXY2","Doublets DX DY",50,-eRemoveDoublets.dr,eRemoveDoublets.dr,50,-eRemoveDoublets.dr,eRemoveDoublets.dr);
    htxty2 = new TH2F("dblTXTY2","Doublets DTX DTY",50,-eRemoveDoublets.dt,eRemoveDoublets.dt,50,-eRemoveDoublets.dt,eRemoveDoublets.dt);
  }
  EdbAlignmentV adup;
  adup.eDVsame[0]=adup.eDVsame[1]= eRemoveDoublets.dr;
  adup.eDVsame[2]=adup.eDVsame[3]= eRemoveDoublets.dt;

  adup.FillGuessCell(p1,p1,1.);
  adup.FillCombinations();
  adup.DoubletsFilterOut(eRemoveDoublets.checkview, hxy1, htxty1);   // assign flag -10 to the duplicated segments
  if(eDoDumpDoubletsTree) DumpDoubletsTree(adup,"doublets1");

  adup.FillGuessCell(p2,p2,1.);
  adup.FillCombinations();
  adup.DoubletsFilterOut(eRemoveDoublets.checkview, hxy2, htxty2);   // assign flag -10 to the duplicated segments
  if(eDoDumpDoubletsTree) DumpDoubletsTree(adup,"doublets2");

  if(hxy1)   hxy1->Write();
  if(hxy2)   hxy2->Write();
  if(htxty1) htxty1->Write();
  if(htxty2) htxty2->Write();
}

DumpDoubletsTree()

void EdbLinking::DumpDoubletsTree	(	EdbAlignmentV &	adup,
		const char *	name
	)

{
  EdbCouplesTree dup;
  dup.InitCouplesTree(name, 0 ,"RECREATE");
  int n=adup.CheckEqualArr(adup.eS[0],adup.eS[1]);
  for(int i=0; i<n; i++)
  {
    EdbSegP *s0 = (EdbSegP*)(adup.eS[0].At(i));
    EdbSegP *s1 = (EdbSegP*)(adup.eS[1].At(i));
    if( s0->Flag() ==-10)
      dup.Fill( s0, s1);
  }
  dup.WriteTree();
}

EstimatePatternArea()

Double_t EdbLinking::EstimatePatternArea

(

EdbPattern &

p

)

{
  return (p.Xmax()-p.Xmin())*(p.Ymax()-p.Ymin());
}

FillCombinationsAtMeanZ()

void EdbLinking::FillCombinationsAtMeanZ	(	TObjArray &	p1,
		TObjArray &	p2
	)

{
  float dz = eL2.Z()-eL1.Z();
  int n1 = p1.GetEntries(), n2=p2.GetEntries();
  if(n1<1||n2<1) return;
  eCorr[0].SetV(2,dz/2.);  eCorr[1].SetV(2, -dz/2.);
  FillGuessCell(p1,p2,eBinOK,0);
  float dvcomb[4] = {50,50, 0.1, 0.1};
  FillCombinations(dvcomb, 50,50, 1);
}

FullLinking() [1/2]

void EdbLinking::FullLinking	(	EdbPattern &	p1,
		EdbPattern &	p2
	)

{
    float z1 = eL1.Z(),  z2 = eL2.Z(),  dz = z2-z1;
    Log(2,"EdbLinking::FullLinking","patterns with %d and %d segments and z1 = %f  z2 = %f",p1.N(),p2.N(),z1,z2);

    float dvcomb[4] = {eDRfull,eDRfull, eDTfull, eDTfull};
    eCorr[0].SetV(2,dz/2.);  eCorr[1].SetV(2,   -dz/2.);
    FillGuessCell(p1,p2,eBinOK,0);
    FillCombinations(dvcomb, eDRfull,eDRfull, 1);
    eCorr[0].SetV(2,0);  eCorr[1].SetV(2, 0);
    RankCouples( eS[0], eS[1] );
    SaveCouplesTree();
}

FullLinking() [2/2]

void EdbLinking::FullLinking	(	TObjArray &	p1,
		TObjArray &	p2
	)

{
    float z1 = eL1.Z(),  z2 = eL2.Z(),  dz = z2-z1;
    Log(2,"EdbLinking::FullLinking","arrays with %d and %d segments and z1 = %f  z2 = %f",p1.GetEntries(),p2.GetEntries(),z1,z2);
    Log(2,"EdbLinking::FullLinking","segments z1 = %f  z2 = %f",((EdbSegP*)(p1.At(0)))->Z(),((EdbSegP*)(p2.At(0)))->Z());

    float dvcomb[4] = {eDRfull,eDRfull, eDTfull, eDTfull};
    eCorr[0].SetV(2,dz/2.);  eCorr[1].SetV(2,   -dz/2.);
    FillGuessCell(p1,p2,eBinOK,0);
    FillCombinations(dvcomb, eDRfull,eDRfull, 1);
    eCorr[0].SetV(2,0);  eCorr[1].SetV(2, 0);
    RankCouples( eS[0], eS[1] );
    SaveCouplesTree();
}

GetDoubletsPar()

void EdbLinking::GetDoubletsPar

(

TEnv &

env

)

{
  const char *str=env.GetValue("fedra.link.RemoveDoublets"      , "");
  if(str)
    if(sscanf(str,"%d %f %f %d",&(eRemoveDoublets.remove),&eRemoveDoublets.dr,&eRemoveDoublets.dt,&eRemoveDoublets.checkview) == 4) return;
  eRemoveDoublets.remove=0;
}

GetPar()

void EdbLinking::GetPar

(

TEnv &

env

)

{
  eBinOK               = env.GetValue("fedra.link.BinOK"              , 6. );

  eNcorrMin            = env.GetValue("fedra.link.NcorrMin"           , 50 );

  eDoCorrectShrinkage  = env.GetValue("fedra.link.DoCorrectShrinkage" , true );
  eNsigmaEQshr         = env.GetValue("fedra.link.shr.NsigmaEQ"        , 7. );
  eShr0                = env.GetValue("fedra.link.shr.Shr0"            , .9   );
  eDShr                = env.GetValue("fedra.link.shr.DShr"            , .25  );

  eDoCorrectAngles     = env.GetValue("fedra.link.DoCorrectAngles"    , true );
  eChi2Acorr           = env.GetValue("fedra.link.ang.Chi2max"        , 1.5   );

  eDoFullLinking       = env.GetValue("fedra.link.DoFullLinking"      , true );
  eNsigmaEQlnk         = env.GetValue("fedra.link.full.NsigmaEQ"        , 5. );
  eDRfull              = env.GetValue("fedra.link.full.DR"             , 30.  );
  eDTfull              = env.GetValue("fedra.link.full.DT"             , 0.1  );
  eCHI2Pmax            = env.GetValue("fedra.link.full.CHI2Pmax"       , 3.   );
  eCPRankingAlg        = env.GetValue("fedra.link.CPRankingAlg"        , 0   );

  eDoSaveCouples       = env.GetValue("fedra.link.DoSaveCouples"       , true );

  eDoDumpDoubletsTree  = env.GetValue("fedra.link.DumpDoubletsTree"    , false );

  eCond.SetSigma0(       env.GetValue("fedra.link.Sigma0"         , "1 1 0.013 0.013") );
  eCond.SetPulsRamp0(    env.GetValue("fedra.link.PulsRamp0"      , "6 9") );
  eCond.SetPulsRamp04(   env.GetValue("fedra.link.PulsRamp04"     , "6 9") );
  eCond.SetDegrad(       env.GetValue("fedra.link.Degrad"         , 5) );
  eCond.DefineLLFunction(  env.GetValue("fedra.link.LLfunction"         , "0.256336-0.16489*x+2.11098*x*x") );

  GetDoubletsPar(env);
}

GetPreselectionPar()

void EdbLinking::GetPreselectionPar	(	EdbSEQ &	seq,
		TEnv &	env
	)

{
  const char *str=0;
  float x1,x2;
  str=env.GetValue("fedra.link.shr.XLimits","");     if(str) if(sscanf(str,"%f %f",&x1,&x2) == 2)  seq.SetXLimits(x1,x2);
  str=env.GetValue("fedra.link.shr.YLimits","");     if(str) if(sscanf(str,"%f %f",&x1,&x2) == 2)  seq.SetYLimits(x1,x2);
  str=env.GetValue("fedra.link.shr.WLimits","");     if(str) if(sscanf(str,"%f %f",&x1,&x2) == 2)  seq.SetWLimits(x1,x2);
  str=env.GetValue("fedra.link.shr.ThetaLimits",""); if(str) if(sscanf(str,"%f %f",&x1,&x2) == 2)  seq.SetThetaLimits(x1,x2);
  str=env.GetValue("fedra.link.shr.ChiLimits","");   if(str) if(sscanf(str,"%f %f",&x1,&x2) == 2)  seq.SetChiLimits(x1,x2);
}

Link()

void EdbLinking::Link	(	EdbPattern &	p1,
		EdbPattern &	p2,
		EdbLayer &	l1,
		EdbLayer &	l2,
		TEnv &	env,
		Double_t	area1 = -1,
		Double_t	area2 = -1
	)

{
   // main linking function
  // Input: p1,p2 - patterns, l1,l2 layers, env - linking parameters

  Log(2,"EdbLinking::Link","patterns with %d and %d segments and z1 = %f  z2 = %f",p1.N(),p2.N(),l1.Z(),l2.Z());
  Log(2,"EdbLinking::Link","segments z1 = %f  z2 = %f",p1.GetSegment(0)->Z(),p2.GetSegment(0)->Z());

  GetPar(env);
  eL1 = l1;
  eL2 = l2;

  if(area1<=0) area1 = EstimatePatternArea(p1);
  if(area2<=0) area2 = EstimatePatternArea(p2);
  EdbSEQ seq1;  seq1.eArea = area1;
  EdbSEQ seq2;  seq2.eArea = area2;
  GetPreselectionPar(seq1,env);
  GetPreselectionPar(seq2,env);
  seq1.eNsigma=eNsigmaEQshr;
  seq2.eNsigma=eNsigmaEQshr;
  seq1.PrintLimits();

  TH1F *hTall1 = seq1.ThetaPlot(p1   , "hTall1","Theta plot all, side 1 "); hTall1->Write();
  TH1F *hTall2 = seq2.ThetaPlot(p2   , "hTall2","Theta plot all, side 2 "); hTall2->Write();

  TObjArray  p1pre(p1.N());  seq1.PreSelection(p1,p1pre);
  TObjArray  p2pre(p2.N());  seq2.PreSelection(p2,p2pre);
  Log(2,"EdbLinking::Link","after preselection: n1pre = %d  n2pre = %d", p1pre.GetEntries(),p2pre.GetEntries() );
  DoubletsFilterOut(p1pre,p2pre);

  TObjArray  p1shr,p2shr;

  if(eDoCorrectShrinkage || eDoCorrectAngles) {
    seq1.EqualizeMT(p1pre, p1shr, area1);
    TH1F *hTshr1 = seq1.ThetaPlot(p1shr, "hTshr1","Theta plot shr, side 1 "); hTshr1->Write();
    seq1.eHEq.DrawH1("eHEq1","eHEq1")->Write();

    seq2.EqualizeMT(p2pre, p2shr, area2);
    TH1F *hTshr2 = seq2.ThetaPlot(p2shr, "hTshr2","Theta plot shr, side 2 "); hTshr2->Write();
    seq2.eHEq.DrawH1("eHEq2","eHEq2")->Write();

    //    DoubletsFilterOut(p1shr,p2shr);
    FillCombinationsAtMeanZ(p1shr,p2shr);
    Log(2,"EdbLinking::Link","A n1shr = %d  n2shr = %d", p1shr.GetEntries(),p2shr.GetEntries() );
  }
  if(eDoCorrectShrinkage) {
    eCorr[0].SetV(5,eShr0);
    eCorr[1].SetV(5,eShr0);
    CorrectShrinkage( eDShr );
    CorrectShrinkage( eDShr*0.8 );
    eDoCorrectShrinkage = VerifyShrinkageCorr(0) * VerifyShrinkageCorr(1);
  }
  if(eDoCorrectAngles)    CorrectAngles( p1shr,p2shr );
  if(eDoCorrectAngles)    CorrectAngles( p1shr,p2shr );
  if(eDoCorrectShrinkage) {
    CorrectShrinkage(  eDShr*0.5 );
    CorrectShrinkage(  eDShr*0.5 );
    CorrectShrinkage(  eDShr*0.5 );
    WriteShrinkagePlots();
  }
  if(eDoCorrectAngles)    CorrectAngles( p1shr,p2shr );
  if(eDoCorrectAngles)    CorrectAngles( p1shr,p2shr );
  if(eDoCorrectShrinkage || eDoCorrectAngles) {
    ePC[0].DrawH2("hxy_shr1","xy for the shrinkage corr sample side 1")->Write();
    ePC[1].DrawH2("hxy_shr2","xy for the shrinkage corr sample side 2")->Write();
    EdbH2 htxy1(50,-1,1,50,-1,1);
    FillThetaHist(0,htxy1);
    htxy1.DrawH2("htxy_shr1","txy plot for shr corr sample side 1");
    EdbH2 htxy2(50,-1,1,50,-1,1);
    FillThetaHist(0,htxy2);
    htxy2.DrawH2("htxy_shr2","txy plot for shr corr sample side 2");
  }

  eCorr[0].Write("corr1");
  eCorr[1].Write("corr2");

  if(eDoFullLinking)   {
    TObjArray p1lnk(p1pre.GetEntriesFast());
    TObjArray p2lnk(p2pre.GetEntriesFast());
    if(eNsigmaEQlnk>0.1) {
      seq1.eNsigma = eNsigmaEQlnk;
      seq2.eNsigma = eNsigmaEQlnk;
      seq1.EqualizeMT(p1pre, p1lnk, area1);
      seq2.EqualizeMT(p2pre, p2lnk, area2);
    } else {
      p1lnk=p1pre;
      p2lnk=p2pre;
    }
    //    DoubletsFilterOut(p1lnk,p2lnk, 1);

    TH1F *hTlnk1 = seq1.ThetaPlot(p1lnk, "hTlnk1","Theta plot lnk, side 1 "); hTlnk1->Write();
    TH1F *hTlnk2 = seq2.ThetaPlot(p2lnk, "hTlnk2","Theta plot lnk, side 2 "); hTlnk2->Write();

    FullLinking(p1lnk,p2lnk);
    ePC[0].DrawH2("hxy_full1","xy full 1")->Write();
    ePC[1].DrawH2("hxy_full2","xy full 2")->Write();
  }

  ProduceReport();
  Corr2Aff(eCorr[0],eL1);
  Corr2Aff(eCorr[1],eL2);
  //eL1.Print();                     // layers with the corrections
  //eL2.Print();
}

ProduceReport()

void EdbLinking::ProduceReport

(

)

{
  if(eOutputFile) {
    Log(2,"Linking Report","Save to file %s", eOutputFile->GetName());
    gStyle->SetPalette(1);
    gStyle->SetOptStat(1);
    bool batch = gROOT->IsBatch();
    gROOT->SetBatch();

    TH1F *h1=0;    TH2F *h2=0;

    gStyle->SetOptDate(1);
    TCanvas *crep1 = new TCanvas("crep1","Linking report2",900,1000);

    TPaveText *ctit = new TPaveText(0.01,0.943,0.99,0.998);
    ctit->AddText( Form("Linking of  %s",eOutputFile->GetName()) );

    if(eDoCorrectShrinkage) {
      float dx,dy;
      EdbPeak2 pk_shr1(eHdxyShr[0]);
      pk_shr1.ProbPeak( dx, dy );
      EdbPeak2 pk_shr2(eHdxyShr[1]);
      pk_shr2.ProbPeak( dx, dy );
      const char *str = Form( "Shrinkage side1 is  %5.3f with peak of  %5.0f/%6.1f      side2 is  %5.3f with peak of %5.0f/%6.1f ",
                              eCorr[0].V(5),pk_shr1.Peak(0), pk_shr1.Mean(0),
                              eCorr[1].V(5),pk_shr2.Peak(0), pk_shr2.Mean(0));
      Log(1,"Shrinkage corr:","%s", str);
      ctit->AddText(str);
    }
    if(eDoCorrectAngles) {
     ctit->AddText( Form("angular offsets: side1  %6.3f %6.3f   side2 %6.3f %6.3f",
                         eCorr[0].V(3),eCorr[0].V(4), eCorr[1].V(3), eCorr[1].V(4) ));
    }
    ctit->Draw();

    TPad *c = new TPad("c","plots",0.01,0.03,0.99,0.94);
    c->Divide(4,4);    c->Draw();

    float densAll=0,densShr=0, densLnk=0;

    h2 = (TH2F*)eOutputFile->Get("hxy_shr1");
    if(!h2) h2 = (TH2F*)eOutputFile->Get("hxy_full1");
    if(h2) {c->cd(1); h2->SetStats(0); h2->Draw("colz"); h2=0;}

    h2 = (TH2F*)eOutputFile->Get("hxy_shr2");
    if(!h2) h2 = (TH2F*)eOutputFile->Get("hxy_full2");
    if(h2) {c->cd(2); h2->SetStats(0); h2->Draw("colz"); h2=0;}

    h1 = (TH1F*)eOutputFile->Get("hTall1");      if(h1) {c->cd(3);  h1->Draw(); densAll=h1->Integral();h1=0;}
    h1 = (TH1F*)eOutputFile->Get("hTshr1");      if(h1) {c->cd(3);  h1->Draw("same"); densShr=h1->Integral(); h1=0;}
    h1 = (TH1F*)eOutputFile->Get("hTlnk1");      if(h1) {c->cd(3);  h1->Draw("same"); densLnk=h1->Integral(); h1=0;}
    c->cd(3);
    TPaveText *lable1 = new TPaveText(0.2,0.6,0.6,0.8,"NDC");
    lable1->AddText(Form("all: %7.0f",densAll));
    lable1->AddText(Form("shr: %7.0f",densShr));
    lable1->AddText(Form("lnk: %7.0f",densLnk));
    lable1->Draw();
    h1 = (TH1F*)eOutputFile->Get("hTall2");      if(h1) {c->cd(4);  h1->Draw(); densAll=h1->Integral(); h1=0;}
    h1 = (TH1F*)eOutputFile->Get("hTshr2");      if(h1) {c->cd(4);  h1->Draw("same"); densShr=h1->Integral(); h1=0;}
    h1 = (TH1F*)eOutputFile->Get("hTlnk2");      if(h1) {c->cd(4);  h1->Draw("same"); densLnk=h1->Integral(); h1=0;}
    c->cd(4);
    TPaveText *lable2 = new TPaveText(0.2,0.6,0.6,0.8,"NDC");
    lable2->AddText(Form("all: %7.0f",densAll));
    lable2->AddText(Form("shr: %7.0f",densShr));
    lable2->AddText(Form("lnk: %7.0f",densLnk));
    lable2->Draw();

    h2 = (TH2F*)eOutputFile->Get("hdxy_shr");  if(h2) {c->cd(5);  h2->SetStats(0); h2->Draw("colz"); h2=0;}
    h2 = (TH2F*)eOutputFile->Get("htxy_shr");  if(h2) {c->cd(6);  h2->SetStats(0); h2->Draw("colz"); h2=0;}
    h1 = (TH1F*)eOutputFile->Get("shr1");      if(h1) {c->cd(7);  h1->Draw("hist"); h1=0;}
    h1 = (TH1F*)eOutputFile->Get("shr2");      if(h1) {c->cd(8);  h1->Draw("hist"); h1=0;}

    h1 = (TH1F*)eOutputFile->Get("hdtx1");     if(h1) {c->cd(9);  h1->Draw(); h1=0;}
    h1 = (TH1F*)eOutputFile->Get("hdty1");     if(h1) {c->cd(10); h1->Draw(); h1=0;}
    h1 = (TH1F*)eOutputFile->Get("hdtx2");     if(h1) {c->cd(11); h1->Draw(); h1=0;}
    h1 = (TH1F*)eOutputFile->Get("hdty2");     if(h1) {c->cd(12); h1->Draw(); h1=0;}

    h2 = (TH2F*)eOutputFile->Get("hxy_cp");    if(h2) {c->cd(13); h2->SetStats(0); h2->Draw("colz"); h2=0;}
    h2 = (TH2F*)eOutputFile->Get("htxy_cp");   if(h2) {c->cd(14); h2->SetStats(0); h2->Draw("colz"); h2=0;}
    h1 = (TH1F*)eOutputFile->Get("hchi");      if(h1) {c->cd(15); h1->Draw(); h1=0;}
    h1 = (TH1F*)eOutputFile->Get("hchi20");    if(h1) {c->cd(16); h1->Draw(); h1=0;}

    crep1->Write("report");
    SafeDelete(crep1);
    gROOT->SetBatch(batch);
  }
}

RankCouples()

void EdbLinking::RankCouples	(	TObjArray &	arr1,
		TObjArray &	arr2
	)

{
  int n = arr1.GetEntries();
  Log(3,"RankCouples","%d" ,n);

  EdbTrackFitter tf;
  eSegCouples.Delete();
  EdbSegP seg, seg1, seg2;
  for(int i=0; i<n; i++) {
    EdbSegP *s1 = ((EdbSegP*)arr1.UncheckedAt(i));
    EdbSegP *s2 = ((EdbSegP*)arr2.UncheckedAt(i));

    seg.Copy(*s1);   // to set correctly vid, aid, etc
    seg1.Copy(*s1);
    seg2.Copy(*s2);

    eCorr[0].ApplyCorrections(seg1);
    eCorr[1].ApplyCorrections(seg2);

    //tf.Chi2SegM( *s1, *s2, seg, cond1, cond2);
    //seg.SetChi2( tf.Chi2ACP( *s1, *s2, cond1) );   //TODO test!!
    if(eCPRankingAlg==1) tf.Chi2ASegLL( seg1, seg2, seg, eCond, eCond);
    else tf.Chi2ASeg( seg1, seg2, seg, eCond, eCond);

    if(seg.Chi2() > eCHI2Pmax)  continue;

    s1->SetFlag(0);
    s2->SetFlag(0);
    seg.SetFlag(0);
    seg.SetSide(0);
    seg.SetVolume(seg1.Volume()+seg2.Volume());
    seg.SetDZ( Abs(seg1.eZ - seg2.eZ) );

    seg.SetDZem( seg1.Chi2() + seg2.Chi2() );    // HACK: use eDZem variable to keep microtracking Likelihood

    EdbSegCouple *sc=new EdbSegCouple();
    sc->eS1=s1;
    sc->eS2=s2;
    sc->eS = new EdbSegP(seg);
    sc->SetCHI2P( seg.Chi2() );
    eSegCouples.Add(sc);
  }

  EdbSegCouple::SetSortFlag(0);    // sort by CHI2P
  eSegCouples.UnSort();
  eSegCouples.Sort();

  int ncp = eSegCouples.GetEntries();

  for(int i=0; i<ncp; i++) {
    EdbSegCouple *sc = (EdbSegCouple*)(eSegCouples.UncheckedAt(i));
    sc->eS1->SetFlag( sc->eS1->Flag()+1 );
    sc->eS2->SetFlag( sc->eS2->Flag()+1 );
    sc->SetN1(sc->eS1->Flag());
    sc->SetN2(sc->eS2->Flag());
  }

  for(int i=0; i<ncp; i++) {
    EdbSegCouple *sc = (EdbSegCouple*)(eSegCouples.UncheckedAt(i));
    sc->SetN1tot(sc->eS1->Flag());
    sc->SetN2tot(sc->eS2->Flag());
  }

  Log(2,"RankCouples","%d couples ok", ncp );
}

SaveCouplesTree()

void EdbLinking::SaveCouplesTree

(

const char *

file = 0

)

{
  EdbCouplesTree ect;
  ect.InitCouplesTree("couples",file,"NEW");

  ect.eTree->SetAlias("dz1"  ,"107.");
  ect.eTree->SetAlias("dz2"  ,"-107.");
  ect.eTree->SetAlias("x1"   ,"s1.eX+dz1*s1.eTX");
  ect.eTree->SetAlias("x2"   ,"s2.eX+dz2*s2.eTX");
  ect.eTree->SetAlias("y1"   ,"s1.eY+dz1*s1.eTY");
  ect.eTree->SetAlias("y2"   ,"s2.eY+dz2*s2.eTY");
  ect.eTree->SetAlias("tx1c" , Form("s1.eTX/(%f)+(%f)",eCorr[0].V(5),eCorr[0].V(3)) );
  ect.eTree->SetAlias("ty1c" , Form("s1.eTY/(%f)+(%f)",eCorr[0].V(5),eCorr[0].V(4)) );
  ect.eTree->SetAlias("tx2c" , Form("s2.eTX/(%f)+(%f)",eCorr[1].V(5),eCorr[1].V(3)) );
  ect.eTree->SetAlias("ty2c" , Form("s2.eTY/(%f)+(%f)",eCorr[1].V(5),eCorr[1].V(4)) );
  ect.eTree->SetAlias("x1c"  , "s1.eX+dz1*tx1c" );
  ect.eTree->SetAlias("y1c"  , "s1.eY+dz1*ty1c" );
  ect.eTree->SetAlias("x2c"  , "s2.eX+dz2*tx2c" );
  ect.eTree->SetAlias("y2c"  , "s2.eY+dz2*ty2c" );
  ect.eTree->SetAlias("dx"   , "x2c-x1c" );
  ect.eTree->SetAlias("dy"   , "y2c-y1c" );
  ect.eTree->SetAlias("dtx"  , "tx2c-tx1c" );
  ect.eTree->SetAlias("dty"  , "ty2c-ty1c" );
  ect.eTree->SetAlias("dr"   , "sqrt(dx*dx+dy*dy)" );
  ect.eTree->SetAlias("dt"   , "sqrt(dtx*dtx+dty*dty)" );

  EdbH2 hxy; hxy.InitH2(ePC[0]);
  TH2F htxy("htxy_cp","s.eTY vs s.eTX for all couples",50,-1,1,50,-1,1);

  TH1F  hchi("hchi"  ,"chi of the couples",80,0,4);
  TH1F  hchi20("hchi20","chi of the couples [s.eW>20]",80,0,4);
  TH1F  hdtx1("hdtx1","s1.eTX-s.eTX [s.eW>20]",50,-0.2,0.2);
  TH1F  hdty1("hdty1","s1.eTY-s.eTY [s.eW>20]",50,-0.2,0.2);
  TH1F  hdtx2("hdtx2","s2.eTX-s.eTX [s.eW>20]",50,-0.2,0.2);
  TH1F  hdty2("hdty2","s2.eTY-s.eTY [s.eW>20]",50,-0.2,0.2);

  int ntr = eSegCouples.GetEntries();
  for(int i=0; i<ntr; i++) {
    EdbSegCouple *sc = (EdbSegCouple *)eSegCouples.At(i);
    eCorr[0].ApplyCorrections( *(sc->eS1) );
    eCorr[1].ApplyCorrections( *(sc->eS2) );
    hxy.Fill(sc->eS->X(), sc->eS->Y());
    htxy.Fill(sc->eS->TX(), sc->eS->TY());
    hchi.Fill(sc->CHI2P());
    if(sc->eS->W()>20) {
      hchi20.Fill(sc->CHI2P());
      hdtx1.Fill(sc->eS1->TX()-sc->eS->TX());
      hdty1.Fill(sc->eS1->TY()-sc->eS->TY());
      hdtx2.Fill(sc->eS2->TX()-sc->eS->TX());
      hdty2.Fill(sc->eS2->TY()-sc->eS->TY());
    }
    //s->SetID(i);             // basetrack id will be the tree entry number
    int entr  = ect.eTree->GetEntries();
    sc->eS->SetID(entr);             // basetrack id will be the tree entry number
    EdbTraceBack::SetBaseTrackVid( *(sc->eS), 0, 0, entr );   //TODO: plate, piece if available
    ect.Fill( sc->eS1, sc->eS2, sc->eS, sc );
  }
  ect.eTree->Write();
  hxy.DrawH2("hxy_cp","xy of the output couples")->Write();
  htxy.Write();
  hchi.Write();
  hchi20.Write();
  hdtx1.Write();
  hdtx2.Write();
  hdty1.Write();
  hdty2.Write();
  Log(2,"EdbLinking::SaveCouplesTree","%d couples are stored into %s",ntr, ect.GetFileName() );
}

SetApplyCorr()

void EdbLinking::SetApplyCorr ( bool  corr )

inline

{eCorr[0].eApplyCorr=corr;eCorr[1].eApplyCorr=corr;eCorr[2].eApplyCorr=corr;}

VerifyShrinkageCorr()

bool EdbLinking::VerifyShrinkageCorr

(

int

side

)

{
  if( eCorr[side].V(5) > eShr0*(1+eDShr) ||  eCorr[side].V(5)< eShr0/(1+eDShr) ) {
      Log(1,"EdbLinking::Link","Shrinkage correction side %d out of range: %f [%f %f] reset shrinkage to default: %f",
             side, eCorr[side].V(5), eShr0/(1+eDShr), eShr0*(1+eDShr), eShr0 );
      eCorr[side].SetV(5,eShr0);
      return  false;
  }
  if(eNshr[side]<eNcorrMin) {
     Log(1,"EdbLinking::Link","Shrinkage correction side %d not enough coins: %d < %d reset shrinkage to default: %f",
            side, eNshr[side],eNcorrMin,eShr0 );
     eCorr[side].SetV(5,eShr0);
     return false;
   }

  return true;
}

WriteShrinkagePlots()

void EdbLinking::WriteShrinkagePlots

(

)

{
  eH[0][5].DrawH1("shr1")->Write();
  eH[1][5].DrawH1("shr2")->Write();

  float dz = eL2.Z()-eL1.Z();
  float dvcomb[4] = {50,50, 0.03, 0.03};
  EdbH2 hdxy; hdxy.InitH2(25, -50, 50, 25, -50, 50);
  eCorr[0].SetV(2, dz/2.);  eCorr[1].SetV(2, -dz/2.);
  Int_t nc = Ncoins(dvcomb, &hdxy );
  hdxy.DrawH2("hdxy_shr","DY vs DX at the same Z for shrinkage correction sample")->Write();

  EdbH2 htxy; htxy.InitH2(35, -0.175, 0.175, 35, -0.175, 0.175);
  dvcomb[0]=dvcomb[1]=9;
  dvcomb[2]=dvcomb[3]=0.15;
  nc = Ncoins(dvcomb, 0, &htxy );
  htxy.DrawH2("htxy_shr","s2.eTY-s1.eTY vs s2.eTX-s1.eTX for shrinkage correction sample")->Write();
}

Member Data Documentation

eBinOK

float EdbLinking::eBinOK

mean cell occupancy

eChi2Acorr

float EdbLinking::eChi2Acorr

acceptance to save into couples tree

eCHI2Pmax

float EdbLinking::eCHI2Pmax

acceptance to save into couples tree

eCond

EdbScanCond EdbLinking::eCond

scanning conditions for couples ranking

eCPRankingAlg

int EdbLinking::eCPRankingAlg

couples ranking algorithm (0-default, 1-likelihood used)

eDoCorrectAngles

bool EdbLinking::eDoCorrectAngles

eDoCorrectShrinkage

bool EdbLinking::eDoCorrectShrinkage

eDoDumpDoubletsTree

bool EdbLinking::eDoDumpDoubletsTree

eDoFullLinking

bool EdbLinking::eDoFullLinking

eDoSaveCouples

bool EdbLinking::eDoSaveCouples

eDRfull

float EdbLinking::eDRfull

eDShr

float EdbLinking::eDShr

range for the shrinkage correction

eDTfull

float EdbLinking::eDTfull

acceptance for the full linking

eHdxyShr

EdbH2 EdbLinking::eHdxyShr[2]

service histograms used for the shrinkage correction

eL1

EdbLayer EdbLinking::eL1

eL2

EdbLayer EdbLinking::eL2

layers with the geometry and corrections

eNcorrMin

int EdbLinking::eNcorrMin

min number of segments for the correction calculation

eNshr

int EdbLinking::eNshr[2]

number of coins found for shrinkage correction

eNsigmaEQlnk

float EdbLinking::eNsigmaEQlnk

equalization cut for linking

eNsigmaEQshr

float EdbLinking::eNsigmaEQshr

equalization cut for shrinkage

eRemoveDoublets

struct EdbLinking::RemoveDoublets EdbLinking::eRemoveDoublets

eSegCouples

TObjArray EdbLinking::eSegCouples

segment couples objects to fill couples format tree

eShr0

float EdbLinking::eShr0

starting value for shrinkage correction search

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libAlignment/EdbLinking.h
• /home/antonio/fedra_doxygen/src/libAlignment/EdbLinking.cxx
