EdbPlateP Class Reference

#include <EdbBrick.h>

Inheritance diagram for EdbPlateP:

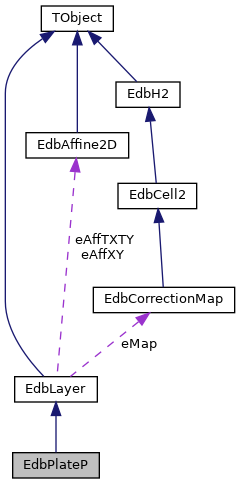

Collaboration diagram for EdbPlateP:

Public Member Functions
void	Copy (EdbPlateP &p)
	EdbPlateP ()
	EdbPlateP (EdbPlateP &pp)
EdbLayer *	GetLayer (int i)
void	Print ()
void	PrintPlateLayout ()
void	SetDXDY (float dx, float dy)
void	SetOperaLayout ()
void	SetPlateLayout (float z0, float z1, float z2)
void	TransformSidesIntoPlateRS ()
	~EdbPlateP ()
Public Member Functions inherited from EdbLayer
const EdbAffine2D *	AffineTXTY () const
const EdbAffine2D *	AffineXY () const
void	ApplyCorrections (EdbLayer &la)
void	ApplyCorrections (float shr, float zcorr, const EdbAffine2D &affxy, const EdbAffine2D &afftxty)
void	ApplyCorrectionsLocal (EdbCorrectionMap &map)
void	Copy (const EdbLayer &l)
void	CopyCorr (const EdbLayer &l)
void	CorrectSeg (EdbSegP &s)
void	CorrectSegLocal (EdbSegP &s)
float	DX () const
float	DY () const
float	DZ () const
	EdbLayer ()
	============================================================================== More...
	EdbLayer (const EdbLayer &l)
	============================================================================== More...
EdbAffine2D *	GetAffineTXTY ()
EdbAffine2D *	GetAffineXY ()
int	ID () const
void	Invert ()
bool	IsInside (float x, float y)
bool	IsInside (float x, float y, float z)
EdbCorrectionMap &	Map ()
int	Ncp () const
void	Print ()
void	ResetAffTXTY ()
void	ResetAffXY ()
void	ResetCorr ()
void	Set0 ()
	============================================================================== More...
void	SetAffTXTY (float a11, float a12, float a21, float a22, float b1, float b2)
void	SetAffXY (float a11, float a12, float a21, float a22, float b1, float b2)
void	SetDXDY (float dx, float dy)
void	SetID (int id)
void	SetNcp (int n)
void	SetShrinkage (float shr)
void	SetTXTY (float tx, float ty)
void	SetXY (float x, float y)
void	SetZ (float z)
void	SetZcorr (float zcorr)
void	SetZlayer (float z, float zmin, float zmax)
void	ShiftZ (float dz)
float	Shr () const
void	SubstructCorrections (EdbLayer &la)
float	TX () const
float	TX (EdbSegP &s)
float	TXp (EdbSegP &s)
float	TY () const
float	TY (EdbSegP &s)
float	TYp (EdbSegP &s)
float	X () const
float	X (EdbSegP &s)
float	Xmax () const
float	Xmin () const
float	Xp (EdbSegP &s)
float	Y () const
float	Y (EdbSegP &s)
float	Ymax () const
float	Ymin () const
float	Yp (EdbSegP &s)
float	Z () const
float	Zcorr () const
float	Zmax () const
float	Zmin () const
float	Zxy ()
virtual	~EdbLayer ()

Private Attributes
TObjArray	eLayers
	0-base, 1-up, 2-down More...

Detailed Description

//////////////////////////////////////////////////////////////////////// // EdbBrick - OPERA Brick structure definition // // ////////////////////////////////////////////////////////////////////////

Constructor & Destructor Documentation

EdbPlateP() [1/2]

EdbPlateP::EdbPlateP

(

)

EdbPlateP() [2/2]

EdbPlateP::EdbPlateP ( EdbPlateP &  pp )

inline

: EdbLayer(pp) { for(int i=0; i<3; i++) eLayers.Add(new EdbLayer(*(pp.GetLayer(i)))); }

~EdbPlateP()

EdbPlateP::~EdbPlateP ( )

inline

{eLayers.Delete();}

Member Function Documentation

Copy()

void EdbPlateP::Copy

(

EdbPlateP &

p

)

{
  *((EdbLayer*)this) = *((EdbLayer*)&pp);
  for(int i=0; i<3; i++) (*(GetLayer(i)))  = (*(pp.GetLayer(i)));
}

GetLayer()

EdbLayer * EdbPlateP::GetLayer ( int  i )

inline

{return (i < 0) ? 0 : (EdbLayer*)eLayers.At(i);}

Print()

void EdbPlateP::Print

(

)

{
  printf("\nEdbPlateP:\n");
  ((EdbLayer*)this)->Print();
  printf("has 3 layers:\n");
  for(int i=0; i<3; i++) GetLayer(i)->Print();
}

PrintPlateLayout()

void EdbPlateP::PrintPlateLayout

(

)

{
  printf("EdbPlateP limits: |%f   %f||%f   %f||%f  %f|\n",
     GetLayer(1)->Zmin(), GetLayer(1)->Zmax(),
     GetLayer(0)->Zmin(), GetLayer(0)->Zmax(),
     GetLayer(2)->Zmin(), GetLayer(2)->Zmax() );
  printf("EdbPlateP references: | %f | %f | %f |\n\n", GetLayer(1)->Z(), GetLayer(0)->Z(), GetLayer(2)->Z());
}

SetDXDY()

void EdbPlateP::SetDXDY	(	float	dx,
		float	dy
	)

{
  ((EdbLayer*)this)->SetDXDY(dx,dy);
  for(int i=0; i<3; i++) GetLayer(i)->SetDXDY(dx,dy);
}

SetOperaLayout()

void EdbPlateP::SetOperaLayout ( )

inline

{ SetPlateLayout(210,44,44); }

SetPlateLayout()

void EdbPlateP::SetPlateLayout	(	float	z0,
		float	z1,
		float	z2
	)

layers: | 1 | 0 | 2 | -z0/2.-z1 -z0/2 0. z0/2 z0/2.+z2

{
  float zpl = Z();
  GetLayer(0)->SetZlayer(   0.   ,  -z0/2.     ,  z0/2.    );     // (reference_z, zstart, zfinish) in plate's coord
  GetLayer(1)->SetZlayer( -z0/2. ,  -z0/2.- z1 , -z0/2.    );
  GetLayer(2)->SetZlayer(  z0/2. ,   z0/2.     ,  z0/2.+z2 );
  SetZlayer( zpl, zpl-z0/2.- z1, zpl+z0/2.+z2 ); // total plate dimension and reference - can be resetted by the external function
  Log(3,"EdbPlateP::SetPlateLayout", "|%f  |%f  %f| %f|",-z0/2.- z1, -z0/2., z0/2., z0/2.+z2);
}

TransformSidesIntoPlateRS()

void EdbPlateP::TransformSidesIntoPlateRS

(

)

this function should be applied only once!

{
  for(int i=0; i<3; i++) {
    GetLayer(i)->CopyCorr( *((EdbLayer *)this) );
    GetLayer(i)->ShiftZ( Z() );
  }
}

Member Data Documentation

eLayers

TObjArray EdbPlateP::eLayers

private

0-base, 1-up, 2-down

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEbase/EdbBrick.h
• /home/antonio/fedra_doxygen/src/libEbase/EdbBrick.cxx
