EdbEDATrackSelection Class Reference

#include <EdbEDATrackSet.h>

Inheritance diagram for EdbEDATrackSelection:
Inheritance graph
[legend]

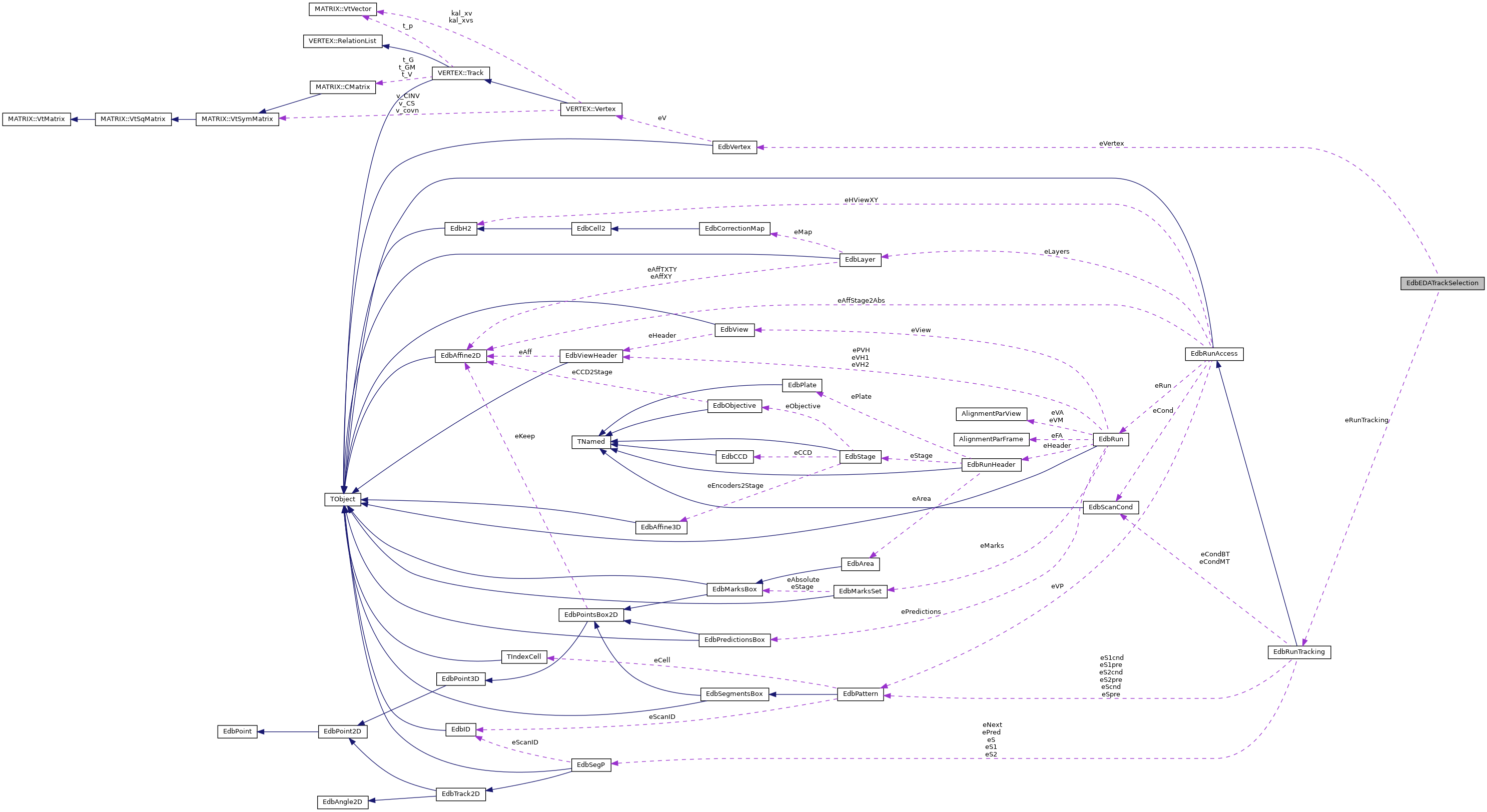

Collaboration diagram for EdbEDATrackSelection:
Collaboration graph
[legend]

Public Member Functions

void DoSelection (TObjArray *tracksbase, TObjArray *tracks)

 EdbEDATrackSelection ()

bool GetImpactSearch ()

int GetNsegCut ()

double GetPHCut ()

double GetPHDTRMS ()

EdbRunTracking & GetRunTracking ()

int GetSideOutPlate ()

int GetUpstreamPlate ()

int ImpactSearch (EdbTrackP *t)

int Neighborhood (EdbSegP *s, double *dmin=NULL)

void Reset ()

void SetAngle (double tx, double ty)

void SetAngularCut (bool b=kTRUE)

void SetClearPrevious (bool b=kTRUE)

void SetCondBTDefault (EdbScanCond &cond)

void SetCondMTDefault (EdbScanCond &cond)

void SetCondTrackingDefault ()

void SetDT (double dtx, double dty=-1)

void SetDX (double dx)

void SetImpactSearch (bool b=kTRUE, EdbVertex *v=NULL)

void SetNeighborSearch (bool b=kTRUE, TObjArray *selected=NULL, double dzup=-1, double dzdown=-1)

void SetNsegCut (int nseg)

void SetPHCut (double phcut=0.0)

void SetPHDTRMS (double slope)

void SetRunTracking (EdbRunTracking &rt)

void SetSideOut (bool b=kTRUE)

void SetSideOutPlate (int npl)

void SetUpstreamPlate (int ipl)

int SideOut (EdbTrackP *t)

virtual ~EdbEDATrackSelection ()


Public Attributes

EdbRunTracking eRunTracking
 Run Tracking for microtrack search. More...

EdbVertex * eVertex


Private Attributes

int eAngularCut

int eClearPrevious

int eImpactSearch

double eNeighborDzDown

double eNeighborDzUp

int eNeighborSearch

int eNsegCut

double ePHCut

double ePHDTRMS

int ePlateDown

int ePlateUp

TObjArray * eSelected

int eSideOut

int eSideOutPlate

double eTolDTX

double eTolDTY

double eTolDX

double eTX

double eTY


Constructor & Destructor Documentation

◆ EdbEDATrackSelection()

EdbEDATrackSelection::EdbEDATrackSelection ( )
inline
64{ Reset(); }
EdbEDATrackSelection::Reset
void Reset()
Definition: EdbEDATrackSet.h:67

◆ ~EdbEDATrackSelection()

virtual EdbEDATrackSelection::~EdbEDATrackSelection ( )
inlinevirtual
65{}

Member Function Documentation

◆ DoSelection()

void EdbEDATrackSelection::DoSelection ( TObjArray *  tracksbase,
TObjArray *  tracks
)
126 {
127 if(tracksbase==NULL||tracks==NULL) return;
128 if(eClearPrevious) tracks->Clear();
129
130 if(eImpactSearch&&eVertex==NULL){
131 eVertex=gEDA->GetSelectedVertex();
132 if(eVertex==NULL) {
133 eImpactSearch=0;
134 printf("please select a vertex.\n");
135 }
136 }
137
138 printf("applying cuts, Nseg %d, PlateUp = %d \n",eNsegCut, ePlateUp);
139 if( eSelected==NULL ) eNeighborSearch = 0;
140 if( eNeighborSearch ){
141 printf( "Neighbor search On. tolerance : dTX = %.3lf rad, dTY = %.3lf rad, dmin = %.0lf micron\n",eTolDTX,eTolDTY, eTolDX);
142 }
143 if( eAngularCut ){
144 printf( "Angular cut On. tolerance : dTX = %.3lf rad, dTY = %.3lf rad\n", eTolDTX, eTolDTY);
145 }
146 if( eImpactSearch ){
147 printf( "Impact cut On. tolerance : IP < %.0lf micron\n", eTolDX);
148 }
149
150 if( eSideOut ){
151 printf( "Penetration and Side-Out rejection : require %d scanning area upstream\n", eSideOutPlate);
152 }
153 int nentr = tracksbase->GetEntries();
154 for(int i=0;i<nentr;i++){
155 if(i%1000==0) printf("%d / %d. %d tracks\r", i, tracksbase->GetEntriesFast(), tracks->GetEntriesFast());
156 EdbTrackP *t = (EdbTrackP *) tracksbase->At(i);
157 if(NULL==t) continue;
158 // Selections
159
160 // Nseg cut
161 if( t->N() < eNsegCut) continue;
162
163 // Max plate cut
164 int ipl_first = t->GetSegmentFirst()->Plate();
165
166 if( ipl_first < ePlateUp) continue;
167
168 // Reject Side-out tracks
169 if( eSideOut ){
170 if( SideOut(t) ) continue;
171 }
172
173 // Neighbor Search. use eTolDX, eTolDT
174 if( eNeighborSearch) {
175 if( Neighborhood(t) == 0 ) continue;
176 }
177
178 // Impact Search. use eTolDX
179 if( eImpactSearch ){
180 if( ImpactSearch (t) == 0 ) continue;
181 }
182
183 // Angular Cut
184 if( eAngularCut ){
185 if( fabs(t->TX() - eTX) > eTolDTX) continue;
186 if( fabs(t->TY() - eTY) > eTolDTY) continue;
187 }
188
189 // PH Cut
190 double ph = t->Wgrains()/t->N();
191 if(ePHCut > ph ) continue;
192
193 // PH - Angle deviation cut
194 double dtrms = DTRMS(t);
195 if(dtrms> ePHDTRMS*(ph-ePHCut)) continue;
196
197 if(tracks->FindObject(t)==NULL) tracks->AddLast(t);
198 }
199 printf("%d tracks out of %d tracks\n", tracks->GetEntries(), tracksbase->GetEntries());
200}
gEDA
EdbEDA * gEDA
Definition: EdbEDA.C:3
fabs
Expr< UnaryOp< Fabs< T >, Expr< A, T, D >, T >, T, D > fabs(const Expr< A, T, D > &rhs)
Definition: UnaryOperators.hh:96
EdbEDASelection::GetSelectedVertex
EdbVertex * GetSelectedVertex(void)
Definition: EdbEDA.h:439
EdbEDATrackSelection::eTY
double eTY
Definition: EdbEDATrackSet.h:50
EdbEDATrackSelection::SideOut
int SideOut(EdbTrackP *t)
Definition: EdbEDATrackSet.C:48
EdbEDATrackSelection::eNeighborSearch
int eNeighborSearch
Definition: EdbEDATrackSet.h:41
EdbEDATrackSelection::eSelected
TObjArray * eSelected
Definition: EdbEDATrackSet.h:57
EdbEDATrackSelection::ePHCut
double ePHCut
Definition: EdbEDATrackSet.h:53
EdbEDATrackSelection::ImpactSearch
int ImpactSearch(EdbTrackP *t)
EdbEDATrackSelection::eTolDX
double eTolDX
Definition: EdbEDATrackSet.h:46
EdbEDATrackSelection::eImpactSearch
int eImpactSearch
Definition: EdbEDATrackSet.h:42
EdbEDATrackSelection::ePlateUp
int ePlateUp
Definition: EdbEDATrackSet.h:39
EdbEDATrackSelection::eTolDTY
double eTolDTY
Definition: EdbEDATrackSet.h:48
EdbEDATrackSelection::eAngularCut
int eAngularCut
Definition: EdbEDATrackSet.h:43
EdbEDATrackSelection::eClearPrevious
int eClearPrevious
Definition: EdbEDATrackSet.h:52
EdbEDATrackSelection::eNsegCut
int eNsegCut
Definition: EdbEDATrackSet.h:38
EdbEDATrackSelection::eSideOut
int eSideOut
Definition: EdbEDATrackSet.h:44
EdbEDATrackSelection::ePHDTRMS
double ePHDTRMS
Definition: EdbEDATrackSet.h:54
EdbEDATrackSelection::eVertex
EdbVertex * eVertex
Definition: EdbEDATrackSet.h:61
EdbEDATrackSelection::eTolDTX
double eTolDTX
Definition: EdbEDATrackSet.h:47
EdbEDATrackSelection::eSideOutPlate
int eSideOutPlate
Definition: EdbEDATrackSet.h:45
EdbEDATrackSelection::Neighborhood
int Neighborhood(EdbSegP *s, double *dmin=NULL)
Definition: EdbEDATrackSet.C:20
EdbEDATrackSelection::eTX
double eTX
Definition: EdbEDATrackSet.h:49
EdbTrackP
Definition: EdbPattern.h:113
t
TTree * t
Definition: check_shower.C:4
tracks
TTree * tracks
Definition: check_tr.C:19
EdbEDAUtil::DTRMS
double DTRMS(EdbTrackP *t)
Definition: EdbEDAUtil.C:431
NULL
#define NULL
Definition: nidaqmx.h:84

◆ GetImpactSearch()

bool EdbEDATrackSelection::GetImpactSearch ( )
inline
109{ return eImpactSearch;}

◆ GetNsegCut()

int EdbEDATrackSelection::GetNsegCut ( )
inline
114{ return eNsegCut;}

◆ GetPHCut()

double EdbEDATrackSelection::GetPHCut ( )
inline
115{ return ePHCut;}

◆ GetPHDTRMS()

double EdbEDATrackSelection::GetPHDTRMS ( )
inline
116{ return ePHDTRMS;}

◆ GetRunTracking()

EdbRunTracking & EdbEDATrackSelection::GetRunTracking ( )
inline
122{ return eRunTracking;}
EdbEDATrackSelection::eRunTracking
EdbRunTracking eRunTracking
Run Tracking for microtrack search.
Definition: EdbEDATrackSet.h:62

◆ GetSideOutPlate()

int EdbEDATrackSelection::GetSideOutPlate ( )
inline
117{ return eSideOutPlate;}

◆ GetUpstreamPlate()

int EdbEDATrackSelection::GetUpstreamPlate ( )
inline
113{ return ePlateUp;}

◆ ImpactSearch()

int EdbEDATrackSelection::ImpactSearch ( EdbTrackP *  t)

◆ Neighborhood()

int EdbEDATrackSelection::Neighborhood ( EdbSegP *  s,
double *  dmin = NULL
)
20 {
21 int flag=0;
22 double dminz;
23 if(dmin) *dmin=1e5;
24 for(int i=0;i<eSelected->GetEntries();i++){
25 EdbSegP *ss = (EdbSegP *)eSelected->At(i);
26 if(ss==s) return 1;
27
28 if( fabs(s->TX()-ss->TX()) > eTolDTX) continue; // angular cut
29 if( fabs(s->TY()-ss->TY()) > eTolDTY) continue;
30
31 double d = CalcDmin( ss, s, &dminz);
32 if(dmin) if(*dmin>d) *dmin=d;
33// if(d<10) printf("%lf %lf %lf %lf\n", d, dminz, eNeighborDzDown, eNeighborDzUp);
34
35 if( d > eTolDX) continue;
36
37 if( -eNeighborDzDown<dminz&&dminz<eNeighborDzUp) flag++;
38 else if(dminz<-eNeighborDzDown){
39 if( CalcDistance(ss, s, ss->Z()+eNeighborDzDown)<eTolDX) flag++;
40 }
41 else if(eNeighborDzUp<dminz){
42 if( CalcDistance(ss, s, ss->Z()-eNeighborDzUp)<eTolDX) flag++;
43 }
44 }
45 return flag;
46}
d
void d()
Definition: RecDispEX.C:381
EdbEDATrackSelection::eNeighborDzDown
double eNeighborDzDown
Definition: EdbEDATrackSet.h:56
EdbEDATrackSelection::eNeighborDzUp
double eNeighborDzUp
Definition: EdbEDATrackSet.h:55
EdbSegP
Definition: EdbSegP.h:21
s
s
Definition: check_shower.C:55
ss
ss
Definition: energy.C:62
EdbEDAUtil::CalcDistance
double CalcDistance(EdbSegP *s1, EdbSegP *s2, double z)
Definition: EdbEDAUtil.C:422
EdbEDAUtil::CalcDmin
double CalcDmin(EdbSegP *seg1, EdbSegP *seg2, double *dminz=NULL)
Definition: EdbEDAUtil.C:239

◆ Reset()

void EdbEDATrackSelection::Reset ( )
inline
67 {
68 eNsegCut = 3;
69 ePlateUp = 0;
70 ePlateDown = 0;
71 eNeighborSearch = 0;
72 eImpactSearch = 0;
73 eAngularCut = 0;
74 eSideOut = 0;
75 eSideOutPlate = 3;
76 eTolDX = 200.;
77 eTolDTX = 2.0;
78 eTolDTY = 2.0;
79 eTX = 0.0;
80 eTY = 0.0;
81 eClearPrevious = 1;
82 ePHCut = 0.0;
83 ePHDTRMS = 0.05;
84 eNeighborDzUp = 5000.;
85 eNeighborDzDown = 5000.;
86 eVertex = NULL;
87 eSelected = NULL;
88 eRunTracking.ePredictionScan = false;
89 SetCondTrackingDefault();
90 }
EdbEDATrackSelection::ePlateDown
int ePlateDown
Definition: EdbEDATrackSet.h:40
EdbEDATrackSelection::SetCondTrackingDefault
void SetCondTrackingDefault()
Definition: EdbEDATrackSet.h:124
EdbRunTracking::ePredictionScan
bool ePredictionScan
if true use GetPatternDataForPrediction( spred.ID(), side, pat ); in FindCandidates (default is false...
Definition: EdbRunTracking.h:62

◆ SetAngle()

void EdbEDATrackSelection::SetAngle ( double  tx,
double  ty
)
inline
105{ eTX=tx; eTY=ty;}

◆ SetAngularCut()

void EdbEDATrackSelection::SetAngularCut ( bool  b = kTRUE)
inline
102{ eAngularCut = b;}

◆ SetClearPrevious()

void EdbEDATrackSelection::SetClearPrevious ( bool  b = kTRUE)
inline
106{ eClearPrevious = b;}

◆ SetCondBTDefault()

void EdbEDATrackSelection::SetCondBTDefault ( EdbScanCond &  cond)
inline
159 {
160 cond.SetSigma0( 10., 10., 0.007, 0.007 ); // sigma0 "x, y, tx, ty" at zero angle
161 cond.SetDegrad( 2. ); // sigma(tx) = sigma0*(1+degrad*tx)
162 cond.SetBins(0, 0, 0, 0); // bins in [sigma] for checks
163 cond.SetPulsRamp0( 5., 5. ); // in range (Pmin:Pmax) Signal/All is nearly linear
164 cond.SetPulsRamp04( 5., 5. );
165 cond.SetChi2Max( 6.5 );
166 cond.SetChi2PMax( 6.5 );
167 cond.SetRadX0( 5810. );
168 cond.SetName("OPERA_basetrack");
169 }
EdbScanCond::SetPulsRamp0
void SetPulsRamp0(float p1, float p2)
Definition: EdbScanCond.h:74
EdbScanCond::SetChi2Max
void SetChi2Max(float chi2)
Definition: EdbScanCond.h:83
EdbScanCond::SetDegrad
void SetDegrad(float d)
Definition: EdbScanCond.h:71
EdbScanCond::SetSigma0
void SetSigma0(float x, float y, float tx, float ty)
Definition: EdbScanCond.h:62
EdbScanCond::SetBins
void SetBins(float bx, float by, float btx, float bty)
Definition: EdbScanCond.h:65
EdbScanCond::SetPulsRamp04
void SetPulsRamp04(float p1, float p2)
Definition: EdbScanCond.h:75
EdbScanCond::SetRadX0
void SetRadX0(float x0)
Definition: EdbScanCond.h:57
EdbScanCond::SetChi2PMax
void SetChi2PMax(float chi2)
Definition: EdbScanCond.h:84

◆ SetCondMTDefault()

void EdbEDATrackSelection::SetCondMTDefault ( EdbScanCond &  cond)
inline
147 {
148 cond.SetSigma0( 1., 1., 0.010, 0.010 ); // sigma0 "x, y, tx, ty" at zero angle
149 cond.SetDegrad( 5. ); // sigma(tx) = sigma0*(1+degrad*tx)
150 cond.SetBins(0, 0, 0, 0); //??? // bins in [sigma] for checks
151 cond.SetPulsRamp0( 5., 5. ); // in range (Pmin:Pmax) Signal/All is nearly linear
152 cond.SetPulsRamp04( 5., 5. );
153 cond.SetChi2Max( 6.5 );
154 cond.SetChi2PMax( 6.5 );
155 cond.SetRadX0( 5810. );
156 cond.SetName("OPERA_microtrack");
157 }

◆ SetCondTrackingDefault()

void EdbEDATrackSelection::SetCondTrackingDefault ( )
inline
124 {
125 eRunTracking.eDeltaRview = 400.;
126 eRunTracking.eDeltaTheta = 0.2;
127 eRunTracking.eDeltaR = 20.;
128
129 eRunTracking.ePreliminaryPulsMinMT = 7;
130 eRunTracking.ePreliminaryChi2MaxMT = 3.0;
131
132 eRunTracking.ePulsMinMT = 9;
133 eRunTracking.ePulsMinDegradMT = 1.5;
134 eRunTracking.eChi2MaxMT = 1.6;
135
136 eRunTracking.ePulsMinBT = 18;
137 eRunTracking.ePulsMinDegradBT = 1.5;
138 eRunTracking.eChi2MaxBT = 1.8;
139
140 eRunTracking.eDegradPos = 5.;
141 eRunTracking.eDegradSlope = 0.003;
142
143 SetCondMTDefault( eRunTracking.eCondMT);
144 SetCondBTDefault( eRunTracking.eCondBT);
145 }
EdbEDATrackSelection::SetCondBTDefault
void SetCondBTDefault(EdbScanCond &cond)
Definition: EdbEDATrackSet.h:159
EdbEDATrackSelection::SetCondMTDefault
void SetCondMTDefault(EdbScanCond &cond)
Definition: EdbEDATrackSet.h:147
EdbRunTracking::ePulsMinDegradBT
Float_t ePulsMinDegradBT
(0)
Definition: EdbRunTracking.h:45
EdbRunTracking::ePulsMinBT
Float_t ePulsMinBT
(18)
Definition: EdbRunTracking.h:38
EdbRunTracking::eDeltaR
Float_t eDeltaR
(20)
Definition: EdbRunTracking.h:34
EdbRunTracking::eCondMT
EdbScanCond eCondMT
conditions for microtracks
Definition: EdbRunTracking.h:23
EdbRunTracking::ePreliminaryPulsMinMT
Float_t ePreliminaryPulsMinMT
(6) _ preliminary cuts to microtracks candidates for
Definition: EdbRunTracking.h:28
EdbRunTracking::eChi2MaxMT
Float_t eChi2MaxMT
(1.6) maximum chi2 accepted between prediction and microtrack candidates
Definition: EdbRunTracking.h:46
EdbRunTracking::eDeltaRview
Float_t eDeltaRview
(400)
Definition: EdbRunTracking.h:26
EdbRunTracking::ePreliminaryChi2MaxMT
Float_t ePreliminaryChi2MaxMT
(1.6) / microtracks and basetracks selection
Definition: EdbRunTracking.h:29
EdbRunTracking::ePulsMinMT
Float_t ePulsMinMT
(10) mimimal number of grains accepted to select microtracks
Definition: EdbRunTracking.h:44
EdbRunTracking::eDegradSlope
Float_t eDegradSlope
SigmaTX = SigmaTX(0) + degradSlope * bth.
Definition: EdbRunTracking.h:57
EdbRunTracking::eCondBT
EdbScanCond eCondBT
conditions for basetracks
Definition: EdbRunTracking.h:24
EdbRunTracking::eChi2MaxBT
Float_t eChi2MaxBT
(1.5) maximum chi2 accepted between prediction and basetrack candidates
Definition: EdbRunTracking.h:40
EdbRunTracking::eDegradPos
Float_t eDegradPos
SigmaX = SigmaX(0) + degradPos * mth.
Definition: EdbRunTracking.h:56
EdbRunTracking::ePulsMinDegradMT
Float_t ePulsMinDegradMT
(0)
Definition: EdbRunTracking.h:39
EdbRunTracking::eDeltaTheta
Float_t eDeltaTheta
(0.15) slope acceptance
Definition: EdbRunTracking.h:27

◆ SetDT()

void EdbEDATrackSelection::SetDT ( double  dtx,
double  dty = -1
)
inline
104{ eTolDTX=dtx; eTolDTY=dty; if(eTolDTY<0) eTolDTY=eTolDTX;}

◆ SetDX()

void EdbEDATrackSelection::SetDX ( double  dx)
inline
103{ eTolDX=dx;}

◆ SetImpactSearch()

void EdbEDATrackSelection::SetImpactSearch ( bool  b = kTRUE,
EdbVertex *  v = NULL
)
inline
94{ eImpactSearch = b; eVertex = v;}

◆ SetNeighborSearch()

void EdbEDATrackSelection::SetNeighborSearch ( bool  b = kTRUE,
TObjArray *  selected = NULL,
double  dzup = -1,
double  dzdown = -1
)
inline
95 {
96 eNeighborSearch = b; eSelected=selected;
97 if(dzup>=0) eNeighborDzUp = dzup;
98 if(dzdown>=0) eNeighborDzDown = dzdown;
99 }

◆ SetNsegCut()

void EdbEDATrackSelection::SetNsegCut ( int  nseg)
inline
91{ eNsegCut = nseg;}

◆ SetPHCut()

void EdbEDATrackSelection::SetPHCut ( double  phcut = 0.0)
inline
107{ ePHCut=phcut;}

◆ SetPHDTRMS()

void EdbEDATrackSelection::SetPHDTRMS ( double  slope)
inline
108{ePHDTRMS=slope;}

◆ SetRunTracking()

void EdbEDATrackSelection::SetRunTracking ( EdbRunTracking &  rt)
inline
121{eRunTracking=rt;}

◆ SetSideOut()

void EdbEDATrackSelection::SetSideOut ( bool  b = kTRUE)
inline
100{ eSideOut = b;}

◆ SetSideOutPlate()

void EdbEDATrackSelection::SetSideOutPlate ( int  npl)
inline
101{ eSideOutPlate = npl;}

◆ SetUpstreamPlate()

void EdbEDATrackSelection::SetUpstreamPlate ( int  ipl)
inline
92{ ePlateUp = ipl;}

◆ SideOut()

int EdbEDATrackSelection::SideOut ( EdbTrackP *  t)

Return 1, if the track goes side-out.

  • if require 3 scanning area upstream from the 1st segment.
    EdbPVRec *pvr = gEDA->GetPVR();
    if(pvr==NULL) return 0;
48 {
53
54 int sideout=0;
55
56 // Upstream Side-out check.
57 int npl = 0;
58 EdbSegP *s1 = t->GetSegmentFirst();
59 EdbSegP s=*s1;
60
61 // original. but very slow. EdbPointsBox2D::Xmax().....
62 /*
63 for(int pid=s1->PID()-1; pid>=0; pid--){
64 EdbPattern *p = pvr->GetPattern(pid);
65 if(p->N()==0) continue;
66 s.PropagateTo(p->Z());
67 if(s.X()<p->Xmin()) continue;
68 if(s.X()>p->Xmax()) continue;
69 if(s.Y()<p->Ymin()) continue;
70 if(s.Y()>p->Ymax()) continue;
71
72 npl++;
73 }
74 */
75 /*
76 for(int pid=s1->PID()-1; pid>=0; pid--){
77 EdbEDAArea *a = gEDA->GetAreaSet()->GetArea(pid);
78 s.PropagateTo(a->Z());
79 if(s.X()<a->Xmin()) continue;
80 if(s.X()>a->Xmax()) continue;
81 if(s.Y()<a->Ymin()) continue;
82 if(s.Y()>a->Ymax()) continue;
83
84 npl++;
85 }
86 */
87 for(int ipl=s1->Plate()-1; ipl>0; ipl--){
88 EdbEDAArea *a = gEDA->GetTrackSet("TS")->GetAreaSet()->GetAreaIPL(ipl);
89 if(a==NULL) continue;
90 s.PropagateTo(a->Z());
91 if(s.X()<a->Xmin()) continue;
92 if(s.X()>a->Xmax()) continue;
93 if(s.Y()<a->Ymin()) continue;
94 if(s.Y()>a->Ymax()) continue;
95
96 npl++;
97 }
98
99
100 if(npl<eSideOutPlate) sideout++;
101 /*
102 // Downstream Side-out check.
103 // - if 0 or only 1 scanning area downstream from the last segment. if the propagated position is in the scanning area of the last plate, eceptionally doesn't cut the track.
104
105 npl = 0;
106 s1 = t->GetSegmentLast();
107 s=*s1;
108 if(s1->PID()==pvr->Npatterns()-1) npl=2;
109 for(int pid=s1->PID()+1; pid<pvr->Npatterns(); pid++){
110 EdbPattern *p = pvr->GetPattern(pid);
111 if(p->N()==0) continue;
112 s.PropagateTo(p->Z());
113 if(s.X()<p->Xmin()) continue;
114 if(s.X()>p->Xmax()) continue;
115 if(s.Y()<p->Ymin()) continue;
116 if(s.Y()>p->Ymax()) continue;
117
118 npl++;
119 if(pid==pvr->Npatterns()-1) npl++; // if the propagated position is in the scanning area of last plate, eceptionally doesn't cut the track.
120 }
121 if(npl<=1) sideout++;
122 */
123 return sideout;
124}
a
void a()
Definition: check_aligned.C:59
EdbEDAAreaSet::GetAreaIPL
EdbEDAArea * GetAreaIPL(int ipl)
Definition: EdbEDASets.h:135
EdbEDAArea
Definition: EdbEDASets.h:7
EdbEDATrackSet::GetAreaSet
EdbEDAAreaSet * GetAreaSet()
Definition: EdbEDATrackSet.h:602
EdbEDA::GetTrackSet
EdbEDATrackSet * GetTrackSet(int i)
Definition: EdbEDA.h:617
EdbSegP::Plate
Int_t Plate() const
Definition: EdbSegP.h:159
s1
EdbSegP * s1
Definition: tlg2couples.C:29

Member Data Documentation

◆ eAngularCut

int EdbEDATrackSelection::eAngularCut
private

◆ eClearPrevious

int EdbEDATrackSelection::eClearPrevious
private

◆ eImpactSearch

int EdbEDATrackSelection::eImpactSearch
private

◆ eNeighborDzDown

double EdbEDATrackSelection::eNeighborDzDown
private

◆ eNeighborDzUp

double EdbEDATrackSelection::eNeighborDzUp
private

◆ eNeighborSearch

int EdbEDATrackSelection::eNeighborSearch
private

◆ eNsegCut

int EdbEDATrackSelection::eNsegCut
private

◆ ePHCut

double EdbEDATrackSelection::ePHCut
private

◆ ePHDTRMS

double EdbEDATrackSelection::ePHDTRMS
private

◆ ePlateDown

int EdbEDATrackSelection::ePlateDown
private

◆ ePlateUp

int EdbEDATrackSelection::ePlateUp
private

◆ eRunTracking

EdbRunTracking EdbEDATrackSelection::eRunTracking

Run Tracking for microtrack search.

◆ eSelected

TObjArray* EdbEDATrackSelection::eSelected
private

◆ eSideOut

int EdbEDATrackSelection::eSideOut
private

◆ eSideOutPlate

int EdbEDATrackSelection::eSideOutPlate
private

◆ eTolDTX

double EdbEDATrackSelection::eTolDTX
private

◆ eTolDTY

double EdbEDATrackSelection::eTolDTY
private

◆ eTolDX

double EdbEDATrackSelection::eTolDX
private

◆ eTX

double EdbEDATrackSelection::eTX
private

◆ eTY

double EdbEDATrackSelection::eTY
private

◆ eVertex

EdbVertex* EdbEDATrackSelection::eVertex
The documentation for this class was generated from the following files:
