EdbTrackP Class Reference

#include <EdbPattern.h>

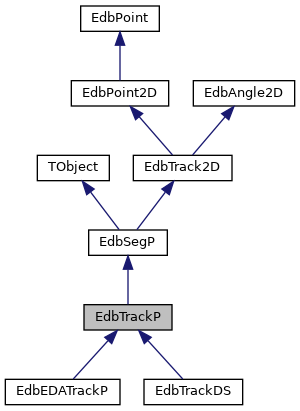

Inheritance diagram for EdbTrackP:

Collaboration diagram for EdbTrackP:

Public Member Functions
void	AddSegment (EdbSegP *s)
void	AddSegmentF (EdbSegP *s)
void	AddTrack (const EdbTrackP &tr)
void	AddVTA (EdbVTA *vta)
int	CheckAliasSegments ()
int	CheckMaxGap ()
float	CHI2 ()
float	CHI2F ()
void	Clear ()
void	ClearF ()
void	ClearVTA ()
void	ClearVTA (EdbVTA *vta)
void	Copy (const EdbTrackP &tr)
Float_t	DE () const
Int_t	Dir () const
	EdbTrackP (EdbSegP &seg)
	EdbTrackP (EdbSegP *seg, float m=0.12)
	EdbTrackP (EdbTrackP &track)
	EdbTrackP (int nseg=0)
void	FitTrack ()
int	FitTrackKFS (bool zmax=false, float X0=5810., int design=0)
Double_t	GetBTEfficiency ()
EdbSegP *	GetSegment (int i) const
EdbSegP *	GetSegmentF (int i) const
EdbSegP *	GetSegmentFFirst () const
EdbSegP *	GetSegmentFirst () const
EdbSegP *	GetSegmentFLast () const
EdbSegP *	GetSegmentLast () const
Int_t	GetSegmentsAid (int &nseg) const
Int_t	GetSegmentsFlag (int &nseg) const
Int_t	GetSegmentsMCTrack (int &nseg) const
EdbSegP *	GetSegmentWithClosestZ (float z, float dz)
Float_t	M () const
float	MakePredictionTo (Float_t z, EdbSegP &ss)
int	MakeSelector (EdbSegP &ss, bool followZ=true)
Int_t	N () const
Int_t	N0 () const
Int_t	NF () const
Int_t	Npl () const
Int_t	PDG () const
Float_t	PerrDown () const
Float_t	PerrUp () const
void	Print ()
void	PrintNice ()
int	RemoveAliasSegments ()
void	RemoveSegment (EdbSegP *s)
void	Set0 ()
void	SetCounters ()
void	SetDE (float de)
void	SetM (float m)
void	SetN0 ()
void	SetN0 (int n0)
void	SetNpl ()
void	SetNpl (int npl)
void	SetOwner ()
void	SetPDG (int pdg)
void	SetPerr (Float_t perrDown, Float_t perrUp)
void	SetPerrDown (Float_t perrDown)
void	SetPerrUp (Float_t perrUp)
int	SetSegmentsTrack ()
int	SetSegmentsTrack (int id)
void	SubstituteSegment (EdbSegP *sold, EdbSegP *snew)
const EdbSegP *	TrackEnd () const
EdbSegP *	TrackExtremity (bool zpos, bool usesegpar=false) const
const EdbSegP *	TrackStart () const
EdbSegP *	TrackZmax (bool usesegpar=false) const
EdbSegP *	TrackZmin (bool usesegpar=false) const
void	Transform (const EdbAffine2D &tr)
EdbVertex *	Vertex (int zpos)
EdbVertex *	VertexE ()
EdbVertex *	VertexS ()
EdbVTA *	VTAE () const
EdbVTA *	VTAS () const
Float_t	Wgrains () const
Float_t	Wmean () const
Float_t	Zend () const
Float_t	Zmax () const
Float_t	Zmin () const
Float_t	Zstart () const
virtual	~EdbTrackP ()
Public Member Functions inherited from EdbSegP
void	addEMULDigit (TObject *a)
Int_t	Aid (int i) const
bool	CheckCOV () const
Float_t	Chi2 () const
void	Clear ()
Int_t	Compare (const TObject *obj) const
void	Copy (const EdbSegP &s)
TMatrixD &	COV () const
Float_t	DeltaR (EdbSegP *seg1) const
Float_t	DeltaTheta (EdbSegP *seg1) const
Float_t	DZ () const
Float_t	DZem () const
	EdbSegP ()
	EdbSegP (const EdbSegP &s)
	EdbSegP (int id, float x, float y, float tx, float ty, float w=0, int flag=0)
TRefArray *	EMULDigitArray () const
Int_t	Flag () const
void	ForceCOV (TMatrixD &cov)
Int_t	ID () const
bool	IsCompatible (EdbSegP &s, float nsigx, float nsigt) const
Bool_t	IsEqual (const TObject *obj) const
Bool_t	IsSortable () const
Int_t	MCEvt () const
Int_t	MCTrack () const
void	MergeTo (EdbSegP &s)
Float_t	P () const
Float_t	Phi () const
Int_t	PID () const
Int_t	Plate () const
void	Print (Option_t *opt="") const
void	PrintNice () const
Float_t	Prob () const
Float_t	ProbLink (EdbSegP &s1, EdbSegP &s2)
void	PropagateTo (float z)
void	PropagateToCOV (float z)
void	PropagateToDZ (float dz)
EdbID	ScanID () const
void	Set (int id, float x, float y, float tx, float ty, float w, int flag)
void	Set0 ()
void	SetAid (int a, int v, int side=0)
void	SetChi2 (float chi2)
void	SetCOV (double *array, int dim=5)
void	SetCOV (TMatrixD &cov)
void	SetDZ (float dz)
void	SetDZem (float dz)
void	SetErrorP (float sp2)
void	SetErrors ()
void	SetErrors (float sx2, float sy2, float sz2, float stx2, float sty2, float sp2=1.)
void	SetErrors0 ()
void	SetErrorsCOV (float sx2, float sy2, float sz2, float stx2, float sty2, float sp2=1.)
void	SetFlag (int flag)
void	SetID (int id)
void	SetMC (int mEvt, int mTrack)
void	SetP (float p)
void	SetPID (int pid)
void	SetPlate (int plateid)
void	SetProb (float prob)
void	SetProbability (float p)
void	SetScanID (EdbID id)
void	SetSide (int side=0)
void	SetSZ (float sz)
void	SetTrack (int trid)
void	SetTX (Float_t tx)
void	SetTY (Float_t ty)
	other functions More...
void	SetVid (int vid, int sid)
void	SetVolume (float w)
void	SetW (float w)
void	SetX (Float_t x)
void	SetY (Float_t y)
void	SetZ (float z)
Int_t	Side () const
	mandatory virtual functions: More...
Float_t	SP () const
Float_t	STX () const
Float_t	STY () const
Float_t	SX () const
Float_t	SY () const
Float_t	SZ () const
Float_t	Theta () const
Int_t	Track () const
Float_t	TX () const
	tangens = deltaX/deltaZ More...
Float_t	TY () const
	tangens = deltaY/deltaZ More...
Int_t	Vid (int i) const
Float_t	Volume () const
Float_t	W () const
Float_t	X () const
Float_t	Y () const
Float_t	Z () const
virtual	~EdbSegP ()
	void Transform(EdbAffine2D &aff) { ((EdbTrack2D*)this)->Transform(&aff); } More...
Public Member Functions inherited from EdbTrack2D
virtual void	Print (Option_t *opt="") const
virtual void	Substruct (EdbTrack2D *t)
virtual void	Test () const
virtual void	Transform (const EdbAffine2D *a)
virtual	~EdbTrack2D ()
Public Member Functions inherited from EdbPoint2D
virtual void	Print (Option_t *opt="") const
virtual void	SetX (float x)=0
virtual void	SetY (float y)=0
virtual void	SetZ (float z)
virtual void	Substruct (EdbPoint *p)
virtual void	Test () const
virtual void	TestPoint2D () const
virtual void	Transform (const EdbAffine2D *a)
virtual Float_t	X () const =0
virtual Float_t	Y () const =0
virtual Float_t	Z () const
virtual	~EdbPoint2D ()
Public Member Functions inherited from EdbPoint
virtual void	SetX (float x)=0
virtual void	SetY (float y)=0
virtual void	SetZ (float z)=0
virtual void	Substruct (EdbPoint *p)=0
virtual void	Test () const
virtual void	Transform (const EdbAffine2D *a)
virtual void	Transform (const EdbAffine3D *a)
virtual Float_t	X () const =0
virtual Float_t	Y () const =0
virtual Float_t	Z () const =0
virtual	~EdbPoint ()
Public Member Functions inherited from EdbAngle2D
virtual void	Print (Option_t *opt="") const
virtual void	SetTX (float x)=0
virtual void	SetTY (float y)=0
virtual void	Substruct (const EdbAngle2D *a)
virtual void	Test () const
virtual void	Transform (const EdbAffine2D *a)
virtual Float_t	TX () const =0
	tangens = deltaX/deltaZ More...
virtual Float_t	TY () const =0
	tangens = deltaY/deltaZ More...
virtual	~EdbAngle2D ()

Private Attributes
Float_t	eDE
	total energy loss of the particle between first and last segments More...
Float_t	eM
	invariant mass of the particle More...
Int_t	eN0
	number of holes (if any) More...
Int_t	eNpl
	number of plates passed through More...
Int_t	ePDG
	particle ID from PDG More...
Float_t	ePerrDown
	error of P() in lower direction, obtained by MCS,or shower-algorithm More...
Float_t	ePerrUp
	error of P() in upper direction, obtained by MCS,or shower-algorithm More...
TSortedList *	eS
	array of segments More...
TSortedList *	eSF
	array of fitted segments More...
EdbVTA *	eVTAE
	vertex track end is attached to More...
EdbVTA *	eVTAS
	vertex track start is attached to More...

Additional Inherited Members
Static Public Member Functions inherited from EdbSegP
static Float_t	Angle (const EdbSegP &s1, const EdbSegP &s2)
static Float_t	Distance (const EdbSegP &s1, const EdbSegP &s2)
static void	LinkMT (const EdbSegP *s1, const EdbSegP *s2, EdbSegP *s)
Public Attributes inherited from EdbSegP
Float_t	eTX
Float_t	eTY
	direction tangents More...
Float_t	eX
Float_t	eY
Float_t	eZ
	coordinates More...
Protected Attributes inherited from EdbSegP
TMatrixD *	eCOV
	covariance matrix of the parameters (x,y,tx,ty,p) More...

Constructor & Destructor Documentation

EdbTrackP() [1/4]

EdbTrackP::EdbTrackP

(

int

nseg = 0

)

{
  Set0();
  if(nseg>0) eS  = new TSortedList();
  if(nseg>0) { eSF = new TSortedList();    eSF->SetOwner(); }
}

EdbTrackP() [2/4]

EdbTrackP::EdbTrackP

(

EdbSegP &

seg

)

create empty track with segment parameters

                                 : EdbSegP(seg)
{
  eS=0;
  eSF=0;
  eM=0;
  eDE=0;
  ePDG=-999;
  eVTAS = 0;
  eVTAE = 0;
  eNpl=0;
  eN0=0;
}

EdbTrackP() [3/4]

EdbTrackP::EdbTrackP	(	EdbSegP *	seg,
		float	m = 0.12
	)

                                          : EdbSegP( *seg )
{
  eS=0;
  eSF=0;
  eM=0;
  eDE=0;
  ePDG=-999;
  eVTAS = 0;
  eVTAE = 0;
  eNpl=0;
  eN0=0;
  AddSegment(seg);
  SetM(m);
}

EdbTrackP() [4/4]

EdbTrackP::EdbTrackP ( EdbTrackP &  track )

inline

{ Set0(); Copy(track); }

~EdbTrackP()

EdbTrackP::~EdbTrackP ( )

virtual

{
  if(eS)    { eS->Clear();  delete eS;  eS=0;  }
  if(eSF)   { eSF->Clear(); delete eSF; eSF=0; }
}

Member Function Documentation

AddSegment()

void EdbTrackP::AddSegment ( EdbSegP *  s )

inline

  {
    if(!eS) eS = new TSortedList();
    eS->Add(s);
  }

AddSegmentF()

void EdbTrackP::AddSegmentF ( EdbSegP *  s )

inline

  {
    if(!eSF)
      {
        eSF = new TSortedList();
    eSF->SetOwner();
      }
    eSF->Add(s);
  }

AddTrack()

void EdbTrackP::AddTrack

(

const EdbTrackP &

tr

)

{
  int nseg=tr.N();
  int nsegf=tr.NF();
  for(int i=0; i<nseg; i++)
    AddSegment(tr.GetSegment(i));
  for(int i=0; i<nsegf; i++)
    AddSegmentF(new EdbSegP(*(tr.GetSegmentF(i))));
}

AddVTA()

void EdbTrackP::AddVTA

(

EdbVTA *

vta

)

{
  if(vta) {
    if(vta->Zpos()==0)      eVTAE=vta;
    else if(vta->Zpos()==1) eVTAS=vta;
  }
}

CheckAliasSegments()

int EdbTrackP::CheckAliasSegments

(

)

{
  int nalias=0;
  for(int i=0; i<N(); i++)
    if( GetSegment(i)->Track() != ID()) nalias++;
  return nalias;
}

CheckMaxGap()

int EdbTrackP::CheckMaxGap

(

)

{
  int ngap=0;
  if(N()<2) return 0;
  EdbSegP *s1=0, *s2=0;
  int gap = 0;
  for(int i=0; i<N()-1; i++) {
    s1 = GetSegment(i);
    s2 = GetSegment(i+1);
    gap = TMath::Abs(s2->PID()-s1->PID());
    if( gap > ngap) ngap = gap;
  }
  return ngap;
}

CHI2()

float EdbTrackP::CHI2

(

)

{
  double dtx=0,dty=0,chi2=0;
  EdbSegP *seg=0;
  int    nseg=N();
  for(int i=0; i<nseg; i++) {
    seg = GetSegment(i);
    dtx = seg->TX()-TX();
    dty = seg->TY()-TY();
    chi2 += TMath::Sqrt( dtx*dtx/seg->STX() +
             dty*dty/seg->STY() );
  }
  chi2  /= nseg;
  return chi2;
}

CHI2F()

float EdbTrackP::CHI2F

(

)

{
  double dtx=0,dty=0,chi2=0;
  EdbSegP *s=0, *sf=0;
  int    nseg=N();
  for(int i=0; i<nseg; i++) {
    s  = GetSegment(i);
    sf = GetSegmentF(i);
    dtx = s->TX() - sf->TX();
    dty = s->TY() - sf->TY();
    chi2 += TMath::Sqrt( dtx*dtx/s->STX() +
             dty*dty/s->STY() );
  }
  chi2  /= nseg;
  return chi2;
}

Clear()

void EdbTrackP::Clear ( )

inline

{ if(eS)  eS->Clear(); if(eSF) eSF->Clear(); }

ClearF()

void EdbTrackP::ClearF ( )

inline

{ if(eSF) eSF->Clear(); }

ClearVTA() [1/2]

void EdbTrackP::ClearVTA

(

)

{
  eVTAE=0;
  eVTAS=0;
}

ClearVTA() [2/2]

void EdbTrackP::ClearVTA

(

EdbVTA *

vta

)

{
  if(vta->Zpos()==0)      eVTAE=0;
  else if(vta->Zpos()==1) eVTAS=0;
}

Copy()

void EdbTrackP::Copy

(

const EdbTrackP &

tr

)

do the physical copy of segments

{
  Clear();
  ((EdbSegP*)(this))->Copy( *((EdbSegP*)(&tr)) );
  SetM(tr.M());
  SetPDG(tr.PDG());
  SetNpl(tr.Npl());
  SetN0(tr.N0());
  SetDE(tr.DE());
  AddVTA(tr.VTAS());
  AddVTA(tr.VTAE());

  int nseg=tr.N();
  for(int i=0; i<nseg; i++)
    AddSegment(new EdbSegP(*tr.GetSegment(i)));
  nseg=tr.NF();
  for(int i=0; i<nseg; i++)
    AddSegmentF(new EdbSegP(*tr.GetSegmentF(i)));
  if (eS) eS->SetOwner();
  if (eSF) eSF->SetOwner();
}

DE()

Float_t EdbTrackP::DE ( ) const

inline

{return eDE;}

Dir()

Int_t EdbTrackP::Dir ( ) const

inline

{return (DZ()<0) ? -1 : 1;}

FitTrack()

void EdbTrackP::FitTrack

(

)

track fit by averaging of segments parameters

{

  int nseg=N();
  float x=0,y=0,z=0,tx=0,ty=0,w=0;
  EdbSegP *seg=0;
  for(int i=0; i<nseg; i++) {
    seg = GetSegment(i);
    x  += seg->X();
    y  += seg->Y();
    z  += seg->Z();
    tx += seg->TX();
    ty += seg->TY();
    w  += seg->W();
  }
  x  /= nseg;
  y  /= nseg;
  z  /= nseg;
  tx /= nseg;
  ty /= nseg;
  Set(ID(),x,y,tx,ty,w,Flag());
  SetZ(z);
}

FitTrackKFS()

int EdbTrackP::FitTrackKFS	(	bool	zmax = false,
		float	X0 = 5810.,
		int	design = 0
	)

if (zmax==true) track parameters are calculated at segment with max Z if (zmax==false) track parameters are calculated at segment with min Z tTODO: track parameters??

Note: momentum for track must be defined with SetP() prior to call this routine! Note: momentum dispersion for track should be defined with SetErrorP() prior to call this routine - it is necessary for vertex fit

on the output: Chi2: the full chi-square (not divided by NDF); NDF = 4 Prob: is Chi2 probability (area of the tail of Chi2-distribution) If we accept events with Prob >= ProbMin then ProbMin is the probability to reject the good event

{


  int nseg=N();
  if(nseg<=0) return 0;
  if(NF()) {
    eSF->Delete();
  }

  if(SP()<0.000001) SetErrorP(1.);    // TODO: razobratsia s etimi impul'sami!
  //printf("%d segments to fit\n",N());

  //TODO - eliminate constants!!!

  float dPb = 0., p = 0., m = 0.13957, e = 0.13957, de = 0., pa = 0., pn = 0.;
  float e0 = e;
  float eTPb = 1000./1300.;
  float pcut = 0.050;
  double teta0sq;
  double dz, ptx, pty;
  int step;
  int istart, iend;

  VtVector *par[260], *parpred[260], *pars[260], *meas[260];
  VtSqMatrix *pred[260];
  VtSymMatrix *cov[260], *covpred[260], *covpredinv[260], *covs[260], *dmeas[260];

  int i=0;
  if(nseg == 1) {
    EdbSegP *s = GetSegment(0);
    EdbSegP segf(*s);

    segf.Set(s->ID(),s->X(),s->Y(),s->TX(),s->TY(),1.,s->Flag());
    segf.SetZ(s->Z());
    segf.SetErrorP ( SP() );
    segf.SetChi2(0.);
    segf.SetProb(1.);
    segf.SetP( P() );
    segf.SetPID( s->PID() );
    segf.SetDZ(s->DZ());

    AddSegmentF(new EdbSegP(segf));
    return 0;
  }

  if(nseg>259)   return -1;

  EdbSegP *seg0=0;
  EdbSegP *seg=0;

  if(  GetSegment(N()-1)->Z() <  GetSegment(0)->Z() )
  {
    if (zmax)
    {
    step=-1;
    istart=nseg-1;
    iend=0;
    }
    else
    {
    step=1;
    istart=0;
    iend=nseg-1;
    }
  }
  else
  {
    if (!zmax)
    {
    step=-1;
    istart=nseg-1;
    iend=0;
    }
    else
    {
    step=1;
    istart=0;
    iend=nseg-1;
    }

  }

  seg0 = GetSegment(istart);

  par[istart] = new VtVector(  (double)(seg0->X()),
                   (double)(seg0->Y()),
                   (double)(seg0->TX()),
                   (double)(seg0->TY()) );
  meas[istart] = new VtVector(*par[istart]);
  pred[iend] = new VtSqMatrix(4);
//  (*pred[istart]).clear();
//  (*pred[istart])(0,0) = 1.;
//  (*pred[istart])(1,1) = 1.;
//  (*pred[istart])(2,2) = 1.;
//  (*pred[istart])(3,3) = 1.;
  cov[istart] = new VtSymMatrix(4);             // covariance matrix for seg0
  for(int k=0; k<4; k++)
    for(int l=0; l<4; l++) (*cov[istart])(k,l) = (seg0->COV())(k,l);
  dmeas[istart] = new VtSymMatrix(*cov[istart]);             // covariance matrix for seg0

  Double_t chi2=0.;

  i = istart;
  p = P();
  m = M();
  if (p < pcut) p = pcut;
  e = TMath::Sqrt((double)p*(double)p + (double)m*(double)m);
  e0 = e;
  while( (i+=step) != iend+step ) {

    seg = GetSegment(i);

    VtSymMatrix dms(4);   // multiple scattering matrix
    dms.clear();

    dz = seg->Z()-seg0->Z();
    ptx = (*par[i-step])(2);                        // previous tx
    pty = (*par[i-step])(3);                        // previous ty
    dPb = dz*TMath::Sqrt(1.+ptx*ptx+pty*pty); // thickness of the Pb+emulsion cell in microns
    if ((design != 0) && (p > pcut))
    {
    de = EdbPhysics::DeAveragePb(p, m, TMath::Abs(eTPb*dPb));
    if (de < 0.) de = 0.;
    if (design < 0) de = -de;
    if (dz >= 0.)
        e = e - de;
    else
        e = e + de;
    if (e < m) e = m;
    pn = TMath::Sqrt((double)e*(double)e - (double)m*(double)m);
    if (pn <= pcut) pn = pcut;
    pa = 0.5*(p + pn);
    p  = pn;
    }
    else
    {
    pa = p;
    }
    teta0sq = EdbPhysics::ThetaMS2( pa, m, dPb, X0 );
    dms(0,0) = teta0sq*dz*dz/3.;
    dms(1,1) = dms(0,0);
    dms(2,2) = teta0sq;
    dms(3,3) = dms(2,2);
//    dms(2,0) = teta0sq*TMath::Abs(dz)/2.;
    dms(2,0) = teta0sq*dz/2.;
    dms(3,1) = dms(2,0);
    dms(0,2) = dms(2,0);
    dms(1,3) = dms(2,0);

    pred[i-step] = new VtSqMatrix(4);        //propagation matrix for track parameters (x,y,tx,ty)
    pred[i-step]->clear();

    (*pred[i-step])(0,0) = 1.;
    (*pred[i-step])(1,1) = 1.;
    (*pred[i-step])(2,2) = 1.;
    (*pred[i-step])(3,3) = 1.;
    (*pred[i-step])(0,2) = dz;
    (*pred[i-step])(1,3) = dz;

    parpred[i] = new VtVector(4);            // prediction from seg0 to seg
    *parpred[i] = (*pred[i-step])*(*par[i-step]);

    covpred[i] = new VtSymMatrix(4);         // covariation matrix for prediction
    *covpred[i] = (*pred[i-step])*((*cov[i-step])*((*pred[i-step]).T()))+dms;

    dmeas[i] = new VtSymMatrix(4);           // original covariation  matrix for seg
    for(int k=0; k<4; k++)
      for(int l=0; l<4; l++) (*dmeas[i])(k,l) = (seg->COV())(k,l);

    covpredinv[i] = new VtSymMatrix(4);
    (*covpredinv[i]) = (*covpred[i]).dsinv();
    VtSymMatrix dmeasinv(4);
    dmeasinv  = (*dmeas[i]).dsinv();
    cov[i] = new VtSymMatrix(4);
    (*cov[i]) = (*covpredinv[i]) + dmeasinv;
    (*cov[i]) = (*cov[i]).dsinv();

    meas[i] = new VtVector( (double)(seg->X()),
                (double)(seg->Y()),
                (double)(seg->TX()),
                (double)(seg->TY()) );

    par[i] = new VtVector(4);
    (*par[i]) = (*cov[i])*((*covpredinv[i])*(*parpred[i]) + dmeasinv*(*meas[i]));   // new parameters for seg

//    chi2 += ((*par[i])-(*parpred[i]))*((*covpredinv[i])*((*par[i])-(*parpred[i]))) +
//      ((*par[i])-(*meas[i]))*(dmeasinv*((*par[i])-(*meas[i])));

    VtSymMatrix dresid(4);
    dresid = (*dmeas[i]) - (*cov[i]);
    dresid = dresid.dsinv();

    chi2 += ((*par[i])-(*meas[i]))*(dresid*((*par[i])-(*meas[i])));

    seg0 = seg;
  }

  Set(ID(),(float)(*par[iend])(0),(float)(*par[iend])(1),
       (float)(*par[iend])(2),(float)(*par[iend])(3),1.,Flag());
  SetZ(GetSegment(iend)->Z());
  SetPID(GetSegment(iend)->PID());
  SetCOV( (*cov[iend]).array(), 4 );

  //SetChi2((float)chi2);
  //SetProb( (float)TMath::Prob(chi2,nseg*4));

// Smoothing

  double chi2p=0;

  pars[iend] = new VtVector(*par[iend]);
  covs[iend] = new VtSymMatrix(*cov[iend]);
  VtSymMatrix dresid(4);
  dresid = (*dmeas[iend]) - (*covs[iend]);
  dresid = dresid.dsinv();
  chi2p = ((*pars[iend])-(*meas[iend]))*(dresid*((*pars[iend])-(*meas[iend])));

  EdbSegP segf;
  segf.Set(ID(),(float)(*pars[iend])(0),(float)(*pars[iend])(1),
       (float)(*pars[iend])(2),(float)(*pars[iend])(3),1.,Flag());
  segf.SetZ(GetSegment(iend)->Z());
  segf.SetCOV( (*covs[iend]).array(), 4 );
  segf.SetErrorP ( SP() );
  segf.SetChi2((float)chi2p);
  segf.SetProb( (float)TMath::Prob(chi2p,4));
  segf.SetW( (float)nseg );
  segf.SetP( P() );
  segf.SetPID( GetSegment(iend)->PID() );
  segf.SetDZ(seg->DZ());

  AddSegmentF(new EdbSegP(segf));

  i=iend;
  double DE=0.;
  EdbPhysics::DeAveragePbFastSet(P(), M());

  while( (i-=step) != istart-step ) {
    VtSqMatrix BackTr(4);
    BackTr = (*cov[i])*(((*pred[i]).T())*(*covpredinv[i+step]));
    pars[i] = new VtVector(4);
    covs[i] = new VtSymMatrix(4);
    (*pars[i]) = (*par[i]) + BackTr*((*pars[i+step])-(*parpred[i+step]));
    (*covs[i]) = (*cov[i]) + BackTr*(((*covs[i+step])-(*covpred[i+step]))*BackTr.T());
    dresid = (*dmeas[i]) - (*covs[i]);
    dresid = dresid.dsinv();
    chi2p = ((*pars[i])-(*meas[i]))*(dresid*((*pars[i])-(*meas[i])));
//  chi2 += chi2p;

    segf.Set(ID(),(float)(*pars[i])(0),(float)(*pars[i])(1),
         (float)(*pars[i])(2),(float)(*pars[i])(3),1.,Flag());
    segf.SetZ(GetSegment(i)->Z());
    segf.SetCOV( (*covs[i]).array(), 4 );
    segf.SetErrorP ( SP() );
    segf.SetChi2((float)chi2p);
    segf.SetProb( (float)TMath::Prob(chi2p,4));
    segf.SetW( (float)nseg );
    segf.SetP( P() );
    segf.SetPID( GetSegment(i)->PID() );
    segf.SetDZ(seg->DZ());
    AddSegmentF(new EdbSegP(segf));
    dz = eTPb*TMath::Abs(GetSegment(i)->Z() - GetSegment(i+step)->Z());
        dPb = dz*TMath::Sqrt(1.+(*pars[i])(2)*(*pars[i])(2)+(*pars[i])(3)*(*pars[i])(3)); // thickness of the Pb+emulsion cell in microns
    DE += EdbPhysics::DeAveragePbFast(P(),M(),TMath::Abs(dPb));
  }
  SetChi2((float)chi2);
  SetProb((float)TMath::Prob(chi2,4*(nseg-1)));
  SetW( (float)nseg );
  SetDE( (float)DE );

//  DEBUG
//  printf(" e0 - e = %f, de = %f\n", e0-e, DE);

// Delete matrixes and vectors

  delete par[istart];
  par[istart] = 0;
  delete cov[istart];
  cov[istart] = 0;
  delete meas[istart];
  meas[istart] = 0;
  delete dmeas[istart];
  dmeas[istart] = 0;
  delete pred[istart];
  pred[istart] = 0;
  delete pars[istart];
  pars[istart] = 0;
  delete covs[istart];
  covs[istart] = 0;
  i=istart;
  while( (i+=step) != iend+step ) {
    delete pred[i];
    pred[i] = 0;
    delete parpred[i];
    parpred[i] = 0;
    delete covpred[i];
    covpred[i] = 0;
    delete covpredinv[i];
    covpredinv[i] = 0;
    delete par[i];
    par[i] = 0;
    delete cov[i];
    cov[i] = 0;
    delete meas[i];
    meas[i] = 0;
    delete dmeas[i];
    dmeas[i] = 0;
    delete pars[i];
    pars[i] = 0;
    delete covs[i];
    covs[i] = 0;
  }
  return 0;
}

GetBTEfficiency()

Double_t EdbTrackP::GetBTEfficiency

(

)

Returns Basetrack Scanning efficiency, estimated by BT in the Tracks and the number of holes. Formula: efficiency_per_BT = ( N()-2 ) / ( Npl()-2 ) This makes sense when having a track with at least 3 plates crossing.

{
  Double_t nseg=(Double_t)N();
  Double_t npl=(Double_t)Npl();

  if (nseg==2 && npl==2) return 1;
  Double_t BTEfficiency=(nseg-2)/(npl-2);

  return BTEfficiency;
}

GetSegment()

EdbSegP * EdbTrackP::GetSegment ( int  i ) const

inline

{return (eS) ? (EdbSegP*)(eS->At(i)) : 0; }

GetSegmentF()

EdbSegP * EdbTrackP::GetSegmentF ( int  i ) const

inline

{return (eSF) ? (EdbSegP*)(eSF->At(i)) : 0;}

GetSegmentFFirst()

EdbSegP * EdbTrackP::GetSegmentFFirst ( ) const

inline

{return (eSF) ? (EdbSegP*)(eSF->First()) : 0;}

GetSegmentFirst()

EdbSegP * EdbTrackP::GetSegmentFirst ( ) const

inline

{return (eS) ? (EdbSegP*)(eS->First()) : 0;}

GetSegmentFLast()

EdbSegP * EdbTrackP::GetSegmentFLast ( ) const

inline

{return (eSF) ? (EdbSegP*)(eSF->Last()) : 0;}

GetSegmentLast()

EdbSegP * EdbTrackP::GetSegmentLast ( ) const

inline

{return (eS) ? (EdbSegP*)(eS->Last()) : 0;}

GetSegmentsAid()

int EdbTrackP::GetSegmentsAid

(

int &

nseg

)

const

{
  int nseg = N();
  if (nseg < 2) return -1;
  if (nseg > 300) nseg = 300;
  int count[300];
  int aid[300], ai;
  int i, f = 0;
  for(i=0; i<nseg; i++)
  {
    count[i] = 0;
    aid[i] = -1;
    ai = GetSegment(i)->Aid(1);
    f = ai + (GetSegment(i)->Aid(0))*1000;
    if (f < 0) continue;
    aid[i] = ai;
    for (int j=0; j<nseg; j++)
    {
    if ( f == (GetSegment(j)->Aid(1) + (GetSegment(i)->Aid(0))*1000)) count[i]++;
    }
  }
  int cmax = 0;
  int aidmax = -1;
  for(i=0; i<nseg; i++)
  {
    if (count[i] > cmax)
    {
        cmax = count[i];
        aidmax = aid[i];
    }
  }
  nsegf = cmax;
  return aidmax;
}

GetSegmentsFlag()

int EdbTrackP::GetSegmentsFlag

(

int &

nseg

)

const

{
  printf(" EdbTrackP::GetSegmentsFlag: obsolete, to be deleted!  now replaced by GetSegmentsMCTrack\n");

  int nseg = N();
  if (nseg < 2) return -1;
  if (nseg > 300) nseg = 300;
  int count[300];
  int i, f = 0;
  for(i=0; i<nseg; i++)
  {
    count[i] = 0;
    f = GetSegment(i)->Flag();
    if (f < 0) continue;
    for (int j=0; j<nseg; j++)
    {
    if ( f == GetSegment(j)->Flag()) count[i]++;
    }
  }
  int cmax = 0;
  int flagmax = -1;
  for(i=0; i<nseg; i++)
  {
    if (count[i] > cmax)
    {
        cmax = count[i];
        flagmax = GetSegment(i)->Flag();
    }
  }
  nsegf = cmax;
  return flagmax;
}

GetSegmentsMCTrack()

int EdbTrackP::GetSegmentsMCTrack

(

int &

nseg

)

const

{
  // return: ID of the MC track contributed to this reconstructed track
  //         with the maximal number of segments
  // nsegf - return number of segments originated from the selected MC track

  int nseg = N();
  if (nseg < 2) return -1;
  if (nseg > 300) nseg = 300;
  int count[300];
  int i, f = 0;
  for(i=0; i<nseg; i++)
  {
    count[i] = 0;
    f = GetSegment(i)->MCTrack();
    if (f < 0) continue;
    for (int j=0; j<nseg; j++)
    {
    if ( f == GetSegment(j)->MCTrack()) count[i]++;
    }
  }
  int cmax = 0;
  int mctrackmax = -1;
  for(i=0; i<nseg; i++)
  {
    if (count[i] > cmax)
    {
        cmax = count[i];
        mctrackmax = GetSegment(i)->MCTrack();
    }
  }
  nsegf = cmax;
  return mctrackmax;
}

GetSegmentWithClosestZ()

EdbSegP * EdbTrackP::GetSegmentWithClosestZ	(	float	z,
		float	dz
	)

{
  float dzmin=dzMax;
  EdbSegP *sbest=0;
  int nseg=N();
  for(int i=0; i<nseg; i++) {
     EdbSegP *s = GetSegment(i);
     float dz = Abs(s->eZ-z);
     if( dz < dzmin ) {
       dzmin=dz;
       sbest=s;
     }
   }
  return sbest;
}

M()

Float_t EdbTrackP::M ( ) const

inline

{return eM;}

MakePredictionTo()

float EdbTrackP::MakePredictionTo	(	Float_t	z,
		EdbSegP &	ss
	)

---

{
  float dz = Zmax()-Zmin();
  const EdbSegP *tr=0;
  if     ( z <= Zmin() )      tr = TrackZmin();   //TODO: fitted - not fitted
  else if( z >= Zmax() )      tr = TrackZmax();
  else {
    for(int i=0; i<N(); i++)       {
      EdbSegP *s = GetSegment(i);
      if( Abs(s->Z()-z) < dz ) { dz = Abs(s->Z()-z); tr=s; }     // select nearest segment (TODO: correct interpolation)
    }
  }
  if(!tr) // no segments in this track: use track body
    tr = this;
  dz = Abs(tr->Z()-z);
  ss.Copy(*tr);
  ss.PropagateTo(z);
  return dz;
}

MakeSelector()

int EdbTrackP::MakeSelector	(	EdbSegP &	ss,
		bool	followZ = true
	)

---

{
  if(N()<2) return 0;
  ss.SetCOV( GetSegment(0)->COV() );             // TODO ?
  const EdbSegP *tr;
  if (NF())
  {
    if( followZ ) tr = TrackZmax();
    else  tr = TrackZmin();
  }
  else
  {
    if( followZ ) tr = GetSegmentLast();
    else  tr = GetSegmentFirst();
  }
  ss.SetTX(tr->TX());
  ss.SetTY(tr->TY());
  ss.SetX(tr->X());
  ss.SetY(tr->Y());
  ss.SetZ(tr->Z());
  ss.SetPID(tr->PID());

  if( tr->PID() > GetSegment(0)->PID() )     return 1;
  if( tr->PID() > GetSegment(N()-1)->PID() ) return 1;
  return -1;
}

N()

Int_t EdbTrackP::N ( ) const

inline

{ return (eS) ?  eS->GetSize()  : 0; }

N0()

Int_t EdbTrackP::N0 ( ) const

inline

{return eN0;}

NF()

Int_t EdbTrackP::NF ( ) const

inline

{ return (eSF)?  eSF->GetSize() : 0; }

Npl()

Int_t EdbTrackP::Npl ( ) const

inline

{return eNpl;}

PDG()

Int_t EdbTrackP::PDG ( ) const

inline

{return ePDG;}

PerrDown()

Float_t EdbTrackP::PerrDown ( ) const

inline

{return ePerrDown;}

PerrUp()

Float_t EdbTrackP::PerrUp ( ) const

inline

{return ePerrUp;}

Print()

void EdbTrackP::Print

(

)

{
  int nseg=0, nsegf=0;
  nseg = N();
  nsegf = NF();

  printf("EdbTrackP with %d segments and %d fitted segments\n", nseg, nsegf );
  printf("particle mass = %f\n", M() );
  ((EdbSegP*)this)->Print();

  if(nseg)
    for(int i=0; i<nseg; i++)
      ((EdbSegP*)(eS->At(i)))->Print();

}

PrintNice()

void EdbTrackP::PrintNice

(

)

{
  int nseg=0, nsegf=0;
  nseg = N();
  nsegf = NF();

  printf("EdbTrackP with %d segments and %d fitted segments. Estimated BT Scanning efficiency = %.02f \n", nseg, nsegf, GetBTEfficiency() );
  printf("  N  PID     ID          X             Y              Z        TX       TY     W      P      Flag     MC     Track    Chi2    Prob     Mass\n");
  printf("    %3d %8d %13.2f %13.2f %13.2f %7.4f  %7.4f %5.1f  %7.2f %7d %7d %7d  %7.4f  %7.4f  %5.3f\n",
       PID(), ID(),X(),Y(),Z(),     TX(),   TY(),  W(),  P(), Flag(), MCEvt(),   Track(), Chi2(), Prob(),   M());

  EdbSegP *s=0;
  if(nseg)
    for(int i=0; i<nseg; i++) {
      s = GetSegment(i);
      printf("%3d %3d %8d %13.2f %13.2f %13.2f %7.4f  %7.4f %5.1f  %7.2f %7d %7d %7d  %7.4f  %7.4f\n",
         i, s->PID(), s->ID(),s->X(),s->Y(),s->Z(),  s->TX(),s->TY(),  s->W(),  s->P(), s->Flag(), s->MCEvt(), s->Track(),s->Chi2(),s->Prob());
    }
}

RemoveAliasSegments()

int EdbTrackP::RemoveAliasSegments

(

)

{
  int nalias=0;
  EdbSegP *s=0;
  for(int i=0; i<N(); i++) {
    s = GetSegment(i);
    if( s->Track() != ID()) {
      nalias++;
      RemoveSegment(s);
    }
  }
  return nalias;
}

RemoveSegment()

void EdbTrackP::RemoveSegment ( EdbSegP *  s )

inline

  {
    if(!eS) return;
    eS->Remove(s);
    s->SetTrack(-1);
    SetCounters();
  }

Set0()

void EdbTrackP::Set0

(

)

{
  ((EdbSegP*)this)->Set0();
  eS=0;
  eSF=0;
  eM=0;
  eDE=0;
  ePDG=-999;
  eVTAS = 0;
  eVTAE = 0;
  eNpl=0;
  eN0=0;
  ePerrUp=0;
  ePerrDown=0;
  return;
}

SetCounters()

void EdbTrackP::SetCounters ( )

inline

{ SetNpl(); SetN0(); }

SetDE()

void EdbTrackP::SetDE ( float  de )

inline

{ eDE=de; }

SetM()

void EdbTrackP::SetM ( float  m )

inline

{ eM=m; }

SetN0() [1/2]

void EdbTrackP::SetN0 ( )

inline

{ eN0 = eNpl-N(); }

SetN0() [2/2]

void EdbTrackP::SetN0 ( int  n0 )

inline

{ eN0 = n0; }

SetNpl() [1/2]

void EdbTrackP::SetNpl ( )

inline

    { if(eS) eNpl = 1+TMath::Abs(GetSegment(0)->PID() - GetSegment(N()-1)->PID()); }

SetNpl() [2/2]

void EdbTrackP::SetNpl ( int  npl )

inline

{ eNpl=npl; }

SetOwner()

void EdbTrackP::SetOwner ( )

inline

{ if(eS) eS->SetOwner(true); }

SetPDG()

void EdbTrackP::SetPDG ( int  pdg )

inline

{ ePDG=pdg; }

SetPerr()

void EdbTrackP::SetPerr	(	Float_t	perrDown,
		Float_t	perrUp
	)

{
  ePerrUp=perrUp;
  ePerrDown=perrDown;
}

SetPerrDown()

void EdbTrackP::SetPerrDown

(

Float_t

perrDown

)

{
  ePerrDown=perrDown;
}

SetPerrUp()

void EdbTrackP::SetPerrUp

(

Float_t

perrUp

)

{
  ePerrUp=perrUp;
}

SetSegmentsTrack() [1/2]

int EdbTrackP::SetSegmentsTrack ( )

inline

{return SetSegmentsTrack(ID());}

SetSegmentsTrack() [2/2]

int EdbTrackP::SetSegmentsTrack ( int  id )

inline

{for(int i=0; i<N(); i++) GetSegment(i)->SetTrack(id); return N();}

SubstituteSegment()

void EdbTrackP::SubstituteSegment ( EdbSegP *  sold, EdbSegP *  snew  )

inline

  {
    if(!eS) return;
    eS->Remove(sold);
    eS->Add(snew);
    sold->SetTrack(-1);
  }

TrackEnd()

const EdbSegP * EdbTrackP::TrackEnd

(

)

const

{
  if(!N())    return (EdbSegP*)this;
  if(Dir()>0) return GetSegmentLast();
  if(Dir()<0) return GetSegmentFirst();
  return (EdbSegP*)this;
}

TrackExtremity()

EdbSegP * EdbTrackP::TrackExtremity ( bool  zpos, bool  usesegpar = false  ) const

inline

          { return zpos? TrackZmin(usesegpar) : TrackZmax(usesegpar); } // 0-end, 1-start (as in vertex class)

TrackStart()

const EdbSegP * EdbTrackP::TrackStart

(

)

const

{
  if(!N())    return (EdbSegP*)this;
  if(Dir()<0) return GetSegmentLast();
  if(Dir()>0) return GetSegmentFirst();
  return (EdbSegP*)this;
}

TrackZmax()

EdbSegP * EdbTrackP::TrackZmax ( bool  usesegpar = false ) const

inline

{ if(usesegpar || (!eSF)) return GetSegmentLast();  else return GetSegmentFLast(); }

TrackZmin()

EdbSegP * EdbTrackP::TrackZmin ( bool  usesegpar = false ) const

inline

{ if(usesegpar || (!eSF)) return GetSegmentFirst(); else return GetSegmentFFirst(); }

Transform()

void EdbTrackP::Transform

(

const EdbAffine2D &

tr

)

apply transformation to all track elements

{
  ((EdbSegP*)(this))->Transform(&aff);
  for(int i=0; i<N(); i++)  GetSegment(i)->Transform(&aff);
  for(int i=0; i<NF(); i++) GetSegmentF(i)->Transform(&aff);
}

Vertex()

EdbVertex * EdbTrackP::Vertex ( int  zpos )

inline

{return zpos? VertexS(): VertexE();}

VertexE()

EdbVertex * EdbTrackP::VertexE

(

)

{
    if(eVTAE) return eVTAE->GetVertex();
    return 0;
}

VertexS()

EdbVertex * EdbTrackP::VertexS

(

)

{
    if(eVTAS) return eVTAS->GetVertex();
    return 0;
}

VTAE()

EdbVTA * EdbTrackP::VTAE ( ) const

inline

{return eVTAE;}

VTAS()

EdbVTA * EdbTrackP::VTAS ( ) const

inline

{return eVTAS;}

Wgrains()

float EdbTrackP::Wgrains

(

)

const

{
  float w=0.;
  int nseg=N();
  for(int i=0; i<nseg; i++)    w+=GetSegment(i)->W();
  return w;
}

Wmean()

Float_t EdbTrackP::Wmean

(

)

const

{
  int n = N();
  double wtot=0;
  for(int i=0; i<n; i++) wtot+=GetSegment(i)->W();
  wtot/=n;
  return (Float_t)wtot;
}

Zend()

Float_t EdbTrackP::Zend ( ) const

inline

{return TrackEnd()->Z();}

Zmax()

Float_t EdbTrackP::Zmax

(

)

const

{
  Float_t zmax = Z();
  if (N() && GetSegmentLast()->Z() > zmax) zmax = GetSegmentLast()->Z();
  return zmax;
}

Zmin()

Float_t EdbTrackP::Zmin

(

)

const

{
  Float_t zmin = Z();
  if (N() && GetSegmentFirst()->Z() < zmin) zmin = GetSegmentFirst()->Z();
  return zmin;
}

Zstart()

Float_t EdbTrackP::Zstart ( ) const

inline

{return TrackStart()->Z();}

Member Data Documentation

eDE

Float_t EdbTrackP::eDE

private

total energy loss of the particle between first and last segments

eM

Float_t EdbTrackP::eM

private

invariant mass of the particle

eN0

Int_t EdbTrackP::eN0

private

number of holes (if any)

eNpl

Int_t EdbTrackP::eNpl

private

number of plates passed through

ePDG

Int_t EdbTrackP::ePDG

private

particle ID from PDG

ePerrDown

Float_t EdbTrackP::ePerrDown

private

error of P() in lower direction, obtained by MCS,or shower-algorithm

ePerrUp

Float_t EdbTrackP::ePerrUp

private

error of P() in upper direction, obtained by MCS,or shower-algorithm

eS

TSortedList* EdbTrackP::eS

private

array of segments

eSF

TSortedList* EdbTrackP::eSF

private

array of fitted segments

eVTAE

EdbVTA* EdbTrackP::eVTAE

private

vertex track end is attached to

eVTAS

EdbVTA* EdbTrackP::eVTAS

private

vertex track start is attached to

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEdr/EdbPattern.h
• /home/antonio/fedra_doxygen/src/libEdr/EdbPattern.cxx
