EdbRunTracking Class Reference

helper class for access to the run data More...

#include <EdbRunTracking.h>

Inheritance diagram for EdbRunTracking:

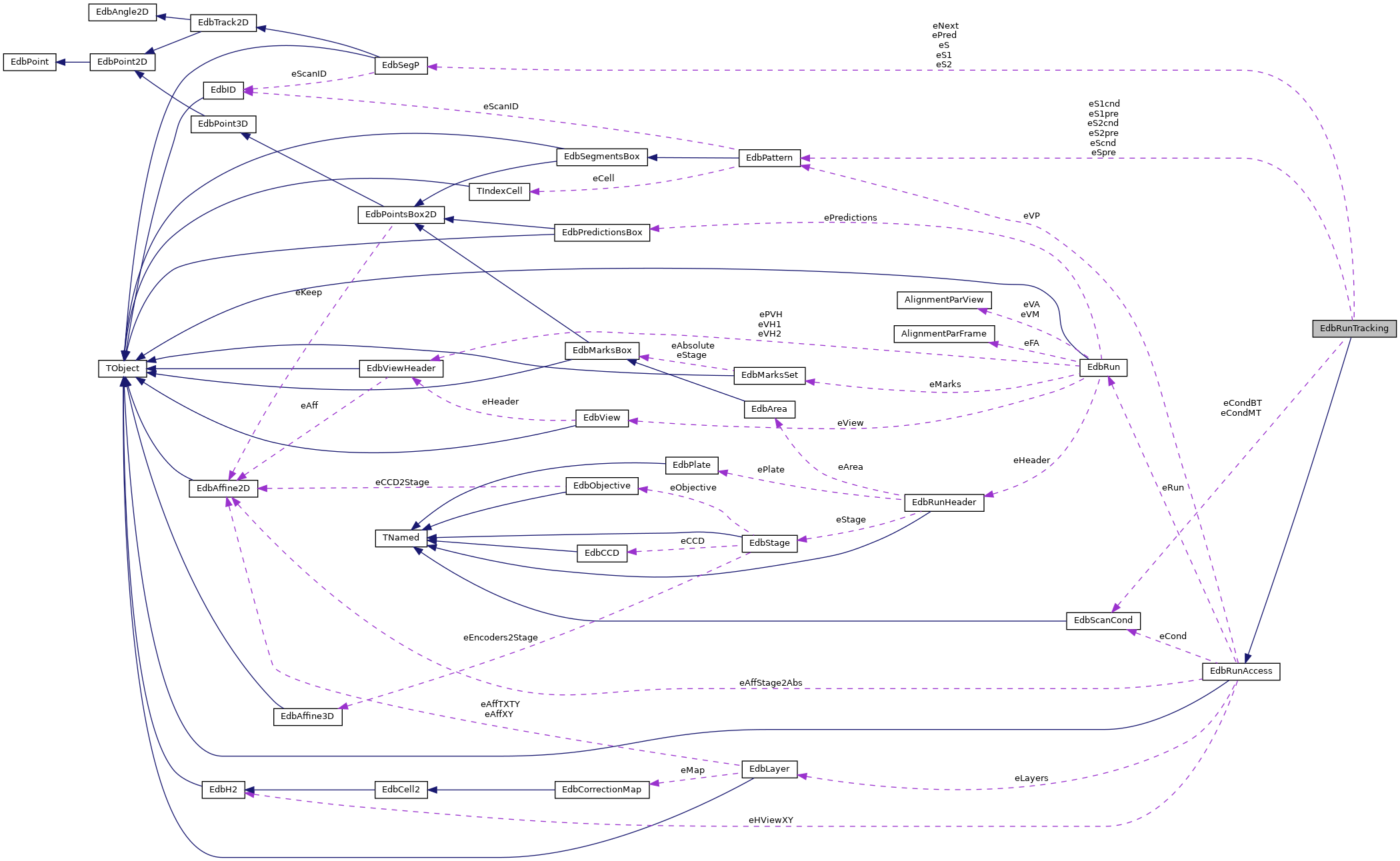

Collaboration diagram for EdbRunTracking:

Public Member Functions
void	CheckZ (float &z1, float &z2)
	EdbRunTracking ()
	EdbRunTracking (const char *fname)
	EdbRunTracking (EdbRun *run)
int	ExtrapolateCond (EdbScanCond &inputcond, int flag, EdbScanCond &outputcond)
int	FindBestCandidate (EdbPattern &fndbt, EdbSegP &fnd, EdbPattern &cnd, float wmin, float wmindegrad, float chi2max)
int	FindCandidateMT (EdbPattern &fnds1, EdbPattern &fnds2, EdbSegP &fnd)
int	FindCandidates (EdbSegP &spred, EdbPattern &fndbt, EdbPattern &fnds1, EdbPattern &fnds2)
int	FindCompliments (EdbSegP &s, EdbPattern &pat, TObjArray &found, float chi2max, TArrayF &chiarr)
int	FindPrediction (EdbSegP &spred, EdbSegP &fndbt, EdbSegP &fnds1, EdbSegP &fnds2, EdbSegP &snewpred)
int	FindTrack (EdbTrackP &pred, EdbTrackP &found, EdbPlateP &plate)
bool	GetSBtreeEntry (int entry, TTree &tsbt)
int	GetSegmentsForDB (EdbSegP &s, EdbSegP &s1, EdbSegP &s2)
void	Print ()
void	Set0 ()
void	SetCondBT (EdbScanCond &cond)
void	SetCondMT (EdbScanCond &cond)
void	SetPred (const EdbSegP &pred)
void	TransformFromPlateRS (EdbPlateP &plate)
int	UpdateFlag (int flag, int status)
bool	UpdateSBtree (TTree &tsbt, int idp[4], int idf[4])
virtual	~EdbRunTracking ()
Public Member Functions inherited from EdbRunAccess
bool	AcceptRawSegment (EdbView *view, int ud, EdbSegP &segP, int side, int entry)
bool	AddRWDToRun (char *rwdname, const char *options="")
void	AddSegmentCut (int ud, int xi, float min[5], float max[5])
void	AddSegmentCut (int ud, int xi, float var[10])
void	AddSegmentCut (int xi, const char *cutline)
void	ApplyCorrections (const EdbView &view, EdbSegment &s, const int rs)
float	CalculateSegmentChi2 (EdbSegment *seg, float sx, float sy, float sz)
int	Check0Views (EdbPattern &pat, int thres=1)
int	CheckEmptyViews (EdbPattern &pat)
float	CheckMeanSegsPerView (EdbPattern &pat)
void	CheckRunLine ()
TH2F *	CheckUpDownOffsets ()
void	CheckViewSize ()
void	CheckViewStep ()
void	CheckViewStep (int ud)
void	ClearCuts ()
bool	CopyRawDataXY (float x0, float y0, float dR, const char *file)
	EdbRunAccess ()
	EdbRunAccess (const char *fname)
	EdbRunAccess (EdbRun *run)
void	FillDZMaps ()
int	FillVP ()
int	FirstArea () const
EdbScanCond *	GetCond (int ud)
EdbSegmentCut *	GetCut (int ud, int i)
float	GetCutGR () const
int	GetEntryXY (int ud, float x, float y)
EdbLayer *	GetLayer (int id)
EdbScanCond *	GetMakeCond (int ud)
EdbLayer *	GetMakeLayer (int id)
Int_t	GetNareas ()
Int_t	GetNviewsPerArea ()
int	GetPatternData (EdbPattern &pat, int side, int nviews, TArrayI &srt, int &nrej)
int	GetPatternDataForPrediction (int id, int side, EdbPattern &pat)
int	GetPatternXY (EdbSegP &s, int side, EdbPattern &pat, float rmin=200)
int	GetPatternXYcut (EdbSegP &s, int side, EdbPattern &pat, float dr, float dt)
EdbSegment *	GetRawSegment (EdbView &v, int sid, int rs=0)
EdbSegment *	GetRawSegment (int vid, int sid, int rs=0)
EdbSegment *	GetRawSegmentN (int vid, int sid, int rs=0)
float	GetRawSegmentPix (EdbSegment *seg)
EdbRun *	GetRun () const
int	GetViewsArea (int ud, TArrayI &entr, float xmin, float xmax, float ymin, float ymax)
int	GetViewsArea (int ud, TArrayI &entr, int area, float &xmin, float &xmax, float &ymin, float &ymax)
int	GetViewsAreaMarg (int ud, TArrayI &entr, int area, float xmarg, float ymarg)
int	GetViewsXY (int ud, TArrayI &entr, float x, float y, float r=200.)
int	GetVolumeArea (EdbPatternsVolume &vol, int area)
int	GetVolumeData (EdbPatternsVolume &vol, int nviews, TArrayI &srt, int &nrej)
int	GetVolumeXY (EdbSegP &s, EdbPatternsVolume &vol)
EdbPattern *	GetVP (int ud) const
void	GuessNviewsPerArea ()
bool	InitRun (const char *runfile=0, bool do_update=false)
bool	InitRunFromRWC (char *rwcname, bool bAddRWD=true, const char *options="")
int	LastArea () const
int	NCuts (int ud)
float	OverlapX (int ud)
float	OverlapY (int ud)
bool	PassCuts (int ud, EdbSegment &seg)
void	Print ()
void	PrintStat ()
void	ReadVAfile ()
float	SegmentWeight (const EdbSegment &s)
void	Set0 ()
void	SetCond (int ud, EdbScanCond &cond)
void	SetCutBottom (int ud, float wmin)
void	SetCutLeft (int ud, float wmin)
void	SetCutRight (int ud, float wmin)
void	SetCutTop (int ud, float wmin)
void	SetPixelCorrection (const char *str)
bool	SetSegmentAtExternalSurface (EdbSegment *seg, int side)
int	ViewSide (const EdbView *view) const
float	ViewX (const EdbView *view) const
float	ViewY (const EdbView *view) const
virtual	~EdbRunAccess ()

Static Public Member Functions
static void	CloseSBtree (TTree *tree)
static int	GetBTHoles (int flag)
static int	GetMTHoles (int flag)
static TTree *	InitSBtree (const char *file_name="sbt.root", const char *mode="RECREATE")

Public Attributes
Float_t	eChi2MaxBT
	(1.5) maximum chi2 accepted between prediction and basetrack candidates More...
Float_t	eChi2MaxMT
	(1.6) maximum chi2 accepted between prediction and microtrack candidates More...
EdbScanCond	eCondBT
	conditions for basetracks More...
EdbScanCond	eCondMT
	conditions for microtracks More...
Float_t	eDegradPos
	SigmaX = SigmaX(0) + degradPos * mth. More...
Float_t	eDegradSlope
	SigmaTX = SigmaTX(0) + degradSlope * bth. More...
Float_t	eDeltaR
	(20) More...
Float_t	eDeltaRview
	(400) More...
Float_t	eDeltaTheta
	(0.15) slope acceptance More...
Int_t	eIdf [4]
Int_t	eIdp [4]
	to read from sbt More...
EdbSegP	eNext
	next prediction More...
EdbSegP	ePred
	prediction More...
bool	ePredictionScan
	if true use GetPatternDataForPrediction( spred.ID(), side, pat ); in FindCandidates (default is false) More...
Float_t	ePreliminaryChi2MaxMT
	(1.6) / microtracks and basetracks selection More...
Float_t	ePreliminaryPulsMinMT
	(6) _ preliminary cuts to microtracks candidates for More...
Float_t	ePulsMinBT
	(18) More...
Float_t	ePulsMinDegradBT
	(0) More...
Float_t	ePulsMinDegradMT
	(0) More...
Float_t	ePulsMinMT
	(10) mimimal number of grains accepted to select microtracks More...
EdbSegP	eS
EdbSegP	eS1
EdbPattern	eS1cnd
	microtrack candidates passed all cuts More...
EdbPattern	eS1pre
	the result of the preliminary selection of microtracks More...
EdbSegP	eS2
	found segments More...
EdbPattern	eS2cnd
EdbPattern	eS2pre
EdbPattern	eScnd
	basetracks candidates passed all cuts More...
EdbPattern	eSpre
	preliminary selected basetracks More...
Int_t	eStatus
	-1-nothing, 0-bt, 1-mt1, 2-mt2 More...
Public Attributes inherited from EdbRunAccess
Int_t	eAFID
	if =1 - use affine transformations of the fiducial marks More...
Int_t	eCLUST
	1-use clusters, 0 - do not More...
Int_t	eDoPixelCorr
	apply or not pix/mic correction when read data (default is 0) More...
Bool_t	eDoViewAnalysis
	fill or not the histograms for optional view analysis More...
TGraph2D *	eGraphDZ [3]
	keep the base/layer1/layer2 thickness calculated using eZ1/eZ2/eZ3/eZ4 for each view More...
TGraph2D *	eGraphZ [4]
	keep z1/z2/z3/z4 surfaces using eZ1/eZ2/eZ3/eZ4 for each view More...
TCut	eHeaderCut
	header cut to be applied in run initialization More...
EdbH2	eHViewXY [3]
	XY segments distribution in a view local coords. More...
Bool_t	eInvertSides
	0 -do nothing, 1-invert sides More...
Float_t	ePixelCorrX
	pixel/micron correction factor to be applied for data More...
Float_t	ePixelCorrY
Int_t	eTracking
	to test tracking alorithm: -1-ignored(def),0/1 - trackings to accept More...
Bool_t	eUseDensityAsW
	in case of LASSO tracking possible to use eSigmaY as eW More...
Bool_t	eUseExternalSurface
	if true - set segment position corrisponding to the very external cluster More...
Int_t	eWeightAlg
	0-puls, 1 - density(former eUseDensityAsW), 2-Likelyhood (eSigmaX) More...

Detailed Description

helper class for access to the run data

Constructor & Destructor Documentation

EdbRunTracking() [1/3]

EdbRunTracking::EdbRunTracking ( )

inline

: EdbRunAccess() { Set0(); };

EdbRunTracking() [2/3]

EdbRunTracking::EdbRunTracking ( EdbRun *  run )

inline

: EdbRunAccess(run) { Set0(); };

EdbRunTracking() [3/3]

EdbRunTracking::EdbRunTracking ( const char *  fname )

inline

: EdbRunAccess(fname) { Set0(); };

~EdbRunTracking()

virtual EdbRunTracking::~EdbRunTracking ( )

virtual

Member Function Documentation

CheckZ()

void EdbRunTracking::CheckZ	(	float &	z1,
		float &	z2
	)

{
  EdbSegP *s1 = (EdbSegP*)(eS1pre.At(0));
  EdbSegP *s2 = (EdbSegP*)(eS2pre.At(0));
  if(s1&&s2)
  {
    z1=s1->Z();
    z2=s2->Z();
  }
  else
  {
    z1 = 214;
    z2 = 0;
  }
}

CloseSBtree()

void EdbRunTracking::CloseSBtree ( TTree *  tree )

static

{
  tree->AutoSave();
  TFile *f=0;
  f = tree->GetCurrentFile();
  if(f) {
    f->Purge();
    f->Close();
  }
  tree=0;
}

ExtrapolateCond()

int EdbRunTracking::ExtrapolateCond	(	EdbScanCond &	inputcond,
		int	flag,
		EdbScanCond &	outputcond
	)

TODO: tuning the dependency of sigma
NOTED by Artem: when we do jumping we have no "holes" stored in the flag, so this function do not
extrapolate errors correctly so one had to encrease the acceptance manually,
possible solution can be to add total plates number before the last found
track into the flag and use it only for extrapolatio

{

  int bth = GetBTHoles(flag);
  int mth = GetMTHoles(flag);
  outputcond = inputcond;
  outputcond.SetSigma0( inputcond.SigmaX(0)  + eDegradPos   * mth,
            inputcond.SigmaY(0)  + eDegradPos   * mth,
            inputcond.SigmaTX(0) + eDegradSlope * bth,
            inputcond.SigmaTY(0) + eDegradSlope * bth );
  return(0);
}

FindBestCandidate()

int EdbRunTracking::FindBestCandidate	(	EdbPattern &	fndbt,
		EdbSegP &	fnd,
		EdbPattern &	cnd,
		float	wmin,
		float	wmindegrad,
		float	chi2max
	)

{
  int n=0;
  fnd.Set0();
  fnd.SetChi2(10000.+chi2max);
  for (int i=0; i<cand.N(); i++) {
    EdbSegP *s = cand.GetSegment(i);
    if ( s->W()<wmin+s->Chi2()*wmindegrad )  continue;
    if ( s->Chi2()>chi2max )                 continue;
    n++;
    passed.AddSegment(*s);
    if (s->Chi2()<fnd.Chi2())      fnd.Copy(*s);
  }
  return n;
}

FindCandidateMT()

int EdbRunTracking::FindCandidateMT	(	EdbPattern &	fnds1,
		EdbPattern &	fnds2,
		EdbSegP &	fnd
	)

{
  EdbSegP s1,s2;
  int n1=FindBestCandidate( fnds1, s1, eS1cnd, ePulsMinMT, ePulsMinDegradMT, eChi2MaxMT);
  int n2=FindBestCandidate( fnds2, s2, eS2cnd, ePulsMinMT, ePulsMinDegradMT, eChi2MaxMT);
  Log(2,"FindCandidateMT","Found %d+%d microtrack candidates after cuts",n1,n2);

  if( n1==0&&n2==0 )  return 0;

  if( s1.Chi2() <= s2.Chi2() ) {
    fnd.Copy(s1);
    return 1;
  }
  else {
    fnd.Copy(s2);
    return 2;
  }
  return 0;
}

FindCandidates()

int EdbRunTracking::FindCandidates	(	EdbSegP &	spred,
		EdbPattern &	fndbt,
		EdbPattern &	fnds1,
		EdbPattern &	fnds2
	)

Find microtracks and basetracks for the prediction segment "spred"
Selection criteria:
1) select all microtracks with (puls >= ePreliminaryPulsMinMT) (6) and (chi2 < ePreliminaryChi2MaxMT) for both side
2) select all basetracks by using the selected microtracks, with (chi2_bt < eChi2MaxBT)
Microtracks and basetracks in output are sorted according to chi2 (ascending order = the first one is the best one)
Input:
spred - track prediction
Output:
fnds1 - microtracks having puls>=ePreliminaryPulsMinMT and chi2<ePreliminaryChi2MaxMT
in the top side of the emulsion plate
fnds2 - microtracks having puls>=ePreliminaryPulsMinMT and chi2<ePreliminaryChi2MaxMT
in the bottom side of the emulsion plate
fndbt - basetracks built from the microtracks and (chi2_bt < eChi2MaxBT)

{

  ClearCuts();

  EdbScanCond condBT;
  ExtrapolateCond(eCondBT,spred.Flag(),condBT);
  if (gEDBDEBUGLEVEL>=3) condBT.Print();

  spred.SetZ(107.);                                      // TODO!
  spred.SetErrors();
  condBT.FillErrorsCov( spred.TX(), spred.TY(), spred.COV() );

  //EdbPVRec aview;  //with 2 patterns of preselected microtracks
  //aview.AddPattern( new EdbPattern(0,0,214));  // TODO! sequence??
  //aview.AddPattern( new EdbPattern(0,0,0)  );

  float xmin[5]={-500, -500, spred.TX()-eDeltaTheta, spred.TY()-eDeltaTheta, ePreliminaryPulsMinMT };         //TODO!!
  float xmax[5]={ 500,  500, spred.TX()+eDeltaTheta, spred.TY()+eDeltaTheta, 50 };

  for(int side=1; side<=2; side++) {
    EdbPattern pat;
    AddSegmentCut(side,1,xmin,xmax);
    if(ePredictionScan) GetPatternDataForPrediction( spred.ID(), side, pat );
    else                GetPatternXY( spred, side,  pat, eDeltaRview);
    Log(2,"FindCandidates","%d microtracks in side %d",pat.N(),side);

    for(int i=0; i<pat.N(); i++) {
      EdbSegP *s = pat.GetSegment(i);
      s->SetErrors();
      eCondMT.FillErrorsCov( spred.TX(), spred.TY(), s->COV() );
    }

    pat.FillCell(10,10,0.01,0.01);  //divide view on this cells

    TArrayF chi2arr(10000);  //TODO!
    TObjArray found;
    FindCompliments( spred, pat, found, ePreliminaryChi2MaxMT, chi2arr );

    for(int j=0; j<found.GetEntries(); j++) {
      EdbSegP *s = (EdbSegP *)(found.At(j));
      s->SetChi2(chi2arr[j]);
      if     (side==1) fnds1.AddSegment(*s);
      else if(side==2) fnds2.AddSegment(*s);
    }

  }

  // filling fndbt

  EdbPattern bt;

  for(int is1=0; is1<fnds1.N(); is1++) {
    for(int is2=0; is2<fnds2.N(); is2++) {

      EdbSegP *s1 = fnds1.GetSegment(is1);
      EdbSegP *s2 = fnds2.GetSegment(is2);

      float dx1=s1->X()-(spred.X()+spred.TX()*(s1->Z()-spred.Z()));
      float dy1=s1->Y()-(spred.Y()+spred.TY()*(s1->Z()-spred.Z()));
      float dx2=s2->X()-(spred.X()+spred.TX()*(s2->Z()-spred.Z()));
      float dy2=s2->Y()-(spred.Y()+spred.TY()*(s2->Z()-spred.Z()));
      float r = Sqrt( (dx1-dx2)*(dx1-dx2) + (dy1-dy2)*(dy1-dy2) );

      if(r<eDeltaR) {  // has good BT
    EdbSegP s3;
    s3.Copy(spred);
    s3.SetX( 0.5*(s1->X() + s2->X()) );
    s3.SetY( 0.5*(s1->Y() + s2->Y()) );
    s3.SetZ( 0.5*(s1->Z() + s2->Z()) );
    s3.SetTX( (s2->X() - s1->X()) / (s2->Z() - s1->Z()) );
    s3.SetTY( (s2->Y() - s1->Y()) / (s2->Z() - s1->Z()) );
    s3.SetW(s1->W()+s2->W());

    s3.SetFlag(is2*10000+is1);

    EdbSegP s4(spred);
    float chi = EdbTrackFitter::Chi2Seg(&s4, &s3);  // depends on the sequence (best defined should be first)
    //float chi = EdbTrackFitter::Chi2SegM(spred, s3, s4, eCondBT, eCondBT);
    if(chi<eChi2MaxBT) {
      s3.SetChi2(chi);
      bt.AddSegment(s3);
    }
      }
    }
  }

  TArrayF chi2arr(bt.N());
  for (int i=0;i<bt.N();i++) chi2arr[i]=bt.GetSegment(i)->Chi2();
  TArrayI   ind(bt.N());
  TMath::Sort(bt.N(),chi2arr.GetArray(),ind.GetArray(),false);
  for(int i=0; i<bt.N(); i++) {
    EdbSegP *s = bt.GetSegment(ind[i]);
    fndbt.AddSegment(*s);
  }

  Log(2,"FindCandidates","Found %d basetrack candidate in %d+%d preselected microtracks",fndbt.N(),fnds1.N(),fnds2.N());

  return 1; //TODO!
}

FindCompliments()

int EdbRunTracking::FindCompliments	(	EdbSegP &	s,
		EdbPattern &	pat,
		TObjArray &	found,
		float	chi2max,
		TArrayF &	chiarr
	)

{
  // return found sorted by increasing chi2

  int nfound=0;
  int maxcand=chiarr.GetSize();
  TArrayF   chi2arr(maxcand);
  TObjArray arr(maxcand);
  TArrayI   ind(maxcand);

  int nseg = pat.FindCompliments(s,arr,30,200);  // acceptance (prelim): s.SX()*30; s.STX*200
  //  printf("\nnseg = %d\n",nseg);
  if(nseg>maxcand)  {
    printf("Warning!: Too many segments %d, accept only the first %d \n", nseg, maxcand);
    nseg = maxcand;
  }
  if(nseg<=0) return 0;

  EdbSegP *s2=0;
  for(int j=0; j<nseg; j++) {
    s2 = (EdbSegP *)arr.At(j);
    EdbSegP s3;
    s3.Copy(s);
    chi2arr[j] = EdbTrackFitter::Chi2Seg(&s3, s2);
    //chi2arr[j] = EdbTrackFitter::Chi2SegM(s, *s2,s3,eCondBT,eCondMT);
  }
  TMath::Sort(nseg,chi2arr.GetArray(),ind.GetArray(),0);
  //  printf("pred = %f %f %f %f\n",s.X(),s.Y(),s.TX(),s.TY());
  for(int j=0; j<nseg; j++) {
    s2 = (EdbSegP *)arr.At(ind[j]);
    //    printf("j = %d, ind = %d, chi2 = %f    %f\n",j,ind[j],chi2arr[ind[j]],chi2max);
    //    printf("Tx = %f %f %f %f\n",s2->X(),s2->Y(),s2->TX(),s2->TY());
    if(chi2arr[ind[j]] > chi2max ) break;
    chiarr[j] = chi2arr[ind[j]];
    s2->SetMC(s.MCEvt(),s.MCTrack());
    found.Add(s2);
    nfound++;
  }

  //  printf("nfound = %d\n",nfound);
  return nfound;
}

FindPrediction()

int EdbRunTracking::FindPrediction	(	EdbSegP &	spred,
		EdbSegP &	fndbt,
		EdbSegP &	fnds1,
		EdbSegP &	fnds2,
		EdbSegP &	snewpred
	)

Select the best (micro or base) track matching with the prediction
and prepare for a new search.
Selection criteria: 1) Call FindCandidates having the list of basetrack and microtrack candidates
2) Call FindCandidateBT which looks for the best basetrack, if any
3) If no basetrack is found, call FindCandidateMT which looks fot the best microtrack, if any.
Microtracks accepted shold satisfy the following cut: (puls >= ePulsMinMT) (10) and (chi2 < eChi2MaxMT)
Input:
spred - track prediction
Output:

• if a basetrack is found (status 0):
  fndbt - basetrack found
  fnds1 - microtrack top contained in the found basetrack
  fnds2 - microtrack bottom contained in the found basetrack
  snewpred - fndbt with flag equal to 0

• if a microtrack top is found (status 1):
  fndbt - dummy
  fnds1 - microtrack top found
  fnds2 - dummy
  snewpred - a track with slopes from the prediction spred and positions
  from an extrapolation of fnds1. The flag is updated by UpdateFlag

• if a microtrack bottom is found (status 2):
  fndbt - dummy
  fnds1 - dummy
  fnds2 - microtrack bottom found
  snewpred - a track with slopes from the prediction spred and positions
  from an extrapolation of fnds2. The flag is updated by UpdateFlag

• if nothing is found (status -1):
  fndbt - dummy
  fnds1 - dummy
  fnds2 - dummy
  snewpred - the prediction spred. The flag is updated by UpdateFlag
  Return:
  -1: no track found
  0: basetrack found
  1: microtrack top found
  2: microtrack bottom found


{

  //EdbPattern vfndbt,vfnds1,vfnds2;

  eStatus = -1;
  SetPred(spred);
  FindCandidates( spred, eSpre, eS1pre, eS2pre );

  EdbSegP fnd;
  int nbt = FindBestCandidate(eSpre,fnd, eScnd, ePulsMinBT, ePulsMinDegradBT, eChi2MaxBT);
  if ( nbt > 0 ) {
    eS.Copy(fnd);
    eS1.Copy(*(eS1pre.GetSegment(fnd.Flag()%10000)));
    eS2.Copy(*(eS2pre.GetSegment(fnd.Flag()/10000)));
    eS.SetFlag(0);
    eNext.Copy(fnd);
    eNext.SetFlag(UpdateFlag(spred.Flag(),0));          // if bt found : bth=0, mth=0, tb=0
    eStatus = 0;
   }

  int if_mt = FindCandidateMT(eS1pre,eS2pre,fnd);
  if(eStatus!=-1) goto RESUME;

  switch(if_mt) {
  case 0:                       // find nothing
    eNext.Copy(spred);
    eNext.SetFlag(UpdateFlag(spred.Flag(),-1));      // hole: if not found: bth++, mth++, tb= keep last value
    eNext.SetW(0);
    eStatus = -1;    goto RESUME;
  case 1:         // best microtrack is on the 1-st side
    eS1.Copy(fnd);
    eNext.Copy(spred);
    eNext.SetX( fnd.X() + spred.TX()*(spred.Z()-fnd.Z()) );
    eNext.SetY( fnd.Y() + spred.TY()*(spred.Z()-fnd.Z()) );
    eNext.SetZ(spred.Z());
    eNext.SetFlag(UpdateFlag(spred.Flag(),1));          // if mt found : bth++, mth=0, tb=1
    eNext.SetW(fnd.W());
    eStatus = 1;    goto RESUME;
  case 2:         // best microtrack is on the 2-d side
    eS2.Copy(fnd);
    eNext.Copy(spred);
    eNext.SetX( fnd.X() + spred.TX()*(spred.Z()-fnd.Z()) );
    eNext.SetY( fnd.Y() + spred.TY()*(spred.Z()-fnd.Z()) );
    eNext.SetZ(spred.Z());
    eNext.SetFlag(UpdateFlag(spred.Flag(),2));         // if mt found : bth++, mth=0, tb=2
    eNext.SetW(fnd.W());
    eStatus = 2;    goto RESUME;
  }

 RESUME:

  Log(2,"FindPrediction","status = %d, good candidates [s:s1:s2] %d:%d:%d ;  preliminary [s:s1:s2] %d:%d:%d",
      eStatus,
      eScnd.N(),eS1cnd.N(),eS2cnd.N(),
      eSpre.N(),eS1pre.N(),eS2pre.N()
      );
  snewpred.Copy(eNext);
  fndbt.Copy(eS);
  fnds1.Copy(eS1);
  fnds2.Copy(eS2);
  return eStatus;
}

FindTrack()

int EdbRunTracking::FindTrack	(	EdbTrackP &	pred,
		EdbTrackP &	found,
		EdbPlateP &	plate
	)

look for tracks in this plate
track - input track in brick RS - will be updated on output
plate - all plate parameters including affine transformation plate-to-brick

{

  int status=-100;
  float DZmax = 1350*100;

  EdbAffine2D p2b(*(plate.GetAffineXY()));   // from plate to brick
  EdbAffine2D b2p(p2b); b2p.Invert();        // from brick to plate
  EdbSegP ps;

  float dz = pred.MakePredictionTo(plate.Z(), ps);
  printf("EdbRunTracking::FindTrack: dz: %f - %f = %f\n", plate.Z(), pred.Z(), dz );

  if(Abs(dz)>DZmax)               return status;
  if(GetBTHoles(pred.Flag())>5)   return status;
  if(GetMTHoles(pred.Flag())>3)   return status;

  ps.SetFlag(pred.Flag());
  ps.PrintNice();
  ps.Transform(&b2p);                     // plate.Transoform(seg) ???
  ps.PrintNice();

  EdbSegP fndbt, fnds1, fnds2, snewpred;
  status = FindPrediction( ps, fndbt, fnds1, fnds2, snewpred ); // -1: not found; 0-bt, 1-bot, 2-top
  found.SetFlag(snewpred.Flag());
  fnds1.PrintNice();
  fnds2.PrintNice();

  TransformFromPlateRS(plate);      // transform all components into brick RS

  if(status>=0) {
    found.AddSegment(  new EdbSegP(eNext) );
    found.AddSegmentF( new EdbSegP(ePred) );   // add prediction as "fitted segment" because it is an extrapolation
    found.SetSegmentsTrack();
  }

  Log(2,"EdbRunTracking::FindTracks","status = %d",status);
  return status;
}

GetBTHoles()

static int EdbRunTracking::GetBTHoles ( int  flag )

inlinestatic

{ return(flag/10000);     }

GetMTHoles()

static int EdbRunTracking::GetMTHoles ( int  flag )

inlinestatic

{ return((flag/100)%100); }

GetSBtreeEntry()

bool EdbRunTracking::GetSBtreeEntry	(	int	entry,
		TTree &	tsbt
	)

{
  EdbSegP *s_pred = &ePred, *s_bt = &eS, *s_mt1=&eS1, *s_mt2=&eS2, *s_next=&eNext;

  tsbt.SetBranchAddress("idpred",eIdp);
  tsbt.SetBranchAddress("idfound",eIdf);
  tsbt.SetBranchAddress("stat",&eStatus);
  tsbt.SetBranchAddress("pred.", &s_pred);
  tsbt.SetBranchAddress("s.", &s_bt);
  tsbt.SetBranchAddress("s1.", &s_mt1);
  tsbt.SetBranchAddress("s2.", &s_mt2);
  tsbt.SetBranchAddress("next.", &s_next);

  TClonesArray *s_cnd = eScnd.GetSegments();
  tsbt.SetBranchAddress("scnd", &s_cnd);
  TClonesArray *s1_cnd = eS1cnd.GetSegments();
  tsbt.SetBranchAddress("s1cnd", &s1_cnd);
  TClonesArray *s2_cnd = eS2cnd.GetSegments();
  tsbt.SetBranchAddress("s2cnd", &s2_cnd);

  TClonesArray *s_pre = eSpre.GetSegments();
  tsbt.SetBranchAddress("spre", &s_pre);
  TClonesArray *s1_pre = eS1pre.GetSegments();
  tsbt.SetBranchAddress("s1pre", &s1_pre);
  TClonesArray *s2_pre = eS2pre.GetSegments();
  tsbt.SetBranchAddress("s2pre", &s2_pre);

  tsbt.GetEntry(entry);
  return true;
}

GetSegmentsForDB()

int EdbRunTracking::GetSegmentsForDB	(	EdbSegP &	s,
		EdbSegP &	s1,
		EdbSegP &	s2
	)

return s,s1,s2 if status >=0, create fake microtracks if necessary
for fakes: seg->GetPuls(), seg->GetVolume(), seg->GetSigmaX() //0, 0, -1

{
  float z1=0,z2=0;
  CheckZ(z1,z2);
  s.Copy(eNext);  //has z in the center of base (107)
  if (eStatus==0) // both microtracks and basetrack found
  {
    s1.Copy(eS1);
    s2.Copy(eS2);
  }
  else if (eStatus==1) // s1 found
  {
    s1.Copy(eS1);
    s2.Copy(eNext);
    s2.PropagateTo(z1);
    s2.SetW(0); s2.SetChi2(0);
   }
  else if (eStatus==2) // s1 found
  {
    s2.Copy(eS2);
    s1.Copy(eNext);
    s1.PropagateTo(z2);
    s1.SetW(0); s1.SetChi2(0);
  }
  else
  {
    s1.Copy(eNext);
    s2.Copy(eNext);
  }
  Log(2,"EdbRunTracking::GetSegmentsForDB","status = %d, z1=%f  z2= %f",eStatus,s1.Z(),s2.Z());
  return eStatus;
}

InitSBtree()

TTree * EdbRunTracking::InitSBtree ( const char *  file_name = "sbt.root", const char *  mode = "RECREATE"  )

static

{
  const char *tree_name="sbt";
  TTree *tree=0;
  if (!tree) {
    TFile *f = new TFile(file_name,mode);
    if (f)  tree = (TTree*)f->Get(tree_name);
    if(!tree) {

      f->cd();
      tree = new TTree(tree_name,tree_name);
      tree->SetMaxTreeSize(15000000000LL);   //set 15 Gb file size limit)

      Int_t idp[4], idf[4], stat;
      EdbSegP *s_pred = 0, *s_bt = 0, *s_mt1=0, *s_mt2=0, *s_next=0;
      TClonesArray *scnd   = new TClonesArray("EdbSegP");
      TClonesArray *s1cnd  = new TClonesArray("EdbSegP");
      TClonesArray *s2cnd  = new TClonesArray("EdbSegP");
      TClonesArray *spre   = new TClonesArray("EdbSegP");
      TClonesArray *s1pre  = new TClonesArray("EdbSegP");
      TClonesArray *s2pre  = new TClonesArray("EdbSegP");

      tree->Branch("idpred",idp,"idp[4]/I");
      tree->Branch("idfound",idf,"idf[4]/I");
      tree->Branch("stat",&stat,"stat/I");
      tree->Branch("pred.", "EdbSegP", &s_pred);
      tree->Branch("s.", "EdbSegP", &s_bt);
      tree->Branch("s1.", "EdbSegP", &s_mt1);
      tree->Branch("s2.", "EdbSegP", &s_mt2);
      tree->Branch("next.", "EdbSegP", &s_next);
      tree->Branch("scnd",&scnd);
      tree->Branch("s1cnd",&s1cnd);
      tree->Branch("s2cnd",&s2cnd);
      tree->Branch("spre",&spre);
      tree->Branch("s1pre",&s1pre);
      tree->Branch("s2pre",&s2pre);
      tree->Write();
    }
  }

  if(!tree) Log(1,"InitSBtree","ERROR!!! can't initialize tree at %s as %s\n",file_name,mode);
  return tree;
}

Print()

void EdbRunTracking::Print

(

)

{
  printf("EdbRunTracking selection criteria:\n");
  printf("Preliminary mt selection:\n");
  printf("                         eDeltaRview           = %5.3f\n", eDeltaRview);
  printf("                         eDeltaTheta           = %5.3f\n", eDeltaTheta);
  printf("                         ePreliminaryPulsMinMT = %3.1f\n", ePreliminaryPulsMinMT);
  printf("                         ePreliminaryChi2MaxMT = %5.3f\n", ePreliminaryChi2MaxMT);
  printf("Preliminary bt selection:\n");
  printf("                         eDeltaR               = %3.1f\n", eDeltaR);
  printf("                         eChi2MaxBT            = %5.3f\n", eChi2MaxBT);
  printf("Final       bt selection:\n");
  printf("                         ePulsMinBT            = %3.1f\n", ePulsMinBT);
  printf("                         ePulsMinDegradBT      = %3.1f\n", ePulsMinDegradBT);
  printf("Final       mt selection:\n");
  printf("                         ePulsMinMT            = %3.1f\n", ePulsMinMT);
  printf("                         ePulsMinDegradMT      = %3.1f\n", ePulsMinDegradMT);
  printf("                         eChi2MaxMT            = %5.3f\n", eChi2MaxMT);
  printf("\n");
}

Set0()

void EdbRunTracking::Set0

(

)

{
  eCondMT.SetDefault();
  eCondBT.SetDefault();

  eDeltaRview           = 400;
  eDeltaTheta           = 0.15;
  ePreliminaryPulsMinMT = 5;
  ePreliminaryChi2MaxMT = 5;

  eDeltaR      = 20;
  ePulsMinBT   = 18;
  ePulsMinDegradBT = 0;
  eChi2MaxBT   = 2.5;

  eChi2MaxMT   = 1.6;
  ePulsMinDegradMT = 0;
  ePulsMinMT   = 10.;

  eDegradPos   = 0;
  eDegradSlope = 0;
  ePredictionScan = false;
}

SetCondBT()

void EdbRunTracking::SetCondBT ( EdbScanCond &  cond )

inline

{ eCondBT = cond; }

SetCondMT()

void EdbRunTracking::SetCondMT ( EdbScanCond &  cond )

inline

{ eCondMT = cond; }

SetPred()

void EdbRunTracking::SetPred

(

const EdbSegP &

pred

)

{
  ePred.Copy(pred);
  eNext.Set0();
  eS.Set0(); eS1.Set0(); eS2.Set0();
  eS1cnd.Reset();
  eS2cnd.Reset();
  eScnd.Reset();
  eS1pre.Reset();
  eS2pre.Reset();
  eSpre.Reset();
}

TransformFromPlateRS()

void EdbRunTracking::TransformFromPlateRS

(

EdbPlateP &

plate

)

{
  EdbAffine2D p2b(*(plate.GetAffineXY()));   // from plate to brick

  ePred.Transform(&p2b);
  eNext.Transform(&p2b);
  eS.Transform(&p2b);
  eS1.Transform(&p2b);
  eS2.Transform(&p2b);
  eScnd.Transform(&p2b);
  eS1cnd.Transform(&p2b);
  eS2cnd.Transform(&p2b);
  eSpre.Transform(&p2b);
  eS1pre.Transform(&p2b);
  eS2pre.Transform(&p2b);

  ePred.SetPID( plate.ID() );
  eNext.SetPID( plate.ID() );
  eS.SetPID(    plate.ID() );
  eS1.SetPID(   plate.ID() );
  eS2.SetPID(   plate.ID() );
  for(int i=0; i<eScnd.N(); i++)  eScnd.GetSegment(i)->SetPID( plate.ID() );
  for(int i=0; i<eS1cnd.N(); i++) eS1cnd.GetSegment(i)->SetPID( plate.ID() );
  for(int i=0; i<eS2cnd.N(); i++) eS2cnd.GetSegment(i)->SetPID( plate.ID() );
  for(int i=0; i<eSpre.N(); i++)  eSpre.GetSegment(i)->SetPID( plate.ID() );
  for(int i=0; i<eS1pre.N(); i++) eS1pre.GetSegment(i)->SetPID( plate.ID() );
  for(int i=0; i<eS2pre.N(); i++) eS2pre.GetSegment(i)->SetPID( plate.ID() );

  ePred.SetZ( plate.Z() );
  eNext.SetZ( plate.Z() );
  eS.SetZ(    plate.Z() );
  eS1.SetZ(   plate.GetLayer(1)->Z() + plate.Z() );
  eS2.SetZ(   plate.GetLayer(2)->Z() + plate.Z() );
  for(int i=0; i<eScnd.N(); i++)  eScnd.GetSegment(i)->SetZ( plate.Z() );
  for(int i=0; i<eS1cnd.N(); i++) eS1cnd.GetSegment(i)->SetZ( plate.GetLayer(1)->Z() + plate.Z() );
  for(int i=0; i<eS2cnd.N(); i++) eS2cnd.GetSegment(i)->SetZ( plate.GetLayer(2)->Z() + plate.Z() );
  for(int i=0; i<eSpre.N(); i++)  eSpre.GetSegment(i)->SetZ( plate.Z() );
  for(int i=0; i<eS1pre.N(); i++) eS1pre.GetSegment(i)->SetZ( plate.GetLayer(1)->Z() + plate.Z() );
  for(int i=0; i<eS2pre.N(); i++) eS2pre.GetSegment(i)->SetZ( plate.GetLayer(2)->Z() + plate.Z() );

  eNext.SetDZ( plate.GetLayer(0)->DZ() );
  eS.SetDZ(    plate.GetLayer(0)->DZ() );
  eS1.SetDZ(   plate.GetLayer(1)->DZ());
  eS2.SetDZ(   plate.GetLayer(2)->DZ());
  for(int i=0; i<eScnd.N(); i++)  eScnd.GetSegment(i)->SetDZ( plate.GetLayer(0)->DZ() );
  for(int i=0; i<eS1cnd.N(); i++) eS1cnd.GetSegment(i)->SetDZ( plate.GetLayer(1)->DZ() );
  for(int i=0; i<eS2cnd.N(); i++) eS2cnd.GetSegment(i)->SetDZ( plate.GetLayer(2)->DZ() );
  for(int i=0; i<eSpre.N(); i++)  eSpre.GetSegment(i)->SetDZ( plate.GetLayer(0)->DZ() );
  for(int i=0; i<eS1pre.N(); i++) eS1pre.GetSegment(i)->SetDZ( plate.GetLayer(1)->DZ() );
  for(int i=0; i<eS2pre.N(); i++) eS2pre.GetSegment(i)->SetDZ( plate.GetLayer(2)->DZ() );
}

UpdateFlag()

int EdbRunTracking::UpdateFlag	(	int	flag,
		int	status
	)

status: -1 -found nothing, 0-bt, 1-mt1, 2-mt2

{

  int bth = flag/10000;
  int mth = (flag/100)%100;
  int tb  = flag%10;

  switch (status) {
  case -1: bth++; mth++;       break;
  case  0: bth=0; mth=0; tb=0; break;
  case  1: bth++; mth=0; tb=1; break;
  case  2: bth++; mth=0; tb=2; break;
  }

  return( bth*10000+mth*100+tb );
}

UpdateSBtree()

bool EdbRunTracking::UpdateSBtree	(	TTree &	tsbt,
		int	idp[4],
		int	idf[4]
	)

{
  EdbSegP *s_pred = &ePred, *s_bt = &eS, *s_mt1=&eS1, *s_mt2=&eS2, *s_next=&eNext;

  tsbt.SetBranchAddress("idpred",idp);
  tsbt.SetBranchAddress("idfound",idf);
  tsbt.SetBranchAddress("stat",&eStatus);
  tsbt.SetBranchAddress("pred.", &s_pred);
  tsbt.SetBranchAddress("s.", &s_bt);
  tsbt.SetBranchAddress("s1.", &s_mt1);
  tsbt.SetBranchAddress("s2.", &s_mt2);
  tsbt.SetBranchAddress("next.", &s_next);

  TClonesArray *s_cnd = eScnd.GetSegments();
  tsbt.SetBranchAddress("scnd", &s_cnd);
  TClonesArray *s1_cnd = eS1cnd.GetSegments();
  tsbt.SetBranchAddress("s1cnd", &s1_cnd);
  TClonesArray *s2_cnd = eS2cnd.GetSegments();
  tsbt.SetBranchAddress("s2cnd", &s2_cnd);

  TClonesArray *s_pre = eSpre.GetSegments();
  tsbt.SetBranchAddress("spre", &s_pre);
  TClonesArray *s1_pre = eS1pre.GetSegments();
  tsbt.SetBranchAddress("s1pre", &s1_pre);
  TClonesArray *s2_pre = eS2pre.GetSegments();
  tsbt.SetBranchAddress("s2pre", &s2_pre);

  tsbt.Fill();
  return true;
}

Member Data Documentation

eChi2MaxBT

Float_t EdbRunTracking::eChi2MaxBT

(1.5) maximum chi2 accepted between prediction and basetrack candidates

eChi2MaxMT

Float_t EdbRunTracking::eChi2MaxMT

(1.6) maximum chi2 accepted between prediction and microtrack candidates

eCondBT

EdbScanCond EdbRunTracking::eCondBT

conditions for basetracks

eCondMT

EdbScanCond EdbRunTracking::eCondMT

conditions for microtracks

eDegradPos

Float_t EdbRunTracking::eDegradPos

SigmaX = SigmaX(0) + degradPos * mth.

eDegradSlope

Float_t EdbRunTracking::eDegradSlope

SigmaTX = SigmaTX(0) + degradSlope * bth.

eDeltaR

Float_t EdbRunTracking::eDeltaR

(20)

eDeltaRview

Float_t EdbRunTracking::eDeltaRview

(400)

eDeltaTheta

Float_t EdbRunTracking::eDeltaTheta

(0.15) slope acceptance

eIdf

Int_t EdbRunTracking::eIdf[4]

eIdp

Int_t EdbRunTracking::eIdp[4]

to read from sbt

eNext

EdbSegP EdbRunTracking::eNext

next prediction

ePred

EdbSegP EdbRunTracking::ePred

prediction

ePredictionScan

bool EdbRunTracking::ePredictionScan

if true use GetPatternDataForPrediction( spred.ID(), side, pat ); in FindCandidates (default is false)

ePreliminaryChi2MaxMT

Float_t EdbRunTracking::ePreliminaryChi2MaxMT

(1.6) / microtracks and basetracks selection

ePreliminaryPulsMinMT

Float_t EdbRunTracking::ePreliminaryPulsMinMT

(6) _ preliminary cuts to microtracks candidates for

ePulsMinBT

Float_t EdbRunTracking::ePulsMinBT

(18)

ePulsMinDegradBT

Float_t EdbRunTracking::ePulsMinDegradBT

(0)

ePulsMinDegradMT

Float_t EdbRunTracking::ePulsMinDegradMT

(0)

ePulsMinMT

Float_t EdbRunTracking::ePulsMinMT

(10) mimimal number of grains accepted to select microtracks

eS

EdbSegP EdbRunTracking::eS

eS1

EdbSegP EdbRunTracking::eS1

eS1cnd

EdbPattern EdbRunTracking::eS1cnd

microtrack candidates passed all cuts

eS1pre

EdbPattern EdbRunTracking::eS1pre

the result of the preliminary selection of microtracks

eS2

EdbSegP EdbRunTracking::eS2

found segments

eS2cnd

EdbPattern EdbRunTracking::eS2cnd

eS2pre

EdbPattern EdbRunTracking::eS2pre

eScnd

EdbPattern EdbRunTracking::eScnd

basetracks candidates passed all cuts

eSpre

EdbPattern EdbRunTracking::eSpre

preliminary selected basetracks

eStatus

Int_t EdbRunTracking::eStatus

-1-nothing, 0-bt, 1-mt1, 2-mt2

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEIO/EdbRunTracking.h
• /home/antonio/fedra_doxygen/src/libEIO/EdbRunTracking.cxx
