edb2rwc.cpp File Reference

#include "TCut.h"
#include "TEventList.h"
#include "Riostream.h"
#include "EdbFrame.h"
#include "libDataConversion.h"

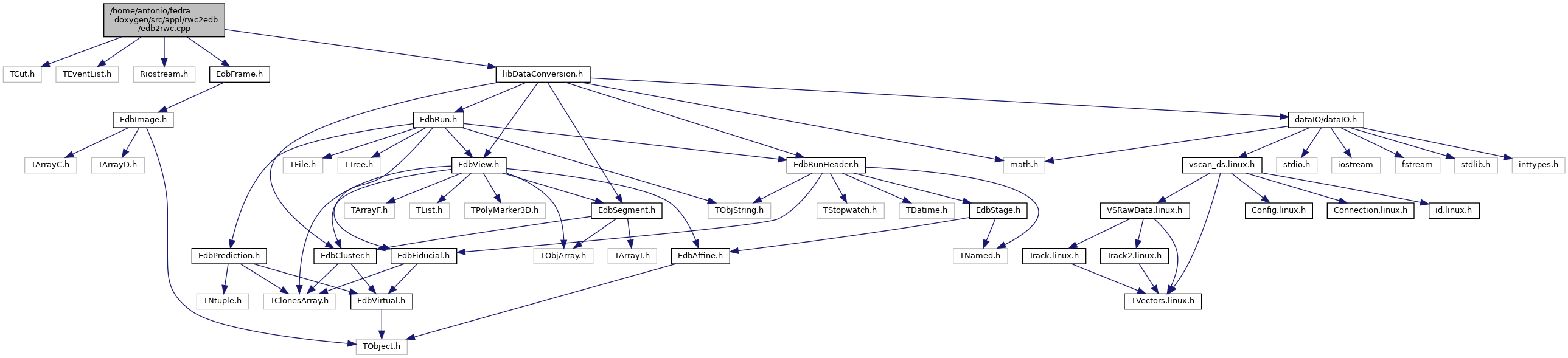

Include dependency graph for edb2rwc.cpp:

Functions
int	BackConversion (EdbRun *run, char *rwcname)
int	DumpRWC (EdbRun *run, char *rwcname)
int	DumpRWD (EdbRun *run, char *rwcname, int fragID, IO_VS_Catalog *pCat)
int	main (int argc, char *argv[])

Function Documentation

BackConversion()

int BackConversion	(	EdbRun *	run,
		char *	rwcname
	)

{
   IO_VS_Catalog* pCat = 0;
   DumpRWC(run,rwcname) ;
   cout << "save the catalog: " << rwcname << endl;

   if( ReadCatalog((void**)&pCat, (char*)rwcname) != 1)
   {
      cout << "Cannot read catalog --> the Fragment.Hdr.ID field will be saved as {0,0,0,0}" << endl;
   }

   TTree* tree = (TTree* ) gDirectory->Get("Views");
   int nfragm = tree->GetMaximum("eAreaID");
   cout << "number of fragments: "<< nfragm << endl;
   for(int i=0; i < nfragm; i++) DumpRWD( run, rwcname, i+1, pCat) ;

   return true;
}

DumpRWC()

int DumpRWC	(	EdbRun *	run,
		char *	rwcname
	)

{
   // Retrieve the catalog file from the comment field of the run header
   TObjString* objstr=0;
   if (objstr = (TObjString*) gDirectory->Get("catalog"))
   {
      TString rwc = objstr->GetString();
      ofstream out;
      out.open(rwcname,ios::out | ios::binary);
      out << rwc ;
      out.close();
   }
   else
   {
      cout << "Cannot extract catalog information from the root file !" << endl;
      return 0;
   }
   return 1;
}

DumpRWD()

int DumpRWD	(	EdbRun *	run,
		char *	rwcname,
		int	fragID,
		IO_VS_Catalog *	pCat
	)

{
    ISySalDataIO*  iIO=0;
    ISySalDataIO2* iIO2=0;
  UINT Error;
    CoInitialize(NULL);
    CoCreateInstance(CLSID_SySalDataIO, NULL, CLSCTX_INPROC_SERVER,
                        IID_ISySalDataIO, (void **)&iIO);
    iIO->QueryInterface(IID_ISySalDataIO2, (void**)&iIO2);

  IO_VS_Fragment2 Frag2;

    //SET THE EVENT LIST
  char str[128];
  TCut cut_t,cut_b;
  TTree* tree = (TTree* ) gDirectory->Get("Views");
  sprintf(str,"headers.eAreaID==%d && headers.eNframesTop!=0",fragID);
  cut_t= str ;
  tree->Draw(">>lst_t", cut_t);
  TEventList *lst_t = (TEventList*)gDirectory->GetList()->FindObject("lst_t");
    sprintf(str,"headers.eAreaID==%d && headers.eNframesBot!=0",fragID);
    cut_b= str ;
    tree->Draw(">>lst_b", cut_b);
    TEventList *lst_b = (TEventList*)gDirectory->GetList()->FindObject("lst_b");

    int nviews   =  lst_t->GetN();
  cout << "\t nviews (top): " << nviews << " (bot): " << lst_b->GetN() << endl;

    Frag2.Hdr.Type.InfoType = VS_HEADER_BYTES | VS_FRAGMENT_SECTION;
            // VS_CATALOG_SECTION           1
            // VS_VIEW_SECTION              2
            // VS_TRACK_SECTION             3
            // VS_GRAIN_SECTION                 4
            // VS_CONFIG_SECTION                5
            // VS_FRAGMENT_SECTION          6
            // VS_DATA_BYTES                    0x30
            // VS_HEADER_BYTES              0x60
    Frag2.Hdr.Type.HeaderFormat = VS_HEADER_TYPE;
            // VS_OLD_HEADER_TYPE           0x701
            // VS_HEADER_TYPE                   0x702
     if(pCat) Frag2.Hdr.ID = pCat->Hdr.ID;                                             // <--------- from catalog
   else Frag2.Hdr.ID.Part[0] =Frag2.Hdr.ID.Part[1] =Frag2.Hdr.ID.Part[2] =Frag2.Hdr.ID.Part[3] = 0 ;

   // Rebuild the Startview value                                                   // <--------- from catalog
   Frag2.Fragment.StartView = 0;
   int xf(0),yf(0);
   if(pCat)
   {
     int  xv(pCat->Area.XViews), yv(pCat->Area.YViews) ,
          xf( (int) FindConfig(pCat,"Vertigo Scan",  "XFields") +
              (int) FindConfig(pCat,"Vertigo Scan 4","XFields")  ),
          yf( (int) FindConfig(pCat,"Vertigo Scan",  "YFields") +
              (int) FindConfig(pCat,"Vertigo Scan 4","YFields")  );
      if (xf!=0 && xv!=0)
      {
        int row  = (int) (fragID -1)*xf/xv ;
        int col0 = (fragID-1) % (xv/xf) ;
        int col  = (1-row%2)*col0 + (row%2) *(xv/xf-col0-1) ;
        Frag2.Fragment.StartView = col*xf + row*xv*yf;
     }
   }

    Frag2.Fragment.CountOfViews = nviews;
    Frag2.Fragment.CodingMode = VS_COMPRESSION_NULL ;                                // <--------- default
            // VS_COMPRESSION_NULL              0
            // VS_COMPRESSION_METHOD            0x100
            // VS_COMPRESSION_GRAIN_SUPPRESSION (VS_COMPRESSION_METHOD + 2)
   Frag2.Fragment.FitCorrectionDataSize = 0;                                        // <--------- default


   Frag2.Fragment.Index = fragID;

   for(int j=0;j<sizeof(Frag2.Reserved);j++) Frag2.Reserved[j] = (unsigned char) 0; // <--------- reserved = null
     Frag2.Fragment.pViews = new VS_View2[nviews];

   EdbView* eView = run->GetView();
   EdbViewHeader* eViewHeader = eView->GetHeader();
   EdbSegment* eSeg=0;

   Grain* rwdGrain;
   Track2* rwdTrack;
     VS_View2* rwdView;

  int totsegments(0), totclusters(0);

    for (int v = 0; v < nviews; v++)
    {
      eView->Clear();
      run->GetEntry(lst_t->GetEntry(v));

      rwdView = &(Frag2.Fragment.pViews[v]);
      rwdView->TileX = eViewHeader->GetCol();
      rwdView->TileY = eViewHeader->GetRow();

      rwdView->RelevantZs.TopExt = eViewHeader->GetZ1();
        rwdView->RelevantZs.TopInt = eViewHeader->GetZ2();
        rwdView->RelevantZs.BottomInt = eViewHeader->GetZ3();
        rwdView->RelevantZs.BottomExt = eViewHeader->GetZ4();

        for (int s = 0; s < 2; s++)
        {
         eView->Clear();
         s==0? run->GetEntry(lst_t->GetEntry(v),1,1,1,1,1) :
               run->GetEntry(lst_b->GetEntry(v),1,1,1,1,1) ;
         eView->AttachClustersToSegments() ;

         rwdView->X[s] = eViewHeader->GetXview();
            rwdView->Y[s] = eViewHeader->GetYview();
         rwdView->MapX[s] = eViewHeader->GetAffine()->B1();
            rwdView->MapY[s] = eViewHeader->GetAffine()->B2();
         rwdView->ImageMat[s][0][0] = eViewHeader->GetAffine()->A11() ;
         rwdView->ImageMat[s][0][1] = eViewHeader->GetAffine()->A12() ;
         rwdView->ImageMat[s][1][0] = eViewHeader->GetAffine()->A21() ;
         rwdView->ImageMat[s][1][1] = eViewHeader->GetAffine()->A22() ;

         int nframes = eView->GetNframes() ;
         rwdView->Layers[s].Count = nframes;
         rwdView->Layers[s].pLayerInfo = new VS_View2::t_LayerInfo[nframes];

         for (int f = 0; f < nframes; f++)
            {
              EdbFrame* eFrame = (EdbFrame*) (eView->GetFrames())->At(f) ;
            rwdView->Layers[s].pLayerInfo[f].Clusters = eFrame->GetNcl();
            rwdView->Layers[s].pLayerInfo[f].Z = eFrame->GetZ();
            }

         rwdView->Status[s]  = 0;
         int nsegments = eView->Nsegments() ;
         rwdView->TCount[s]  = nsegments;
            rwdView->pTracks[s] = new Track2[nsegments] ;

         for (int t = 0; t < nsegments; t++)
            {
            totsegments++ ;
                rwdTrack = &(rwdView->pTracks[s][t]);
            eSeg = eView->GetSegment(t);
            rwdTrack->Field = v;
            rwdTrack->Grains = eSeg->GetPuls();
            rwdTrack->Intercept.X = eSeg->GetX0();
                rwdTrack->Intercept.Y = eSeg->GetY0();
                rwdTrack->Intercept.Z = eSeg->GetZ0();
            rwdTrack->Slope.X = eSeg->GetTx();
                rwdTrack->Slope.Y = eSeg->GetTy();
                rwdTrack->Slope.Z = 1.f;
            rwdTrack->Sigma = eSeg->GetSigmaX();
                rwdTrack->Valid = true;

            EdbCluster *eCluster=0;
            TObjArray *eClusterArray = eSeg->GetElements();
            int ncl = 0;
            double zmin,zmax;
            if(eClusterArray) ncl = eClusterArray->GetLast()+1;

                rwdTrack->AreaSum = 0;
                rwdTrack->pGrains = new Grain[ncl];
            for (int p = 0; p < ncl; p++)
                {
               totclusters++;
                eCluster = (EdbCluster*)eClusterArray->At(p);
                rwdGrain = &(rwdTrack->pGrains[p]);

               rwdGrain->Area = (unsigned short) eCluster->GetArea();
                    rwdTrack->AreaSum += rwdGrain->Area ;
                    rwdGrain->X = eCluster->GetX();
                    rwdGrain->Y = eCluster->GetY();
                    rwdGrain->Z = eCluster->GetZ() ;

               float z = eCluster->GetZ();
               if(p==0) zmin=zmax= z;
               else
               {
                  if(z>zmax) zmax = z;
                  if(z<zmin) zmin = z;
               }
                rwdTrack->LastZ  = zmin ;
                rwdTrack->FirstZ = zmax ;
                };
               /*if (Frag2.Fragment.FitCorrectionDataSize)
               {
                      rwdTrack->pCorrection = new BYTE[Frag2.Fragment.FitCorrectionDataSize];
                      for (p = 0; p < Frag2.Fragment.FitCorrectionDataSize; p++) rwdTrack->pCorrection[p] = rand() % 256;
                      }
              else*/
               rwdTrack->pCorrection = 0;
            };

         rwdView->Status[s] = VSSCAN_NOTSCANNED;                                               // <--------- default
               // VSSCAN_OK                     0x00       0
               // VSSCAN_NOTOPFOCUS             0x01       1
               // VSSCAN_NOBOTTOMFOCUS          0x02       2
               // VSSCAN_ZLIMITER               0x04       4
               // VSSCAN_XLIMITER               0x08       8
               // VSSCAN_YLIMITER               0x10      16
               // VSSCAN_TERMINATED             0x80     128
               // VSSCAN_NOTSCANNED             0xFF     255
        };
    };

    // build rwd name
    char rwdname[256], temp[256];
    sprintf(temp, "%s", rwcname);
    sprintf(temp+strlen(temp)-1, "d");
    sprintf(rwdname, "%s.%08X", temp, fragID);

   cout << rwdname << "  segments: "<< totsegments << "\tclusters: "<< totclusters << endl;
    if (iIO2->Write2(0, (BYTE *)&Frag2, &Error, (UCHAR *)rwdname) != S_OK)
        cout << "\tError Writing"<< endl;

   iIO2->Release();
   iIO->Release();
   return true;
}

main()

int main	(	int	argc,
		char *	argv[]
	)

{
  char rwcname[256], edbname[256] ;

  bool printusage=(argc<3)?true:false;
  for (int i = 1; i < argc; i++)  {  // Skip argv[0] (program name)
    { // Process non-optional arguments here
      sprintf(edbname,argv[i++]);
      sprintf(rwcname,argv[i]);
    }
  }
  if(printusage) {
        cout<< "usage: edb2rwc <input file (.root)> <output file (.rwc)> "<<endl;
        return 0;
    };

    EdbRun* outrun;
    outrun = new EdbRun(edbname);

   BackConversion(outrun,rwcname);

    outrun->Close();

    return 0;
};
