EdbCluster Class Reference

#include <EdbCluster.h>

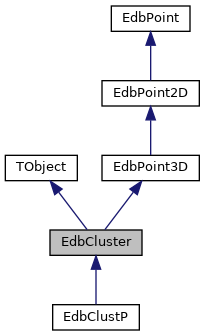

Inheritance diagram for EdbCluster:

Collaboration diagram for EdbCluster:

Public Member Functions
void	AddPixelSum (int x, int y, unsigned char pix)
Int_t	Compare (const TObject *obj) const
void	Draw (Option_t *opt="") const
	EdbCluster ()
	EdbCluster (float x, float y, float z, float a, float v, int f, int s, int seg=-1)
Float_t	GetArea () const
Int_t	GetFrame () const
Int_t	GetSegment () const
Int_t	GetSide () const
Float_t	GetVolume () const
Float_t	GetX () const
Float_t	GetY () const
Float_t	GetZ () const
Bool_t	IsEqual (const TObject *obj) const
Bool_t	IsSortable () const
void	Normalize ()
void	Print (Option_t *opt=0) const
void	Set (float x, float y, float z, float a, float v, int f, int s, int seg=-1)
void	Set0 ()
void	SetArea (float a)
void	SetFrame (int f)
void	SetSegment (int seg)
void	SetSide (int s)
void	SetVolume (float v)
virtual void	SetX (float x)
virtual void	SetY (float y)
virtual void	SetZ (float z)
void	TT () const
virtual Float_t	X () const
virtual Float_t	Y () const
virtual Float_t	Z () const
virtual	~EdbCluster ()
Public Member Functions inherited from EdbPoint3D
virtual void	Print (Option_t *opt="") const
virtual void	SetZ (float z)=0
virtual void	Substruct (EdbPoint *p)
virtual void	Test () const
virtual void	TestPoint3D () const
virtual void	Transform (const EdbAffine3D *a)
virtual Float_t	Z () const =0
virtual	~EdbPoint3D ()
Public Member Functions inherited from EdbPoint2D
virtual void	Print (Option_t *opt="") const
virtual void	SetX (float x)=0
virtual void	SetY (float y)=0
virtual void	SetZ (float z)
virtual void	Substruct (EdbPoint *p)
virtual void	Test () const
virtual void	TestPoint2D () const
virtual void	Transform (const EdbAffine2D *a)
virtual Float_t	X () const =0
virtual Float_t	Y () const =0
virtual Float_t	Z () const
virtual	~EdbPoint2D ()
Public Member Functions inherited from EdbPoint
virtual void	SetX (float x)=0
virtual void	SetY (float y)=0
virtual void	SetZ (float z)=0
virtual void	Substruct (EdbPoint *p)=0
virtual void	Test () const
virtual void	Transform (const EdbAffine2D *a)
virtual void	Transform (const EdbAffine3D *a)
virtual Float_t	X () const =0
virtual Float_t	Y () const =0
virtual Float_t	Z () const =0
virtual	~EdbPoint ()

Public Attributes
Float_t	eArea
	Cluster area: number of pixels. More...
Int_t	eFrame
	frame index More...
Int_t	eSegment
	segment id to be attached (-1 if no segment) More...
Int_t	eSide
	emulsion side index More...
Float_t	eVolume
	Cluster volume - in case of greyscale pixels. More...
Float_t	eX
	cluster coordinates in pixels(?) More...
Float_t	eY
	cluster coordinates in pixels(?) More...
Float_t	eZ
	cluster coordinates in pixels(?) More...

Detailed Description

//////////////////////////////////////////////////////////////////////// // EdbCluster // // cluster (spot of pixels) // // ////////////////////////////////////////////////////////////////////////

Constructor & Destructor Documentation

EdbCluster() [1/2]

EdbCluster::EdbCluster ( )

inline

{ }

EdbCluster() [2/2]

EdbCluster::EdbCluster ( float  x, float  y, float  z, float  a, float  v, int  f, int  s, int  seg = -1  )

inline

                                                         :
    eX(x), eY(y), eZ(z),
     eArea(a),eVolume(v), eFrame(f), eSide(s), eSegment(seg) {}

~EdbCluster()

virtual EdbCluster::~EdbCluster ( )

inlinevirtual

{ }

Member Function Documentation

AddPixelSum()

void EdbCluster::AddPixelSum ( int  x, int  y, unsigned char  pix  )

inline

to speedup the calculation; use Normalize() at the end!

     {
       eArea++;
       eVolume += pix ;
       eX += x;
       eY += y;
     }

Compare()

Int_t EdbCluster::Compare ( const TObject *  obj ) const

inline

  {
    const EdbCluster *c=(EdbCluster*)obj;
    Long_t f1=0, f2=0;
    f1 = eFrame*1000000+int(eX)*10000+int(eY);
    f2 = c->eFrame*1000000+int(c->eX)*10000+int(c->eY);
    if (f1>f2)
      return 1;
    else if (f1<f2)
      return -1;
    else
      return 0;
  }

Draw()

void EdbCluster::Draw

(

Option_t *

opt = ""

)

const

{
  TPolyMarker3D *m = new TPolyMarker3D(1,1);
  m->Draw();
}

GetArea()

Float_t EdbCluster::GetArea ( ) const

inline

{ return eArea   ;}

GetFrame()

Int_t EdbCluster::GetFrame ( ) const

inline

{ return eFrame  ;}

GetSegment()

Int_t EdbCluster::GetSegment ( ) const

inline

{ return eSegment;}

GetSide()

Int_t EdbCluster::GetSide ( ) const

inline

{ return eSide   ;}

GetVolume()

Float_t EdbCluster::GetVolume ( ) const

inline

{ return eVolume ;}

GetX()

Float_t EdbCluster::GetX ( ) const

inline

{ return eX      ;}

GetY()

Float_t EdbCluster::GetY ( ) const

inline

{ return eY      ;}

GetZ()

Float_t EdbCluster::GetZ ( void  ) const

inline

{ return eZ      ;}

IsEqual()

Bool_t EdbCluster::IsEqual ( const TObject *  obj ) const

inline

    {
      const EdbCluster *c=(EdbCluster*)obj;
      if(c->eFrame  != eFrame)  return false;
      if(c->eX      != eX)      return false;
      if(c->eY      != eY)      return false;
      return true;
    }

IsSortable()

Bool_t EdbCluster::IsSortable ( ) const

inline

{ return kTRUE; }

Normalize()

void EdbCluster::Normalize ( )

inline

assumed to be used only once at the end!

     {
       eX = eX/eArea - 0.5;
       eY = eY/eArea - 0.5;
     }

Print()

void EdbCluster::Print ( Option_t *  opt = 0 ) const

virtual

Reimplemented from EdbPoint3D.

{
  printf("Cluster: %f %f %f \t %f %f \t %d %d %d\n",
     eX, eY, eZ, eArea, eVolume, eFrame, eSide, eSegment);
}

Set()

void EdbCluster::Set ( float  x, float  y, float  z, float  a, float  v, int  f, int  s, int  seg = -1  )

inline

     {eX=x; eY=y; eZ=z; eArea=a; eVolume=v; eFrame=f; eSide=s; eSegment=seg;}

Set0()

void EdbCluster::Set0

(

)

{
  SetX(0); SetY(0); SetZ(0);
  eArea=0; eVolume=0;
  eFrame=0; eSide=0; eSegment=0;
}

SetArea()

void EdbCluster::SetArea ( float  a )

inline

{ eArea=a;}

SetFrame()

void EdbCluster::SetFrame ( int  f )

inline

{ eFrame=f;}

SetSegment()

void EdbCluster::SetSegment ( int  seg )

inline

{ eSegment=seg;}

SetSide()

void EdbCluster::SetSide ( int  s )

inline

{ eSide=s;}

SetVolume()

void EdbCluster::SetVolume ( float  v )

inline

{ eVolume=v;}

SetX()

virtual void EdbCluster::SetX ( float  x )

inlinevirtual

Implements EdbPoint2D.

{ eX=x; }

SetY()

virtual void EdbCluster::SetY ( float  y )

inlinevirtual

Implements EdbPoint2D.

{ eY=y; }

SetZ()

virtual void EdbCluster::SetZ ( float  z )

inlinevirtual

Implements EdbPoint3D.

{ eZ=z; }

TT()

void EdbCluster::TT ( ) const

inline

{ Test(); }

X()

virtual Float_t EdbCluster::X ( ) const

inlinevirtual

Implements EdbPoint2D.

{ return eX; }

Y()

virtual Float_t EdbCluster::Y ( ) const

inlinevirtual

Implements EdbPoint2D.

{ return eY; }

Z()

virtual Float_t EdbCluster::Z ( ) const

inlinevirtual

Implements EdbPoint3D.

{ return eZ; }

Member Data Documentation

eArea

Float_t EdbCluster::eArea

Cluster area: number of pixels.

eFrame

Int_t EdbCluster::eFrame

frame index

eSegment

Int_t EdbCluster::eSegment

segment id to be attached (-1 if no segment)

eSide

Int_t EdbCluster::eSide

emulsion side index

eVolume

Float_t EdbCluster::eVolume

Cluster volume - in case of greyscale pixels.

eX

Float_t EdbCluster::eX

cluster coordinates in pixels(?)

eY

Float_t EdbCluster::eY

cluster coordinates in pixels(?)

eZ

Float_t EdbCluster::eZ

cluster coordinates in pixels(?)

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEdb/EdbCluster.h
• /home/antonio/fedra_doxygen/src/libEdb/EdbCluster.cxx
