EdbUnbender Class Reference

#include <EdbUnbender.h>

Inheritance diagram for EdbUnbender:

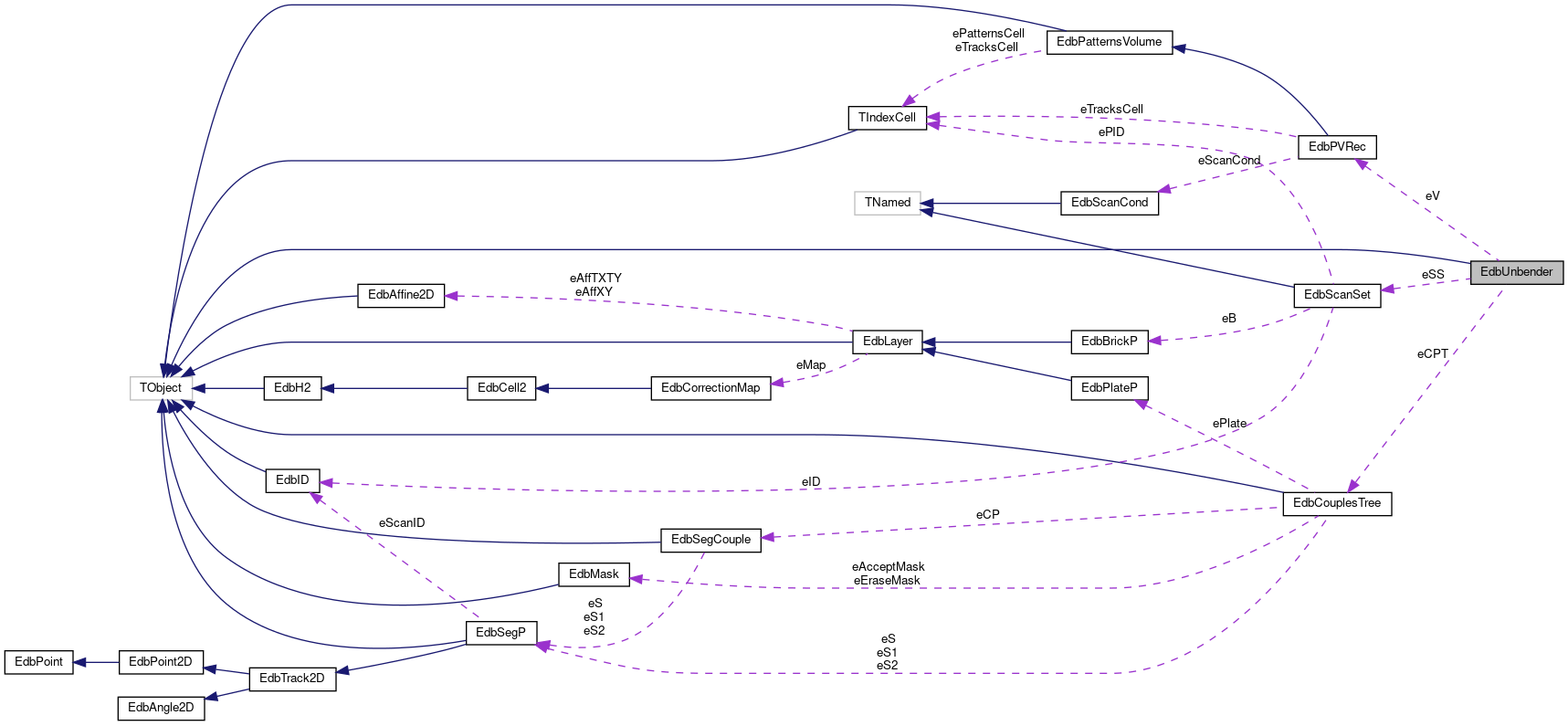

Collaboration diagram for EdbUnbender:

Public Member Functions
void	CalcMeanPath (int cycle)
void	CalculateCorrections (const TObjArray &acorr, int length, EdbPattern &p, EdbPlateP &plate, int flag)
void	CheckResolutions (TObjArray &a1, TObjArray &a2, int plate, int flag)
	EdbUnbender ()
void	GlobalCorr3 (int offset, int step, int cycle)
void	GlobalCorrN (int length, int position, int offset, int step, int flag)
void	Set0 ()
void	Unbend3a (EdbPVRec &pvr, EdbScanSet &ss, TEnv &env)
void	Unbend3g (EdbPVRec &pvr, EdbScanSet &ss, TEnv &env)
void	Unbend5g (EdbPVRec &pvr, EdbScanSet &ss, TEnv &env)
virtual	~EdbUnbender ()

Public Attributes
bool	do_save_hist
bool	do_save_tree

Private Attributes
EdbCouplesTree	eCPT
TEnv *	eEnv
EdbScanSet *	eSS
EdbPVRec *	eV

Constructor & Destructor Documentation

EdbUnbender()

EdbUnbender::EdbUnbender ( )

inline

{ Set0(); }

~EdbUnbender()

virtual EdbUnbender::~EdbUnbender ( )

inlinevirtual

{}

Member Function Documentation

CalcMeanPath()

void EdbUnbender::CalcMeanPath

(

int

cycle

)

{
  EdbPVRec   &ali = *eV;
  EdbScanSet &ss  = *eSS;

  int npat = ali.Npatterns();

  double x0[npat],y0[npat], z0[npat], tx0[npat], ty0[npat], w0[npat];
  for( int ipat=0; ipat<npat; ipat++ )
  {
    EdbPattern *p = ali.GetPattern(ipat);
    if(p)
    {
      z0[ipat] = p->Z();
      x0[ipat]=y0[ipat]=tx0[ipat]=ty0[ipat]=w0[ipat]=0;
    }
  }

  EdbSegP s0;
  int ntr = ali.Ntracks();
  for( int i=0; i<ntr; i++ )
  {
    EdbTrackP *t = ali.GetTrack(i);
    for( int ipat=0; ipat<npat; ipat++ )
    {
      EdbPattern *p = ali.GetPattern(ipat);
      if(p)
      {
    t->EstimatePositionAt( z0[ipat], s0 );
    x0[ipat]  += s0.X();
    y0[ipat]  += s0.Y();
    tx0[ipat] += s0.TX();
    ty0[ipat] += s0.TY();
    w0[ipat]  += 1;
      }
    }
  }

  TH3F hmp("hmp","mean path", 100, -50, 50, 100, -50,50, npat, 0, z0[npat-1] );
  TPolyMarker3D mp(npat);
  EdbAffine2D aff;
  for( int ipat=0; ipat<npat; ipat++ )
  {
    EdbPattern *p = ali.GetPattern(ipat);
    if(p)
    {
      aff.Reset();
      x0[ipat]  /= w0[ipat];
      y0[ipat]  /= w0[ipat];
      tx0[ipat] /= w0[ipat];
      ty0[ipat] /= w0[ipat];
      mp.SetPoint(ipat, x0[ipat] - x0[0],y0[ipat]-y0[0],z0[ipat]-z0[0] );
      hmp.Fill(x0[ipat] - x0[0],y0[ipat]-y0[0],z0[ipat]-z0[0]);
      aff.ShiftX( -(x0[ipat]-x0[0]) );
      aff.ShiftY( -(y0[ipat]-y0[0]) );
      p->Transform(&aff);
      EdbPlateP *plate = ss.GetPlate( p->ScanID().ePlate );
      plate->GetAffineXY()->Transform(&aff);
    }
  }
  if(do_save_hist)
  {
    TFile f(Form("pm_%d.root",cycle),"RECREATE");
    mp.Write("pm");
    hmp.Write("hmp");
    f.Close();
  }
}

CalculateCorrections()

void EdbUnbender::CalculateCorrections	(	const TObjArray &	acorr,
		int	length,
		EdbPattern &	p,
		EdbPlateP &	plate,
		int	flag
	)

{
  EdbAlignmentV al; al.eS[1].SetOwner();
  EdbTrackFitter ft;
  int ntr = acorr.GetEntries();
  Log(2,"EdbUnbender::CalculateCorrections","ntr length: %d %d  pid: %d  plate: %d/%d",
      ntr, length, p.PID(), p.ScanID().ePlate, plate.ID() );
  for(int i=0; i<ntr; i++)
  {
    EdbTrackP *t = (EdbTrackP*)(acorr.At(i));
    if(t->N()!=length) continue;

    EdbSegP   *s1=0;
    EdbTrackP *trest = new EdbTrackP();
    for(int j=0; j<length; j++)
    {
      EdbSegP *s=t->GetSegment(j);
      if(s->ScanID().ePlate==p.ScanID().ePlate) s1=s;
      else trest->AddSegment(s);
    }
    if(s1)
    {
      ft.Fit3Pos(*trest);
      trest->PropagateTo(s1->Z());
      al.eS[0].Add(s1);
      al.eS[1].Add( new EdbSegP(*trest) );
    }
  }

  CheckResolutions(al.eS[0], al.eS[1], p.ScanID().ePlate, flag);

  EdbAffine2D affXYcum;
  EdbAffine2D affTXTYcum;

  for(int iter=0; iter<3; iter++)
  {
    EdbAffine2D affXY;
    al.CalculateAffXY( al.eS[0], al.eS[1], affXY);
    p.Transform(&affXY);
    affXYcum.Transform(&affXY);

    EdbAffine2D affTXTY;
    al.CalculateAffTXTYTurn( al.eS[0], al.eS[1], affTXTY);
    p.TransformA(&affTXTY);
    affTXTYcum.Transform(&affTXTY);
    Log(2,"EdbUnbender::CalculateCorrections","%d \n coord: %s\n angle: %s",iter,affXY.AsString(),affTXTY.AsString());
  }

  plate.GetAffineTXTY()->Transform(&affTXTYcum);
  plate.GetAffineXY()->Transform(&affXYcum);
}

CheckResolutions()

void EdbUnbender::CheckResolutions	(	TObjArray &	a1,
		TObjArray &	a2,
		int	plate,
		int	flag
	)

{
  //TH2F hxy( Form("hxy_%d",plate), "hxy", 100, -2.5,2.5, 100, -2.5,2.5 );
  //TH2F htxty( Form("htxty_%d",plate), "htxty", 200, -.01,0.01, 200, -0.01,0.01 );
  int n=a1.GetEntries();
  for(int i=0; i<n; i++)
  {
    EdbSegP *s1 = (EdbSegP*)(a1.At(i));
    EdbSegP *s2 = (EdbSegP*)(a2.At(i));
    //hxy.Fill(s2->X()-s1->X(),s2->Y()-s1->Y());
    //htxty.Fill(s2->TX()-s1->TX(),s2->TY()-s1->TY());
    if(do_save_tree) eCPT.Fill( s1, s2, 0,0, 0,0, 0, flag );

  }
  //hxy.Write();
  //htxty.Write();
  if(do_save_tree) eCPT.SaveTree();
}

GlobalCorr3()

void EdbUnbender::GlobalCorr3	(	int	offset,
		int	step,
		int	cycle
	)

{
  EdbPVRec   &ali = *eV;
  EdbScanSet &ss  = *eSS;

  bool doAng = true;

  int ntr  = ali.Ntracks();
  int npat = ali.Npatterns();
  Log(2,"EdbUnbender::GlobalCorr3","%d_%d_%d with %d tracks and %d patterns",offset,step,cycle, ntr, npat);
  if(npat<3) return;

  TH3F hdxyp("hdxyp","triplet position residuals", 150,-15,15, 150,-15,15,  57,0.5,57.5 );
  TH3F hdtxtyp("hdtxtyp","triplet angular residuals", 150,-0.015,0.015, 150,-0.015,0.015,  57,0.5,57.5 );
  TH2F h2theta13("h2theta13","theta plates 1 3", 57,0.5,57.5, 100, 0., 1.);
  TH2F h2theta2("h2theta2","theta plate 2", 57,0.5,57.5, 100, 0., 1.);

  for( int ipat=offset; ipat<npat; ipat+=step )
  {
    int id1=ipat;
    int id2=ipat+1;
    int id3=ipat+2;
    if(id3>=npat-1) break;

    EdbPattern *p1 = ali.GetPattern(id1);  p1->SetPID(id1);
    EdbPattern *p2 = ali.GetPattern(id2);  p2->SetPID(id2);
    EdbPattern *p3 = ali.GetPattern(id3);  p3->SetPID(id3);

    float lm[4] = {
      Max(Max( p1->Xmin(), p2->Xmin()), p3->Xmin()),
      Min(Min( p1->Xmax(), p2->Xmax()), p3->Xmax() ),
      Max(Max( p1->Ymin(), p2->Ymin()), p3->Ymin() ),
      Min(Min( p1->Ymax(), p2->Ymax()), p3->Ymax() )
    };

    TObjArray p1corr;
    TObjArray p2corr;
    TObjArray p3corr;
    int ncp=0;
    for(int itr=0; itr<ntr; itr++) {
      EdbTrackP *t = ali.GetTrack(itr);
      EdbSegP *s1=0, *s2=0, *s3=0;
      for(int j=0; j<t->N(); j++) {
    EdbSegP *s  = t->GetSegment(j);
    if(s->PID()==p1->PID()) s1=s;
    if(s->PID()==p2->PID()) s2=s;
    if(s->PID()==p3->PID()) s3=s;
      }
      if(s1&&s2&&s3) { p1corr.Add(s1); p2corr.Add(s2); p3corr.Add(s3); ncp++; }
      //FillEfficiency( p2->ScanID().ePlate, s1,s2,s3, lm, h2theta13, h2theta2 );
    }

    TObjArray p13corr;
    p13corr.SetOwner();
    for(int i=0; i<ncp; i++)
    {
      EdbSegP *s1 = ((EdbSegP *)(p1corr.At(i)));
      EdbSegP *s2 = ((EdbSegP *)(p2corr.At(i)));
      EdbSegP *s3 = ((EdbSegP *)(p3corr.At(i)));
      EdbSegP *s  = new EdbSegP( *s2 );
      float r = (s2->Z()-s1->Z())/(s3->Z()-s1->Z());
      s->SetX( s1->X() + (s3->X()-s1->X())*r );
      s->SetY( s1->Y() + (s3->Y()-s1->Y())*r );
      s->SetTX( (s3->X()-s1->X())/(s3->Z()-s1->Z()) );
      s->SetTY( (s3->Y()-s1->Y())/(s3->Z()-s1->Z()) );
      p13corr.Add(s);
    }

    printf("ipat: %d  plate: %d pid: %d  z: %.1f    N3 = %d\n", ipat, p2->ScanID().ePlate, p2->PID(), p2->Z(), ncp );
    for(int i=0; i<ncp; i++)
    {
      EdbSegP *s2  = ((EdbSegP*)(p2corr.At(i)));
      EdbSegP *s13 = ((EdbSegP*)(p13corr.At(i)));
      hdxyp.Fill( s13->X()-s2->X(), s13->Y()-s2->Y(),  (float)(s2->ScanID().ePlate) );
      hdtxtyp.Fill( s13->TX()-s2->TX(), s13->TY()-s2->TY(),  (float)(s2->ScanID().ePlate) );
    }

    EdbAlignmentV al;
    for(int i=0; i<ncp; i++)
    {
      al.eS[0].Add(p2corr.At(i));
      al.eS[1].Add(p13corr.At(i));
    }

    EdbAffine2D aff2XYcum;
    EdbAffine2D aff2TXTYcum;
    float dz02corr=0;
    float z02set=(p3->Z()+p1->Z())/2.;

    for(int iter=0; iter<3; iter++) {
      printf("***** iter %d\n",iter);

      EdbAffine2D aff1to2XY;
      al.CalculateAffXY( al.eS[0], al.eS[1], aff1to2XY);
      aff1to2XY.Print();
      p2->Transform(&aff1to2XY);
      aff2XYcum.Transform(&aff1to2XY);

      if(doAng) {
    EdbAffine2D aff1to2TXTY;
    al.CalculateAffTXTYTurn( al.eS[0], al.eS[1], aff1to2TXTY);
    aff1to2TXTY.Print();
    p2->TransformA(&aff1to2TXTY);
    aff2TXTYcum.Transform(&aff1to2TXTY);
      }
    }

    EdbPlateP *plate2 = ss.GetPlate( p2->ScanID().ePlate );
    if(doAng) plate2->GetAffineTXTY()->Transform(&aff2TXTYcum);
    plate2->GetAffineXY()->Transform(&aff2XYcum);
  }

  if(do_save_hist)
  {
    TFile fout(Form("glob3_%d_%d_%d.root",offset,step,cycle),"RECREATE");
    hdxyp.Write();
    hdtxtyp.Write();
    h2theta13.Write();
    h2theta2.Write();
    fout.Close();
  }
}

GlobalCorrN()

void EdbUnbender::GlobalCorrN	(	int	length,
		int	position,
		int	offset,
		int	step,
		int	flag
	)

{
  EdbPVRec   &ali = *eV;
  EdbScanSet &ss  = *eSS;
  int ntr  = ali.Ntracks();
  int npat = ali.Npatterns();
  Log(2,"EdbUnbender::GlobalCorrN","l_p_o_s_f: %d_%d_%d_%d_%d with %d tracks and %d patterns",length,position,offset,step,flag,  ntr, npat);
  if(npat<length) return;
  if(ntr<3)       return;

  int start,end,incr;
  if(step>0) {
    start=0;
    end=npat-1;
    incr=1;
  }
  else if(step<0) {
    start=npat-1;
    end=0;
    incr=-1;
  } else return;

  int cntg=start + incr*offset;
  printf("start end incr: %d %d %d\n",start,end,incr);

  do {
    EdbPattern *p[length];
    int nfill=0;
    int cnt=cntg;
    for(int i=0; i<length; i++)
    {
      printf("i cnt nfill: %d %d %d\n", i,cnt,nfill );
      p[i] = ali.GetPattern(cnt);
      if(p[i]) {
    p[i]->SetPID(cnt);
    nfill++;
      }
      if(cnt==end) break;
      cnt+=incr;
    }
    if(nfill<(length)) break;

    TObjArray   acorr; acorr.SetOwner();
    for(int itr=0; itr<ntr; itr++) {
      EdbTrackP *t = ali.GetTrack(itr);
      EdbTrackP *tcorr = new EdbTrackP();
      for(int j=0; j<t->N(); j++) {
    EdbSegP *s  = t->GetSegment(j);
    for(int i=0; i<length; i++)
    {
      if(p[i]) if(s->PID()==p[i]->PID()) tcorr->AddSegment(s);
    }
      }
      acorr.Add(tcorr);
    }

    EdbPlateP *plate = ss.GetPlate( p[position]->ScanID().ePlate );
    CalculateCorrections(acorr, length, *(p[position]), *plate, flag );
    if(cnt==end+incr) break;
    else  cntg+=step;
  }
  while(cntg!=end);
}

Set0()

void EdbUnbender::Set0

(

)

{
  eV=0;
  eSS=0;
  eEnv=0;
  do_save_hist=0;
  do_save_tree=0;
}

Unbend3a()

void EdbUnbender::Unbend3a	(	EdbPVRec &	pvr,
		EdbScanSet &	ss,
		TEnv &	env
	)

{
 eV=&pvr; eSS=&ss; eEnv=&env;

  for( int iter=0; iter<5; iter++ )
  {
    CalcMeanPath(iter);
    for(int i=0; i<3; i++)
    {
      GlobalCorr3(0,2, 100*iter+i);
      GlobalCorr3(1,2, 100*iter+i);
    }
  }
}

Unbend3g()

void EdbUnbender::Unbend3g	(	EdbPVRec &	pvr,
		EdbScanSet &	ss,
		TEnv &	env
	)

{
  eV=&pvr; eSS=&ss; eEnv=&env;
  for( int iter=0; iter<1; iter++ )
  {
    CalcMeanPath(iter);
    for(int i=0; i<1; i++)
    {
      GlobalCorrN( 3,1,0,2, 100*iter+i); // length, position, offset, step, iteration
      GlobalCorrN( 3,1,1,2, 200*iter+i); // length, position, offset, step, iteration
    }
  }
}

Unbend5g()

void EdbUnbender::Unbend5g	(	EdbPVRec &	pvr,
		EdbScanSet &	ss,
		TEnv &	env
	)

{
  eV=&pvr; eSS=&ss; eEnv=&env;
  if(do_save_tree) eCPT.InitCouplesTree( "couples","unbend.root","RECREATE");

  int niter=1;
  for( int iter=0; iter<1; iter++ )
  {
    //CalcMeanPath(iter);
    for(int i=0; i<niter; i++) GlobalCorrN( 5,2,0, 1,  520100+i); // length, position, offset, step, iteration
    //for(int i=0; i<niter; i++) GlobalCorrN( 5,1,0, 1,  510100+i); // length, position, offset, step, iteration
    //for(int i=0; i<niter; i++) GlobalCorrN( 5,3,0, 1,  530100+i); // length, position, offset, step, iteration
    //for(int i=0; i<niter; i++) GlobalCorrN( 5,0,0, 5,  500500+i); // length, position, offset, step, iteration
    //for(int i=0; i<niter; i++) GlobalCorrN( 5,4,0,-5, -540500+i); // length, position, offset, step, iteration
    //for(int i=0; i<2; i++)     GlobalCorrN( 5,2,0, 1,  520110+i); // length, position, offset, step, iteration
  }
}

Member Data Documentation

do_save_hist

bool EdbUnbender::do_save_hist

do_save_tree

bool EdbUnbender::do_save_tree

eCPT

EdbCouplesTree EdbUnbender::eCPT

private

eEnv

TEnv* EdbUnbender::eEnv

private

eSS

EdbScanSet* EdbUnbender::eSS

private

eV

EdbPVRec* EdbUnbender::eV

private

---

The documentation for this class was generated from the following files:

• src/libEdr/EdbUnbender.h
• src/libEdr/EdbUnbender.cxx
