EdbPVRQuality Class Reference
Root Class Definition for EdbPVRQuality. More...
#include <EdbPVRQuality.h>
Inheritance diagram for EdbPVRQuality:

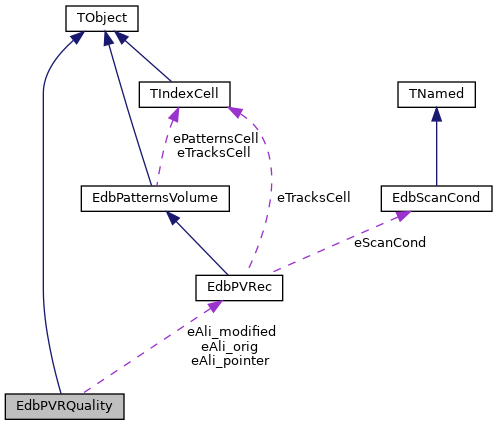

Collaboration diagram for EdbPVRQuality:
Protected Member Functions | |
| void | Init () |
| void | ResetHistos () |
| void | ResetHistosSinglePattern () |
| void | Set0 () |
Detailed Description
Constructor & Destructor Documentation
◆ EdbPVRQuality() [1/4]
| EdbPVRQuality::EdbPVRQuality | ( | ) |
◆ EdbPVRQuality() [2/4]
| EdbPVRQuality::EdbPVRQuality | ( | EdbPVRec * | ali | ) |
Default Constructor with a EdbPVRec object.
(the EdbPVRec object corresponds to the collection of plates scanned with the collection
of basetracks (and additionally linked tracks)).
This constructor automatically checks the original data for background level and
creates a new EdbPVRec object that contains only segments that fulfill the quality
cut in accordance with the desired (predefined) background level.
If general basetrack density is lower than 20 BT/mm2 then no cleaning is done.
TO BE COMMENTET OUT WHEN ALL BG-Reduction-Algorithms are fully implemented:
TO BE CHECKED WHICH METHOD SHOULD BE THE DEFAULT ONE...
41{
49
51 Init();
52 Set0();
53
55 cout << "WARNING EdbPVRQuality(EdbPVRec* ali) ali is no good EdbPVRec object! Check!" << endl;
56 return;
57 }
58
59 // Set ali as eAli_orig
61
62 // Check EdbPVRec object for defects:
63 CheckEdbPVRec();
64
65
67// Remove_Passing(eAli_orig);
68// Remove_DoubleBT(eAli_orig);
70// Execute_ConstantBTDensity();
71// Execute_ConstantBTDensityInAngularBins();
72// Execute_ConstantBTQuality();
73 // Execute_ConstantBTQualityInAngularBins();
74// Execute_ConstantBTX2Hat();
75 // Execute_ConstantBTX2HatInAngularBins();
76// Execute_RandomCut();
77 // Execute_RandomCutInAngularBins();
78
79 // Create then the modified EdbPVRec object.
80// CreateEdbPVRec();
81 // Finally Print Status Information
82// Print();
83}
◆ EdbPVRQuality() [3/4]
| EdbPVRQuality::EdbPVRQuality | ( | EdbPVRec * | ali, |
| Float_t | BTDensityTargetLevel | ||
| ) |
Default Constructor with a EdbPVRec object and the desired basetrack density target level.
Does same as constructor EdbPVRQuality::EdbPVRQuality(EdbPVRec* ali) but now with adjustable
background target level.
TO BE COMMENTET OUT WHEN ALL BG-Reduction-Algorithms are fully implemented:
TO BE CHECKED WHICH METHOD SHOULD BE THE DEFAULT ONE...
88{
92
93 Log(2,"EdbPVRQuality::EdbPVRQuality(EdbPVRec* ali, Float_t BTDensityTargetLevel)","Default Constructor with EdbPVRec object and given BT density level");
94
95 Init();
96 Set0();
97
99 cout << "WARNING EdbPVRQuality(EdbPVRec* ali) ali is no good EdbPVRec object! Check!" << endl;
100 return;
101 }
102
103 // Set ali as eAli_orig
105
106 // Set BTDensityTargetLevel
107 SetBTDensityLevel(BTDensityTargetLevel);
108 cout << "EdbPVRQuality::EdbPVRQuality(EdbPVRec* ali) Set BTDensityTargetLevel to (1/mm^2)= " << GetBTDensityLevel() << endl;
109
110 // Check EdbPVRec object for defects:
111 CheckEdbPVRec();
112
113
115// Remove_Passing(eAli_orig);
116// Remove_DoubleBT(eAli_orig);
118// Execute_ConstantBTDensity();
119// CreateEdbPVRec();
120// Print();
121}
void SetBTDensityLevel(Float_t BTDensityLevel)
Definition: EdbPVRQuality.h:199
◆ EdbPVRQuality() [4/4]
| EdbPVRQuality::EdbPVRQuality | ( | EdbPVRec * | ali, |
| Float_t | BTDensityTargetLevel, | ||
| Int_t | BG_CutMethod | ||
| ) |
Default Constructor with a EdbPVRec object and the desired basetrack density target level,
and already fixed BG_CutMethod.
Does same as constructor EdbPVRQuality::EdbPVRQuality(EdbPVRec* ali) but now with adjustable
background target level and direct setting of the background reduction algorithm.
TO BE COMMENTET OUT WHEN ALL BG-Reduction-Algorithms are fully implemented:
TO BE CHECKED WHICH METHOD SHOULD BE THE DEFAULT ONE...
127{
132
133 Log(2,"EdbPVRQuality::EdbPVRQuality(EdbPVRec* ali, Float_t BTDensityTargetLevel)","Default Constructor with EdbPVRec object and given BT density level");
134 Init();
135 Set0();
136
138 cout << "WARNING EdbPVRQuality(EdbPVRec* ali) ali is no good EdbPVRec object! Check!" << endl;
139 return;
140 }
141
142 // Set ali as eAli_orig
144
145 // Set BTDensityTargetLevel
146 SetBTDensityLevel(BTDensityTargetLevel);
147 cout << "EdbPVRQuality::EdbPVRQuality(EdbPVRec* ali) Set BTDensityTargetLevel to (1/mm^2)= " << GetBTDensityLevel() << endl;
148
149 // Set BG reduction cut method
150 SetCutMethod(BG_CutMethod);
151 cout << "EdbPVRQuality::EdbPVRQuality(EdbPVRec* ali) Set CutMethod to = " << GetCutMethod() << endl;
152
153 // Check EdbPVRec object for defects:
154 CheckEdbPVRec();
155
157// Remove_Passing(eAli_orig);
158// Remove_DoubleBT(eAli_orig);
160// Execute_ConstantBTDensity();
161// CreateEdbPVRec();
162// Print();
163}
◆ ~EdbPVRQuality()
|
virtual |
virtual constructor due to inherited class
Default Destructor
168{
171
180}
TProfile * eProfileBTdens_vs_PID_source
Definition: EdbPVRQuality.h:86
Member Function Documentation
◆ CheckEdbPVRec()
| void EdbPVRQuality::CheckEdbPVRec | ( | ) |
Main function to check if the EdbPVRec object of the scanned data is of low/high background.
Following steps are carried out:
- Get plate, count number of basetracks in the unit area (1x1mm^2).
- Fill (draw if desired (like in EDA display)) histogram with the entries of the unit area.
- Get mean of the histogram, compare this value with the reference value.
The histogram covers all the area of one emulsion. (for the record: the old ORFEO MC
simulation gives not the same position as data does. The area of the histogramm was largely
increased to cover both cases).
It gives a good estimation of the density. Spikes in some plates, or in some zones are not
checked for, this is on the todo list, but maybe not so important.
453{
464
466
468 cout << "WARNING EdbPVRQuality::CheckEdbPVRec eIsSource = " << eIsSource << ". This means no source set. Return!" << endl;
469 return;
470 }
471
472 // Fill the histos. From the filled histos, the bg-densities are then calculated.
474
475 // No assignment for the eProfileBTdens_vs_PID_target histogram yet.
476 // This will be done in one of the two Execute_/Cut_ functions.
477
478 // TO BE DONE HERE ...
479
480 cout << "EdbPVRQuality::CheckEdbPVRec TO BE DONE HERE: REPORT IF BACKGROUND IS TO HIGH, AND WHAT IS THE CLASS DOING THEN! " << endl;
481 cout << "EdbPVRQuality::CheckEdbPVRec INFORMATION ON THE SOURCE VOLUME. Average basetrack density is " << eProfileBTdens_vs_PID_source_meanY << " which means ..." << endl;
482
483 // TO BE DONE HERE ...
484
486 return;
487}
Float_t eProfileBTdens_vs_PID_source_meanY
Definition: EdbPVRQuality.h:87
void FillHistosVolume(EdbPVRec *aliSource)
Definition: EdbPVRQuality.cxx:4555
◆ CheckEdbPVRecThetaSpace()
| void EdbPVRQuality::CheckEdbPVRecThetaSpace | ( | Int_t | AliType | ) |
---------------------------------------------------------------------------—
ATTENTION: This function might be deprecated in the future!
---------------------------------------------------------------------------—
Alternative Implementation.
Following a suggestion to Akitaka Ariga when doing reco of a specified shower:
---------------------------------------------------------------------------—
Main function to check if the EdbPVRec object of the scanned data is of low/high background.
But w.r.t. the TanTheta Space of scanned tracks.
AliType
---------------------------------------------------------------------------—
Following steps are carried out:
Get plate, count number of basetracks in the unit area (1x1cm^2).
Fill (draw if desired (like in EDA display)) histogram with the entries of the unit area.
Get mean of the histogram, compare this value with the reference value.
The histogram covers all the area of one emulsion. (for the record: the old ORFEO MC
simulation gives not the same position as data does. The area of the histogramm was largely
increased to cover both cases).
It gives a good estimation of the density. Spikes in some plates, or in some zones are not
checked for, this is on the todo list, but maybe not so important.
Decision if, cut out strong different TTheta values, because for shower reco there is only the TTheta space around the InBT of interest.
TODO SHOULDNT BE HERE THE CLONE eHistXYClone histogram be
IN THERE (eHistXY is not resetted plate by plate ...).
725{
729
738
748
750
752 cout << "EdbPVRQuality::CheckEdbPVRecThetaSpace AliType = " << AliType << endl;
753 if (AliType==1) {
754 AliSource=eAli_orig;
755 }
756 else {
757 AliSource = eAli_modified;
759 AliSource=eAli_orig;
760 cout << "EdbPVRQuality::CheckEdbPVRecThetaSpace NULL == eAli_modified. This means that source will be set to eAli_orig." << endl;
761 }
762 }
763
765 cout << "EdbPVRQuality::CheckEdbPVRecThetaSpace eIsSource= " << eIsSource << ". This means no source set. Return!" << endl;
766 return;
767 }
768 // Check the patterns of the EdbPVRec:
770
771 cout << "EdbPVRQuality::CheckEdbPVRecThetaSpace eAli_orig->Npatterns()= " << eAli_maxNpatterns << endl;
772
773 if (eAli_maxNpatterns>57) cout << " This tells us not yet if we do have one/two brick reconstruction done. A possibility could also be that the dataset was read with microtracks. Further investigation is needed! (On todo list)." << endl;
775 cout << "ERROR! EdbPVRQuality::CheckEdbPVRecThetaSpace eAli_orig->Npatterns()= " << eAli_maxNpatterns << " is greater than possible basetrack data two bricks. This class does (not yet) work with this large number of patterns. Set maximum patterns to 114!!!." << endl;
776 eAli_maxNpatterns=114;
777 }
778
780 TH1F* histPatternBTDensity = new TH1F("histPatternBTDensity","histPatternBTDensity",200,0,200);
781 TH1F* histPatternBTDensityTanTheta = new TH1F("histPatternBTDensityTanTheta","histPatternBTDensityTanTheta",40,0,1);
782
783 TH2F* histPatternBTDensityTanThetaVsPID = new TH2F("histPatternBTDensityTanThetaVsPID","histPatternBTDensityTanThetaVsPID",57,0.5,57.5,40,0,1);
784
785 TH1F* QualityValue_Chi2 = new TH1F("QualityValue_Chi2","QualityValue_Chi2",100,0,10);
786 TH1F* QualityValue_W = new TH1F("QualityValue_W","QualityValue_W",100,0,100);
787 TH1F* QualityValue_Total = new TH1F("QualityValue_Total","QualityValue_Total",100,0,3);
788
789 TProfile* eProfileBTdens_vs_TanTheta = new TProfile("eProfileBTdens_vs_TanTheta","eProfileBTdens_vs_TanTheta",40,0,1,0,200);
790
791 // Loop over the patterns of the EdbPVRec:
792 for (Int_t i=0; i<Npat; i++) {
793
794 if (i>56) {
795 cout << "WARNING EdbPVRQuality::CheckEdbPVRecThetaSpace() Your EdbPVRec object has more than 57 patterns! " << endl;
796 cout << "WARNING EdbPVRQuality::CheckEdbPVRecThetaSpace() Check it! " << endl;
797 }
798 if (gEDBDEBUGLEVEL>2) cout << "EdbPVRQuality::CheckEdbPVRecThetaSpace Doing Pattern " << i << endl;
799
800
803 histPatternBTDensityTanTheta->Reset(); // important to clean the histogram
804
805
808
809 EdbSegP* seg=0;
810 // Loop over the segments of the pattern
812 seg=pat->GetSegment(j);
813 // Very important:
814 // For the data case, we assume the following:
815 // Data (MCEvt<0) will be taken for BTdensity calculation
816 // Sim (MCEvt>0) will NOT be taken for BTdensity calculation
817 // We take it ONLY and ONLY into account if it is especially wished
818 // by the user!
819 // Therefore (s)he needs to know how many Gauge Coupling Parameters
820 // in the Standard Model exist (at least)...
821 Bool_t result=kTRUE;
824 result = kTRUE;
825 }
826 else {
827 result = kFALSE;
828 }
829 }
830
831 if (gEDBDEBUGLEVEL>4) cout << "EdbPVRQuality::CheckEdbPVRecThetaSpace Doing segment " << j << " result for bool query is: " << result << endl;
832
833 // Main decision for segment to be kept or not (seg is of MC or data type).
834 if ( kFALSE == result ) continue;
835
836
840 Float_t sx=0.3;
841 Float_t sy=0.3;
842
843 // For the check, fill the histograms in any case:
846
847 // New: Fill also histPatternBTDensityTanTheta
848 histPatternBTDensityTanTheta->Fill(seg->Theta());
849
850 histPatternBTDensityTanThetaVsPID->Fill(i,seg->Theta());
851
852 eProfileBTdens_vs_TanTheta->Fill(seg->Theta(),1);
853
854 QualityValue_Chi2->Fill(seg->Chi2());
855 QualityValue_W->Fill(seg->W());
856
857 // To check: Where do these hardcoded values come from?
858 Double_t xxx = TMath::Sqrt((seg->Chi2()-0.8)*(seg->Chi2()-0.8)/0.2/0.2+(seg->W()-17.)*(seg->W()-17.)/2./2.);
859 QualityValue_Total->Fill(xxx);
860
861 }
862
863 if (gEDBDEBUGLEVEL>2) cout << "EdbPVRQuality::CheckEdbPVRecThetaSpace I have filled the eHistXY Histogram. Entries = " << eHistXY->GetEntries() << endl;
864
865 // Important to reset histogram before it is filled.
866 histPatternBTDensity->Reset();
867
868 // Search for empty bins, because they can spoil the overall calulation
869 // of the mean value.
871 Int_t nemptybinsXY=0;
872 Int_t bincontentXY=0;
873 for (int k=1; k<nbins-1; k++) {
875 ++nemptybinsXY;
876 continue;
877 }
878 bincontentXY=eHistXY->GetBinContent(k);
879 histPatternBTDensity->Fill(bincontentXY);
880 eProfileBTdens_vs_PID_source->Fill(i,bincontentXY);
881 }
882
883
884 cout << "EdbPVRQuality::CheckEdbPVRecThetaSpace histPatternBTDensity->GetMean() = " << histPatternBTDensity->GetMean() << endl;
885
886 // failsafe warning in case that there are many bins with zero content.
887 // for now we print a error message: TODO REBIN THE YX HISTOGRA WITH 2.5x2.5 mm!!!!
891
892
893 // Save the density in the variable.
894 ePatternBTDensity_orig[i]=histPatternBTDensity->GetMean();
895
896 }
897
902
903
904 // No assignment for the eProfileBTdens_vs_PID_target histogram yet.
905 // This will be done in one of the two Execute_ functions.
906
907
908 // This will be commented when using in batch mode...
909 // For now its there for clarity reasons.
910 // ...
911 TFile* file = new TFile(TString(Form("Histograms_CheckEdbPVRecThetaSpace_aliType_%d.root",AliType)),"RECREATE");
912 // Write the Histograms into root file:
913 eHistXY->Write();
914 eHistWChi2->Write();
915 eHistWChi2->Write();
916 histPatternBTDensity->Write();
917 eProfileBTdens_vs_PID_source->Write();
918 histPatternBTDensityTanTheta->Write();
919 QualityValue_Chi2->Write();
920 QualityValue_Total->Write();
921 histPatternBTDensityTanThetaVsPID->Write();
922 file->Close();
923
925 c1->Divide(2,2);
926 c1->cd(1);
928 c1->cd(2);
930 c1->cd(3);
931 histPatternBTDensity->DrawCopy("");
932 c1->cd(4);
935 c1->cd();
936
937 eHistXY->Reset();
938 eHistWChi2->Reset();
939
941 histPatternBTDensityTanTheta->Draw("");
942
944 QualityValue_Chi2->Draw("");
946 QualityValue_Total->Draw("");
947
949 histPatternBTDensityTanThetaVsPID->Draw("colz");
950
951 histPatternBTDensityTanTheta->Smooth();
952 histPatternBTDensityTanTheta->Smooth();
953 histPatternBTDensityTanTheta->Smooth();
954 TSpectrum* spec2 = new TSpectrum();
955 spec2->Search(histPatternBTDensityTanTheta);
956
957 TList *functions = histPatternBTDensityTanTheta->GetListOfFunctions();
958 TPolyMarker *pm = (TPolyMarker*)functions->FindObject("TPolyMarker");
959 pm->Print();
960
961 cout << spec2->GetNPeaks() << endl;
962 cout << spec2->GetNPeaks() << endl;
963 Double_t* xarr;
964 Double_t* yarr;
965 xarr = (Double_t*) spec2-> GetPositionX();
966 yarr = (Double_t*) spec2-> GetPositionY();
967 cout << xarr[0] << endl;
968 cout << xarr[1] << endl;
969 cout << yarr[0] << endl;
970 cout << yarr[1] << endl;
971
972 // delete unnecessary variables/ objects
973 delete spec2;
974
975 cout << "TODO // Reset interims variables/ histograms and delete unnecessary objects." << endl;
976
977
979 return;
980}
Float_t eProfileBTdens_vs_PID_source_rmsX
Definition: EdbPVRQuality.h:88
Float_t ePatternBTDensity_orig[114]
Definition: EdbPVRQuality.h:64
Float_t eProfileBTdens_vs_PID_source_meanX
Definition: EdbPVRQuality.h:87
Int_t eBTDensityLevelCalcMethodMCConfirmationNumber
Definition: EdbPVRQuality.h:62
Int_t CheckFilledXYSize(TH2F *HistXY)
Definition: EdbPVRQuality.cxx:2655
Float_t eProfileBTdens_vs_PID_source_rmsY
Definition: EdbPVRQuality.h:88
Bool_t eBTDensityLevelCalcMethodMC
Definition: EdbPVRQuality.h:61
Definition: EdbPVRec.h:148
Definition: EdbPattern.h:273
Definition: EdbSegP.h:21
new TCanvas()
◆ CheckFilledXYSize()
| Int_t EdbPVRQuality::CheckFilledXYSize | ( | TH2F * | HistXY | ) |
...............................................
Check the bins filled in the actual pattern.
The histogram of the XY distribution is analysed.
A warning is given if more than 10 percent of
the bins are empty. Because empty bins are NOT counted
in the BT density distribution.
In this case one should look closer at the specific
plate distribution, or ...
rebin the XY histogram to get a better statistics,
i.e. switch to larger bin areas
(for example 1 mm^2 to 2x2 mm^2 or so...)
... Checked, but then problems with bin entries
at the edges spoil the average cacluation (because
the edges get a larger fraction of the total XY-area.
So skipped this bin-resizing. Stick to 1x1 mm^2 binsize.
Also comparison whit the simpla approach (number of
tracks / rectangular area) shows, that both mehthods
give roughly the same density.
...............................................
2656{
2676
2677 Int_t nbx=HistXY->GetNbinsX();
2678 Int_t nby=HistXY->GetNbinsY();
2679 Int_t nEntries=HistXY->GetEntries();
2680
2681 // Return bins with content >= 0.1 in the bins for the each axes:
2682 // (0.1 to make sure that it is really greater 0)
2683 Int_t n1x= FindFirstBinAboveTH2(HistXY,0.1,1);
2684 Int_t n1y= FindFirstBinAboveTH2(HistXY,0.1,2);
2685 Int_t n2x= FindLastBinAboveTH2(HistXY,0.1,1);
2686 Int_t n2y= FindLastBinAboveTH2(HistXY,0.1,2);
2687
2688 /*
2689 cout << "EdbPVRQuality::CheckFilledXYSize() return maximum/minimum entries of histogram HistXY -----" << endl;
2690 printf("EdbPVRQuality::CheckFilledXYSize() BinsX() = %d, BinsY() = %d\n", nbx,nby);
2691 printf("EdbPVRQuality::CheckFilledXYSize() EntriesX() = %d\n", nEntries);
2692 cout << "EdbPVRQuality::CheckFilledXYSize() The First Bin Above 0 in x-Axis is bin nr " << n1x << endl;
2693 cout << "EdbPVRQuality::CheckFilledXYSize() The Last Bin Above 0 in x-Axis is bin nr " << n2x << endl;
2694 cout << "EdbPVRQuality::CheckFilledXYSize() The First Bin Above 0 in y-Axis is bin nr " << n1y << endl;
2695 cout << "EdbPVRQuality::CheckFilledXYSize() The Last Bin Above 0 in y-Axis is bin nr " << n2y << endl;
2696 */
2697
2698 Double_t width_x=0;
2699 Double_t width_y=0;
2700 width_x=TMath::Abs(HistXY->GetXaxis()->GetBinCenter(n1x)-HistXY->GetXaxis()->GetBinCenter(n2x));
2701 width_y=TMath::Abs(HistXY->GetYaxis()->GetBinCenter(n1y)-HistXY->GetYaxis()->GetBinCenter(n2y));
2702 Double_t area_xy=width_x*width_y;
2703
2704 // printf("EdbPVRQuality::CheckFilledXYSize() Filled bins span X (microns) = %.1f, Filled bins span Y (microns) = %.1f, covered area (microns^2) = %.1f\n", width_x,width_y,area_xy);
2705
2706 // Now check the number of empty bins between! the filled area
2707 // within (FindFirstBinAbove,FindLastBinAbove)
2708 // This function is NOT optimized for speed :-)
2709 // Attention: FindLastBinAbove is including last bin of the histogram
2710 // so the double loop has to be modified (<=) accordingly to take it
2711 // also!
2712 Int_t NonEmptyBins=0;
2713 Int_t nBins=0;
2714 Int_t SumBinContent=0;
2715
2716 Double_t eHistXYBinArea = HistXY->GetXaxis()->GetBinWidth(1)*HistXY->GetYaxis()->GetBinWidth(1);
2717 Double_t eHistXYBinAreamm2 = eHistXYBinArea/1000/1000;
2718
2719 for (Int_t i=n1x; i<=n2x; ++i) {
2720 for (Int_t j=n1y; j<=n2y; ++j) {
2721 ++nBins;
2722 //cout << "EdbPVRQuality::CheckFilledXYSize() GetBinContent(" << i << "," << j <<") = " << HistXY->GetBinContent(i,j) << endl;
2723
2724 SumBinContent+=HistXY->GetBinContent(i,j);
2725
2726 if (HistXY->GetBinContent(i,j)==0) continue;
2727 ++NonEmptyBins;
2728 }
2729 }
2730 Float_t FractionOfEmptyBins=1-(Float_t(NonEmptyBins)/Float_t(nBins));
2731 Float_t BGdensSimple = Float_t(SumBinContent)/Float_t(NonEmptyBins)/eHistXYBinAreamm2;
2732
2733 /*
2734 cout << "EdbPVRQuality::CheckFilledXYSize() SumBinContent = " << SumBinContent << endl;
2735 cout << "EdbPVRQuality::CheckFilledXYSize() BGdensSimple = " << BGdensSimple << endl;
2736 cout << "EdbPVRQuality::CheckFilledXYSize() NonEmptyBins = " << NonEmptyBins << endl;
2737 cout << "EdbPVRQuality::CheckFilledXYSize() nBins = " << nBins << endl;
2738 cout << "EdbPVRQuality::CheckFilledXYSize() FractionOfEmptyBins = " << FractionOfEmptyBins << endl;
2739 */
2740
2741 if (FractionOfEmptyBins>0.1) {
2742 cout << "WARNING: void EdbPVRQuality::CheckFilledXYSize() FractionOfEmptyBins = " << FractionOfEmptyBins << endl;
2743 return 1;
2744 }
2745
2747 cout << "---- NonEmptyBins bins in covered area: = " << NonEmptyBins << endl;
2748 cout << "---- nBins totale bins in covered area: = " << nBins << endl;
2749 cout << "---- Extrem Center Endpoints of eHistXY --- " << endl;
2750 cout << "---- nbxMin= " << n1x << endl;
2751 cout << "---- nbxMax= " << n1y << endl;
2752 cout << "---- nbyMin= " << n2x << endl;
2753 cout << "---- nbyMax= " << n2y << endl;
2758 cout << "----- void EdbPVRQuality::CheckFilledXYSize() ... done. " << endl;
2759 }
2760
2761 return 0;
2762}
Int_t FindFirstBinAboveTH2(TH2 *hist, Double_t threshold, Int_t axis)
Definition: EdbPVRQuality.cxx:3531
Int_t FindLastBinAboveTH2(TH2 *hist, Double_t threshold, Int_t axis)
Definition: EdbPVRQuality.cxx:3574
◆ CheckSegmentQualityInPattern_ConstBTDens()
| Bool_t EdbPVRQuality::CheckSegmentQualityInPattern_ConstBTDens | ( | EdbPVRec * | ali, |
| Int_t | PatternAtNr, | ||
| EdbSegP * | seg | ||
| ) |
Core function to check if a basetrack of the specific pattern matches the expectations
for the desired quality cut (calculated on the estimations in CheckEdbPVRec(). ).
Implementation for the Cuttype 0: Constant BT Density
—
Note: since the eCutp1[i] values are calculated with
this pattern->At() scheme labeling,
it is not necessarily guaranteed that seg->PID gives correct this
number back. Thats why we have to give the PatternAtNr here again.
And: it is not checked here if seg is contained in this specific
pattern. It looks only for the quality cut!
2441{
2453 if (gEDBDEBUGLEVEL>3) cout << "seg->W()* eCutp1[PatternAtNr] - eCutp0[PatternAtNr] = " << seg->W()* eCutp1[PatternAtNr] - eCutp0[PatternAtNr] << endl;
2454
2455 // Constant BT density cut:
2457
2458 if (gEDBDEBUGLEVEL>3) cout <<"EdbPVRQuality::CheckSegmentQualityInPattern_ConstBTDens() Segment " << seg << " has passed ConstBTDens cut!" << endl;
2459 return kTRUE;
2460}
◆ CheckSegmentQualityInPattern_ConstQual()
| Bool_t EdbPVRQuality::CheckSegmentQualityInPattern_ConstQual | ( | EdbPVRec * | ali, |
| Int_t | PatternAtNr, | ||
| EdbSegP * | seg | ||
| ) |
Core function to check if a basetrack of the specific pattern matches the expectations
for the desired quality cut (calculated on the estimations in CheckEdbPVRec(). ).
Implementation for the Cuttype 1: Constant Quality.
—
See comments in CheckSegmentQualityInPattern_ConstBTDens
Constant BT quality cut:
2465{
2472 Float_t agreementChi2=TMath::Sqrt( ( (seg->Chi2()-eAgreementChi2CutMeanChi2)/eAgreementChi2CutRMSChi2)*((seg->Chi2()-eAgreementChi2CutMeanChi2)/eAgreementChi2CutRMSChi2) + ((seg->W()-eAgreementChi2CutMeanW)/eAgreementChi2CutRMSW)*((seg->W()-eAgreementChi2CutMeanW)/eAgreementChi2CutRMSW) );
2474
2475 if (gEDBDEBUGLEVEL>3) cout <<"EdbPVRQuality::CheckSegmentQualityInPattern_ConstQual() Segment " << seg << " has passed ConstQual cut!" << endl;
2476 return kTRUE;
2477}
Float_t eAgreementChi2CutMeanChi2
Definition: EdbPVRQuality.h:118
Float_t eAgreementChi2WDistCut[114]
Definition: EdbPVRQuality.h:117
Float_t eAgreementChi2CutRMSChi2
Definition: EdbPVRQuality.h:119
◆ Chi2WRelation()
| Bool_t EdbPVRQuality::Chi2WRelation | ( | EdbSegP * | seg, |
| Float_t | Cutp0, | ||
| Float_t | Cutp1, | ||
| Int_t | qualitycuttype | ||
| ) |
HERE ANOTHER FUNCTION ??? WHICH ONE ???
5140 {
5141 if ( qualitycuttype == 0 ) {
5142 // linear cutrelation, default
5144 return kFALSE;
5145 }
5146 else {
5147 // quadratic cutrelation
5149 return kFALSE;
5150 }
5151}
◆ ClassDef()
| EdbPVRQuality::ClassDef | ( | EdbPVRQuality | , |
| 1 | |||
| ) |
◆ CreateEdbPVRec()
| EdbPVRec * EdbPVRQuality::CreateEdbPVRec | ( | ) |
Creates the cleaned EdbPVRec object, containing only segments that
satisfied the cutcriteria.
Attention: the couples structure and the tracking structure will be lost,
this EdbPVRec object is only useful for the list of segments (shower reco).
DO NOT USE THIS ROUTINE FOR GENERAL I/O and/or GENERAL EdbPVRec operations!
2483{
2489
2490 cout << "----- void EdbPVRQuality::CreateEdbPVRec() -----" << endl;
2492 cout << "----- " << endl;
2493 cout << "----- This function makes out of the original eAli" << endl;
2494 cout << "----- a new EdbPVRec object having only those seg-" << endl;
2495 cout << "----- ments in it which satisfy the cutcriteria " << endl;
2496 cout << "----- determined in Execute_ConstantBTDensity, Execute_ConstantBTQuality" << endl;
2497 cout << "----- " << endl;
2498 cout << "----- WARNING: the couples structure and the tracking structure" << endl;
2499 cout << "----- will be lost, this PVR object is only useful for the" << endl;
2500 cout << "----- list of Segments (==ShowReco...) ... " << endl;
2501 cout << "----- DO NOT USE THIS ROUTINE FOR GENERAL I/O and/or EdbPVRec operations!" << endl;
2502 cout << "----- " << endl;
2511 cout << "----- " << endl;
2512 cout << "----- ----------------------------------------------" << endl;
2513 }
2514
2515 // Checks
2517 cout << "WARNING! EdbPVRQuality::CreateEdbPVRec NULL==eAli_orig || eIsSource==kFALSE return."<<endl;
2519 }
2520 // Checks: ... should be revised, such that the condition reads: "at least one cutmethod had to be done."
2521 Bool_t doStop=kFALSE;
2523 if (doStop!=kTRUE) {
2524 cout << "WARNING! EdbPVRQuality::CreateEdbPVRec No eCutMethodIsDone[..] was done. STOP and DONT create a new EdbPVR."<<endl;
2526 }
2527
2528 // Make a new PVRec object anyway
2530
2531 // These two lines dont compile yet ... (???) ...
2532 // EdbScanCond* scancond = eAli_orig->GetScanCond();
2533 // eAli_modified->SetScanCond(*scancond);
2534
2535 Float_t agreementChi2;
2536 Int_t angularspacebin=0;
2537
2538 // Variables needed for Type 4:
2539 Float_t m_chi2,s_chi2,m_WTilde, s_WTilde;
2541
2542 // This makes pointer copies of patterns with segments list.
2543 // wARNING: the couples structure and the tracking structure
2544 // will be lost, this PVR object is only useful for the
2545 // list of Segments (==ShowReco...) ...
2546
2547 // Priority has the Execute_ConstantBTQuality cut.
2548 // If this was done we take this...:
2549
2550 // Loop over patterns
2554 // SetPattern Values to the parent patterns:
2558
2559 // Loop over segments
2562
2563 // Put here the cut condition ...
2565 // Constant BT density cut:
2567 }
2569 // Constant Quality cut
2570 agreementChi2=TMath::Sqrt( ( (seg->Chi2()-eAgreementChi2CutMeanChi2)/eAgreementChi2CutRMSChi2)*((seg->Chi2()-eAgreementChi2CutMeanChi2)/eAgreementChi2CutRMSChi2) + ((seg->W()-eAgreementChi2CutMeanW)/eAgreementChi2CutRMSW)*((seg->W()-eAgreementChi2CutMeanW)/eAgreementChi2CutRMSW) );
2572 }
2574 // Constant Quality cut also in angular space:
2575 cout << "WARNING! EdbPVRQuality::CreateEdbPVRec eCutMethodIsDone[2]==kTRUE BUT NOT YET IMPLEMENTED" << endl;
2576 }
2578 // Constant BT density cut also in angular space:
2579 angularspacebin = GetAngularSpaceBin(seg);
2580 if (seg->Chi2() >= seg->W()* eCutTTp1[i][angularspacebin] - eCutTTp0[i][angularspacebin]) continue;
2581 }
2583 // Constant X2Hat cut:
2584 m_chi2=eXi2Hat_m_chi2[i];
2585 s_chi2=eXi2Hat_s_chi2[i];
2586 m_WTilde=eXi2Hat_m_WTilde[i];
2587 s_WTilde=eXi2Hat_s_WTilde[i];
2588 // Calculate that Xi2Hat value, since we have now mean and rms of the distribution histograms:
2589 // Given that these histograms were not deleted...
2595 }
2597 // Constant X2Hat cut also in angular space:
2598 angularspacebin = GetAngularSpaceBin(seg);
2599 m_chi2=eXi2HatTT_m_chi2[i][angularspacebin];
2600 s_chi2=eXi2HatTT_s_chi2[i][angularspacebin];
2601 m_WTilde=eXi2HatTT_m_WTilde[i][angularspacebin];
2602 s_WTilde=eXi2HatTT_s_WTilde[i][angularspacebin];
2603
2604 // Calculate that Xi2Hat value, since we have now mean and rms of the distribution histograms:
2610 }
2612 // Random Uniform Cut
2614 }
2616 // Random Uniform Cut also in angular space:
2617 angularspacebin = GetAngularSpaceBin(seg);
2619 // Nota Bene: the ">" is right here, since it is also in the
2620 // corresponding Execute_EqualizeTanThetaSpace_RandomCut routine.
2621 }
2622 else {
2623 // do nothing;
2624 cout << "WARNING! YOU CHOSE AN INVALID OPTION. DO NO CUT AT ALL! TAKE ALL SEGMENTS!" << endl;
2625 cout << " ..........................................................." << endl;
2626 cout << " ..........................................................." << endl;
2627 cout << " ..........................................................." << endl;
2628 cout << " ..........................................................." << endl;
2629 cout << " BUT I COULD IMPLEMENT HERE THE EXCLUSION SEGMENT LIST OPTION " << endl;
2630 cout << " ..........................................................." << endl;
2631 cout << " ..........................................................." << endl;
2632 cout << " ..........................................................." << endl;
2633 }
2634
2635 // Add segment:
2636 pt->AddSegment(*seg);
2637 }
2639 }
2640
2641 eIsTarget=kTRUE;
2642
2643 //---------------------
2644 cout << "EdbPVRQuality::CreateEdbPVRec()...Created new EdbPVR object at address " << eAli_modified << endl;
2645 cout << "EdbPVRQuality::CreateEdbPVRec()...You can also retrieve this object via ->GetEdbPVRec(1);" << endl;
2646 //---------------------
2647 cout << "EdbPVRQuality::CreateEdbPVRec()...done." << endl;
2649}
Int_t GetAngularSpaceBin(EdbSegP *seg)
Definition: EdbPVRQuality.cxx:2392
◆ CreateEdbPVRec_TT_Algorithms()
| void EdbPVRQuality::CreateEdbPVRec_TT_Algorithms | ( | ) |
Should be done seperately, since this function
is not conneected to HighDensBTs removal...
which only should appear here, or not??
FindFakeDoubleBTs();
Can also done before, outside this loop!
This Code will be Executed in the function
FindHighDensityBTs();
Finally, the Exclusion lists should all be merged
5584 {
5585 cout << "EdbPVRQuality::CreateEdbPVRec_TT_Algorithms()" << endl;
5586
5594
5596 MergeExclusionLists();
5597
5598 // Create new volume without the excluded segments from the list
5600
5601 // Set flag
5602 eIsTarget=1;
5604
5605 cout << "EdbPVRQuality::CreateEdbPVRec_TT_Algorithms() Created new volume eAli_modified at " << eAli_modified << endl;
5606 cout << "EdbPVRQuality::CreateEdbPVRec_TT_Algorithms()...done." << endl;
5607 return;
5608}
EdbPVRec * CreatePVRWithExcludedSegmentList(EdbPVRec *aliSource, TObjArray *SegmentArray)
Definition: EdbPVRQuality.cxx:2971
TObjArray * eArrayAllExcludedSegments
Definition: EdbPVRQuality.h:177
◆ CreatePVRWithExcludedSegmentList()
| EdbPVRec * EdbPVRQuality::CreatePVRWithExcludedSegmentList | ( | EdbPVRec * | aliSource, |
| TObjArray * | SegmentArray | ||
| ) |
Create a new volume, fill with all tracks from the old volume,
except those which appear in the excluded segment list.
Quick and Dirty implementation !
2972{
2976 cout << "EdbPVRQuality::CreatePVRWithExcludedSegmentList() " << endl;
2977
2978
2979 // Clone the original object, since this will become the target object...
2981
2982 Int_t SegmentArrayN = SegmentArray->GetEntries();
2983 Bool_t SegmentInSegmentArray=kFALSE;
2984 if (gEDBDEBUGLEVEL>2) cout <<"EdbPVRQuality::CreatePVRWithExcludedSegmentList() SegmentArrayN = " << SegmentArrayN << endl;
2985
2986 //--------------------------------
2987 // Quick Pre-Trick to make Search Faster:
2988 // Split large SegmentArray into Npatterns() subarrays.
2989 TObjArray *SegmentSubArray[114];
2990 Int_t SegmentSubArrayN[114];
2992 SegmentSubArray[k] = new TObjArray();
2993 for (Int_t iSegArray=0; iSegArray<SegmentArrayN; ++iSegArray) {
2995 if (segFromArray->PID()== aliSource->GetPattern(k)->PID()) SegmentSubArray[k]->Add(segFromArray);
2996 }
2997 SegmentSubArrayN[k]=SegmentSubArray[k]->GetEntries() ;
2998 if (gEDBDEBUGLEVEL>2) cout <<"EdbPVRQuality::CreatePVRWithExcludedSegmentList() SegmentSubArray[k]->GetEntries()" << SegmentSubArrayN[k] << endl;
2999 }
3000 //--------------------------------
3001
3003 cout <<"EdbPVRQuality::CreatePVRWithExcludedSegmentList() Doing Pattern = " << i << endl;
3004
3008 cout <<"EdbPVRQuality::CreatePVRWithExcludedSegmentList() patternSource->GetN()" << patternSource->GetN() << endl;
3009 cout <<"EdbPVRQuality::CreatePVRWithExcludedSegmentList() patternTarget->GetN()" << patternTarget->GetN() << endl;
3010 }
3011 patternTarget->Reset();
3012
3018
3019 // Now every basetrack from the original pattern must be compared
3020 // with all basetracks from the exclusion list!
3021 // If the basetrack is not found in the exclusion list, then
3022 // it can be added in the target pattern...
3023 // This function might take a while, especially at large volumes...
3024 // (to be improved)
3025
3028 SegmentInSegmentArray=kFALSE;
3029
3030 for (Int_t iSegArray=0; iSegArray<SegmentSubArrayN[i]; ++iSegArray) {
3033 if (gEDBDEBUGLEVEL>3) cout << "Segment " << seg->ID() << " is in exclusion List: DO NOT ADD THIS IN patternTarget:" << endl;
3035 SegmentInSegmentArray=kTRUE;
3036 }
3037 }
3038 // Add segment now:
3040
3041 }
3042 if (gEDBDEBUGLEVEL>2) cout <<"EdbPVRQuality::CreatePVRWithExcludedSegmentList() patternTarget->GetEntries()" << patternTarget->GetN() << endl;
3043
3044 } // for (Int_t i=0; i<aliSource->N(); ++i)
3045
3046 aliClone->Print();
3047
3048 // Set the new EdbPVRec object now as the target volume:
3049 cout << "EdbPVRQuality::CreatePVRWithExcludedSegmentList() Set the new EdbPVRec object now as the target volume." << endl;
3050 eAli_modified = aliClone;
3051
3052 // Strange: this crashes, though it should not...
3053 // It is not large in memory, so we leave it just here, orphaned...
3054 // delete[] SegmentSubArray;
3055
3056 cout << "EdbPVRQuality::CreatePVRWithExcludedSegmentList()...done." << endl;
3057 return aliClone;
3058}
◆ Cut()
| void EdbPVRQuality::Cut | ( | ) |
5070 {
5071 cout << "EdbPVRQuality::Cut()" << endl;
5072 cout << "EdbPVRQuality::Cut() Generic Cut Routine to find BTs which cause High Density ..." << endl;
5073
5074 cout << "EdbPVRQuality::Cut() Description: " << endl;
5075 cout << "EdbPVRQuality::Cut() In the specific TT bin we have for Example:" << endl;
5076 cout << "EdbPVRQuality::Cut() eArrayPatternTTSource : . . . . . . . . . . N=10" << endl;
5077 cout << "EdbPVRQuality::Cut() eArrayPatternTTAccepted: x . x x . x . . x x N=06" << endl;
5078 cout << "EdbPVRQuality::Cut() eArrayPatternTTRejected: . o . . o . o o . . N=04" << endl;
5079
5080 cout << "EdbPVRQuality::Cut() So now we want to cut (whatever cutalgorithm is set before) to acchieve that ..." << endl;
5081 cout << "EdbPVRQuality::Cut() The cutfactor tells us the fraction." << endl;
5082
5083 // Cut routine different for each TT bin.
5084 // Main Cut is then executed in this subroutine
5085 Int_t nbinsX=10;
5086 for (int i = 0; i <nbinsX+2; i++ ) {
5087 Cut_TTBin(i);
5088 }
5089
5090 // After the Cuts for finding the HighDensBTs have been done, we merge the
5091 // arrays where all BTs (for this pattern) which are to be excluded are stored:
5092 MergeTTSegments();
5093
5094 // Now add this (pattern specific) array to the array for all patterns
5095 MergeHighDensBTsLists();
5096
5097
5098 // Set which CutMethod is done:
5100
5101 cout << "EdbPVRQuality::Cut()...done" << endl;
5102 return;
5103}
void SetCutMethodIsDone(Int_t CutMethod)
Definition: EdbPVRQuality.h:196
◆ Cut_ConstantBTDensity()
| void EdbPVRQuality::Cut_ConstantBTDensity | ( | ) |
5154 {
5155 cout << "EdbPVRQuality::Cut_ConstantBTDensity()" << endl;
5156 cout << "EdbPVRQuality::Cut_ConstantBTDensity() ......... UNDER DEVELOPEMT ...... " << endl;
5157
5158 // Simple Tighting of Chi2-W-Cutrelation until the desired number
5159 // of accepted BTs is acchieved
5160
5164 EdbSegP* seg;
5166 Int_t nArraySource=ArraySource->GetEntries();
5167
5168
5169 if (nArraySource==0) {
5170 cout << "EdbPVRQuality::Cut_ConstantBTDensity() ArraySource->GetEntries() = " << nArraySource << " ... Nothing to do here -> return." << endl;
5171 return;
5172 }
5173
5174 cout << "EdbPVRQuality::Cut_ConstantBTDensity() ArraySource->GetEntries() = " << nArraySource << endl;
5175 cout << "EdbPVRQuality::Cut_ConstantBTDensity() For this eBinTT, cutfactor is = " << eCutTTReductionFactor[eBinTT] << endl;
5176 cout << "EdbPVRQuality::Cut_ConstantBTDensity() and we should accept number of BTs = " << nMaxAccepted << endl;
5177
5178 // If cutfactor for this bin is 1, then we dont need to do anything in this routine...
5180 cout << "EdbPVRQuality::Cut_ConstantBTDensity() Cutfactor for this bin is 1: Fill all ArraySource in Array Accepted" << endl;
5181 ArrayAccepted->Clear();
5182 ArrayRejected->Clear();
5183 for (Int_t i=0; i< ArraySource->GetEntries(); ++i) {
5184 seg = (EdbSegP* )ArraySource->At(i);
5185 ArrayAccepted->Add(seg);
5186 }
5187 return;
5188 }
5189
5190 // Using the linear Cutrelation ( Chi2() < W()*Cutp1-Cutp0 ).
5191 // Keeping Cutp0 at 1, changing Cutp1 from 0.12 down to 0.072
5192 // in steps (20) of Delta Cutp1 = (0.120-0.072)/20 = 2.4E-3
5193 eCutp0[0]=1;
5194 eCutp1[0]=0.12;
5195 Float_t DeltaCutp1=2.4E-3;
5196 // Attention: If the Quadratic Cut mode is used, one has to change these numbers!
5197
5198 Int_t numberAccepted;
5199 Int_t numberRejected;
5200 Float_t Cutp0 = eCutp0[0];
5201 Float_t Cutp1 = eCutp1[0];
5202
5203 for (Int_t stepsCutp1=0; stepsCutp1 < 20; ++stepsCutp1) {
5204
5205 if (ArraySource->GetEntries()==0) continue;
5206
5207 numberAccepted=0;
5208 numberRejected=0;
5209
5210 // Clear local arrays which are filled from the last stepsCutp1 loop
5211 ArrayAccepted->Clear();
5212 ArrayRejected->Clear();
5213
5214 for (Int_t i=0; i< ArraySource->GetEntries(); ++i) {
5215 seg = (EdbSegP* )ArraySource->At(i);
5216
5218 ++numberAccepted;
5219 ArrayAccepted->Add(seg);
5220 }
5221 else {
5222 ++numberRejected;
5223 ArrayRejected->Add(seg);
5224 }
5225
5226 } // of for (Int_t i=0; i< ArraySource->GetEntries(); ++i)
5227
5228 cout << "EdbPVRQuality::Cut_ConstantBTDensity() For stepsCutp1 = " << stepsCutp1 << " ( Cutp1 = " << Cutp1 << ") we have numberAccepted = " << numberAccepted << " numberRejected = " << numberRejected << ". " << endl;
5229
5230 // Check if number is sufficient
5231 // if so, step out of the Cutp1 loop
5232 if (numberAccepted<nMaxAccepted) break;
5233
5234 // Tighten Cutfactor
5235 Cutp1-=DeltaCutp1;
5236 } // of for (Int_t stepsCutp1=0; stepsCutp1 < 20; ++stepsCutp1)
5237
5238 cout << "EdbPVRQuality::Cut_ConstantBTDensity() ArraySource->GetEntries() " << ArraySource->GetEntries() << endl;
5239 cout << "EdbPVRQuality::Cut_ConstantBTDensity() ArrayAccepted->GetEntries() " << ArrayAccepted->GetEntries() << endl;
5240 cout << "EdbPVRQuality::Cut_ConstantBTDensity() ArrayRejected->GetEntries() " << ArrayRejected->GetEntries() << endl;
5241
5242
5243
5244 cout << "EdbPVRQuality::Cut_ConstantBTDensity()...done." << endl;
5245 return;
5246}
Float_t eCutTTReductionFactor[12]
Definition: EdbPVRQuality.h:102
TObjArray * eArrayPatternTTAccepted[12]
after specific cut, BTs here will be kept
Definition: EdbPVRQuality.h:153
TObjArray * eArrayPatternTTRejected[12]
after specific cut, these BTs wont be taken
Definition: EdbPVRQuality.h:152
Bool_t Chi2WRelation(EdbSegP *seg, Float_t Cutp0, Float_t Cutp1, Int_t qualitycuttype)
HERE ANOTHER FUNCTION ??? WHICH ONE ???
Definition: EdbPVRQuality.cxx:5140
TObjArray * eArrayPatternTTSource[12]
should have same entries as the corresponding EdbPattern
Definition: EdbPVRQuality.h:151
◆ Cut_ConstantBTQuality()
| void EdbPVRQuality::Cut_ConstantBTQuality | ( | ) |
5248 {
5249 cout << "EdbPVRQuality::Cut_ConstantBTQuality()" << endl;
5250 cout << "EdbPVRQuality::Cut_ConstantBTQuality() NOT YET IMPLEMENTED " << endl;
5251 cout << "EdbPVRQuality::Cut_ConstantBTQuality()...done." << endl;
5252 return;
5253}
◆ Cut_ConstantBTX2Hat()
| void EdbPVRQuality::Cut_ConstantBTX2Hat | ( | ) |
More elaborate Tighting of Chi2-W-Cutrelation until the desired number of accepted BTs is acchieved Build a Chi2 like variable X2Hat = X2normalized + WTildeNormalized .....
((/////PPPPPPPPP
5255 {
5256 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat()" << endl;
5257 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() NOT YET IMPLEMENTED " << endl;
5258
5262
5263
5264
5265 cout << " BUILD IN THIS FUNCTION HERE !!! " << endl;
5266 cout << "X2Hat MEAN AND SIGmA VALUES ARE TO BE DETERMINED !!!" << endl;
5267 cout << " B U T W H Y T A K E THE M E A N ? ? ? " << endl;
5268 cout << " Lower values would be better, wouldnt thenm???? " << endl;
5269
5270
5272
5273
5277 EdbSegP* seg;
5279 Int_t nArraySource=ArraySource->GetEntries();
5280
5281
5282 if (nArraySource==0) {
5283 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() ArraySource->GetEntries() = " << nArraySource << " ... Nothing to do here -> return." << endl;
5284 return;
5285 }
5286
5287 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() ArraySource->GetEntries() = " << nArraySource << endl;
5288 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() For this eBinTT, cutfactor is = " << eCutTTReductionFactor[eBinTT] << endl;
5289 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() and we should accept number of BTs = " << nMaxAccepted << endl;
5290
5291 // If cutfactor for this bin is 1, then we dont need to do anything in this routine...
5293 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() Cutfactor for this bin is 1: Fill all ArraySource in Array Accepted" << endl;
5294 ArrayAccepted->Clear();
5295 ArrayRejected->Clear();
5296 for (Int_t i=0; i< ArraySource->GetEntries(); ++i) {
5297 seg = (EdbSegP* )ArraySource->At(i);
5298 ArrayAccepted->Add(seg);
5299 }
5300 return;
5301 }
5302
5303
5304 // Using the cutrelation on the Xi2Hat Value
5305 // Keeping X2Hat_0 at 5, decreasing in 20 steps of 0.1....
5306 Double_t CutValueX2HatInitial=5;
5307 Double_t DeltaCutValueX2Hat=5./20.;
5308 Double_t CutValueX2Hat=5;
5309
5310 // Need sigma and mean values for the important histograms:
5311 Double_t CutValueX2Hat_Chi2Mean=eHistChi2->GetMean();
5312 Double_t CutValueX2Hat_Chi2Sigma=eHistChi2->GetRMS();
5313 Double_t CutValueX2Hat_WTildeMean=eHistWTilde->GetMean();
5314 Double_t CutValueX2Hat_WTildeSigma=eHistWTilde->GetRMS();
5315
5316 Int_t numberAccepted;
5317 Int_t numberRejected;
5318
5319 for (Int_t iSteps=0; iSteps < 20; ++iSteps) {
5320
5321 if (ArraySource->GetEntries()==0) continue;
5322
5323 numberAccepted=0;
5324 numberRejected=0;
5325
5326 // Clear local arrays which are filled from the last stepsCutp1 loop
5327 ArrayAccepted->Clear();
5328 ArrayRejected->Clear();
5329
5330 for (Int_t i=0; i< ArraySource->GetEntries(); ++i) {
5331 seg = (EdbSegP* )ArraySource->At(i);
5332
5333 if (X2HatCutRelation(seg, CutValueX2Hat, CutValueX2Hat_Chi2Mean, CutValueX2Hat_Chi2Sigma, CutValueX2Hat_WTildeMean, CutValueX2Hat_WTildeSigma )==kTRUE) {
5334 ++numberAccepted;
5335 ArrayAccepted->Add(seg);
5336 }
5337 else {
5338 ++numberRejected;
5339 ArrayRejected->Add(seg);
5340 }
5341
5342 } // of for (Int_t i=0; i< ArraySource->GetEntries(); ++i)
5343
5344 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() For iSteps = " << iSteps << " ( CutValueX2Hat = " << CutValueX2Hat << ") we have numberAccepted = " << numberAccepted << " numberRejected = " << numberRejected << ". " << endl;
5345
5346 // Check if number is sufficient
5347 // if so, step out of the Cutp1 loop
5348 if (numberAccepted<nMaxAccepted) break;
5349
5350 // Tighten Cutfactor
5351 CutValueX2Hat -= DeltaCutValueX2Hat;
5352 } // of for (Int_t stepsCutp1=0; stepsCutp1 < 20; ++stepsCutp1)
5353
5354 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() ArraySource->GetEntries() " << ArraySource->GetEntries() << endl;
5355 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() ArrayAccepted->GetEntries() " << ArrayAccepted->GetEntries() << endl;
5356 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat() ArrayRejected->GetEntries() " << ArrayRejected->GetEntries() << endl;
5357
5358 cout << "EdbPVRQuality::Cut_ConstantBTX2Hat()...done." << endl;
5359 return;
5360}
Bool_t X2HatCutRelation(EdbSegP *seg, Double_t CutValueX2Hat, Double_t CutValueX2Hat_Chi2Mean, Double_t CutValueX2Hat_Chi2Sigma, Double_t CutValueX2Hat_WTildeMean, Double_t CutValueX2Hat_WTildeSigma)
Definition: EdbPVRQuality.cxx:5635
◆ Cut_RandomCut()
| void EdbPVRQuality::Cut_RandomCut | ( | ) |
5364 {
5365 cout << "EdbPVRQuality::Cut_RandomCut()" << endl;
5369 EdbSegP* seg;
5371 cout << "EdbPVRQuality::Cut_RandomCut() eCutTTReductionFactor[eBinTT] = " << eCutTTReductionFactor[eBinTT] << " so we should keep around" << nMaxAccepted << " segments " << endl;
5372 for (Int_t i=0; i< ArraySource->GetEntries(); ++i) {
5373 seg = (EdbSegP* )ArraySource->At(i);
5375 ArrayAccepted->Add(seg);
5376 }
5377 else {
5378 ArrayRejected->Add(seg);
5379 }
5380 }
5381 cout << "EdbPVRQuality::Cut_RandomCut() ArraySource->GetEntries() " << ArraySource->GetEntries() << endl;
5382 cout << "EdbPVRQuality::Cut_RandomCut() ArrayAccepted->GetEntries() " << ArrayAccepted->GetEntries() << endl;
5383 cout << "EdbPVRQuality::Cut_RandomCut() ArrayRejected->GetEntries() " << ArrayRejected->GetEntries() << endl;
5384 cout << "EdbPVRQuality::Cut_RandomCut()...done." << endl;
5385}
◆ Cut_TTBin()
| void EdbPVRQuality::Cut_TTBin | ( | Int_t | TTbin | ) |
5108 {
5109 cout << "EdbPVRQuality::Cut_TTBin(Int_t TTbin)" << endl;
5110 cout << "EdbPVRQuality::Cut_TTBin(Int_t TTbin) Generic Cut Routine for TTbin = " << TTbin << endl;
5111
5112 eBinTT = TTbin;
5113
5114 // NOW CHECK WHICH CUT METHOD IS TO BE EXECUTED .....
5115 // for now... only randomcut method working
5116 // for now... and chi2- method working
5117 // = reference algorithm
5118
5119 // Cut-Algorithms for TT-binning:
5122 if (eCutMethod==5) Cut_ConstantBTX2Hat(); // NOT YET WORKING // IN DEVELOPEMT (08.08.2016, FWM)
5124 // The "other" algorithms are still tuned for one single TT-space,
5125 // that means, they work globally.
5126 // TO BE DONE: MAYBE BY REBINNING THE TTHistogram, we can just use these routines for the
5127 // GLObAL CUT ROUTINES
5128
5129
5130
5131
5132 cout << "EdbPVRQuality::Cut_TTBin(Int_t TTbin)...done." << endl;
5133 return;
5134}
◆ DetermineCutTTReductionFactor()
| void EdbPVRQuality::DetermineCutTTReductionFactor | ( | Int_t | patNR | ) |
4863 {
4864 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR)" << endl;
4865
4866 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) TO BE DONE: FILL HISTOS PATTERN nPAT before, or at least check if it was done..." << endl;
4867
4871
4872 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) TO BE DONE: FILL FillTanThetaTArrays nPAT before, or at least check if it was done..." << endl;
4873
4875 FillTanThetaTArrays(patNR);
4877
4878 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) This function will determine the TT Cut reduction factors. According" << endl;
4879 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) to the given formula (explained in the manual)..." << endl;
4880 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) ... TO BE DONE ... GIVE FORMULA HERE !!! ... " << endl;
4881 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) ... Find TT-histogram minimum ..." << endl;
4882
4883 // // // // // // // // // // // // // //
4884 // Find histogram (TT) minimum:
4885 // Assume, it is at about TT = 0.2..0.3
4886 // Then fit with parabola in range 0.05..0.5
4887 // returns then n_{min}
4888 // To be done:
4889 // Make sure if the returned value is
4890 // in the correct range...
4891 // // // // // // // // // // // // // //
4892 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Find histogram (TT) minimum:" << endl;
4893 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Assume, it is at about TT = 0.2..0.3" << endl;
4894 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Then fit with parabola in range 0.05..0.5" << endl;
4895 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) returns then n_{min}" << endl;
4896 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) To be done:" << endl;
4897 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Make sure if the returned value is " << endl;
4898 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) in the correct range... "<< endl;
4899
4900 // cout << " LET US SEE IF THE PARABULA FIT STILL WORKS WHEN BIN NUMBERS IS RECUDEC....." << endl;
4901 // No, it does not, so we just choose another simple method:
4902 // if number of bins in tt histogram is smaller 5, (i.e. 1, one global TT bin)
4903 // then we just take the entries in the bin at tt=0.2, which is the only one bin then...
4904
4905 TH1F* h_TT = eHistTTFillcheck;
4906 TF1* fitFuncParabola = new TF1("fitFuncParabola","pol2",0,1);
4907
4908 //cout << "h_TT->GetMinimumBin () = " << h_TT->GetMinimumBin () << endl;
4909 //cout << "h_TT->GetMinimumBin ()->GetBinContent(xx) = " << h_TT->GetBinContent(h_TT->GetMinimumBin ()) << endl;
4910
4911
4912 Double_t xmin=0;
4913 if (h_TT->GetNbinsX()<5) {
4914 xmin = 0.2;
4915 }
4916 else {
4917 h_TT->Fit("pol2","0","",0.05,0.5);
4918 // option "0", otherwise this will overwrite the plots in an existing canvas...
4919 TF1* fitFuncParabola = h_TT->GetFunction("pol2");
4920 fitFuncParabola->Print();
4921 // Calculate Standard parabola Minimum according to:
4922 // [0]+[1]*x+[2]*x*x*2 -> minimum at x = -[1]/(2*[2])
4923 xmin = -fitFuncParabola->GetParameter(1)/(2*fitFuncParabola->GetParameter(2));
4924 }
4925
4926 // Get Entries n_min which correspond to this bin, belonging to xmin
4927 Int_t bin_n_min = h_TT->FindBin(xmin);
4928 Int_t n_min = h_TT->GetBinContent(bin_n_min);
4929
4930 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Find minimum TT-value: TTmin (from parabola fit or manually set at 0.2) = " << xmin << endl;
4931 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) GetBinContent at TTmin (from parabola fit or manually set at 0.2) = " << n_min << endl;
4932
4933 // // // // // // // // // // // // // //
4934 // Calculate the other maximal binentries,
4935 // according to cufactor c = 0..1 given:
4936 // \tilde{n}_i = n_{min} + (1-c) (n_i - n_{min})
4937 // // // // // // // // // // // // // //
4938 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Calculate the other maximal binentries," << endl;
4939 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) according to cufactor c = 0..1 given:" << endl;
4940 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) tilde{n}_i = n_{min} + (1-c) (n_i - n_{min}) " << endl;
4941 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Pattern BT Density = " << GetBTDensity(patNR) << endl;
4942 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Target BT Density = " << GetBTDensityLevel() << endl;
4943 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Ratio (Target/Pattern density) = " << GetBTDensityLevel()/GetBTDensity(patNR) << endl;
4944
4945 // // // // // // // // // // // // // //
4946 Int_t nbinsX=10;
4947 Double_t cutfactor=1;
4948// Double_t cutfactor=0;
4949 Int_t nitilde[nbinsX+2];
4950 Int_t ni[nbinsX+2];
4951
4952 Int_t Sumni=0;
4953 Int_t Sumnitilde=0;
4954
4955 Double_t ratio[nbinsX+2];
4956 Double_t ratioSum=0;
4958
4959 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) ratioTarget= " << ratioTarget << endl;
4960
4961 for (Int_t loopctr =0; loopctr<20; ++loopctr) {
4962 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Doing loop (loopctr = " << loopctr << ") for a cutfactor =" << cutfactor << endl;
4963
4964 ratioSum=0;
4965 Sumni=0;
4966 Sumnitilde=0;
4967
4968 // Failsafe check
4969 if (cutfactor>1) {
4970 cout << "Warning: given cutfactor greater 1. Reduce to default value of 0.8 ! " << endl;
4971 cutfactor=0.8;
4972 }
4973
4974 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) cutfactor c = " << cutfactor << endl;
4975 cout << setw(4) << "TT bin i " << " " << setw(12) << " ni[i] " << " " << setw(12) << " nitilde[i] " << " " << setw(12) << " ratio[i] " << endl;
4976 for (int i = 0; i <nbinsX+2; i++ ) {
4977 nitilde[i]=0;
4978 ni[i]=h_TT->GetBinContent(i);
4979 nitilde[i]= n_min + (1-cutfactor) * (ni[i]-n_min);
4980 ratio[i] = (Double_t)nitilde[i] / (Double_t)ni[i];
4981 // Failsafe checks
4982 if (ni[i]==0) {
4983 nitilde[i]=0;
4984 ratio[i] = 1;
4985 }
4986 if (nitilde[i]<n_min) ratio[i] = 1; // should never happen ...
4987
4988 Sumni+=ni[i];
4989 Sumnitilde+=nitilde[i];
4990
4991 // Anyway, not to do it twice, fill the cutReduction Factors
4992 eCutTTReductionFactor[i]=ratio[i];
4993
4994 //cout << setw(4) << i << " " << setw(12) << ni[i] << " " << setw(12) << nitilde[i] << " " << setw(12) << ratio[i] << endl;
4995 }
4996 ratioSum=(Double_t)Sumnitilde/(Double_t)Sumni;
4997 cout << setw(4) << "Sum" << " " << setw(12) << Sumni << " " << setw(12) << Sumnitilde << " " << setw(12) << ratioSum << endl;
4998
4999
5000 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) End of loop (loopctr = " << loopctr << ") for a cutfactor =" << cutfactor << endl;
5001
5002 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) Now ... should we abort the loop? I.e.: is ratioTarget<ratioSum ? " << endl;
5003 if (ratioTarget<ratioSum) cout << "YES" << endl;
5004 if (ratioTarget>ratioSum) cout << "NO, reduce cutfactor by 0.05 (absolute value)" << endl;
5005
5006 // In case it is so, the abort now, since cutfactors eCutTTReductionFactor are already filled.
5007 if (ratioTarget<ratioSum) {
5008 cout << setw(4) << "TT bin i " << " " << setw(12) << " ni[i] " << " " << setw(12) << " nitilde[i] " << " " << setw(12) << " ratio[i] " << endl;
5009 for (int i = 0; i <nbinsX+2; i++ ) cout << setw(4) << i << " " << setw(12) << ni[i] << " " << setw(12) << nitilde[i] << " " << setw(12) << ratio[i] << endl;
5010 cout << setw(4) << "Sum" << " " << setw(12) << Sumni << " " << setw(12) << Sumnitilde << " " << setw(12) << ratioSum << endl;
5011 break;
5012 }
5013
5014
5015 //cout << "STILL TO CHECK: ... WHAT IF THE BT DENSITY IS GREATER THAN TARGET DENSITY, WHEN EVEN THE MINIMUM BIN IS TOO MUCH ???? " << endl; -> DONE, see below.
5016
5017 cutfactor-=0.05;
5018// cutfactor+=0.05;
5019 } // of loopctr
5020
5021
5022 cout << "NOW WE ARE AT THE POINT WHERE ratioTarget<ratioSum." << endl;
5023 cout << "print once again Sumni Sumnitilde and compare with BT density:" << endl;
5024 cout << "Sumni = " << Sumni << endl;
5025 cout << "Sumnitilde = " << Sumnitilde << endl;
5028 cout << "If still at this stage we have the ratio Sumnitilde/Sumni > GetBTDensityLevel()/GetBTDensity(patNR)? " << endl;
5029 cout << "Sumnitilde/Sumni = " << ratioSum << endl;
5030 cout << "GetBTDensityLevel()/GetBTDensity(patNR) = " << GetBTDensityLevel()/GetBTDensity(patNR) << endl;
5031 cout << "Then we need an additional reducing factor of ratioSum/ratioTarget = "<< ratioSum/ratioTarget << endl;
5032
5033
5034 eGlobalTTReductionFactorC = ratioSum/ratioTarget;
5036 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR) eGlobalTTReductionFactorC (=ratioSum/ratioTarget) is greater than 10. This means that even after going to TT bin with the lowest entries, the target background density is still a factor 10 tooooooo large! YOU SHOULD CHECK YOUR INPUT IMMEDIATELY" << endl;
5037 eGlobalTTReductionFactorC=10;
5038 }
5039
5040
5042 cout << " eGlobalTTReductionFactorC>1 that means, all TT bin_entries are rescaled with 1/eGlobalTTReductionFactorC " << endl;
5043 cout << setw(4) << "TT bin i " << " " << setw(12) << " ni[i] " << " " << setw(12) << " nitilde[i] " << " " << setw(12) << " ratio[i] " << endl;
5044 for (int i = 0; i <nbinsX+2; i++ ) {
5045 cout << "" << endl;
5046 cout << setw(4) << i << " " << setw(12) << ni[i] << " " << setw(12) << nitilde[i] << " " << setw(12) << ratio[i] << " :Before Rescaling." << endl;
5047
5048 nitilde[i] = nitilde[i]/eGlobalTTReductionFactorC;
5050
5051 cout << setw(4) << i << " " << setw(12) << ni[i] << " " << setw(12) << nitilde[i] << " " << setw(12) << eCutTTReductionFactor[i] << " :after Rescaling with nitilde[i] = nitilde[i]/eGlobalTTReductionFactorC" << endl;
5052 }
5053 }
5054
5055 // Now the cutfactors are set (for this pattern!)...
5056 // and stored. It is now time for the CUTTING Function,
5057 // which implements all the different cutting algorithms!
5058 // void EdbPVRQuality::Cut()
5059
5060 delete fitFuncParabola;
5061
5062 cout << "EdbPVRQuality::DetermineCutTTReductionFactor(Int_t patNR)...done" << endl;
5063 return;
5064}
void FillTanThetaTArrays(Int_t patNR)
Definition: EdbPVRQuality.cxx:4777
Float_t eGlobalTTReductionFactorC
Definition: EdbPVRQuality.h:105
void FillHistosPattern(EdbPVRec *aliSource, Int_t patNR=0, Bool_t DoResetHistos=kTRUE, Float_t weightXY=1)
Definition: EdbPVRQuality.cxx:4599
◆ Execute() [1/2]
| void EdbPVRQuality::Execute | ( | ) |
-----------------------------------------------------------------—
Main Execution Routine.
Does the following things:
a) Check EdbPVRec object of data.
b) Remove Fake DoubleBasetracks
c) Remove passing tracks
(if any stored, either in .root file or in EdbPVRec object itself)
d) Execute quality cuts if necessary: default is
<<Constant BT density>>
e) Store cleaned object. Can be retrieved via GetPVR(). \n
1313{
1326
1328
1338
1339 cout << " " << endl;
1340 cout << "___________________ TODO _______ AT THE MOMENT NOTHING HAPPENS YET IN THIS FUNCTION !!! ____________" << endl;
1341 cout << " " << endl;
1342
1344 return;
1345}
◆ Execute() [2/2]
| void EdbPVRQuality::Execute | ( | Int_t | CutType | ) |
1350{
1352 Log(2,"EdbPVRQuality::Execute","Chosen CutMethod to apply = %d. Set eCutMethod accordingly.",CutMethod);
1353
1354 SetCutMethod(CutMethod);
1355
1357 default:
1359 break;
1360 case 0:
1361 Execute_ConstantBTDensity();
1362 break;
1363 case 1:
1365 break;
1366 case 2:
1367 Execute_ConstantBTQuality();
1368 break;
1369 case 3:
1371 break;
1372 case 4:
1373 Execute_ConstantBTX2Hat();
1374 break;
1375 case 5:
1377 break;
1378 case 6:
1379 Execute_RandomCut();
1380 break;
1381 case 7:
1382 Execute_RandomCutInAngularBins();
1383 break;
1384 }
1385
1387 return;
1388}
void Execute_ConstantBTQualityInAngularBins()
Definition: EdbPVRQuality.cxx:2156
void Execute_ConstantBTQuality()
Definition: EdbPVRQuality.cxx:1567
void Execute_RandomCutInAngularBins()
Definition: EdbPVRQuality.cxx:2164
void Execute_ConstantBTX2Hat()
Definition: EdbPVRQuality.cxx:1866
void Execute_ConstantBTX2HatInAngularBins()
Definition: EdbPVRQuality.cxx:2146
void Execute_ConstantBTDensityInAngularBins()
Definition: EdbPVRQuality.cxx:1857
void Execute_ConstantBTDensity()
Definition: EdbPVRQuality.cxx:1393
◆ Execute_ConstantBTDensity()
| void EdbPVRQuality::Execute_ConstantBTDensity | ( | ) |
Execute the modified cut routines to achieve the basetrack density level,
after application the specific cut on the segments of the specific plate (pattern).
The Constant BT Density is defined by the number of BT/mm2 in the histogram.
1394{
1398
1399 for (int i=0; i<80; ++i) cout << "-";
1400 cout << endl;
1401 cout << "-";
1402 cout << endl;
1403 cout << "EdbPVRQuality::Execute_ConstantBTDensity " << endl;
1404 cout << "-";
1405 cout << endl;
1406 for (int i=0; i<80; ++i) cout << "-";
1407 cout << endl;
1408
1410
1411
1414
1415 // Check the patterns of the EdbPVRec:
1417 if (eAli_maxNpatterns>57) cout << " This tells us not yet if we do have one/two brick reconstruction done. A possibility could also be that the dataset was read with microtracks. Further investigation is needed! (On todo list)." << endl;
1419 cout << "ERROR! EdbPVRQuality::Execute_ConstantBTDensity eAli_orig->Npatterns()= " << eAli_maxNpatterns << " is greater than possible basetrack data two bricks. This class does (not yet) work with this large number of patterns. Set maximum patterns to 114!!!." << endl;
1420 eAli_maxNpatterns=114;
1421 }
1422
1423 TH1F* histPatternBTDensity = new TH1F("histPatternBTDensity","histPatternBTDensity",200,0,200);
1424
1425 // Loop over the patterns:
1427 if (i>56) {
1428 cout << "WARNING EdbPVRQuality::Execute_ConstantBTDensity() Your EdbPVRec object has more than 57 patterns! " << endl;
1429 cout << "WARNING EdbPVRQuality::Execute_ConstantBTDensity() Check it! " << endl;
1430 }
1432
1433 // Now the condition loop:
1434 // Loop over 20 steps a 0.15,0.145,0.14 ... down to 0.07
1435 for (int l=0; l<20; l++) {
1436
1437 ResetHistosSinglePattern();
1438
1439
1442 EdbSegP* seg=0;
1443 // Loop over the segments.
1445 seg=pat->GetSegment(j);
1446 // Very important:
1447 // For the data case, we assume the following:
1448 // Data (MCEvt<0) will be taken for BTdensity calculation
1449 // Sim (MCEvt>0) will NOT be taken for BTdensity calculation
1450 // We take it ONLY and ONLY into account if it is especially wished
1451 // by the user!
1452 // Therefore (s)he needs to know how many Gauge Coupling Parameters
1453 // in the Standard Model exist (at least)...
1454 Bool_t result=kTRUE;
1457 result = kTRUE;
1458 // cout << "result = kTRUE !! " << endl;
1459 }
1460 else {
1461 result = kFALSE;
1462 }
1463 }
1464
1465 if (gEDBDEBUGLEVEL>4) cout << "Doing segment " << j << " result for bool query is: " << result << endl;
1466
1467 // Main decision for segment to be kept or not (seg is of MC or data type).
1468 if ( kFALSE == result ) continue;
1469 // Constant BT density cut:
1471
1477 }
1478
1479 if (gEDBDEBUGLEVEL>2) cout << "I have filled the eHistXY Histogram. Entries = " << eHistXY->GetEntries() << endl;
1480
1482 for (int k=1; k<nbins-1; k++) {
1484 histPatternBTDensity->Fill(eHistXY->GetBinContent(k));
1485 }
1486
1487 ePatternBTDensity_modified[i]=histPatternBTDensity->GetMean();
1488 if (gEDBDEBUGLEVEL>2) cout <<"Execute_ConstantBTDensity Loop l= " << l << ": for the eCutp1[i] : " << eCutp1[i] << " we have a dens: " << ePatternBTDensity_modified[i] << endl;
1489
1490 // Now the condition check:
1492 if (gEDBDEBUGLEVEL>2) cout << "Execute_ConstantBTDensity We reached the loop end due to good BT density level ... and break loop." << endl;
1493 break;
1494 }
1495 else {
1496 // Next step, tighten cut:
1497 eCutp1[i] += -0.005;
1498 }
1499
1500 } // of condition loop...
1501
1502 // Fill target profile histogram:
1503 Float_t bincontentXY=histPatternBTDensity->GetMean();
1504 eProfileBTdens_vs_PID_target->Fill(i,bincontentXY);
1505
1506 } // of Npattern loops..
1507
1508 eCutMethodIsDone[0]=kTRUE;
1509
1510 // Check if modified or original PVRec object should be returned:
1512 eNeedModified=kTRUE;
1513 cout << "----------void EdbPVRQuality::Execute_ConstantBTDensity() Check if modified or original PVRec object should be returned: " << endl;
1515 }
1516
1517
1518 // This will be commented when using in batch mode...
1519 // For now its there for clarity reasons.
1521 c1->Divide(3,2);
1522 c1->cd(1);
1524 c1->cd(2);
1526 c1->cd(3);
1528 c1->cd(4);
1529 histPatternBTDensity->DrawCopy("");
1530 c1->cd(5);
1533 eProfileBTdens_vs_PID_target->SetLineStyle(2);
1535 c1->cd(6);
1537 c1->cd();
1538
1539
1540 histPatternBTDensity->Reset();
1541 eHistXY->Reset();
1542 eHistWChi2->Reset();
1543
1548
1553
1554 delete histPatternBTDensity;
1555
1556 cout << "----------void EdbPVRQuality::Execute_ConstantBTDensity() Cuts are done and saved to obtain desired BT density. " << endl;
1557 cout << "----------void EdbPVRQuality::Execute_ConstantBTDensity() If you want to apply the cuts now, run the CreateEdbPVRec() function now. " << endl;
1558 cout << "----------void EdbPVRQuality::Execute_ConstantBTDensity()....done." << endl;
1559
1561 return;
1562}
Float_t eProfileBTdens_vs_PID_target_rmsY
Definition: EdbPVRQuality.h:92
TProfile * eProfileBTdens_vs_PID_target
Definition: EdbPVRQuality.h:90
Float_t eProfileBTdens_vs_PID_target_meanX
Definition: EdbPVRQuality.h:91
Float_t eProfileBTdens_vs_PID_target_rmsX
Definition: EdbPVRQuality.h:92
void ResetHistosSinglePattern()
Definition: EdbPVRQuality.cxx:203
Float_t ePatternBTDensity_modified[114]
Definition: EdbPVRQuality.h:65
Float_t eProfileBTdens_vs_PID_target_meanY
Definition: EdbPVRQuality.h:91
◆ Execute_ConstantBTDensityInAngularBins()
| void EdbPVRQuality::Execute_ConstantBTDensityInAngularBins | ( | ) |
1858{
1859 Log(2,"EdbPVRQuality::Execute_ConstantBTDensityInAngularBins","NOT YET IMPLEMENTED...Execute_ConstantBTDensityInAngularBins...done.");
1860 return;
1861}
◆ Execute_ConstantBTQuality()
| void EdbPVRQuality::Execute_ConstantBTQuality | ( | ) |
The cut method that compares the passing muon tracks with all scanned segments.
This may help to improve, since it takes into account the actual segment quality,
which varies from scan to scan anyway.
Works for tracks passing the volume to extract their mean chi2/W. Then a distance
measurement Sqrt{0.5*[ ((chi2-chi2mean)/chi2rms)^2 + ((W-Wmean)/Wrms)^2 )] } is
build and the value of single basetracks is compared to this variable. Starting from
dist_max = 3 going down until desired target level is achieved.
If eAli->Tracks is there we take them from there.
If not, we try if there is a file linked_tracks.root, and we take tracks from there.
If that doesnt work either, nothing is done.
______ now same code as in the function Execute_ConstantBTDensity ___________________
TODO SHOULDNT BE HERE THE CLONE eHistXYClone histogram be IN THERE (eHistXY is not resetted plate by plate ...).
1568{
1579
1581
1583
1584 for (int i=0; i<80; ++i) cout << "-";
1585 cout << endl;
1586 cout << "-";
1587 cout << endl;
1588 cout << "EdbPVRQuality::Execute_ConstantBTQuality " << endl;
1589 cout << "-";
1590 cout << endl;
1591 for (int i=0; i<80; ++i) cout << "-";
1592 cout << endl;
1593 cout << "---------- Works for tracks passing the volume to extract their mean chi2/W " << endl;
1594 cout << "---------- If eAli->Tracks is there we take them from there." << endl;
1595 cout << "---------- If not, we try if there is a file linked_tracks.root " << endl;
1596 cout << "---------- we take tracks from there. " << endl;
1597 cout << "---------- If that doesnt work either, nothing is done." << endl;
1598 for (int i=0; i<80; ++i) cout << "-";
1599 cout << endl;
1600 cout << "-";
1601 cout << endl;
1602
1603 cout << "EdbPVRQuality::Execute_ConstantBTQuality() eAli_orig.eTracks :" << eAli_orig->eTracks << endl;
1604
1605 Float_t meanChi2=0.5;
1606 Float_t rmsChi2=0.2;
1607 Float_t meanW=22;
1608 Float_t rmsW=4;
1609 Float_t agreementChi2=100;
1610
1611 // No eAli.Tracks ? Look for tracks in linked_track.root:
1613 cout << "EdbPVRQuality::Execute_ConstantBTQuality() No eAli.Tracks. Look for tracks in linked_track.root" << endl;
1614 TFile* trackfile = new TFile("linked_tracks.root");
1615 trackfile->ls();
1618 cout << "EdbPVRQuality::Execute_ConstantBTQuality() No tracks in linked_track.root file. Return, leave eAli_orig unchanged and dont do any cleaning. You might try Execute_ConstantBTDensity instead. " << endl;
1619 return;
1620 }
1621 // TH1F* h1; Attention the usage of _npl_ is disvavoured
1622 // because this can cause problems.
1625
1626 // Short implementation of getting the last bin filled:
1627 int lastfilledbin=0;
1630 }
1631
1632 Float_t travellenghtpercentage=Float_t(lastfilledbin)/Float_t(eAli_maxNpatterns);
1633
1636 TH1F *hChi2 = (TH1F*)gPad->GetPrimitive("hChi2");
1637
1638 cout << "EdbPVRQuality::Execute_ConstantBTQuality() Found tracks in the file! Good. Info:" << endl;
1639 cout << "EdbPVRQuality::Execute_ConstantBTQuality() The long tracks in the file have an average percentage length of:" << travellenghtpercentage << endl;
1640 cout << "EdbPVRQuality::Execute_ConstantBTQuality() Mean(RMS) of Chi2 distribution of passing tracks: " << hChi2->GetMean() << "+-" << hChi2->GetRMS() << endl;
1641
1642
1643
1645 c1->cd();
1647 TH1F *hW = (TH1F*)gPad->GetPrimitive("hW");
1648 cout << "EdbPVRQuality::Execute_ConstantBTQuality() Mean(RMS) of W distribution of passing tracks: " << hW->GetMean() << "+-" << hW->GetRMS() << endl;
1649
1650 meanChi2=hChi2->GetMean();
1651 rmsChi2=hChi2->GetRMS();
1652 meanW=hW->GetMean();
1653 rmsW=hW->GetRMS();
1654
1655 // Quick check if these values are reasonable:
1656 if (TMath::Abs(meanChi2-0.5)>1 || TMath::Abs(meanW-22)>6) {
1657 cout << "WARNING EdbPVRQuality::Execute_ConstantBTQuality() The tracks might have a strange distribution. You are urgently requested to check these manually!!!"<<endl;
1658 }
1659 else {
1660 cout << "EdbPVRQuality::Execute_ConstantBTQuality() The tracks have reasonable values."<<endl;
1661 }
1662
1663
1664 // since the values for the passing tracks are
1665 // calculated for the whole volume, we assume that the cutvalues
1666 // are valid for all plates.
1667 eAgreementChi2CutMeanChi2=meanChi2;
1668 eAgreementChi2CutRMSChi2=rmsChi2;
1669 eAgreementChi2CutMeanW=meanW;
1670 eAgreementChi2CutRMSW=rmsW;
1671 }
1672
1674
1675 // Check the patterns of the EdbPVRec:
1677 cout << "EdbPVRQuality::Execute_ConstantBTQuality eAli_orig->Npatterns()= " << eAli_maxNpatterns << endl;
1678 if (eAli_maxNpatterns>57) cout << " This tells us not yet if we do have one/two brick reconstruction done. A possibility could also be that the dataset was read with microtracks. Further investigation is needed! (On todo list)." << endl;
1680 cout << "ERROR! EdbPVRQuality::Execute_ConstantBTQuality eAli_orig->Npatterns()= " << eAli_maxNpatterns << " is greater than possible basetrack data two bricks. This class does (not yet) work with this large number of patterns. Set maximum patterns to 114!!!." << endl;
1681 eAli_maxNpatterns=114;
1682 }
1683
1684 TH1F* histPatternBTDensity = new TH1F("histPatternBTDensity","histPatternBTDensity",100,0,200);
1685 TH1F* histagreementChi2 = new TH1F("histagreementChi2","histagreementChi2",100,0,5);
1686
1687
1688 cout << "Execute_ConstantBTQuality Loop over the patterns..." << endl;
1690 if (i>56) {
1691 cout << "ERROR EdbPVRQuality::Execute_ConstantBTQuality() Your EdbPVRec object has more than 57 patterns! " << endl;
1692 cout << "ERROR EdbPVRQuality::Execute_ConstantBTQuality() Check it! " << endl;
1693 }
1694
1696
1697 // Now the condition loop:
1698 // Loop over 30 steps agreementChi2 step 0.025
1699 for (int l=0; l<30; l++) {
1700
1701 if (gEDBDEBUGLEVEL>2) cout << "Execute_ConstantBTQuality Doing condition loop = " << l << endl;
1702
1705 histPatternBTDensity->Reset(); // important to clean the histogram
1706
1709 EdbSegP* seg=0;
1710
1711 if (gEDBDEBUGLEVEL>2) cout << "Execute_ConstantBTQuality Loop over segments of pattern " << i << ",Number of segments= " << npat << endl;
1713 seg=pat->GetSegment(j);
1714
1716 // Very important:
1717 // For the data case, we assume the following:
1718 // Data (MCEvt<0) will be taken for BTdensity calculation
1719 // Sim (MCEvt>0) will NOT be taken for BTdensity calculation
1720 // We take it ONLY and ONLY into account if it is especially wished
1721 // by the user!
1722 // Therefore (s)he needs to know how many Gauge Coupling Parameters
1723 // in the Standard Model exist (at least)...
1724 Bool_t result=kTRUE;
1727 result = kTRUE;
1728 // cout << "result = kTRUE !! " << endl;
1729 }
1730 else {
1731 result = kFALSE;
1732 }
1733 }
1734
1735 if (gEDBDEBUGLEVEL>4) cout << "Doing segment " << j << " result for bool query is: " << result << endl;
1736
1737 // Main decision for segment to be kept or not (seg is of MC or data type).
1738 if ( kFALSE == result ) continue;
1739
1740 // Change here to the quality with values obtained from the tracks.
1741 // Constant BT quality cut:
1742 agreementChi2=TMath::Sqrt(0.5 *( (seg->Chi2()-meanChi2)/rmsChi2)*((seg->Chi2()-meanChi2)/rmsChi2) + ((seg->W()-meanW)/rmsW)*((seg->W()-meanW)/rmsW) );
1743 histagreementChi2->Fill(agreementChi2);
1744
1745
1746 // Constant BT quality cut:
1748
1751 }
1752
1753 if (gEDBDEBUGLEVEL>2) cout << "I have filled the eHistXY Histogram. Entries = " << eHistXY->GetEntries() << endl;
1754
1756 Int_t nemptybinsXY=0;
1757 for (int k=1; k<nbins-1; k++) {
1759 ++nemptybinsXY;
1760 continue;
1761 }
1762 histPatternBTDensity->Fill(eHistXY->GetBinContent(k));
1763 }
1764
1765 // failsafe warning in case that there are many bins with zero content.
1766 // for now we print a error message: TODO REBIN THE YX HISTOGRA WITH 2.5x2.5 mm!!!!
1770
1771 ePatternBTDensity_modified[i]=histPatternBTDensity->GetMean();
1772
1773 if (gEDBDEBUGLEVEL>2) cout <<"Execute_ConstantBTQuality Loop l= " << l << ": for the eAgreementChi2WDistCut : " << eAgreementChi2WDistCut[i] << " we have a dens: " << ePatternBTDensity_modified[i] << endl;
1774
1775 // Now the condition check:
1777 if (gEDBDEBUGLEVEL>2) cout << "Execute_ConstantBTQuality We reached the loop end due to good BT density level ... and break loop." << endl;
1778 // But dont forget to set values:
1779 eCutDistChi2[i]=meanChi2;
1780 eCutDistW[i]=meanW;
1781 eAgreementChi2CutMeanChi2=meanChi2;
1782 eAgreementChi2CutRMSChi2=rmsChi2;
1783 eAgreementChi2CutMeanW=meanW;
1784 eAgreementChi2CutRMSW=rmsW;
1785 break;
1786 }
1787 else {
1788 // Next step, tighten cut:
1789 eAgreementChi2WDistCut[i]+= -0.025;
1790 }
1791
1792 } // of condition loop...
1793
1794 // Fill target profile histogram:
1795 Float_t bincontentXY=histPatternBTDensity->GetMean();
1796 cout << "Execute_ConstantBTQuality histPatternBTDensity->GetMean()." << histPatternBTDensity->GetMean() << endl;
1797 eProfileBTdens_vs_PID_target->Fill(i,bincontentXY);
1798
1799 } // of Npattern loops..
1800 cout << "Execute_ConstantBTQuality Loop over the patterns...done." << endl;
1801
1802 // Check if modified or original PVRec object should be returned:
1804 eNeedModified=kTRUE;
1805 cout << "----------void EdbPVRQuality::Execute_ConstantBTQuality() Check if modified or original PVRec object should be returned: " << endl;
1807 }
1808
1809 eCutMethodIsDone[1]=kTRUE;
1810
1811 // This will be commented when using in batch mode...
1812 // For now its there for clarity reasons.
1814 c1->Divide(2,2);
1815 c1->cd(1);
1817 c1->cd(2);
1819 c1->cd(3);
1820 histPatternBTDensity->DrawCopy("");
1821 c1->cd(4);
1824 eProfileBTdens_vs_PID_target->SetLineStyle(2);
1826 c1->cd();
1827
1832
1837
1838 histPatternBTDensity->Reset();
1839 eHistXY->Reset();
1840 eHistWChi2->Reset();
1841 delete histPatternBTDensity;
1842
1844 histagreementChi2->Draw();
1845
1846 cout << "----------void EdbPVRQuality::Execute_ConstantBTQuality() Cuts are done and saved to obtain desired BT density. " << endl;
1847 cout << "----------void EdbPVRQuality::Execute_ConstantBTQuality() If you want to apply the cuts now, run the CreateEdbPVRec() function now. " << endl;
1848
1849 cout << "----------void EdbPVRQuality::Execute_ConstantBTQuality()....done." << endl;
1850
1852 return;
1853}
◆ Execute_ConstantBTQualityInAngularBins()
| void EdbPVRQuality::Execute_ConstantBTQualityInAngularBins | ( | ) |
2157{
2158 Log(2,"EdbPVRQuality::Execute_ConstantBTQualityInAngularBins","NOT YET IMPLEMENTED...Execute_ConstantBTQualityInAngularBins...done.");
2159 return;
2160}
◆ Execute_ConstantBTX2Hat()
| void EdbPVRQuality::Execute_ConstantBTX2Hat | ( | ) |
Execute the modified cut routines to achieve the basetrack density level,
after application the specific cut on the segments of the specific plate (pattern).
The ConstantBTX2Hat is defined by the number of BT/mm2 in the histogram.
cut on the variable Xi2Hat!
1867{
1872
1874
1875 for (int i=0; i<80; ++i) cout << "-";
1876 cout << endl;
1877 cout << "-";
1878 cout << endl;
1879 cout << "EdbPVRQuality::Execute_ConstantBTX2Hat " << endl;
1880 cout << "-";
1881 cout << endl;
1882 for (int i=0; i<80; ++i) cout << "-";
1883 cout << endl;
1884
1887
1888 // Check the patterns of the EdbPVRec:
1890 if (eAli_maxNpatterns>57) cout << " This tells us not yet if we do have one/two brick reconstruction done. A possibility could also be that the dataset was read with microtracks. Further investigation is needed! (On todo list)." << endl;
1892 cout << "ERROR! EdbPVRQuality::Execute_ConstantBTX2Hat eAli_orig->Npatterns()= " << eAli_maxNpatterns << " is greater than possible basetrack data two bricks. This class does (not yet) work with this large number of patterns. Set maximum patterns to 114!!!." << endl;
1893 eAli_maxNpatterns=114;
1894 }
1895
1896
1897 // Create the temporary needed histograms:
1898 TH1F* histPatternBTDensity = new TH1F("histPatternBTDensity","histPatternBTDensity",200,0,200);
1904
1905 // Loop over the patterns:
1907 if (i>56) {
1908 cout << "WARNING EdbPVRQuality::Execute_ConstantBTX2Hat() Your EdbPVRec object has more than 57 patterns! " << endl;
1909 cout << "WARNING EdbPVRQuality::Execute_ConstantBTX2Hat() Check it! " << endl;
1910 }
1912
1913
1914 Float_t chi2Normalized=0;
1915 Float_t WTilde=0;
1916 Float_t WTildeNormalized=0;
1917 Float_t X2Hat=0;
1918 Float_t m_chi2=0;
1919 Float_t s_chi2=0;
1920 Float_t m_WTilde=0;
1921 Float_t s_WTilde=0;
1922
1923
1924 // Reset of the original eX2HatCut value:
1925 eX2HatCut[i]=5;
1926
1927 // Now the condition loop:
1928 // Loop over 20 steps for the eX2HatCut value:
1929 for (int l=0; l<20; l++) {
1930
1931 ResetHistosSinglePattern();
1932
1933
1936 EdbSegP* seg=0;
1937 // Loop over the segments.
1938 // Here do it two times, one time to get Mean and RMS of Chi2 and WTilde distribution.
1939 // Do this only for the loopcase l==0:
1940 if (l==0) {
1941 h_chi2->Reset();
1942 h_chi2Normalized->Reset();
1943 h_WTilde->Reset();
1944 h_WTildeNormalized->Reset();
1945 h_X2->Reset();
1946
1947
1949 seg=pat->GetSegment(j);
1950 // Very important:
1951 // For the data case, we assume the following:
1952 // Data (MCEvt<0) will be taken for BTdensity calculation
1953 // Sim (MCEvt>0) will NOT be taken for BTdensity calculation
1954 // We take it ONLY and ONLY into account if it is especially wished
1955 // by the user!
1956 // Therefore (s)he needs to know how many Gauge Coupling Parameters
1957 // in the Standard Model exist (at least)...
1958 Bool_t result=kTRUE;
1961 result = kTRUE;
1962 // cout << "result = kTRUE !! " << endl;
1963 }
1964 else {
1965 result = kFALSE;
1966 }
1967 }
1968
1969 if (gEDBDEBUGLEVEL>4) cout << "Doing segment " << j << " result for bool query is: " << result << endl;
1970
1971 // Main decision for segment to be kept or not (seg is of MC or data type).
1972 if ( kFALSE == result ) continue;
1973
1974 // Pre-Fill the Chi2() and W() histograms to get Mean and RMS values right:
1978
1979 } // for (int j=0; j<npat; j++)
1980
1981 // Calulation of the histograms to get Mean and RMS values right:
1982 m_chi2=h_chi2->GetMean();
1983 s_chi2=h_chi2->GetRMS();
1984 m_WTilde=h_WTilde->GetMean();
1985 s_WTilde=h_WTilde->GetRMS();
1986
1987
1988 eXi2Hat_m_chi2[i]=m_chi2;
1989 eXi2Hat_s_chi2[i]=s_chi2;
1990 eXi2Hat_m_WTilde[i]=m_WTilde;
1991 eXi2Hat_s_WTilde[i]=s_WTilde;
1992
1993 } // if (l==0)
1994
1995
1996
1997 // Loop over the segments.
1999 seg=pat->GetSegment(j);
2000 // Very important:
2001 // For the data case, we assume the following:
2002 // Data (MCEvt<0) will be taken for BTdensity calculation
2003 // Sim (MCEvt>0) will NOT be taken for BTdensity calculation
2004 // We take it ONLY and ONLY into account if it is especially wished
2005 // by the user!
2006 // Therefore (s)he needs to know how many Gauge Coupling Parameters
2007 // in the Standard Model exist (at least)...
2008 Bool_t result=kTRUE;
2011 result = kTRUE;
2012 // cout << "result = kTRUE !! " << endl;
2013 }
2014 else {
2015 result = kFALSE;
2016 }
2017 }
2018
2019 if (gEDBDEBUGLEVEL>4) cout << "Doing segment " << j << " result for bool query is: " << result << endl;
2020
2021 // Main decision for segment to be kept or not (seg is of MC or data type).
2022 if ( kFALSE == result ) continue;
2023
2024 // Calculate that Xi2Hat value, since we have now mean and rms of the distribution histograms:
2031 h_X2->Fill(X2Hat);
2032
2033 // Constant ConstantBTX2Hat density cut:
2035
2041 }
2042
2043
2044 if (gEDBDEBUGLEVEL>2) cout << "I have filled the eHistXY Histogram. Entries = " << eHistXY->GetEntries() << endl;
2045
2047 for (int k=1; k<nbins-1; k++) {
2049 histPatternBTDensity->Fill(eHistXY->GetBinContent(k));
2050 }
2051
2052 ePatternBTDensity_modified[i]=histPatternBTDensity->GetMean();
2053 if (gEDBDEBUGLEVEL>2) cout <<"Execute_ConstantBTX2Hat Loop l= " << l << ": for the eX2HatCut : " << eX2HatCut << " we have a dens: " << ePatternBTDensity_modified[i] << endl;
2054
2055 // Now the condition check:
2057 if (gEDBDEBUGLEVEL>2) cout << "Execute_ConstantBTX2Hat We reached the loop end due to good BT density level ... and break loop." << endl;
2058 break;
2059 }
2060 else {
2061 // Next step, tighten cut:
2062 // eCutp1[i] += -0.005;
2063 eX2HatCut[i] += -0.2;
2064 }
2065
2066 } // of condition loop...
2067
2068 // Fill target profile histogram:
2069 Float_t bincontentXY=histPatternBTDensity->GetMean();
2070 eProfileBTdens_vs_PID_target->Fill(i,bincontentXY);
2071
2072 } // of Npattern loops..
2073
2074 eCutMethodIsDone[4]=kTRUE;
2075
2076 // Check if modified or original PVRec object should be returned:
2078 eNeedModified=kTRUE;
2079 cout << "----------void EdbPVRQuality::Execute_ConstantBTX2Hat() Check if modified or original PVRec object should be returned: " << endl;
2081 }
2082
2083
2084 // This will be commented when using in batch mode...
2085 // For now its there for clarity reasons.
2087 c1->Divide(3,2);
2088 c1->cd(1);
2090 c1->cd(2);
2092 c1->cd(3);
2094 c1->cd(4);
2095 histPatternBTDensity->DrawCopy("");
2096 c1->cd(5);
2099 eProfileBTdens_vs_PID_target->SetLineStyle(2);
2101 c1->cd(6);
2103 c1->cd();
2104
2105
2106 histPatternBTDensity->Reset();
2107 eHistXY->Reset();
2108 eHistWChi2->Reset();
2109
2111 c2->Divide(3,1);
2112 c2->cd(1);
2113 h_chi2->Draw();
2114 c2->cd(2);
2115 h_WTilde->Draw();
2116 c2->cd(3);
2117 h_X2->Draw();
2118 c2->cd();
2119
2124
2129
2130 delete histPatternBTDensity;
2131
2132 cout << "----------void EdbPVRQuality::Execute_ConstantBTX2Hat() Cuts are done and saved to obtain desired BT density. " << endl;
2133 cout << "----------void EdbPVRQuality::Execute_ConstantBTX2Hat() If you want to apply the cuts now, run the CreateEdbPVRec() function now. " << endl;
2134 cout << "----------void EdbPVRQuality::Execute_ConstantBTX2Hat()....done." << endl;
2135
2136
2137 PrintCutType4();
2138
2140 return;
2141}
void PrintCutType4()
Constant BT X2Hat.
Definition: EdbPVRQuality.cxx:1245
◆ Execute_ConstantBTX2HatInAngularBins()
| void EdbPVRQuality::Execute_ConstantBTX2HatInAngularBins | ( | ) |
2147{
2148 Log(2,"EdbPVRQuality::Execute_ConstantBTX2HatInAngularBins","NOT YET IMPLEMENTED...Execute_ConstantBTX2HatInAngularBins...done.");
2149 return;
2150}
◆ Execute_EqualizeTanThetaSpace()
| void EdbPVRQuality::Execute_EqualizeTanThetaSpace | ( | ) |
TODO !!! SWITCH HERE BETWEEN THE RIGHT SWITCH !!!
3711{
3713// Execute_EqualizeTanThetaSpace_ConstantBTDensity();
3714// Execute_EqualizeTanThetaSpace_ConstantBTQuality();
3715// Execute_EqualizeTanThetaSpace_ConstantBTX2Hat();
3716// Execute_EqualizeTanThetaSpace_RandomCut();
3717
3719 return;
3720}
◆ Execute_EqualizeTanThetaSpace_ConstantBTDensity()
| void EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity | ( | ) |
3727{
3728 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity" << endl;
3729
3731
3734
3735 TH1F* histPatternBTDensity = new TH1F("histPatternBTDensityTT","histPatternBTDensityTT",200,0,200);
3736 TH1F* histPatternBTDensities[10]; // for the angular bins:
3737 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
3738 histPatternBTDensities[angspacecounter] = new TH1F(Form("histPatternBTDensities_%d",angspacecounter),Form("histPatternBTDensities_%d",angspacecounter),200,0,200);
3739 }
3740 Double_t angularspacebinningwidth=0.1;
3741 Double_t angularspacebinningstart=0.00;
3742 Double_t angularspacebinningend=0.00;
3743 Double_t angularspacebinningScaleFactor=1;
3744 Double_t tt=0;
3745 Double_t ni[20];
3746 Double_t NumberOfFilledTTbins=0;
3747 TH1F* eHistTTClone = (TH1F*)eHistTT->Clone();
3748 Int_t BTNumberLevelAngularSpace[20];
3749 for (int i=0; i<1; i++) {
3750 BTNumberLevelAngularSpace[i]=0;
3751 }
3752
3753
3754
3755 //---------------------------------------------------------------------
3756 // Loop over the patterns:
3758// for (int i=0; i<1; i++) {
3759
3762 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity For this (" << i << ") pattern, I have " << npat << " Edb segments to check..." << endl;
3763
3764 // Reset eBTDensity levels:
3765 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
3767 // Maximum Cut Value for const, BT dens, also in tangens theta space
3768 eCutTTp0[i][angspacecounter]=1.00;
3769 eCutTTp1[i][angspacecounter]=0.15;
3770 }
3771
3772 // Now do the angular space binning loop:
3773 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
3774 cout << endl << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity Doing now the angspacecounter loop: angspacecounter = " << angspacecounter << endl;
3775
3776 // Calculate right end of angular space bin
3777 angularspacebinningstart=(Double_t)angspacecounter*angularspacebinningwidth;
3778 angularspacebinningend=angularspacebinningstart+angularspacebinningwidth;
3779
3780 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity Doing TT Bin from " << angularspacebinningstart << " to " << angularspacebinningend << endl;
3781
3782 // Now the condition loop:
3783 // Loop over 20 ( or 40 ) steps a 0.15,0.145,0.14 ... down to 0.07
3784 Int_t lmax=20;
3785
3786 for (Int_t l=0; l<lmax; l++) {
3787 // Shorter Handings:
3788 Double_t Cutp0 = eCutTTp0[i][angspacecounter];
3789 Double_t Cutp1 = eCutTTp1[i][angspacecounter];
3790
3791 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity Doing now the condition loop: l = " << l << ", the cut condition reads: seg->Chi2() >= seg->W()* " << Cutp1 << " - " << Cutp0 << endl;
3792
3793 // Important to clean the histograms:
3795 eHistXY->SetMinimum(1);
3796 // eHistXY->SetMaximum(250); /// to be calculated accordingly !! ???ß WHY WHY WHY
3798 histPatternBTDensity->Reset(); // important to clean the histogram
3800 eHistTTClone->Reset(); // important to clean the histogram
3801 histPatternBTDensities[angspacecounter]->Reset(); // important to clean the histogram
3802
3803 // Reset Number of Segments Counter
3804 ni[angspacecounter]=0;
3805
3806 // Now Get Pattern:
3809 EdbSegP* seg=0;
3810
3811 // Loop over the segments.
3813 seg=pat->GetSegment(j);
3814 Bool_t result=kTRUE;
3817 result = kTRUE;
3818 }
3819 else {
3820 result = kFALSE;
3821 }
3822 }
3823 // Main decision for segment to be kept or not (seg is of MC or data type).
3824 if ( kFALSE == result ) continue;
3825
3826 // Calculate Angle
3827 tt=seg->Theta();
3828
3829 // Fill Clone histo. This is needed for the polynomial fit.
3830 eHistTTClone->Fill(tt);
3831
3832 // Check if angle is in the desired angular space bin:
3833 Int_t segttspacebin=GetAngularSpaceBin(seg);
3834 if (segttspacebin!=angspacecounter) continue;
3835
3836 // Constant BT density cut for angular space:
3837 if (seg->Chi2() >= seg->W()* eCutTTp1[i][angspacecounter] - eCutTTp0[i][angspacecounter]) continue;
3838
3839 // Increase counter for number of taken segments in tan theta bin:
3840 ni[angspacecounter] += 1;
3841 // Fill other histograms anyway
3844 eHistTT->Fill(tt);
3846 } // Loop over the segments.
3847
3848 // Do the quadratic fit for the minimumTTBin only at the first time.
3849 if (l==0) {
3850 eHistTTClone->Fit("pol2","0q","0q",0,0.5);
3851 TF1 *myfunc = eHistTTClone->GetFunction("pol2");
3852 Double_t par0 = myfunc->GetParameter(0);
3853 Double_t par1 = myfunc->GetParameter(1);
3854 Double_t par2 = myfunc->GetParameter(2);
3855
3856 Int_t minimumTTBin = eHistTTClone->FindBin( -par1/(2*par2));
3857 Int_t nEntriesInMinimumBin = eHistTTClone->GetBinContent(minimumTTBin);
3858 BTNumberLevelAngularSpace[angspacecounter] = Int_t(ni[angspacecounter]- eCutTTSqueezeFactor* Float_t(ni[angspacecounter]-nEntriesInMinimumBin));
3859
3860 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity Minimum should be at TanTheta = " << -par1/(2*par2) << " and it is in bin # " << minimumTTBin << " ; there are so many entries: " << nEntriesInMinimumBin << endl;
3861 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity For bin " << angspacecounter << ", there are at the beginning so many segments: " << ni[angspacecounter] << endl;
3862 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity BTNumberLevelAngularSpace[angspacecounter] = " << BTNumberLevelAngularSpace[angspacecounter] << endl;
3863 } // if (l==0)
3864
3866 int NemptyBins=0;
3867 int NFilledBins=0;
3868 for (int k=1; k<nbins-1; k++) {
3870 ++NemptyBins;
3871 continue;
3872 }
3873 // due to the changed areasize in eHistXY, adapt the fill weight
3874 histPatternBTDensity->Fill(Double_t(eHistXY->GetBinContent(k))/ 6.25 );
3875 histPatternBTDensities[angspacecounter]->Fill(eHistXY->GetBinContent(k)/ 6.25);
3876 ++NFilledBins;
3877 }
3878 ePatternBTDensity_modified[i]=histPatternBTDensity->GetMean();
3879 Float_t ePatternBTDensityRMS_modified = histPatternBTDensity->GetRMS();
3880
3882 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity Loop l= " << l << ": for the Cutp1 : " << Cutp1 << " we have #NBT: " << ni[angspacecounter] << "+-" << sqrt(ni[angspacecounter]) <<", target number for this TT space bin = " << BTNumberLevelAngularSpace[angspacecounter] << endl;
3883 }
3884
3885 // Now the condition check for angular space cut
3886 // This time, we do it in terms of Numbers Of Basetracks instead of BasetrackDensity/mm2
3887// if (ePatternBTDensity_modified[i]<=eBTDensityLevelAngularSpace[angspacecounter]) {
3888 if (ni[angspacecounter] <=BTNumberLevelAngularSpace[angspacecounter]) {
3889 l=lmax;
3890 // When we passed down _under_ the desired Number of basetrack tracks, we raise
3891 // one last time the cuts, to come out at last one slight value over it....
3894
3895 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity We reached the loop end due to good BT density level in this angular bin and finish loop. Set l to lmax: " << l << endl;
3896 // break; // no need to brake anymore since we set l to lmax....
3897 }
3898 else {
3899 // Next step, tighten cut:
3900 // lmax=20:
3901 if (lmax==20) {
3903 }
3904 // l=40:
3905 if (lmax==40) {
3907 }
3908 if (l==lmax-1) {
3909 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity ATTENTION! No more cuts to tighten up. Restore the last valid cut. Basetrack number wont go below last value!" << endl;
3912 }
3913 }
3914
3915 } // of condition loop...
3916
3917 // Fill target profile histogram:
3918 Float_t bincontentXY=histPatternBTDensity->GetMean();
3919 eProfileBTdens_vs_PID_target->Fill(i,bincontentXY);
3920
3921 angularspacebinningstart+=angularspacebinningwidth;
3922 } // for (int angspacecounter=0; angspacecounter<20; angspacecounter++)
3923
3924 } // of Npattern loops..
3925 //---------------------------------------------------------------------
3926
3927 eCutMethodIsDone[1]=kTRUE;
3928
3929 // Check if modified or original PVRec object should be returned:
3930 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity Check if modified or original PVRec object should be returned: " << endl;
3932 eNeedModified=kTRUE;
3933 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity " << eNeedModified << endl;
3934 }
3935
3936 delete histPatternBTDensity;
3937 delete eHistTTClone;
3938
3939 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity Cuts are done and saved to obtain desired BT density. " << endl;
3940 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity If you want to apply the cuts now, run the CreateEdbPVRec() function now. " << endl;
3941 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTDensity...done." << endl;
3942 return;
3943}
Float_t eBTDensityLevelAngularSpace[20]
Definition: EdbPVRQuality.h:59
void SetHistGeometry_OPERAandMCBinArea625()
Definition: EdbPVRQuality.cxx:1026
◆ Execute_EqualizeTanThetaSpace_ConstantBTQuality()
| void EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTQuality | ( | ) |
3957 {
3958 cout << "TODO" << endl;
3959}
◆ Execute_EqualizeTanThetaSpace_ConstantBTX2Hat()
| void EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat | ( | ) |
eHistXY->SetMaximum(250); /// to be calculated accordingly !! WHY ???
3994 {
3995 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat" << endl;
3996
3998
4001
4002 TH1F* histPatternBTDensity = new TH1F("histPatternBTDensityTT","histPatternBTDensityTT",200,0,200);
4003 TH1F* histPatternBTDensities[10]; // for the angular bins:
4004 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
4005 histPatternBTDensities[angspacecounter] = new TH1F(Form("histPatternBTDensities_%d",angspacecounter),Form("histPatternBTDensities_%d",angspacecounter),200,0,200);
4006 }
4007 Double_t angularspacebinningwidth=0.1;
4008 Double_t angularspacebinningstart=0.00;
4009 Double_t angularspacebinningend=0.00;
4010 Double_t angularspacebinningScaleFactor=1;
4011 Double_t tt=0;
4012 Double_t ni[20];
4013 Double_t NumberOfFilledTTbins=0;
4014 TH1F* eHistTTClone = (TH1F*)eHistTT->Clone();
4015 Int_t BTNumberLevelAngularSpace[20];
4016 for (int i=0; i<1; i++) {
4017 BTNumberLevelAngularSpace[i];
4018 }
4019
4020
4021 // Create the temporary needed histograms:
4027
4028 //---------------------------------------------------------------------
4029 // Loop over the patterns:
4031// for (int i=0; i<1; i++) {
4032
4033 Float_t chi2Normalized=0;
4034 Float_t WTilde=0;
4035 Float_t WTildeNormalized=0;
4036 Float_t X2Hat=0;
4037 Float_t m_chi2=0;
4038 Float_t s_chi2=0;
4039 Float_t m_WTilde=0;
4040 Float_t s_WTilde=0;
4041
4044 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat For this (" << i << ") pattern, I have " << npat << " Edb segments to check..." << endl;
4045
4046 // Reset eBTDensity levels:
4047 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
4049 // Maximum Cut Value for ConstantBTX2Hat , also in tangens theta space
4052 }
4053
4054
4055 // Now do the angular space binning loop:
4056 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
4057// for (Int_t angspacecounter=0; angspacecounter<1; angspacecounter++) {
4058 cout << endl << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat Doing now the angspacecounter loop: angspacecounter = " << angspacecounter << endl;
4059
4060 // Calculate right end of angular space bin
4061 angularspacebinningstart=(Double_t)angspacecounter*angularspacebinningwidth;
4062 angularspacebinningend=angularspacebinningstart+angularspacebinningwidth;
4063
4064 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat Doing TT Bin from " << angularspacebinningstart << " to " << angularspacebinningend << endl;
4065
4066 // Now the condition loop:
4067 // Loop over 20 ( or 40 ) steps a 0.15,0.145,0.14 ... down to 0.07
4068 Int_t lmax=20;
4069
4070 for (Int_t l=0; l<lmax; l++) {
4071 // Shorter Handings:
4072 Double_t Cutp0 = eCutTTp0[i][angspacecounter];
4073 Double_t Cutp1 = eCutTTp1[i][angspacecounter];
4074
4075 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat Doing now the condition loop: l = " << l << ", the cut condition reads: Xi2Hat < " << Cutp1 << endl;
4076
4077 // Important to clean the histograms:
4079 eHistXY->SetMinimum(1);
4082 histPatternBTDensity->Reset(); // important to clean the histogram
4084 eHistTTClone->Reset(); // important to clean the histogram
4085 histPatternBTDensities[angspacecounter]->Reset(); // important to clean the histogram
4086
4087 // Clean also histograms that are used for the X2Hat variable:
4088 h_chi2->Reset();
4089 h_chi2Normalized->Reset();
4090 h_WTilde->Reset();
4091 h_WTildeNormalized->Reset();
4092 h_X2->Reset();
4093
4094 // Reset Number of Segments Counter
4095 ni[angspacecounter]=0;
4096
4097 // Now Get Pattern:
4100 EdbSegP* seg=0;
4101
4102 // Loop over the segments.
4103 // Here do it two times, one time to get Mean and RMS of Chi2 and WTilde distribution.
4104
4106 seg=pat->GetSegment(j);
4107 Bool_t result=kTRUE;
4110 result = kTRUE;
4111 }
4112 else {
4113 result = kFALSE;
4114 }
4115 }
4116
4117 // Main decision for segment to be kept or not (seg is of MC or data type).
4118 if ( kFALSE == result ) continue;
4119
4120 // Calculate Angle
4121 tt=seg->Theta();
4122
4123 // Fill Clone histo. This is needed for the polynomial fit.
4124 eHistTTClone->Fill(tt);
4125
4126 // Check if angle is in the desired angular space bin:
4127 Int_t segttspacebin=GetAngularSpaceBin(seg);
4128 if (segttspacebin!=angspacecounter) continue;
4129
4130
4131 // Pre-Fill the Chi2() and W() histograms to get Mean and RMS values right:
4135
4136
4137 // Calulation of the histograms to get Mean and RMS values right:
4138 m_chi2=h_chi2->GetMean();
4139 s_chi2=h_chi2->GetRMS();
4140 m_WTilde=h_WTilde->GetMean();
4141 s_WTilde=h_WTilde->GetRMS();
4142 eXi2HatTT_m_chi2[i][angspacecounter]=m_chi2;
4143 eXi2HatTT_s_chi2[i][angspacecounter]=s_chi2;
4144 eXi2HatTT_m_WTilde[i][angspacecounter]=m_WTilde;
4145 eXi2HatTT_s_WTilde[i][angspacecounter]=s_WTilde;
4146
4147
4148 } // Loop over the segments. For the first time...
4149
4150 if (l==0) {
4151 cout << "Loop over the segments. For the first time... done. Information about the histograms:" << endl;
4152 cout << "h_chi2: Mean , Sigma: " << m_chi2 << " " << s_chi2 << endl;
4153 cout << "h_WTilde: Mean , Sigma: " << m_WTilde << " " << s_WTilde << endl;
4154 }
4155
4156 // Now that we have the mean and sigmas of the Xi2Hat distribution
4157 // We loop over the segments once again.
4158 // Second loop.
4160 seg=pat->GetSegment(j);
4161 Bool_t result=kTRUE;
4164 result = kTRUE;
4165 }
4166 else {
4167 result = kFALSE;
4168 }
4169 }
4170 // Main decision for segment to be kept or not (seg is of MC or data type).
4171 if ( kFALSE == result ) continue;
4172
4173 // Calculate Angle
4174 tt=seg->Theta();
4175
4176 // Fill Clone histo. This is needed for the polynomial fit.
4177 // Already done in the first time loop
4178 // eHistTTClone->Fill(tt);
4179
4180 // Check if angle is in the desired angular space bin:
4181 Int_t segttspacebin=GetAngularSpaceBin(seg);
4182 if (segttspacebin!=angspacecounter) continue;
4183
4184 // Calculate that Xi2Hat value, since we have now mean and rms of the distribution histograms:
4191 h_X2->Fill(X2Hat);
4192
4193
4194 // Cut on the Xi2Hat Value:
4196
4197 // Increase counter for number of taken segments in tan theta bin:
4198 ni[angspacecounter] += 1;
4199 // Fill other histograms anyway
4202 eHistTT->Fill(tt);
4204 } // Loop over the segments. For the second time. Done.
4205
4206
4207
4208
4209
4210
4211
4212 // Do the quadratic fit for the minimumTTBin only at the first time.
4213 if (l==0) {
4214 eHistTTClone->Fit("pol2","0q","0q",0,0.5);
4215 TF1 *myfunc = eHistTTClone->GetFunction("pol2");
4216 Double_t par0 = myfunc->GetParameter(0);
4217 Double_t par1 = myfunc->GetParameter(1);
4218 Double_t par2 = myfunc->GetParameter(2);
4219
4220 Int_t minimumTTBin = eHistTTClone->FindBin( -par1/(2*par2));
4221 Int_t nEntriesInMinimumBin = eHistTTClone->GetBinContent(minimumTTBin);
4222 BTNumberLevelAngularSpace[angspacecounter] = Int_t(ni[angspacecounter]- eCutTTSqueezeFactor* Float_t(ni[angspacecounter]-nEntriesInMinimumBin));
4223
4224 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat Minimum should be at TanTheta = " << -par1/(2*par2) << " and it is in bin # " << minimumTTBin << " ; there are so many entries: " << nEntriesInMinimumBin << endl;
4225 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat For bin " << angspacecounter << ", there are at the beginning so many segments: " << ni[angspacecounter] << endl;
4226 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat BTNumberLevelAngularSpace[angspacecounter] = " << BTNumberLevelAngularSpace[angspacecounter] << endl;
4227 } // if (l==0)
4228
4230 int NemptyBins=0;
4231 int NFilledBins=0;
4232 for (int k=1; k<nbins-1; k++) {
4234 ++NemptyBins;
4235 continue;
4236 }
4237 // due to the changed areasize in eHistXY, adapt the fill weight
4238 histPatternBTDensity->Fill(Double_t(eHistXY->GetBinContent(k))/ 6.25 );
4239 histPatternBTDensities[angspacecounter]->Fill(eHistXY->GetBinContent(k)/ 6.25);
4240 ++NFilledBins;
4241 }
4242 ePatternBTDensity_modified[i]=histPatternBTDensity->GetMean();
4243 Float_t ePatternBTDensityRMS_modified = histPatternBTDensity->GetRMS();
4244
4245 // leave also if only one entry in the histogram
4246 if (NFilledBins<=1) {
4247 l=lmax;
4248 cout << "Attention! Only one entry in the histogram" << endl;
4249 }
4250
4252 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat Loop l= " << l << ": for the Cutp1 : " << Cutp1 << " we have #NBT: " << ni[angspacecounter] << "+-" << sqrt(ni[angspacecounter]) <<", target number for this TT space bin = " << BTNumberLevelAngularSpace[angspacecounter] << endl;
4253 }
4254
4255 // Now the condition check for angular space cut
4256 // This time, we do it in terms of Numbers Of Basetracks instead of BasetrackDensity/mm2
4257// if (ePatternBTDensity_modified[i]<=eBTDensityLevelAngularSpace[angspacecounter]) {
4258 if (ni[angspacecounter] <=BTNumberLevelAngularSpace[angspacecounter]) {
4259 l=lmax;
4260 // When we passed down _under_ the desired Number of basetrack tracks, we raise
4261 // one last time the cuts, to come out at last one slight value over it....
4264
4265 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat We reached the loop end due to good BT density level in this angular bin and finish loop. Set l to lmax: " << l << endl;
4266 // break; // no need to brake anymore since we set l to lmax....
4267 }
4268 else {
4269 // Next step, tighten cut:
4270 // lmax=20:
4271 if (lmax==20) {
4273 }
4274 // l=40:
4275 if (lmax==40) {
4277 }
4278 if (l==lmax-1) {
4279 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat ATTENTION! No more cuts to tighten up. Restore the last valid cut. Basetrack number wont go below last value!" << endl;
4282 }
4283 }
4284
4285 } // of condition loop...
4286
4287 // Fill target profile histogram:
4288 Float_t bincontentXY=histPatternBTDensity->GetMean();
4289 eProfileBTdens_vs_PID_target->Fill(i,bincontentXY);
4290
4291 angularspacebinningstart+=angularspacebinningwidth;
4292 } // for (int angspacecounter=0; angspacecounter<20; angspacecounter++)
4293
4294 } // of Npattern loops..
4295 //---------------------------------------------------------------------
4296
4297 eCutMethodIsDone[5]=kTRUE;
4298
4299 // Check if modified or original PVRec object should be returned:
4300 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat Check if modified or original PVRec object should be returned: " << endl;
4302 eNeedModified=kTRUE;
4303 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat " << eNeedModified << endl;
4304 }
4305
4306 delete histPatternBTDensity;
4307 delete eHistTTClone;
4308
4309 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat Cuts are done and saved to obtain desired BT density. " << endl;
4310 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat If you want to apply the cuts now, run the CreateEdbPVRec() function now. " << endl;
4311 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_ConstantBTX2Hat...done." << endl;
4312 return;
4313}
◆ Execute_EqualizeTanThetaSpace_RandomCut()
| void EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut | ( | ) |
eHistXY->SetMaximum(250); /// to be calculated accordingly !! WHY ???
4319 {
4320 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut" << endl;
4321
4323
4326
4327 TH1F* histPatternBTDensity = new TH1F("histPatternBTDensityTT","histPatternBTDensityTT",200,0,200);
4328 TH1F* histPatternBTDensities[10]; // for the angular bins:
4329 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
4330 histPatternBTDensities[angspacecounter] = new TH1F(Form("histPatternBTDensities_%d",angspacecounter),Form("histPatternBTDensities_%d",angspacecounter),200,0,200);
4331 }
4332
4333 // Before Starting create the Random Generator:
4334 cout << "EdbPVRQuality::Execute_RandomCutInAngularBins Create the Random Generator with unique Seed" << endl;
4335 cout << "EdbPVRQuality::Execute_RandomCutInAngularBins TRandom3* RandomGenerator = new TRandom3(0);" << endl;
4336 TRandom3* RandomGenerator = new TRandom3(0);
4337
4338 Double_t angularspacebinningwidth=0.1;
4339 Double_t angularspacebinningstart=0.00;
4340 Double_t angularspacebinningend=0.00;
4341 Double_t angularspacebinningScaleFactor=1;
4342 Double_t tt=0;
4343 Double_t ni[20];
4344 Double_t NumberOfFilledTTbins=0;
4345 TH1F* eHistTTClone = (TH1F*)eHistTT->Clone();
4346 Int_t BTNumberLevelAngularSpace[20];
4347 for (int i=0; i<1; i++) {
4348 BTNumberLevelAngularSpace[i];
4349 }
4350
4351
4352
4353 //---------------------------------------------------------------------
4354 // Loop over the patterns:
4356// for (int i=0; i<1; i++) {
4357
4360 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut For this (" << i << ") pattern, I have " << npat << " Edb segments to check..." << endl;
4361
4362 // Reset eBTDensity levels:
4363 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
4365 // Maximum Cut Value for const, BT dens, also in tangens theta space
4366 // Uniform from 0..1. This cutroutine uses only the parameter: "eCutTTp1"
4367 eCutTTp0[i][angspacecounter]=1.00;
4368 eCutTTp1[i][angspacecounter]=1.00;
4369 }
4370
4371 // Now do the angular space binning loop:
4372 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
4373// for (Int_t angspacecounter=0; angspacecounter<1; angspacecounter++) {
4374 cout << endl << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut Doing now the angspacecounter loop: angspacecounter = " << angspacecounter << endl;
4375
4376 // Calculate right end of angular space bin
4377 angularspacebinningstart=(Double_t)angspacecounter*angularspacebinningwidth;
4378 angularspacebinningend=angularspacebinningstart+angularspacebinningwidth;
4379
4380 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut Doing TT Bin from " << angularspacebinningstart << " to " << angularspacebinningend << endl;
4381
4382 // Now the condition loop:
4383 // Loop over 20 steps a either 5% reduction or 40 steps a 2.5% reduction
4384 Int_t lmax=20;
4385// Int_t lmax=40;
4386
4387 for (Int_t l=0; l<lmax; l++) {
4388 // Shorter Handings:
4389 Double_t Cutp0 = eCutTTp0[i][angspacecounter];
4390 Double_t Cutp1 = eCutTTp1[i][angspacecounter];
4391
4392 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut Doing now the condition loop: l = " << l << ", the cut condition reads: RandomGenerator->Uniform() > " << Cutp1 << endl;
4393
4394 // Important to clean the histograms:
4396 eHistXY->SetMinimum(1);
4399 histPatternBTDensity->Reset(); // important to clean the histogram
4401 eHistTTClone->Reset(); // important to clean the histogram
4402 histPatternBTDensities[angspacecounter]->Reset(); // important to clean the histogram
4403
4404 // Reset Number of Segments Counter
4405 ni[angspacecounter]=0;
4406
4407 // Now Get Pattern:
4410 EdbSegP* seg=0;
4411
4412 // Loop over the segments.
4414 seg=pat->GetSegment(j);
4415 Bool_t result=kTRUE;
4418 result = kTRUE;
4419 }
4420 else {
4421 result = kFALSE;
4422 }
4423 }
4424
4425 // Main decision for segment to be kept or not (seg is of MC or data type).
4426 if ( kFALSE == result ) continue;
4427
4428 // Calculate Angle
4429 tt=seg->Theta();
4430
4431 // Fill Clone histo. This is needed for the polynomial fit.
4432 eHistTTClone->Fill(tt);
4433
4434 // Check if angle is in the desired angular space bin:
4435 Int_t segttspacebin=GetAngularSpaceBin(seg);
4436 if (segttspacebin!=angspacecounter) continue;
4437
4438 // Random CutMethod: for angular space:
4440
4441
4442 // Increase counter for number of taken segments in tan theta bin:
4443 ni[angspacecounter] += 1;
4444 // Fill other histograms anyway
4447 eHistTT->Fill(tt);
4449 } // Loop over the segments.
4450
4451 // Do the quadratic fit for the minimumTTBin only at the first time.
4452 if (l==0) {
4453 eHistTTClone->Fit("pol2","0q","0q",0,0.5);
4454 TF1 *myfunc = eHistTTClone->GetFunction("pol2");
4455 Double_t par0 = myfunc->GetParameter(0);
4456 Double_t par1 = myfunc->GetParameter(1);
4457 Double_t par2 = myfunc->GetParameter(2);
4458
4459 Int_t minimumTTBin = eHistTTClone->FindBin( -par1/(2*par2));
4460 Int_t nEntriesInMinimumBin = eHistTTClone->GetBinContent(minimumTTBin);
4461 BTNumberLevelAngularSpace[angspacecounter] = Int_t(ni[angspacecounter]- eCutTTSqueezeFactor* Float_t(ni[angspacecounter]-nEntriesInMinimumBin));
4462
4463 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut Minimum should be at TanTheta = " << -par1/(2*par2) << " and it is in bin # " << minimumTTBin << " ; there are so many entries: " << nEntriesInMinimumBin << endl;
4464 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut For bin " << angspacecounter << ", there are at the beginning so many segments: " << ni[angspacecounter] << endl;
4465 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut BTNumberLevelAngularSpace[angspacecounter] = " << BTNumberLevelAngularSpace[angspacecounter] << endl;
4466 } // if (l==0)
4467
4469 int NemptyBins=0;
4470 int NFilledBins=0;
4471 for (int k=1; k<nbins-1; k++) {
4473 ++NemptyBins;
4474 continue;
4475 }
4476 // due to the changed areasize in eHistXY, adapt the fill weight
4477 histPatternBTDensity->Fill(Double_t(eHistXY->GetBinContent(k))/ 6.25 );
4478 histPatternBTDensities[angspacecounter]->Fill(eHistXY->GetBinContent(k)/ 6.25);
4479 ++NFilledBins;
4480 }
4481 ePatternBTDensity_modified[i]=histPatternBTDensity->GetMean();
4482 Float_t ePatternBTDensityRMS_modified = histPatternBTDensity->GetRMS();
4483
4484 // leave also if only one entry in the histogram
4486
4488 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut Loop l= " << l << ": for the Cutp1 : " << Cutp1 << " we have #NBT: " << ni[angspacecounter] << "+-" << sqrt(ni[angspacecounter]) <<", target number for this TT space bin = " << BTNumberLevelAngularSpace[angspacecounter] << endl;
4489 }
4490
4491 // Now the condition check for angular space cut
4492 // This time, we do it in terms of Numbers Of Basetracks instead of BasetrackDensity/mm2
4493 if (ni[angspacecounter] <=BTNumberLevelAngularSpace[angspacecounter]) {
4494 l=lmax;
4495 // When we passed down _under_ the desired Number of basetrack tracks, we raise
4496 // one last time the cuts, to come out at last one slight value over it....
4499
4500 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut We reached the loop end due to good BT density level in this angular bin and finish loop. Set l to lmax: " << l << endl;
4501 // break; // no need to brake anymore since we set l to lmax....
4502 }
4503 else {
4504 // Next step, tighten cut:
4505 // lmax=20:
4506 if (lmax==20) {
4508 }
4509 // l=40:
4510 if (lmax==40) {
4512 }
4513 if (l==lmax-1) {
4514 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut ATTENTION! No more cuts to tighten up. Restore the last valid cut. Basetrack number wont go below last value!" << endl;
4517 }
4518 }
4519
4520 } // of condition loop...
4521
4522 // Fill target profile histogram:
4523 Float_t bincontentXY=histPatternBTDensity->GetMean();
4524 eProfileBTdens_vs_PID_target->Fill(i,bincontentXY);
4525
4526 angularspacebinningstart+=angularspacebinningwidth;
4527 } // for (int angspacecounter=0; angspacecounter<20; angspacecounter++)
4528
4529 } // of Npattern loops..
4530 //---------------------------------------------------------------------
4531
4532 eCutMethodIsDone[7]=kTRUE;
4533
4534 // Check if modified or original PVRec object should be returned:
4535 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut Check if modified or original PVRec object should be returned: " << endl;
4537 eNeedModified=kTRUE;
4539 }
4540
4541 delete histPatternBTDensity;
4542 delete eHistTTClone;
4543
4544 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut Cuts are done and saved to obtain desired BT density. " << endl;
4545 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut If you want to apply the cuts now, run the CreateEdbPVRec() function now. " << endl;
4546 cout << "EdbPVRQuality::Execute_EqualizeTanThetaSpace_RandomCut...done." << endl;
4547 return;
4548}
◆ Execute_RandomCut()
| void EdbPVRQuality::Execute_RandomCut | ( | ) |
EdbPVRQuality::Execute_RandomCut()
Execute the modified cut routines to achieve arbitrary basetrack density level.
Basically used for control curposes.
2175{
2180
2181
2182 for (int i=0; i<80; ++i) cout << "-";
2183 cout << endl;
2184 cout << "-";
2185 cout << endl;
2186 cout << "EdbPVRQuality::Execute_RandomCut " << endl;
2187 cout << "-";
2188 cout << endl;
2189 for (int i=0; i<80; ++i) cout << "-";
2190 cout << endl;
2191
2194
2195 // Check the patterns of the EdbPVRec:
2197 if (eAli_maxNpatterns>57) cout << " This tells us not yet if we do have one/two brick reconstruction done. A possibility could also be that the dataset was read with microtracks. Further investigation is needed! (On todo list)." << endl;
2199 cout << "ERROR! EdbPVRQuality::Execute_RandomCut eAli_orig->Npatterns()= " << eAli_maxNpatterns << " is greater than possible basetrack data two bricks. This class does (not yet) work with this large number of patterns. Set maximum patterns to 114!!!." << endl;
2200 eAli_maxNpatterns=114;
2201 }
2202
2203 TH1F* histPatternBTDensity = new TH1F("histPatternBTDensity","histPatternBTDensity",200,0,200);
2204
2205 // Before Starting Create the Random Generator:
2206 cout << "EdbPVRQuality::Execute_RandomCut Create the Random Generator with unique Seed" << endl;
2207 cout << "EdbPVRQuality::Execute_RandomCut TRandom3* RandomGenerator = new TRandom3(0);" << endl;
2208 TRandom3* RandomGenerator = new TRandom3(0);
2209
2210
2211 // Loop over the patterns:
2213 if (i>56) {
2214 cout << "WARNING EdbPVRQuality::Execute_RandomCut Your EdbPVRec object has more than 57 patterns! " << endl;
2215 cout << "WARNING EdbPVRQuality::Execute_RandomCut Check it! " << endl;
2216 }
2217
2218 cout << "EdbPVRQuality::Execute_RandomCut Set eCutp1[i] to the initial eRandomCutThreshold = " << eRandomCutThreshold << endl;
2220
2222
2223 // Now the condition loop:
2224 // Loop over 50 steps to determine new BG rate....
2225 for (int l=0; l<50; l++) {
2226
2227 ResetHistosSinglePattern();
2228
2231 EdbSegP* seg=0;
2232 // Loop over the segments.
2234 seg=pat->GetSegment(j);
2235 // Very important:
2236 // For the data case, we assume the following:
2237 // Data (MCEvt<0) will be taken for BTdensity calculation
2238 // Sim (MCEvt>0) will NOT be taken for BTdensity calculation
2239 // We take it ONLY and ONLY into account if it is especially wished
2240 // by the user!
2241 // Therefore (s)he needs to know how many Gauge Coupling Parameters
2242 // in the Standard Model exist (at least)...
2243 Bool_t result=kTRUE;
2246 result = kTRUE;
2247 }
2248 else {
2249 result = kFALSE;
2250 }
2251 }
2252
2253 if (gEDBDEBUGLEVEL>4) cout << "Doing segment " << j << " result for bool query is: " << result << endl;
2254
2255 // Main decision for segment to be kept or not (seg is of MC or data type).
2256 if ( kFALSE == result ) continue;
2257
2258 // Random CutMethod:
2260
2261 // For the check, fill the histograms in any case:
2267 }
2268
2269 if (gEDBDEBUGLEVEL>2) cout << "I have filled the eHistXY Histogram. Entries = " << eHistXY->GetEntries() << endl;
2270
2272 for (int k=1; k<nbins-1; k++) {
2274 histPatternBTDensity->Fill(eHistXY->GetBinContent(k));
2275 }
2276
2277 ePatternBTDensity_modified[i]=histPatternBTDensity->GetMean();
2278 if (gEDBDEBUGLEVEL>2) cout <<"Execute_ConstantBTDensity Loop l= " << l << ": for the eCutp1[i] : " << eCutp1[i] << " we have a dens: " << ePatternBTDensity_modified[i] << endl;
2279
2280 // Now the condition check:
2282 if (gEDBDEBUGLEVEL>2) cout << "Execute_RandomCut We reached the loop end due to random cut based condition ... ... and break loop." << endl;
2283 break;
2284 }
2285 else {
2286 // Next step, tighten cut:
2287 eCutp1[i] += -0.02;
2288 }
2289
2290 } // of condition loop...
2291
2292 // Fill target profile histogram:
2293 Float_t bincontentXY=histPatternBTDensity->GetMean();
2294 eProfileBTdens_vs_PID_target->Fill(i,bincontentXY);
2295
2296 } // of Npattern loops..
2297
2298 eCutMethodIsDone[6]=kTRUE;
2299
2300 // Check if modified or original PVRec object should be returned:
2302 eNeedModified=kTRUE;
2303 cout << "----------void EdbPVRQuality::Execute_ConstantBTDensity() Check if modified or original PVRec object should be returned: " << endl;
2305 }
2306
2307 // This will be commented when using in batch mode...
2308 // For now its there for clarity reasons.
2310 c1->Divide(3,2);
2311 c1->cd(1);
2313 c1->cd(2);
2315 c1->cd(3);
2317 c1->cd(4);
2318 histPatternBTDensity->DrawCopy("");
2319 c1->cd(5);
2322 c1->cd(6);
2324 c1->cd();
2325
2326 eHistXY->Reset();
2327 eHistTXTY->Reset();
2328 eHistTT->Reset();
2329 eHistWChi2->Reset();
2330
2335
2340
2341 delete histPatternBTDensity;
2342
2343 cout << "----------void EdbPVRQuality::Execute_ConstantBTDensity() Cuts are done and saved to obtain desired BT density. " << endl;
2344 cout << "----------void EdbPVRQuality::Execute_ConstantBTDensity() If you want to apply the cuts now, run the CreateEdbPVRec() function now. " << endl;
2345 cout << "----------void EdbPVRQuality::Execute_ConstantBTDensity()....done." << endl;
2346
2348 return;
2349}
◆ Execute_RandomCutInAngularBins()
| void EdbPVRQuality::Execute_RandomCutInAngularBins | ( | ) |
2165{
2166 cout << "void EdbPVRQuality::Execute_RandomCutInAngularBins() TO BE DONE ! ATTENTION WARNING " << endl;
2167 cout << "SWTICH TO :: Execute_EqualizeTanThetaSpace_RandomCut() " << endl;
2168 return;
2169}
◆ ExtractDataVolume()
Note: there is a similar implementation of this function already in the EdbDataProc class:
EdbPVRec *EdbDataProc::ExtractDataVolume()
But then we would have to link in this class again and create a new proc object...
so it is easier to reimplement it here again.
To Test a method which returns a modified EdbPVRec Volume.
Either in Angular Space (default), or in coordinate space.
(Or both?) Input: EdbSegP, Delta TanTheta max, EdbPVRec, Tolerances
Output: EdbPVRec reduced in (angular,coordinate) space.
The returned EdbPVRec volume is propagated along the given input segment
(yes, it is true....) for the given segment angle.
594{
596
607
610
611 if(!pvr) return 0;
614
621
625 Log(1,"EdbPVRQuality::ExtractDataVolume","Warning: Will put (2e18,2e18,2,2),i.e. no cut is done.");
626 tolerance[0]=2e18;
627 tolerance[1]=2e18;
628 tolerance[2]=2;
629 tolerance[3]=2;
630 }
631 // But be aware: if one forgets to set the tolerance values by hand,
632 // then uninitialised values may screw up everything!
633 // Test for undeterminate behaviour of the Float_t tolerance array
634 // (in case of being forgotten initializing)
635 Bool_t IsInderterminated=kFALSE;
636 for (Int_t i=0; i<4; ++i) if (tolerance[i]<2e-5) IsInderterminated=kTRUE;
637 if (IsInderterminated) {
638 Log(1,"EdbPVRQuality::ExtractDataVolume","Warning: Tolerance values strange! (%.06f, %.06f,%.06f,%.06f)",tolerance[0],tolerance[1],tolerance[2],tolerance[3]);
641 Log(1,"EdbPVRQuality::ExtractDataVolume","Warning: Will put (2e18,2e18,2,2),i.e. no cut is done.");
642 tolerance[0]=2e18;
643 tolerance[1]=2e18;
644 tolerance[2]=2;
645 tolerance[3]=2;
646 }
647
649 EdbPattern *pat=0;
650 Float_t xmean,ymean,zmean;
651 xmean=ymean=zmean=0;
652
653
655
656 pat = pvr->GetPattern(i);
657 if(!pat) continue;
659
660 // Difference z-values of segment and current pattern.
662
663 // Maximum Difference in Delta X and Delta Y,
664 // projected along segment axis!
669
670 // Maximum Difference in Delta Tan ThetaX and Delta Tan ThetaY.
671 // Needs to calculated to a Delta Tan Theta ...
676
677 // W. No cut on W is done in this routine.
678 min[4] = 0.;
679 max[4] = 100.;
680
686
688 // When X() and Y() values for pattern are not set initially,
689 // then they cannot be set ab initio. So we have to set them afterwards from
690 // the segments data.
693
694 Int_t patNewN = patNew->N();
696
697 // For calulation of X() and Z() of the PVR volume:
698 xmean+=patNew->Xmean();
699 ymean+=patNew->Ymean();
700 zmean+=patNew->Z();
701
702 // Set ID() and PID() of the new pattern...
703 // done in ExtractSubPattern function.
704
706 }
707
708 // Add X and Y mean values of the patterns to the Patterns Volume Reconstructed Object
709 // (not perfect, since an integer division is made)
711
712 //ali->Print();
715}
EdbPattern * ExtractSubPattern(float min[5], float max[5], int MCevt=-1)
Definition: EdbPattern.cxx:1470
◆ FillHistosPattern()
| void EdbPVRQuality::FillHistosPattern | ( | EdbPVRec * | aliSource, |
| Int_t | patNR = 0, |
||
| Bool_t | DoResetHistos = kTRUE, |
||
| Float_t | weightXY = 1 |
||
| ) |
4599 {
4600
4602 cout << "WARNING EdbPVRQuality::FillHistosPattern eIsSource = " << eIsSource << ". This means no source set. Return!" << endl;
4603 return;
4604 }
4606 cout << "WARNING EdbPVRQuality::FillHistosPattern aliSource==NULL. Nothing to fill. Return." << endl;
4607 }
4608
4609 TProfile* histProfileBTdens_vs_PID=eProfileBTdens_vs_PID_source;
4611 histProfileBTdens_vs_PID=eProfileBTdens_vs_PID_target;
4612 }
4614 histProfileBTdens_vs_PID=eProfileBTdens_vs_PID_source;
4615 }
4616
4617 // Float_t weightXY is needed, when this function is called
4618 // more than one time, as it is in FillHistosVolume();
4619 // (// update: not needed anymore! leave it to 1.) ??? REALLY???
4620
4621 // Better work with a clone, otherwise reset and addition stuff
4622 // is not working well
4623 TH2F* eHistXYClone = (TH2F*)eHistXY->Clone();
4624
4625 // Clone is always reseted, since it is responsible for the BT density calculation,
4626 // which is pattern by pattern based
4627 eHistXYClone->Reset();
4628
4629 // kTRUE is default, since the cut-algorithms work per pattern,
4630 // instead per volume...
4632
4635
4636 // cout << "EdbPVRQuality::FillHistosPattern()" << endl;
4637 // cout << "patNR= " << patNR << " pat->GetSize(0) = " << pat->GetSize(0) << " pat->GetSize(1) = " << pat->GetSize(0) << " npat= " << npat << endl;
4638
4639
4640 EdbSegP* seg=0;
4641 // Loop over the segments of the pattern
4643 seg=pat->GetSegment(j);
4644 // Very important:
4645 // For the data case, we assume the following:
4646 // Data (MCEvt<0) will be taken for BTdensity calculation
4647 // Sim (MCEvt>0) will NOT be taken for BTdensity calculation
4648 // We take it ONLY and ONLY into account if it is especially wished
4649 // by the user!
4650 // Therefore (s)he needs to know how many Gauge Coupling Parameters
4651 // in the Standard Model exist (at least)... (Hardcoded).
4652 Bool_t result=kTRUE;
4655 result = kTRUE;
4656 }
4657 else {
4658 result = kFALSE;
4659 }
4660 }
4661
4662 if (gEDBDEBUGLEVEL>4) cout << "EdbPVRQuality::FillHistosPattern Doing segment " << j << " result for bool query is: " << result << endl;
4663
4664 // Main decision for segment to be kept or not (seg is of MC or data type).
4665 if ( kFALSE == result ) continue;
4666
4667 // For the check, fill the histograms in any case:
4669
4675
4679
4680 } // for (Int_t j=0; j<npat; j++)
4681
4682 if (gEDBDEBUGLEVEL>2) cout << "EdbPVRQuality::FillHistosPattern I have filled the eHistXY Histogram. Entries = " << eHistXY->GetEntries() << endl;
4683
4684 // Important to reset (pattern) histogram before it is filled.
4685 eHistBTDensityPattern->Reset();
4686
4687 // Search for empty bins, because they can spoil the overall calulation
4688 // of the mean value.
4689 // Important: work on the clone, because the original is not reseted.
4690 // Then conversion into area of millimeter squared
4691 Int_t nbins=eHistXYClone->GetNbinsX()*eHistXYClone->GetNbinsY();
4692 Double_t eHistXYBinArea = eHistXYClone->GetXaxis()->GetBinWidth(1)*eHistXYClone->GetYaxis()->GetBinWidth(1);
4693 Double_t eHistXYBinAreamm2 = eHistXYBinArea/1000/1000;
4694
4695 /*
4696 cout << "EdbPVRQuality::FillHistosPattern eHistXYClone->GetNbinsX() = " << eHistXYClone->GetNbinsX() << endl;
4697 cout << "EdbPVRQuality::FillHistosPattern eHistXYClone->GetNbinsY() = " << eHistXYClone->GetNbinsY() << endl;
4698 cout << "EdbPVRQuality::FillHistosPattern eHistXYBinArea = " << eHistXYBinArea << endl;
4699 cout << "EdbPVRQuality::FillHistosPattern eHistXYBinAreamm2 = " << eHistXYBinAreamm2 << endl;
4700 */
4701
4702 Double_t bincontentXY=0;
4703 Double_t bincontentXYNormalizedMillimeterSquared=0;
4704
4705 // Loop over all bins of the eHistXYClone histogram and fill
4706 // the density histograms with nonempty entries of eHistXYClone:
4707
4708 for (int k=1; k<nbins-1; k++) {
4709
4710 // Take only filled bins into account for the
4711 // track density calculation.
4712 if (eHistXYClone->GetBinContent(k)==0) continue;
4713
4714 bincontentXY=eHistXYClone->GetBinContent(k);
4715// cout << "Bin k= " << k << " Bincontent = " << bincontentXY << endl;
4716
4717 // Important here! Filling the BT density histograms, binsize
4718 // must be normalized to 1x1 mm2
4719 bincontentXYNormalizedMillimeterSquared = bincontentXY/eHistXYBinAreamm2;
4720
4721// cout << "Bin k= " << k << " Bincontent Normalized = " << bincontentXY << endl;
4722
4723 eHistBTDensityPattern->Fill(bincontentXYNormalizedMillimeterSquared);
4724 eHistBTDensityVolume->Fill(bincontentXYNormalizedMillimeterSquared);
4725 histProfileBTdens_vs_PID->Fill(patNR,bincontentXYNormalizedMillimeterSquared);
4726 }
4727
4728
4729 // KOMMENTAR // FOR TESTING PURPOSES
4730// cout << "For the eHistXYClone histogram for this pattern, nemptybinsXY = " << nemptybinsXY << endl;
4731// cout << "For the eHistXYClone histogram for this pattern, nbins = " << nbins << endl;
4732// if (patNR<1) {
4733// cout << "EdbPVRQuality::FillHistosPattern Draw eHistXYClone in new Canvas" << endl;
4734// new TCanvas();
4735// eHistXYClone->DrawClone("colz");
4736// }
4737// cout << "EdbPVRQuality::FillHistosPattern patNR= " << patNR << " eHistBTDensityPattern->GetMean() = " << eHistBTDensityPattern->GetMean() << endl;
4738// cout << "EdbPVRQuality::FillHistosPattern patNR= " << patNR << " eHistBTDensityPattern->GetRMS() = " << eHistBTDensityPattern->GetRMS() << endl;
4739 // KOMMENTAR ENDE
4740
4741
4742 // failsafe warning in case that there are many bins with zero content.
4743 // for now we print a error message: tODO REBIN THE YX HISTOGRA WITH 2.5x2.5 mm!!!!
4744 // switch to default histogram with 2x2 mm2 bin size, see if its better (june2,17)
4745 // well, the distribution of entries in the 2x2 mm2 histogram is still largely
4746 // spreading, especially when looked at specific angular space, but that is all we
4747 // can do for now (july17)
4748 // and we have more bins at the edges, which are populated less dense, which spoils
4749 // overall calculation, so we actually dont take the rebinning into account anymore.
4750 CheckFilledXYSize(eHistXYClone);
4751
4752 // Save the density in the corresponding variable
4755 }
4758 }
4759
4760 // Do not reset the histograms, since the filled histos will be needed in
4761 // the DetermineCutTTReductionFactor function.
4762 // dont...eHistXY->Reset();
4763 // dont...eHistTXTY->Reset();
4764 // dont...eHistTT->Reset();
4765 // dont...eHistWChi2->Reset();
4766
4767 // Memory Management: delete the cloned histogram.
4768 delete eHistXYClone;
4769
4770 //cout << "EdbPVRQuality::FillHistosPattern(Int_t patNR)...done" << endl;
4771 return;
4772}
◆ FillHistosVolume()
4555 {
4556 cout << "EdbPVRQuality::FillHistosVolume(EdbPVRec* aliSource)" << endl;
4557
4558 cout << "EdbPVRQuality::FillHistosVolume() Call FillHistosPattern for all patterns" << endl;
4559 cout << "EdbPVRQuality::FillHistosVolume() Histograms eHistXY, eHistWChi2, eHistTXTY, eHistTT and profile histo " << endl;
4560 cout << "EdbPVRQuality::FillHistosVolume() are then filled with all segments from the volume." << endl;
4561 cout << "EdbPVRQuality::FillHistosVolume() Routine can be called with source or target volume" << endl;
4562
4564 cout << "EdbPVRQuality::FillHistosVolume() aliSource==NULL. Nothing to fill. Return." << endl;
4565 }
4566
4567 // Reset Histograms:
4568 ResetHistos();
4569
4570 //-------------------------------------------------------------------
4571 Float_t weight=1;
4572 // First filling is _always_ resetting the histograms,
4573 // afterwards not, because we want to have histograms for full volume filled.
4574 FillHistosPattern(aliSource,0,kTRUE,weight);
4576 //-------------------------------------------------------------------
4577
4584 }
4591 }
4592
4593 cout << "EdbPVRQuality::FillHistosVolume(EdbPVRec* aliSource)...done." << endl;
4594 return;
4595}
TProfile * eProfileBTdens_vs_PID_generic
Definition: EdbPVRQuality.h:94
◆ FillTanThetaTArrays()
| void EdbPVRQuality::FillTanThetaTArrays | ( | Int_t | patNR | ) |
4777 {
4778 cout << "EdbPVRQuality::FillTanThetaTArrays(Int_t patNR)" << endl;
4779
4780 int nbinsX=10;
4781 TH1F* h_TT = (TH1F*)eHistTTFillcheck->Clone();
4782 int filledBin=0;
4783 EdbSegP* BTSegment;
4784 EdbSegP* seg;
4785
4786 // Important! Clear Histograms!
4787 // Clear arrays for stored BTs in TT space
4788 for (int i = 0; i <nbinsX+2; i++ ) {
4789 eArrayPatternTTSource[i]->Clear();
4790 eArrayPatternTTRejected[i]->Clear();
4791 eArrayPatternTTAccepted[i]->Clear();
4792 }
4793 // Clear arrays for stored BTs in All TT space
4794 eArrayPatternAllTTSource->Clear();
4795 eArrayPatternAllTTRejected->Clear();
4796 eArrayPatternAllTTAccepted->Clear();
4797
4800 cout << "EdbPVRQuality::FillTanThetaTArrays(Int_t patNR) For this pattern (" << patNR << "), I have " << npat << " Edb segments to check..." << endl;
4801
4802 /*
4803 cout << "i BINCENTER BINWIDTH" << endl;
4804 for (int i = 0; i <nbinsX; i++ ) {
4805 cout << i << " " << h_TT-> GetBinCenter(i) << " " << h_TT-> GetBinWidth(i) << endl;
4806 }
4807 */
4808
4809 // TT Histogram Filling part.
4810 // Important: Again, for the BTdensity calculation, MCEvt will not be taken into account,
4811 // (because, normally in a simulated EdbPVrec Volumen all MCEvt numbers are mixed, and
4812 // and therefore the calculation would not make sense)
4813 // (only sense could be in the case of Testbeam data... to be checked...)
4814 // And also, the number of MC Events compared to BG real data is negligible, so that the
4815 // BTdensity calculation error is very small.
4816
4818 BTSegment = pat->GetSegment(j);
4819 seg=pat->GetSegment(j);
4820 // Very important:
4821 // For the data case, we assume the following:
4822 // Data (MCEvt<0) will be taken for BTdensity calculation
4823 // Sim (MCEvt>0) will NOT be taken for BTdensity calculation
4824 // We take it ONLY and ONLY into account if it is especially wished
4825 // by the user!
4826 // Therefore (s)he needs to know how many Gauge Coupling Parameters
4827 // in the Standard Model exist (at least)...
4828 Bool_t result=kTRUE;
4831 result = kTRUE;
4832 }
4833 else {
4834 result = kFALSE;
4835 }
4836 }
4837
4838 if (gEDBDEBUGLEVEL>4) cout << "EdbPVRQuality::FillTanThetaTArrays(Int_t patNR) Doing segment " << j << " result for bool query is: " << result << endl;
4839
4840 // Main decision for segment to be kept or not (seg is of MC or data type).
4841 if ( kFALSE == result ) continue;
4842
4843 // Fill the h_TT histo to know which Array index is the right one:
4844 filledBin=h_TT->Fill(BTSegment->Theta());
4845 eArrayPatternTTSource[filledBin]->Add(BTSegment);
4846
4847 } // of for (int j = 0; j < npat; j++ )
4848
4849
4850 for (int i = 0; i <nbinsX; i++ ) {
4851 cout << "EdbPVRQuality::FillTanThetaTArrays(Int_t patNR) Number of Segments in TT Array " << i << " : " << eArrayPatternTTSource[i]->GetEntries() << endl;
4852 }
4853
4854 delete h_TT;
4855 cout << "EdbPVRQuality::FillTanThetaTArrays(Int_t patNR)...done" << endl;
4856 return;
4857}
TObjArray * eArrayPatternAllTTSource
should have same entries as the corresponding EdbPattern
Definition: EdbPVRQuality.h:155
TObjArray * eArrayPatternAllTTRejected
after specific cut, these BTs wont be taken
Definition: EdbPVRQuality.h:156
TObjArray * eArrayPatternAllTTAccepted
after specific cut, BTs here will be kept
Definition: EdbPVRQuality.h:157
◆ FindEventRelatedBTs()
| void EdbPVRQuality::FindEventRelatedBTs | ( | ) |
5573 {
5574 cout << "EdbPVRQuality::FindEventRelatedBTs()" << endl;
5575
5576 //FindEventRelatedBTs();
5577
5578 cout << "EdbPVRQuality::FindEventRelatedBTs()...NOTHING DONE YET ... " << endl;
5579 return;
5580}
◆ FindFakeDoubleBTs()
Find double counted basetracks.
More explanation in Remove_DoubleBT() function.
Cutvalues used are the same.
(See also upcoming note on BG-reduction)
ArrayAllExcluded[0] is the list of FakeDoubleBTs
which are to be excluded in the Create...Function
2809{
2814
2817
2818 cout << "EdbPVRQuality::FindFakeDoubleBTs() " << endl;
2819 cout << "EdbPVRQuality::FindFakeDoubleBTs() Check pattern volume for (fake) BT pairs." << endl;
2820 cout << "EdbPVRQuality::FindFakeDoubleBTs() aliSource = " << aliSource << endl;
2822
2824 cout << "WARNING! EdbPVRQuality::FindFakeDoubleBTs() Source EdbPVRec is NULL. Try to change to object eAli_orig: " << eAli_orig << endl;
2826 cout << "WARNING! EdbPVRQuality::FindFakeDoubleBTs() Also eAli_orig EdbPVRec is NULL. Do nothing and return NULL pointer!" << endl;
2828 }
2829 else {
2830 aliSource=eAli_orig;
2831 }
2832 }
2833
2834 Bool_t seg_seg_close=kFALSE;
2835 EdbSegP* seg=0;
2836 EdbSegP* seg1=0;
2837 Int_t NdoubleFoundSeg=0;
2838 Int_t NSegTotal=aliSource->NSeg();
2839 TObjArray* DoubleBTArray = new TObjArray();
2840
2841 // Bool variables for the different "regions" of the FakeBT Doublets
2842 Bool_t IsRegion0;
2843 Bool_t IsRegion1;
2844 Bool_t IsRegion2;
2845
2846 //gEDBDEBUGLEVEL=3;
2847 cout << "EdbPVRQuality::FindFakeDoubleBTs() Start looping now. Attention, this might take a while!" << endl;
2848
2850
2852
2853 // Get Target Pattern:
2855 // Helper Variable for cout purpose
2856 Int_t nPat=pat->N();
2857
2858 if (gEDBDEBUGLEVEL>1) cout << "EdbPVRQuality::FindFakeDoubleBTs() Looping over Ali_source->Pat()=" << i << " (PID=" << pat->PID() << ") with N= " << nPat << " segs. Until now double Candidates found: " << NdoubleFoundSeg << endl;
2859
2860 for (int j = 0; j < nPat; j++ ) {
2861
2862 // condition due avoid floating point exception (divide by zero)
2864
2865 seg = pat->GetSegment(j);
2866 seg_seg_close=kFALSE;
2867
2868 for (int k = j; k < nPat; k++ ) {
2869 if (k==j) continue;
2870
2871
2872 if (seg_seg_close) continue;
2873
2874 if (gEDBDEBUGLEVEL>3) cout << "Looping over pattern for segment pair nr=" << j << "," << k << endl;
2875 seg1 = pat->GetSegment(k);
2876
2877 // Here decide f.e. which segments to check...
2878 Bool_t toKeep=kFALSE;
2879
2880 // Skip already large distances
2885 //
2886 // Segment Pairs can fall into three regions:
2887 //
2888 // region 0) all BT pairings within dT<->dR line
2889 //
2890 // region 1) all BT parings within a dR,dT rectangle at the origin
2891 //
2892 // region 2) all BT parings within a dR,dT rectangle at (0,6)
2893 //
2894 Float_t dR_allowed=0;
2895 Float_t deltaR=0;
2896 Float_t deltaTheta=0;
2897 Float_t dR_allowed_m_deltaR=0;
2898
2899 // Calculate cut values:
2900 deltaTheta=TMath::Sqrt( TMath::Power(seg->TX()-seg1->TX(),2)+TMath::Power(seg->TY()-seg1->TY(),2) );
2901 if (deltaTheta>0.1) continue;
2903
2904 // line defined by experimental values (by some arbitrary bricks and my own BG-bricks)
2905 // dR_allowed = 10.75/0.1*deltaTheta; // old
2906 dR_allowed = 14.0/0.13*deltaTheta; // better description of the line
2907 dR_allowed_m_deltaR=TMath::Abs(deltaR-dR_allowed);
2908
2909 // Region check of the (Fake-)BTPair
2910 IsRegion0=kFALSE;
2911 IsRegion1=kFALSE;
2912 IsRegion2=kFALSE;
2913
2914 // Set flags for region
2915 if (dR_allowed_m_deltaR<0.5) IsRegion0=kTRUE;
2916 if (deltaR<3.0 && deltaTheta<0.01) IsRegion1=kTRUE;
2917 if (abs(deltaR-6.0)<2 && deltaTheta<0.01) IsRegion2=kTRUE;
2918
2919 // For this function now -in contrary to Remove_DoubleBT- we
2920 // ONLY keep double basetrack pairings within the line
2921 if (IsRegion0) toKeep=kTRUE;
2922 // or within the small square at the origin
2923 if (IsRegion1) toKeep=kTRUE;
2924 // or within the small square at the dR value
2925 if (IsRegion2) toKeep=kTRUE;
2926
2927 if (!toKeep) continue;
2928
2929 if (gEDBDEBUGLEVEL>2) cout << "EdbPVRQuality::FindFakeDoubleBTs() Found segment compatible close to another one: seg (" <<seg->PID() << ","<< seg->ID() << ") is close to seg (" << seg1->PID()<< ","<< seg1->ID() << ")." << endl;
2930
2931 if (gEDBDEBUGLEVEL>3) cout << "EdbPVRQuality::FindFakeDoubleBTs() Do last check if both are MCEvt segments of different event number! " << endl;
2933 // I have doubts if I shall take MC events also out, but I guess Yes, because if
2934 // in data these small pairings appear, then they will fall also under the
2935 // category "fake doublet" and then be removed, even if they are real double BT
2936 // from a signal.
2937
2938 seg_seg_close=kTRUE;
2939 ++NdoubleFoundSeg;
2940 } // for (int k = j+1; k <pat->N(); k++ )
2941
2942 // Add segment:
2944 if (seg_seg_close) DoubleBTArray->Add(seg);
2945 seg_seg_close=kFALSE;
2946 } // of for (int j = 0; j < nPat-1; j++ )
2947 } // for (int i = 0; i <aliSource->Npatterns(); i++ )
2948
2949
2950 Double_t ratioFakeDoubleBTsNSegTotal = (Double_t)DoubleBTArray->GetEntries()/NSegTotal;
2951
2952 cout << "EdbPVRQuality::FindFakeDoubleBTs() Statistics: " << endl;
2953 cout << "EdbPVRQuality::FindFakeDoubleBTs() Statistics: We found " << DoubleBTArray->GetEntries() << " double segments too close to each other to be different basetracks." << endl;
2954 cout << "EdbPVRQuality::FindFakeDoubleBTs() Statistics: Out of in total a ratio of: " << ratioFakeDoubleBTsNSegTotal << endl;
2955
2956 // Set the found array as Exclusion List:
2957 // Array at 0 is reserved for the FakeDoubleBTs
2958 // Nota bene: this array is filled with BTs over all paterns of the volume!
2959 cout << "EdbPVRQuality::FindFakeDoubleBTs() Set the found array as Exclusion List: Array at 0 is reserved for the FakeDoubleBTs." << endl;
2960 eArrayPatternAllExcluded[0]=DoubleBTArray;
2961
2962 cout << "EdbPVRQuality::FindFakeDoubleBTs()...done." << endl;
2963 return DoubleBTArray;
2964
2965}
TObjArray * eArrayPatternAllExcluded[4]
Definition: EdbPVRQuality.h:164
◆ FindFirstBinAbove()
| Int_t EdbPVRQuality::FindFirstBinAbove | ( | TH1 * | hist, |
| Double_t | threshold, | ||
| Int_t | axis | ||
| ) |
The TH1 function FindFirstBinAbove is only implemented in
root version >= 5.24. But since many scanning labs use old root
versions persistently, I had to copy the TH1 function as a
memberfunction of EdbPVRQuality
Code taken from
http://root.cern.ch/root/html/src/TH1.cxx.html#biA7FC
Correction, June, 2nd 2017:
This was the code for the OneDimensional Histogram!
In Our Case (histXY) we need the have the code for the TwoDimensional Histogram!
3485 {
3492 //
3496 TAxis* ax=0;
3500 int nb = ax->GetNbins();
3501 for (Int_t i=1; i<=nb; i++) {
3503 }
3504 return 0;
3505}
◆ FindFirstBinAboveTH2()
| Int_t EdbPVRQuality::FindFirstBinAboveTH2 | ( | TH2 * | hist, |
| Double_t | threshold, | ||
| Int_t | axis | ||
| ) |
June, 2nd 2017:
The TH2 function FindFirstBinAbove is only implemented in
root version >= 5.24. But since many scanning labs use old root
versions persistently, I had to copy the TH1 function as a
memberfunction of EdbPVRQuality
Code taken from
https://root.cern.ch/root/html526/src/TH2.cxx.html#LmA7FC
find first bin with content > threshold for axis (1=x, 2=y, 3=z)
if no bins with content > threshold is found the function returns -1.
3531 {
3541 if (axis < 1 || axis > 2) {
3542 printf("EdbPVRQuality::FindFirstBinAboveTH2 Invalid axis number : %d, axis x assumed\n",axis);
3543 axis = 1;
3544 }
3545 TAxis* ax=0;
3546 TAxis* axX=hist->GetXaxis();
3547 TAxis* axY=hist->GetYaxis();
3551 int nb = ax->GetNbins();
3552
3553 Int_t nbinsx = axX->GetNbins();
3554 Int_t nbinsy = axY->GetNbins();
3555 Int_t binx, biny;
3556 if (axis == 1) {
3557 for (binx=1; binx<=nbinsx; binx++) {
3558 for (biny=1; biny<=nbinsy; biny++) {
3560 }
3561 }
3562 } else {
3563 for (biny=1; biny<=nbinsy; biny++) {
3564 for (binx=1; binx<=nbinsx; binx++) {
3566 }
3567 }
3568 }
3569 return -1;
3570}
◆ FindHighDensityBTs()
| void EdbPVRQuality::FindHighDensityBTs | ( | ) |
Main Cut Routine for reducing HighDensBTs
5544 {
5545 cout << "EdbPVRQuality::FindHighDensityBTs()" << endl;
5546
5549// cout << "///for (int i=0; i< eAli_orig->Npatterns(); ++i) {"<< endl;
5550 //for (int i=0; i< 1; ++i) {
5551
5552 FillTanThetaTArrays(i);
5553 DetermineCutTTReductionFactor(i);
5554 Cut();
5555 //MergeExclusionLists(); // moved to CreateEdbPVRec_TT_Algorithms routine
5556 }
5557
5558 cout << "EdbPVRQuality::FindHighDensityBTs()...done. " << endl;
5559 return;
5560}
void DetermineCutTTReductionFactor(Int_t patNR)
Definition: EdbPVRQuality.cxx:4863
◆ FindLastBinAbove()
| Int_t EdbPVRQuality::FindLastBinAbove | ( | TH1 * | hist, |
| Double_t | threshold, | ||
| Int_t | axis | ||
| ) |
The TH1 function FindFirstBinAbove is only implemented in
root version >= 5.24. But since many scanning labs use old root
versions persistently, I had to copy the TH1 function as a
memberfunction of EdbPVRQuality
Code taken from
http://root.cern.ch/root/html/src/TH1.cxx.html#biA7FC
◆ FindLastBinAboveTH2()
| Int_t EdbPVRQuality::FindLastBinAboveTH2 | ( | TH2 * | hist, |
| Double_t | threshold, | ||
| Int_t | axis | ||
| ) |
June, 2nd 2017:
The TH2 function FindLastBinAbove is only implemented in
root version >= 5.24. But since many scanning labs use old root
versions persistently, I had to copy the TH1 function as a
memberfunction of EdbPVRQuality
Code taken from
https://root.cern.ch/root/html526/src/TH2.cxx.html#dq5cSC
find last bin with content > threshold for axis (1=x, 2=y, 3=z)
if no bins with content > threshold is found the function returns -1.
3574 {
3584 if (axis < 1 || axis > 2) {
3585 printf("EdbPVRQuality::FindFirstBinAboveTH2 Invalid axis number : %d, axis x assumed\n",axis);
3586 axis = 1;
3587 }
3588 TAxis* ax=0;
3589 TAxis* axX=hist->GetXaxis();
3590 TAxis* axY=hist->GetYaxis();
3594 int nb = ax->GetNbins();
3595
3596 Int_t nbinsx = axX->GetNbins();
3597 Int_t nbinsy = axY->GetNbins();
3598 Int_t binx, biny;
3599
3600 if (axis == 1) {
3601 for (binx=nbinsx; binx>=1; binx--) {
3602 for (biny=1; biny<=nbinsy; biny++) {
3604 }
3605 }
3606 } else {
3607 for (biny=nbinsy; biny>=1; biny--) {
3608 for (binx=1; binx<=nbinsx; binx++) {
3610 }
3611 }
3612 }
3613 return -1;
3614}
◆ FindPassingBTs()
| void EdbPVRQuality::FindPassingBTs | ( | ) |
5563 {
5564 cout << "EdbPVRQuality::FindPassingBTs()" << endl;
5565
5566// FindPassingBTs();
5567
5568 cout << "EdbPVRQuality::FindPassingBTs()...NOTHING DONE YET ... " << endl;
5569 return;
5570}
◆ GetagreementChi2Cut() [1/2]
|
inline |
◆ GetagreementChi2Cut() [2/2]
|
inline |
◆ GetagreementChi2CutMeanChi2()
|
inline |
◆ GetagreementChi2CutMeanW()
|
inline |
◆ GetagreementChi2CutRMSChi2()
|
inline |
◆ GetagreementChi2CutRMSW()
|
inline |
◆ GetAngularSpaceBin()
| Int_t EdbPVRQuality::GetAngularSpaceBin | ( | EdbSegP * | seg | ) |
Returns the number of bin for which the Basetrack corresponds to in tangens theta space.
Goes from 0 to 10.
ATTENTION and TODO :
Make the values in GetAngularSpaceBin() and Execute_ConstantBTDensityInAngularBins() equal !
done by hand... should by donesomehow automatic
2393{
2396
2400
2401
2402 // ---------------------------
2403 cout << "GEHT DAS HIER NICHT EINFACHER ???" << endl;
2404 cout << " KANN ICH NICHT EINFACH EIN DUMMY eHISTTT HISTOGRAMM FÜLLEN ????" << endl;
2405 cout << " WAERE DOCH VIEL EINFACHER, ODER?????" << endl;
2406
2407 // GEHT DAS HIER NICHT EINFACHER ???
2408 // KANN ICH NICHT EINFACH EIN DUMMY eHISTTT HISTOGRAMM FÜLLEN ????
2409 // WAERE DOCH VIEL EINFACHER, ODER?????
2410
2411 // TODO: MOVE THIS FUNCTION TO A HISTOGRAM FUNCTION DUMMY
2412
2413 Double_t angularspacebinningwidth=0.1;
2414 Double_t angularspacebinningstart=0.00;
2415 Double_t angularspacebinningend=0.00;
2416
2417 // Calculate Angle
2418 Double_t tt=seg->Theta();
2419 // cout << "Int_t EdbPVRQuality::GetAngularSpaceBin(EdbSegP* seg) tt= " << tt << endl;
2420
2421 // Now the angular space binning loop:
2422 for (Int_t angspacecounter=0; angspacecounter<10; angspacecounter++) {
2423
2424 // Calculate right end of angular space bin
2425 angularspacebinningstart=(Double_t)angspacecounter*angularspacebinningwidth;
2426 angularspacebinningend=angularspacebinningstart+angularspacebinningwidth;
2427
2428 // Check if angle is in the desired angular space bin
2429 if (tt<angularspacebinningstart) continue;
2430 if (tt>=angularspacebinningend) continue;
2431// cout << "Int_t EdbPVRQuality::GetAngularSpaceBin(EdbSegP* seg) return angspacecounter = " << angspacecounter << " now." << endl;
2432 return angspacecounter;
2433 }
2434 // failsafe value, should never be given back:
2435 return 0;
2436}
◆ GetArrayAllExcludedSegments()
|
inline |
◆ GetBTDensity()
|
inline |
303 {
305 }
Float_t GetBTDensity_orig(Int_t patNR=-1)
Definition: EdbPVRQuality.h:306
◆ GetBTDensity_modified()
|
inline |
310 {
313 }
◆ GetBTDensity_orig()
|
inline |
306 {
309 }
◆ GetBTDensityLevel()
|
inline |
◆ GetBTDensityLevelCalcMethodMC()
|
inline |
◆ GetBTDensityLevelCalcMethodMCConfirmation()
|
inline |
◆ GetCutMethod()
|
inline |
◆ GetCutMethodIsDone()
|
inline |
319 {
322 }
◆ GetCutp0() [1/2]
|
inline |
◆ GetCutp0() [2/2]
|
inline |
◆ GetCutp1() [1/2]
|
inline |
◆ GetCutp1() [2/2]
|
inline |
◆ GetCutTTReductionFactor()
|
inline |
◆ GetCutTTSqueezeFactor()
|
inline |
◆ GetEdbPVRec() [1/3]
|
inline |
232 {
234 }
◆ GetEdbPVRec() [2/3]
|
inline |
244 {
245 cout << "Inline EdbPVRecType= " << NeedModified << endl;
246 if (NeedModified==1) {
248 }
249 else {
251 }
252 }
◆ GetEdbPVRec() [3/3]
|
inline |
235 {
236 cout << "Inline EdbPVRecType= " << EdbPVRecType << endl;
237 if (EdbPVRecType==1) {
239 }
240 else {
242 }
243 }
◆ GetEdbPVRec_modified()
|
inline |
◆ GetEdbPVRec_orig()
|
inline |
◆ GetEdbPVRecNew()
| EdbPVRec * EdbPVRQuality::GetEdbPVRecNew | ( | ) |
5510 {
5511 cout << "EdbPVRQuality::GetEdbPVRecNew()" << endl;
5512 cout << "EdbPVRQuality::GetEdbPVRecNew() ASSUMING THAT NO CUT HAS BEEN DONE YET." << endl;
5513
5514 cout << "EdbPVRQuality::GetEdbPVRecNew() MAYBE ADD ALSO SWITCH, WHAT TO DO OR NOT...." << endl;
5515
5516 cout << "EdbPVRQuality::GetEdbPVRecNew() for Example: doFindFakeDoubleBTs = ... " << endl;
5517 cout << "EdbPVRQuality::GetEdbPVRecNew() for Example: doFindHighDensityBTs = ... " << endl;
5518 cout << "EdbPVRQuality::GetEdbPVRecNew() for Example: doFindPassingBTs = ... " << endl;
5519 cout << "EdbPVRQuality::GetEdbPVRecNew() for Example: doFindEventRelatedBTs = ... " << endl;
5520
5521 FindFakeDoubleBTs();
5522 FindHighDensityBTs();
5523 //FindPassingBTs(); // NOT YET IMPLEMENTED !
5524 //FindEventRelatedBTs(); // NOT YET IMPLEMENTED !
5525
5526 // Merge source volume and segments from the exclusion lists together
5527 // for the new volume which is stored as eAli_modified
5528 CreateEdbPVRec_TT_Algorithms();
5529
5530 // Finally, since we have now the target volume,
5531 // we fill histos for target EdbPVRec
5533
5534 Print();
5535
5537 cout << "EdbPVRQuality::GetEdbPVRecNew()...done" << endl;
5539}
TObjArray * FindFakeDoubleBTs(EdbPVRec *aliSource=NULL)
Definition: EdbPVRQuality.cxx:2808
void CreateEdbPVRec_TT_Algorithms()
Definition: EdbPVRQuality.cxx:5584
◆ GetHistChi2()
|
inline |
◆ GetHistChi2W()
|
inline |
◆ GetHistTT()
|
inline |
◆ GetHistTTFillcheck()
|
inline |
◆ GetHistTYTX()
|
inline |
◆ GetHistW()
|
inline |
◆ GetHistWTilde()
|
inline |
◆ GetHistYX()
|
inline |
◆ GetQualityPlots()
| TCanvas * EdbPVRQuality::GetQualityPlots | ( | Int_t | CountNr = 0, |
| Int_t | aliSourceType = 0 |
||
| ) |
Get a canvas containing basetrack information about the given volume.
492{
494 cout << "EdbPVRQuality::GetQualityPlots CountNr=" << CountNr << " aliSourceType=" << aliSourceType << endl;
495
497 cout << "WARNING EdbPVRQuality::GetQualityPlots eIsSource = " << eIsSource << ". This means no source set. Return!" << endl;
499 }
501 cout << "WARNING EdbPVRQuality::GetQualityPlots eIsTarget = " << eIsTarget << ". This means no target set. Return!" << endl;
503 }
504
505 if (aliSourceType==1) {
507 }
508 else {
510 }
511
512 TCanvas* c1 = new TCanvas(Form("CanvasQualityPlots_%d_%d",CountNr,aliSourceType),Form("CanvasQualityPlots_%d_%d",CountNr,aliSourceType),1600,1000);
513 c1->Divide(3,2);
514
515 for (int i=0; i<6; ++i) {
517 }
518 c1->cd();
519
520 cout << "EdbPVRQuality::GetQualityPlots...done." << endl;
522}
TPad * GetQualityPlotsSingle(Int_t CountNr=0, Int_t aliSourceType=0, Int_t Plottype=-1)
Definition: EdbPVRQuality.cxx:525
◆ GetQualityPlotsSingle()
| TPad * EdbPVRQuality::GetQualityPlotsSingle | ( | Int_t | CountNr = 0, |
| Int_t | aliSourceType = 0, |
||
| Int_t | Plottype = -1 |
||
| ) |
Get a pad containing basetrack information about the given volume.
One of the six specific plots from GetQualityPlots is returned (plot 0..5)
Usually this pad is then integrated in the canvas from GetQualityPlots() function.
cout << "EdbPVRQuality::GetQualityPlotsSingle CountNr=" << CountNr << " aliSourceType=" << aliSourceType << " Plottype= " << Plottype << endl;
526{
531
532 TPad* pad = new TPad();
533
534 // remember: switch statements need a "break" at the end of each "case"
535 // remember: need to use "DrawCopy" here, otherwise, when histo is reseted,
536 // no graph will appear
537 switch(Plottype) {
538 case 0: {
540 eHistXY->GetXaxis()->SetRangeUser(eHistXY->GetMean(1)-eHistXY->GetRMS(1)*3,eHistXY->GetMean(1)+eHistXY->GetRMS(1)*3);
541 eHistXY->GetYaxis()->SetRangeUser(eHistXY->GetMean(2)-eHistXY->GetRMS(2)*3,eHistXY->GetMean(2)+eHistXY->GetRMS(2)*3);
544 eHistXY->GetYaxis()->SetLabelSize(0.03);
545 eHistXY->GetXaxis()->SetLabelSize(0.03);
547 break;
548 }
549 case 1: {
553 break;
554 }
555 case 2: {
559 break;
560 }
561 case 3: {
564 eHistBTDensityVolume->GetXaxis()->SetRangeUser(0,eHistBTDensityVolume->GetMean()+eHistBTDensityVolume->GetRMS()*3);
566 break;
567 }
568 case 4: {
573 break;
574 }
575 case 5: {
579 break;
580 }
581 default:
582 cout << "WARNING EdbPVRQuality::GetQualityPlotsSingle Plottype is out of range. Return empty pad." << endl;
583 break;
584 }
585
586// return canvas;
587 return pad;
588}
◆ GetTracksFromLinkedTracksRootFile()
| TObjArray * EdbPVRQuality::GetTracksFromLinkedTracksRootFile | ( | ) |
3619{
3620 cout << "EdbPVRQuality::GetTracksFromLinkedTracksRootFile()" << endl;
3621// cout << "___TODO___ STEP 1 : Check if linked_tracks.root exists " << endl;
3622// cout << "___TODO___ STEP 2 : Open linked_tracks " << endl;
3623// cout << "___TODO___ STEP 3 : Check if there are tracks inside " << endl;
3624// cout << "___TODO___ STEP 4 : Get Tracks as this TObjArray " << endl;
3625
3626 // Array containing EdbTrackP objects:
3627 TObjArray* trackarray = new TObjArray();
3628
3631 TClonesArray *seg= new TClonesArray("EdbSegP",60);
3632 EdbSegP* segment=0;
3635
3637 // check if tracks has entries: if so then ok, otherwise return directly:
3638 if (nentr>0) {
3639 cout << "EdbPVRQuality::GetTracksFromLinkedTracksRootFile() " << nentr << " entries Total"<<endl;
3640 }
3641 else {
3642 cout << "EdbPVRQuality::GetTracksFromLinkedTracksRootFile() linked_tracks.root file has NO entries...Return NULL." << endl;
3644 }
3645
3646 int nseg,n0,npl;
3652
3653 for (int i=0; i<nentr; i++ ) {
3654 tr->GetEntry(i);
3656 for (int j=0; j<nseg; j++ ) {
3659 realTrack->AddSegment(segment);
3660 }
3661 //realTrack->PrintNice();
3664 trackarray->Add(realTrack);
3665 }
3667 file->Close();
3669 cout << "EdbPVRQuality::GetTracksFromLinkedTracksRootFile()...done." << endl;
3670 return trackarray;
3671}
Definition: EdbPattern.h:113
◆ Help()
| void EdbPVRQuality::Help | ( | ) |
Basic Help Function. Of course to be extended from time to time.
2768{
2770
2771 cout << "----------------------------------------------" << endl;
2772 cout << "----- void EdbPVRQuality::Help() -----" << endl;
2773 cout << "-----" << endl;
2774 cout << "----- This class helps you to determine the Quality Cut Plate by Plate" << endl;
2775 cout << "----- for suited BG level for shower reco." << endl;
2776 cout << "----- You use it like this:" << endl;
2777 cout << "----- EdbPVRQuality* QualityClass = new EdbPVRQuality(gAli)" << endl;
2778 cout << "----- where gAli is an EdbPVRec object pointer (usually the one" << endl;
2779 cout << "----- from the cp files). Then you can get the CutValues with" << endl;
2780 cout << "----- GetCutp0() (for each//all plate) back." << endl;
2781 cout << "-----" << endl;
2782 cout << "----- On TODO list: to be interfaced with the libShower reconstruction mode." << endl;
2783 cout << "-----" << endl;
2784 cout << "-----" << endl;
2785 cout << "----- Constant" << endl;
2786 cout << "----- BT Density Method: ..." << endl;
2787 cout << "-----" << endl;
2788 cout << "----- Constant" << endl;
2789 cout << "----- BT Quality Method: ..." << endl;
2790 cout << "-----" << endl;
2791 cout << "----- Constant" << endl;
2792 cout << "----- Xi2Hat Method: Fill a Chi2() and a Wtilde=1/W() histogram. Get Mean and Sigma" << endl;
2793 cout << "----- : of the two Histograms. Then construct a chi-square like" << endl;
2794 cout << "----- : variable: Xi2Hat=((Chi2-meanChi2)/sigmaChi2)^2 " << endl;
2795 cout << "----- : variable: +((Wtilde-meanWtilde)/sigmaWtilde)^2 " << endl;
2796 cout << "----- : Cut is then done by reducing the Xi2Hat limit by 0.1" << endl;
2797 cout << "----- : starting from an initial value of 5.0" << endl;
2798 cout << "-----" << endl;
2799 cout << "----- " << endl;
2800
2801 cout << "----- void EdbPVRQuality::Help() -----" << endl;
2802 cout << "----------------------------------------------" << endl;
2803}
◆ Init()
Basic Init function that creates objects in the memory which have to be created only ONE time per class instance.
319{
322
324
325 // Create all the needed histograms:
326 eProfileBTdens_vs_PID_source = new TProfile("eProfileBTdens_vs_PID_source","eProfileBTdens_vs_PID_source",114,-0.5,113.5,0,200);
327 eProfileBTdens_vs_PID_target = new TProfile("eProfileBTdens_vs_PID_target","eProfileBTdens_vs_PID_target",114,-0.5,113.5,0,200);
328
329 // Filled with EdbSegP::W(),Chi2() value
331 // Filled with EdbSegP::Chi2(), W(); WTilde(=1/W) value
335
336 // Filled with EdbSegP::X(),Y() value
337 // Boundaries will be set in the SetHistGeometry... Function.
339
340 // Filled with EdbSegP::TX(),TY() value
342
343 // If tangens theta binning histogram is too fine grained,
344 // there is the danger of being to few entries in the histogram.
346 // Filled with EdbSegP::TT() value
347 // eHistTTFillcheck is only used for determing the TT bin of the segment,
348 // also when rebinning this histogram
350
353
354 // Create arrays for tracks/segments which are to be
355 // removed after cleaning/ are to be kept:
356 // Arrays for stored BTs in TT space
357 for (int i = 0; i <12; i++ ) {
361 }
365
368
369 // TEMPORARY, later the Standard Geometry should default be OPERA.
370 // For now we use a very large histogram that can contain both case
371 // x-y ranges. This takes slightly more memory but it shouldnt matter.
372 //if (eHistGeometry==0) SetHistGeometry_OPERA();
373 SetHistGeometry_OPERAandMC();
374// SetHistGeometry_OPERAandMCBinArea625();
375// SetHistGeometry_OPERAandMCBinArea4mm2();
376
378 return;
379}
void SetHistGeometry_OPERAandMC()
Definition: EdbPVRQuality.cxx:1011
◆ MergeExclusionLists()
| void EdbPVRQuality::MergeExclusionLists | ( | ) |
5468 {
5469 cout << "EdbPVRQuality::MergeExclusionLists()" << endl;
5470
5471 // Merge all different exclusion arrays together as one big exclusion array for the volume
5472 cout << "EdbPVRQuality::MergeExclusionLists() Merge all different exclusion arrays together as one big exclusion array for the volume" << endl;
5473
5474 EdbSegP* seg;
5475 TObjArray* ArraySegments;
5476
5477 // This array will be cleared, since with each
5478 // plate, it is filled new:
5479 eArrayAllExcludedSegments ->Clear();
5480
5481 // Merge the 4 exclusion Lists into one great one.
5482 // That makes it easier for the Create... function to
5483 // create a new PVRec Object at one time...
5484
5485 // Array Source Segments: 0 (FakeDoubleBTs)
5486 // Array Source Segments: 1 (HighDensBTs)
5487 // Array Source Segments: 2 (TracksPassingBTs)
5488 // Array Source Segments: 3 (EventRelatedBTs)
5489
5490 for (int i=0; i<4; ++i) {
5491 ArraySegments=eArrayPatternAllExcluded[i];
5492 if (i==2) cout << "Attention: Exclusion lists 2 has NOT YET BEEN IMPLEMENTED AT THE MOMENT" << endl;
5493 if (i==3) cout << "Attention: Exclusion lists 3 has NOT YET BEEN IMPLEMENTED AT THE MOMENT" << endl;
5494 cout << "i= " << i << " ArraySegments->GetEntries() " << ArraySegments->GetEntries() << endl;
5495 for (Int_t j=0; j< ArraySegments->GetEntries(); ++j) {
5496 seg = (EdbSegP* )ArraySegments->At(j);
5497
5498 // Add segmets for the whole exclusion array:
5499 eArrayAllExcludedSegments->Add(seg);
5500 }
5501 }
5502
5503 cout << "EdbPVRQuality::MergeExclusionLists() eArrayAllExcludedSegments->GetEntries() " << eArrayAllExcludedSegments->GetEntries() << endl;
5504 cout << "EdbPVRQuality::MergeExclusionLists()...done." << endl;
5505 return;
5506}
◆ MergeHighDensBTsLists()
| void EdbPVRQuality::MergeHighDensBTsLists | ( | ) |
Merge all arrays per patter together as array for the volume
5444 {
5445 cout << "EdbPVRQuality::MergeHighDensBTsLists()" << endl;
5446
5448 cout << "EdbPVRQuality::MergeHighDensBTsLists() Merge all arrays per pattern together as array for the volume" << endl;
5449
5450 EdbSegP* seg;
5451 TObjArray* sourceArraySegments=eArrayPatternAllTTRejected;
5452 TObjArray* targetArraySegments=eArrayPatternAllExcluded[1];
5453
5454 for (Int_t j=0; j< sourceArraySegments->GetEntries(); ++j) {
5455 seg = (EdbSegP* )sourceArraySegments->At(j);
5456 targetArraySegments->Add(seg);
5457 }
5458
5459 cout << "EdbPVRQuality::MergeHighDensBTsLists() eArrayPatternAllExcluded[1]->GetEntries() " << eArrayPatternAllExcluded[1]->GetEntries() << endl;
5460 cout << "EdbPVRQuality::MergeHighDensBTsLists()...done." << endl;
5461 return;
5462}
◆ MergeTTSegments()
| void EdbPVRQuality::MergeTTSegments | ( | ) |
Loop over TT bins and merge Source, Accepted and Rejected Arrays into each one:
5389 {
5390 cout << "EdbPVRQuality::MergeTTSegments()" << endl;
5391 Int_t nbinsX=10;
5392 EdbSegP* seg;
5393 TObjArray* ArraySegments;
5394 Int_t nSegments=0;
5395 nSegments=0;
5397
5398 for (int i = 0; i <nbinsX+2; i++ ) {
5399
5400 cout << " Doing TT bin: " << i << endl;
5401
5402 // Array Source Segments
5403 ArraySegments=eArrayPatternTTSource[i];
5404 nSegments=ArraySegments->GetEntries();
5405 if (nSegments>0) cout << "EdbPVRQuality::MergeTTSegments() ArraySegments->GetEntries() " << nSegments << endl;
5406 for (Int_t j=0; j< ArraySegments->GetEntries(); ++j) {
5407 seg = (EdbSegP* )ArraySegments->At(j);
5408 eArrayPatternAllTTSource->Add(seg);
5409 }
5410 // Array Accepted Segments
5411 ArraySegments=eArrayPatternTTAccepted[i];
5412 nSegments=ArraySegments->GetEntries();
5413 if (nSegments>0) cout << "EdbPVRQuality::MergeTTSegments() ArrayAccepted->GetEntries() " << nSegments << endl;
5414 for (Int_t j=0; j< ArraySegments->GetEntries(); ++j) {
5415 seg = (EdbSegP* )ArraySegments->At(j);
5416 eArrayPatternAllTTAccepted->Add(seg);
5417 }
5418 // Array Rejected Segments
5419 ArraySegments=eArrayPatternTTRejected[i];
5420 nSegments=ArraySegments->GetEntries();
5421 if (nSegments>0) cout << "EdbPVRQuality::MergeTTSegments() ArrayRejected->GetEntries() " << nSegments << endl;
5422 for (Int_t j=0; j< ArraySegments->GetEntries(); ++j) {
5423 seg = (EdbSegP* )ArraySegments->At(j);
5424 eArrayPatternAllTTRejected->Add(seg);
5425 }
5426
5427 } // of for (int i = 0; i <nbinsX+2; i++ )
5428
5429 cout << "EdbPVRQuality::MergeTTSegments() Merging done. Statistics after all TTbins:" << endl;
5430 cout << "EdbPVRQuality::MergeTTSegments() eArrayPatternAllTTSource->GetEntries() " << eArrayPatternAllTTSource->GetEntries() << endl;
5431 cout << "EdbPVRQuality::MergeTTSegments() eArrayPatternAllTTAccepted->GetEntries() " << eArrayPatternAllTTAccepted->GetEntries() << endl;
5432 cout << "EdbPVRQuality::MergeTTSegments() eArrayPatternAllTTRejected->GetEntries() " << eArrayPatternAllTTRejected->GetEntries() << endl;
5433
5434
5435 // Now the function MergeHighDensBTsLists() has to follow...
5436 // See the parent routine (Cut()...) , where this routine is called.
5437 cout << "EdbPVRQuality::MergeTTSegments()...done." << endl;
5438 return;
5439}
◆ Print()
| void EdbPVRQuality::Print | ( | ) |
1077{
1079 for (int i=0; i<80; ++i) cout << "-";
1080 cout << endl;
1081 cout << "-";
1082 cout << endl;
1083 cout << "EdbPVRQuality::Print() --- SETTINGS GENERAL: ---" << endl;
1085 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutMethodString = " << eCutMethodString.Data() << endl;
1086 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutMethodIsDone[0] = " << eCutMethodIsDone[0] << endl;
1087 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutMethodIsDone[1] = " << eCutMethodIsDone[1] << endl;
1088 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutMethodIsDone[2] = " << eCutMethodIsDone[2] << endl;
1089 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutMethodIsDone[3] = " << eCutMethodIsDone[3] << endl;
1090 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutMethodIsDone[4] = " << eCutMethodIsDone[4] << endl;
1091 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutMethodIsDone[5] = " << eCutMethodIsDone[5] << endl;
1092 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutMethodIsDone[6] = " << eCutMethodIsDone[6] << endl;
1093 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eBTDensityLevel = " << eBTDensityLevel << endl;
1094 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutTTSqueezeFactor = " << eCutTTSqueezeFactor << endl;
1095 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eCutTTReductionFactor[1] = " << eCutTTReductionFactor[1] << endl;
1096
1097 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eBTDensityLevelCalcMethodMC = " << eBTDensityLevelCalcMethodMC << endl;
1098 //cout << "EdbPVRQuality::Print() --- " << setw(40) << "eBTDensityLevelCalcMethodMCConfirmationNumber = " << eBTDensityLevelCalcMethodMCConfirmationNumber << endl;
1099 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eHistGeometry = " << eHistGeometry << endl;
1100 cout << "-" << endl;
1101 cout << "EdbPVRQuality::Print() --- SETTINGS: Input data:" << endl;
1103 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eAli_maxNpatterns = " << eAli_maxNpatterns << endl;
1105 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eProfileBTdens_vs_PID_source_meanX = " << eProfileBTdens_vs_PID_source_meanX << endl;
1106 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eProfileBTdens_vs_PID_source_meanY = " << eProfileBTdens_vs_PID_source_meanY << endl;
1107 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eProfileBTdens_vs_PID_source_rmsX = " << eProfileBTdens_vs_PID_source_rmsX << endl;
1108 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eProfileBTdens_vs_PID_source_rmsY = " << eProfileBTdens_vs_PID_source_rmsY << endl;
1109 cout << "-" << endl;
1110 cout << "EdbPVRQuality::Print() --- SETTINGS: Output data:" << endl;
1111 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eAli_modified = " << eAli_modified << endl;
1112 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eAli_maxNpatterns = " << eAli_maxNpatterns << endl;
1114 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eProfileBTdens_vs_PID_target_meanX = " << eProfileBTdens_vs_PID_target_meanX << endl;
1115 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eProfileBTdens_vs_PID_target_meanY = " << eProfileBTdens_vs_PID_target_meanY << endl;
1116 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eProfileBTdens_vs_PID_target_rmsX = " << eProfileBTdens_vs_PID_target_rmsX << endl;
1117 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eProfileBTdens_vs_PID_target_rmsY = " << eProfileBTdens_vs_PID_target_rmsY << endl;
1118 cout << "EdbPVRQuality::Print() --- " << setw(40) << "eNeedModified = " << eNeedModified << endl;
1119 cout << "-" << endl;
1120 for (int i=0; i<80; ++i) cout << "-";
1121 cout << endl;
1122
1124 return;
1125}
◆ PrintBTDensities()
| void EdbPVRQuality::PrintBTDensities | ( | ) |
Print BT densities for each pattern.
Prints BT densities for all patterns in the source.
1129{
1134 for (int i=0; i<eAli_orig->Npatterns(); ++i) cout << "BT density for pattern " << i << " = " << GetBTDensity(i) << endl;
1137 return;
1138}
◆ PrintCutType()
| void EdbPVRQuality::PrintCutType | ( | ) |
Print PrintCutType data for this class.
1057{
1059 cout << "EdbPVRQuality::Print() " << endl;
1060 for (int i=0; i<8; i++) {
1062 }
1071 return;
1072}
void PrintCutType0()
Constant BT density.
Definition: EdbPVRQuality.cxx:1141
void PrintCutType2()
Constant BT quality.
Definition: EdbPVRQuality.cxx:1226
void PrintCutType3()
Constant BT quality in Angular Bins.
Definition: EdbPVRQuality.cxx:1236
void PrintCutType1()
Constant BT density in Angular Bins.
Definition: EdbPVRQuality.cxx:1183
void PrintCutType5()
Constant BT X2Hat in Angular Bins.
Definition: EdbPVRQuality.cxx:1288
void PrintCutType7()
Random Test Cut in Angular Bins.
Definition: EdbPVRQuality.cxx:1304
◆ PrintCutType0()
| void EdbPVRQuality::PrintCutType0 | ( | ) |
Constant BT density.
Prints quality cut values for each plate of the original EdbPVRec object that were
applied to achieve the basetrack density level, after application the specific cut
on the segments of the specific plate (=pattern).
1142{
1146
1148
1150 cout << "--- EdbPVRQuality::PrintCutType0()----------" << endl;
1151 cout << "--- This CutType has not been done. Run Execute_ConstantBTDensity() ---" << endl;
1152 cout << "--- to see the results (return now). ---" << endl;
1153 return;
1154 }
1155
1156 cout << "----------void EdbPVRQuality::PrintCutType0()----------" << endl;
1157 cout << "Pattern || Z() || Nseg || eCutp0[i] || eCutp1[i] || BTDensity_orig ||...|| Nseg_modified || BTDensity_modified ||"<< endl;
1158
1161 cout << "WARNING eAli_modified==NULL ==>> Take eAli_orig instead. To build eAli_modified please run CreateEdbPVRec(eAli_orig)" << endl;
1162 }
1163
1165 for (int i=0; i<Npat_orig; i++) {
1167 Int_t npatO=pat_orig->N();
1169 Int_t npatM=pat_modified->N();
1170 //
1171 cout << i;
1172 cout << " ";
1173 printf("%.1f %d %.3f %.3f %.2f",pat_orig->Z(),npatO, eCutp0[i], eCutp1[i] , ePatternBTDensity_orig[i]);
1174 cout << " ... ";
1175 printf("%.1f %d %.3f %.3f %.2f",pat_modified->Z(),npatM, eCutp0[i] ,eCutp1[i], ePatternBTDensity_modified[i]);
1176 cout << endl;
1177 }
1178
1179 return;
1180}
◆ PrintCutType1()
| void EdbPVRQuality::PrintCutType1 | ( | ) |
Constant BT density in Angular Bins.
Prints quality cut values for each plate of the original EdbPVRec object that were
applied to achieve the basetrack density level, after application the specific cut
on the segments of the specific plate (=pattern).
1184{
1188
1191 cout << "--- EdbPVRQuality::PrintCutType1()----------" << endl;
1192 cout << "--- This CutType has not been done. Run Execute_ConstantBTQuality() ---" << endl;
1193 cout << "--- to see the results (return now). ---" << endl;
1194 return;
1195 }
1196
1197 cout << "----------void EdbPVRQuality::PrintCutType1()----------" << endl;
1198
1199 cout << "Pattern || Z() || Nseg || BTDensity_orig || Chi2CutMeanChi2 || Chi2CutRMSChi2 || Chi2CutMeanW || Chi2CutRMSW || Chi2Cut[i] || BTDensity_modified ||"<< endl;
1200
1203 cout << "WARNING eAli_modified==NULL ==>> Take eAli_orig instead. To build eAli_modified please run CreateEdbPVRec(eAli_orig)" << endl;
1204 }
1205
1207 for (int i=0; i<Npat_orig; i++) {
1209 Int_t npatO=pat_orig->N();
1211 Int_t npatM=pat_modified->N();
1212 cout << i;
1213 cout << " ";
1214 printf("%.1f %d %.2f %.2f %.2f %.2f %.2f %.2f",pat_orig->Z(),npatO, eAgreementChi2CutMeanChi2 , eAgreementChi2CutRMSChi2, eAgreementChi2CutMeanW , eAgreementChi2CutRMSW, eAgreementChi2WDistCut[i], ePatternBTDensity_orig[i]);
1215 cout << " ... ";
1216 printf("%.1f %d %.2f %.2f %.2f %.2f %.2f %.2f",pat_modified->Z(),npatM, eAgreementChi2CutMeanChi2 , eAgreementChi2CutRMSChi2, eAgreementChi2CutMeanW , eAgreementChi2CutRMSW, eAgreementChi2WDistCut[i], ePatternBTDensity_modified[i]);
1217 cout << endl;
1218 }
1219 return;
1220}
◆ PrintCutType2()
| void EdbPVRQuality::PrintCutType2 | ( | ) |
Constant BT quality.
1227{
1228 cout << "TODO void EdbPVRQuality::PrintCutType2() NOT YET IMPLEMENTED" << endl;
1229 return;
1230}
◆ PrintCutType3()
| void EdbPVRQuality::PrintCutType3 | ( | ) |
Constant BT quality in Angular Bins.
1237{
1238 cout << "TODO void EdbPVRQuality::PrintCutType3() NOT YET IMPLEMENTED" << endl;
1239 return;
1240}
◆ PrintCutType4()
| void EdbPVRQuality::PrintCutType4 | ( | ) |
Constant BT X2Hat.
Prints quality cut values for each plate of the original EdbPVRec object that were
applied to achieve the basetrack density level, after application the specific cut
on the segments of the specific plate (=pattern).
1246{
1250
1253 cout << "--- EdbPVRQuality::PrintCutType4()----------" << endl;
1254 cout << "--- This CutType has not been done. Run Execute_ConstantBTQuality() ---" << endl;
1255 cout << "--- to see the results (return now). ---" << endl;
1256 return;
1257 }
1258
1259 cout << "----------void EdbPVRQuality::PrintCutType4()----------" << endl;
1260
1261 cout << "Pattern || Z() || Nseg || BTDensity_orig || eXi2Hat_m_chi2 || eXi2Hat_s_chi2 || eXi2Hat_m_WTilde || eXi2Hat_s_WTilde || eXi2HatCut[i] || BTDensity_modified ||"<< endl;
1262
1265 cout << "WARNING eAli_modified==NULL ==>> Take eAli_orig instead. To build eAli_modified please run CreateEdbPVRec(eAli_orig)" << endl;
1266 }
1267
1269 for (int i=0; i<Npat_orig; i++) {
1271 Int_t npatO=pat_orig->N();
1273 Int_t npatM=pat_modified->N();
1274 cout << i;
1275 cout << " ";
1276 printf("%.1f %d %.2f %.2f %.2f %.2f %.2f %.2f",pat_orig->Z(),npatO, eXi2Hat_m_chi2[i] , eXi2Hat_s_chi2[i], eXi2Hat_m_WTilde[i] , eXi2Hat_s_WTilde[i], eX2HatCut[i], ePatternBTDensity_orig[i]);
1277 cout << " ... ";
1278 printf("%.1f %d %.2f %.2f %.2f %.2f %.2f %.2f",pat_orig->Z(),npatM, eXi2Hat_m_chi2[i] , eXi2Hat_s_chi2[i], eXi2Hat_m_WTilde[i] , eXi2Hat_s_WTilde[i], eX2HatCut[i], ePatternBTDensity_modified[i]);
1279 cout << endl;
1280 }
1281 return;
1282}
◆ PrintCutType5()
| void EdbPVRQuality::PrintCutType5 | ( | ) |
Constant BT X2Hat in Angular Bins.
1289{
1290 cout << "TODO void EdbPVRQuality::PrintCutType5() NOT YET IMPLEMENTED" << endl;
1291 return;
1292}
◆ PrintCutType6()
| void EdbPVRQuality::PrintCutType6 | ( | ) |
Random Test Cut.
1297{
1298 cout << "TODO void EdbPVRQuality::PrintCutType6() NOT YET IMPLEMENTED" << endl;
1299 return;
1300}
◆ PrintCutType7()
| void EdbPVRQuality::PrintCutType7 | ( | ) |
Random Test Cut in Angular Bins.
1305{
1306 cout << "TODO void EdbPVRQuality::PrintCutType6() NOT YET IMPLEMENTED" << endl;
1307 return;
1308}
◆ PrintCutValues()
| void EdbPVRQuality::PrintCutValues | ( | Int_t | CutType | ) |
3677 {
3678 cout <<"-----------------------------------------------------------------------------------------------------------------------" << endl;
3679 cout <<"EdbPVRQuality::PrintCutValues for CutType= " << CutType << endl;
3680 cout <<"-----------------------------------------------------------------------------------------------------------------------" << endl;
3681 if (CutType==1 || CutType==5 || CutType==7 ) {
3682 cout << "#plate #tt[0.0,0.1], #tt[0.1,0.2], #tt[0.2,0.3], #tt[0.3,0.4], #tt[0.4,0.5], #tt[0.5,0.6], #tt[0.6,0.7], #tt[0.7,0.8]" << endl;
3683 cout <<"-----------------------------------------------------------------------------------------------------------------------" << endl;
3685 cout << i << " ";
3686 // npatterns of eali...
3687 for (int angspacecounter=0; angspacecounter<8; angspacecounter++) {
3689 }
3690 cout << endl;
3691
3692 if (CutType==5) {
3693 cout << i << " ";
3694 // npatterns of eali...
3695 for (int angspacecounter=0; angspacecounter<8; angspacecounter++) {
3697 }
3698 cout << endl;
3699 }
3700 }
3701 cout <<"-----------------------------------------------------------------------------------------------------------------------" << endl;
3702 } // if (CutType==...)
3703 cout <<"EdbPVRQuality::PrintCutTypeDetailed...done." << endl;
3704 return;
3705}
◆ RebinTTHistogram()
| void EdbPVRQuality::RebinTTHistogram | ( | Int_t | nbins = 5 | ) |
Reduce number of bins (same boundaries):
10 ->ok; // 05 ->ok;
02 ->??; // Fit doesnt work, so set then the number of binentries manually...
see code in the function CreateEdbPVRec_TT_Algorithms()
5613 {
5614 cout << "EdbPVRQuality::RebinTTHistogram(Int_t nbins)" << endl;
5615
5616 if (nbins>10 || nbins<1) {
5617 cout << "WARNING EdbPVRQuality::RebinTTHistogram() Value nbins = " << nbins << " not supported ([1..10])." << endl;
5618 cout << "WARNING EdbPVRQuality::RebinTTHistogram() Set back to default value of 5." << endl;
5619 nbins=5;
5620 }
5621 eHistTTFillcheck->Reset();
5626 eHistTTFillcheck->SetBins(nbins,0,1);
5627 cout <<"EdbPVRQuality::RebinTTHistogram() eHistTT->SetBins(" << nbins << ",0,1);" << endl;
5628
5629 cout << "EdbPVRQuality::RebinTTHistogram()...done." << endl;
5630 return;
5631}
◆ Remove_DoubleBT()
Remove double counted basetracks. This is a scanning induced error, at the
edges of the objective field, corrections are different, thus one
basetrack is seen differently in two different views.
In Bern data, we do see clearly this double bump, that is characterized by
very close values of two BTs in X,Y,TX,TY (and also Chi2 and W).
Separation threshold values are 2microns in postion and 10 mrad in angle.
(again obtained from Bern data).
Quick and Dirty implementation !
3065{
3073
3075 cout << "EdbPVRQuality::Remove_DoubleBT()" << endl;
3076 cout << "EdbPVRQuality::Remove_DoubleBT() aliSource = " << aliSource << endl;
3078
3080 cout << "WARNING! EdbPVRQuality::Remove_DoubleBT() Source EdbPVRec is NULL. Try to change to object eAli_orig: " << eAli_orig << endl;
3082 cout << "WARNING! EdbPVRQuality::Remove_DoubleBT() Also eAli_orig EdbPVRec is NULL. Do nothing and return NULL pointer!" << endl;
3084 }
3085 else {
3086 aliSource=eAli_orig;
3087 }
3088 }
3089
3090 // Make a new PVRec object anyway
3092 // aliTarget->Print();
3093
3094 Bool_t seg_seg_close=kFALSE;
3095 EdbSegP* seg=0;
3096 EdbSegP* seg1=0;
3097 Int_t NdoubleFoundSeg=0;
3098 Int_t NdoubleFoundSegPatterns[114];
3099
3100 // Bool variables for the different "regions" of the FakeBT Doublets
3101 Bool_t IsRegion0;
3102 Bool_t IsRegion1;
3103 Bool_t IsRegion2;
3104
3105 //gEDBDEBUGLEVEL=3;
3106 cout << "EdbPVRQuality::Remove_DoubleBT() Start looping now. Attention, this might take a while!" << endl;
3107
3110 NdoubleFoundSegPatterns[i]=0;
3111 }
3112
3113
3115
3116 // Create Target Pattern:
3119 // SetPattern Values to the parent patterns:
3123 // Helper Variable for cout purpose
3124 Int_t nPat=pat->N();
3125
3126 if (gEDBDEBUGLEVEL>1) cout << "EdbPVRQuality::Remove_DoubleBT() Looping over Ali_source->Pat()=" << i << " (PID=" << pat->PID() << ") with N= " << nPat << " segs. Until now double Candidates found: " << NdoubleFoundSeg << endl;
3127
3128
3129 for (int j = 0; j < nPat; j++ ) {
3130
3131 // condition due avoid floating point exception (divide by zero)
3133
3134 seg = pat->GetSegment(j);
3135 seg_seg_close=kFALSE;
3136
3137 for (int k = j; k < nPat; k++ ) {
3138 if (k==j) continue;
3139
3140
3141 if (seg_seg_close) continue;
3142
3143 if (gEDBDEBUGLEVEL>3) cout << "EdbPVRQuality::Remove_DoubleBT() Doing segment pair nr=" << j << "," << k << endl;
3144 seg1 = pat->GetSegment(k);
3145
3146 // Here decide f.e. which segments to check...
3147 Bool_t toContinue=kTRUE;
3148 // Here decide f.e. which segments to check...
3149 Bool_t toKeep=kFALSE;
3150
3151
3152 // Skip already large distances
3157 //
3158 // Segment Pairs can fall into three regions:
3159 //
3160 // region 0) all BT pairings within dT<->dR line
3161 //
3162 // region 1) all BT parings within a dR,dT rectangle at the origin
3163 //
3164 // region 2) all BT parings within a dR,dT rectangle at (0,6)
3165 //
3166 Float_t dR_allowed=0;
3167 Float_t deltaR=0;
3168 Float_t deltaTheta=0;
3169 Float_t dR_allowed_m_deltaR=0;
3170
3171 deltaTheta=TMath::Sqrt( TMath::Power(seg->TX()-seg1->TX(),2)+TMath::Power(seg->TY()-seg1->TY(),2) );
3172 if (deltaTheta>0.1) continue;
3173
3175
3176
3177 // line defined by experimental values (by some arbitrary bricks and my own BG-bricks)
3178 // dR_allowed = 10.75/0.1*deltaTheta; // old
3179 dR_allowed = 14.0/0.13*deltaTheta; // better description of the line
3180 dR_allowed_m_deltaR=TMath::Abs(deltaR-dR_allowed);
3181
3182 // Region check of the (Fake-)BTPair
3183 IsRegion0=kFALSE;
3184 IsRegion1=kFALSE;
3185 IsRegion2=kFALSE;
3186
3187 // Set flags for region
3188 if (dR_allowed_m_deltaR<0.5) IsRegion0=kTRUE;
3189 if (deltaR<3.0 && deltaTheta<0.01) IsRegion1=kTRUE;
3190 if (abs(deltaR-6.0)<2 && deltaTheta<0.01) IsRegion2=kTRUE;
3191
3192 // For this function now -in contrary to Remove_DoubleBT- we
3193 // ONLY keep double basetrack pairings within the line
3194 if (IsRegion0) toKeep=kTRUE;
3195 // or within the small square at the origin
3196 if (IsRegion1) toKeep=kTRUE;
3197 // or within the small square at the dR value
3198 if (IsRegion2) toKeep=kTRUE;
3199
3200 if (!toKeep) continue;
3201
3202 if (gEDBDEBUGLEVEL>3) cout << "EdbPVRQuality::Remove_DoubleBT() Found incompatible segment for dR_dT line condition: " << endl;
3203
3204 // if (gEDBDEBUGLEVEL>3) cout << "EdbPVRQuality::Remove_DoubleBT() Do last check if both are MCEvt segments of different event number! " << endl;
3206 // I have doubts if I shall take MC events also out, but I guess Yes, because if
3207 // in data these small pairings appear, then they will fall also under the
3208 // category "fake doublet" and then be removed, even if they are real double BT
3209 // from a signal.
3210
3211
3212 ++NdoubleFoundSeg;
3213 ++NdoubleFoundSegPatterns[i];
3214 seg_seg_close=kTRUE;
3215 } // for (int k = j+1; k <pat->N(); k++ )
3216
3217 if (seg_seg_close) continue;
3218
3219 // Add segment:
3221 pt->AddSegment(*seg);
3222
3223 }// for (int k)
3224
3227 } // for (int j)
3228
3231
3233 cout << "EdbPVRQuality::Remove_DoubleBT() Statistics: " << endl;
3234 cout << "EdbPVRQuality::Remove_DoubleBT() We found " << NdoubleFoundSeg << " double segments too close to each other to be different BTracks." << endl;
3235 cout << "EdbPVRQuality::Remove_DoubleBT() DoubleBT Statistics per pattern: " << endl;
3236 cout << setw(14) << "Pattern ID" << setw(14) << "#Segments = " << setw(14) << " #DoubleBT " << setw(14) << " Overhead(%) " << endl;
3237
3240 cout << setw(14) << pat->ID() << setw(14) << pat->N() << setw(14) << NdoubleFoundSegPatterns[i] << setw(14) << Double_t(NdoubleFoundSegPatterns[i])/(pat->N()+1) << endl;
3241 }
3242 }
3243
3244 cout << "EdbPVRQuality::Remove_DoubleBT()...done." << endl;
3245 return aliTarget;
3246}
◆ Remove_Passing()
Removes Passing Tracks from the EdbPVRec source object.
Unfortunately, there does NOT exist an easy function like
->RemoveSegment from EdbPVRec object. That makes implementation complicated
and we have to go via the intermediate step of creating a new
EdbPVRec volume.
3251{
3257
3258 cout << "EdbPVRQuality::Remove_Passing()." << endl;
3259 cout << "EdbPVRQuality::Remove_Passing() aliSource = " << aliSource << endl;
3261
3263 cout << "WARNING!----EdbPVRQuality::Remove_Passing() Source EdbPVRec is NULL. Try to change to object eAli_orig: " << eAli_orig << endl;
3265 cout << "WARNING!----EdbPVRQuality::Remove_Passing() Also eAli_orig EdbPVRec is NULL. Do nothing and return NULL pointer!" << endl;
3267 }
3268 else {
3269 aliSource=eAli_orig;
3270 }
3271 }
3272
3273 // Get the tracks from the source object:
3274 TObjArray* Tracks=aliSource->eTracks;
3275
3276 // If eAli source has no tracks, we return here and stop.
3278 cout << "WARNING!----EdbPVRQuality::Remove_Passing() NULL == eTracks." << endl;
3279 cout << "EdbPVRQuality::Remove_Passing() Read tracks from a linked_tracks.root file if there is any." << endl;
3280 Tracks=GetTracksFromLinkedTracksRootFile();
3281
3283 cout << "WARNING!----EdbPVRQuality::GetTracksFromLinkedTracksRootFile() NULL == eTracks." << endl;
3284 cout << "WARNING!----EdbPVRQuality::Remove_Passing() Reading tracks from a linked_tracks.root file failed." << endl;
3285 cout << "WARNING!----EdbPVRQuality::Remove_Passing() Return the original object back." << endl;
3286 return aliSource;
3287 }
3288 }
3289
3290 // Now the object array Tracks should be filled anyway, either from the source EdbPVR
3291 // or from the linked_tracks.root file:
3292 Int_t TracksN=Tracks->GetEntries();
3294 EdbSegP* trackseg;
3295
3297 cout << "EdbPVRQuality::Remove_Passing() aliSource/linked_tracks.root has Tracks N=" << TracksN << endl;
3298 }
3299
3300 // Make a new PVRec object anyway
3302 Bool_t seg_in_eTracks=kFALSE;
3303 Int_t totallyRemovedSegments=0;
3304 Int_t totallyAddedSegments=0;
3305 Int_t aliSourceNPat=aliSource->Npatterns();
3306
3307 for (int i = 0; i < aliSourceNPat; i++ ) {
3308 cout << "EdbPVRQuality::Remove_Passing() Looping over aliSource->Pat()=" << i << endl;
3309
3312 // SetPattern Values to the parent patterns:
3316
3319 seg_in_eTracks=kFALSE;
3320
3321 if (gEDBDEBUGLEVEL>3) cout << "Checking segment j= " << j << " and loop over tracks to check correspondance." <<endl;
3322
3323 for (int ll = 0; ll<TracksN; ll++ ) {
3325 Int_t TrackSegN=track->N();
3326
3327 // Compare if this track is regarded as "passing"
3328 // when its less than5 plates than the original pvr object
3330// cout << track->Npl() << " " << aliSourceNPat << endl;
3331
3332 // Here decide f.e. which tracks to check...
3333 // On cosmics it would be nice that f.e. Npl()>=Npatterns-4 ...
3334 // if ....()....
3335 // Since addresses of objects can vary, its better to compare them
3336 // by absolute positions.
3337
3338 for (int kk = 0; kk<TrackSegN; kk++ ) {
3339 if (seg_in_eTracks) continue;
3340 trackseg=track->GetSegment(kk);
3346 //cout << "Found compatible segment!! " << endl;
3347 totallyRemovedSegments++;
3348 seg_in_eTracks=kTRUE;
3349 }
3350 if (seg_in_eTracks) continue;
3351 }
3352 if (seg_in_eTracks) continue;
3353// // Arrived here then the segment has no equivalent in any segments
3354 // of the tracks array.
3355
3356 // Add segment:
3358 pt->AddSegment(*seg);
3359 totallyAddedSegments++;
3360 }
3361 if (gEDBDEBUGLEVEL>2) cout << "EdbPVRQuality::Remove_Passing() TotallyAddedSegments (up to now) = " << totallyAddedSegments << " // Add Pattern:" << endl;
3363 }
3364
3367
3368 cout << "EdbPVRQuality::Remove_Passing() Totally removed segments= " << totallyRemovedSegments << endl;
3369 cout << "EdbPVRQuality::Remove_Passing()...done." << endl;
3370 return aliTarget; // Warning, cppcheck says here:
3371 // [EdbPVRQuality.cxx:3281]: (error) Memory leak: Track
3372 // Dont know why yet ...
3373}
TObjArray * GetTracksFromLinkedTracksRootFile()
Definition: EdbPVRQuality.cxx:3618
Definition: bitview.h:14
◆ Remove_Segment()
| EdbPVRec * EdbPVRQuality::Remove_Segment | ( | EdbSegP * | seg, |
| EdbPVRec * | aliSource = NULL, |
||
| Int_t | Option = 0 |
||
| ) |
Remove one segment (EdbSegP* seg type).
Return a new EdbPVRec* with previous element removed.
3424 {
3427 cout << "EdbPVRQuality::Remove_Segment():" << endl;
3428 TObjArray* segArray= new TObjArray();
3429 segArray->Add(seg);
3430 Remove_SegmentArray(segArray,aliSource,Option);
3431 delete segArray;
3432 cout << "EdbPVRQuality::Remove_Segment()...done." << endl;
3434}
EdbPVRec * Remove_SegmentArray(TObjArray *segarray, EdbPVRec *aliSource=NULL, Int_t Option=0)
Definition: EdbPVRQuality.cxx:3378
◆ Remove_SegmentArray()
| EdbPVRec * EdbPVRQuality::Remove_SegmentArray | ( | TObjArray * | segarray, |
| EdbPVRec * | aliSource = NULL, |
||
| Int_t | Option = 0 |
||
| ) |
Every "Remove_XXY()" function will call Remove_SegmentArray() since the removal of
a segment array is easiest to implement. As said earlier, there is no easy function
to remove tracks from a EdbPVRec object directly. So instead we have to create a
new EdbPVRec object, fill with all basetracks from the old one, except where the
segments of the SegmentArray coincide with those which are in the source EdbPVRec.
3379{
3385
3386 cout << "EdbPVRQuality::Remove_SegmentArray():" << endl;
3387
3389 cout << "EdbPVRQuality::Remove_SegmentArray() ERROR aliSource=NULL pointer. I cannot" << endl;
3390 cout << "EdbPVRQuality::Remove_SegmentArray() ERROR do something here and I will return a NULL pointer now. Stop." << endl;
3392 }
3393
3395 cout << "EdbPVRQuality::Remove_SegmentArray() INFO " << endl;
3396 cout << "EdbPVRQuality::Remove_SegmentArray() segarray = " << segarray << " with " << segarray->GetEntries() << " entries." << endl;
3397 cout << "EdbPVRQuality::Remove_SegmentArray() aliSource = " << aliSource << " with " << aliSource->Npatterns() << " patterns." << endl;
3398 cout << "EdbPVRQuality::Remove_SegmentArray() Option = " << Option << "." << endl;
3399 }
3400
3401
3402 cout << "WARNING!!! THIS FUNCTION IS NOT YET IMPLEMENTED!!!"<<endl;
3403
3404 cout << "EdbPVRQuality::Remove_SegmentArray()...done." << endl;
3406}
◆ Remove_Track()
| EdbPVRec * EdbPVRQuality::Remove_Track | ( | EdbTrackP * | track, |
| EdbPVRec * | aliSource = NULL, |
||
| Int_t | Option = 0 |
||
| ) |
Remove one track (EdbTrackP* track type).
Return a new EdbPVRec* with previous element removed.
3438 {
3441 cout << "EdbPVRQuality::Remove_Track():" << endl;
3442 TObjArray* segArray= new TObjArray();
3444 Remove_SegmentArray(segArray,aliSource,Option);
3445 delete segArray;
3446 cout << "EdbPVRQuality::Remove_Track()...done." << endl;
3448}
TObjArray * TrackToSegmentArray(EdbTrackP *track)
Definition: EdbPVRQuality.cxx:3452
◆ Remove_TrackArray()
| EdbPVRec * EdbPVRQuality::Remove_TrackArray | ( | TObjArray * | trackArray, |
| EdbPVRec * | aliSource = NULL, |
||
| Int_t | Option = 0 |
||
| ) |
Remove a whole track array (Array of EdbTrackP type).
Return a new EdbPVRec* with previous element removed.
3410 {
3413 cout << "EdbPVRQuality::Remove_TrackArray():" << endl;
3414 TObjArray* segArray= new TObjArray();
3415 segArray= TrackArrayToSegmentArray(trackArray);
3416 Remove_SegmentArray(segArray,aliSource,Option);
3417 delete segArray;
3418 cout << "EdbPVRQuality::Remove_TrackArray()...done." << endl;
3420}
TObjArray * TrackArrayToSegmentArray(TObjArray *trackArray)
Definition: EdbPVRQuality.cxx:3467
◆ ResetHistos()
|
protected |
Reset Default Histograms
186{
189
190 // Reset histos for all patterns:
191 ResetHistosSinglePattern();
192
193 // Reset other histos for volume
194 eHistBTDensityVolume->Reset();
195 eProfileBTdens_vs_PID_source->Reset();
196 eProfileBTdens_vs_PID_target->Reset();
197
199}
◆ ResetHistosSinglePattern()
|
protected |
Reset Histograms which are filled for one pattern
204{
207 eHistXY->Reset();
208 eHistTXTY->Reset();
209 eHistWChi2->Reset();
210 eHistTT->Reset();
211 eHistChi2->Reset();
212 eHistW->Reset();
213 eHistWTilde->Reset();
214 eHistTTFillcheck->Reset();
215 eHistBTDensityPattern->Reset();
217}
◆ Set0()
|
protected |
Reset Values
222{
225
228 eNeedModified=kFALSE;
229 eIsSource=kFALSE;
230 eIsTarget=kFALSE;
231 eAli_maxNpatterns=0;
233 eCutMethod=1;
235
236 // Default BT density level for which the standard cutroutine
237 // will be put. This is for all tangens theta values integrated.
239
240 // Default factor for equalizing the tan theta space:
241 // soon to be deprecated... in favour of ... (???)
242 eCutTTSqueezeFactor = 0.5;
244
245 // Default BT density level will use only Data-segments for
246 // data calculation and segments of the same MC-event number.
247 eBTDensityLevelCalcMethodMC=kFALSE;
249
250 // Reset Default Geometry: 0 OperaGeometry, 1: MC Geometry
251 eHistGeometry=0;
252
253 //Reset Default Histograms
254 ResetHistos();
255
256 for (int i=0; i<114; i++) {
257 ePatternBTDensity_orig[i]=0;
258 ePatternBTDensity_modified[i]=0;
259 eCutp1[i]=0.15;
262 // Variables for the angular space also:
263 for (int j=0; j<20; j++) {
264 eCutTTp0[i][j]=1.00;
265 eCutTTp1[i][j]=0.15;
266 eXi2HatTT_m_chi2[i][j]=0;
267 eXi2HatTT_s_chi2[i][j]=0;
268 eXi2HatTT_m_WTilde[i][j]=0;
269 eXi2HatTT_s_WTilde[i][j]=0;
270 }
271 eXi2Hat_m_chi2[i]=0;
272 eXi2Hat_s_chi2[i]=0;
273 eXi2Hat_m_WTilde[i]=0;
274 eXi2Hat_s_WTilde[i]=0;
275 }
276
277 // Random Reduction of all BTs by a factor of 2
278 eRandomCutThreshold=0.5;
279
280 // Additional GlobalTTReductionFactorC in case the TT cutting still yields a too high BG density
281 eGlobalTTReductionFactorC=1;
282
291
292 // Default values for cosmics, taken from a brick data:
293 // (I cant remember which one, I hope it does not matter)
294 eAgreementChi2CutMeanChi2=1.0;
295 eAgreementChi2CutRMSChi2=0.3;
296 eAgreementChi2CutMeanW=23;
297 eAgreementChi2CutRMSW=3;
298
299 // Clear arrays for stored BTs in TT space
300 for (int i = 0; i <12; i++ ) {
301 eArrayPatternTTSource[i]->Clear();
302 eArrayPatternTTRejected[i]->Clear();
303 eArrayPatternTTAccepted[i]->Clear();
304 }
305 eArrayPatternAllTTSource->Clear();
306 eArrayPatternAllTTRejected->Clear();
307 eArrayPatternAllTTAccepted->Clear();
308
310 eArrayAllExcludedSegments->Clear();
311
313 return;
314}
◆ SetBTDensityLevel()
|
inline |
◆ SetBTDensityLevelCalcMethodMC()
|
inline |
◆ SetBTDensityLevelCalcMethodMCConfirmation()
|
inline |
220 {
221 eBTDensityLevelCalcMethodMCConfirmationNumber=BTDensityLevelCalcMethodMCConfirmationNumber;
222 }
◆ SetCutMethod()
| void EdbPVRQuality::SetCutMethod | ( | Int_t | CutMethod | ) |
Set Cut Method of the background reduction:
0: (option ): Do cut based on the linear relation: seg.Chi2()<seg.eW*a-b
1: (default): Do cut based on the linear relation: seg.Chi2()<seg.eW*a-b In Angular Bins
2: (testing): Do cut based on a chi2-variable that compares with passing tracks (if available), i.e. cosmics.
3: (testing): Do cut based on a chi2-variable that compares with passing tracks (if available), i.e. cosmics. In Angular Bins
4: (testing): Do cut based Xi2Hat relation.
5: (testing): Do cut based Xi2Hat relation. In Angular Bins
6: (testing): Do random cut based relation --> Just for quick test purposes and crosschecks
7: (option) : Do random cut based relation In Angular Bins --> Just for quick test purposes and crosschecks
384{
386
395
397
398 eCutMethod=CutMethod;
399
401 default:
403 break;
404 case 0:
406 cout << "// 0: (option ): Do cut based on the linear relation: seg.Chi2()<seg.eW*a-b " << endl;
407 break;
408 case 1:
410 cout << "// 1: (default): Do cut based on the linear relation: seg.Chi2()<seg.eW*a-b In Angular Bins " << endl;
411 break;
412 case 2:
414 cout << "// 2: (testing): Do cut based on a chi2-variable that compares with passing tracks (if available), i.e. cosmics. " << endl;
415 break;
416 case 3:
418 cout << "// 3: (testing): Do cut based on a chi2-variable that compares with passing tracks (if available), i.e. cosmics. In Angular Bins " << endl;
419 break;
420 case 4:
422 cout << "// 4: (testing): Do cut based Xi2Hat relation. " << endl;
423 break;
424 case 5:
426 cout << "// 5: (testing): Do cut based Xi2Hat relation. In Angular Bins " << endl;
427 break;
428 case 6:
430 cout << "// 6: (option ): Do random cut based relation --> Just for quick test purposes and crosschecks " << endl;
431 break;
432 case 7:
434 cout << "// 7: (option ): Do random cut based relation In Angular Bins --> Just for quick test purposes and crosschecks. " << endl;
435 break;
436 }
437
438 if (CutMethod>7) {
439 eCutMethod=0;
440 cout << "WARNING EdbPVRQuality::SetCutMethod eCutMethod invalid, Set back to default eCutMethod = " << eCutMethod << endl;
441 }
442
445 return;
446}
◆ SetCutMethodIsDone()
|
inline |
◆ SetCutTTReductionFactor()
|
inline |
◆ SetCutTTSqueezeFactor()
|
inline |
◆ SetEdbPVRec()
263 {
264 eAli_orig=Ali_orig;
265 eIsSource=kTRUE;
267 if (eAli_maxNpatterns>57) cout << " This tells us not yet if we do have one/two brick reconstruction done. A possibility could also be that the dataset was read with microtracks. Further investigation is needed! (On todo list)." << endl;
269 cout << "WARNING EdbPVRQuality::SetEdbPVRec eAli_orig->Npatterns() = " << eAli_maxNpatterns << " is greater than possible basetrack data of two bricks. This class does (not yet) work with this large number of patterns. Set maximum patterns to 114 !!!" << endl;
270 eAli_maxNpatterns=114;
271 }
272 }
◆ SetHistGeometry_MC()
| void EdbPVRQuality::SetHistGeometry_MC | ( | ) |
Set the geometry of the basetrack density evaluation using simulation case,
MC ORFEO size conventions: x=-xmax..0..+xmax;y=-ymax..0..ymax).
BinArea is 1mmx1mm
◆ SetHistGeometry_OPERA()
| void EdbPVRQuality::SetHistGeometry_OPERA | ( | ) |
Set the geometry of the basetrack density evaluation using OPERA case,
European Scanning System size conventions: x=0..125000;y=0..100000).
BinArea is 1mmx1mm.
◆ SetHistGeometry_OPERAandMC()
| void EdbPVRQuality::SetHistGeometry_OPERAandMC | ( | ) |
Set the geometry of the basetrack density evaluation covering MC and DATA case,
size conventions: x=-125000..0..+125000;y=-125000..0..125000).
BinArea is 1mmx1mm
◆ SetHistGeometry_OPERAandMCBinArea4mm2()
| void EdbPVRQuality::SetHistGeometry_OPERAandMCBinArea4mm2 | ( | ) |
Set the geometry of the basetrack density evaluation covering MC and DATA case,
size conventions: x=-125000..0..+125000;y=-125000..0..125000).
BinArea is 2 mm x 2 mm
1042{
1046
1047 Log(3,"EdbPVRQuality::SetHistGeometry_OPERAandMCBinArea4mm2","SetHistGeometry_OPERAandMCBinArea4mm2");
1048 eHistXY->Reset();
1049 eHistXY->SetBins(125,-125000,125000,125,-125000,125000);
1050 Log(3,"EdbPVRQuality::SetHistGeometry_OPERAandMCBinArea4mm2","Binwidth (micron)= %.01f.", eHistXY->GetXaxis()->GetBinWidth(1));
1051 Log(3,"EdbPVRQuality::SetHistGeometry_OPERAandMCBinArea4mm2","SetHistGeometry_OPERAandMCBinArea4mm2...done");
1052 return;
1053}
◆ SetHistGeometry_OPERAandMCBinArea625()
| void EdbPVRQuality::SetHistGeometry_OPERAandMCBinArea625 | ( | ) |
Set the geometry of the basetrack density evaluation covering MC and DATA case,
size conventions: x=-125000..0..+125000;y=-125000..0..125000).
BinArea is 2.5mmx2.5mm
1027{
1031
1032 Log(3,"EdbPVRQuality::SetHistGeometry_OPERAandMCBinArea625","SetHistGeometry_OPERAandMCBinArea625");
1033 eHistXY->Reset();
1034 eHistXY->SetBins(100,-125000,125000,100,-125000,125000);
1035 Log(3,"EdbPVRQuality::SetHistGeometry_OPERAandMCBinArea625","Binwidth (micron)= %.01f.", eHistXY->GetXaxis()->GetBinWidth(1));
1036 Log(3,"EdbPVRQuality::SetHistGeometry_OPERAandMCBinArea625","SetHistGeometry_OPERAandMCBinArea625...done");
1037 return;
1038}
◆ TrackArrayToSegmentArray()
| TObjArray * EdbPVRQuality::TrackArrayToSegmentArray | ( | TObjArray * | trackArray | ) |
Convert segments of tracks of a track array into an TObjArray containing segments.
3467 {
3469 TObjArray* segArray= new TObjArray();
3470 Int_t nSegTotal=0;
3471 for (int j=0; j<trackArray->GetEntries(); j++) {
3475 segArray->Add(seg);
3476 ++nSegTotal;
3477 }
3478 }
3479 if (gEDBDEBUGLEVEL>3) cout << "EdbPVRQuality::TrackArrayToSegmentArray() Totally added: " << nSegTotal << " segments from the track array."<<endl;
3480 return segArray;
3481}
◆ TrackToSegmentArray()
| TObjArray * EdbPVRQuality::TrackToSegmentArray | ( | EdbTrackP * | track | ) |
Convert segments of a track into an TObjArray containing segments.
3452 {
3454 TObjArray* segArray= new TObjArray();
3455 Int_t nSegTotal=0;
3458 segArray->Add(seg);
3459 ++nSegTotal;
3460 }
3461 if (gEDBDEBUGLEVEL>3) cout << "EdbPVRQuality::TrackToSegmentArray() Totally added: " << nSegTotal << " segments from the track."<<endl;
3462 return segArray;
3463}
◆ X2HatCutRelation()
| Bool_t EdbPVRQuality::X2HatCutRelation | ( | EdbSegP * | seg, |
| Double_t | CutValueX2Hat, | ||
| Double_t | CutValueX2Hat_Chi2Mean, | ||
| Double_t | CutValueX2Hat_Chi2Sigma, | ||
| Double_t | CutValueX2Hat_WTildeMean, | ||
| Double_t | CutValueX2Hat_WTildeSigma | ||
| ) |
5635 {
5636
5637 Double_t Wtilde=1./seg->W();
5638 Double_t Chi2=seg->Chi2();
5639
5640 Double_t X2Hat= TMath::Power( ( Chi2 - CutValueX2Hat_Chi2Mean ) / (CutValueX2Hat_Chi2Sigma) , 2 ) + TMath::Power( ( Wtilde - CutValueX2Hat_WTildeMean ) / (CutValueX2Hat_WTildeSigma) , 2 ) ;
5641
5642 if (X2Hat<CutValueX2Hat) return kTRUE;
5643 return kFALSE;
5644}
Member Data Documentation
◆ eAgreementChi2CutMeanChi2
|
private |
◆ eAgreementChi2CutMeanW
|
private |
◆ eAgreementChi2CutRMSChi2
|
private |
◆ eAgreementChi2CutRMSW
|
private |
◆ eAgreementChi2WDistCut
|
private |
◆ eAli_maxNpatterns
|
private |
◆ eAli_modified
|
private |
◆ eAli_orig
|
private |
◆ eAli_pointer
|
private |
◆ eArrayAllExcludedSegments
|
private |
0: FakeDoubletBTs 1: High Density BTs 2: Cosmics Passing Through BTs 3: Event Related BTs
TODO: MAYBE MOVE THIS ARRAY TO ONLY ONE OBJECT, SO THAT IT CAN BE FILLED AND ADDED WITHOUT FURTHER CONSTRAINST..... OR SIMPLY ADD A FIFTH ARRAY, WHERE ALL excluded SEGMENTS CAN BE PUT IN ANYWAY????
This array is containing all pattern all different source arrays:
◆ eArrayPatternAllExcluded
|
private |
Arrays of segments which are to be excluded, when creating the new EdbPVRec volume (see BG Note description) Nota bene: these arrays contain all pattern BTs, so add them after pattern looping
◆ eArrayPatternAllTTAccepted
|
private |
after specific cut, BTs here will be kept
◆ eArrayPatternAllTTRejected
|
private |
after specific cut, these BTs wont be taken
◆ eArrayPatternAllTTSource
|
private |
should have same entries as the corresponding EdbPattern
◆ eArrayPatternTTAccepted
|
private |
after specific cut, BTs here will be kept
◆ eArrayPatternTTRejected
|
private |
after specific cut, these BTs wont be taken
◆ eArrayPatternTTSource
|
private |
should have same entries as the corresponding EdbPattern
◆ eBinTT
|
private |
◆ eBTDensityLevel
|
private |
◆ eBTDensityLevelAngularSpace
|
private |
◆ eBTDensityLevelCalcMethodMC
|
private |
◆ eBTDensityLevelCalcMethodMCConfirmationNumber
|
private |
◆ eCutDistChi2
|
private |
◆ eCutDistW
|
private |
◆ eCutMethod
|
private |
◆ eCutMethodIsDone
|
private |
◆ eCutMethodString
|
private |
◆ eCutp0
|
private |
◆ eCutp1
|
private |
◆ eCutTTp0
|
private |
◆ eCutTTp1
|
private |
◆ eCutTTReductionFactor
|
private |
◆ eCutTTSqueezeFactor
|
private |
◆ eGlobalTTReductionFactorC
|
private |
◆ eHistBTDensityPattern
|
private |
◆ eHistBTDensityVolume
|
private |
◆ eHistChi2
|
private |
◆ eHistGeometry
|
private |
◆ eHistTT
|
private |
◆ eHistTTFillcheck
|
private |
◆ eHistTXTY
|
private |
◆ eHistW
|
private |
◆ eHistWChi2
|
private |
◆ eHistWTilde
|
private |
◆ eHistXY
|
private |
◆ eIsSource
|
private |
◆ eIsTarget
|
private |
◆ eNeedModified
|
private |
◆ ePatternBTDensity_modified
|
private |
◆ ePatternBTDensity_orig
|
private |
◆ eProfileBTdens_vs_PID_generic
|
private |
◆ eProfileBTdens_vs_PID_source
|
private |
◆ eProfileBTdens_vs_PID_source_meanX
|
private |
◆ eProfileBTdens_vs_PID_source_meanY
|
private |
◆ eProfileBTdens_vs_PID_source_rmsX
|
private |
◆ eProfileBTdens_vs_PID_source_rmsY
|
private |
◆ eProfileBTdens_vs_PID_target
|
private |
◆ eProfileBTdens_vs_PID_target_meanX
|
private |
◆ eProfileBTdens_vs_PID_target_meanY
|
private |
◆ eProfileBTdens_vs_PID_target_rmsX
|
private |
◆ eProfileBTdens_vs_PID_target_rmsY
|
private |
◆ eRandomCutThreshold
|
private |
◆ eX2Hat
|
private |
TO BE IMPLEMENTED HERE ... ... ... ... ... ... ... ... ... ...
◆ eX2HatCut
|
private |
◆ eXi2Hat_m_chi2
|
private |
◆ eXi2Hat_m_WTilde
|
private |
◆ eXi2Hat_s_chi2
|
private |
◆ eXi2Hat_s_WTilde
|
private |
◆ eXi2HatTT_m_chi2
|
private |
◆ eXi2HatTT_m_WTilde
|
private |
◆ eXi2HatTT_s_chi2
|
private |
◆ eXi2HatTT_s_WTilde
|
private |
◆ maxX
|
private |
◆ maxY
|
private |
◆ minX
|
private |
◆ minY
|
private |
◆ NbinsX
|
private |
◆ NbinsY
|
private |
The documentation for this class was generated from the following files:
- /home/antonio/fedra_doxygen/src/libShower/EdbPVRQuality.h
- /home/antonio/fedra_doxygen/src/libShower/EdbPVRQuality.cxx
