EdbPVGen Class Reference

#include <EdbPVGen.h>

Inheritance diagram for EdbPVGen:

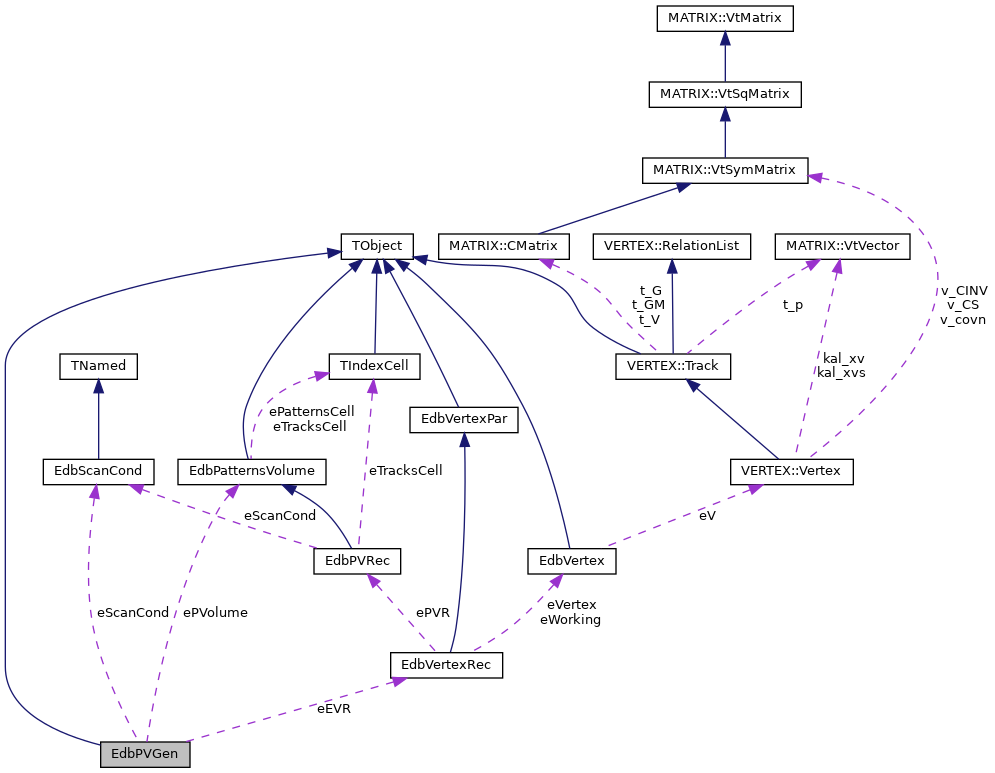

Collaboration diagram for EdbPVGen:

Public Member Functions
void	AddTrack (EdbTrackP *track)
void	AddVertex (EdbVertex *vtx)
	EdbPVGen ()
void	FillRecVolumeBT (EdbPatternsVolume &vrec)
void	GenerateBackground (int n, float x[4], float sx[4], int flag=0)
void	GenerateBackgroundTracks (int nb, float vlim[4], float lim[4], float plim[2], float TetaMax, float ProbGap, int eloss_flag)
void	GenerateBeam (int n, float x[4], float sx[4], float lim[4], float z0, int flag=0)
void	GeneratePhaseSpaceEvents (int nv, TGenPhaseSpace *pDecay, float vzlim[2], float vlim[4], float lim[4], float ProbGap, int eloss_flag, int *charges)
void	GeneratePhaseSpaceEventsWithDecay (int nv, TGenPhaseSpace *pDecay, TGenPhaseSpace *pSecond, float vzlim[2], float vlim[4], float lim[4], float ProbGap, int eloss_flag, int *charges)
void	GeneratePulsGaus (float amp, float mean, float sigma, float wmin=0, float wmax=0., int flag=0)
void	GeneratePulsPoisson (float mean, float amp=1., float wmin=0, float wmax=0., int flag=0)
void	GenerateUncorrelatedSegments (int nb, float lim[4], float TetaMax, int flag)
EdbPatternsVolume *	GetVolume () const
int	MakeTracksMC (int nsegmin, TObjArray *tracks)
float	PropagateSegment (EdbSegP &s, float dz, float X0, float m, int eloss_flag)
void	SetScanCond (EdbScanCond *scan)
void	SetVolume (EdbPatternsVolume *pv)
void	SmearPatterns (float shift, float rot)
void	SmearSegment (EdbSegP &s, EdbScanCond &cond)
void	SmearSegments ()
void	TrackMC (float zlim[2], float lim[4], EdbTrackP &tr, int eloss_flag=0, float PGap=0.)
int	TrackMC2 (EdbTrackP &tr, EdbLayer &lim, int eloss_flag, float PGap)
	~EdbPVGen ()

Public Attributes
EdbVertexRec *	eEVR
TObjArray *	eTracks
TObjArray *	eVTX

Private Attributes
EdbPatternsVolume *	ePVolume
EdbScanCond *	eScanCond

Constructor & Destructor Documentation

EdbPVGen()

EdbPVGen::EdbPVGen

(

)

~EdbPVGen()

EdbPVGen::~EdbPVGen

(

)

---

{
  if(eEVR)            delete eEVR;
  if(eTracks)         delete eTracks;
  if(eVTX)            delete eVTX;
}

Member Function Documentation

AddTrack()

void EdbPVGen::AddTrack ( EdbTrackP *  track )

inline

                                  {
    if(!eTracks) { eTracks = new TObjArray(); eEVR->eEdbTracks = eTracks; }
    eTracks->Add(track);
  }

AddVertex()

void EdbPVGen::AddVertex ( EdbVertex *  vtx )

inline

                                 {
    if(!eVTX) { eVTX = new TObjArray(); eEVR->eVTX = eVTX; }
    eVTX->Add((TObject*)vtx);
  }

FillRecVolumeBT()

void EdbPVGen::FillRecVolumeBT

(

EdbPatternsVolume &

vrec

)

{
  // fill extarnal volume vrec with basetracks
  EdbPatternsVolume *pv = GetVolume();
  int npat = pv->Npatterns();
  if( npat!= vrec.Npatterns()) {
    Log(1,"EdbPVGen::FillRecVolumeBT","Error! different volumes structure");
    return;
  }
  for( int i=0; i<pv->Npatterns(); i++ ) {
    EdbPattern *pat = pv->GetPattern(i);
    EdbPattern *patr = vrec.GetPattern(i);

    for( int j=0; j<pat->N(); j++ ) {
      EdbSegP    *seg = pat->GetSegment(j);
      printf("%f %f \n", seg->W(), eScanCond->ProbSeg( seg->TX(), seg->TY(), seg->W()) );
      if( eScanCond->ProbSeg( seg->TX(), seg->TY(), seg->W()) > 0.05 )   {
        patr->AddSegment(*seg);
      }
    }
  }
}

GenerateBackground()

void EdbPVGen::GenerateBackground	(	int	n,
		float	x[4],
		float	sx[4],
		int	flag = 0
	)

{
  EdbPatternsVolume *pv = GetVolume();

  Float_t x,y,z,tx,ty;

  EdbPattern *pat = 0;
  EdbSegP    *seg = new EdbSegP();

  for( int j=0; j<n; j++ ) {

    for (int i=0; i<pv->Npatterns(); i++ ) {

      pat = pv->GetPattern(i);
      z = pat->Z();

      x  = xmin[0] + (xmax[0]-xmin[0]) * gRandom->Rndm();
      y  = xmin[1] + (xmax[1]-xmin[1]) * gRandom->Rndm();
      tx = xmin[2] + (xmax[2]-xmin[2]) * gRandom->Rndm();
      ty = xmin[3] + (xmax[3]-xmin[3]) * gRandom->Rndm();

      seg->Set(j, x, y, tx, ty,1,0);
      seg->SetZ(z);
      seg->SetFlag(flag);
      pat->AddSegment( *seg );

    }
  }
}

GenerateBackgroundTracks()

void EdbPVGen::GenerateBackgroundTracks	(	int	nb,
		float	vlim[4],
		float	lim[4],
		float	plim[2],
		float	TetaMax,
		float	ProbGap,
		int	eloss_flag
	)

{
  // event generation
  float x, y, z, costmin = TMath::Cos(TetaMax);
  float cost, sint, phi, tx, ty, ex, ey, ez, p;
  float zlim[2];
  EdbTrackP *trb = 0;
  EdbPatternsVolume *pv = GetVolume();

  zlim[0] = (pv->GetPattern(0))->Z();
  int np  = pv->Npatterns();
  zlim[1] = (pv->GetPattern(np-1))->Z();

  int id = 0;
  if (eTracks) id = eTracks->GetEntries();

  for(int i=0; i<nb; i++) {

    x = vlim[0] + (vlim[2] - vlim[0])*gRandom->Rndm();
    y = vlim[1] + (vlim[3] - vlim[1])*gRandom->Rndm();
    z = zlim[0];

    cost = costmin + (1. - costmin)*gRandom->Rndm();
    sint = TMath::Sqrt(1. - cost*cost);
    phi  = TMath::TwoPi()*gRandom->Rndm();
    ex = sint*TMath::Cos(phi);
    ey = sint*TMath::Sin(phi);
    ez = cost;
    tx = ex/ez;
    ty = ey/ez;
    trb = new EdbTrackP();
    trb->Set(id++, x, y, tx, ty, 1, 0);
    trb->SetZ(z);
    trb->SetPID(0);
    p = plim[0] + (plim[1] - plim[0])*gRandom->Rndm();
    trb->SetP(p);
    trb->SetM(0.139);

    // generation of background track segments

    TrackMC( zlim, lim, *trb, eloss_flag, ProbGap );
//  delete trb;
    if (trb->N() <= 0)
    {
        delete trb;
        trb = 0;
        id--;
    }
    else
    {
        AddTrack(trb);
    }
  }

}

GenerateBeam()

void EdbPVGen::GenerateBeam	(	int	n,
		float	xx[4],
		float	sxx[4],
		float	lim[4],
		float	z0,
		int	flag = 0
	)

---

{
  EdbPatternsVolume *pv = GetVolume();

  Float_t x0,y0,x,y,z,tx,ty;

  EdbPattern *pat = 0;
  EdbSegP    *seg = new EdbSegP();

  int j=0;
  while(j<n) {

    x0 = xx[0] + sxx[0] * gRandom->Gaus();
    y0 = xx[1] + sxx[1] * gRandom->Gaus();
    if(x0<lim[0])                      continue;
    if(y0<lim[1])                      continue;
    if(x0>lim[2])                      continue;
    if(y0>lim[3])                      continue;
    j++;
    tx = xx[2] + sxx[2] * gRandom->Gaus();
    ty = xx[3] + sxx[3] * gRandom->Gaus();      // starting point (at z0)

    for (int i=0; i<pv->Npatterns(); i++ ) {

      pat = pv->GetPattern(i);
      z = pat->Z();

      x = x0 + tx*(z-z0);
      y = y0 + ty*(z-z0);

      seg->Set(j, x, y, tx, ty,1,0);
      seg->SetZ(z);
      seg->SetFlag(flag);
      pat->AddSegment( *seg );

    }
  }
}

GeneratePhaseSpaceEvents()

void EdbPVGen::GeneratePhaseSpaceEvents	(	int	nv,
		TGenPhaseSpace *	pDecay,
		float	vzlim[2],
		float	vlim[4],
		float	lim[4],
		float	ProbGap,
		int	eloss_flag,
		int *	charges
	)

{
  // Phase Space event generation
  float x;
  float y;
  float z;
  float zlimt[2];
  EdbVertex *vedb = 0;
  EdbTrackP *tr = 0;
  Double_t    weight, tx, ty;
  TLorentzVector *pi = 0;
  int numt = 0, numv = 0, nt = 0, ntrgood = 0;
  double pxs,pys,pzs,es, p2;
  float mp, pp;

  if (eTracks) numt = eTracks->GetEntries();

  int nvmod = nv;

  if (eVTX) numv = eVTX->GetEntries();

  for(int iv=0; iv<nvmod; iv++) {
    vedb = new EdbVertex();
    x = vlim[0] + (vlim[2] - vlim[0])*gRandom->Rndm();
    y = vlim[1] + (vlim[3] - vlim[1])*gRandom->Rndm();
    z = vzlim[0] + (vzlim[1] - vzlim[0])*gRandom->Rndm();
    vedb->SetXYZ(x, y, z);
    vedb->SetFlag(1);

    weight = pDecay->Generate();

    nt = pDecay->GetNt();
    pxs = 0.;
    pys = 0.;
    pzs = 0.;
    es = 0.;
    ntrgood = 0;

    for(int ip=0; ip<nt; ip++) {
    pi = pDecay->GetDecay(ip);
    pxs += pi->Px();
    pys += pi->Py();
    pzs += pi->Pz();
    es  += pi->E();
    if (!charges[ip]) continue;
    tr = new EdbTrackP();
    tx = pi->Px()/pi->Pz();
    ty = pi->Py()/pi->Pz();
    tr->Set(numt++, x, y, (float)tx, (float)ty, 1, numv+1);
    tr->SetZ(z);
    tr->SetP(pi->P());
    tr->SetM(pi->M());

    // generation of track segments for secondary particles

    if (pi->Pz() >= 0.)
    {
        zlimt[0] = z;
        zlimt[1] = 200000.;
    }
    else
    {
        zlimt[0] = z;
        zlimt[1] = -1000.;
    }
    TrackMC( zlimt, lim, *tr, eloss_flag, ProbGap);
    if (tr->N() > 0)
    {
        if (pi->Pz() < 0.)
        eEVR->AddTrack(*vedb, tr, 0);
        else
        eEVR->AddTrack(*vedb, tr, 1);
        AddTrack(tr);
        ntrgood++;
    }
    else
    {
        delete tr;
        tr = 0;
        numt--;
    }
    }

    // generate primary track
    if (z > 300. && charges[nt])
    {
    p2 = pxs*pxs + pys*pys + pzs*pzs;
    pp = TMath::Sqrt(p2);
    mp = TMath::Sqrt(es*es - p2);
    tr = new EdbTrackP();
    tr->Set(numt++, x, y, 0., 0., 1, numv+1);
    tr->SetZ(0);
    tr->SetP(pp);
//  tr->SetP(1000000.);
    tr->SetM(mp);

    // generation of track segments for primary particle

    zlimt[0] = z;
    zlimt[1] = -1000.;
    TrackMC( zlimt, lim, *tr, 0, ProbGap );
    if (tr->N() > 0)
    {
        eEVR->AddTrack(*vedb, tr, 0);
        AddTrack(tr);
        ntrgood++;
    }
    else
    {
        delete tr;
        tr = 0;
        numt--;
    }
    }

    if (ntrgood == 0)
    {
    delete vedb;
    vedb = 0;
//  nvmod++;
    }
    else
    if (ntrgood == 1)
    {
    delete vedb;
    vedb = 0;
    if (tr) tr->SetFlag(0);
//  nvmod++;
    }
    else
    {
    AddVertex(vedb);
    numv++;
    }
  }
}

GeneratePhaseSpaceEventsWithDecay()

void EdbPVGen::GeneratePhaseSpaceEventsWithDecay	(	int	nv,
		TGenPhaseSpace *	pDecay,
		TGenPhaseSpace *	pSecond,
		float	vzlim[2],
		float	vlim[4],
		float	lim[4],
		float	ProbGap,
		int	eloss_flag,
		int *	charges
	)

{
  // Phase Space event generation
  float x, xd = 0.;
  float y, yd = 0.;
  float z, zd = 0.;
  float zlimt[2];
  TGenPhaseSpace *pCurrent = 0;
  EdbVertex *vedb = 0;
  EdbTrackP *tr = 0, *trdec = 0;
  Double_t    weight, tx, ty;
  TLorentzVector *pi = 0;
  int numt = 0, numv = 0, nt = 0, ntrgood = 0, nts = 0, zposprim = -1;
  double pxs,pys,pzs,es, p2, masses[18];
  float mp, pp;

  if (eTracks) numt = eTracks->GetEntries();

  int nvmod = nv;

  if (eVTX) numv = eVTX->GetEntries();


  pSecond->Generate();
  nts = pSecond->GetNt();
  for(int ip=0; ip<nts; ip++) {
    pi = pSecond->GetDecay(ip);
    masses[ip] = pi->M();
  }

  for(int iv=0; iv<nvmod; iv++) {

   pCurrent = pDecay;
   x = vlim[0] + (vlim[2] - vlim[0])*gRandom->Rndm();
   y = vlim[1] + (vlim[3] - vlim[1])*gRandom->Rndm();
   z = vzlim[0] + (vzlim[1] - vzlim[0])*gRandom->Rndm();

   trdec = 0;

   zposprim = -1;

   for(int ic=0; ic<2; ic++) {

    ntrgood = 0;

    if (ic == 1)
    {
    pCurrent = pSecond;
    x = xd;
    y = yd;
    z = zd;
    }

    vedb = new EdbVertex();
    vedb->SetXYZ(x, y, z);
    if (ic==0) vedb->SetFlag(1);

    weight = pCurrent->Generate();

    nt = pCurrent->GetNt();
    pxs = 0.;
    pys = 0.;
    pzs = 0.;
    es = 0.;
    ntrgood = 0;

    for(int ip=0; ip<nt; ip++) {
    pi = pCurrent->GetDecay(ip);
    pxs += pi->Px();
    pys += pi->Py();
    pzs += pi->Pz();
    es  += pi->E();
    if ((charges[ip] == 0 && ic == 0) || pi->M() == .135) continue;
    tx = pi->Px()/pi->Pz();
    ty = pi->Py()/pi->Pz();
    if (charges[ip] > 0 || ic == 1)
    {
      tr = new EdbTrackP();
      tr->Set(numt++, x, y, (float)tx, (float)ty, 1, numv+1);
      tr->SetZ(z);
      tr->SetP(pi->P());
      tr->SetM(pi->M());
      if (pi->Pz() >= 0.)
      {
        zlimt[0] = z;
        zlimt[1] = 200000.;
      }
      else
      {
        zlimt[0] = z;
        zlimt[1] = -1000.;
      }
    }
    // generation of track segments for secondary particles

    if (TMath::Abs((double)charges[ip]) > 10. && ic == 0)
    {
        double mpath = (pi->E()/pi->M())*TMath::Abs((double)charges[ip]);
        double path  = gRandom->Exp(mpath);
        path = path*(pi->Pz()/pi->P());
        if (pi->Pz() >= 0.)
        {
        zlimt[0] = z;
        zlimt[1] = z+path;
        zd = zlimt[1];
        xd = x + tx*path;
        yd = y + ty*path;
        }
        else
        {
        zlimt[0] = z;
        zlimt[1] = z+path;
        zd = zlimt[1];
        xd = x - tx*path;
        yd = y - ty*path;
        }
        pSecond->SetDecay(*pi, nts, (double *)&masses[0]);
        if (charges[ip] < 0) continue;
    }
    TrackMC( zlimt, lim, *tr, eloss_flag, ProbGap);
    if (tr->N() > 0)
    {
        if (pi->Pz() < 0.)
        eEVR->AddTrack(*vedb, tr, 0);
        else
        eEVR->AddTrack(*vedb, tr, 1);
        AddTrack(tr);
        ntrgood++;
        if (TMath::Abs((double)charges[ip]) > 10. && ic == 0)
        {
        trdec = tr;
        if (pi->Pz() < 0.)
            zposprim = 1;
        else
            zposprim = 0;
        }
    }
    else
    {
        delete tr;
        tr = 0;
        numt--;
    }
    }

    // generate primary track
    if (z > 300. && charges[nt] && ic == 0)
    {
    p2 = pxs*pxs + pys*pys + pzs*pzs;
    pp = TMath::Sqrt(p2);
    mp = TMath::Sqrt(es*es - p2);
    tr = new EdbTrackP();
    tr->Set(numt++, x, y, 0., 0., 1, numv+1);
    tr->SetZ(0);
    tr->SetP(pp);
//  tr->SetP(1000000.);
    tr->SetM(mp);

    // generation of track segments for primary particle

    zlimt[0] = z;
    zlimt[1] = -1000.;
    TrackMC( zlimt, lim, *tr, 0, ProbGap );
    if (tr->N() > 0)
    {
        eEVR->AddTrack(*vedb, tr, 0);
        AddTrack(tr);
        ntrgood++;
    }
    else
    {
        delete tr;
        tr = 0;
        numt--;
    }
    }

    if (ntrgood == 0)
    {
    delete vedb;
    vedb = 0;
//  nvmod++;
    }
    else
    if (ntrgood == 1)
    {
    delete vedb;
    vedb = 0;
    if (tr) tr->SetFlag(0);
//  nvmod++;
    }
    else
    {
    AddVertex(vedb);
    numv++;
    if (ic==1 && trdec)     eEVR->AddTrack(*vedb, trdec, zposprim);
    if (ic==1 && trdec)     trdec->SetMC(numv, 0);
    }
   } // primary, secondary vertexes loop
  } // loop on vertexes pairs
}

GeneratePulsGaus()

void EdbPVGen::GeneratePulsGaus	(	float	amp,
		float	mean,
		float	sigma,
		float	wmin = 0,
		float	wmax = 0.,
		int	flag = 0
	)

{
  EdbPatternsVolume *pv = GetVolume();

  EdbPattern *pat = 0;
  EdbSegP    *seg = 0;
  float w;

  for( int i=0; i<pv->Npatterns(); i++ ) {
    pat = pv->GetPattern(i);

    for( int j=0; j<pat->N(); j++ ) {
      seg = pat->GetSegment(j);
      if(flag>0)  if( seg->Flag() != flag)  continue;

    REGEN:
      w = (int)(amp * gRandom->Gaus(mean,sigma));
      if(wmin>0) if(w<wmin) goto REGEN;
      if(wmax>0) if(w>wmax) w = wmax;

      seg->SetW( w );
    }
  }
}

GeneratePulsPoisson()

void EdbPVGen::GeneratePulsPoisson	(	float	mean,
		float	amp = 1.,
		float	wmin = 0,
		float	wmax = 0.,
		int	flag = 0
	)

{
  EdbPatternsVolume *pv = GetVolume();

  EdbPattern *pat = 0;
  EdbSegP    *seg = 0;
  float w;

  for( int i=0; i<pv->Npatterns(); i++ ) {
    pat = pv->GetPattern(i);

    for( int j=0; j<pat->N(); j++ ) {
      seg = pat->GetSegment(j);
      if(flag>0)  if( seg->Flag() != flag)  continue;

    REGEN:
      w = a * gRandom->Poisson(mean);
      if(wmin>0) if(w<wmin) goto REGEN;
      if(wmax>0) if(w>wmax) w = wmax;

      seg->SetW( w );
    }
  }
}

GenerateUncorrelatedSegments()

void EdbPVGen::GenerateUncorrelatedSegments	(	int	nb,
		float	lim[4],
		float	TetaMax,
		int	flag
	)

{
  // generation of uncorrelated segments background

  float x, y, z, tx, ty, costmin = TMath::Cos(TetaMax);
  float cost, phi, ex, ey, ez, sint;
  int segnum = 0;
  EdbSegP *s=0;
  EdbPattern *pat = 0;
  EdbPatternsVolume *pv = GetVolume();
  s = new EdbSegP();

  Float_t sx=eScanCond->SigmaX(0.), sy=eScanCond->SigmaY(0.);
  Float_t stx=eScanCond->SigmaTX(0.), sty=eScanCond->SigmaTY(0.);

  for(int np=0; np<pv->Npatterns(); np++)
  {
    pat = pv->GetPattern(np);
    z = pat->Z();
    segnum = pat->N();
    for(int i=0; i<nb; i++) {

    x = lim[0] + (lim[2] - lim[0])*gRandom->Rndm();
    y = lim[1] + (lim[3] - lim[1])*gRandom->Rndm();

    cost = costmin + (1. - costmin)*gRandom->Rndm();
    sint = TMath::Sqrt(1. - cost*cost);
    phi  = TMath::TwoPi()*gRandom->Rndm();
    ex = sint*TMath::Cos(phi);
    ey = sint*TMath::Sin(phi);
    ez = cost;
    tx = ex/ez;
    ty = ey/ez;
    s->Set(segnum++, x, y, tx, ty, 1, flag);
    s->SetZ(z);
    s->SetP(4.);
    s->SetPID(np);
    s->SetDZ(290.);
    tx = TMath::Sqrt(tx*tx+ty*ty);
    sx=eScanCond->SigmaX(tx);
    sy=eScanCond->SigmaY(0.);
    stx=eScanCond->SigmaTX(tx);
    sty=eScanCond->SigmaTY(0.);
    s->SetErrorsCOV(sx*sx, sy*sy, 0., stx*stx, sty*sty, 0.);

        pat->AddSegment( *s );
    }
  }
  delete s;
}

GetVolume()

EdbPatternsVolume * EdbPVGen::GetVolume ( ) const

inline

{ return ePVolume;}

MakeTracksMC()

int EdbPVGen::MakeTracksMC	(	int	nsegmin,
		TObjArray *	tracks
	)

{
  // use MC data and form tracks array

  if (!eTracks) return 0;
  if (!tracks) return 0;
  tracks->Delete();
  tracks->Clear();

  printf("make tracks from MC information...\n");

  int         nseg, ntr=0, ntrg = 0, n0 = 0;
  EdbSegP    *seg = 0;
  EdbTrackP  *track = 0, *trackg = 0;

  ntrg=eTracks->GetEntries();
  for(int it=0; it<ntrg; it++) {

    trackg = (EdbTrackP *)(eTracks->At(it));
    if (!trackg) continue;
    nseg = trackg->N();
    if( nseg < nsegments ) continue;
    track = new EdbTrackP(nseg);

    track->SetNpl( TMath::Abs(trackg->GetSegmentLast()->PID() -
                  trackg->GetSegmentFirst()->PID()) + 1 );

    n0=0;
    for(int is=0; is<nseg; is++) {
      seg = trackg->GetSegment(is);
      if(seg->Flag()<0) n0++;
      track->AddSegment(seg);
    }
    track->SetN0(n0);
    track->SetID(it);
    tracks->Add(track);
    ntr++;
  }

  printf("%d tracks with >= %d segments are selected\n",ntr, nsegments);
  return ntr;
}

PropagateSegment()

float EdbPVGen::PropagateSegment	(	EdbSegP &	s,
		float	dz,
		float	X0,
		float	m,
		int	eloss_flag
	)

{
  // propagate segment s to the distance dz in the media
  // input : s          - segment
  //         dz         - distance to propagate (along z)
  //         X0         - rad length
  //         m          - mass of the particle
  //         eloss_flag -
  // output: s          - segment with updated parameters
  // return: energy loss in this step

  bool doMS    = true;

  float tx=s.TX(), ty=s.TY();
  float x =s.X(),   y=s.Y(), z=s.Z();
  double dx=0., dy=0., dtx=0., dty=0.;
  double cost  = TMath::Sqrt((double)1.+(double)tx*(double)tx+(double)ty*(double)ty);
  double dzm   = dz*cost;
  double dzPb  = dzm*1000./1300.;     //TODO

  float p=s.P(), pa=s.P(), pn=0, de = 0.;
  Float_t e = TMath::Sqrt((double)p*(double)p+(double)m*(double)m);

  if     (eloss_flag == 1) de = EdbPhysics::DeAveragePb(s.P(), m, TMath::Abs(dzPb));
  else if(eloss_flag == 2) de = EdbPhysics::DeLandauPb(p, m, TMath::Abs(dzPb));
  else                     de = 0;
  if(de<0)                 de = 0;
  e  = e - de;
  if (e < m) e = m;
  pn = TMath::Sqrt((double)e*(double)e - (double)m*(double)m);
  pa = 0.5*(p+pn);
  p  = pn;

  float r1,r2, teta0;
  if(doMS) {
    teta0 = EdbPhysics::ThetaMS2( pa, m, dzm, X0);
    teta0 = TMath::Sqrt(teta0);
    do  { gRandom->Rannor(r1,r2);} while (TMath::Abs(r1) > 50. || TMath::Abs(r2) > 50.);
    dx = (0.5*r1+0.866025*r2)*dzm*teta0/1.73205;
    dtx = r2*teta0;
    do  { gRandom->Rannor(r1,r2);} while (TMath::Abs(r1) > 50. || TMath::Abs(r2) > 50.);
    dy = (0.5*r1+0.866025*r2)*dzm*teta0/1.73205;
    dty = r2*teta0;
  }

  s.SetX( x  + tx*dz + dx );
  s.SetY( y  + ty*dz + dy );
  s.SetTX(tx + dtx );
  s.SetTY(ty + dty );
  s.SetZ(z+dz);
  s.SetDZ(300.);                 //TODO
  s.SetP(p);

  return de;
}

SetScanCond()

void EdbPVGen::SetScanCond ( EdbScanCond *  scan )

inline

{eScanCond=scan;}

SetVolume()

void EdbPVGen::SetVolume ( EdbPatternsVolume *  pv )

inline

{ePVolume=pv;}

SmearPatterns()

void EdbPVGen::SmearPatterns	(	float	shift,
		float	rot
	)

{
  EdbPatternsVolume *pv = GetVolume();
  EdbAffine2D a;

  for( int i=0; i<pv->Npatterns()-1; i++ ) {

    a.Rotate( gRandom->Gaus(0, rot)   );
    a.ShiftX( gRandom->Gaus(0, shift) );
    a.ShiftY( gRandom->Gaus(0, shift) );

    pv->GetPattern(i)->Transform(&a);
  }

}

SmearSegment()

void EdbPVGen::SmearSegment	(	EdbSegP &	s,
		EdbScanCond &	cond
	)

-----------—using angular corellation now------------------—

{
  // smear parameters of segment s with taking into account angular corellation

  TVector2 vx,vt;
  vt.Set( s.TX(), s.TY() );
  vx.Set( s.X(),  s.Y()  );
  float phi = vt.Phi();
  vt.Rotate(  -phi );
  vx.Rotate(  -phi );

  float rx,ry,rtx,rty;
  gRandom->Rannor(rx,ry);
  gRandom->Rannor(rtx,rty);

/*
 vx.Set( vx.X() + rx*cond.SigmaX(vt.X()),
  vx.Y() + ry*cond.SigmaY(vt.Y()) );
 */

  rx*= cond.SigmaX(0);
  ry*= cond.SigmaY(0);
  rtx*=cond.SigmaTXf(vt.X());
  rty*=cond.SigmaTYf(vt.Y());

  vx.Set( vx.X() + rx+rtx*0.5*s.DZ(),
      vx.Y() + ry+rty*0.5*s.DZ());
  vt.Set( vt.X() + rtx,
      vt.Y() + rty);

  vt.Rotate( phi );
  vx.Rotate( phi );

  float sxd  = s.X()-vx.X();
  float syd  = s.Y()-vx.Y();
  float stxd = s.TX()-vt.X();
  float styd = s.TY()-vt.Y();

  s.SetX(  vx.X() );
  s.SetY(  vx.Y() );
  s.SetTX( vt.X() );
  s.SetTY( vt.Y() );

  //if (x_y_correlation)
  s.SetErrorsCOV(sxd*sxd, syd*syd, 0., stxd*stxd, styd*styd, 0.);
  //else
  //s.SetErrors(sxd*sxd, syd*syd, 0., stxd*stxd, styd*styd, 0.);

}

SmearSegments()

void EdbPVGen::SmearSegments

(

)

{
  // smearing with parameters defined by ScanCond

  EdbPatternsVolume *pv = GetVolume();
  EdbScanCond *cond = eScanCond;

  EdbPattern *pat = 0;
  EdbSegP    *seg = 0;

  for( int i=0; i<pv->Npatterns(); i++ ) {
    pat = pv->GetPattern(i);

    for( int j=0; j<pat->N(); j++ ) {
      seg = pat->GetSegment(j);

      SmearSegment(*seg, *cond);

    }
  }
}

TrackMC()

void EdbPVGen::TrackMC	(	float	zlim[2],
		float	lim[4],
		EdbTrackP &	tr,
		int	eloss_flag = 0,
		float	PGap = 0.
	)

{
  // Segments generation for single MC track with taking into account MS and
  //  XY errors correllation

  // Input parameters:
  //                   zlim  - Z limits ( if zlim[0] > zlim[1] then direction of
  //                   tracking is opposit Z-axis )
  //                   lim   - XY limits
  //               sigma - measuring sigma (x,y,tx,ty)
  //                   tr    - segments generated according to track parameters
  //
  // Output:  fill associated volume with segments
  //          tr - add generated segments to the tr

  bool exact_angles = true;   // exact new angles calculation after MS
  bool x_y_correlation = true; // take into account x-y measurement correlation
  Float_t eTPb = 1000./1300.;
  Float_t x0  =tr.X();
  Float_t y0  =tr.Y();
  Float_t z0  =tr.Z();
  Float_t tx0 =tr.TX();
  Float_t ty0 =tr.TY();
  Float_t p0  =tr.P();
  Float_t m   =tr.M();
  Float_t sx=eScanCond->SigmaX(0.), sy=eScanCond->SigmaY(0.);
  Float_t stx=eScanCond->SigmaTX(0.), sty=eScanCond->SigmaTY(0.);
  Float_t sxd=sx, syd=sy, stxd=stx, styd=sty;
  Float_t x,y,z,tx,ty, xs, ys, txs, tys;
  Float_t dz, dzm, cost, r1, r2, teta0, zold, dzPb;
  Float_t dx = 0., dy = 0., dtx = 0., dty = 0.;
  Float_t dxs = 0., dys = 0., dtxs = 0., dtys = 0.;
  Double_t Phi,CPhi,SPhi;
  Float_t X0 = eScanCond->RadX0();
  EdbPattern *pat = 0;
  int segnum = 0;

  if ( x0 < lim[0] ) return;
  if ( y0 < lim[1] ) return;
  if ( x0 > lim[2] ) return;
  if ( y0 > lim[3] ) return;

  EdbSegP    *seg = new EdbSegP();

  Float_t p = p0, pa = p0, pn, de = 0., DE = 0.;
  Float_t e = TMath::Sqrt((double)p*(double)p+(double)m*(double)m);
  x = x0;
  y = y0;
  tx = tx0;
  ty = ty0;
  zold = z0;
  int npat = ePVolume->Npatterns();
  int k = 0, dir = 0;
  for (int kc=0; kc<npat; kc++ ) {
    if (zlim[0] > zlim[1])
    {
    k = npat - 1 - kc;
    dir = -1;
    }
    else
    {
    k = kc;
    dir = +1;
    }
    pat = ePVolume->GetPattern(k);
    z = pat->Z();
    segnum = pat->N();

    if ( dir > 0 ) if ( z < zlim[0] ) { continue; }
    if ( dir > 0 ) if ( z > zlim[1] ) { continue; }
    if ( dir < 0 ) if ( z > zlim[0] ) { continue; }
    if ( dir < 0 ) if ( z < zlim[1] ) { continue; }
    if ( dir > 0 ) if ( z < zold ) { continue; }
    if ( dir < 0 ) if ( z >= zold ) { continue; }
    if ( gRandom->Rndm() < (double)PGap) { continue; }

    dz = z - zold;
    cost = TMath::Sqrt((double)1.+(double)tx*(double)tx+(double)ty*(double)ty);
    if (cost >= 10.) break;
    dzm = dz*cost;
    dzPb = eTPb*dzm;
    if (eloss_flag == 1)
    {
    de = EdbPhysics::DeAveragePb(p, m, TMath::Abs(dzPb));
    if ( de < 0.) de = 0;
    e  = e - de;
    if (e < m) e = m;
    pn = TMath::Sqrt((double)e*(double)e - (double)m*(double)m);
    pa = 0.5*(p+pn);
    p  = pn;
    DE += de;

    }
    else if (eloss_flag == 2)
    {
    de = EdbPhysics::DeLandauPb(p, m, TMath::Abs(dzPb));
    if ( de < 0.) de = 0;
    e  = e - de;
    if (e < m) e = m;
    pn = TMath::Sqrt((double)e*(double)e - (double)m*(double)m);
    pa = 0.5*(p+pn);
    p  = pn;
    DE += de;
    }
    if (kc)
      {
    teta0 = EdbPhysics::ThetaMS2( pa, m, dzm, X0);
    teta0 = TMath::Sqrt(teta0);
    do  { r1 = gRandom->Gaus();} while (TMath::Abs(r1) > 50.);
    do  { r2 = gRandom->Gaus();} while (TMath::Abs(r1) > 50.);
    dx = (0.5*r1+0.866025*r2)*dzm*teta0/1.73205;
    dtx = r2*teta0;
    do  { r1 = gRandom->Gaus();} while (TMath::Abs(r1) > 50.);
    do  { r2 = gRandom->Gaus();} while (TMath::Abs(r1) > 50.);
    dy = (0.5*r1+0.866025*r2)*dzm*teta0/1.73205;
    dty = r2*teta0;
      }
    else
      {
        teta0 = 0.;
    dx = 0.;
    dy = 0.;
    dtx = 0.;
    dty = 0.;
      }
    x = x + tx*dz + dx;
    y = y + ty*dz + dy;
    if (exact_angles)
    {
    tx = TMath::Tan(TMath::ATan(tx) + dtx);
    ty = TMath::Tan(TMath::ATan(ty) + dty);
    }
    else
    {
    tx = tx + dtx;
    ty = ty + dty;
    }
    zold = z;
    if ( x < lim[0] ) break;
    if ( y < lim[1] ) break;
    if ( x > lim[2] ) break;
    if ( y > lim[3] ) break;
    double theta = TMath::Sqrt(tx*tx + ty*ty);
    do  { r1 = gRandom->Gaus();} while (TMath::Abs(r1) > 50.);
    if (!x_y_correlation) sxd = eScanCond->SigmaX(tx);
    else          sxd = eScanCond->SigmaX(theta);
    dxs = sxd*r1;
    do  { r1 = gRandom->Gaus();} while (TMath::Abs(r1) > 50.);
    if (!x_y_correlation) syd = eScanCond->SigmaY(ty);
    else          syd = eScanCond->SigmaY(0.);
    dys = syd*r1;
    do  { r1 = gRandom->Gaus();} while (TMath::Abs(r1) > 50.);
    if (!x_y_correlation) stxd = eScanCond->SigmaTX(ty);
    else          stxd = eScanCond->SigmaTX(theta);
    dtxs = stxd*r1;
    do  { r1 = gRandom->Gaus();} while (TMath::Abs(r1) > 50.);
    if (!x_y_correlation) styd = eScanCond->SigmaTY(ty);
    else          styd = eScanCond->SigmaTY(0.);
    dtys = styd*r1;
    if (x_y_correlation)
    {
    Phi =  TMath::ATan2(ty,tx);          // azimuthal angle of the track
    CPhi = TMath::Cos(Phi);
    SPhi = TMath::Sin(Phi);
    xs = x + dxs*CPhi - dys*SPhi;        // smearing of track parameters with corellation
    ys = y + dxs*SPhi + dys*CPhi;        // along the track projection to XY plane
    txs = tx + dtxs*CPhi - dtys*SPhi;    // (regression line)
    tys = ty + dtxs*SPhi + dtys*CPhi;
    }
    else
    {
    xs = x + dxs;        // smearing of track parameters
    ys = y + dys;
    txs = tx + dtxs;
    tys = ty + dtys;
    }
    seg->Set(segnum++, xs, ys, txs, tys, 25., tr.ID());
    seg->SetMC(0, tr.ID());
    seg->SetP(pa);
    seg->SetZ(z);
    seg->SetDZ(300.);
    seg->SetPID(k);
    if (x_y_correlation)
    seg->SetErrorsCOV(sxd*sxd, syd*syd, 0., stxd*stxd, styd*styd, 0.);
    else
    seg->SetErrors(sxd*sxd, syd*syd, 0., stxd*stxd, styd*styd, 0.);

    tr.AddSegment( pat->AddSegment(*seg) );
    if (p <= 0.050) break;
    if (teta0 >= 1.00) break;
  }
  tr.SetDE(DE);
  tr.SetCounters();

  delete seg;
}

TrackMC2()

int EdbPVGen::TrackMC2	(	EdbTrackP &	tr,
		EdbLayer &	lim,
		int	eloss_flag,
		float	PGap
	)

{
  // Segments generation for single MC track with taking into account MS and energy loss
  // tr         - input-output track
  // lim        - volume limits for segments generation
  // eloss_flag - 0 - no energy loss
  //              1 - average Pb energy loss
  // PGap       - gap probability = (1-efficiency)

  int ic=0;
  EdbPatternsVolume *vol = GetVolume();
  EdbSegP s;
  s.Copy(*(tr.TrackEnd()));
  EdbPattern *pat=0;
  float dz=0;
  float de=0;

  while(1) {
    if( !lim.IsInside( s.X(), s.Y(), s.Z() ) )      break;
    pat = vol->NextPattern( s.Z(), tr.Dir() );
    if( !pat )                                      break;

    dz = pat->Z()-s.Z();

    de += PropagateSegment( s, dz,
                eScanCond->RadX0(),
                tr.M(), eloss_flag );

    if( gRandom->Rndm() < (double)PGap )            continue;
    if( s.TX()*s.TX()+s.TY()*s.TY()>1.)             break;

    s.SetPID(pat->PID());
    s.SetMC(0, tr.ID());
    tr.AddSegment( pat->AddSegment(s) );
    tr.AddSegmentF( new EdbSegP(s) );
    ic++;
  }

  tr.SetDE(de);
  tr.SetCounters();

  return ic;
}

Member Data Documentation

eEVR

EdbVertexRec* EdbPVGen::eEVR

ePVolume

EdbPatternsVolume* EdbPVGen::ePVolume

private

eScanCond

EdbScanCond* EdbPVGen::eScanCond

private

eTracks

TObjArray* EdbPVGen::eTracks

eVTX

TObjArray* EdbPVGen::eVTX

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEMC/EdbPVGen.h
• /home/antonio/fedra_doxygen/src/libEMC/EdbPVGen.cxx
