EdbVertexRec Class Reference

#include <EdbVertex.h>

Inheritance diagram for EdbVertexRec:

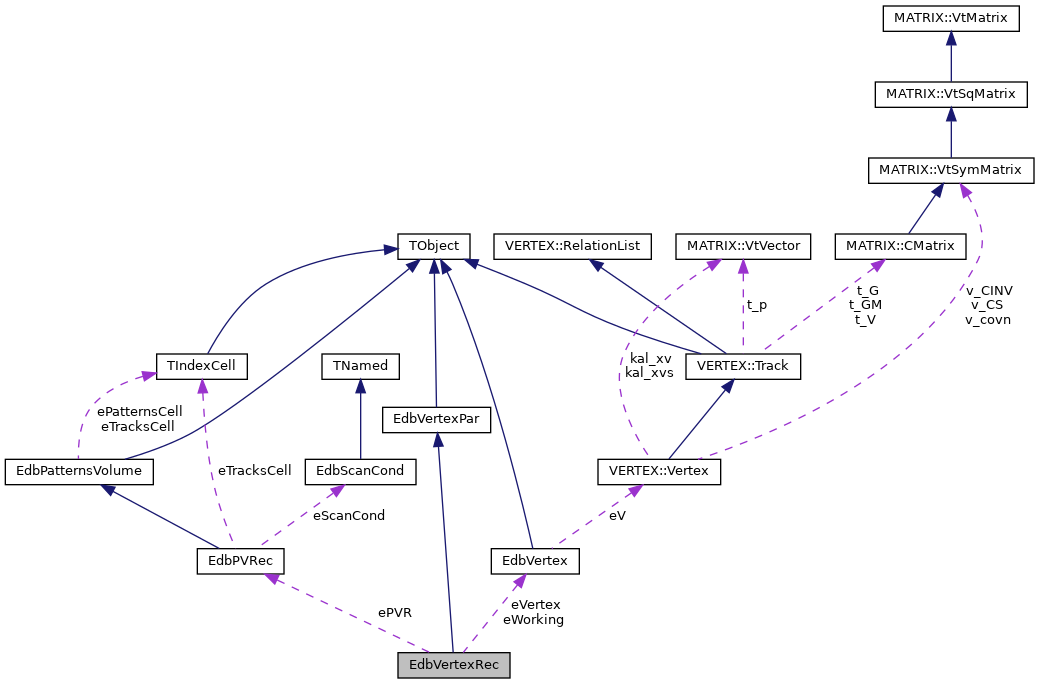

Collaboration diagram for EdbVertexRec:

Public Member Functions
void	AcceptModifiedVTX (EdbVertex *eVertex, EdbVertex *eWorking)
void	AcceptPolish ()
Int_t	AddSegmentToVertex (EdbSegP *s, float ImpMax=25., float ProbMin=0.01, float Mom=0.3)
EdbVTA *	AddTrack (EdbVertex &edbv, EdbTrackP *track, int zpos)
EdbVertex *	AddTrackToVertex (EdbVertex *eVertex, EdbTrackP *eTr, int zpos)
void	AddVertex (EdbVertex *vtx)
void	AddVTA (EdbVTA *vta)
void	CancelModifiedVTX (EdbVertex *eVertex, EdbVertex *eWorking)
Bool_t	CheckDZ2 (float z1, float z2, int zpos1, int zpos2, float z)
Float_t	CheckImpact (EdbSegP *s1, EdbSegP *s2, int zpos1, int zpos2, float pv[3])
Float_t	CheckImpactN (EdbSegP *s1, EdbSegP *s2, float pv[3], bool &parallel, float dzMax=6000.)
int	CheckTrack (EdbTrackP &track, int zpos)
void	CheckVTX ()
bool	CompatibleSegments (EdbSegP &spred, EdbSegP &stest, float impact, float dthetaMax, float dxy, float zminT, float zmaxT, float zminV, float zmaxV)
	EdbVertexRec ()
	EdbVertexRec (EdbVertexPar &vpar)
int	EstimateVertexFlag (int zpos1, int zpos2)
Bool_t	EstimateVertexPosition (EdbVertex &v)
Bool_t	EstimateVertexQuality (EdbVertex &v)
void	FillTracksStartEnd (TIndexCell &starts, TIndexCell &ends)
Int_t	FindSimilarSegments (EdbSegP &spred, TObjArray &found, EdbPattern &pat, float impact, float dthetaMax, float dxy, float zminT, float zmaxT, float zminV, float zmaxV)
Int_t	FindSimilarTracks (EdbTrackP &t, TObjArray &found, int nsegmin=2, float dMax=100., float dTheta=0.01, float dZmax=50000.)
Int_t	FindSimilarTracksE (EdbSegP &spred, TObjArray &found, bool startend, float impact, float dthetaMax, float dxy, float zminT, float zmaxT, float zminV, float zmaxV)
Int_t	FindVertex ()
EdbTrackP *	GetEdbTrack (const int index)
EdbVertex *	GetVertex (Int_t &i)
Bool_t	IsInsideLimits (EdbSegP &s)
Int_t	LinkedVertexes ()
Int_t	LoopVertex (TIndexCell &list1, TIndexCell &list2, int zpos1, int zpos2)
EdbVertex *	Make1Vertex (TObjArray &tracks, float zexpected)
Int_t	MakeV (EdbVertex &edbv, bool isRefit=false)
Double_t	MoveTrackToOtherVertex (EdbVertex *v2, int it2max, EdbVertex *v1, int seltype, EdbVertex **v2n, EdbVertex **v1n)
Int_t	Nvtx () const
EdbVertex *	ProbVertex2 (EdbTrackP *tr1, EdbTrackP *tr2, int zpos1, int zpos2)
Int_t	ProbVertexN ()
Int_t	ProbVertexN_old ()
Int_t	ProbVertexNpos (int zpos)
int	RefitAll ()
void	RejectPolish ()
EdbVertex *	RemoveTrackFromVertex (EdbVertex *eVertex, int itr)
EdbVertex *	RemoveVTAFromVertex (EdbVertex &vtx, EdbVTA &vta)
void	Reset ()
Int_t	SegmentNeighbor (EdbSegP *s, float RadMax=1000., int Dpat=1, float ImpMax=1000000., float SegWmin=9, TObjArray *aseg=0, TObjArray *atr=0, TObjArray *arv=0)
Int_t	SelSegNeighbor (EdbSegP *s, int seltype, float RadMax, int Dpat, TObjArray *ao)
Int_t	SelVertNeighbor (EdbVertex *v, int seltype, float RadMax, int Dpat, TObjArray *ao)
void	Set0 ()
void	SetPVRec (EdbPVRec *pvr)
void	StatVertexN ()
EdbVertex *	StripBadTracks (EdbVertex &v, float impMax, int ntrMin)
Double_t	Tdistance (const EdbSegP &s1, const EdbSegP &s2)
Double_t	Tdistance (const VERTEX::Track &t1, const VERTEX::Track &t2)
Double_t	TdistanceChi2 (const EdbSegP &s1, const EdbSegP &s2, float m)
Double_t	TdistanceChi2 (const EdbTrackP &tr1, const EdbTrackP &tr2)
EdbVertex *	TestVTAGroup (TObjArray &arrvta)
Int_t	VertexNeighbor (EdbVertex *v, float RadMax=1000., int Dpat=1, float ImpMax=1000000.)
Int_t	VertexNeighbor (float RadMax=1000., int Dpat=1, float ImpMax=1000000.)
Int_t	VertexPolish (EdbVertex *v, int refill=0, float RadMax=1000., int Dpat=2, float ImpMax=25., float ProbMin=0.01, float Mom=0.3)
Int_t	VertexTuning (int seltype=0)
const TVector3 *	Vmax () const
const TVector3 *	Vmin () const
virtual	~EdbVertexRec ()
Public Member Functions inherited from EdbVertexPar
	EdbVertexPar ()
virtual	~EdbVertexPar ()

Public Attributes
TObjArray *	eEdbTracks
EdbPVRec *	ePVR
	patterns volume (optional) More...
TList	eVTA
	vertex-track associations More...
TObjArray *	eVTX
	array of vertex More...
Public Attributes inherited from EdbVertexPar
Float_t	eAbin
	safety margin for angular aperture of vertex products More...
Float_t	eDZmax
	maximum z-gap in the track-vertex group More...
Float_t	eImpMax
	maximal acceptable impact parameter (preliminary check) More...
Float_t	eImpMaxV
	if the impact is <= eImpMaxV the 2-vertex is accepted disregard to it's probability More...
Float_t	eProbMin
	minimum acceptable probability for chi2-distance between tracks More...
Int_t	eQualityMode
	vertex quality estimation method (0:=Prob/(sigVX^2+sigVY^2); 1:= inverse average track-vertex distance) More...
Bool_t	eUseKalman
	use or not Kalman for the vertex fit. Default is true More...
Bool_t	eUseLimits
	if true - look for the vertex only inside limits defined by eVmin:eVmax, default is false More...
Bool_t	eUseMom
	use or not track momentum for vertex calculations More...
Bool_t	eUseSegPar
	use only the nearest measured segments for vertex fit (as Neuchatel) More...
TVector3	eVmax
	limits for the vertex search More...
TVector3	eVmin
Float_t	eZbin
	z- granularity (default is 100 microns) More...

Private Attributes
EdbVertex *	eVertex
EdbVertex *	eWorking

Constructor & Destructor Documentation

EdbVertexRec() [1/2]

EdbVertexRec::EdbVertexRec ( )

inline

{ Set0(); }

EdbVertexRec() [2/2]

EdbVertexRec::EdbVertexRec ( EdbVertexPar &  vpar )

inline

: EdbVertexPar(vpar) { Set0(); }

~EdbVertexRec()

EdbVertexRec::~EdbVertexRec ( )

virtual

{
  if ((gROOT->GetListOfSpecials())->FindObject(this))
  {
    (gROOT->GetListOfSpecials())->Remove(this);
  }
  Reset();
}

Member Function Documentation

AcceptModifiedVTX()

void EdbVertexRec::AcceptModifiedVTX	(	EdbVertex *	eVertex,
		EdbVertex *	eWorking
	)

{
    if (eWorking && eVertex)
    {
        EdbVertex *eW = eWorking;
    int ind = eVertex->ID();
    eW->SetID(ind);
    eW->SetQuality(eW->V()->prob()/
               (eW->V()->vtx_cov_x()+eW->V()->vtx_cov_y()));
    int ntr = eVertex->N();
    for(int i=0; i<ntr; i++)
    {
        eVTA.Remove(eVertex->GetVTa(i));
    }

    eW->ResetTracks();
    ntr = eW->N();
    int ifl = 0;
    for(int i=0; i<ntr; i++)
    {
        if (eW->Zpos(i)) ifl = ifl | 1;
        else         ifl = ifl | 2;
    }
    ifl = 4 - ifl;
    if (ifl == 3) ifl = 0;
    if (eW->Nv()) ifl += 3;
    eW->SetFlag(ifl);
    if (eVTX) eVTX->AddAt(eW, ind);
    for(int i=0; i<ntr; i++)
    {
        AddVTA(eW->GetVTa(i));
    }
    ntr = eVertex->Nn();
    for(int i=0; i<ntr; i++)
    {
        eW->AddVTA(eVertex->GetVTn(i));
    }
//  if (eVertex) delete eVertex;
    eW->ResetTracks();
    }
}

AcceptPolish()

void EdbVertexRec::AcceptPolish

(

)

{
    AcceptModifiedVTX(eVertex, eWorking);
}

AddSegmentToVertex()

int EdbVertexRec::AddSegmentToVertex	(	EdbSegP *	s,
		float	ImpMax = 25.,
		float	ProbMin = 0.01,
		float	Mom = 0.3
	)

{
    EdbVTA *vta = 0;
    EdbVertex *ePrevious = 0;

    if (eWorking == 0)
    {
    eWorking = new EdbVertex();
    int ntr = eVertex->N();
    int i = 0, n = 0;
    for(i=0; i<ntr; i++)
    {
        if ((vta = AddTrack(*(eWorking), eVertex->GetTrack(i), eVertex->Zpos(i))))
        {
        eVertex->GetTrack(i)->AddVTA(vta);
        n++;
        }
    }
    if (n < 2)
    {
      SafeDelete(eWorking);
      eVertex->ResetTracks();
      printf("Can't create working copy of the vertex!\n");
      fflush(stdout);
      return 0;
    }

    if (!MakeV(*(eWorking)))
    {
      SafeDelete(eWorking);
      eVertex->ResetTracks();
      printf("Can't create working copy of the vertex!\n");
      fflush(stdout);
      return 0;
    }
    }
    else
    {
    ePrevious = eWorking;
    eWorking = new EdbVertex();
    int ntr = ePrevious->N();
    int i = 0, n = 0;
    for(i=0; i<ntr; i++)
    {
        if ((vta = AddTrack(*(eWorking),(ePrevious)->GetTrack(i), (ePrevious)->Zpos(i))))
        {
        (ePrevious->GetTrack(i))->AddVTA(vta);
        n++;
        }
    }
    if (n < 2)
    {
      SafeDelete(eWorking);
      if (ePrevious)
        {
          eWorking = ePrevious;
          eWorking->ResetTracks();
        }
        else
          {
        eVertex->ResetTracks();
          }
        printf("Can't create working copy of the vertex!\n");
        fflush(stdout);
        return 0;
    }

    if (!MakeV(*(eWorking)))
    {
      SafeDelete(eWorking);

        if (ePrevious)
        {
        eWorking = ePrevious;
        eWorking->ResetTracks();
        }
        else
        {
        eVertex->ResetTracks();
        }
        printf("Can't create working copy of the vertex!\n");
        fflush(stdout);
        return 0;
    }
    }
    float mass = 0.139; //pion
    EdbTrackP *Tr = new EdbTrackP(s, mass);
    Tr->SetP(Mom);
    Tr->FitTrackKFS();
    float ImpMaxSave = eImpMax;
    eImpMax = ImpMax;
    float ProbMinSave = eProbMin;
    eProbMin = ProbMin;
    if ((vta = AddTrack(*(eWorking), Tr, 1)))
    {
    if ( Tr->Z() >= eWorking->VZ() ) vta->SetZpos(1);
    else vta->SetZpos(0);
    Tr->AddVTA(vta);
    EdbVertex *eW = eWorking;
    eW->SetID(eVertex->ID());
    eW->V()->rmsDistAngle();
    int trind = eEdbTracks->GetEntries();
    Tr->SetID(trind);
    eEdbTracks->Add(Tr);
    Tr->SetSegmentsTrack();
    eImpMax = ImpMaxSave;
    eProbMin = ProbMinSave;
    }
    else
    {
    printf("Track not added! May be Prob < ProbMin=%f. Change ProbMin with 'TrackParams' button!\n",ProbMin);
    fflush(stdout);
    delete Tr;

    SafeDelete(eWorking);
    if (ePrevious)
    {
        eWorking = ePrevious;
        eWorking->ResetTracks();
    }
    else
    {
        eVertex->ResetTracks();
    }
    eImpMax = ImpMaxSave;
    eProbMin = ProbMinSave;
    return 0;
    }
    return 1;
}

AddTrack()

EdbVTA * EdbVertexRec::AddTrack	(	EdbVertex &	edbv,
		EdbTrackP *	track,
		int	zpos
	)

add track to already existing vertex if prob > eProbMin
if vertex do not exist yet - calculate medium x,y,z

{

  if (!track)        return 0;
  EdbSegP *seg = track->TrackExtremity( zpos, eUseSegPar);
  if (!seg)          return 0;
  int ntr = edbv.N();
  if(edbv.TrackInVertex(track)) return 0;
  //for (int i=0; i<ntr; i++) if(track == edbv.GetTrack(i)) return 0;

  EdbVTA *vta = new EdbVTA(track, &edbv);
  vta->SetZpos(zpos);
  vta->SetFlag(2);
  edbv.AddVTA(vta);

  if(ntr<1)               // this is the first track in the vertex
    {
      edbv.SetXYZ( seg->X(), seg->Y(), seg->Z());
      return vta;
    }
  else
    {
      if( MakeV(edbv) )
    if( (edbv.V()->prob() > eProbMin) )       return vta;
    }
  edbv.RemoveVTA(vta);
  if(ntr>1)
    if( !MakeV(edbv) )  Log(1,"EdbVertexRec::AddTrack","vertex lost! ntr = %d",ntr);
  SafeDelete(vta);
  return 0;
}

AddTrackToVertex()

EdbVertex * EdbVertexRec::AddTrackToVertex	(	EdbVertex *	eVertex,
		EdbTrackP *	eTr,
		int	zpos
	)

{
    EdbVTA *vta = 0;
    EdbVertex *old = 0;
    EdbVertex *eWorking = 0;
    if (!eVertex)
    {

        printf("No working vertex selected!\n");
        fflush(stdout);
        return 0;
    }
    if (!eTr)
    {

        printf("No working track selected!\n");
        fflush(stdout);
        return 0;
    }
    if ((old = eTr->VertexS()) && (zpos == 1))
    {

        printf("Track alredy connected to a vertex by this edge!\n");
        fflush(stdout);
        return 0;
    }
    if ((old = eTr->VertexE()) && (zpos == 0))
    {

        printf("Track alredy connected to a vertex by this edge!\n");
        fflush(stdout);
        return 0;
    }
    if (eWorking == 0)
    {
    eWorking = new EdbVertex();
    int ntr = eVertex->N();
    int i = 0, n = 0;
    for(i=0; i<ntr; i++)
    {
        if ((vta = AddTrack(*(eWorking), (eVertex)->GetTrack(i), (eVertex)->Zpos(i))))
        {
        (eVertex)->GetTrack(i)->AddVTA(vta);
        n++;
        }
    }
    if (n < 2)
    {
      SafeDelete(eWorking);
      (eVertex)->ResetTracks();
      printf("Can't create working copy of the vertex!\n");
      fflush(stdout);
      return 0;
    }

    if (!MakeV(*eWorking))
    {
      SafeDelete(eWorking);
      eVertex->ResetTracks();
      printf("Can't create working copy of the vertex!\n");
      fflush(stdout);
      return 0;
    }
    }
    if ((vta = AddTrack(*eWorking, eTr, zpos)))
    {
    eTr->AddVTA(vta);
    eWorking->SetID(eVertex->ID());
    }
    else
    {
//  printf("Track not added! May be Prob < ProbMin.\n");
//  fflush(stdout);
      SafeDelete(eWorking);
      eVertex->ResetTracks();
      return 0;
    }
    return eWorking;
}

AddVertex()

void EdbVertexRec::AddVertex ( EdbVertex *  vtx )

inline

                                 {
    if (!eVTX) eVTX = new TObjArray();
    eVTX->Add((TObject*)vtx);
  }

AddVTA()

void EdbVertexRec::AddVTA ( EdbVTA *  vta )

inline

{eVTA.Add((TObject*)vta);}

CancelModifiedVTX()

void EdbVertexRec::CancelModifiedVTX	(	EdbVertex *	eVertex,
		EdbVertex *	eWorking
	)

{
  SafeDelete(eWorking);
  if (eVertex) eVertex->ResetTracks();
}

CheckDZ2()

Bool_t EdbVertexRec::CheckDZ2	(	float	z1,
		float	z2,
		int	zpos1,
		int	zpos2,
		float	z
	)

return 1 if the vertex position (z) is in agreement with limits defined by eZbin and eDZmax

{

  float zvmin,zvmax;
  if (zpos1 == 0 && zpos2 == 1)            // ends & starts
    {
      zvmin = TMath::Min(z1,z2) - 0.5*eZbin;
      zvmax = TMath::Max(z1,z2) + 0.5*eZbin;
      if (z < zvmin || z > zvmax)  return 0;
    }
  else if (zpos1 == 1 && zpos2 == 1)        // starts & starts
    {
      zvmax = TMath::Min(z1,z2) + eZbin;
      zvmin = TMath::Max(z1,z2) - eDZmax;
      if (z > zvmax || z < zvmin)     return 0;
    }
  else if (zpos1 == 0 && zpos2 == 0)        // ends & ends
    {
      zvmin = TMath::Max(z1 ,z2);
      zvmax = TMath::Min(z1 ,z2) + eDZmax + eZbin;
      if (z < zvmin || z > zvmax )    return 0;
    }
  return 1;
}

CheckImpact()

float EdbVertexRec::CheckImpact	(	EdbSegP *	s1,
		EdbSegP *	s2,
		int	zpos1,
		int	zpos2,
		float	pv[3]
	)

Return: the distance between 2 lines defined by s1 and s2
Input: s1,s2,zpos1,zpos2, where
zpos1, zpos2: 0 - end of the track (to be propagated forward in z)
zpos1, zpos2: 1 - start of the track (to be propagated backward in z)
Output: pv - "vertex position" - the nearest point to the both lines

{

  float p1[3], p2[3];  // first line
  float p3[3], p4[3];  // second line
  float pa[3], pb[3];  // shortest line
  double mua, mub;

  float dz;

  p1[0] = s1->X();
  p1[1] = s1->Y();
  p1[2] = s1->Z();
  dz = zpos1? -eDZmax : eDZmax;
  p2[0] = s1->X() + dz*s1->TX();
  p2[1] = s1->Y() + dz*s1->TY();
  p2[2] = s1->Z() + dz;

  p3[0] = s2->X();
  p3[1] = s2->Y();
  p3[2] = s2->Z();
  dz = zpos2? -eDZmax : eDZmax;
  p4[0] = s2->X() + dz*s2->TX();
  p4[1] = s2->Y() + dz*s2->TY();
  p4[2] = s2->Z() + dz;

  if( !EdbMath::LineLineIntersect( p1, p2, p3, p4, pa, pb, mua, mub ) )   return 10e+10;
  if (pv) for (int i = 0; i<3; i++) pv[i] = 0.5*(pa[i] + pb[i]);
  return EdbMath::Magnitude3( pa, pb );
}

CheckImpactN()

float EdbVertexRec::CheckImpactN	(	EdbSegP *	s1,
		EdbSegP *	s2,
		float	pv[3],
		bool &	parallel,
		float	dzMax = 6000.
	)

Return: the distance between 2 lines defined by s1 and s2
Output: pv - "vertex position" - the nearest point to the both lines

{

  float imp = 1e+10;
  float p1[3], p2[3];  // first line
  float p3[3], p4[3];  // second line
  float pa[3], pb[3];  // shortest line
  double mua, mub;

  p1[0] = s1->X() - dzMax*s1->TX();
  p1[1] = s1->Y() - dzMax*s1->TY();
  p1[2] = s1->Z() - dzMax;
  p2[0] = s1->X() + dzMax*s1->TX();
  p2[1] = s1->Y() + dzMax*s1->TY();
  p2[2] = s1->Z() + dzMax;

  p3[0] = s2->X() - dzMax*s2->TX();
  p3[1] = s2->Y() - dzMax*s2->TY();
  p3[2] = s2->Z() - dzMax;
  p4[0] = s2->X() + dzMax*s2->TX();
  p4[1] = s2->Y() + dzMax*s2->TY();
  p4[2] = s2->Z() + dzMax;

  if( EdbMath::LineLineIntersect( p1, p2, p3, p4, pa, pb, mua, mub ) ) {
    parallel = false;
    for (int i = 0; i<3; i++) pv[i] = 0.5*(pa[i] + pb[i]);
    imp =  EdbMath::Magnitude3( pa, pb );
  } else  { // the lines are parallel: take as vertex the mean point, calc. the distance to line
    parallel = true;
    pv[0] = 0.5*(s1->X()+s2->X());
    pv[1] = 0.5*(s1->Y()+s2->Y());
    pv[2] = 0.5*(s1->Z()+s2->Z());
    bool inside=0;
    imp = 2. * EdbMath::DistancePointLine3(pv, p1,p2, &inside);
  }
  return imp;
}

CheckTrack()

int EdbVertexRec::CheckTrack	(	EdbTrackP &	track,
		int	zpos
	)

loop for all tracks and check if some of them can form the vertex with tr

{
  int ntr  = eEdbTracks->GetEntries();
  if(ntr<1) return 0;
  int nvtx=0;

  EdbTrackP *t=0;
  for(int itr=0; itr<ntr; itr++)   {
    t = (EdbTrackP*)(eEdbTracks->At(itr));
    if (t == &track)                                          continue;
    if (t->Flag() < 0)                                        continue;

    EdbVertex *vtx0 = ProbVertex2( &track, t, zpos, 0 );
    if(vtx0) {
      AddVertex(vtx0);
      nvtx++;
    }
    EdbVertex *vtx1 = ProbVertex2( &track, t, zpos, 1 );
    if(vtx1) {
      AddVertex(vtx1);
      nvtx++;
    }

  }
  Log(2,"EdbVertexRec::CheckTrack","%d couples found",nvtx);
  return nvtx;
}

CheckVTX()

void EdbVertexRec::CheckVTX

(

)

rank the vertices and reassign tracks according to the major vertex weight

{

  if(!eVTX)   return;
  int nvtx = eVTX->GetEntries();
  Log(2,"EdbVertexRec::CheckVTX","%d vertices",nvtx);
  if(nvtx<1)  return;

  TArrayF   weight(nvtx);  // the vertex "weight" = 10*ntr+prob
  TArrayI   ind(nvtx);
  EdbVertex *vtx=0;
  for(int i=0; i<nvtx; i++)  {
    vtx = GetVertex(i);
    //vtx->SetFlag(0);       // to check!!!
    weight[i] = 10*vtx->N() + vtx->V()->prob();
  }
  TMath::Sort(nvtx,weight.GetArray(),ind.GetArray(),0); // sort in ascending order
  for(int i=0; i<nvtx; i++)  {
    vtx = GetVertex(ind[i]);
    vtx->ResetTracks();
  }

  // discard vertices with the detached tracks
  for(int i=0; i<nvtx; i++)  {
    vtx = GetVertex(ind[i]);
    int ndisc = vtx->CheckDiscardedTracks();
    if(ndisc>0) {
      Log(2,"EdbVertexRec::CheckVTX","discard vtx i=%d ntr=%d flag before: %d  disc tracks: %d",i, vtx->N(), vtx->Flag(), ndisc);
      vtx->SetFlag(-10);
    } else {
      vtx->EstimateVertexFlag();
    }
  }

  // reassign the vertex id's
  for (Int_t i = 0; i < nvtx; i++) GetVertex(i)->SetID(i);

  //eVTA.Clear();  //TODO?
}

CompatibleSegments()

bool EdbVertexRec::CompatibleSegments	(	EdbSegP &	spred,
		EdbSegP &	stest,
		float	impact,
		float	dthetaMax,
		float	dxy,
		float	zminT,
		float	zmaxT,
		float	zminV,
		float	zmaxV
	)

{
  float impMin   = 5;      // limits for the tracks separability
  float thetaMin = 0.005; //

  if( TMath::Abs(stest.X()-pred.X())   > dxy )     return 0;
  if( TMath::Abs(stest.Y()-pred.Y())   > dxy )     return 0;
  if( stest.Z()                        < zminT )   return 0;
  if( stest.Z()                        > zmaxT )   return 0;

  float dtheta = TMath::Sqrt( (stest.TX()-pred.TX())*(stest.TX()-pred.TX()) + (stest.TY()-pred.TY())*(stest.TY()-pred.TY()) );
  if(dtheta>dthetaMax)                             return 0;
  float pv[3];
  bool parallel;
  float imp = CheckImpactN( &pred,&stest,pv, parallel, eDZmax);
  if(imp>impact)                                   return 0;

  //printf("v: %f %f %f\n", pv[0],pv[1],pv[2]);
  //pred.PrintNice();

  if( dtheta<thetaMin && imp > 3*impMin)     return 0;   // parallel not close  tracks ( can be interesting for decay search??)

  if( dtheta>thetaMin)  {  // check z of the vertex
    float marg = impMin/dtheta;
    if( pv[2]    <  zminV-marg )            return 0;
    if( pv[2]    >  zmaxV+marg )            return 0;
  }

  Log(2,"EdbVertexRec::CompatibleSegments","ids = %6d and %6d    PH: %3d  imp = %7.3f  dtheta = %7.3f dzT = %7.3f dzV = %7.3f",
      pred.ID(), stest.ID(), int(stest.W()), imp, dtheta, stest.Z()-pred.Z(), pv[2]-pred.Z());
  return 1;
}

EstimateVertexFlag()

int EdbVertexRec::EstimateVertexFlag	(	int	zpos1,
		int	zpos2
	)

{
    if      (zpos1 == 0 && zpos2 == 1)   return 1;         // end   & start
    else if (zpos1 == 1 && zpos2 == 0)   return 1;         // end   & start
    else if (zpos1 == 1 && zpos2 == 1)   return 0;         // start & start
    else if (zpos1 == 0 && zpos2 == 0)   return 2;         // end   & end
    return -1;
}

EstimateVertexPosition()

Bool_t EdbVertexRec::EstimateVertexPosition

(

EdbVertex &

v

)

make approximate (without matrix) estimation of the vertex and set the reference point of the vertex XYZ in the estimated position

{

  int nt = v.N();
  if(nt<2) return false;

  EdbSegP *s1=0,*s2=0;
  bool zpos1,zpos2;
  float vxyz[3], vsum[3];
  for(int i=0; i<3; i++) vsum[i]=0;
  int count=0;
  for(int i1=0; i1<nt-1; i1++) {
    s1    = v.GetTrackV(i1,eUseSegPar);
    zpos1 = v.Zpos(i1);
    for(int i2=1; i2<nt; i2++) {
      s2    = v.GetTrackV(i2,eUseSegPar);
      zpos2 = v.Zpos(i2);
      if( CheckImpact(s1,s2,zpos1,zpos2, vxyz) > 2.*eImpMax) continue;
      for(int i=0; i<3; i++) vsum[i]+=vxyz[i];
      count++;
    }
  }
  if(count)  for(int i=0; i<3; i++) vsum[i]/=count;
  else {                    // take just mean tracks position
    for(int i=0; i<nt; i++) {
      EdbSegP *s  = v.GetTrackV(i,eUseSegPar);
      vsum[0] += s->X(); vsum[1] += s->Y(); vsum[2] += s->Z();
    }
    for(int i=0; i<3; i++) vsum[i]/=nt;
  }
  v.SetXYZ(vsum[0],vsum[1],vsum[2]);
  Log(3,"EdbVertexRec::EstimateVertexPosition","%f %f %f",vsum[0],vsum[1],vsum[2]);
  return true;
}

EstimateVertexQuality()

Bool_t EdbVertexRec::EstimateVertexQuality

(

EdbVertex &

v

)

TODO! razobratsia s etimi qualitiami!!

{

  float quality=0.;
  vtx.SetQuality(quality);
  Vertex *v = vtx.V();
  if(!v)           return 0;
  if(!v->valid())  return 0;

  if (eQualityMode == 0)  quality = v->prob()/(v->vtx_cov_x()+v->vtx_cov_y());
  else if (eQualityMode == 1)
    {
      double rms=v->rmsDistAngle();
      if (rms != 0.)  quality= (float)(1./rms);
      else quality =  10.e+35;
    }
  else quality= 1.;

  vtx.SetQuality(quality);
  return 1;
}

FillTracksStartEnd()

void EdbVertexRec::FillTracksStartEnd	(	TIndexCell &	starts,
		TIndexCell &	ends
	)

fill tracks starts and ends lookup tables "z:entry" inside sorted tracks: starts - minimal Z; ends - maximal Z

{

  EdbTrackP *tr=0;
  int ntr  = eEdbTracks->GetEntries();
  Long_t  v[2];

  EdbSegP *s=0;
  for(int itr=0; itr<ntr; itr++)   {
    tr = (EdbTrackP*)(eEdbTracks->At(itr));
    if (tr->Flag() < 0)                     continue;
    s = tr->TrackZmin(eUseSegPar);
    if(eUseLimits)  if( !IsInsideLimits(*s) ) continue;
    v[0] = (Long_t)(s->Z()/eZbin);
    v[1] = itr;
    starts.Add(2,v);
    s = tr->TrackZmax(eUseSegPar);
    if(eUseLimits)  if( !IsInsideLimits(*s) ) continue;
    v[0] = (Long_t)(s->Z()/eZbin);
    v[1] = itr;
    ends.Add(2,v);
  }
  starts.Sort();
  ends.Sort();
}

FindSimilarSegments()

Int_t EdbVertexRec::FindSimilarSegments	(	EdbSegP &	spred,
		TObjArray &	found,
		EdbPattern &	pat,
		float	impact,
		float	dthetaMax,
		float	dxy,
		float	zminT,
		float	zmaxT,
		float	zminV,
		float	zmaxV
	)

Find all segments from path compatible with the pred segment and add them to found array

{

  int  nseg  = pat.N();  if(nseg<1) return 0;
  int  nfound=0;
  for(int i=0; i<nseg; i++)   {
    EdbSegP *s = pat.GetSegment(i);
    if (s->Flag() < 0)                                        continue;  // sure?
    if( CompatibleSegments( spred,*s, impact, dthetaMax, dxy, zminT, zmaxT, zminV, zmaxV) )  found.Add(s);
    else continue;
    nfound++;
  }
  Log(2,"EdbVertexRec::FindSimilarSegments","%d segments are found",nfound);
  return nfound;
}

FindSimilarTracks()

Int_t EdbVertexRec::FindSimilarTracks	(	EdbTrackP &	t,
		TObjArray &	found,
		int	nsegmin = 2,
		float	dMax = 100.,
		float	dTheta = 0.01,
		float	dZmax = 50000.
	)

find all tracks close to the "track" and return them in "found"
nsegmin - min number of segments for the interesting tracks
gMax - max 3-d distance between track lines
dTheta - max spatial angle between track lines
dZmax - max distance in z between track lines

{

  using namespace TMath;
  int ntr  = eEdbTracks->GetEntries();
  if(ntr<1) return 0;

  EdbTrackP *t=0;
  EdbSegP   *s=track.TrackZmin(eUseSegPar);
  EdbSegP   *e=track.TrackZmax(eUseSegPar);
  EdbSegP   *ts=0, *te=0;  // start and end for the other tracks

  track.FitTrack();
  EdbSegP *t1=(EdbSegP*)(&track);
  EdbSegP *t2;
  int   nfound=0;
  float pv[3], imp, dtheta;
  for(int itr=0; itr<ntr; itr++)   {
    t = (EdbTrackP*)(eEdbTracks->At(itr));
    if (t == &track)                                          continue;
    if (t->Flag() < 0)                                        continue;
    ts = t->TrackZmin(eUseSegPar);
    te = t->TrackZmax(eUseSegPar);
    if( Min(ts->X(),te->X()) - Max(s->X(),e->X())   > dMax )  continue;
    if( Min(s->X(),e->X())   - Max(ts->X(),te->X()) > dMax )  continue;
    if( Min(ts->Y(),te->Y()) - Max(s->Y(),e->Y())   > dMax )  continue;
    if( Min(s->Y(),e->Y())   - Max(ts->Y(),te->Y()) > dMax )  continue;
    if( Min(ts->Z(),te->Z()) - Max(s->Z(),e->Z())   > dZmax ) continue;
    if( Min(s->Z(),e->Z())   - Max(ts->Z(),te->Z()) > dZmax ) continue;

    t->FitTrack();
    t2 = (EdbSegP*)t;
    dtheta = Sqrt( (t2->TX()-t1->TX())*(t2->TX()-t1->TX()) + (t2->TY()-t1->TY())*(t2->TY()-t1->TY()) );
    if(dtheta>dTheta)                                         continue;
    imp = CheckImpact( t1,t2,1,1, pv);
    if(imp>dMax)                                              continue;

    found.Add(t);
    nfound++;
  }

  Log(2,"EdbVertexRec::FindSimilarTracks","%d tracks found",nfound);
  if(gEDBDEBUGLEVEL>1) {
    for(int i=0; i<found.GetEntries(); i++) {
      t = (EdbTrackP*)found.At(i);
      t2 = (EdbSegP*)t;
      dtheta = Sqrt( (t2->TX()-t1->TX())*(t2->TX()-t1->TX()) + (t2->TY()-t1->TY())*(t2->TY()-t1->TY()) );
      imp = CheckImpact( t1,t2,1,1, pv);
      Log(3,"EdbVertexRec::FindSimilarTracks",
          "id =%6d  imp = %7.3f  dtheta = %7.3f  nseg =%3d\n", t->ID(), imp, dtheta,t->N());
   }
  }

  return nfound;
}

FindSimilarTracksE()

Int_t EdbVertexRec::FindSimilarTracksE	(	EdbSegP &	spred,
		TObjArray &	found,
		bool	startend,
		float	impact,
		float	dthetaMax,
		float	dxy,
		float	zminT,
		float	zmaxT,
		float	zminV,
		float	zmaxV
	)

Find all tracks with the requested extremity close to the pred segment and add them to found array

startend - selecting tracks extremity to be used: 0-tracks starts (zmin) 1-tracks ends (zmax)
impact - max 3D distance between segment lines
dthetaMax - max spatial angle between track lines
dxy - preliminary distance cut between segments
zminT,zmaxT - limits in Z for the tracks extremity
zminV,zmaxV - limits in Z for the estimated vertex position

{

  int ntr  = eEdbTracks->GetEntries();
  if(ntr<1) return 0;
  int   nfound=0;

  EdbSegP *t1=&spred;
  for(int itr=0; itr<ntr; itr++)   {
    EdbTrackP *t = (EdbTrackP*)(eEdbTracks->At(itr));
    if (t->Flag() < 0)                                        continue;
    EdbSegP *te = t->TrackExtremity(startend,eUseSegPar);  // select track extremity

    if( CompatibleSegments( *t1,*te, impact, dthetaMax, dxy, zminT, zmaxT, zminV, zmaxV) )  found.Add(t);
    else continue;

    nfound++;
  }
  Log(2,"EdbVertexRec::FindSimilarTracksE","%d tracks found",nfound);
  return nfound;
}

FindVertex()

int EdbVertexRec::FindVertex

(

)

Note: in this function is assumed that all tracks selections are already done
ProbMin - minimal probability for chi2-distance between tracks

{

  //if(!ePVR) ePVR = ((EdbPVRec *)(gROOT->GetListOfSpecials()->FindObject("EdbPVRec")));
  if (ePVR) if (ePVR->IsA() != EdbPVRec::Class()) ePVR = 0;
  if(!ePVR) {Log(1,"EdbVertexRec::FindVertex","Error! EdbPVRec not defined, use SetPVRec(...)"); return 0;}

  EdbVertex *edbv = 0;
  TIndexCell starts,ends;              // "ist:entry"   "iend:entry"
  FillTracksStartEnd( starts, ends );

  if(gEDBDEBUGLEVEL>1) printf("-----Search 2-track vertexes----------------------------\n");

  int nvtx   = 0;

  if(gEDBDEBUGLEVEL>1) printf(" End-Begin tracks combinations:\n");
  nvtx += LoopVertex(ends  , starts,  0, 1 );

  if(gEDBDEBUGLEVEL>1) printf(" Begin-Begin tracks combinations:\n");
  nvtx += LoopVertex(starts, starts,  1, 1 );

  if(gEDBDEBUGLEVEL>1) printf(" End-End tracks combinations:\n");
  nvtx += LoopVertex(ends  , ends,    0, 0 );

  int nvtxt = 0;
  if (eVTX) nvtxt = eVTX->GetEntries();

  if(nvtx!=nvtxt) printf("ERROR: EdbVertexRec::FindVertex():  nvtx =%d nvtxt =%d\n",nvtx,nvtxt);

  //for (Int_t i = 0; i < nvtxt; i++) GetVertex(i)->SetID(i);

  if (nvtxt) eVTX->Sort(nvtxt-1);

  for (Int_t i = nvtx-1; i >= 0; i--) {
    edbv = GetVertex(i);
    if (!edbv) continue;
    edbv->SetID(i);
    edbv->ResetTracks();
  }

  if(gEDBDEBUGLEVEL>1) printf("----------------- %d vtx ---------------------------------------\n", nvtx);

  return nvtx;
}

GetEdbTrack()

EdbTrackP * EdbVertexRec::GetEdbTrack

(

const int

index

)

{
  if (eEdbTracks) return (EdbTrackP *)eEdbTracks->At(index);
  else            return 0;
}

GetVertex()

EdbVertex * EdbVertexRec::GetVertex ( Int_t &  i )

inline

{return eVTX ? (EdbVertex*)eVTX->At(i):0;}

IsInsideLimits()

Bool_t EdbVertexRec::IsInsideLimits

(

EdbSegP &

s

)

return 1 if the segment position (x,y,z) is inside the limits defined by eVmin,eVmax

{
  if(s.X()<eVmin.X()) return 0;
  if(s.Y()<eVmin.Y()) return 0;
  if(s.Z()<eVmin.Z()) return 0;
  if(s.X()>eVmax.X()) return 0;
  if(s.Y()>eVmax.Y()) return 0;
  if(s.Z()>eVmax.Z()) return 0;
  return 1;
}

LinkedVertexes()

int EdbVertexRec::LinkedVertexes

(

)

calculate the number of linked vertices (with Nv()>0) and set flag+3 for them

{
  int nvt = Nvtx();
  if (!nvt) return 0;
  EdbVertex *v = 0;
  int nvl = 0;
  for (int iv=0; iv<nvt; iv++) {
    v = GetVertex(iv);
    if (v)
      if (v->Flag() != -10)
    if (v->Nv() != 0) {
      if (v->Flag() < 3) v->SetFlag(v->Flag()+3);
      nvl++;
    }
  }
  return nvl;
}

LoopVertex()

int EdbVertexRec::LoopVertex	(	TIndexCell &	list1,
		TIndexCell &	list2,
		int	zpos1,
		int	zpos2
	)

zpos1 - the direction flag for the first track 1-start, 0-end
zpos2 - the direction flag for the second track
in cycles is assumed that members of list1 has z <= members of list2

{


  Log(3,"EdbVertexRec::LoopVertex","  Selection: dZmax=%.0f Abin=%.3f ProbMin=%f zBin=%.0f usemom=%d",
         eDZmax, eAbin, eProbMin, eZbin, eUseMom);

  int nvtx     = 0;
  int ncombin  = 0;
  int ncount   = 0;

  TIndexCell *c1=0,  *c2=0;
  EdbTrackP  *tr1=0, *tr2=0;
  int         itr1,  itr2;

  int   nz1 = list1.GetEntries();
  int   nz2 = list2.GetEntries();
  float z1, z2;

  //int ntot = nz1*nz2;
  //printf("  2-track vertexes search in progress... %3d%%", 0);

  for(int iz1=0; iz1<nz1; iz1++)   {           // first z-group
    c1 = list1.At(iz1);
    z1 = c1->Value()*eZbin;
    int nc1=c1->GetEntries();

    for(int iz2=0; iz2<nz2; iz2++)   {         // second z-group
      c2 = list2.At(iz2);
      z2 = c2->Value()*eZbin;

      if( z2 < z1 )           continue;
      if( z2-z1 > eDZmax )    break;

      ncount++;
      //printf("\b\b\b\b%3d%%",(int)((double)ncount/double(ntot)*100.));
      fflush(stdout);

      int nc2=c2->GetEntries();
      for(int ic1=0; ic1<nc1; ic1++) {      // first z-group entries

    itr1 = c1->At(ic1)->Value();
    tr1  = (EdbTrackP*)((*eEdbTracks)[itr1]);
    if(!tr1)             continue;

    int ic2start=0;
    if(c1==c2) ic2start=ic1+1;

    for(int ic2=ic2start; ic2<nc2; ic2++) {    // second z-group entries
          ncombin++;

      itr2 = c2->At(ic2)->Value();
      if(itr2==itr1)       continue;
      tr2  = (EdbTrackP*)((*eEdbTracks)[itr2]);
      if(!tr2)             continue;

      EdbVertex *vtx = ProbVertex2( tr1, tr2, zpos1, zpos2 );
      if(vtx) {
        AddVertex(vtx);
        nvtx++;
      }

    }
      }
    }
  }

  //printf("\b\b\b\b%3d%%\n",100);

  Log(3,"EdbVertexRec::LoopVertex","  %6d pairs -> %d vertices accepted\n", ncombin, nvtx);

  return nvtx;
}

Make1Vertex()

EdbVertex * EdbVertexRec::Make1Vertex	(	TObjArray &	tracks,
		float	zexpected
	)

make a single vertex using tracks array

{

  EdbVertex *v = new EdbVertex();
  v->SetXYZ( 0,0, zexpected );
  int ntr = tracks.GetEntries();
  for(int i=0; i<ntr; i++) {
    EdbTrackP *t = (EdbTrackP*)tracks.At(i);
    EdbVTA *vta = new EdbVTA(t,v);
    vta->SetFlag(2);
    v->AddVTA(vta);
    (t->Z() >= v->Z())? vta->SetZpos(1) : vta->SetZpos(0);
    t->AddVTA(vta);
  }
  if( MakeV(*v) )  AddVertex(v);
  else { SafeDelete(v); return 0; }                                // vertex is not valid
  return v;
}

MakeV()

int EdbVertexRec::MakeV	(	EdbVertex &	edbv,
		bool	isRefit = false
	)

create new VtVertex and add tracks to this one
if isRefit - use input vertex position to improve the fit (default is false)

{

  if (ePVR) if (ePVR->IsA() != EdbPVRec::Class()) ePVR = 0;
  if(!ePVR) {Log(1,"EdbVertexRec::MakeV","ERROR: EdbPVRec not defined, use SetPVRec(...)"); return 0;}

  int n = edbv.N();
  if (n<2)         return 0;

  if(isRefit) edbv.SetXYZ(edbv.VX(),edbv.VY(),edbv.VZ());
  else        EstimateVertexPosition(edbv);
  edbv.ClearV();
  Vertex *v = new Vertex();
  v->use_kalman(eUseKalman);
  v->use_momentum(eUseMom);

  float X0 =  ePVR->GetScanCond()->RadX0();
  if(!eUseMom) X0 = -1.;  // ignore multiple scattering contribution if eUseMom is false

  EdbSegP *seg=0;
  for (int i=0; i<n; i++)
    {
      seg = edbv.GetTrackV(i,eUseSegPar);
      Track *t = new Track();
      //seg->PrintNice();
      //printf("%f\n",edbv.Z());
      edbv.Edb2Vt(*seg, *t, X0, edbv.GetTrack(i)->M());
      v->add_track(*t);
    }
  if (!v->findVertexVt())       { Log(3,"MakeV","can not find VtVertex" ); return 0; }
  if (!(v->valid()))            { Log(3,"MakeV","VtVertex is not valid" ); return 0; }
  edbv.SetV(v);
  for(int i=0; i<n; i++)
    {
      edbv.GetVTa(i)->SetDist( edbv.VZ() -  edbv.GetTrackV(i,eUseSegPar)->Z() );
      edbv.GetVTa(i)->SetImp( distance(v->get_track(i),*v) );
//      printf("dist = %f imp = %f\n", edbv.GetVTa(i)->Dist(), edbv.GetVTa(i)->Imp() );
//      edbv.GetTrack(i)->PrintNice();
    }
  EstimateVertexQuality(edbv);
  Log( 3,"EdbVertexRec::MakeV","impmax = %f",edbv.MaxImpact() );
  return 1;
}

MoveTrackToOtherVertex()

double EdbVertexRec::MoveTrackToOtherVertex	(	EdbVertex *	v2,
		int	it2max,
		EdbVertex *	v1,
		int	seltype,
		EdbVertex **	v2n,
		EdbVertex **	v1n
	)

{
//    printf("Rearrange vertexies %d and %d\n",v1->ID(),v2->ID());
    *v1no = 0;
    *v2no = 0;
    if (!v1 || !v2) return 0.;
    if (v2->N() < 3) return 0.;
    if (it2max >= v2->N()) return 0.;
    EdbVertex *v1n = 0, *v2n = 0;
    EdbTrackP *tr2 = 0;
    int zpos = 0;
    double dx, dy, dz, dist1, dist2, imp, vchisum, vdistsum;
    tr2 = v2->GetTrack(it2max);
    dx = v1->VX() - tr2->TrackZmin()->X();
    dy = v1->VY() - tr2->TrackZmin()->Y();
    dz = v1->VZ() - tr2->TrackZmin()->Z();
    dist1 = TMath::Sqrt(dx*dx+dy*dy+dz*dz);
    dx = v1->VX() - tr2->TrackZmax()->X();
    dy = v1->VY() - tr2->TrackZmax()->Y();
    dz = v1->VZ() - tr2->TrackZmax()->Z();
    dist2 = TMath::Sqrt(dx*dx+dy*dy+dz*dz);
    if (dist2 < dist1)
    {
    zpos = 0;
    }
    else
    {
    zpos = 1;
    }
    imp = v1->DistTrack(tr2, zpos);
    if (imp > 1.2*eImpMax) return 0.;
    if ((v2n = RemoveTrackFromVertex(v2, it2max)))
    {
    *v2no = v2n;
    v1n = AddTrackToVertex(v1, tr2, zpos);
    if (!v1n)
    {
//      CancelModifiedVTX(v2,v2n);
        return 0.;
    }
    *v1no = v1n;
    vchisum = v1n->V()->chi2() + v2n->V()->chi2();
    vdistsum = v1n->V()->rmsDistAngle() + v2n->V()->rmsDistAngle();
    if (seltype == 0)
    {
        return vdistsum;
    }
    else
    {
        return vchisum;
    }
    }
    return 0.;
}

Nvtx()

Int_t EdbVertexRec::Nvtx ( ) const

inline

{return eVTX ? eVTX->GetEntries() : 0;}

ProbVertex2()

EdbVertex * EdbVertexRec::ProbVertex2	(	EdbTrackP *	tr1,
		EdbTrackP *	tr2,
		int	zpos1,
		int	zpos2
	)

Check if 2 tracks can form the vertex. If yes - return the pointer to the new EdbVertex object

{
  Log(3,"EdbVertexRec::ProbVertex2", "try tracks %d and %d", tr1->ID(), tr2->ID() );

  if(!tr1)     return 0;
  if(!tr2)     return 0;
  if(tr1==tr2) return 0;
  EdbSegP *s1 = tr1->TrackExtremity(zpos1,eUseSegPar);
  EdbSegP *s2 = tr2->TrackExtremity(zpos2,eUseSegPar);
//zpos2? tr2->TrackZmin(eUseSegPar):tr2->TrackZmax(eUseSegPar);
  if(!s1)      return 0;
  if(!s2)      return 0;

  // check the dZ position agreement
  float dz     = TMath::Abs(s2->Z()-s1->Z());
  if( dz > eDZmax )                                       return 0;

  // check the dX dY position agreement
  int   isign;
  float dtx,dty,deltaZ=0;
  if(zpos1!=zpos2) {              // start-end,   end-start
    deltaZ = (dz+eZbin);
    isign = -1;
  } else {                        // start-start, end-end
    deltaZ = (eDZmax-dz/2.);
    isign = +1;
  }
  dtx = TMath::Abs(s2->TX() - isign*s1->TX())+eAbin;
  if( TMath::Abs(s2->X()-s1->X()) > dtx*deltaZ )          return 0;
  dty = TMath::Abs(s2->TY() - isign*s1->TY())+eAbin;
  if( TMath::Abs(s2->Y()-s1->Y()) > dty*deltaZ )          return 0;

  // check the impact
  float vestim[3];
  //float imp = CheckImpact( s1, s2, zpos1, zpos2, vestim );
  bool parallel;
  float imp = CheckImpactN( s1, s2, vestim, parallel, eDZmax );
  Log(3,"EdbVertexRec::ProbVertex2", "impact = %f", imp );
  if(imp>eImpMax)                                         return 0;

  // create the new EdbVertex
  EdbVertex *vtx =  new EdbVertex();
  vtx->SetXYZ(vestim[0],vestim[1],vestim[2]);

  EdbVTA    *vta1 =  new EdbVTA(tr1,vtx);
  vta1->SetZpos(zpos1);
  vta1->SetFlag(2);
  vtx->AddVTA(vta1);

  EdbVTA    *vta2 =  new EdbVTA(tr2,vtx);
  vta2->SetZpos(zpos2);
  vta2->SetFlag(2);
  vtx->AddVTA(vta2);

  if(MakeV(*vtx)) {
    vtx->SetFlag( EstimateVertexFlag(zpos1,zpos2) );
    //if(imp<eImpMaxV)     // accept the vertex even if prob is small (parallel tracks)
    //  return vtx;
    //else                 // do additional checks
    if( vtx->V()->prob() >= eProbMin ) {
       if( Log(3,"EdbVertexRec::ProbVertex2", "prob = %f",  vtx->V()->prob()) )       vtx->Print();
       if( CheckDZ2( s1->Z(), s2->Z(), zpos1,zpos2, vtx->VZ() ) )
         return vtx;
    }
  }
  SafeDelete(vta1);
  SafeDelete(vta2);
  SafeDelete(vtx);
  return 0;
}

ProbVertexN()

int EdbVertexRec::ProbVertexN

(

)

{
  if(gEDBDEBUGLEVEL>1) printf("*** on entry to ProbVertexN: nv = %d\n", eVTX->GetEntries());
  ProbVertexNpos(0);  // find n-track vtx attached to left edges
  if(gEDBDEBUGLEVEL>1) printf("*** npoz     0  ProbVertexN: nv = %d\n", eVTX->GetEntries());
  ProbVertexNpos(1);  // to right edges
  if(gEDBDEBUGLEVEL>1) printf("*** npoz     1  ProbVertexN: nv = %d\n", eVTX->GetEntries());

  CheckVTX();         // rank the vertices and reassign tracks according to the major rank
  if(gEDBDEBUGLEVEL>0) StatVertexN();      // print vertex statistics
  return 0;
}

ProbVertexN_old()

int EdbVertexRec::ProbVertexN_old

(

)

deprecated function (VT: 7/05/2008. Keeped for back-compatibility tests.
After the complete testing of the new ProbVertexN this function can be removed

{

  EdbVTA *vta = NULL, *vta1 = NULL, *vta2 = NULL;
  EdbVertex *edbv1 = NULL;
  EdbVertex *edbv2 = NULL;
  Vertex *v = 0;
  EdbTrackP *tr = 0;
  EdbTrackP *tr2 = 0;
  Int_t zpos = 0;
  int nvtx = 0;
  int nadd = 0;
  int ncombin = 0;
  int ncombinv = 0;
  bool wasadded = false;
  float dz = 0.;

  if (eVTX) {
    nvtx = eVTX->GetEntries();
    for (Int_t i = 0; i < nvtx; i++) {
      edbv1 = GetVertex(i);
      if (edbv1) {
    if (edbv1->N() > 2) {
      for (Int_t j = 0; j<edbv1->N(); j++)  eVTA.Remove(edbv1->GetVTa(j));
      for (Int_t j = 0; j<edbv1->Nn(); j++) eVTA.Remove(edbv1->GetVTn(j));
      tr  = edbv1->GetTrack(0);
      tr2 = edbv1->GetTrack(1);
      edbv1->Clear();
      vta1 = AddTrack(*edbv1, tr, edbv1->Zpos(0));
      vta2 = AddTrack(*edbv1, tr2, edbv1->Zpos(1));
      MakeV(*edbv1);
      v = edbv1->V();
      v->findVertexVt();

      if (!eQualityMode)
        edbv1->SetQuality(v->prob()/(v->vtx_cov_x()+v->vtx_cov_y()));
      else if (eQualityMode == 1) {
        Double_t rms = v->rmsDistAngle();
        if (rms) edbv1->SetQuality((Float_t)(1./rms));
        else edbv1->SetQuality(10.e+35);
      }
      else edbv1->SetQuality(1.);

      tr->AddVTA(vta1);
      tr2->AddVTA(vta2);
      AddVTA(vta1);
      AddVTA(vta2);
    }
    else {
      if (edbv1->Flag() < 0) {
        zpos = edbv1->Zpos(0) + edbv1->Zpos(1);
        if (!zpos) edbv1->SetFlag(2);
        else if (zpos == 1) edbv1->SetFlag(1);
        else if (zpos == 2) edbv1->SetFlag(0);
      }
    }
      }
    }
    edbv1 = 0;
  }
  else return 0;

  zpos = 0;

  nvtx = eVTX->GetEntries();
  printf("-----Merge 2-track vertex pairs to N-track vertexes-----\n");
  printf("N-track vertexes search in progress... %3d%%", 0);

  int nprint = (int)(0.05*(double)nvtx);
  if (nprint <= 0) nprint = 1;

  for (Int_t i1 = 0; i1 < nvtx; i1++) {
    wasadded = false;
    edbv1 = GetVertex(i1);
    if (!(i1%nprint)) {
      printf("\b\b\b\b%3d%%",(int)((double)i1/double(nvtx)*100.));
      fflush(stdout);
    }
    if (!edbv1) continue;
    if (edbv1->Flag() == -10) continue;
    Int_t nt1 = edbv1->N();
    bool exist = false;
    if (nt1 == 2) {
      for (Int_t ic1 = 0; ic1 < nt1; ic1++) {
    tr = edbv1->GetTrack(ic1);
    zpos = edbv1->Zpos(ic1);
    if (zpos) {
      if (tr->VertexS()) {
        if (nt1 < tr->VertexS()->N()) {
          exist = true;
          break;
        }
      }
    }
    else {
      if (tr->VertexE()) {
        if (nt1 <  tr->VertexE()->N()) {
          exist = true;
          break;
        }
      }
    }
      }

      if (exist) {
    edbv1->SetFlag(-10);
    continue;
      }
    }
    for (Int_t i2 = i1+1; i2<nvtx; i2++) {
      edbv2 = GetVertex(i2);
      if (!edbv2) continue;
      if (edbv2->Flag() == -10) continue;
      if (edbv2->N() == 2) {
    // printf(" v1 id %d, v2 id %d\n", edbv1->ID(), edbv2->ID());
    nt1 = edbv1->N();
    int nt2 = edbv2->N();
    int it1=0;
    int nomatch = 1;
    while (it1 < nt1 && nomatch) {
      int it2=0;
      tr = edbv1->GetTrack(it1);
      while ( (it2<nt2) && nomatch) {
        if (edbv2->GetTrack(it2) == tr &&
        edbv1->Zpos(it1) == edbv2->Zpos(it2)) {
          ncombin++;
          if (!it2) {
        tr2 = edbv2->GetTrack(1);
        zpos = edbv2->Zpos(1);
          }
          else if (it2 == 1) {
        tr2 = edbv2->GetTrack(0);
        zpos = edbv2->Zpos(0);
          }

          exist = false;
          for (int ic1=0; ic1<edbv1->N(); ic1++)
        if (tr2 == edbv1->GetTrack(ic1)) exist = true;

          if (zpos) {
        if (tr2->VertexS()) {
          if (tr2->VertexS()->N() > edbv1->N()) exist = true;
        }
          }
          else {
        if (tr2->VertexE()) {
          if (tr2->VertexE()->N() > edbv1->N()) {
            exist = true;
          }
        }
          }
          if (!exist) {
        ncombinv++;
        if (zpos) dz = edbv1->VZ() - tr2->TrackZmin(eUseSegPar)->Z();
        else      dz = tr2->TrackZmax(eUseSegPar)->Z() - edbv1->VZ();
        if(dz <= eZbin)
          if ((vta = AddTrack(*edbv1, tr2, zpos))) {
            nomatch = 0;
            wasadded = true;
            edbv2->SetFlag(-10);
            tr2->AddVTA(vta);
            AddVTA(vta);
            int vfl=edbv1->Flag();
            if      (vfl==0&&zpos==0) edbv1->SetFlag(1);
            else if (vfl==2&&zpos==1) edbv1->SetFlag(1);
            // printf("Add track ID %d from vertex %d to vertex %d\n",
            //                  tr2->ID(), i2, i1);
          }
          }
          else {
        nomatch = 0;
          }
          edbv2->SetFlag(-10);
        } // if one of tracks vertex 2 equal any track in vertex 1
        it2++;
      } // tracks in vertex 2
      it1++;
    } // tracks in vertex 1
      } // if vertex 2 has rank 2
    } // second vertex loop
    if (wasadded) nadd++;
  }  // first vertex loop

  printf("\b\b\b\b%3d%%\n",100);

  printf("  %6d 2-track vertex pairs with common track\n", ncombin);
  printf("  %6d pairs when common track not yet attached\n  %6d N-track vertexes with Prob > %f\n",
     ncombinv, nadd, eProbMin);
  printf("--------------------------------------------------------\n");

  for (int i1=0; (i1<nvtx); i1++) {
    edbv1 = GetVertex(i1);
    if (!edbv1) continue;
    if (edbv1->Flag() == -10) continue;
    edbv1->ResetTracks();
  }

  StatVertexN();
  return nadd;
}

ProbVertexNpos()

int EdbVertexRec::ProbVertexNpos

(

int

zpos

)

cycle by all vertices, check if it is possible to join some of them by common track, do it

{

  if (!eVTX) return 0;
  int nv2 = eVTX->GetEntries();    // number of vertices
  if(nv2<2)  return 0;

  Log(2,"EdbVertexRec::ProbVertexNpos","%d vertices as input",nv2);

  // first group vertices with a common track

  TMap maptr;  //key is track, value is TObjArray of vertices
  TObjArray *arr=0;
  EdbVertex *vtx=0;
  EdbTrackP *t=0;
  for( int i=0; i<nv2; i++) {
    vtx = GetVertex(i);
    if(!vtx) Log(1,"EdbVertexRec::ProbVertexNpos","vertex not found!");
    for( int j=0; j<vtx->N(); j++) {
      t = vtx->GetTrack(j);
      if(!t) Log(1,"EdbVertexRec::ProbVertexNpos","track not found!");
      if(!(vtx->Zpos(j)==zpos)) continue;
      arr = (TObjArray*)maptr.GetValue(t);
      if(!arr) {
    arr = new TObjArray();
    maptr.Add(t,arr);
      }
      arr->Add(vtx);
    }
  }

  TIter next(maptr.GetTable());
  TPair *a;
  while ((a = (TPair*) next())) {   // cycle by all keys (tracks)
    t  = (EdbTrackP*)a->Key();
    arr = (TObjArray*)a->Value();
    int nv = arr->GetEntries();
    //printf( "nv = %d\n", nv );
    if(nv<2)    continue;
    TObjArray arrvta;        // group of vta of tracks attached to t
    for(int iv=0; iv<nv; iv++) {
      vtx = (EdbVertex*)arr->At(iv);
      for(int it=0; it<vtx->N(); it++) {    arrvta.Add(vtx->GetVTa(it));  }
    }
    EdbVertex *newvtx=TestVTAGroup(arrvta);
    if(newvtx) {
      Log(3,"EdbVertexRec::ProbVertexNpos","add new vtx with %d tracks and flag = %d\n",newvtx->N(),newvtx->Flag() );
      eVTX->Add(newvtx);
    }
  }

  Log(2,"EdbVertexRec::ProbVertexNpos","%d entries in the map for zpos = %d",maptr.GetEntries(), zpos);

  return 0;
}

RefitAll()

int EdbVertexRec::RefitAll

(

)

use already found vertex position to improve the fit

{
  int nv = eVTX->GetEntries();
  EdbVertex *vtx = 0;
  int cnt=0;
  for (int i=0; i<nv; i++)   {
    vtx = GetVertex(i);
    if(vtx)
      if(vtx->Flag()>-1) {
    MakeV(*vtx,true);
    cnt++;
      }
  }
  return cnt;
}

RejectPolish()

void EdbVertexRec::RejectPolish

(

)

{
    CancelModifiedVTX(eVertex, eWorking);
}

RemoveTrackFromVertex()

EdbVertex * EdbVertexRec::RemoveTrackFromVertex	(	EdbVertex *	eVertex,
		int	itr
	)

{
    if (!eVertex)
    {

        printf("No working vertex selected!\n");
        fflush(stdout);
        return 0;
    }
    EdbVTA *vta = 0;
    EdbVertex *eWorking = 0;     // is a bug?? redeclaration of a member; noted VT:25/08/2011
    int n = 0;
    int ntr = 0;
    if (eWorking == 0)
    {
    ntr = eVertex->N();
    if (ntr < 3)
    {

        printf("Working vertex has 2 prongs only!\n");
        fflush(stdout);
        return 0;
    }
    eWorking = new EdbVertex();
    int i = 0;
    for(i=0; i<ntr; i++)
    {
        if (i == itr)
        {
        (eVertex->GetTrack(i))->ClearVTA(eVertex->GetVTa(i));
        continue;
        }
        if ((vta = AddTrack( *eWorking, eVertex->GetTrack(i), eVertex->Zpos(i))))
        {
        (eWorking->GetTrack(n))->AddVTA(vta);
        n++;
        }
    }
    }
    if ((n < 2)||(n == ntr))
    {
    printf("Can't create working copy of the vertex!\n");
    fflush(stdout);
    SafeDelete(eWorking);
    eVertex->ResetTracks();
    return 0;
    }

    if (MakeV(*eWorking))
    {
    EdbVertex *eW = eWorking;
    eW->ResetTracks();
    eW->SetID(eVertex->ID());
    }
    else
    {
    printf("Can't create working copy of the vertex!\n");
    fflush(stdout);
    SafeDelete(eWorking);
    eVertex->ResetTracks();
    return 0;
    }
    return eWorking;
}

RemoveVTAFromVertex()

EdbVertex * EdbVertexRec::RemoveVTAFromVertex	(	EdbVertex &	vtx,
		EdbVTA &	vta
	)

{
  int ntr = v.N();
  TObjArray tracks;
  for(int i=0; i<ntr; i++) {
    if( v.GetVTa(i) != &vta ) tracks.Add( v.GetVTa(i)->GetTrack() );
  }
  EdbVertex *vnew = Make1Vertex( tracks, v.Z() );

  int nn = v.Nn();
  for(int i=0; i<nn; i++) {
    vnew->AddVTA( v.GetVTn(i) );
  }
  return vnew;
}

Reset()

void EdbVertexRec::Reset

(

)

{
  SafeDelete(eVTX);
  eVTA.Clear("nodelete");
}

SegmentNeighbor()

int EdbVertexRec::SegmentNeighbor	(	EdbSegP *	s,
		float	RadMax = 1000.,
		int	Dpat = 1,
		float	ImpMax = 1000000.,
		float	SegWmin = 9,
		TObjArray *	aseg = 0,
		TObjArray *	atr = 0,
		TObjArray *	arv = 0
	)

{
  //if(!ePVR) ePVR = ((EdbPVRec *)(gROOT->GetListOfSpecials()->FindObject("EdbPVRec")));
  if (ePVR) if (ePVR->IsA() != EdbPVRec::Class()) ePVR = 0;
  if(!ePVR) {printf("Warning: EdbVertexRec::SegmentNeighbor: EdbPVRec not defined, use SetPVRec(...)\n"); return 0;}

  EdbTrackP *tr  = 0, *trown = 0;
  const EdbSegP   *ss  = 0;
  const EdbSegP   *se  = 0;
  int       nn   = 0;
  float     distxs, distys, distzs1, distzs, dists;
  float     distxe = 0., distye = 0., distze1= 0., distze = 0., diste = 0.;
  float     xseg = 0, yseg = 0, zseg = 0;
  EdbTrackP *trv = 0;
  EdbVertex *ve = 0;
  float dx = 0., dy = 0.;
  float dz = 0;
  Float_t   Zbin = TMath::Abs(ePVR->GetPattern(1)->Z() - ePVR->GetPattern(0)->Z());
  TObjArray an(200);

        xseg = s->X();
        yseg = s->Y();
        zseg = s->Z();
        an.Clear();
        if (s->Track() >= 0)
        {
        trown = (EdbTrackP *)ePVR->eTracks->At(s->Track());
        }
        // Select tracks neigborhood
        int nvn = SelSegNeighbor(s, 0, RadMax, Dpat, &an);
        if (trown) an.Add(trown);
        nvn = an.GetEntries();
        for (int it=0; it<nvn; it++) {
            tr = (EdbTrackP*)(an.At(it));
            if (tr)
            {
                if (tr != trown)
                {
                ss = tr->TrackZmin();
                distxs = (xseg - ss->X());
                distxs *= distxs;
                distys = (yseg - ss->Y());
                distys *= distys;
                distzs1 = (zseg - ss->Z());
                distzs = distzs1*distzs1;
                dists  =  distxs + distys + distzs;
                dists  =  TMath::Sqrt(dists);
                se = tr->TrackZmax();
                distxe = (xseg - se->X());
                distxe *= distxe;
                distye = (yseg - se->Y());
                distye *= distye;
                distze1 = (zseg - se->Z());
                distze = distze1*distze1;
                diste  =  distxe + distye + distze;
                diste  =  TMath::Sqrt(diste);
                if (diste < dists)
                {
                    if (TMath::Sqrt(distxe+distye) > RadMax)    continue;
                    if (TMath::Abs(distze1)        > Dpat*Zbin) continue;
                    if (Tdistance(*(const EdbSegP *)s, *se)           > ImpMax)    continue;
                }
                else
                {
                    if (TMath::Sqrt(distxs+distys) > RadMax)    continue;
                    if (TMath::Abs(distzs1)        > Dpat*Zbin) continue;
                    if (Tdistance(*(const EdbSegP *)s, *ss)           > ImpMax)    continue;
                }
                }
                if (arrt) arrt->Add(tr);
                nn++;
//--------------------------Add vertex neighborhood
                    tr->SetMC(-tr->MCEvt()-2000, tr->MCTrack());
                ve = tr->VertexS();
                if (ve && ve->Flag() >= -99 && ve->Flag() != -10)
                {
                dx = ve->VX() - xseg;
                dy = ve->VY() - yseg;
                if (TMath::Sqrt(dx*dx + dy*dy) <= RadMax)
                {
                    dz = ve->VZ() - zseg;
                    if (TMath::Abs(dz) <= Dpat*Zbin)
                    {
                    ve->SetFlag(-ve->Flag()-200);
                    if (arrv) arrv->Add(ve);
                    for(int j=0; j<ve->N(); j++)
                    {
                        trv = ve->GetTrack(j);
                        if (trv->MCEvt() < -999) continue;
                        if (ve->Zpos(j) == 0)
                            ss = trv->TrackZmax();
                        else
                            ss = trv->TrackZmin();
                        dx = ss->X() - xseg;
                        dy = ss->Y() - yseg;
                        dz = ss->Z() - zseg;
                        if (TMath::Sqrt(dx*dx+dy*dy) > RadMax)    continue;
                        if (TMath::Abs(dz)        > Dpat*Zbin) continue;
                        //if (TDistance(*(const EdbSegP *)s, *ss)      > ImpMax)    continue;
                        if (arrt) arrt->Add(trv);
                            trv->SetMC(-trv->MCEvt()-2000, trv->MCTrack());
                    }
                    }
                }
                }
                ve = tr->VertexE();
                if (ve && ve->Flag() >= -99 && ve->Flag() != -10)
                {
                dx = ve->VX() - xseg;
                dy = ve->VY() - yseg;
                if (TMath::Sqrt(dx*dx + dy*dy) <= RadMax)
                {
                    dy = ve->VZ() - zseg;
                    if (TMath::Abs(dz) <= Dpat*Zbin)
                    {
                    ve->SetFlag(-ve->Flag()-200);
                    if (arrv) arrv->Add(ve);
                    for(int j=0; j<ve->N(); j++)
                    {
                        trv = ve->GetTrack(j);
                        if (trv->MCEvt() < -999) continue;
                        if (ve->Zpos(j) == 0)
                            ss = trv->TrackZmax();
                        else
                            ss = trv->TrackZmin();
                        dx = ss->X() - xseg;
                        dy = ss->Y() - yseg;
                        dz = ss->Z() - zseg;
                        if (TMath::Sqrt(dx*dx+dy*dy) > RadMax) continue;
                        if (TMath::Abs(dz)        > Dpat*Zbin) continue;
                        //if (TDistance(*(const EdbSegP *)s, *ss)      > ImpMax)    continue;
                        if (arrt) arrt->Add(trv);
                            trv->SetMC(-trv->MCEvt()-2000, trv->MCTrack());
                    }
                    }
                }
                }
            }
        }
//----------Restore MCEvt
        int nv = arrv->GetEntries();
        for (int i=0; i<nv; i++)
        {
        ve = (EdbVertex *)arrv->At(i);
        if (ve->Flag() < -99 ) ve->SetFlag(-ve->Flag()-200);
        }
        int ntr = arrt->GetEntries();
        for (int i=0; i<ntr; i++)
        {
        tr = (EdbTrackP *)arrt->At(i);
        if (tr->MCEvt() < -999 ) tr->SetMC(-tr->MCEvt()-2000, tr->MCTrack());
        }
        // Select segments neigborhood
        //nvn = SelSegNeighbor(s, 1, RadMax, Dpat, arrs);
        an.Clear();
        nvn = SelSegNeighbor(s, 1, RadMax, Dpat, &an);
        nvn = an.GetEntries();
        for (int is=0; is<nvn; is++) {
            ss = (EdbSegP*)(an.At(is));
            if (ss)
            {
                if (ss != s)
                {
            if ( ss->W() < SegWmin) continue;
        if (Tdistance(*(const EdbSegP *)s, *ss) > ImpMax) continue;
        arrs->Add((TObject *)ss);
                nn++;
                }
            }
        }
//      printf("Selected %d segments\n", nvn);
//      nn += nvn;
  return nn;
}

SelSegNeighbor()

int EdbVertexRec::SelSegNeighbor	(	EdbSegP *	s,
		int	seltype,
		float	RadMax,
		int	Dpat,
		TObjArray *	ao
	)

{
  EdbSegP ss; // the virtual "vertex" segment

  if (!sin) return 0;

  ss.SetX(sin->X());
  ss.SetY(sin->Y());
  ss.SetZ(sin->Z());
  ss.SetTX(sin->TX());
  ss.SetTY(sin->TY());
  ss.SetErrors(RadMax*RadMax, RadMax*RadMax, 0., 0., 0., 0.);

  TObjArray arr(1000);

  ePVR->FindComplimentsVol(ss,arr,1,1,Dpat);

  int nseg = arr.GetEntries();
  EdbTrackP *tr = 0;
  EdbSegP   *s  = 0;
  int trflg  = 0;
  int trind  = 0;
  int ntr = 0;
  if (eEdbTracks) ntr = eEdbTracks->GetEntries();

  int nadd = 0;
  for (int i=0; i<nseg; i++)
  {
    s = (EdbSegP *)(arr.At(i));
    if (!s) continue;
    tr = 0;
    trind = s->Track();
    trflg = 0;
    if ( trind >= 0 && trind < ntr)
    {
    if ((tr = (EdbTrackP *)eEdbTracks->At(trind)))
    {
        trflg = tr->Flag();
        if (trflg != -10 && seltype == 0 && tr->MCEvt() >= -999)
        {
//      if (!(ao->FindObject(tr)))
//      {
            if (ao)
            {
            tr->SetMC(-tr->MCEvt()-2000, tr->MCTrack());
            ao->Add(tr);
            }
            nadd++;
//      }
        continue;
        }
    }
    }
    if((trind < 0 || trflg == -10)&&(seltype == 1))
    {
      if (ao) ao->Add(s);
    nadd++;
    }
  }

  if (seltype == 0)
  {
    nseg = ao->GetEntries();
    for (int i=0; i<nseg; i++)
    {
    tr = (EdbTrackP *)(ao->At(i));
    if (tr && (tr->MCEvt() < -999)) tr->SetMC( -tr->MCEvt()-2000, tr->MCTrack());
    }
  }

  return nadd;
}

SelVertNeighbor()

int EdbVertexRec::SelVertNeighbor	(	EdbVertex *	v,
		int	seltype,
		float	RadMax,
		int	Dpat,
		TObjArray *	ao
	)

{
  EdbSegP ss; // the virtual "vertex" segment

  if (!v) return 0;

  float x = v->VX();
  float y = v->VY();
  float z = v->VZ();

  ss.SetX(x);
  ss.SetY(y);
  ss.SetZ(z);
  ss.SetTX(0.);
  ss.SetTY(0.);
  ss.SetErrors(RadMax*RadMax, RadMax*RadMax, 0., 0., 0., 0.);

  TObjArray arr(20);
  ePVR->FindComplimentsVol(ss,arr,1,1,Dpat);

  int nseg = arr.GetEntries();
  EdbTrackP *tr = 0;
  EdbSegP   *s  = 0;
  int trflg  = 0;
  int trind  = 0;
  int ntr = eEdbTracks->GetEntries();

  int nadd = 0;
  for (int i=0; i<nseg; i++)
  {
    s = (EdbSegP *)(arr.At(i));
    if (!s) continue;
    tr = 0;
    trind = s->Track();
    trflg = 0;
    if ( trind >= 0 && trind < ntr)
    {
    if ((tr = (EdbTrackP *)eEdbTracks->At(trind)))
    {
        trflg = tr->Flag();
        if (trflg != -10 && seltype == 0 && tr->MCEvt() >= -999)
        {
//      if (!(ao->FindObject(tr)))
//      {
            if (ao)
            {
            tr->SetMC(-tr->MCEvt()-2000, tr->MCTrack());
            ao->Add(tr);
            }
            nadd++;
//      }
        continue;
        }
    }
    }
    if((trind < 0 || trflg == -10)&&(seltype == 1))
    {
    if (ao) ao->Add(s);
    nadd++;
    }
  }

  if (seltype == 0)
  {
    nseg = ao->GetEntries();
    for (int i=0; i<nseg; i++)
    {
    tr = (EdbTrackP *)(ao->At(i));
    if (tr && (tr->MCEvt() < -999)) tr->SetMC( -tr->MCEvt()-2000, tr->MCTrack());
    }
  }

  return nadd;
}

Set0()

void EdbVertexRec::Set0

(

)

{
  eEdbTracks = 0;
  eVTX       = 0;
  ePVR       = 0;
  eVertex    = 0;
  eWorking   = 0;
  (gROOT->GetListOfSpecials())->Add(this);    // To check if this can cause memory leak!
}

SetPVRec()

void EdbVertexRec::SetPVRec ( EdbPVRec *  pvr )

inline

{ePVR = pvr;}

StatVertexN()

void EdbVertexRec::StatVertexN

(

)

{
  Int_t nvt = Nvtx();
  if (!nvt) return;
  TArrayI navtx(10);
  EdbVertex *v=0;
  Int_t ntv = 0;
  for (Int_t i = 0; i < nvt; i++) {
    v = GetVertex(i);
    if (!v || v->Flag() < 0) continue;
    ntv = v->N();
    if (ntv > 11) ntv = 11;
    navtx[ntv-2]++;
  }
  for (ntv = 0; ntv < 10; ntv++) {
    if (ntv < 9)
      printf("%5d vertexes with number of tracks  = %2d was found\n",
         navtx[ntv], ntv+2);
    else
      printf("%5d vertexes with number of tracks >= %2d was found\n",
         navtx[ntv], ntv+2);
  }
}

StripBadTracks()

EdbVertex * EdbVertexRec::StripBadTracks	(	EdbVertex &	v,
		float	impMax,
		int	ntrMin
	)

{
  EdbVertex *v      = &vtx;
  int        ntr0    = v->N();
  int        ntr    = v->N();
  while( v && ntr>ntrMin && v->MaxImpact()>impMax )
  {
    Log(2,"EdbVertexRec::StripBadTracks"," ntr = %d     maximp = %f", ntr,v->MaxImpact() );
    EdbVTA *vta = v->GetMaxImpVTA();
    v = RemoveVTAFromVertex( *v, *vta );
    vta->SetFlag(0);  v->AddVTA(vta);    // add it as VTn
    ntr = v->N();
  }

  Log(2,"EdbVertexRec::StripBadTracks","  %d -> %d + %d     maximp = %f", ntr0, v->N(), v->Nn() ,v->MaxImpact() );
  return v;
}

Tdistance() [1/2]

double EdbVertexRec::Tdistance	(	const EdbSegP &	s1,
		const EdbSegP &	s2
	)

{
  EdbVertex edbv;
  Track t1,t2;
  edbv.Edb2Vt(s1,t1);
  edbv.Edb2Vt(s2,t2);
  return Tdistance(t1,t2);
}

Tdistance() [2/2]

double EdbVertexRec::Tdistance	(	const VERTEX::Track &	t1,
		const VERTEX::Track &	t2
	)

geometrical distance between 2 track lines in the space XYZ

                                                               {
  const double a  = t1.tx();
  const double b  = t1.ty();
  const double c  = 1.;
  const double a1 = t2.tx();
  const double b1 = t2.ty();
  const double c1 = 1.;

  const double det = square(a*b1 - b*a1) + square(b*c1 - c*b1) + square(c*a1 - a*c1);
  const SVector<double,3> dx = t2.xvec() - t1.xvec();
  // are tracks parallel?
  if(det==0) return mag(cross(dx,t1.evec()));

  const double det2 = dx[0]*(b*c1 - c*b1) + dx[1]*(c*a1 - a*c1) + dx[2]*(a*b1 - b*a1);

  return fabs(det2/sqrt(det));
}

TdistanceChi2() [1/2]

double EdbVertexRec::TdistanceChi2	(	const EdbSegP &	s1,
		const EdbSegP &	s2,
		float	m
	)

{
  EdbVertex edbv;
  Track t1,t2;
  float X0 =  ePVR->GetScanCond()->RadX0();
  edbv.Edb2Vt(s1,t1,X0,m);
  edbv.Edb2Vt(s2,t2,X0,m);
  return distanceChi2(t1,t2);
}

TdistanceChi2() [2/2]

double EdbVertexRec::TdistanceChi2	(	const EdbTrackP &	tr1,
		const EdbTrackP &	tr2
	)

{
  EdbVertex edbv;
  Track t1,t2;
  float X0 =  ePVR->GetScanCond()->RadX0();
  edbv.Edb2Vt(tr1,t1,X0,tr1.M());
  edbv.Edb2Vt(tr2,t2,X0,tr2.M());
  return distanceChi2(t1,t2);
}

TestVTAGroup()

EdbVertex * EdbVertexRec::TestVTAGroup

(

TObjArray &

arrvta

)

Try to create N-prong vertex from vta's group
Input: array of preselected vta's
return the new vertex if successful

{

  int nvta=arrvta.GetEntries();
  Log(3,"EdbVertexRec::TestVTAGroup","nvta = %d\n",nvta);

  EdbVTA *vta=0, *newvta=0;
  EdbVertex *newvtx = new EdbVertex();
  for(int i=0; i<nvta; i++) {
    vta = (EdbVTA*)arrvta.At(i);
    if( newvtx->TrackInVertex(vta->GetTrack()) )  continue;
    newvta =  new EdbVTA(vta->GetTrack(),newvtx);
    newvta->SetZpos(vta->Zpos());
    newvta->SetFlag(2);
    newvtx->AddVTA(newvta);
  }

  if(MakeV(*newvtx))
    if( newvtx->V() )
      if( newvtx->V()->valid() ) {
    //printf("prob = %f\n", newvtx->V()->prob() );
    if( newvtx->V()->prob() >= eProbMin )   // accept new N-tracks vertex
      {
        for(int i=0; i<nvta; i++)   {
          if( ((EdbVTA*)arrvta.At(i))->GetVertex() != newvtx )
                      ((EdbVTA*)arrvta.At(i))->GetVertex()->SetFlag(-10);
        }
        //printf("accepted!\n");
        return newvtx;
      }
      }
  SafeDelete(newvtx);   // discard new vertex
  return 0;
}

VertexNeighbor() [1/2]

int EdbVertexRec::VertexNeighbor	(	EdbVertex *	v,
		float	RadMax = 1000.,
		int	Dpat = 1,
		float	ImpMax = 1000000.
	)

{
  //if(!ePVR) ePVR = ((EdbPVRec *)(gROOT->GetListOfSpecials()->FindObject("EdbPVRec")));
  if (ePVR) if (ePVR->IsA() != EdbPVRec::Class()) ePVR = 0;
  if(!ePVR) {printf("Warning: EdbVertexRec::VertexNeighbor: EdbPVRec not defined, use SetPVRec(...)\n"); return 0;}

  EdbVTA    *vta = 0;
  EdbTrackP *tr  = 0;
  const EdbSegP   *ss  = 0;
  const EdbSegP   *se  = 0;
  EdbTrackP *trv = 0;
  EdbVertex *ve = 0;
  float dx = 0., dy = 0.;
  float dz = 0;
  int       zpos = 0;
  int       nn   = 0, nntr = 0;
  float     distxs, distys, distzs1, distzs, dists, dist = 0.;
  float     distxe = 0., distye = 0., distze1= 0., distze = 0., diste = 0.;
  float     xvert = 0, yvert = 0, zvert = 0;
  Float_t   Zbin = TMath::Abs((ePVR->GetPattern(1))->Z() - (ePVR->GetPattern(0))->Z());
  TObjArray an(20);

  if (v->Flag() != -10)
    {
        v->ClearNeighborhood();
        xvert = v->VX();
        yvert = v->VY();
        zvert = v->VZ();
        // Select tracks neigborhood
        an.Clear();
        int ntr = v->N();
        for(int i=0; i<ntr; i++)
        {
        tr = v->GetTrack(i);
        tr->SetMC(-tr->MCEvt()-2000, tr->MCTrack());
        if (v->Zpos(i) == 1)
            ve = tr->VertexE();
        else
            ve = tr->VertexS();
        if (ve && ve->Flag() >= -99 && ve->Flag() != -10)
        {
            dx = ve->VX() - xvert;
            dy = ve->VY() - yvert;
            if (TMath::Sqrt(dx*dx + dy*dy) > RadMax) continue;
            dz = ve->VZ() - zvert;
            if (TMath::Abs(dz) > Dpat*Zbin) continue;
            vta = new EdbVTA((EdbTrackP *)ve, v);
            vta->SetFlag(3);
            vta->SetDist(TMath::Sqrt(dx*dx+dy*dy+dz*dz));
            v->AddVTA(vta);
            ve->SetFlag(-ve->Flag()-200);
            for(int j=0; j<ve->N(); j++)
            {
            trv = ve->GetTrack(j);
            if (trv->MCEvt() < -999) continue;
            if (ve->Zpos(j) == 0)
                ss = trv->TrackZmax();
            else
                ss = trv->TrackZmin();
            dx = ss->X() - xvert;
            dy = ss->Y() - yvert;
            dz = ss->Z() - zvert;
            if (TMath::Sqrt(dx*dx+dy*dy) > RadMax)    continue;
            if (TMath::Abs(dz)        > Dpat*Zbin) continue;
            dist = TMath::Sqrt(dx*dx+dy*dy+dz*dz);
            vta = v->CheckImp(trv, 10.e+10, ve->Zpos(j), dist);
            if (vta) trv->SetMC(-trv->MCEvt()-2000, trv->MCTrack());
            }
        }
        }
        int nvn = SelVertNeighbor(v, 0, RadMax, Dpat, &an);
        for (int it=0; it<nvn; it++) {
            tr = (EdbTrackP*)(an.At(it));
            if (tr)
            {
                if (tr->MCEvt() < -999) continue;
                ss = tr->TrackZmin();
                distxs = (xvert - ss->X());
                distxs *= distxs;
                distys = (yvert - ss->Y());
                distys *= distys;
                distzs1 = (zvert - ss->Z());
                distzs = distzs1*distzs1;
                dists  =  distxs + distys + distzs;
                dists  =  TMath::Sqrt(dists);
                se = tr->TrackZmax();
                distxe = (xvert - se->X());
                distxe *= distxe;
                distye = (yvert - se->Y());
                distye *= distye;
                distze1 = (zvert - se->Z());
                distze = distze1*distze1;
                diste  =  distxe + distye + distze;
                diste  =  TMath::Sqrt(diste);
                if (diste < dists)
                {
                if (TMath::Sqrt(distxe+distye) > RadMax)    continue;
                if (TMath::Abs(distze1)        > Dpat*Zbin) continue;
                dist = diste;
                zpos = 0;
                }
                else
                {
                if (TMath::Sqrt(distxs+distys) > RadMax)    continue;
                if (TMath::Abs(distzs1)        > Dpat*Zbin) continue;
                dist = dists;
                zpos = 1;
                }
                vta = v->CheckImp(tr, ImpMax, zpos, dist);
                if (vta)
                {
                nn++;
                tr->SetMC(-tr->MCEvt()-2000, tr->MCTrack());
                ve = tr->VertexS();
                if (ve && ve->Flag() >= -99 && ve->Flag() != -10 && ve != v)
                {
                    dx = ve->VX() - xvert;
                    dy = ve->VY() - yvert;
                    if (TMath::Sqrt(dx*dx + dy*dy) <= RadMax)
                    {
                    dz = TMath::Abs(ve->VZ() - zvert);
                    if (dz <= Dpat*Zbin)
                    {
                        ve->SetFlag(-ve->Flag()-200);
                        vta = new EdbVTA((EdbTrackP *)ve, v);
                        vta->SetFlag(3);
                        vta->SetDist(TMath::Sqrt(dx*dx+dy*dy+dz*dz));
                        v->AddVTA(vta);
                        for(int j=0; j<ve->N(); j++)
                        {
                        trv = ve->GetTrack(j);
                        if (trv->MCEvt() < -999) continue;
                        if (ve->Zpos(j) == 0)
                            ss = trv->TrackZmax();
                        else
                            ss = trv->TrackZmin();
                        dx = ss->X() - xvert;
                        dy = ss->Y() - yvert;
                        dz = ss->Z() - zvert;
                        if (TMath::Sqrt(dx*dx+dy*dy) > RadMax)    continue;
                        if (TMath::Abs(dz)        > Dpat*Zbin) continue;
                        dist = TMath::Sqrt(dx*dx+dy*dy+dz*dz);
                        vta = v->CheckImp(trv, 10.e+10, ve->Zpos(j), dist);
                            if (vta) trv->SetMC(-trv->MCEvt()-2000, trv->MCTrack());
                        }
                    }
                    }
                }
                ve = tr->VertexE();
                if (ve && ve->Flag() >= -99 && ve->Flag() != -10 && ve != v)
                {
                    dx = ve->VX() - xvert;
                    dy = ve->VY() - yvert;
                    if (TMath::Sqrt(dx*dx + dy*dy) <= RadMax)
                    {
                    dz = TMath::Abs(ve->VZ() - zvert);
                    if (dz <= Dpat*Zbin)
                    {
                        ve->SetFlag(-ve->Flag()-200);
                        vta = new EdbVTA((EdbTrackP *)ve, v);
                        vta->SetFlag(3);
                        vta->SetDist(TMath::Sqrt(dx*dx+dy*dy+dz*dz));
                        v->AddVTA(vta);
                        for(int j=0; j<ve->N(); j++)
                        {
                        trv = ve->GetTrack(j);
                        if (trv->MCEvt() < -999) continue;
                        if (ve->Zpos(j) == 0)
                            ss = trv->TrackZmax();
                        else
                            ss = trv->TrackZmin();
                        dx = ss->X() - xvert;
                        dy = ss->Y() - yvert;
                        dz = ss->Z() - zvert;
                        if (TMath::Sqrt(dx*dx+dy*dy) > RadMax)    continue;
                        if (TMath::Abs(dz)        > Dpat*Zbin) continue;
                        dist = TMath::Sqrt(dx*dx+dy*dy+dz*dz);
                        vta = v->CheckImp(trv, 10.e+10, ve->Zpos(j), dist);
                            if (vta) trv->SetMC(-trv->MCEvt()-2000, trv->MCTrack());
                        }
                    }
                    }
                }
                }
            }
        }
        ntr = v->N();
        for(int i=0; i<ntr; i++)
        {
        tr = v->GetTrack(i);
        tr->SetMC(-tr->MCEvt()-2000, tr->MCTrack());
        }
        nntr = v->Nn();
        for(int i=0; i<nntr; i++)
        {
        if ((vta = v->GetVTn(i)))
        {
            if (vta->Flag() == 0) //track
            {
            tr = vta->GetTrack();
                if (tr->MCEvt() < -999 ) tr->SetMC(-tr->MCEvt()-2000, tr->MCTrack());
            }
            else if (vta->Flag() == 3) //vertex
            {
                ve = (EdbVertex *)vta->GetTrack();
                if (ve->Flag() < -99 ) ve->SetFlag(-ve->Flag()-200);
            }
        }
        }
        // Select segments neigborhood
        an.Clear();
        nvn = SelVertNeighbor(v, 1, RadMax, Dpat, &an);
        for (int it=0; it<nvn; it++) {
            ss = (EdbSegP*)(an.At(it));
            if (ss)
            {
                distxs = (xvert - ss->X());
                distxs *= distxs;
                distys = (yvert - ss->Y());
                distys *= distys;
                distzs1 = (zvert - ss->Z());
                distzs = distzs1*distzs1;
                dists  =  distxs + distys + distzs;
                dists  =  TMath::Sqrt(dists);
//              if (TMath::Sqrt(distxs+distys) > RadMax)    continue;
//              if (TMath::Abs(distzs1)        > Dpat*Zbin) continue;
//              vta = v->CheckImp((EdbTrackP *)ss, ImpMax, zpos, dists);
                if (v->DistSeg((EdbSegP *)ss) > ImpMax) continue;
                vta = new EdbVTA((EdbTrackP *)ss, v);
                vta->SetZpos(1);
                vta->SetFlag(1);
                vta->SetImp(0.);
                vta->SetDist(dists);
                v->AddVTA(vta);
                nn++;
            }
        }
  }
  return nn;
}

VertexNeighbor() [2/2]

int EdbVertexRec::VertexNeighbor	(	float	RadMax = 1000.,
		int	Dpat = 1,
		float	ImpMax = 1000000.
	)

{
  //if(!ePVR) ePVR = ((EdbPVRec *)(gROOT->GetListOfSpecials()->FindObject("EdbPVRec")));
  if (ePVR) if (ePVR->IsA() != EdbPVRec::Class()) ePVR = 0;
  if(!ePVR) {printf("Warning: EdbVertexRec::VertexNeighbor: EdbPVRec not defined, use SetPVRec(...)\n"); return 0;}

  int nn   = 0, iv = 0;
//  int i = 0, nntr = 0;
  int nvt = 0;
  int ntr = 0;
  if (eVTX) nvt = eVTX->GetEntries();
  if (eEdbTracks) ntr = eEdbTracks->GetEntries();
  if (!nvt) return 0;
  if (!ntr) return 0;

  EdbVertex *v   = 0;

  for (iv=0; iv<nvt; iv++) {
    v = GetVertex(iv);
    if (v)
    {
        nn += VertexNeighbor(v, RadMax, Dpat, ImpMax);
//      nntr = v->Nn();
//      for(i=0; i<nntr; i++) AddVTA(v->GetVTn(i));
    }
  }

  return nn;
}

VertexPolish()

int EdbVertexRec::VertexPolish	(	EdbVertex *	v,
		int	refill = 0,
		float	RadMax = 1000.,
		int	Dpat = 2,
		float	ImpMax = 25.,
		float	ProbMin = 0.01,
		float	Mom = 0.3
	)

{
    if (refill) if (!VertexNeighbor(v, RadMax, Dpat, ImpMax)) return 0;

    EdbVTA *vta = 0;
    EdbTrackP *tn = 0;
    EdbSegP *sn = 0;
    EdbVertex *w = 0;

    int nt = v->N();
    int nn = v->Nn();
    int naddtot = 0, nmod = 0;
    int news = 0;
    if (nn)
    {
    // first of all try to propagate existing tracks with new momentum
    double p = Mom;
    int nadd = 0;
    for(int i=0; i<nt; i++)
    {
        nadd = 0;
        tn = v->GetTrack(i);
        for (int ip=0; ip<2; ip++)
        {
         p = Mom/(ip+1);
         tn->SetErrorP(0.2*0.2*p*p);
         tn->SetP(p);
         if (v->Zpos(i)) nadd += ePVR->PropagateTrack( *tn, true,  0.01, 3, 0 );
         else            nadd += ePVR->PropagateTrack( *tn, false, 0.01, 3, 0 );
        }
        if (nadd) nmod++;
        naddtot += nadd;
    }

    // then attach single segments with small impact to the vertex
    eVertex = v;
    for(int i=0; i<nn; i++)
    {
        vta = eVertex->GetVTn(i);
            if (vta->Flag()  == 1) // neighbour segment
            {
            sn = (EdbSegP *)vta->GetTrack();
        news += AddSegmentToVertex(sn, ImpMax, ProbMin, Mom);
            }
    }
    w = eVertex;
    if (eWorking != 0) w = eWorking;
    nt = w->N();
    p = Mom;
    nadd = 0;
    // then try to propagate one-segment tracks with new momentum
    for(int i=0; i<nt; i++)
    {
        nadd = 0;
        tn = w->GetTrack(i);
        if (tn->N() > 1) continue;
        for (int ip=0; ip<2; ip++)
        {
         p = Mom/(ip+1);
         tn->SetErrorP(0.2*0.2*p*p);
         tn->SetP(p);
         if (w->Zpos(i)) nadd += ePVR->PropagateTrack( *tn, true,  0.01, 3, 0 );
         else            nadd += ePVR->PropagateTrack( *tn, false, 0.01, 3, 0 );
        }
        if (nadd) nmod++;
        naddtot += nadd;
    }
    }
    printf("%d single segments are attached, %d tracks are propagated (total %d segments are added).\n",
           news, nmod, naddtot);
    fflush(stdout);
    return (news+nmod);
}

VertexTuning()

int EdbVertexRec::VertexTuning

(

int

seltype = 0

)

{
  //if(!ePVR) ePVR = ((EdbPVRec *)(gROOT->GetListOfSpecials()->FindObject("EdbPVRec")));
  if (ePVR) if (ePVR->IsA() != EdbPVRec::Class()) ePVR = 0;
  if(!ePVR) {printf("Warning: EdbVertexRec::VertexNeighbor: EdbPVRec not defined, use SetPVRec(...)\n"); return 0;}

  int iv = 0, nntr = 0, nn = 0;
  int nvt = 0;
  int ntr = 0;
  if (eEdbTracks) ntr = eEdbTracks->GetEntries();
  if (!ntr) return 0;
  if (eVTX) nvt = eVTX->GetEntries();
  if (!nvt) return 0;

  EdbVertex *v1 = 0, *v2 = 0;
  EdbVertex *v1n = 0, *v2n = 0;
  EdbVTA *vta = 0;
  EdbTrackP *tr1 = 0, *tr2 = 0;
  int ntr1 = 0, ntr2 = 0, was = 0;
  double impa1[50] = {0.}, chia1[50] = {0.}, imp1max = 0., chi1max = 0.;
  double impa2[50] = {0.}, chia2[50] = {0.}, imp2max = 0., chi2max = 0.;
  double cri1max = 0., cri2max = 0.;
  int it1impmax = -1, it1chimax = -1, it1max = -1;
  int it2impmax = -1, it2chimax = -1, it2max = -1;
  double vchisumorig = 0., vdistsumorig = 0.;
  double v1chiorig = 0., v1distorig = 0.;
  double v2chiorig = 0., v2distorig = 0., crit = 0., critorig = 0.;

  for (iv=0; iv<nvt; iv++) {  // loop on all vertexes
    v1 = GetVertex(iv);
    if (v1)
    {
        if (v1->Flag() < 0) continue;
        if ((!(v1->V()))) continue;
        ntr1 = v1->N();
        imp1max = -1.;
        chi1max = -1.;
        it1max  = -1;
        for(int it1=0; it1<v1->N() && it1<50; it1++)
        {
        tr1 = v1->GetTrack(it1);
        impa1[it1] = v1->ImpTrack(it1);
        if (impa1[it1] > imp1max)
        {
            imp1max = impa1[it1];
            it1impmax = it1;
        }
        chia1[it1] = v1->Chi2Track(tr1, v1->Zpos(it1), 0.);
        if (chia1[it1] > chi1max)
        {
            chi1max = chia1[it1];
            it1chimax = it1;
        }
        }
        if (seltype == 0)
        {
        it1max = it1impmax;
        }
        else
        {
        it1max = it1chimax;
        }
        nntr = v1->Nn();
        v1chiorig = v1->V()->chi2();
        v1distorig = v1->V()->rmsDistAngle();
        if (nntr)
        {
          for(int i=0; i<nntr; i++)
          {
        vta = v1->GetVTn(i);
                if (vta->Flag() == 0)    // neighbour track
                {
//                       EdbTrackP *tn = vta->GetTrack();
                }
                else if (vta->Flag()  == 1) // neighbour segment
                {
//                       EdbSegP *sn = (EdbSegP *)vta->GetTrack();
                }
                else if (vta->Flag()  == 3) // neighbour vertex
                {
                       v2 = (EdbVertex *)vta->GetTrack();
               if ((!v2) || v2->Flag() == -10) continue;
               if ((!(v2->V()))) continue;
               ntr2 = v2->N();
               v2chiorig = v2->V()->chi2();
               v2distorig = v2->V()->rmsDistAngle();
               vchisumorig = v1chiorig + v2chiorig;
               vdistsumorig = v1distorig + v2distorig;
               if (seltype == 0)
               {
                critorig = vdistsumorig;
               }
               else
               {
                critorig = vchisumorig;
               }
               was = 0;
               if (ntr1==2 && ntr2>2)
               {
                imp2max = 0.;
                chi2max = 0.;
                it2max  = -1;
                for(int it2=0; it2<ntr2 && it2<50; it2++)
                {
                tr2 = v2->GetTrack(it2);
                impa2[it2] = v2->ImpTrack(it2);
                if (impa2[it2] > imp2max)
                {
                    imp2max = impa2[it2];
                    it2impmax = it2;
                }
                chia2[it2] = v2->Chi2Track(tr2, v2->Zpos(it2), 0.);
                if (chia2[it2] > chi2max)
                {
                    chi2max = chia2[it2];
                    it2chimax = it2;
                }
                }
                if (seltype == 0)
                {
                it2max = it2impmax;
                }
                else
                {
                it2max = it2chimax;
                }
                if (it2max < 0) continue;
                if (v2->GetConnectedVertexForTrack(it2max)==v1) continue;
                crit = MoveTrackToOtherVertex(v2, it2max, v1, seltype, &v2n, &v1n);
                was = 1;
               }
               else if (ntr1>2 && ntr2==2)
               {
                imp1max = 0.;
                chi1max = 0.;
                it1max  = -1;
                for(int it1=0; it1<ntr1 && it1<50; it1++)
                {
                tr1 = v1->GetTrack(it1);
                impa1[it1] = v1->ImpTrack(it1);
                if (impa1[it1] > imp1max)
                {
                    imp1max = impa1[it1];
                    it1impmax = it1;
                }
                chia1[it1] = v1->Chi2Track(tr1, v1->Zpos(it1), 0.);
                if (chia1[it1] > chi1max)
                {
                    chi1max = chia1[it1];
                    it1chimax = it1;
                }
                }
                if (seltype == 0)
                {
                it1max = it1impmax;
                }
                else
                {
                it1max = it1chimax;
                }
                if (it1max < 0) continue;
                if (v1->GetConnectedVertexForTrack(it1max)==v2) continue;
                crit = MoveTrackToOtherVertex(v1, it1max, v2, seltype, &v2n, &v1n);
                was = 1;
               }
               else if (ntr1>2 && ntr2>2)
               {
                imp2max = 0.;
                chi2max = 0.;
                it2max  = -1;
                for(int it2=0; it2<ntr2 && it2<50; it2++)
                {
                tr2 = v2->GetTrack(it2);
                impa2[it2] = v2->ImpTrack(it2);
                if (impa2[it2] > imp2max)
                {
                    imp2max = impa2[it2];
                    it2impmax = it2;
                }
                chia2[it2] = v2->Chi2Track(tr2, v2->Zpos(it2), 0.);
                if (chia2[it2] > chi2max)
                {
                    chi2max = chia2[it2];
                    it2chimax = it2;
                }
                }
                if (seltype == 0)
                {
                it2max = it2impmax;
                cri1max = imp1max;
                cri2max = imp2max;
                }
                else
                {
                it2max = it2chimax;
                cri1max = chi1max;
                cri2max = chi2max;
                }
                if (it1max < 0) continue;
                if (it2max < 0) continue;
                if (cri2max > cri1max)
                {
                if (v2->GetConnectedVertexForTrack(it2max)==v1) continue;
                crit = MoveTrackToOtherVertex(v2, it2max, v1, seltype, &v2n, &v1n);
                was = 1;
                }
                else
                {
                if (v1->GetConnectedVertexForTrack(it1max)==v2) continue;
                crit = MoveTrackToOtherVertex(v1, it1max, v2, seltype, &v2n, &v1n);
                was = 1;
                } // variants of changing
               } // multiplicities
               if (was)
               {
                if ((crit < critorig) && v1n && v2n)
                {
                AcceptModifiedVTX(v1,v1n);
                AcceptModifiedVTX(v2,v2n);
                v1 = v1n;
                v2 = v2n;
                    if (v2->Flag() > -11) v2->SetFlag(-v2->Flag()-11);
                nn++;
                //break;
                }
                else
                {
                CancelModifiedVTX(v1,v1n);
                CancelModifiedVTX(v2,v2n);
                }
               }
                } // neighbor vertex
          } // loop on neighbor
        } // neighbor exist
    } // good v1
  } // loop on vertexes

  nvt = eVTX->GetEntries();

  for (iv=0; iv<nvt; iv++) {
    v1 = GetVertex(iv);
    if (v1)
    {
        if (v1->Flag()<-10)
        {
        v1->SetFlag(-v1->Flag()-11);
        }
    }
  }

  return nn;
}

Vmax()

const TVector3 * EdbVertexRec::Vmax ( ) const

inline

{return &eVmax;}

Vmin()

const TVector3 * EdbVertexRec::Vmin ( ) const

inline

{return &eVmin;}

Member Data Documentation

eEdbTracks

TObjArray* EdbVertexRec::eEdbTracks

ePVR

EdbPVRec* EdbVertexRec::ePVR

patterns volume (optional)

eVertex

EdbVertex* EdbVertexRec::eVertex

private

eVTA

TList EdbVertexRec::eVTA

vertex-track associations

eVTX

TObjArray* EdbVertexRec::eVTX

array of vertex

eWorking

EdbVertex* EdbVertexRec::eWorking

private

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEdr/EdbVertex.h
• /home/antonio/fedra_doxygen/src/libEdr/EdbVertex.cxx
