EdbEDAPlotTab Class Reference

#include <EdbEDAPlotTab.h>

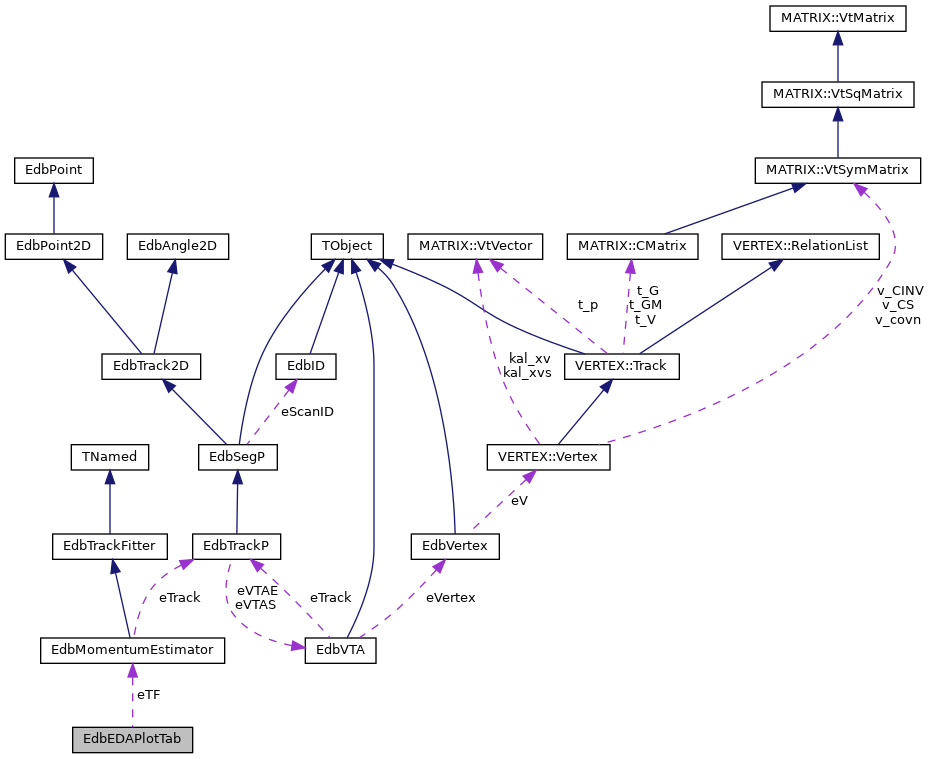

Collaboration diagram for EdbEDAPlotTab:

Public Member Functions
void	CheckAlignment (EdbPVRec *pvr=NULL)
void	CheckEff (EdbPVRec *pvr=NULL, TObjArray *tracks=NULL)
TObjArray *	CheckKink (EdbTrackP *)
void	CheckKinkTracks ()
void	CheckOverview (EdbPVRec *pvr=NULL)
void	CheckPHDAngle (EdbPVRec *pvr=NULL)
void	CheckSingleTrack (EdbTrackP *t)
void	CheckTracks ()
	EdbEDAPlotTab ()
void	MakeGUI ()
void	MomPlot ()
void	SetEffMinSeg (int nseg)
void	SetEffNbins (int nbins, double tmax=0.7)
void	SetMomAlg ()
void	SetMomAlgAngle ()
void	SetMomAlgCoord ()

Static Public Member Functions
static TCanvas *	CreateCanvas (char *plot_name)

Public Attributes
double	eDTReference

Private Attributes
int	eEffMinSeg
	Minimum number of segment for efficiency calculation. (count except the target plate.) More...
int	eEffNbins
double	eEffTmax
TGNumberEntry *	eMomAngleRes
EdbMomentumEstimator	eTF

Constructor & Destructor Documentation

EdbEDAPlotTab()

EdbEDAPlotTab::EdbEDAPlotTab ( )

inline

:eEffNbins(7),eEffTmax(0.7), eEffMinSeg(4), eDTReference(0.07) {MakeGUI();}

Member Function Documentation

CheckAlignment()

void EdbEDAPlotTab::CheckAlignment

(

EdbPVRec *

pvr = NULL

)

                                               {
    int i,j;

    TCanvas *c1 = CreateCanvas("Alignment");
    c1->Divide(2,2);
    c1->cd(1);

    if(NULL==pvr) {
        EdbEDATrackSet *set = gEDA->GetTrackSet("TS");
        pvr = set->GetPVRec();
    }

    // Efficiency plate by plate
    int pidmax = pvr->Npatterns()-1;
    int pidmin = 0;

    int plmax=0, plmin=1000;

    for(i=0;i<pvr->Npatterns();i++){
        EdbPattern *pat = pvr->GetPattern(i);
        if(pat==NULL) continue;
        EdbSegP *s = pat->GetSegment(0);
        if(s==NULL) continue;
        if(s->Plate()<plmin) plmin=s->Plate();
        if(s->Plate()>plmax) plmax=s->Plate();
    }

    if(plmax<plmin) { int tmp=plmax; plmax=plmin; plmin=tmp;} // if order of pid and ipl were opposite.

    int npl = plmax-plmin+1;

    int pid;

    int nsegcut = gEDA->GetMainTab()->GetNsegCut();


    TNtuple *nt = new TNtuple("ntali", "alignment", "itrk:ipl1:ipl2:ax:ay:x:y:dx:dy:dax:day");

    for(i=0;i<pvr->Ntracks();i++){
        EdbTrackP *t = pvr->GetTrack(i);
        if(t==NULL) continue;
        if(npl>2&&t->N()<3) continue;
        if(t->N()<nsegcut) continue;
        //EdbSegP *s1st = t->GetSegmentFirst();
        //EdbSegP *slst = t->GetSegmentLast();

        for(pid=pidmin; pid<pidmax; pid++){
            EdbSegP *s1=0,*s2=0;
            for(j=0;j<t->N();j++){
                EdbSegP *s = t->GetSegment(j);
                if(pid==s->PID())   s1=s;
                if(pid+1==s->PID()) s2=s;
            }
            if(s1&&s2) {
                double dz = (s2->Z()-s1->Z())/2;
                double dx = s1->X()+s1->TX()*dz - ( s2->X()-s2->TX()*dz );
                double dy = s1->Y()+s1->TY()*dz - ( s2->Y()-s2->TY()*dz );
                double dax = s1->TX() - s2->TX();
                double day = s1->TY() - s2->TY();
                nt->Fill(t->ID(), s1->Plate(), s2->Plate(), t->TX(), t->TY(), s1->X(), s1->Y(),dx,dy,dax,day);
            }
        }
    }

    TProfile *profx  = new TProfile("profalix",   "#deltax Profile, bar = Error(black) RMS(gray)",       npl+1, plmin-1, plmax+1,"s");
    TProfile *profx2 = new TProfile("profalix2",  "#deltax Profile, bar = Error(black) RMS(gray)",       npl+1, plmin-1, plmax+1);
    TProfile *profy  = new TProfile("profaliy",   "#deltay Profile, bar = Error(black) RMS(gray)",       npl+1, plmin-1, plmax+1,"s");
    TProfile *profy2 = new TProfile("profaliy2",  "#deltax Profile, bar = Error(black) RMS(gray)",       npl+1, plmin-1, plmax+1);
    TProfile *profax = new TProfile("profaliax",  "#delta#thetax Profile, bar = Error(black) RMS(gray)", npl+1, plmin-1, plmax+1,"s");
    TProfile *profax2= new TProfile("profaliax2", "#deltax Profile, bar = Error(black) RMS(gray)",       npl+1, plmin-1, plmax+1);
    TProfile *profay = new TProfile("profaliay",  "#delta#thetay Profile, bar = Error(black) RMS(gray)", npl+1, plmin-1, plmax+1,"s");
    TProfile *profay2= new TProfile("profaliay2", "#deltax Profile, bar = Error(black) RMS(gray)",       npl+1, plmin-1, plmax+1);

    c1->cd(1);
    nt->Draw("dx:(ipl1+ipl2)/2 >>profalix2");
    nt->Draw("dx:(ipl1+ipl2)/2 >>profalix");
    profx->SetMinimum(-15);
    profx->SetMaximum(15);
    profx->SetLineColor(kGray);
    profx->SetXTitle("Plate number");
    profx->SetYTitle("#mum");
    profx2->Draw("same");

    c1->cd(2);
    nt->Draw("dy:(ipl1+ipl2)/2 >>profaliy2");
    nt->Draw("dy:(ipl1+ipl2)/2 >>profaliy");
    profy->SetMinimum(-15);
    profy->SetMaximum(15);
    profy->SetLineColor(kGray);
    profy->SetXTitle("Plate number");
    profy->SetYTitle("#mum");
    profy2->Draw("same");

    c1->cd(3);
    nt->Draw("dax:(ipl1+ipl2)/2 >>profaliax2");
    nt->Draw("dax:(ipl1+ipl2)/2 >>profaliax");
    profax->SetMinimum(-0.020);
    profax->SetMaximum(0.020);
    profax->SetLineColor(kGray);
    profax->SetXTitle("Plate number");
    profax->SetYTitle("rad");
    profax2->Draw("same");

    c1->cd(4);
    nt->Draw("day:(ipl1+ipl2)/2 >>profaliay2");
    nt->Draw("day:(ipl1+ipl2)/2 >>profaliay");
    profay->SetMinimum(-0.020);
    profay->SetMaximum(0.020);
    profay->SetLineColor(kGray);
    profay->SetXTitle("Plate number");
    profay->SetYTitle("rad");
    profay2->Draw("same");


    printf("Alignments. nseg>=%d\n", nsegcut);
    printf("%5s %6s %6s ", "pl","dxcent","dxrms");
    printf("%6s %6s ", "dycent","dyrms");
    printf("%8s %8s ", "daxcent","daxrms");
    printf("%8s %8s \n", "daycent","dayrms");
    for(i=2;i<npl+1;i++){
        printf("%5.1lf ", profx->GetBinCenter(i));
        printf("%6.2lf %6.2lf ", profx->GetBinContent(i), profx->GetBinError(i));
        printf("%6.2lf %6.2lf ", profy->GetBinContent(i), profy->GetBinError(i));
        printf("%8.5lf %8.5lf ", profax->GetBinContent(i), profax->GetBinError(i));
        printf("%8.5lf %8.5lf \n", profay->GetBinContent(i), profay->GetBinError(i));
    }

}

CheckEff()

void EdbEDAPlotTab::CheckEff	(	EdbPVRec *	pvr = NULL,
		TObjArray *	tracks = NULL
	)

Plot efficiencies for each plate or each angle.
Using the tracks in the given PVRec object.
Use minimum number of segment bigger equal than eEffMinSeg(default=4).

                                                            {
    printf("Efficiency plot\n");
    int i,j,k;

    TCanvas *c1 = CreateCanvas("Efficiency");
    c1->Divide(2,2);
    c1->cd(1);

    if(NULL==pvr) {
        EdbEDATrackSet *set = gEDA->GetTrackSet("TS");
        pvr = set->GetPVRec();
    }

    if(NULL==tracks) tracks=pvr->eTracks;

    // Efficiency plate by plate
    int pidmax = pvr->Npatterns()-1;
    int pidmin = 0;

    int plmax=0, plmin=1000;

    for(i=0;i<pvr->Npatterns();i++){
        EdbPattern *pat = pvr->GetPattern(i);
        if(pat==NULL) continue;

        EdbSegP *s = pat->GetSegment(0);
        if(s==NULL) continue;
        if(s->Plate()<plmin) plmin=s->Plate();
        if(s->Plate()>plmax) plmax=s->Plate();
    }

    if(plmax<plmin) { int tmp=plmax; plmax=plmin; plmin=tmp;} // if order of pid and ipl were opposite.

    int npl = plmax-plmin+1;

//  EdbEDAAreaSet *areas = gEDA->GetAreaSet();

    TH1D *hentry = new TH1D("hentry",Form("Efficiency (#theta < %.2f rad)", eEffTmax<0.5? eEffTmax : 0.5), npl, plmin-0.5, plmax+0.5);
    TH1D *hfound = new TH1D("hfound","Found",                               npl, plmin-0.5, plmax+0.5);
    TH1D *heff   = new TH1D("heff",  Form("Efficiency (#theta < %.2f rad)", eEffTmax<0.5? eEffTmax : 0.5), npl, plmin-0.5, plmax+0.5);

        // Efficiency for each angle
    TH1D *haentry = new TH1D("haentry","Entry and Found for each angle",eEffNbins, 0,eEffTmax);
    TH1D *hafound = new TH1D("hafound","Found"                         ,eEffNbins, 0,eEffTmax);
    TH1D *haeff   = new TH1D("haeff","Efficiency for each angle"       ,eEffNbins, 0,eEffTmax);



    EdbEDAAreaSet AreaSet;
    for(int pid=pidmin; pid<=pidmax; pid++){ // pid <= target pid
        EdbPattern *pat = pvr->GetPattern(pid);
        AreaSet.AddArea(pid, pat->Xmin(), pat->Xmax(), pat->Ymin(), pat->Ymax(), pat->Z()); // put PID instead IPL
    }


    int ntrk = tracks->GetEntries();
    for(i=0;i<ntrk;i++){
        EdbTrackP *t = (EdbTrackP *) tracks->At(i);
        if(t==NULL) continue;
        int nseg = t->N();
        if(nseg<eEffMinSeg) continue;
        double angle = sqrt(t->TX()*t->TX() + t->TY()*t->TY());
        if(angle>eEffTmax) continue;

        for(int pid=pidmin; pid<=pidmax; pid++){ // pid <= target pid
            EdbPattern *pat = pvr->GetPattern(pid);
            EdbEDAArea *a = AreaSet.GetAreaIPL(pid);
            if(a==NULL) continue;

            EdbSegP *s1, *s2, *s3, *s0,*s4;
            s1=s2=s3=s0=s4=NULL;
            for(j=0;j<nseg;j++){
                EdbSegP *s = t->GetSegment(j);
                if(pid-2==s->PID()) s0=s; // to calculate eff for the last plate
                if(pid-1==s->PID()) s1=s;
                if(pid  ==s->PID()) s2=s;
                if(pid+1==s->PID()) s3=s;
                if(pid+2==s->PID()) s4=s; // to calculate eff for the 1st plate
            }

            if( nseg - (s2?1:0) < eEffMinSeg) continue; // more than 4 segments except the target pid.
            EdbSegP *ss=NULL;
            if(pid==pidmin){
                if(s3==NULL||s4==NULL) continue;
                ss=s3;
            }
            else if(pid==pidmax){
                if(s0==NULL||s1==NULL) continue;
                ss=s1;
            }
            else {
                if(s1==NULL||s3==NULL) continue;  // request existence of nearest segments.
                ss=s1;
            }
            // if the predicted point from ss is out of volume, skip.
            double z = a->Z();
            EdbSegP *s = new EdbSegP(*ss);
            s->PropagateTo(z);
            if( s->X()<a->Xmin()) continue;
            if( s->X()>a->Xmax()) continue;
            if( s->Y()<a->Ymin()) continue;
            if( s->Y()>a->Ymax()) continue;
            delete s;

        /*
            // if the predicted point from ss is out of volume, skip.
            EdbEDAArea *a = areas->GetArea(pid);
            if(a!=NULL){
                if(a->Plate()==gEDA->GetIPL(pid)){
                    double z = gEDA->GetZPID(pid);
                    EdbSegP *s = new EdbSegP(*ss);
                    s->PropagateTo(z);
                    if( s->X()<a->Xmin()) continue;
                    if( s->X()>a->Xmax()) continue;
                    if( s->Y()<a->Ymin()) continue;
                    if( s->Y()>a->Ymax()) continue;
                    delete s;
                }
            }
        */
            // eff by angle
            haentry->Fill(angle);
            if(s2) hafound->Fill(angle);
            if(s2) haeff->Fill(angle);

            // eff by pid
            if(angle > (eEffTmax<0.5? eEffTmax : 0.5) ) continue;
            int ipl = pat->GetSegment(0)->Plate();
            hentry->Fill       (ipl);
            if(s2) hfound->Fill(ipl);
            if(s2) heff->Fill  (ipl);

        }
    }


    //hentry->SetStats(0);
    hentry->SetMinimum(0);
    hentry->Draw();
    hentry->SetXTitle("Plate number");
    hentry->GetXaxis()->SetNdivisions(10);
    hfound->Draw("same");
    hfound->SetFillColor(15);

    c1->cd(2);

    // Efficiency plot
    // error
    double *error_arr = new double [npl+2];
    double *entry_arr = hentry->GetArray();
    double *found_arr = hfound->GetArray();
    //error_arr[1]=error_arr[npl]=0.0;
    for(i=1;i<=npl;i++){
        if(entry_arr[i]==0) {error_arr[i]=0.0; continue;}
        error_arr[i] = sqrt( (double) found_arr[i] * (entry_arr[i]-found_arr[i]) / entry_arr[i])  / entry_arr[i];
    }
    // eff mean
    double mean=0.0;
    k=0;
    for(i=1;i<=npl;i++){
        if(entry_arr[i]==0) continue;
        mean+=(double) found_arr[i]/entry_arr[i];
        k++;
    }
    mean/=k;
    // eff plot
    heff->Divide(hentry);
    heff->SetMaximum(1.02);
    heff->SetMinimum(0.0);
    heff->SetError(error_arr);
    heff->SetStats(0);
    heff->SetXTitle("Plate number");
    heff->Draw();
    TLine *l = new TLine;
    l->SetLineColor(kRed);
    l->DrawLine(plmin,mean,plmax,mean);
    TText *tx = new TText;
    tx->SetTextSize(0.045);
    tx->DrawText(plmax-0.5,mean,Form("%.2lf",mean));
    heff->Draw("same");

    // print text
    printf("Efficiencies for each plates\n");
    for(i=1;i<=npl;i++){
        printf("PL %2d : %5.3lf +- %5.3lf\n", plmin+i-1, (double) found_arr[i]/entry_arr[i], error_arr[i]);
    }


    c1->cd(3);

    haentry->SetStats(0);
    haentry->SetMinimum(0);
    haentry->Draw();
    haentry->SetXTitle("abs Angle (rad)");
    haentry->GetXaxis()->SetNdivisions(10);
    hafound->Draw("same");
    hafound->SetFillColor(15);

    c1->cd(4);


    // Efficiency plot
    // error
    error_arr = new double [eEffNbins+2];
    entry_arr = haentry->GetArray();
    found_arr = hafound->GetArray();
    for(i=0;i<eEffNbins+2;i++){
        error_arr[i]=0.0;
    }
    for(i=1;i<eEffNbins+1;i++){
        if(entry_arr[i]==0) {error_arr[i]=0.0; continue;}
        error_arr[i] = sqrt( (double) found_arr[i] * (entry_arr[i]-found_arr[i]) / entry_arr[i])  / entry_arr[i];
    }
    // eff mean
    mean=0.0;
    k=0;
    printf("Efficiencies for each angle\n");
    for(i=1;i<eEffNbins+1;i++){
        if(entry_arr[i]==0) continue;
        mean+=(double) found_arr[i]/entry_arr[i];
        k++;
        printf("%.3lf < theta < %.3lf : %5.3lf +- %5.3lf\n", (i-1)*eEffTmax/eEffNbins, i*eEffTmax/eEffNbins, found_arr[i]/entry_arr[i], error_arr[i]);
    }
    mean/=k;
    // eff plot
    haeff->Divide(haentry);
    haeff->SetStats(0);
    haeff->SetMaximum(1.02);
    haeff->SetMinimum(0);
    haeff->SetError(error_arr);
    haeff->SetXTitle("Angle (rad)");
    haeff->Draw();
    l->SetLineColor(kRed);
    l->DrawLine(0,mean,eEffTmax,mean);
    tx->SetTextSize(0.045);
    tx->DrawText(eEffTmax-0.05,mean,Form("%.2lf",mean));
    haeff->Draw("same");

    c1->Update();
}

CheckKink()

TObjArray * EdbEDAPlotTab::CheckKink

(

EdbTrackP *

trk

)

Search kink and make a plot.

                                                  {

    float Rthreshold = 3;

    if(trk->N()<2) {
        printf("Track %d nseg=%d, too short for kink search\n", trk->ID(), trk->N());
        return NULL;
    }

    char ntname[20];
    sprintf(ntname,"ntKinkDT%d", trk->ID());
    TNtuple *tree = (TNtuple *) gROOT->FindObject(ntname);
    if(tree) tree->Delete();

    tree = new TNtuple(ntname, "InTrack Decay Search","itrk:ipl1:ipl2:P:dtt:dtl:dt:Pt:rmst:rmsl:rms:dxt:dxl");

    TObjArray *kinks = new TObjArray;

    EdbTrackP *t = CleanTrack(trk); // Remove fake segment. this may be deleted later.

    if(t->Npl()<t->N()){
        // in this case P estimation doesn't work.
        // this can happen if a track is formed from 2 different data set.
        // (PID definitions are defferent amond 2 data set.)
        // put absolute plate number as PID. (temporary solution)
        for(int i=0;i<t->N();i++) t->GetSegment(i)->SetPID(t->GetSegment(i)->Plate());
    }

    // minimum value of rms (angular resolution).
    double angle = sqrt(t->TX()*t->TX()+t->TY()*t->TY());
    double resT  = 0.0015*sqrt(2.0);
    double resL  = 0.0015*(1+angle*5)*sqrt(2.0);

    // loop over delta-theta
    int n=t->N();
    for(int j=0;j<n-1;j++){
        // kink angle calculation
        EdbSegP *s1 = t->GetSegment(j);
        EdbSegP *s2 = t->GetSegment(j+1);

        int ipl1 = s1->Plate();
        int ipl2 = s2->Plate();
        if(ipl2>=57) continue;

        // calculate RMS removing this kink angle
        double rms,rmst,rmsl;
        DTRMSTLGiven1Kink(t, j, &rms, &rmst, &rmsl); // DTRMS for each projection.

        // set minimum value for RMS by angular resolution.
        rmst = rmst>resT ? rmst : resT;
        rmsl = rmsl>resL ? rmsl : resL;

        // calculate kink angle in transverse and longitudinal projection.
        double dtt, dtl;
        CalcDTTransLongi(s1,s2, &dtt, &dtl);
        double dt = sqrt(dtt*dtt+dtl*dtl);
        double dxt, dxl;
        CalcDXTransLongi(t->GetSegmentFirst(),s2, &dxt, &dxl);

        // momentum calculation using downstream from s2.
        double p,pmin,pmax;
        CalcPPartial(t,s2,t->GetSegmentLast(), p, pmin, pmax, kFALSE);

        // calculate Pt at the kink, using downstream momentum.
        double Pt = p>0 ? p*dt : -1.;

        // fill the tree.
        tree->Fill( t->ID(), ipl1, ipl2, p, dtt, dtl, dt, Pt, rmst, rmsl, rms, dxt, dxl);

        // if there is kink.
        // if kink angle is bigger than Rthreshold(5) times delta-theta rms in one of the 2 projection.
        if( fabs(dtt)>rmst*Rthreshold || fabs(dtl)>rmsl*Rthreshold ) {
            // put the data in a struct.
            // calculate vertex point with 2 segments.
            TObjArray segs;
            segs.Add(s1);
            segs.Add(s2);
            EdbVertex *v = CalcVertex(&segs);
            gEDA->AddVertex(v);

            int ndau = n-j-1;
            // put the data in a struct.
            EdbEDASmallKink *kink = new EdbEDASmallKink(v, t, s1, s2, dtt, dtl, dxt, dxl, ndau, p, pmin, pmax, Pt, rmst, rmsl);
            kinks->Add(kink);

            printf("Kink candidate. itrk %d plate %d - %d kink angle %.4lf P %.3lf Pt %.3lf\n",
                t->ID(), ipl1, ipl2, dt, p, Pt);
            printf(" (Transverse, Longitudinal) = ( %.4lf, %.4lf ) threshold ( %.4lf, %.4lf ), R = %.2f %.2f\n",
                dtt, dtl, rmst*Rthreshold, rmsl*Rthreshold, dtt/rmst, dtl/rmsl);
            printf(" rms=%.4lf rms_transvers=%.4lf rms_longitudinal=%.4lf\n", rms, rmst, rmsl);
            printf(" kinkpoint %.1f %.1f %.1f\n", v->X(), v->Y(), v->Z());

            //gEDA->AddDrawObject(kink);
        }
    }

    printf("%d kink candidates are found.\n", kinks->GetEntries());


    tree->SetMarkerStyle(20);
    TText *text = new TText();
    text->SetTextSize(0.035);
    text->SetTextAngle(20);

    double iplmin = tree->GetMinimum("ipl1");
    double iplmax = tree->GetMaximum("ipl2")+1;

    // calculate dtmax for the graph hight.
    double dt6[6];
    dt6[0] = fabs(tree->GetMaximum("dtt"));
    dt6[1] = fabs(tree->GetMinimum("dtt"));
    dt6[2] = fabs(tree->GetMaximum("dtl"));
    dt6[3] = fabs(tree->GetMinimum("dtl"));
    dt6[4] = tree->GetMaximum("rmst") * Rthreshold;
    dt6[5] = tree->GetMaximum("rmsl") * Rthreshold;
    double dtmax = TMath::MaxElement(6,dt6) * 1.15 * 1e3;

    double rmst = tree->GetMinimum("rmst");
    double rmsl = tree->GetMinimum("rmsl");

    TText *textrms = new TText();
    textrms->SetTextSize(0.035);


    TCanvas *c1 = CreateCanvas(Form("K%d%s", trk->ID(), kinks->GetEntries()? "!":""));
    c1->Divide(2,2);

    c1->cd(1);

    TString hname = Form("hrmst%d",trk->ID());
    TH1F *h1 = (TH1F *) gROOT->FindObject(hname);
    if(h1) h1->Delete();
    h1 = new TH1F(hname,Form("#delta#theta^{RMS}Transverse itrk=%d",trk->ID()), (int)(iplmax-iplmin+1), iplmin-0.5, iplmax+0.5);
    h1->SetLineColor(kGray);
    h1->SetFillColor(kGray);
    tree->Draw("ipl2 >>"+hname,"rmst*1e3");

    hname+="_5";
    TH1F *h15 = (TH1F *) gROOT->FindObject(hname);
    if(h15) h15->Delete();
    h15 = new TH1F(hname,Form("#delta#theta^{RMS}Transverse itrk=%d",trk->ID()), (int)(iplmax-iplmin+1), iplmin-0.5, iplmax+0.5);
    tree->Draw("ipl2 >>"+hname,Form("rmst*1e3*%f",Rthreshold));
    h15->SetLineColor(kCyan-10);
    h15->SetFillColor(kCyan-10);
    h15->SetXTitle("Plate number");
    h15->SetYTitle("Kink angle (mrad)");
    h15->SetMaximum(dtmax);
    h15->SetStats(0);

    h15->Draw();
    h1->Draw("same");
    tree->Draw("abs(dtt)*1e3:ipl2","","same");

    TLine *l = new TLine();
    double xmin = h1->GetXaxis()->GetXmin();
    double xmax = h1->GetXaxis()->GetXmax();
    l->DrawLine(xmin, rmst*1e3, xmax, rmst*1e3);
    l->SetLineColor(kCyan);
    l->DrawLine(xmin, rmst*Rthreshold*1e3, xmax, rmst*Rthreshold*1e3);

    textrms->DrawText(xmin+0.8*(xmax-xmin), rmst*1e3, Form("%.1lfmrad",rmst*1e3));
    textrms->DrawText(xmin+0.8*(xmax-xmin), Rthreshold*rmst*1e3, Form("%.1lfmrad",Rthreshold*rmst*1e3));

    if(kinks->GetEntries()){
        for(int i=0;i<kinks->GetEntries();i++){
            EdbEDASmallKink *kink = (EdbEDASmallKink *) kinks->At(i);
            text->DrawText(kink->IPL2()+0.5, fabs(kink->DTT())*1e3, Form("%.1lfmrad pl%d-%d pt%.3lf", fabs(kink->DTT()*1e3), kink->IPL1(), kink->IPL2(), kink->PT()));
        }
    }

    c1->cd(2);

    hname = Form("hrmsl%d",trk->ID());
    h1 = (TH1F *) gROOT->FindObject(hname);
    if(h1) h1->Delete();
    h1 = new TH1F(hname,Form("#delta#theta^{RMS}Transverse itrk=%d",trk->ID()), (int)(iplmax-iplmin+1), iplmin-0.5, iplmax+0.5);
    h1->SetLineColor(kGray);
    h1->SetFillColor(kGray);
    tree->Draw("ipl2 >>"+hname,"rmsl*1e3");

    hname+="_5";
    h15 = (TH1F *) gROOT->FindObject(hname);
    if(h15) h15->Delete();
    h15 = new TH1F(hname,Form("#delta#theta^{RMS}Longitudinal itrk=%d",trk->ID()), (int)(iplmax-iplmin+1), iplmin-0.5, iplmax+0.5);
    tree->Draw("ipl2 >>"+hname,Form("rmsl*1e3*%f",Rthreshold));
    h15->SetLineColor(kCyan-10);
    h15->SetFillColor(kCyan-10);
    h15->SetXTitle("Plate number");
    h15->SetYTitle("Kink angle (mrad)");
    h15->SetMaximum(dtmax);
    h15->SetStats(0);

    h15->Draw();
    h1->Draw("same");
    tree->Draw("abs(dtl)*1e3:ipl2","","same");

    l = new TLine();
    l->DrawLine(xmin, rmsl*1e3, xmax, rmsl*1e3);
    l->SetLineColor(kCyan);
    l->DrawLine(xmin, rmsl*Rthreshold*1e3, xmax, rmsl*Rthreshold*1e3);

    textrms->DrawText(xmin+0.8*(xmax-xmin), rmsl*1e3, Form("%.1lfmrad",rmsl*1e3));
    textrms->DrawText(xmin+0.8*(xmax-xmin), Rthreshold*rmsl*1e3, Form("%.1lfmrad",Rthreshold*rmsl*1e3));

    if(kinks->GetEntries()){
        for(int i=0;i<kinks->GetEntries();i++){
            EdbEDASmallKink *kink = (EdbEDASmallKink *) kinks->At(i);
            text->DrawText(kink->IPL2()+0.5, fabs(kink->DTL())*1e3, Form("%.1lfmrad pl%d-%d pt%.3lf", fabs(kink->DTL()*1e3), kink->IPL1(), kink->IPL2(), kink->PT()));

        }
    }


    c1->cd(3);
    TH2F *h = (TH2F *) gROOT->FindObject(Form("hdxt%d",trk->ID()));
    if(h) h->Delete();
    double dxmin = tree->GetMinimum("dxt");
    double dxmax = tree->GetMaximum("dxt");
    h = new TH2F(Form("hdxt%d",trk->ID()),Form("#deltax Transverse itrk=%d", trk->ID()), 10, iplmin, iplmax, 10, dxmin,dxmax);
    h->SetXTitle("Plate number");
    h->SetYTitle("#deltax (#mum)");
    h->SetStats(0);
    h->Draw();
    tree->Draw("dxt:ipl2","","same");
    if(kinks->GetEntries()){
        for(int i=0;i<kinks->GetEntries();i++){
            EdbEDASmallKink *kink = (EdbEDASmallKink *) kinks->At(i);
            text->DrawText(kink->IPL2()+0.5, kink->DXT(), Form("%.1lfmrad pl%d-%d pt%.3lf", fabs(kink->DTT()*1e3), kink->IPL1(), kink->IPL2(), kink->PT()));
        }
    }


    c1->cd(4);
    h = (TH2F *) gROOT->FindObject(Form("hdxl%d",trk->ID()));
    if(h) h->Delete();
    dxmin = tree->GetMinimum("dxl");
    dxmax = tree->GetMaximum("dxl");
    h = new TH2F(Form("hdxl%d",trk->ID()),Form("#deltax Longitudinal itrk=%d", trk->ID()), 10, iplmin, iplmax, 10, dxmin,dxmax);
    h->SetXTitle("Plate number");
    h->SetYTitle("#deltax (#mum)");
    h->SetStats(0);
    h->Draw();
    tree->Draw("dxl:ipl2","","same");

    if(kinks->GetEntries()){
        for(int i=0;i<kinks->GetEntries();i++){
            EdbEDASmallKink *kink = (EdbEDASmallKink *) kinks->At(i);
            text->DrawText(kink->IPL2()+0.5, kink->DXL(), Form("%.1lfmrad pl%d-%d pt%.3lf", fabs(kink->DTL()*1e3), kink->IPL1(), kink->IPL2(), kink->PT()));
        }
    }

    return kinks;
}

CheckKinkTracks()

void EdbEDAPlotTab::CheckKinkTracks

(

)

                                   {
    TObjArray *selected_tracks = gEDA->GetSelectedTracks();
    if(selected_tracks->GetEntries()==0) return;

    for(int i=0;i<selected_tracks->GetEntries();i++){
        EdbTrackP *t = (EdbTrackP *) selected_tracks->At(i);
        if(t==NULL) continue;
        CheckKink(t);
    }


}

CheckOverview()

void EdbEDAPlotTab::CheckOverview

(

EdbPVRec *

pvr = NULL

)

                                              {
    if(NULL==pvr) {
        EdbEDATrackSet *set = gEDA->GetTrackSet("TS");
        pvr = set->GetPVRec();
    }

    // Efficiency plate by plate

    int plmax=0, plmin=1000;

    for(int i=0;i<pvr->Npatterns();i++){
        EdbPattern *pat = pvr->GetPattern(i);
        if(pat==NULL) continue;
        EdbSegP *s = pat->GetSegment(0);
        if(s==NULL) continue;
        if(s->Plate()<plmin) plmin=s->Plate();
        if(s->Plate()>plmax) plmax=s->Plate();
    }

    if(plmax<plmin) { int tmp=plmax; plmax=plmin; plmin=tmp;} // if order of pid and ipl were opposite.

    int npl = plmax-plmin+1;

    int nsegcut = gEDA->GetMainTab()->GetNsegCut();

    // definition of histgrams
    TH2I *hangle = new TH2I("hangle",Form("Angular distribution nseg>=%d",nsegcut), 60,-0.6,0.6, 60,-0.6,0.6);
    hangle->SetXTitle("#thetax [rad]");
    hangle->SetYTitle("#thetay [rad]");

    TH1I *hnseg = new TH1I("hnseg","Nseg", npl, 0.5, npl+0.5);
    hnseg->SetXTitle("N segments");

    TH1I *hph = new TH1I("hph",Form("PH, nseg>=%d",nsegcut), 20, 12.5,32.5);
    hph->SetXTitle("PH");

    TH1I *hphgt4 = new TH1I("hphgt4","PH, nseg>=4", 20, 12.5,32.5);
    hphgt4->SetXTitle("PH, nseg>=4");
    hphgt4->SetLineColor(kBlue);

    TH1I *hphmeangt4 = new TH1I("hphmeangt4","PH, nseg>=4", 20, 12.5,32.5);
    hphmeangt4->SetXTitle("PH mean, nseg>=4");
    hphmeangt4->SetLineColor(kBlue);

    TH1I *h1stpl = new TH1I("h1stpl",Form("1st plate, nseg>=%d",nsegcut), npl, plmin-0.5, plmax+0.5);
    h1stpl->SetLineColor(kBlue);
    h1stpl->SetXTitle("First plate");

    TH1I *hlastpl = new TH1I("hlastpl",Form("last plate, nseg>=%d",nsegcut), npl, plmin-0.5, plmax+0.5);
    hlastpl->SetXTitle("Last plate");

    for(int i=0;i<pvr->Ntracks();i++){
        EdbTrackP *t = pvr->GetTrack(i);
        if(t==NULL) continue;

        double ph = t->Wgrains()/t->N();

        int nseg = t->N();
        hnseg->Fill(nseg);
        if(nseg>=nsegcut){
            hangle->Fill(t->TX(),t->TY());
            h1stpl->Fill((t->GetSegmentFirst())->Plate());
            hlastpl->Fill((t->GetSegmentLast())->Plate());
        }
        if(nseg>=4) hphmeangt4->Fill(ph);

        for(int j=0;j<t->N();j++){
            if(nseg>=nsegcut)hph->Fill(t->GetSegment(j)->W());
            if(t->N()>=4) hphgt4->Fill(t->GetSegment(j)->W());
        }
    }

    // drawing
    TCanvas *c1=CreateCanvas("Overview");
    c1->Divide(2,2);

    c1->cd(1);
    hangle->Draw("colz");

    c1->cd(2);
    hnseg->Draw();

    c1->cd(3);

    int max=(int)hph->GetMaximum();
    if( max < hphgt4->GetMaximum()) max= (int)hphgt4->GetMaximum();
    hph->SetMaximum(max*1.1);
    hph->Draw();
    hphgt4->Draw("same");
    hphmeangt4->SetFillColor(kYellow);
    hphmeangt4->Draw("same");
    TLegend *leg = new TLegend(0.12,0.70, 0.40, 0.88);
    leg->AddEntry(hph, Form("PH, nseg>=%d",nsegcut), "l");
    leg->AddEntry(hphgt4, "PH, nseg#geq4", "l");
    leg->AddEntry(hphmeangt4, "PH mean, nseg#geq4", "lf");

    leg->Draw();

    c1->cd(4);
    hlastpl->SetTitle("Start and End plate");
    hlastpl->Draw();
    h1stpl->Draw("same");
    leg = new TLegend(0.55,0.6, 0.75, 0.70);
    leg->AddEntry(h1stpl, "First plate", "l");
    leg->AddEntry(hlastpl, "Last plate", "l");
    leg->Draw();

    c1->Update();
}

CheckPHDAngle()

void EdbEDAPlotTab::CheckPHDAngle

(

EdbPVRec *

pvr = NULL

)

                                              {
    int i,j;

    TCanvas *c1 = CreateCanvas("PH-dAngle");

    if(NULL==pvr) {
        EdbEDATrackSet *set = gEDA->GetTrackSet("TS");
        pvr = set->GetPVRec();
    }

    // Efficiency plate by plate

    int plmax=0, plmin=1000;

    for(i=0;i<pvr->Npatterns();i++){
        EdbPattern *pat = pvr->GetPattern(i);
        if(pat==NULL) continue;
        EdbSegP *s = pat->GetSegment(0);
        if(s==NULL) continue;
        if(s->Plate()<plmin) plmin=s->Plate();
        if(s->Plate()>plmax) plmax=s->Plate();
    }

    if(plmax<plmin) { int tmp=plmax; plmax=plmin; plmin=tmp;} // if order of pid and ipl were opposite.
    int npl = plmax-plmin+1;

    int nsegcut = gEDA->GetMainTab()->GetNsegCut();

    double *dangle=new double[2*npl];

    TNtuple *nt = new TNtuple ("ntqualities","TNtuple for quality plots","nseg:ph:rms");
    for(i=0; i<pvr->Ntracks(); i++){
        EdbTrackP *t = pvr->GetTrack(i);
        double ph = t->Wgrains()/t->N();
        int nseg=t->N();

        for(j=0;j<nseg-1;j++){
            EdbSegP *s1 = t->GetSegment(j);
            EdbSegP *s2 = t->GetSegment(j+1);
            dangle[2*j]   = s1->TX() - s2->TX();
            dangle[2*j+1] = s1->TY() - s2->TY();
        }
        double rms = DTRMS(t);

        nt->Fill(nseg,ph,rms);
    }

    TH1D *hphall   = new TH1D("hphall",   "PH mean = #SigmaPH/nseg",  20, 12.5,32.5);
    hphall->SetXTitle("PH mean");
    nt->Draw("ph >>hphall");
    TH1D *hphnseg2 = new TH1D("hphnseg2", "PH, Nseg=2",  20, 12.5,32.5);
    hphnseg2->SetLineColor(2);
    nt->Draw("ph >>hphnseg2","nseg==2");
    TH1D *hphnsegcut = new TH1D("hphnsegcut", Form("PH, Nseg>=%d", nsegcut), 20, 12.5,32.5);
    hphnsegcut->SetLineColor(kBlue);
    nt->Draw("ph >>hphnsegcut",Form("nseg>=%d", nsegcut));

    TH1D *hdtrmsall = new TH1D("hdtrmsall", "Angular deviation", 50, 0, 0.1);
    hdtrmsall->SetXTitle("deviation RMS (rad)");
    nt->Draw("rms >>hdtrmsall");
    TH1D *hdtrmsnseg2 = new TH1D("hdtrmsnseg2", "Angular deviation, Nseg==2", 50, 0, 0.1);
    hdtrmsnseg2->SetLineColor(2);
    nt->Draw("rms >>hdtrmsnseg2","nseg==2");
    TH1D *hdtrmsnsegcut = new TH1D("hdtrmsnsegcut", Form("Angular deviation, Nseg>=%d", nsegcut), 50, 0, 0.1);
    hdtrmsnsegcut->SetLineColor(kBlue);
    nt->Draw("rms >>hdtrmsnsegcut",Form("nseg>=%d", nsegcut));

    TH2I *hphrmsall = new TH2I("hphrmsall","PH-#delta#theta^{RMS}", 20, 12.5,32.5, 50, 0, 0.1);
    nt->Draw("rms:ph >>hphrmsall");
    hphrmsall->SetXTitle("PH mean");
    hphrmsall->SetYTitle("#delta#theta^{RMS} rad");

    TH2I *hphrmscut = new TH2I("hphrmscut",Form("PH-#delta#theta^{RMS}, nseg>=%d", nsegcut), 20, 12.5,32.5, 50, 0, 0.1);
    nt->Draw("rms:ph >>hphrmscut",Form("nseg>=%d",nsegcut));
    hphrmscut->SetXTitle("PH mean");
    hphrmscut->SetYTitle("#delta#theta^{RMS} rad");

    c1->Clear();
    c1->Divide(2,2);
    c1->cd(1);
    hphall->Draw();
    hphnsegcut->Draw("same");
    hphnseg2->Draw("same");

    TLegend *leg = new TLegend(0.5,0.85, 0.75, 0.99);
    leg->AddEntry(hphall, "PH, all", "f");
    leg->AddEntry(hphnseg2, "PH, nseg==2", "f");
    leg->AddEntry(hphnsegcut, Form("PH, nseg>=%d", nsegcut), "f");
    leg->Draw();

    c1->cd(2);
    hdtrmsall->Draw();
    hdtrmsnsegcut->Draw("same");
    hdtrmsnseg2->Draw("same");
    leg->Draw();



    c1->cd(3);

    double a = gEDA->GetMainTab()->GetPHDTRMS();
    double b = gEDA->GetMainTab()->GetPHCut();
    TF1 *func = new TF1("fphdtrms", Form("%lf*(x-%lf)", a,b), 12.5, 32.5);
    hphrmsall->Draw("col");
    func->Draw("same");
    TPaveText *pave = new TPaveText(0.5,0.88, 0.75, 0.99,"brNDC");
    int nselected=nt->GetEntries(Form("rms<%lf*(ph-%lf)", a, b));
    int nrejected=nt->GetEntries(Form("rms>=%lf*(ph-%lf)", a, b));
    pave->AddText(Form("%5d selected",nselected));
    pave->AddText(Form("%5d rejected",nrejected));
    pave->Draw();


    c1->cd(4);
    hphrmscut->Draw("col");
    func->Draw("same");
    pave = new TPaveText(0.5,0.88, 0.75, 0.99,"brNDC");
    nselected=nt->GetEntries(Form("nseg>=%d&&rms<%lf*(ph-%lf)", nsegcut, a, b));
    nrejected=nt->GetEntries(Form("nseg>=%d&&rms>=%lf*(ph-%lf)", nsegcut, a, b));
    pave->AddText(Form("%5d selected",nselected));
    pave->AddText(Form("%5d rejected",nrejected));
    pave->Draw();


}

CheckSingleTrack()

void EdbEDAPlotTab::CheckSingleTrack

(

EdbTrackP *

t

)

                                                {

    printf("CheckSingleTrack : Make a plot for a track.\n");
    // copy of EdbTrackP
    EdbTrackP *t2 = new EdbTrackP;
    t2->Copy(*t);
    // first and last segment
    EdbSegP *s1st = t->GetSegmentFirst();
    EdbSegP *slast= t->GetSegmentLast();

    // make a better fit by connecting the first and last segment. 2014/7/9 Aki.
    t2->Set(t2->ID(),
            (s1st->X()+slast->X())/2,
            (s1st->Y()+slast->Y())/2,
            (s1st->X()-slast->X())/(s1st->Z()-slast->Z()),
            (s1st->Y()-slast->Y())/(s1st->Z()-slast->Z()),
            t2->W(), t2->Flag());
    t2->SetZ((s1st->Z()+slast->Z())/2);

    // momentum
    double p,pmin,pmax;
    CalcP(t,p,pmin,pmax);
    // trajectries
    TNtuple *nt = new TNtuple(Form("nt%d",t->ID()),Form("Track %d",t->ID()),"eTrack:eID:eW:ipl:eX:eY:eZ:eTX:eTY:dX:dY:eSide");
    double W[60];
    for(int i=0;i<t->N();i++){
        EdbSegP *s = t->GetSegment(i);
        W[i] = s->W();
        t2->PropagateTo(s->Z());
        double dx = s->X()-t2->X();
        double dy = s->Y()-t2->Y();

        nt->Fill(t->ID(),s->ID(),s->W(),s->Plate(), s->X(),s->Y(),s->Z(),s->TX(),s->TY(),dx,dy, s->Side());

    }
    double Wmean = TMath::Mean(t->N(),W);
    double Wrms = TMath::RMS(t->N(),W);

    // cosmic eff and PH calculation.
    double wcr=0.0, effcr=0.0;
    int wcrcnt=0, effcrcnt=0;

    EdbEDATrackSet *set = gEDA->GetTrackSet("TS");
    EdbPVRec *pvr = set->GetPVRec();

    if(pvr!=NULL){
        printf("Calculate the reference efficiency from TS (cosmic rays).");

        int plmax=0, plmin=1000;
        for(int i=0;i<pvr->Npatterns();i++){
            EdbPattern *pat = pvr->GetPattern(i);
            if(pat==NULL) continue;
            EdbSegP *s = pat->GetSegment(0);
            if(s==NULL) continue;
            if(s->Plate()<plmin) plmin=s->Plate();
            if(s->Plate()>plmax) plmax=s->Plate();
        }

        int trklencut = abs(plmax-plmin);
        trklencut/=2;
        trklencut= (int) (trklencut*(1-sqrt(t->TX()*t->TX()+t->TY()*t->TY())));
        if(trklencut<8) trklencut=8;
        if(trklencut>20) trklencut=20;
        printf(" Track length cut for cosmic ray = %d, dtheta<%.3lfrad\n", trklencut,eDTReference);
        for(int i=0;i<set->NBase();i++){
            EdbTrackP *tc = set->GetTrackBase(i);
            if(tc==NULL) continue;
            // track length cut
            int iplF = tc->GetSegmentFirst()->Plate();
            int iplL = tc->GetSegmentLast()->Plate();
            int trklen = iplL-iplF+1;
            if(trklen<trklencut) continue;

            // angular cut
            if( fabs(t->TX()-tc->TX())>eDTReference) continue;
            if( fabs(t->TY()-tc->TY())>eDTReference) continue;

            // efficiency
            printf(" %2d->%2d, %2d/%2d = %.2lf\n", iplF, iplL, tc->N()-2, trklen-2, (double) (tc->N()-2)/(trklen-2));
            effcr += (double) (tc->N()-2)/(trklen-2);
            effcrcnt++;

            // W
            for(int j=0;j<tc->N();j++){
                EdbSegP *s = tc->GetSegment(j);
                wcr+=s->W();
                wcrcnt++;
            }

        }
        wcr   = wcrcnt==0   ? 0.0 : wcr/wcrcnt;
        effcr = effcrcnt==0 ? 0.0 : effcr/effcrcnt;
    }

    EdbTrackP *tsb = gEDA->CheckScanback(t);
    int sbid = tsb?tsb->ID():-1;
    int muonid = gEDA->IdMuon();

    CreateCanvas(Form("%d", t->ID()));

    TPaveText *pt = new TPaveText(0.05,0.87,0.9,0.98,"br");
    pt->SetTextSize(0.03);
    pt->SetTextAlign(12);
    int trklen = abs(slast->Plate() - s1st->Plate())+1;

    pt->AddText(Form("trk %4d pl %2d -> %2d %8.1lf %8.1lf %8.1lf %7.4lf %7.4lf",
                t->ID(), t->GetSegmentFirst()->Plate(),
                t->GetSegmentLast()->Plate(),
                t->X(),t->Y(),t->Z(),t->TX(),t->TY()));

    int nMT = 0;
    for(int i=0;i<t->N();i++) if(t->GetSegment(i)->Side()!=0) nMT++;
    pt->AddText(Form("length = %d, nseg = %d (n_{MT}=%d), eff = %.3lf, PHmean = %.1lf #pm %.1lf (CR %.3lf, %.1lf)",
        trklen, t->N(), nMT,
        t->N()==2?0.0: (double)(t->N()-2)/(trklen-2), Wmean, t->N()>1 ? Wrms/sqrt((double)(t->N()-1)) : Wrms, effcr, wcr));


    pt->AddText(Form("P = %.2lf - %.2lf +%.2lf GeV/c (90%%CL)", p, pmin, pmax));
    pt->Draw();


    if(sbid>0){
        TPaveText *pt = new TPaveText(0.82,0.87,0.95,0.98,"br");
        pt->SetTextSize(0.035);
        pt->SetTextAlign(12);
        pt->AddText(Form("SBid = %d", sbid));
        if(sbid==muonid) pt->AddText(Form("Muon"));
        pt->Draw();
    }

    TPad *c1_x  = new TPad("c1_x",  "Trajectories", 0.01,0.01,0.99,0.85);
    c1_x->Draw();

    c1_x->cd();
    //c1_x->Divide(3,3);
    c1_x->Divide(3,2);

    nt->SetMarkerStyle(20);
    nt->SetMarkerSize(0.4);

    int ic=1;

    c1_x->cd(ic++);
    nt->Draw("eX:ipl");
    nt->GetHistogram()->SetYTitle("X #mum");
    nt->SetMarkerColor(kRed);
    nt->Draw("eX:ipl","eSide==1", "same");
    nt->SetMarkerColor(kBlue);
    nt->Draw("eX:ipl","eSide==2", "same");
    nt->SetMarkerColor(kBlack);

    TLine *l = new TLine();
    t2->PropagateTo(s1st->Z());
    double x1 = s1st->Plate();
    double y1 = t2->X();
    t2->PropagateTo(slast->Z());
    double x2 = slast->Plate();
    double y2 = t2->X();
    l->DrawLine(x1,y1,x2,y2);

    c1_x->cd(ic++);
    nt->Draw("dX:ipl");
    nt->GetHistogram()->SetYTitle("dX #mum");
    nt->SetMarkerColor(kRed);
    nt->Draw("dX:ipl","eSide==1", "same");
    nt->SetMarkerColor(kBlue);
    nt->Draw("dX:ipl","eSide==2", "same");
    nt->SetMarkerColor(kBlack);

    c1_x->cd(ic++);
    nt->Draw("eTX:ipl");
    nt->GetHistogram()->SetYTitle("TX rad");
    nt->SetMarkerColor(kRed);
    nt->Draw("eTX:ipl","eSide==1", "same");
    nt->SetMarkerColor(kBlue);
    nt->Draw("eTX:ipl","eSide==2", "same");
    nt->SetMarkerColor(kBlack);

    c1_x->cd(ic++);
    nt->Draw("eY:ipl");
    nt->GetHistogram()->SetYTitle("Y #mum");
    nt->SetMarkerColor(kRed);
    nt->Draw("eY:ipl","eSide==1", "same");
    nt->SetMarkerColor(kBlue);
    nt->Draw("eY:ipl","eSide==2", "same");
    nt->SetMarkerColor(kBlack);


    t2->PropagateTo(s1st->Z());
    x1 = s1st->Plate();
    y1 = t2->Y();
    t2->PropagateTo(slast->Z());
    x2 = slast->Plate();
    y2 = t2->Y();
    l->DrawLine(x1,y1,x2,y2);

    c1_x->cd(ic++);
    nt->Draw("dY:ipl");
    nt->GetHistogram()->SetYTitle("dY #mum");
    nt->SetMarkerColor(kRed);
    nt->Draw("dY:ipl","eSide==1", "same");
    nt->SetMarkerColor(kBlue);
    nt->Draw("dY:ipl","eSide==2", "same");
    nt->SetMarkerColor(kBlack);

    c1_x->cd(ic++);
    nt->Draw("eTY:ipl");
    nt->GetHistogram()->SetYTitle("TY rad");
    nt->SetMarkerColor(kRed);
    nt->Draw("eTY:ipl","eSide==1", "same");
    nt->SetMarkerColor(kBlue);
    nt->Draw("eTY:ipl","eSide==2", "same");
    nt->SetMarkerColor(kBlack);
    /*
    c1_x->cd(ic++);

    nt->Draw("eW:ipl");
    nt->GetHistogram()->SetYTitle("Pulse Height");
//  nt->GetHistogram()->Fit("pol1");
    nt->GetHistogram()->SetMinimum(0);
    nt->GetHistogram()->SetMaximum(0);
    nt->SetMarkerColor(kRed);
    nt->Draw("eW:ipl","eSide==1", "same");
    nt->SetMarkerColor(kBlue);
    nt->Draw("eW:ipl","eSide==2", "same");
    nt->SetMarkerColor(kBlack);
    l->DrawLine(s1st->Plate(), wcr, slast->Plate(), wcr);
    */
}

CheckTracks()

void EdbEDAPlotTab::CheckTracks

(

)

                               {
    TObjArray *selected_tracks = gEDA->GetSelectedTracks();
    if(selected_tracks->GetEntries()==0) return;

    for(int i=0;i<selected_tracks->GetEntries();i++){
        EdbTrackP *t = (EdbTrackP *) selected_tracks->At(i);
        if(t==NULL) continue;
        CheckSingleTrack(t);
    }
}

CreateCanvas()

static TCanvas * EdbEDAPlotTab::CreateCanvas ( char *  plot_name )

inlinestatic

— Create an embedded canvas

                                                  {

        TCanvas *c1;

        if(gEve==NULL) c1 = new TCanvas();

        else {
            gEve->GetBrowser()->StartEmbedding(1);
            gROOT->ProcessLineFast("new TCanvas");
            c1 = (TCanvas*) gPad;
            gEve->GetBrowser()->StopEmbedding(plot_name);
        }

        return c1;
    }

MakeGUI()

void EdbEDAPlotTab::MakeGUI

(

)

                           {
    if(gEve==NULL) return;
    TEveBrowser* browser = gEve->GetBrowser();
    browser->StartEmbedding(TRootBrowser::kBottom);

    TGHorizontalFrame* fMainFrame = new TGHorizontalFrame(gClient->GetRoot());
    fMainFrame->SetWindowName("XX GUI");
    fMainFrame->SetCleanup(kDeepCleanup);

    //TGLabel *fLabel;
    TGTextButton *fb;
    int posy=10;
    int posx=10;
    int dx=50;

    TGGroupFrame *fGroup;

    fGroup = new TGGroupFrame(fMainFrame,"TS");
    fGroup->SetLayoutBroken(kTRUE);
        posy=18;
        posx=10;
        fb = new TGTextButton(fGroup,"Overview");
        fb->MoveResize(posx,posy,dx=80,20);
        fb->Connect("Clicked()","EdbEDAPlotTab",this,"CheckOverview()");
        fb->SetToolTipText("Basic plots, nsegcut on Main tab is valid.");
        posx+=dx+10;
        fb = new TGTextButton(fGroup,"Efficiency");
        fb->MoveResize(posx,posy,dx=80,20);
        fb->Connect("Clicked()","EdbEDAPlotTab",this,"CheckEff()");
        fb->SetToolTipText("Efficiency for TS. Use all tracks with more than 4 segments except the plate to be evaluated.");

        posy+=23;
        posx=10;
        fb = new TGTextButton(fGroup,"PH - dAngle");
        fb->MoveResize(posx,posy,dx=80,20);
        fb->Connect("Clicked()","EdbEDAPlotTab",this,"CheckPHDAngle()");

        posx+=dx+10;
        fb = new TGTextButton(fGroup,"Alignment");
        fb->MoveResize(posx,posy,dx=80,20);
        fb->Connect("Clicked()","EdbEDAPlotTab",this,"CheckAlignment()");
        fb->SetToolTipText("Position, Angle displacement as profile hist (RMS). Nsegcut on Main tab is valid.");

    fMainFrame->AddFrame(fGroup, new TGLayoutHints(kLHintsLeft | kLHintsTop,2,2,2,2));
    fGroup->Resize(200,75);

    fGroup = new TGGroupFrame(fMainFrame,"Track");
    fGroup->SetLayoutBroken(kTRUE);

        posy=18;
        posx=10;

        fb = new TGTextButton(fGroup,"Track");
        fb->MoveResize(posx,posy,dx=80,20);
        fb->Connect("Clicked()","EdbEDAPlotTab",this,"CheckTracks()");

        posx+=dx+10;
        fb = new TGTextButton(fGroup,"Kink");
        fb->MoveResize(posx,posy,dx=80,20);
        fb->Connect("Clicked()","EdbEDAPlotTab",this,"CheckKinkTracks()");
        fb->SetToolTipText("Search Kink");

        posy+=23;
        posx=10;

        fb = new TGTextButton(fGroup,"Mom Plot");
        fb->MoveResize(posx,posy,dx=70,20);
        fb->Connect("Clicked()","EdbEDAPlotTab",this,"MomPlot()");
        fb->SetToolTipText("Make Momentum plots. \nAngular resolution indicated in the right number entry will be used. default=0.0021");

        posx+=dx+5;
        fb = new TGTextButton(fGroup,"Alg");
        fb->MoveResize(posx,posy,dx=30,20);
        fb->Connect("Clicked()","EdbEDAPlotTab",this,"SetMomAlg()");
        fb->SetToolTipText("Select angular method or coordinate method\nfor momentum computation.");

        posx+=dx+5;
//      eMomAngleRes = new TGNumberEntry(fGroup, eTF.eDT0, 11,-1,TGNumberFormat::kNESRealFour);
                eMomAngleRes = new TGNumberEntry(fGroup, 0.0021, 11,-1,TGNumberFormat::kNESRealFour);
        eMomAngleRes->MoveResize(posx,posy,dx=60,20);
        eMomAngleRes->GetNumberEntry()->SetToolTipText("Angular resolution. default=0.0021\n"
            "This will be applied only for angular method.");

    fMainFrame->AddFrame(fGroup, new TGLayoutHints(kLHintsLeft | kLHintsTop,2,2,2,2));
    fGroup->Resize(240,75);

//  posx+=dx+10;

    fMainFrame->MapSubwindows();
    fMainFrame->Resize();
    fMainFrame->MapWindow();

    browser->StopEmbedding();
    browser->SetTabTitle("Plots", 2);
}

MomPlot()

void EdbEDAPlotTab::MomPlot

(

)

                           {
    TObjArray *selected_tracks = gEDA->GetSelectedTracks();
    if(selected_tracks->GetEntries()==0) return;

    double angular_resolution = eMomAngleRes->GetNumber();
//  eTF.eDT0  = angular_resolution; // commented out for reason of incompability
//  eTF.eDTx0 = angular_resolution; // commented out for reason of incompability
//  eTF.eDTy0 = angular_resolution; // commented out for reason of incompability

        // To fix incompability, introduced in revision 1376 me provide a workaround here:
        // Only first parameter in function is changed, others stay as defined in
        // EdbMomentumEstimator.cxx
        for (Int_t i=0; i<3; ++i) eTF.SetParPMS_Mag(i,0,angular_resolution);

    for(int i=0;i<selected_tracks->GetEntries();i++){
        EdbTrackP *t0 = (EdbTrackP *) selected_tracks->At(i);
        if(t0==NULL) continue;
        EdbTrackP *t=CleanTrack(t0);

        if(t->Npl()<t->N()){
            // in this case P estimation doesn't work.
            // this can happen if a track is formed from 2 different data set.
            // (PID definitions are defferent amond 2 data set.)
            // put absolute plate number as PID. (temporary solution)
            for(int i=0;i<t->N();i++) t->GetSegment(i)->SetPID(t->GetSegment(i)->Plate());
        }

        for(int i=0;i<t->N();i++) t->GetSegment(i)->SetPID(t->GetSegment(i)->Plate());
        t->SetCounters();

        if(t->N()<=2) continue;
        eTF.eMinEntr=3;

        printf("Track ID: %i ; TX=%1.4f  ,  TY=%1.4f  ,  Nb of BT= %i\n",t->ID(),t->TX(),t->TY(),t->N());

        eTF.PMS(*t);

        float averagex = 0;
        float averagey = 0;
        for(int i=0; i<t->N(); i++){
            averagex += t->GetSegment(i)->TX();
            averagey += t->GetSegment(i)->TY();
        }
        averagex /= t->N();
        averagey /= t->N();

        float slope = sqrt(averagex*averagex+averagey*averagey);
        printf("slope %f\n", slope);
        float p, pmin, pmax;

          if (slope<=0.2)  // use P3D
        {
            printf("   PT =%7.2f GeV ; 90%%C.L. range = [%6.2f : %6.2f] \n", eTF.ePy, eTF.ePYmin, eTF.ePYmax);
            printf(" ->P3D=%7.2f GeV ; 90%%C.L. range = [%6.2f : %6.2f] \n", eTF.eP, eTF.ePmin, eTF.ePmax);
            p=eTF.eP;
            pmin=eTF.ePmin;
            pmax=eTF.ePmax;
        }
        if (slope>0.2)  // use PT
        {
            printf(" ->PT =%7.2f GeV ; 90%%C.L. range = [%6.2f : %6.2f] \n", eTF.ePy, eTF.ePYmin, eTF.ePYmax);
            printf("   P3D=%7.2f GeV ; 90%%C.L. range = [%6.2f : %6.2f] \n", eTF.eP, eTF.ePmin, eTF.ePmax);
            p=eTF.ePy;
            pmin=eTF.ePYmin;
            pmax=eTF.ePYmax;
        }
        TCanvas *c1 = CreateCanvas(Form("P%d", t->ID()));

        eTF.DrawPlots(c1);
    }
}

SetEffMinSeg()

void EdbEDAPlotTab::SetEffMinSeg ( int  nseg )

inline

{ eEffMinSeg=nseg;}

SetEffNbins()

void EdbEDAPlotTab::SetEffNbins ( int  nbins, double  tmax = 0.7  )

inline

{ eEffNbins=nbins; eEffTmax = tmax;}

SetMomAlg()

void EdbEDAPlotTab::SetMomAlg

(

)

                             {
    int alg = EdbEDAUtil::InputNumberInteger(
        "Set Momentum methos.\n"
        "0 = Angular method (default)\n"
        "3 = Coordinate method\n"
        , eTF.eAlg);

    eTF.eAlg = alg;
}

SetMomAlgAngle()

void EdbEDAPlotTab::SetMomAlgAngle ( )

inline

{ eTF.eAlg=0;}

SetMomAlgCoord()

void EdbEDAPlotTab::SetMomAlgCoord ( )

inline

{ eTF.eAlg=3;}

Member Data Documentation

eDTReference

double EdbEDAPlotTab::eDTReference

eEffMinSeg

int EdbEDAPlotTab::eEffMinSeg

private

Minimum number of segment for efficiency calculation. (count except the target plate.)

eEffNbins

int EdbEDAPlotTab::eEffNbins

private

eEffTmax

double EdbEDAPlotTab::eEffTmax

private

eMomAngleRes

TGNumberEntry* EdbEDAPlotTab::eMomAngleRes

private

eTF

EdbMomentumEstimator EdbEDAPlotTab::eTF

private

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEDA/EdbEDAPlotTab.h
• /home/antonio/fedra_doxygen/src/libEDA/EdbEDAPlotTab.C
