EdbEDAMainTab Class Reference

#include <EdbEDAMainTab.h>

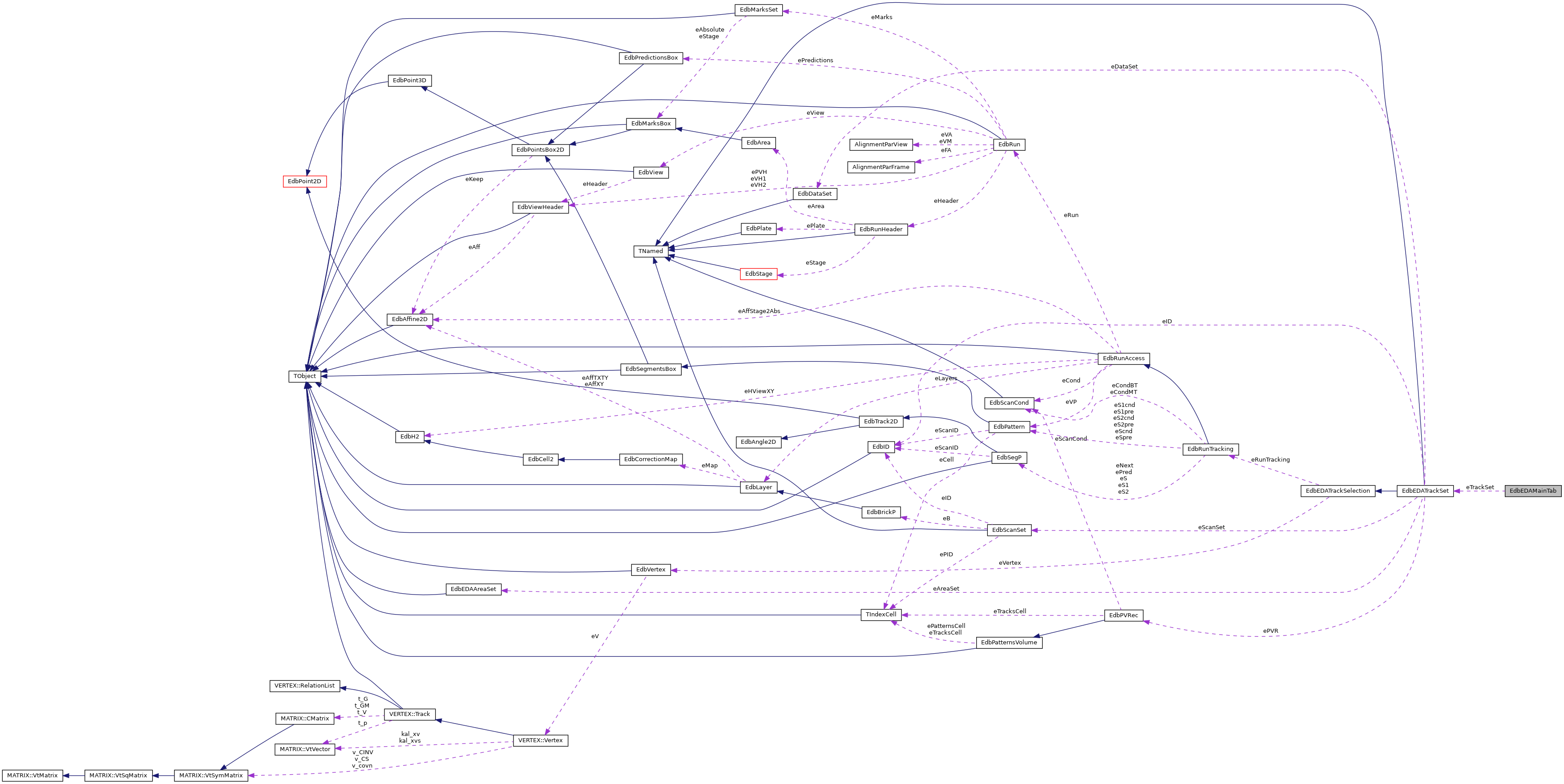

Collaboration diagram for EdbEDAMainTab:

Public Types
enum	{ kSelSeg , kSelTrack }

Public Member Functions
void	ApplyParams ()
void	CalcIP ()
void	CalcMinimumDistance (void)
void	CalcPSelected ()
void	CalcVertex (int clear_previous_local=kTRUE)
void	CalcVertexPlus ()
void	ClearTracks (void)
void	ClearVertices ()
void	DrawExtentionResolution ()
void	DrawOnlySelected ()
	EdbEDAMainTab (void)
void	ExecCuts (int redraw=kTRUE)
void	ExecSegmentSearch ()
void	ExecTrackSearch ()
double	GetDT ()
int	GetNsegCut ()
double	GetPHCut ()
double	GetPHDTRMS ()
double	GetTX ()
double	GetTY ()
void	MakeGUICuts (TGGroupFrame *fGroupFrame1)
void	MakeGUIIDSearch ()
void	MakeGUIMain ()
void	MicroTrackSearch ()
void	PickCenter ()
void	ReadFeedback ()
void	ReadFilteredText ()
void	ReadListFile (const char *filename=NULL, bool clear_previous=kFALSE)
void	Redo (void)
void	RemoveSelected ()
void	SearchCouplesDmin (TObjArray *segsarr, int ipl)
void	SearchCouplesDmin (TObjArray *segsarr=NULL)
void	SearchCouplesIP (int ipl, double x, double y, double z, double ipcut=50, TObjArray *cps=NULL)
void	SearchCouplesIP (int ipl, EdbVertex *v, double ipcut=50, TObjArray *cps=NULL)
void	SearchCouplesIP (TObjArray *segsarr=NULL)
void	SelectAll ()
void	SetAnimation ()
void	SetColorMode ()
void	SetDrawAreas ()
void	SetDrawCheckBox ()
void	SetDrawText ()
void	SetDrawTrackSets (Bool_t on)
void	SetExtention ()
void	SetExtentionZNumber ()
void	SetExtentionZSlider ()
void	SetOutputFileModeButton ()
void	SetPickSegment ()
void	SetPickTrack ()
void	SetProjection ()
void	WriteFeedback ()
void	WriteFilteredText ()
const char *	WriteListFile (const char *filename=NULL)
void	WriteMxxFile ()
virtual	~EdbEDAMainTab ()

Public Attributes
TObjArray *	eDrawChecks
TGCheckButton *	eGCBAngleCut
TGCheckButton *	eGCBAnimation
TGCheckButton *	eGCBDrawArea
TGCheckButton *	eGCBExtention
TGCheckButton *	eGCBExtention_res
TGCheckButton *	eGCBIpCut
TGCheckButton *	eGCBNeighbor
TGCheckButton *	eGClearPrevious
TGNumberEntryField *	eGNEAX
TGNumberEntryField *	eGNEAY
TGNumberEntryField *	eGNEExtentionZ
TGNumberEntry *	eGNEMaxPlate
TGNumberEntryField *	eGNENeighborDzDown
TGNumberEntryField *	eGNENeighborDzUp
TGNumberEntry *	eGNENseg
TGNumberEntryField *	eGNEPHDTRMS
TGNumberEntry *	eGNESearchBTIPL
TGNumberEntryField *	eGNESearchSegmentIPL
TGNumberEntryField *	eGNESearchSegmentISeg
TGNumberEntryField *	eGNESearchTrack
TGNumberEntry *	eGNETolDT
TGNumberEntry *	eGNETolDX
TGNumberEntryField *	eGNEWCut
TGRadioButton *	eGRBColorBK
TGRadioButton *	eGRBColorPH
TGRadioButton *	eGRBColorPL
TGCheckButton *	eGSideOut
TGNumberEntry *	eGSideOutPlate
TGHSlider *	eGSliderExtentionZ
TGMainFrame *	eIDWindow
EdbEDATrackSet *	eTrackSet
TGCheckButton *	fTextButton_scanback

Private Attributes
TGCheckButton *	eGCBTrackAngle
TGCheckButton *	eGCBTrackID
TGRadioButton *	eGRBSelSeg
TGRadioButton *	eGRBSelTrack

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
kSelSeg
kSelTrack

{ kSelSeg, kSelTrack};

Constructor & Destructor Documentation

EdbEDAMainTab()

EdbEDAMainTab::EdbEDAMainTab ( void  )

inline

                       {
        eIDWindow=NULL;
        MakeGUIMain();
    }

~EdbEDAMainTab()

virtual EdbEDAMainTab::~EdbEDAMainTab ( )

inlinevirtual

{}

Member Function Documentation

ApplyParams()

void EdbEDAMainTab::ApplyParams

(

)

CalcIP()

void EdbEDAMainTab::CalcIP

(

)

                          {
    // calculate IP for the selected tracks wrt the given vertex.
    // if the vertex is not given, use the selected vertex.
    EdbVertex *v=gEDA->GetSelectedVertex();
    if(NULL==v) {
        printf("select a vertex!\n");
        return;
    }
    printf("/// Calc IP w.r.t. Vertex %d %8.1lf %8.1lf %8.1lf (red vertex) ///\n",v->ID(), v->X(),v->Y(),v->Z());

    TObjArray *selected = gEDA->GetSelected();
    if(selected->GetEntriesFast()==0){
        printf("select segments\n");
        return;
    }
    for(int i=0;i<selected->GetEntriesFast();i++){
        EdbSegP *s = (EdbSegP *) selected->At(i);
        double r = EdbEDAUtil::CalcIP(s,v->X(),v->Y(),v->Z());

        double dz = fabs(v->Z()-s->Z());
        double minimum_kink_angle = r / (dz-293.0/2);

        printf("%6d PL %2d %7.4lf %7.4lf IP = %6.2lf, dZ = %6.1lf, Minimum kink angle = %6.4lf\n",
                        s->Track(), s->Plate(), s->TX(), s->TY(), r, dz, minimum_kink_angle);
        gEve->SetStatusLine(Form("%4d PL %2d %7.4lf %7.4lf IP = %6.2lf, dZ = %6.1lf, Minimum kink angle = %6.4lf\n",
                        s->Track(), s->Plate(), s->TX(), s->TY(), r, dz, minimum_kink_angle));
    }
}

CalcMinimumDistance()

void EdbEDAMainTab::CalcMinimumDistance

(

void

)

                                           {
    printf("/// Calc Dmin //////////////////////////////////////////////////////////////////////////\n");
    TObjArray * selected = gEDA->GetSelected();
    if(selected->GetEntriesFast()<2) {
        printf("Select more than 2 segment!!\n");
        return;
    }
    int i,j;
    int n = selected->GetEntriesFast();

    for(i=0;i<n-1;i++){
        for(j=i+1;j<n;j++){
            int id1=0,id2=0;
            EdbSegP *seg1 = (EdbSegP*) selected->At(i);
            if(IsSegment(seg1)) {
                id1=seg1->Track();
                if(id1==-1) id1=seg1->ID();
            }
            else id1=seg1->ID();

            EdbSegP *seg2 = (EdbSegP*) selected->At(j);

            if(IsSegment(seg2)) {
                id2=seg2->Track();
                if(id2==-1) id2=seg2->ID();
            }
            else id2=seg2->ID();

            double dz;
            double r = CalcDmin(seg1,seg2, &dz);

            printf(" %5d x %5d dmin = %6.1lf um at %6.1lf um upstream from pl %2d. dT=(%7.4lf, %7.4lf).\n",
                    id1,id2, r, dz, seg1->Plate(), seg1->TX()-seg2->TX(), seg1->TY()-seg2->TY());

            gEve->SetStatusLine(Form("min distance = %6.1lf um at %6.1lf um upstream of pl %2d\n", r, dz, seg1->Plate()));
        }
    }
    printf("////////////////////////////////////////////////////////////////////////////////////////\n");
}

CalcPSelected()

void EdbEDAMainTab::CalcPSelected

(

)

                                 {
    printf("/// Calc Momentum, temporary version//////////////////////\n");
    TObjArray *selected = gEDA->GetSelected();
    for(int i=0; i<selected->GetEntriesFast(); i++ ){
        EdbTrackP *t=gEDA->GetTrack((EdbSegP *)selected->At(i));
        if(t==NULL) continue;
        double p, pmin, pmax;

//      CalcP(t,p,pmin,pmax);
//      printf(" %5d %7.4lf %7.4lf p pmin pmax = %6.2f %6.2f %6.2f GeV/c (90%%CL)\n",
//              t->ID(), t->TX(), t->TY(), p, pmin, pmax);
//      gEve->SetStatusLine(Form(" %5d %7.4lf %7.4lf p pmin pmax = %6.2f %6.2f %6.2f GeV/c (90%%CL)",
//              t->ID(), t->TX(), t->TY(), p, pmin, pmax));

//      printf("Bern conventional (Magali's)\n");
        CalcP(t,p,pmin,pmax);
//      printf("Bern %5d %7.4lf %7.4lf p pmin pmax = %6.2f %6.2f %6.2f GeV/c (90%%CL)\n",
//              t->ID(), t->TX(), t->TY(), p, pmin, pmax);
        gEve->SetStatusLine(Form(" %5d %7.4lf %7.4lf p pmin pmax = %6.2f %6.2f %6.2f GeV/c (90%%CL)",
                t->ID(), t->TX(), t->TY(), p, pmin, pmax));
/*
        printf("Andrea conventional\n");
        CalcP2(t,p,pmin,pmax);
        printf("A_g0 %5d %7.4lf %7.4lf p pmin pmax = %6.2f %6.2f %6.2f GeV/c (90%%CL)\n",
                t->ID(), t->TX(), t->TY(), p, pmin, pmax);

        printf("Andrea new statistical treatment\n");
        CalcP3(t,p,pmin,pmax);
        printf("A_g2 %5d %7.4lf %7.4lf p pmin pmax = %6.2f %6.2f %6.2f GeV/c (90%%CL)\n",
                t->ID(), t->TX(), t->TY(), p, pmin, pmax);
*/
    }

    printf("////////////////////////////////////////////////////////////////\n");
}

CalcVertex()

void EdbEDAMainTab::CalcVertex

(

int

clear_previous_local = kTRUE

)

                                                      {
    // calculate a vertex with the selected tracks (segments).
    // use the data of (the selected object)->X(), Y(), Z(), TX(), TY().
    // means, if the selected object == segment, use the data of the segment. or it == track, the use the fitted data.
    printf("/// Calc Vertex /////////////////////////////////////////////////\n");
    TObjArray *selected = gEDA->GetSelected();

    if(selected->GetEntriesFast()<1){
        ErrorMessage("CalcVertex() error : please select more than 1 segment or track\n");
        return;
    }

    if(eGClearPrevious->IsOn()&&clear_previous_local) gEDA->GetVertexSet()->Clear();


    /*
    // this is for FEDRA vertex using libVt++. but it's not convenient. use only topological.

    EdbVertex *v0 = EdbEDAUtil::CalcVertex(selected); // by Tomoo func. pre-vertexing. to know vertex z.

    EdbVertex *v;
    if(selected->GetEntriesFast()==1){
        EdbSegP *s  = (EdbSegP *)selected->At(0);
        EdbTrackP *t = gEDA->GetSelectedTrack(s);

        EdbVTA *vta = new EdbVTA(t, v0);
        vta->SetFlag(2);
        vta->SetImp(EdbEDAUtil::CalcIP(s,v0));
        v0->AddVTA(vta);
        v=v0;
    }
    else {
        // Calc vertex by FEDRA version.
        v = new EdbVertex;
        // register the tracks to vertex.
        for(int i=0;i<selected->GetEntriesFast();i++){
            EdbSegP *s  = (EdbSegP *)selected->At(i);
            EdbTrackP *t = gEDA->GetSelectedTrack(s);

            //if(t==NULL) t = new EdbTrackP(s);

            double dz1 = abs(t->GetSegmentFirst()->Z()-v0->Z()); // z distance from 1st segment to vertex
            double dz2 = abs(t->GetSegmentLast()->Z()-v0->Z());  // z distance from last segment to vertex

            EdbVTA *vta = new EdbVTA(t, v);
            vta->SetZpos(dz1<dz2?1:0);    // if 1st segment is near to vertex, use 1st segment.
            vta->SetFlag(2);
            vta->SetImp(EdbEDAUtil::CalcIP(s,v));
            v->AddVTA(vta);
        }
        // calculate in EdbVertexRec.
        EdbVertexRec VR;
        VR.eImpMax=1e6;
        EdbPVRec PVR; // needed because of X0.
        PVR.SetScanCond(new EdbScanCond);
        VR.SetPVRec(&PVR);
        VR.eUseSegPar=kTRUE; // definitely need for better IP calculation.
        VR.MakeV(*v);
    }
    */
    // calc vertex point by Tomoko // VTA is not set.
    // old version. upto 2009 10 29
    EdbVertex *v = EdbEDAUtil::CalcVertex(selected);

    static int vid=0;
    if(vid<gEDA->GetVertexSet()->N()) vid=gEDA->GetVertexSet()->N();
    v->SetID(vid++);
    // register the vertex to selected_vertex.
    for(int i=0;i<selected->GetEntriesFast();i++){
        EdbSegP *s  = (EdbSegP *)selected->At(i);
        EdbTrackP *t = gEDA->GetSelectedTrack(s);

        if(t==NULL) t = new EdbTrackP(s);

        EdbVTA *vta = new EdbVTA(t, v);
        vta->SetZpos(1);
        vta->SetFlag(2);
        vta->SetImp(EdbEDAUtil::CalcIP(s,v));
        v->AddVTA(vta);
    }

    // claculate the dZ from the last plate
    double vertexplz = 1e6;
    int vertexipl = 0;
    for(int i=0;i<gEDA->GetNPL();i++){
        if(gEDA->GetZPID(i)<v->Z()) continue;
        if(gEDA->GetZPID(i)<vertexplz) {
            vertexplz = gEDA->GetZPID(i);
            vertexipl = gEDA->GetIPL(i);
        }
    }
    if(gEDA->GetNPL()==0){
        EdbTrackP *t = gEDA->GetSelectedTrack(0);
        EdbSegP *s = t->GetSegmentFirst();
        vertexplz=s->Z();
        vertexipl=s->Plate();
    }

    gEve->SetStatusLine(Form("Vertex position (x,y,z) = (%8.1lf, %8.1lf, %8.1lf). %.1lf micron upstream of pl %d\n",
                            v->X(), v->Y(), v->Z(), vertexplz-v->Z(), vertexipl));

    printf(" --------------------------------------------------------------------------\n");
    printf("Vertex position (x,y,z) = (%8.1lf, %8.1lf, %8.1lf). %.1lf micron upstream of pl %d\n",v->X(), v->Y(), v->Z(), vertexplz-v->Z(), vertexipl);


    gEDA->WriteFeedbackFile2008(v,"tmp.feedback");
    printf("/// Calc Vertex end//////////////////////////////////////////////\n");
    gEDA->GetVertexSet()->AddVertex(v);
    gEDA->SetSelectedVertex(v);
    gEDA->Redraw();
}

CalcVertexPlus()

void EdbEDAMainTab::CalcVertexPlus

(

)

{ CalcVertex(kFALSE);}

ClearTracks()

void EdbEDAMainTab::ClearTracks

(

void

)

{ gEDA->StorePrevious(); eTrackSet->ClearTracks(), gEDA->Redraw();}

ClearVertices()

void EdbEDAMainTab::ClearVertices

(

)

{ gEDA->StorePrevious(); gEDA->ClearVertices(); gEDA->Redraw();}

DrawExtentionResolution()

void EdbEDAMainTab::DrawExtentionResolution

(

)

                                           {
    // Draw Extention with resolution
    gEDA->GetExtentionSet()->DrawResolution(kTRUE);
}

DrawOnlySelected()

void EdbEDAMainTab::DrawOnlySelected

(

)

                                     {
    gEDA->StorePrevious();
    eTrackSet->ClearTracks();
    eTrackSet->SetTracks(gEDA->GetSelectedTracks());
    gEDA->GetVertexSet()->ClearVertices();
    gEDA->GetVertexSet()->SetVertex(gEDA->GetSelectedVertex());
    gEDA->Redraw();
}

ExecCuts()

void EdbEDAMainTab::ExecCuts

(

int

redraw = kTRUE

)

                                      {
    printf("Execute cuts\n");
    ApplyParams();
    printf("Apply Parameters\n");
    gEDA->StorePrevious();

    if(eTrackSet->GetImpactSearch()){
        if(eGClearPrevious->IsOn()) gEDA->ClearVertices();
        gEDA->AddVertex(gEDA->GetSelectedVertex());
    }

    // selection of tracks in the tracks-base.
    eTrackSet->DoSelection();

    // selected tracks are anyway shown.
    eTrackSet->SetTracks(gEDA->GetSelectedTracks());

    if(redraw) gEDA->Redraw();
}

ExecSegmentSearch()

void EdbEDAMainTab::ExecSegmentSearch

(

)

                                     {
    gEDA->StorePrevious();
    int ipl = eGNESearchSegmentIPL->GetIntNumber();
    int iseg = eGNESearchSegmentISeg->GetIntNumber();
    printf("Track Search by Segment, ipl = %d iseg = %d\n", ipl, iseg);
    if(eGClearPrevious->IsOn()) eTrackSet->ClearTracks();
    EdbTrackP *t = eTrackSet->SearchSegment(ipl, iseg);
    if(t) eTrackSet->AddTrack(t);
    else  printf("track not found.\n");
    gEDA->Redraw();
    if(eIDWindow!=NULL) eIDWindow->CloseWindow();
    eIDWindow = NULL;

}

ExecTrackSearch()

void EdbEDAMainTab::ExecTrackSearch

(

)

                                   {
    gEDA->StorePrevious();
    int itrk = eGNESearchTrack->GetIntNumber();
    if(eGClearPrevious->IsOn()) eTrackSet->ClearTracks();
    printf("Track Search, itrk = %d\n", itrk);
    EdbTrackP *t = eTrackSet->SearchTrack(itrk);
    if(t) eTrackSet->AddTrack(t);
    gEDA->Redraw();

    if(eIDWindow!=NULL) eIDWindow->CloseWindow();
    eIDWindow = NULL;

}

GetDT()

double EdbEDAMainTab::GetDT ( )

inline

{ return eGNETolDT->GetNumber();}

GetNsegCut()

int EdbEDAMainTab::GetNsegCut ( )

inline

{ return eGNENseg->GetIntNumber();}

GetPHCut()

double EdbEDAMainTab::GetPHCut ( )

inline

{ return eGNEWCut->GetNumber();}

GetPHDTRMS()

double EdbEDAMainTab::GetPHDTRMS ( )

inline

{ return eGNEPHDTRMS->GetNumber();}

GetTX()

double EdbEDAMainTab::GetTX ( )

inline

{ return eGNEAX->GetNumber();}

GetTY()

double EdbEDAMainTab::GetTY ( )

inline

{ return eGNEAY->GetNumber();}

MakeGUICuts()

void EdbEDAMainTab::MakeGUICuts

(

TGGroupFrame *

fGroupFrame1

)

                                                         {
    int posy=20, posx, dx;
    TGLabel *fLabel;
    TGTextButton *fb;
    fLabel = new TGLabel(fGroupFrame1,"Nseg  >=");
    fLabel->MoveResize(10,posy,50,20);

    eGNENseg = new TGNumberEntry(fGroupFrame1, eTrackSet->GetNsegCut(),11,-1,TGNumberFormat::kNESInteger);
    eGNENseg->MoveResize(70,posy,50,20);

    posy+=20;
    fLabel = new TGLabel(fGroupFrame1," iPlate >= ");
    if(gEDA->Japanese()) fLabel->SetTitle(" iPlate <= ");
    fLabel->MoveResize(10,posy,50,20);

    if(eTrackSet->GetUpstreamPlate()==0) eTrackSet->SetUpstreamPlate( eTrackSet->FindUpstreamPlate());
    eGNEMaxPlate = new TGNumberEntry(fGroupFrame1, eTrackSet->GetUpstreamPlate(),11,-1,TGNumberFormat::kNESInteger);
    eGNEMaxPlate->MoveResize(70,posy,50,20);

    posy+=22;
    posx=5;
    fLabel = new TGLabel(fGroupFrame1,"ph>=");
    fLabel->MoveResize(posx,posy,dx=27,18);

    posx+=dx;
    eGNEWCut = new TGNumberEntryField(fGroupFrame1, -1, (Double_t) eTrackSet->GetPHCut());
    eGNEWCut->SetFormat(TGNumberFormat::kNESRealOne);
    eGNEWCut->MoveResize(posx,posy,dx=33,18);
    eGNEWCut->SetToolTipText("Cut for PH mean.");

    posx+=dx+5;
    fLabel = new TGLabel(fGroupFrame1,"dt/ph=");
    fLabel->MoveResize(posx,posy,dx=40,18);

    posx+=dx;
    eGNEPHDTRMS = new TGNumberEntryField(fGroupFrame1, -1, (Double_t) eTrackSet->GetPHDTRMS());
    eGNEPHDTRMS->SetFormat(TGNumberFormat::kNESRealThree);
    eGNEPHDTRMS->SetLimits(TGNumberFormat::kNELLimitMin, 0);
    eGNEPHDTRMS->MoveResize(posx,posy,dx=40,18);


    posx+=dx+8;
    eGClearPrevious = new TGCheckButton(fGroupFrame1,"Clear prev");
    eGClearPrevious->MoveResize(posx,posy,dx=80,20);
    eGClearPrevious->SetState(kButtonDown);

    posy+=20;
    eGSideOut = new TGCheckButton(fGroupFrame1,"Penetration and Side-out");
    eGSideOut->MoveResize(10,posy,160,20);
    eGSideOut->SetToolTipText(  "Reject penetrating and side-out tracks,\n"
                                "by requesting the scanning area upstream\n"
                                "of the track for a given number of plates.");

    eGSideOutPlate = new TGNumberEntry(fGroupFrame1, eTrackSet->GetSideOutPlate(),11,-1,TGNumberFormat::kNESInteger);
    eGSideOutPlate->MoveResize(175,posy,35,18);

    fLabel = new TGLabel(fGroupFrame1,"pl");
    fLabel->MoveResize(210,posy,dx=25,20);

    posy+=23;
    // Check Neighbor search
    eGCBNeighbor = new TGCheckButton(fGroupFrame1,"Neighbor search");
    eGCBNeighbor->MoveResize(10,posy,115,20);
    eGCBNeighbor->SetToolTipText("Search neighbors.\nAngular and position tolerance are valid.");


    eGCBIpCut = new TGCheckButton(fGroupFrame1,"IP cut");
    eGCBIpCut->MoveResize(128,posy,100,20);
    eGCBIpCut->SetState(kButtonUp);
    eGCBIpCut->SetToolTipText("IP cut against a selected vertex (Red).\nPosition tolerance is valid.");


    posy+=20;
    // Check Angular cut
    eGCBAngleCut = new TGCheckButton(fGroupFrame1,"Angular cut");
    eGCBAngleCut->MoveResize(10,posy,90,20);
    eGCBAngleCut->SetToolTipText("Angular cut against a given angle.\nAngular tolerance is valid.");

    eGNEAX = new TGNumberEntryField(fGroupFrame1);
    eGNEAX->MoveResize(100,posy,60,18);
    eGNEAX->SetFormat(TGNumberFormat::kNESRealThree);

    eGNEAY = new TGNumberEntryField(fGroupFrame1);
    eGNEAY->MoveResize(170,posy,60,18);
    eGNEAY->SetFormat(TGNumberFormat::kNESRealThree);

    posy+=25;

    fLabel = new TGLabel(fGroupFrame1,"tol :");
    fLabel->MoveResize(10,posy,25,20);

    eGNETolDT = new TGNumberEntry(fGroupFrame1, 0.05,11,-1,TGNumberFormat::kNESRealTwo);
    eGNETolDT->MoveResize(35,posy,60,20);
//  eGNETolDT->SetToolTipText("Angular tolerance");

    fLabel = new TGLabel(fGroupFrame1,"rad");
    fLabel->MoveResize(100,posy,25,18);

    eGNETolDX = new TGNumberEntry(fGroupFrame1, 250,11,-1,TGNumberFormat::kNESReal);
    eGNETolDX->MoveResize(130,posy,60,20);
//  eGNETolDX->SetToolTipText("Position tolerance");

    fLabel = new TGLabel(fGroupFrame1,"micron");
    fLabel->MoveResize(190,posy,40,18);

    posy+=25;
    fLabel = new TGLabel(fGroupFrame1,"dz range :  up");
    fLabel->MoveResize(12,posy,75,18);
    eGNENeighborDzUp = new TGNumberEntryField(fGroupFrame1, -1,5000);
    eGNENeighborDzUp->MoveResize(90,posy,50,18);
    eGNENeighborDzUp->SetToolTipText("dZ range for neighbor search");


    fLabel = new TGLabel(fGroupFrame1,"down");
    fLabel->MoveResize(145,posy,30,18);
    eGNENeighborDzDown = new TGNumberEntryField(fGroupFrame1, -1,5000);
    eGNENeighborDzDown->MoveResize(180,posy,50,18);
    eGNENeighborDzDown->SetToolTipText("dZ range for neighbor search");


    // Apply
    fb = new TGTextButton(fGroupFrame1,"Apply");
    fb->MoveResize(128,20,74,40);
    fb->Connect("Clicked()","EdbEDAMainTab",this, "ExecCuts()");

    fb = new TGTextButton(fGroupFrame1,"clr");
    fb->MoveResize(205,20,30,20);
    fb->Connect("Clicked()","EdbEDAMainTab",this,"ClearTracks()");

    fb = new TGTextButton(fGroupFrame1,"<");
    fb->MoveResize(205,40,30,20);
    fb->Connect("Clicked()","EdbEDAMainTab",this,"Redo()");

    posy+=23;
    fb = new TGTextButton(fGroupFrame1,"ID Search");
    fb->MoveResize(5,posy,80,18);
    fb->Connect("Clicked()","EdbEDAMainTab",this,"MakeGUIIDSearch()");

    fb = new TGTextButton(fGroupFrame1,"MT search");
    fb->MoveResize(130,posy,70,18);
    fb->Connect("Clicked()","EdbEDAMainTab", this, "MicroTrackSearch()");


    posy+=23;
    fLabel = new TGLabel(fGroupFrame1,"Search BT : pl");
    fLabel->MoveResize(5,posy,80,18);

    eGNESearchBTIPL = new TGNumberEntry(fGroupFrame1, -1, 0,TGNumberFormat::kNESInteger);
    eGNESearchBTIPL->MoveResize(90,posy,35,18);

    fb = new TGTextButton(fGroupFrame1,"Dmin");
    fb->MoveResize(130,posy,35,18);
    fb->Connect("Clicked()","EdbEDAMainTab", this, "SearchCouplesDmin()");
    fb->SetToolTipText("Search BT by Neibor search. \nif ipl==-1, search in all plate.\nPHcut is valid.");

    fb = new TGTextButton(fGroupFrame1,"IP cut");
    fb->MoveResize(170,posy,40,18);
    fb->Connect("Clicked()","EdbEDAMainTab", this, "SearchCouplesIP()");
    fb->SetToolTipText("Search BT by IP cut. \nif ipl==-1, search in all plate.\nPHcut is valid.");

    fb = new TGTextButton(fGroupFrame1,"clr");
    fb->MoveResize(215,posy,20,18);
    fb->Connect("Clicked()","EdbEDAMainTab", this, "ClearTracks()");


}

MakeGUIIDSearch()

void EdbEDAMainTab::MakeGUIIDSearch

(

)

                                   {
    if(eIDWindow!=NULL) {
        eIDWindow->RaiseWindow();
        return;
    }
    TGTransientFrame *fMainFrame = new TGTransientFrame(gClient->GetRoot(),gEve?gEve->GetMainWindow():0,10,300,kMainFrame | kVerticalFrame);
    fMainFrame->SetLayoutBroken(kTRUE);

    eIDWindow = fMainFrame;

    // Search
    int posy=10;

    TGLabel *fLabel = new TGLabel(fMainFrame,"Search:     track  id = ");
    fLabel->MoveResize(10,posy,120,18);
    eGNESearchTrack = new TGNumberEntryField(fMainFrame, -1, 0,TGNumberFormat::kNESInteger);
    fMainFrame->AddFrame(eGNESearchTrack, new TGLayoutHints(kLHintsTop | kLHintsLeft, 5, 5, 5, 5));
    eGNESearchTrack->MoveResize(130,posy,60,18);
    TGTextButton *fb = new TGTextButton(fMainFrame,"Go");
    fb->MoveResize(200,posy+1,30,18);
    fMainFrame->AddFrame(fb, new TGLayoutHints(kLHintsTop | kLHintsLeft, 5, 5, 5, 5));
    fb->Connect("Clicked()","EdbEDAMainTab",this,"ExecTrackSearch()");

    posy+=20;
    fLabel = new TGLabel(fMainFrame,"pl = ");
    fLabel->MoveResize(18,posy,30,18);
    eGNESearchSegmentIPL = new TGNumberEntryField(fMainFrame, -1, 0,TGNumberFormat::kNESInteger);
    fMainFrame->AddFrame(eGNESearchSegmentIPL, new TGLayoutHints(kLHintsTop | kLHintsLeft, 5, 5, 5, 5));
    eGNESearchSegmentIPL->MoveResize(55,posy,30,18);

    fLabel = new TGLabel(fMainFrame,"iseg = ");
    fLabel->MoveResize(90,posy,35,18);
    eGNESearchSegmentISeg = new TGNumberEntryField(fMainFrame, -1, 0,TGNumberFormat::kNESInteger);
    fMainFrame->AddFrame(eGNESearchSegmentISeg, new TGLayoutHints(kLHintsTop | kLHintsLeft, 5, 5, 5, 5));
    eGNESearchSegmentISeg->MoveResize(130,posy,60,18);

    fb = new TGTextButton(fMainFrame,"Go");
    fb->MoveResize(200,posy+1,30,18);
    fMainFrame->AddFrame(fb, new TGLayoutHints(kLHintsTop | kLHintsLeft, 5, 5, 5, 5));
    fb->Connect("Clicked()","EdbEDAMainTab",this,"ExecSegmentSearch()");

    fMainFrame->SetMWMHints(kMWMDecorAll,
        kMWMFuncAll,
        kMWMInputModeless);
    fMainFrame->MapSubwindows();

    fMainFrame->Resize(fMainFrame->GetDefaultSize());
    fMainFrame->MapWindow();
    fMainFrame->Resize(250,70);

}

MakeGUIMain()

void EdbEDAMainTab::MakeGUIMain

(

)

                               {

    eTrackSet = gEDA->GetTrackSet("TS");


    TEveBrowser * browser = gEve->GetBrowser();
    browser->StartEmbedding(TRootBrowser::kLeft);

    TGMainFrame* frmMain = new TGMainFrame(gClient->GetRoot(), 1000, 600);
    frmMain->SetWindowName("XX GUI");
    frmMain->SetCleanup(kDeepCleanup);

    //TGLabel *fLabel;
    TGTextButton *fb;

    TGVerticalFrame* hf = new TGVerticalFrame(frmMain);
    {
    // "fGroupFrame600" group frame
        TGGroupFrame *fGroupFrame1 = new TGGroupFrame(hf,"Cuts");
        fGroupFrame1->SetLayoutBroken(kTRUE);
        MakeGUICuts(fGroupFrame1);
        hf->AddFrame(fGroupFrame1, new TGLayoutHints(kLHintsLeft | kLHintsTop,2,2,2,2));
        fGroupFrame1->MoveResize(0,0,240,255);


    // Group2
        TGGroupFrame *fGroupFrame2 = new TGGroupFrame(hf,"Selection");
        fGroupFrame2->SetLayoutBroken(kTRUE);
        {
            int posy = 15;
            TGLabel *fLabel = new TGLabel(fGroupFrame2,"method ");
            fLabel->MoveResize(10,posy,50,18);

            eGRBSelSeg = new TGRadioButton(fGroupFrame2,"segment");
            eGRBSelSeg->MoveResize(80,posy,80,18);
            eGRBSelSeg->Connect("Clicked()","EdbEDAMainTab", this, "SetPickSegment()");
            eGRBSelSeg->SetState((EButtonState)1);

            eGRBSelTrack = new TGRadioButton(fGroupFrame2,"track");
            eGRBSelTrack->MoveResize(170,posy,65,18);
            eGRBSelTrack->Connect("Clicked()","EdbEDAMainTab", this, "SetPickTrack()");

            posy+=23;
            fb = new TGTextButton(fGroupFrame2,"Only selected");
            fb->MoveResize(10,posy,90,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"DrawOnlySelected()");

            fb = new TGTextButton(fGroupFrame2,"Remove");
            fb->MoveResize(105,posy,60,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"RemoveSelected()");
            fb->SetToolTipText("Remove selected tracks.");

            fb = new TGTextButton(fGroupFrame2,"All");
            fb->MoveResize(170,posy,60,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"SelectAll()");
            fb->SetToolTipText("Select all tracks shown in the display.");

            posy+=23;
            eGCBExtention = new TGCheckButton(fGroupFrame2,"Extention");
            eGCBExtention->MoveResize(15,posy,80,18);
            eGCBExtention->Connect("Clicked()","EdbEDAMainTab", this,"SetExtention()");

            fb = new TGTextButton(fGroupFrame2,"res");
            fb->MoveResize(100,posy,40,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"DrawExtentionResolution()");
            fb->SetToolTipText("Draw extention with measurement error + scattering.");

            fLabel = new TGLabel(fGroupFrame2,"z =");
            fLabel->MoveResize(145,posy,20,18);
            eGNEExtentionZ =  new TGNumberEntryField(fGroupFrame2, -1, gEDA->GetExtentionSet()->GetZ(), TGNumberFormat::kNESInteger);
            eGNEExtentionZ -> MoveResize(170,posy,55,18);
            eGNEExtentionZ -> Connect("TextChanged(char *)","EdbEDAMainTab", this,"SetExtentionZNumber()");


            posy+=20;
            eGSliderExtentionZ = new TGHSlider(fGroupFrame2,220,kSlider1 | kScaleBoth,-1,kHorizontalFrame);
            eGSliderExtentionZ->SetRange(-80000,0);
            eGSliderExtentionZ->SetPosition((int)gEDA->GetExtentionSet()->GetZ());
            eGSliderExtentionZ->MoveResize(5,posy,225,15);
            eGSliderExtentionZ->Connect("PositionChanged(int)","EdbEDAMainTab", this,"SetExtentionZSlider()");

        }
        hf->AddFrame(fGroupFrame2, new TGLayoutHints(kLHintsLeft | kLHintsTop,2,2,2,2));
        fGroupFrame2->MoveResize(0,200,240,105);


    // Group3
        TGGroupFrame *fGroupFrame3 = new TGGroupFrame(hf,"Analysis");
        fGroupFrame3->SetLayoutBroken(kTRUE);
        {
            fb = new TGTextButton(fGroupFrame3,"Min distance");
            fb->MoveResize(10,20,110,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"CalcMinimumDistance()");

            fb = new TGTextButton(fGroupFrame3,"Vertex");
            fb->MoveResize(10,40,68,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"CalcVertex()");
            fb->SetToolTipText("Calc vertex using only the selected segments.");

            fb = new TGTextButton(fGroupFrame3,"+");
            fb->MoveResize(78,40,18,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"CalcVertexPlus()");
            fb->SetToolTipText("Calc vertex without clearing existing vertices.");

            fb = new TGTextButton(fGroupFrame3,"clr");
            fb->MoveResize(98,40,22,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"ClearVertices()");

            fb = new TGTextButton(fGroupFrame3,"Momentum");
            fb->MoveResize(125,20,110,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"CalcPSelected()");

            fb = new TGTextButton(fGroupFrame3,"Calc IP");
            fb->MoveResize(125,40,110,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"CalcIP()");
        }
        hf->AddFrame(fGroupFrame3, new TGLayoutHints(kLHintsLeft | kLHintsTop,2,2,2,2));
        fGroupFrame3->MoveResize(0,210,240,72);

    // Group4
        TGGroupFrame *fGroupFrame4 = new TGGroupFrame(hf,"Display");
        fGroupFrame4->SetLayoutBroken(kTRUE);
        {
            int posy=20;
//          TGLabel *fLabel = new TGLabel(fGroupFrame4,"Camera");
//          fLabel->MoveResize(10,posy,50,20);
            int posx = 10;
            int dx = 20;
            fb = new TGTextButton(fGroupFrame4,"X", EdbEDACamera::X);
            fb->MoveResize(posx,posy,dx,18);
            //fb->SetCommand("gEDA->SetCamera(kEDA_CAMERA_X)");
            fb->Connect("Clicked()","EdbEDAMainTab", this,"SetProjection()");

            posx+=dx+5;
            fb = new TGTextButton(fGroupFrame4,"Y", EdbEDACamera::Y);
            fb->MoveResize(posx,posy,dx,18);
//          fb->SetCommand("gEDA->SetCamera(kEDA_CAMERA_Y)");
            fb->Connect("Clicked()","EdbEDAMainTab", this,"SetProjection()");

            posx+=dx+5;
            fb = new TGTextButton(fGroupFrame4,"Z", EdbEDACamera::Z);
            fb->MoveResize(posx,posy,dx,18);
//          fb->SetCommand("gEDA->SetCamera(kEDA_CAMERA_Z)");
            fb->Connect("Clicked()","EdbEDAMainTab", this,"SetProjection()");

            posx+=dx+5;
            fb = new TGTextButton(fGroupFrame4,"Beam", EdbEDACamera::B);
            fb->MoveResize(posx,posy,dx=50,18);
//          fb->SetCommand("gEDA->SetCamera(kEDA_CAMERA_B)");
            fb->Connect("Clicked()","EdbEDAMainTab", this,"SetProjection()");

            posx+=dx+5;
            fb = new TGTextButton(fGroupFrame4,"Pick center");
            fb->MoveResize(posx,posy,dx=80,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this,"PickCenter()");

            posy+=20;

            TGLabel *fLabel = new TGLabel(fGroupFrame4,"Track Color");
            fLabel->MoveResize(10,posy,70,18);
            //fb = new TGTextButton(fGroupFrame4,"Track Color");
            //fb->SetCommand("gEDA->ShowColorTable()");
            //fb->MoveResize(10,posy,70,18);

            eGRBColorPL = new TGRadioButton(fGroupFrame4,"Plate", kCOLOR_BY_PLATE);
            eGRBColorPL->MoveResize(85,posy,50,18);
//          eGRBColorPL->SetCommand("gEDA->SetColorMode(kCOLOR_BY_PLATE)");
            eGRBColorPL->Connect("Clicked()","EdbEDAMainTab", this, "SetColorMode()");

            eGRBColorPH = new TGRadioButton(fGroupFrame4,"PH", kCOLOR_BY_PH);
            eGRBColorPH->MoveResize(140,posy,40,18);
            //eGRBColorPH->SetCommand("gEDA->SetColorMode(kCOLOR_BY_PH)");
            eGRBColorPH->Connect("Clicked()","EdbEDAMainTab", this, "SetColorMode()");
            eGRBColorPH->SetState((EButtonState)1);

            eGRBColorBK = new TGRadioButton(fGroupFrame4,"Black", kBLACKWHITE);
            eGRBColorBK->MoveResize(185,posy,50,18);
//          eGRBColorBK->SetCommand("gEDA->SetColorMode(kBLACKWHITE)");
            eGRBColorBK->Connect("Clicked()","EdbEDAMainTab", this, "SetColorMode()");

            posy+=22;
            dx=37;

            eDrawChecks = new TObjArray;
            posx=10;
            dx = 45;
            for(int i=0;i<gEDA->NTrackSets();i++){
//              posx+=dx+5;
                if(i==5||i==10||i==15){
                    posx=10;
                    posy+=20;
                }
                EdbEDATrackSet *set = gEDA->GetTrackSet(i);
                TGCheckButton *cb = new TGCheckButton(fGroupFrame4,set->GetName(),i);
                eDrawChecks->Add(cb);
                cb->MoveResize(posx,posy,dx,20);
                cb->SetState((EButtonState)1);
                cb->Connect("Toggled(Bool_t)","EdbEDAMainTab", this, "SetDrawTrackSets(Bool_t)");
                posx+=dx;
            }

            posy+=22;
            posx = 10;
            eGCBDrawArea = new TGCheckButton(fGroupFrame4,"Scan area");
            eGCBDrawArea->MoveResize(posx,posy,dx=85,20);
            eGCBDrawArea->SetState((EButtonState)1);
            eGCBDrawArea->Connect("Clicked()","EdbEDAMainTab", this,"SetDrawAreas()");

            posx+=dx+10;
            eGCBTrackID = new TGCheckButton(fGroupFrame4,"track ID");
            eGCBTrackID->MoveResize(posx,posy,dx=65,20);
            eGCBTrackID->SetState((EButtonState)0);
            eGCBTrackID->Connect("Clicked()","EdbEDAMainTab", this,"SetDrawText()");

            posx+=dx+5;
            eGCBTrackAngle = new TGCheckButton(fGroupFrame4,"angle");
            eGCBTrackAngle->MoveResize(posx,posy,dx=60,20);
            eGCBTrackAngle->SetState((EButtonState)0);
            eGCBTrackAngle->Connect("Clicked()","EdbEDAMainTab", this,"SetDrawText()");


            posy+=22;
            eGCBAnimation = new TGCheckButton(fGroupFrame4,"Animation");
            eGCBAnimation->MoveResize(10,posy,80,20);
            //fb->SetCommand("gEDA->SetCamera(EDA_CAMERA_B)");
            eGCBAnimation->Connect("Clicked()","EdbEDAMainTab", this,"SetAnimation()");

            fb = new TGTextButton(fGroupFrame4,"op");
            fb->MoveResize(90,posy,20,18);
            fb->Connect("Clicked()", "EdbEDA", gEDA, "SetAnimationMode()");

            fb = new TGTextButton(fGroupFrame4,"Save animation");
            fb->MoveResize(125,posy,100,18);
            fb->Connect("Clicked()", "EdbEDA", gEDA, "SaveAnimation()");

            posy+=21;
            fb = new TGTextButton(fGroupFrame4,"Snapshot");
            fb->MoveResize(10,posy,100,18);
            fb->Connect("Clicked()", "EdbEDA", gEDA, "Snapshot()");

            fb = new TGTextButton(fGroupFrame4,"Save projections");
            fb->MoveResize(125,posy,100,18);
            fb->Connect("Clicked()", "EdbEDA", gEDA, "SavePictures()");

            posy+=21;
            fb = new TGTextButton(fGroupFrame4,"Write track list");
            fb->MoveResize(10,posy,100,18);
            fb->Connect("Clicked()","EdbEDAMainTab",this,"WriteListFile()");

            fb = new TGTextButton(fGroupFrame4,"Read track list");
            fb->MoveResize(125,posy,100,18);
            fb->Connect("Clicked()","EdbEDAMainTab",this,"ReadListFile()");
/*
            posy+=21;
            fb = new TGTextButton(fGroupFrame4,"Write filtered text");
            fb->MoveResize(10,posy,100,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this, "WriteFilteredText()");


            fb = new TGTextButton(fGroupFrame4,"Read filtered text");
            fb->MoveResize(125,posy,100,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this, "ReadFilteredText()");
*/
            posy+=21;
            fb = new TGTextButton(fGroupFrame4,"Write feedback");
            fb->MoveResize(10,posy,90,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this, "WriteFeedback()");

            fb = new TGTextButton(fGroupFrame4,"op");
            fb->MoveResize(102,posy,20,18);
            fb->Connect("Clicked()", "EdbEDAMainTab", this, "SetOutputFileModeButton()");

            fb = new TGTextButton(fGroupFrame4,"Read feedback");
            fb->MoveResize(125,posy,100,18);
            fb->Connect("Clicked()","EdbEDAMainTab", this, "ReadFeedback()");

            if(gEDA->Japanese()){

                posy+=21;
                fb = new TGTextButton(fGroupFrame4,"Write Mxx.all");
                fb->MoveResize(10,posy,90,18);
                fb->Connect("Clicked()","EdbEDAMainTab", this, "WriteMxxFile()");

            }



        }
        hf->AddFrame(fGroupFrame4, new TGLayoutHints(kLHintsLeft | kLHintsTop,2,2,2,2));
        fGroupFrame4->MoveResize(0,260,240,240);

    }

    frmMain->AddFrame(hf);

    frmMain->MapSubwindows();
    frmMain->Resize();
    frmMain->MapWindow();

    browser->StopEmbedding();
    browser->SetTabTitle("Main", 0);
}

MicroTrackSearch()

void EdbEDAMainTab::MicroTrackSearch

(

)

                                    {
    // Micro-track search
    // search +- 1 plate from end of track.
    // fill holes by microtrack.

    if(gEDA->NSelectedTracks()==0){
        ErrorMessage("Please select tracks\n");
        return;
    }

    for(int i=0;i<gEDA->NSelectedTracks();i++){
        EdbTrackP *t = gEDA->GetSelectedTrack(i);
        EdbEDATrackSet *set = gEDA->GetTrackSet(t);
        if(set!=gEDA->GetTrackSet("TS")){
            ErrorMessage("Currently only MT search for TrackSet:TS is supported.");

            int move=AskYesNo("Do you want to move the selected track to TS?");
            if(move==kFALSE) continue;
            else {
                gEDA->GetTrackSet("TS")->AddTrack(t);
                set->RemoveTrack(t);
                set->RemoveTrackBase(t);
                printf("track %5d move from TrackSet %s to %s.\n", t->ID(), set->GetName(), "TS");
            }
        }
        set->MicroTrackSearch(t);
    }
    gEDA->Redraw();
}

PickCenter()

void EdbEDAMainTab::PickCenter

(

)

                              {
    TGLViewer *v = gEDA->GetGLViewer();
    v->PickCameraCenter();
    gEve->SetStatusLine("Pick a segment as the rotation center");
    printf("Pick a segment as the rotation center.\n");
}

ReadFeedback()

void EdbEDAMainTab::ReadFeedback

(

)

{gEDA->ReadFeedbackFile();}

ReadFilteredText()

void EdbEDAMainTab::ReadFilteredText

(

)

                                    {
    gEDA->ReadFilteredText();
    gEDA->Redraw();
}

ReadListFile()

void EdbEDAMainTab::ReadListFile	(	const char *	filename = NULL,
		bool	clear_previous = kFALSE
	)

                                                                         {
    // Read list file.
    // search tracks with plateID and segmentID of BT.
    // if corresponding track is not found in TS, it search in BT (couples file).
    //
    // previously EdbEDATrackSet::ReadListFile is used.
    // however, in order to allow to read BT, this has changed.
    // and now this func play a real role.

    gEDA->StorePrevious();

    // previously EdbEDATrackSet::ReadListFile is used.
    // eTrackSet->ReadListFile(NULL);

    if(filename==NULL){
        TGFileInfo *fi = new TGFileInfo;
        fi->fIniDir    = StrDup(".");
        const char *filetypes[] = { "List file", "*.lst", "All files","*",0,0};
        fi->fFileTypes = filetypes;
        new TGFileDialog(gClient->GetRoot(), gEve->GetMainWindow(), kFDOpen, fi);
        filename=fi->fFilename;
    }

    EdbEDATrackSet *setTS = gEDA->GetTrackSet("TS");
    EdbEDATrackSet *setBT = gEDA->GetTrackSet("BT");
    printf("Read List file : %s\n", filename);

    FILE *fp=NULL;
    if(filename!=NULL) fp = fopen(filename,"rt");

    if(fp==NULL){
        printf("List file is not available.\n");
        return;
    }

    if(clear_previous) {
        setTS->ClearTracks();
        setTS->ClearComments();
        setBT->ClearTracks();
        setBT->ClearComments();
    }

    char buf[256];
    int ipl, iseg;
    char comment[256];
    // read list, setting TObjArray *selected.
    for(int i=0;NULL!=fgets(buf,sizeof(buf),fp);i++){
        if(feof(fp)||ferror(fp)) break;
        sscanf(buf,"%d %d %s", &ipl, &iseg, comment);

        EdbTrackP *t=NULL;
        for(int j=0;j<setTS->NBase();j++){
            EdbTrackP *tt = setTS->GetTrackBase(j);
            if(NULL==tt) continue;
            for(int k=0;k<tt->N();k++){
                EdbSegP *s = tt->GetSegment(k);
                if(s->ID()==iseg){
                if(s->Plate()==ipl){
                    setTS->SetTrack(tt); // add tt for drawing
                    t=tt;
                    break;
                }}
            }
        }

        EdbEDATrackSet *set = NULL; // set for comments
        if(t) set = setTS;
        else  set = setBT;

        if(t==NULL) {
            // no track found in TS
            // search in BT

            EdbPattern *pat = gEDA->GetPatternIPL(ipl);
            for(int j=0; j<pat->N(); j++){
                EdbSegP *s = pat->GetSegment(j);
                if(s->ID()==iseg){
                    t = new EdbTrackP(s);
                    t->SetCounters();
                    t->SetPlate(s->Plate());
                    setBT->AddTrack(t);
                }
            }

        }


        if(t==NULL) continue;

        unsigned int l;
        for(l=0;l<strlen(buf);l++){
            if(buf[l]=='\"') break;
        }
        if(l<strlen(buf) ){
            strcpy(comment, buf+l+1);
            for(l=0;l<strlen(comment);l++){
                if(comment[l]=='\"') comment[l]='\0';
            }
            if(strlen(comment)!=0) {
                set->AddComment(t,comment);
            }
        }

    }










    gEDA->Redraw();
}

Redo()

void EdbEDAMainTab::Redo

(

void

)

{ gEDA->RestorePrevious(); gEDA->Redraw();}

RemoveSelected()

void EdbEDAMainTab::RemoveSelected

(

)

                                  {
    gEDA->StorePrevious();
    gEDA->RemoveSelected();
    gEDA->Redraw();
}

SearchCouplesDmin() [1/2]

void EdbEDAMainTab::SearchCouplesDmin	(	TObjArray *	segsarr,
		int	ipl
	)

                                                                {

    EdbPattern *pat = gEDA->GetPatternIPL(ipl);
    if(pat==NULL) {
        //ErrorMessage(Form("Cannot read couples. pl=%d",ipl));
        //printf("Cannot read couples. pl=%d. stop.\n",ipl);
        return;
    }
    printf("Search BaseTrack in PL %d with dmin cut %.1lf micron wrt the selected tracks\n", ipl, eGNETolDX->GetNumber());

    eTrackSet->SetNeighborSearch(kFALSE, gEDA->GetSelected());

    int k=0;
    printf("%2s %7s %5s %2s %8s %8s %4s\n", "PL","ID","Dmin","PH","TX","TY","Chi2");
    double phcut = GetPHCut();
    for(int i=0;i<pat->N();i++){
        EdbSegP *s = pat->GetSegment(i);
        if(s->W()<phcut) continue;

        double dmin;
        if(eTrackSet->Neighborhood(s,&dmin)){
            // already found as tracks to be drawn?
            int flag=0;
            for(int j=0;j<eTrackSet->N();j++){
                EdbTrackP *t = eTrackSet->GetTrack(j);
                for(int k=0;k<t->N();k++){
                    EdbSegP *ss = t->GetSegment(k);
                    if(ss->PID()==s->PID()&&ss->ID()==s->ID()){
                        flag++;
                    }
                }
            }

            if(flag) {
                printf("%2d %7d %5.1lf %2d %8.4f %8.4f %4.2f already selected as Track\n",
                    ipl, s->ID(), dmin, (int)s->W(), s->TX(), s->TY(), s->Chi2());              continue;
            }

            if(NULL==segsarr->FindObject(s)) {
                segsarr->Add(s);
                k++;
                printf("%2d %7d %5.1lf %2d %8.4f %8.4f %4.2f\n",
                    ipl, s->ID(), dmin, (int)s->W(), s->TX(), s->TY(), s->Chi2());
            }
        }
    }
    printf("%d basetracks are selected\n",k);
    return;
}

SearchCouplesDmin() [2/2]

void EdbEDAMainTab::SearchCouplesDmin

(

TObjArray *

segsarr = NULL

)

                                                       {
    // this is called from MainTab.
    gEDA->StorePrevious();
    ApplyParams();
    if(segsarr==NULL) segsarr = new TObjArray;
    int ipl   = eGNESearchBTIPL->GetIntNumber();

    if(ipl==-1) {
        printf("Search BaseTrack in all plate with dmin cut %.1lf micron wrt the selected tracks\n", eGNETolDX->GetNumber());
        for(int i=0;i<60;i++) {
            SearchCouplesDmin(segsarr, i);
        }
    }
    else{
        SearchCouplesDmin(segsarr, ipl);
    }

    EdbEDATrackSet *TrackSet = gEDA->GetTrackSet("BT");
    if(eGClearPrevious->IsOn()) TrackSet->ClearTracks();

    TrackSet->AddSegments(segsarr);
    gEDA->Redraw();
}

SearchCouplesIP() [1/3]

void EdbEDAMainTab::SearchCouplesIP	(	int	ipl,
		double	x,
		double	y,
		double	z,
		double	ipcut = 50,
		TObjArray *	cps = NULL
	)

                                                                                                      {
    if(NULL==cps) return;
    EdbPattern *pat = gEDA->GetPatternIPL(ipl);
    if(pat==NULL) {
        //ErrorMessage(Form("Cannot read couples. pl=%d",ipl));
        //printf("Cannot read couples. pl=%d. stop.\n",ipl);
        return;
    }
    printf("Search BaseTrack in PL %d with IP cut %.1lf micron wrt (%.1lf, %.1lf, %.1lf)\n",
        ipl, ipcut, x, y, z);

    EdbEDATrackSet *TS = eTrackSet;
    printf("%2s %6s %5s %2s %8s %8s\n", "pl","id","IP","ph","tx","ty");

    int k=0;
    int phcut = (int) GetPHCut();
    for(int i=0;i<pat->N();i++){
        EdbSegP *s = pat->GetSegment(i);
        if(s->W()<phcut) continue;
        double ip = EdbEDAUtil::CalcIP(s, x, y, z);
        if(ipcut < ip) continue;

        // already found as tracks to be drawn?
        int flag=0;
        for(int j=0;j<TS->N();j++){
            EdbTrackP *t = TS->GetTrack(j);
            for(int k=0;k<t->N();k++){
                EdbSegP *ss = t->GetSegment(k);
                if(ss->PID()==s->PID()&&ss->ID()==s->ID()){
                    flag++;
                }
            }
        }
        if(flag) {
            printf("%2d %6d %5.1lf %2d %8.4f %8.4f already selected as Track\n",
                        ipl, s->ID(), ip, (int)s->W(), s->TX(), s->TY());
            continue;
        }
        else    printf("%2d %6d %5.1lf %2d %8.4f %8.4f\n", ipl, s->ID(), ip, (int)s->W(), s->TX(), s->TY());

        cps->Add(s);
        k++;
    }

    printf("%d basetracks are selected.\n",k);
}

SearchCouplesIP() [2/3]

void EdbEDAMainTab::SearchCouplesIP	(	int	ipl,
		EdbVertex *	v,
		double	ipcut = 50,
		TObjArray *	cps = NULL
	)

                                                                                      {
    if(NULL==v) return;
    if(NULL==cps) return;
    SearchCouplesIP (ipl, v->X(), v->Y(), v->Z(), ipcut, cps);
}

SearchCouplesIP() [3/3]

void EdbEDAMainTab::SearchCouplesIP

(

TObjArray *

segsarr = NULL

)

                                                     {
    // This will be called from Main tab.
    gEDA->StorePrevious();
    if(NULL==segsarr) segsarr = new TObjArray;
    EdbVertex *selected_vertex=gEDA->GetSelectedVertex();
    if(NULL==selected_vertex) return;
    int ipl      = eGNESearchBTIPL->GetIntNumber();
    double ipcut = eGNETolDX->GetIntNumber();
    if(ipl==0) return;

    if(ipl==-1){
        for(int i=1; i<60;i++) SearchCouplesIP ( i, selected_vertex, ipcut, segsarr);
    }
    else SearchCouplesIP (ipl, selected_vertex, ipcut, segsarr);

    EdbEDATrackSet *TrackSet = gEDA->GetTrackSet("BT");
    if(eGClearPrevious->IsOn()) TrackSet->ClearTracks();

    TrackSet->AddSegments(segsarr);
    gEDA->Redraw();
}

SelectAll()

void EdbEDAMainTab::SelectAll

(

)

                             {
    gEDA->SelectAll();
    gEDA->Redraw();
}

SetAnimation()

void EdbEDAMainTab::SetAnimation

(

)

                                {
    if( eGCBAnimation->IsOn() ) gEDA->StartAnimation();
    else gEDA->StopAnimation();
}

SetColorMode()

void EdbEDAMainTab::SetColorMode

(

)

                                {
    TGButton *btn = (TGButton *) gTQSender;
    int mode = btn->WidgetId();
    if(mode== kCOLOR_BY_PH){
        eGRBColorPH->SetState(kButtonDown);
        eGRBColorPL->SetState(kButtonUp);
        eGRBColorBK->SetState(kButtonUp);
    }else if(mode== kCOLOR_BY_PLATE){
        eGRBColorPH->SetState(kButtonUp);
        eGRBColorPL->SetState(kButtonDown);
        eGRBColorBK->SetState(kButtonUp);
    }else if(mode==kBLACKWHITE) {
        eGRBColorPH->SetState(kButtonUp);
        eGRBColorPL->SetState(kButtonUp);
        eGRBColorBK->SetState(kButtonDown);
    }
    gEDA->SetColorMode(mode);
}

SetDrawAreas()

void EdbEDAMainTab::SetDrawAreas

(

)

                                 {
    if(eGCBDrawArea->IsOn()) gEDA->SetDrawAreaSet(kTRUE);
    else gEDA->SetDrawAreaSet(kFALSE);
    //gEDA->Redraw();
    gEDA->Redraw();
}

SetDrawCheckBox()

void EdbEDAMainTab::SetDrawCheckBox

(

)

                                   {
    for(int i=0;i<gEDA->NTrackSets();i++){
        TGCheckButton *cb = (TGCheckButton *) eDrawChecks->At(i);
        EdbEDATrackSet *set = gEDA->GetTrackSet(i);
        if(cb==NULL) continue;
        //cb->SetState((EButtonState) set->GetDraw());

        cb->SetState(set->GetDraw()&&set->NBase()?kButtonDown:kButtonUp);

        //if(set->NBase()>0){
        //  cb->SetEnabled(kTRUE);
        //  cb->SetState(set->GetDraw()?kButtonDown:kButtonUp);
        //}
        //else cb->SetEnabled(kFALSE);
    }
}

SetDrawText()

void EdbEDAMainTab::SetDrawText

(

)

                                {
    if(eGCBTrackID->IsOn()) gEDA->SetDrawTrackID(kTRUE);
    else gEDA->SetDrawTrackID(kFALSE);

    if(eGCBTrackAngle->IsOn()) gEDA->SetDrawTrackAngle(kTRUE);
    else gEDA->SetDrawTrackAngle(kFALSE);

    gEDA->Redraw();
}

SetDrawTrackSets()

void EdbEDAMainTab::SetDrawTrackSets

(

Bool_t

on

)

                                              {
    // Control Draw option for each Track sets.

    TGButton *btn = (TGButton *) gTQSender;
    int id = btn->WidgetId();  // id is ordinal of TrackSets. TS=0, SB=1,,,,

    TGCheckButton *cb = (TGCheckButton *) eDrawChecks->At(id);
    EdbEDATrackSet *set = gEDA->GetTrackSet(id);
    if(cb==NULL||set==NULL) return;

    if(set->NBase()) set->SetDraw(cb->GetState()?kTRUE:kFALSE);

    if(set->NBase()==0) {
        gEve->GetBrowser()->GetTabBottom()->SetTab(0); // set TrackSetTab in front.
    }

    gEDA->GetTrackSetTab()->Select(id);
    gEDA->GetTrackSetTab()->Selected(set->GetName());

/*
    for(int i=0;i<gEDA->NTrackSets();i++){
        TGCheckButton *cb = (TGCheckButton *) eDrawChecks->At(i);
        EdbEDATrackSet *set = gEDA->GetTrackSet(i);
        if(cb==NULL) continue;
        set->SetDraw(cb->GetState()?kTRUE:kFALSE);
    }
*/
    gEDA->Redraw();
}

SetExtention()

void EdbEDAMainTab::SetExtention

(

)

                                {
    int extention=(int) eGCBExtention->IsOn();
    if(extention){
        gEDA->GetExtentionSet()->Enable();
        gEDA->GetExtentionSet()->Draw(kTRUE);
    } else {
        gEDA->GetExtentionSet()->Disable();
        gEDA->GetExtentionSet()->UnDraw(kTRUE);
    }
    printf("extention %s\n", eGCBExtention->IsOn()? "On": "Off");
}

SetExtentionZNumber()

void EdbEDAMainTab::SetExtentionZNumber

(

)

                                       {
        double z = eGNEExtentionZ ->GetNumber();
        eGSliderExtentionZ->SetPosition((int) z);
        gEDA->GetExtentionSet()->SetZ(z);
        gEDA->GetExtentionSet()->Draw(kTRUE);
    }

SetExtentionZSlider()

void EdbEDAMainTab::SetExtentionZSlider

(

)

                                       {
    eGNEExtentionZ->SetNumber(eGSliderExtentionZ->GetPosition());
}

SetOutputFileModeButton()

void EdbEDAMainTab::SetOutputFileModeButton

(

)

                                           {
    gEDA->eOutputFileMode =
        InputNumberInteger(
            "Feeback output mode : 0 = with comment and true-track-id. 1: without.",
            gEDA->eOutputFileMode);
}

SetPickSegment()

void EdbEDAMainTab::SetPickSegment

(

)

                                  {
    printf("selection mode : Segment\n");
    gEve->GetSelection()->SetPickToSelect(TEveSelection::kPS_Element);
    eGRBSelSeg->SetState((EButtonState)1);
    eGRBSelTrack->SetState((EButtonState)0);
}

SetPickTrack()

void EdbEDAMainTab::SetPickTrack

(

)

                                 {
    gEve->GetSelection()->SetPickToSelect(TEveSelection::kPS_Compound);
    eGRBSelSeg->SetState((EButtonState)0);
    eGRBSelTrack->SetState((EButtonState)1);
}

SetProjection()

void EdbEDAMainTab::SetProjection

(

)

                                 {
    // Set Camera Projection
    TGButton *btn = (TGButton *) gTQSender;
    int id = btn->WidgetId();

    gEDA->SetCamera(id);
}

WriteFeedback()

void EdbEDAMainTab::WriteFeedback

(

)

{gEDA->WriteFeedbackFile();}

WriteFilteredText()

void EdbEDAMainTab::WriteFilteredText

(

)

                                     {
    gEDA->WriteFilteredText();
}

WriteListFile()

const char * EdbEDAMainTab::WriteListFile

(

const char *

filename = NULL

)

                                                             {
    filename = eTrackSet->WriteListFile(filename);

    EdbEDATrackSet *setBT = gEDA->GetTrackSet("BT");

    if (setBT->N()){
         gEDA->GetTrackSet("BT")->WriteListFile(filename, kTRUE);
    }

    return filename;

}

WriteMxxFile()

void EdbEDAMainTab::WriteMxxFile

(

)

                                {
    TObjArray *tracks = gEDA->GetCurrentTracks();
    WriteTracksMxx(tracks);
}

Member Data Documentation

eDrawChecks

TObjArray* EdbEDAMainTab::eDrawChecks

eGCBAngleCut

TGCheckButton* EdbEDAMainTab::eGCBAngleCut

eGCBAnimation

TGCheckButton* EdbEDAMainTab::eGCBAnimation

eGCBDrawArea

TGCheckButton* EdbEDAMainTab::eGCBDrawArea

eGCBExtention

TGCheckButton* EdbEDAMainTab::eGCBExtention

eGCBExtention_res

TGCheckButton* EdbEDAMainTab::eGCBExtention_res

eGCBIpCut

TGCheckButton* EdbEDAMainTab::eGCBIpCut

eGCBNeighbor

TGCheckButton* EdbEDAMainTab::eGCBNeighbor

eGCBTrackAngle

TGCheckButton* EdbEDAMainTab::eGCBTrackAngle

private

eGCBTrackID

TGCheckButton* EdbEDAMainTab::eGCBTrackID

private

eGClearPrevious

TGCheckButton* EdbEDAMainTab::eGClearPrevious

eGNEAX

TGNumberEntryField* EdbEDAMainTab::eGNEAX

eGNEAY

TGNumberEntryField* EdbEDAMainTab::eGNEAY

eGNEExtentionZ

TGNumberEntryField* EdbEDAMainTab::eGNEExtentionZ

eGNEMaxPlate

TGNumberEntry* EdbEDAMainTab::eGNEMaxPlate

eGNENeighborDzDown

TGNumberEntryField* EdbEDAMainTab::eGNENeighborDzDown

eGNENeighborDzUp

TGNumberEntryField* EdbEDAMainTab::eGNENeighborDzUp

eGNENseg

TGNumberEntry* EdbEDAMainTab::eGNENseg

eGNEPHDTRMS

TGNumberEntryField* EdbEDAMainTab::eGNEPHDTRMS

eGNESearchBTIPL

TGNumberEntry* EdbEDAMainTab::eGNESearchBTIPL

eGNESearchSegmentIPL

TGNumberEntryField* EdbEDAMainTab::eGNESearchSegmentIPL

eGNESearchSegmentISeg

TGNumberEntryField* EdbEDAMainTab::eGNESearchSegmentISeg

eGNESearchTrack

TGNumberEntryField* EdbEDAMainTab::eGNESearchTrack

eGNETolDT

TGNumberEntry* EdbEDAMainTab::eGNETolDT

eGNETolDX

TGNumberEntry* EdbEDAMainTab::eGNETolDX

eGNEWCut

TGNumberEntryField* EdbEDAMainTab::eGNEWCut

eGRBColorBK

TGRadioButton* EdbEDAMainTab::eGRBColorBK

eGRBColorPH

TGRadioButton* EdbEDAMainTab::eGRBColorPH

eGRBColorPL

TGRadioButton* EdbEDAMainTab::eGRBColorPL

eGRBSelSeg

TGRadioButton* EdbEDAMainTab::eGRBSelSeg

private

eGRBSelTrack

TGRadioButton* EdbEDAMainTab::eGRBSelTrack

private

eGSideOut

TGCheckButton* EdbEDAMainTab::eGSideOut

eGSideOutPlate

TGNumberEntry* EdbEDAMainTab::eGSideOutPlate

eGSliderExtentionZ

TGHSlider* EdbEDAMainTab::eGSliderExtentionZ

eIDWindow

TGMainFrame* EdbEDAMainTab::eIDWindow

eTrackSet

EdbEDATrackSet* EdbEDAMainTab::eTrackSet

fTextButton_scanback

TGCheckButton* EdbEDAMainTab::fTextButton_scanback

---

The documentation for this class was generated from the following files:

• src/libEDA/EdbEDAMainTab.h
• src/libEDA/EdbEDAMainTab.C
