EdbDisplay Class Reference

FEDRA Event Display. More...

#include <EdbDisplay.h>

Inheritance diagram for EdbDisplay:

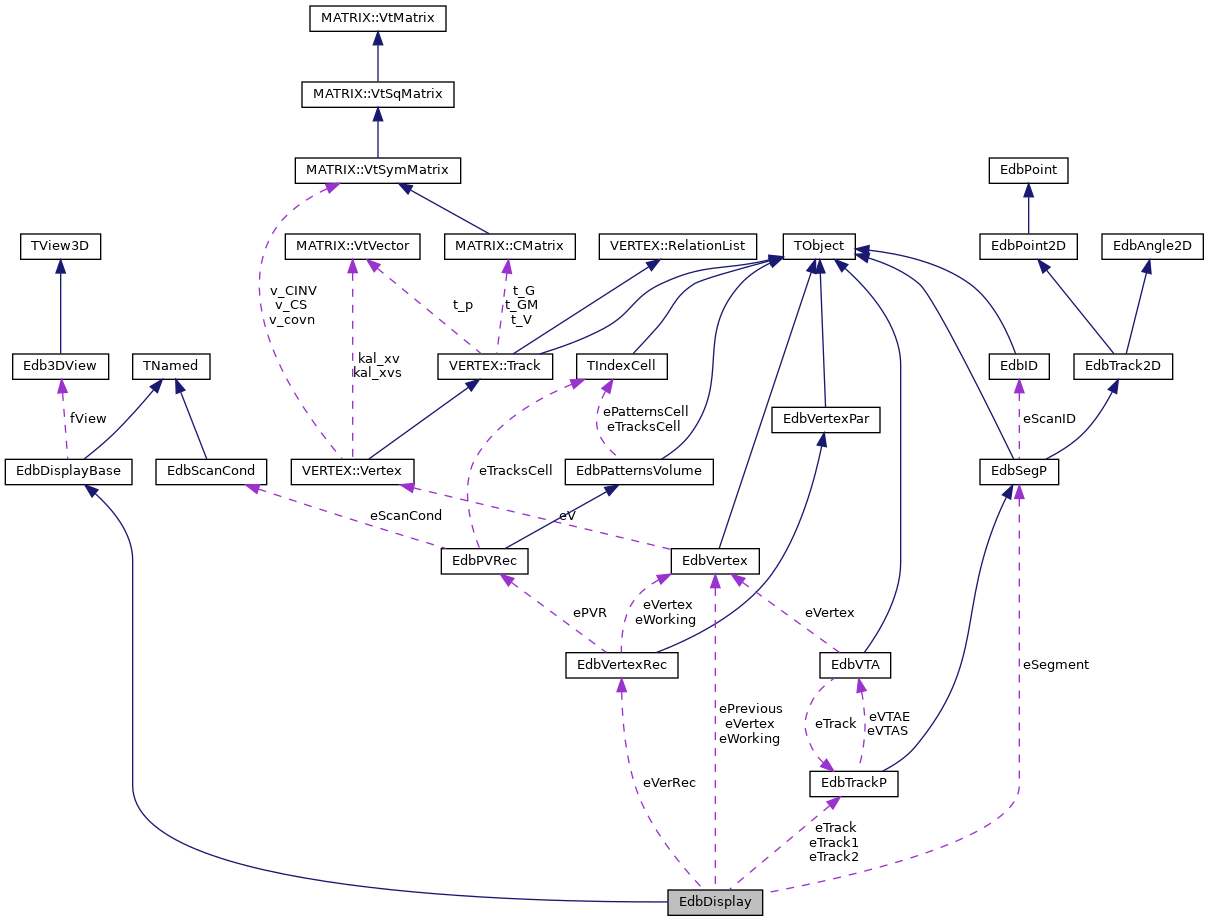

Collaboration diagram for EdbDisplay:

Public Member Functions
void	AcceptModifiedParams ()
void	AcceptModifiedTrackParams ()
void	AcceptModifiedVTX ()
void	CancelDialogModifiedParams ()
void	CancelDialogModifiedTrackParams ()
void	CancelModifiedVTX ()
void	ClearSegmentEnv ()
void	CloseDialogModifiedParams ()
void	CloseDialogModifiedTrackParams ()
void	CloseDialogModifiedVTX ()
void	Delete ()
void	DeleteModifiedVTX ()
void	DialogModifiedVTX ()
void	DialogNeighborParameters ()
void	DialogTrackParameters ()
void	DrawAllObjects ()
void	DrawRef (float start[3], float end[3])
void	DrawSegmentExtrapolationLine (const EdbSegP &s, float zmin, float zmax)
void	DrawVertexEnvironment ()
void	DrawVTXTracks (char *type, EdbVertex *v=0)
	EdbDisplay ()
	EdbDisplay (const char *title, EdbLayer &la, TCanvas *Canvas=0)
	EdbDisplay (const char *title, Float_t x0, Float_t x1, Float_t y0, Float_t y1, Float_t z0, Float_t z1, TCanvas *Canvas=0)
void	GuessRange (float margZmin=3000, float margZmax=1000, float margR=300)
void	Refresh ()
void	RemoveTrackFromTable (int ivt=0)
EdbSegG *	SegLine (const EdbSegP *seg)
void	SelectVertexTracks (TObjArray *vtx)
void	Set0 ()
void	SetArrSegG (TObjArray *arrg)
void	SetArrSegP (TObjArray *arr)
void	SetArrTr (TObjArray *arr)
void	SetArrV (TObjArray *arrv)
void	SetDrawTracks (int opt)
void	SetDrawVertex (int opt)
void	SetVerRec (EdbVertexRec *evr)
void	TrackDraw (EdbTrackP *tr, Color_t kColor=kWhite)
void	UndoModifiedVTX ()
EdbVertexRec *	VerRec () const
void	VertexDraw (EdbVertex *v)
	~EdbDisplay ()
Public Member Functions inherited from EdbDisplayBase
virtual void	Clear ()
virtual void	ClearNewVTX ()
virtual void	ClearPreVTX ()
virtual void	CreateCanvasVTX ()
virtual void	DisplayButtons ()
virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)
virtual void	Draw (Option_t *option="")
virtual void	DrawAcc ()
virtual void	DrawAllViews ()
virtual void	DrawCan ()
virtual void	DrawDetector ()
virtual void	DrawEnv ()
virtual void	DrawNewBut (char *text)
virtual void	DrawNewVTX (char *text)
virtual void	DrawOldBut (char *text)
virtual void	DrawOldVTX (char *text)
virtual void	DrawPreBut (char *text)
virtual void	DrawPreVTX (char *text)
virtual void	DrawTitle (Option_t *option="")
virtual void	DrawUnd ()
virtual void	DrawView (Float_t theta, Float_t phi, Float_t psi=0)
virtual void	DrawViewGL ()
virtual void	DrawViewX3D ()
	EdbDisplayBase ()
	EdbDisplayBase (const char *title, Float_t x0, Float_t x1, Float_t y0, Float_t y1, Float_t z0, Float_t z1, TCanvas *Canvas=0)
virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)
Bool_t	GetDrawDet () const
virtual char *	GetObjectInfo (int px, int py) const
virtual void	Refresh ()
virtual void	Set0 ()
virtual void	SetColorBG (int color=1)
virtual void	SetDetector (TGeoVolume *det)
virtual void	SetDrawDet (Bool_t fflag)
virtual void	SetLineWidth (int width=1)
virtual void	SetPickMode ()
virtual void	SetRange (Float_t x0, Float_t x1, Float_t y0, Float_t y1, Float_t z0, Float_t z1)
virtual void	SetRotate ()
virtual void	SetStyle (int Style=0)
virtual void	SetView (Float_t theta, Float_t phi, Float_t psi=0)
virtual void	SetZoomMode ()
virtual void	SwDrawDet ()
virtual void	UnZoom ()
	~EdbDisplayBase ()

Static Public Member Functions
static EdbDisplay *	EdbDisplayExist (const char *title)

Public Attributes
TObjArray *	eArrSegG
	additional array of segments for the presentation purpose only More...
TObjArray *	eArrSegP
	array of segments to be drawn More...
TObjArray *	eArrSegPSave
	saved array of segments to be drawn More...
TObjArray *	eArrTr
	array of tracks to be drawn More...
TObjArray *	eArrTrSave
	saved array of tracks to be drawn More...
TObjArray *	eArrV
	array of vertices to be drawn More...
TObjArray *	eArrVSave
	saved array of vertices to be drawn More...
TList	eCreatedTracks
	list of tracks, created during vertex operations More...
Double_t	eDpat
	+/- patterns for neighborhood More...
Int_t	eFromPlate
	plates range (for colors normalization) More...
Double_t	eImpMax
	Maximal impact for neighborhood. More...
Int_t	eIndVert
	Index of selected vertex in ArrV. More...
Int_t	eIndVertSave
	Index of selected vertex in ArrV (seved) More...
Double_t	eM
	track mass (creation from segment, propagation) More...
Double_t	eP
	track momentum (creation from segment, propagation) More...
EdbVertex *	ePrevious
	saved previous vertex modifications More...
Double_t	eRadMax
	Maximal Radius for neighborhood. More...
EdbSegP *	eSegment
	working segment (for segment neighborhood) More...
TPolyMarker3D *	eSegPM
	green mark for segment selected as working More...
Double_t	eSegWmin
	Minimal segment W for neighbouring selection. More...
Double_t	eTImpMax
	Maximal impact for interactive add track. More...
Int_t	eToPlate
Double_t	eTProbMin
	Minimal probability for interactive add track. More...
EdbTrackP *	eTrack
	working intermediate track (track creation) More...
EdbTrackP *	eTrack1
	working intermediate track (track splitting) More...
EdbTrackP *	eTrack2
	working intermediate track (track splitting) More...
EdbVertexRec *	eVerRec
EdbVertex *	eVertex
	current selected vertex More...
Bool_t	eWait_Answer
	set TRUE when answer received More...
EdbVertex *	eWorking
	working vertex More...
Public Attributes inherited from EdbDisplayBase
TCanvas *	fCanvas
	Pointer to the display canvas. More...
TCanvas *	fCanvasTRK
	Pointer to the vertex canvas. More...
TCanvas *	fCanvasVTX
	Pointer to the vertex canvas. More...
TPad *	fPad
	Pointer to the event display main pad. More...
TPaveText *	fVTXTRKInfo
	Vertex - tracks information. More...

Private Attributes
TArrayI *	eColors
Int_t	eDrawTracks
	tracks drawing option More...
Int_t	eDrawVertex
	vertex drawing option More...
TArrayF *	eDZs
TGNumberEntry *	fNumericEntries [3]

Additional Inherited Members
Protected Attributes inherited from EdbDisplayBase
TButton *	fAccButton
	Button to accept modified vertex. More...
TButton *	fAllButton
	Button to draw all objects. More...
TArc *	fArcButton
	Gren/Red button to show Pick/Zoom mode. More...
TPad *	fButtons
	Pointer to the buttons pad. More...
TButton *	fCanButton
	Button to cancel modified vertex. More...
char	fCanvasName [128]
	Name of main canvas. More...
Int_t	fColorBG
	color for the display BG More...
TGeoVolume *	fDetector
	detector geometry More...
Bool_t	fDrawAllViews
	Flag True if AllViews selected. More...
Bool_t	fDrawDet
	True if drawing detector is on. More...
TButton *	fEnvButton
	Button to draw vertex environment. More...
TText *	fHdrVTX
	Vertex data header. More...
Width_t	fLineWidth
	Line width for tracks and segments. More...
TGMainFrame *	fMain
	Dialog frame. More...
TButton *	fNewBut
	Modified Vertex display button. More...
TText *	fNewVTX
	Modified Vertex data. More...
TButton *	fOldBut
	Old Vertex display button. More...
TText *	fOldVTX
	Old Vertex data. More...
Float_t	fPhi
	Viewing angle phi. More...
TButton *	fPickButton
	Button to activate Pick mode. More...
TButton *	fPreBut
	Previous Vertex display button. More...
TText *	fPreVTX
	Previous Vertex data. More...
Float_t	fPsi
	Viewving angle psi (rotation on display) More...
TButton *	fRemBut [50]
	track removing buttons More...
Int_t	fStyle
	Display style (line width, sizes etc) More...
Float_t	fTheta
	Viewing angle theta. More...
char	fTitle [128]
	EdbDisplay Object Name. More...
TPad *	fTrigPad
	Pointer to the trigger pad. More...
TButton *	fUndButton
	Button to undo vertex modofication. More...
TButton *	fUnZoomButton
	Button to Undo previous Zoom. More...
Edb3DView *	fView
	Main View object. More...
TPaveText *	fVTXTracks
	Vertex tracks information. More...
Float_t	fVx0
Float_t	fVx1
Float_t	fVy0
Float_t	fVy1
Float_t	fVz0
Float_t	fVz1
TButton *	fZoomButton
	Button to activate Zoom mode. More...
Int_t	fZoomMode
	=1 if in zoom mode More...
Int_t	fZooms
	Number of zooms. More...
Double_t	fZoomX0 [kMAXZOOMS]
	Low x range of zoom number i. More...
Double_t	fZoomX1 [kMAXZOOMS]
	High x range of zoom number i. More...
Double_t	fZoomY0 [kMAXZOOMS]
	Low y range of zoom number i. More...
Double_t	fZoomY1 [kMAXZOOMS]
	High y range of zoom number i. More...

Detailed Description

FEDRA Event Display.

Constructor & Destructor Documentation

EdbDisplay() [1/3]

EdbDisplay::EdbDisplay ( )

inline

: EdbDisplayBase() {Set0();}

~EdbDisplay()

EdbDisplay::~EdbDisplay

(

)

{
  DeleteModifiedVTX();

  if (gROOT->GetListOfSpecials()->FindObject(this))
    gROOT->GetListOfSpecials()->Remove(this);

  SafeDelete(fCanvasVTX);
  SafeDelete(fCanvasTRK);
  SafeDelete(eWorking);
  SafeDelete(ePrevious);

  if (eArrSegPSave) SafeDelete(eArrSegP);
  if (eArrVSave)    SafeDelete(eArrV);
  if (eArrTrSave)   SafeDelete(eArrTr);

  //SafeDelete(eArrSegG);
}

EdbDisplay() [2/3]

EdbDisplay::EdbDisplay ( const char *  title, Float_t  x0, Float_t  x1, Float_t  y0, Float_t  y1, Float_t  z0, Float_t  z1, TCanvas *  Canvas = 0  )

inline

                              :
    EdbDisplayBase(title, x0, x1, y0, y1, z0, z1, Canvas) {Set0();}

EdbDisplay() [3/3]

EdbDisplay::EdbDisplay ( const char *  title, EdbLayer &  la, TCanvas *  Canvas = 0  )

inline

                                                                     :
      EdbDisplayBase(title, la.Xmin(), la.Xmax(), la.Ymin(), la.Ymax(),
             la.Zmin(), la.Zmax(), Canvas)
      {Set0();}

Member Function Documentation

AcceptModifiedParams()

void EdbDisplay::AcceptModifiedParams

(

)

{
    eWait_Answer = false;
    if(fNumericEntries[0]) eRadMax = fNumericEntries[0]->GetIntNumber();
    if(fNumericEntries[1]) eDpat   = fNumericEntries[1]->GetIntNumber();
    if(fNumericEntries[2]) eImpMax = fNumericEntries[2]->GetIntNumber();
    if(fNumericEntries[3]) eSegWmin= fNumericEntries[3]->GetIntNumber();

    for (Int_t i = 0; i < 4; i++) SafeDelete(fNumericEntries[i]);

    fMain->SendCloseMessage();
    fMain = 0;
}

AcceptModifiedTrackParams()

void EdbDisplay::AcceptModifiedTrackParams

(

)

{
    eWait_Answer = false;
    if(fNumericEntries[0]) eP = fNumericEntries[0]->GetNumber();
    if(fNumericEntries[1]) eM = fNumericEntries[1]->GetNumber();
    if(fNumericEntries[2]) eTImpMax  = fNumericEntries[2]->GetNumber();
    if(fNumericEntries[3]) eTProbMin = fNumericEntries[3]->GetNumber();
    for (Int_t i = 0; i < 4; i++) SafeDelete(fNumericEntries[i]);
    fMain->SendCloseMessage();
    fMain = 0;
}

AcceptModifiedVTX()

void EdbDisplay::AcceptModifiedVTX

(

)

{
    EdbVertex *eVe = 0;
    if (eArrVSave || eArrTrSave || eArrSegPSave) DrawAllObjects();
    if (ePrevious && (ePrevious != eVertex) && (ePrevious != eWorking))
    {
    delete ePrevious;
    ePrevious = 0;
    }
    if (eWorking && eVertex)
    {
    //if (!eVerRec) eVerRec = ((EdbVertexRec*)(gROOT->GetListOfSpecials()->FindObject("EdbVertexRec")));
    if (eVerRec) if (eVerRec->IsA() != EdbVertexRec::Class()) eVerRec = 0;
    if (!eVerRec) {printf("Error: EdbDisplay:AcceptModifiedVTX: EdbVertexRec not defined, use SetVerRec(...)\n"); return;}
        EdbVertex *eW = eWorking;
    int ind = eVertex->ID();
    if (ind < 0)
    {
        if (eVerRec->eVTX)
        {
        ind = eVerRec->eVTX->GetEntries();
        }
        else
        {
            eVerRec->eVTX = new TObjArray(10);
            ind = 0;
        }
    }
    eW->SetID(ind);
    eW->SetQuality(eW->V()->prob()/
               (eW->V()->vtx_cov_x()+eW->V()->vtx_cov_y()));
    if (eVerRec)
    {
        int ntr = eVertex->N();
//      printf("ind %d ntr %d\n", ind, ntr);
//      fflush(stdout);
        for(int i=0; i<ntr; i++)
        {
//      printf("    %d\n", i);
//      fflush(stdout);
        (eVerRec->eVTA).Remove(eVertex->GetVTa(i));
        }
    }
    int indd = -1;
//  if (!eArrV) eArrV = new TObjArray(10);
    if (eArrV) indd = eArrV->IndexOf(eVertex);
    if (indd >= 0)
    {
//      eArrV->RemoveAt(indd);
        eArrV->AddAt(eW, indd);
    }
    eVe = eVertex;
    EdbTrackP *tr = 0;

    TObjArray *etr = 0;
    if (eVerRec) etr = eVerRec->eEdbTracks;
    int trind = 0;
    if (etr) trind = etr->GetEntries();
    for (int i = 0; i < eCreatedTracks.GetSize(); i++)
    {
        tr = (EdbTrackP *)(eCreatedTracks.At(i));
        if (tr)
        {
//          printf("i %d id %d\n", i, tr->ID());
//          fflush(stdout);
//      if (tr->VTAS() || tr->VTAE())
//      {
            tr->SetID(trind++);
            if (etr) etr->Add(tr);
            if (eArrTr) eArrTr->Add(tr);
//          printf("     id %d\n", tr->ID());
//          fflush(stdout);
//      }
//      else delete tr;
        }
    }
    eCreatedTracks.Clear();

    delete eVertex; //?????????
    eVertex = 0;

    eW->ResetTracks();

    int ntr = eW->N();
    int ifl = 0;
    for(int i=0; i<ntr; i++)
    {
        tr = eW->GetTrack(i);
        if (eTrack)
        {
          if (tr == eTrack)
          {
            TObjArray *etr = 0;
            if (eVerRec) etr = eVerRec->eEdbTracks;
            int trind = 0;
            if (etr) trind = etr->GetEntries();
            eTrack->SetID(trind);
            if (etr) etr->Add(eTrack);
            eTrack->SetSegmentsTrack();
            eTrack = 0;
          }
        }
        if (eW->Zpos(i)) ifl = ifl | 1;
        else         ifl = ifl | 2;
        if (tr && eArrTr)
        {
            indd = eArrTr->IndexOf(tr);
            if (indd < 0)
            {
            eArrTr->Add(tr);
            }
        }
    }
    ifl = 4 - ifl;
    if (ifl == 3) ifl = 0;
    if (eW->Nv()) ifl += 3;
    eW->SetFlag(ifl);
    if (eVerRec)
    {
//      eVerRec->eVTX->RemoveAt(ind);
        if (eVerRec->eVTX) eVerRec->eVTX->AddAt(eW, ind);
        for(int i=0; i<ntr; i++)
        {
        eVerRec->AddVTA(eW->GetVTa(i));
        }
    }
    }
    if (eVertex && eVertex->ID() < 0 && !eWorking)
    {
    int ind = 0;
    if (eVerRec->eVTX)
        {
        ind = eVerRec->eVTX->GetEntries();
        }
    else
        {
            eVerRec->eVTX = new TObjArray(10);
            ind = 0;
        }
    eVertex->SetID(ind);
//  if (!eArrV) eArrV = new TObjArray(10);
    if (eArrV) eArrV->Add(eVertex);
    EdbTrackP *tr = 0;
    TObjArray *etr = 0;
    if (eVerRec) etr = eVerRec->eEdbTracks;
    int trind = 0;
    if (etr) trind = etr->GetEntries();
    for (int i = 0; i < eCreatedTracks.GetSize(); i++)
    {
        tr = (EdbTrackP *)(eCreatedTracks.At(i));
        if (tr)
        {
//      if (tr->VTAS() || tr->VTAE())
//      {
            tr->SetID(trind++);
            if (etr) etr->Add(tr);
            if (eArrTr) eArrTr->Add(tr);
//      }
//      else delete tr;
        }
    }
    eCreatedTracks.Clear();

    eVertex->ResetTracks();
    int ntr = eVertex->N();
    int ifl = 0;
    int indd = 0;
    for(int i=0; i<ntr; i++)
    {
        tr = eVertex->GetTrack(i);
        if (eTrack)
        {
          if (tr == eTrack)
          {
            TObjArray *etr = 0;
            if (eVerRec) etr = eVerRec->eEdbTracks;
            int trind = 0;
            if (etr) trind = etr->GetEntries();
            eTrack->SetID(trind);
            if (etr) etr->Add(eTrack);
            eTrack->SetSegmentsTrack();
            eTrack = 0;
          }
        }
        if (eVertex->Zpos(i)) ifl = ifl | 1;
        else              ifl = ifl | 2;
        if (tr && eArrTr)
        {
            indd = eArrTr->IndexOf(tr);
            if (indd < 0)
            {
            eArrTr->Add(tr);
            }
        }
    }
    ifl = 4 - ifl;
    if (ifl == 3) ifl = 0;
    if (eVertex->Nv()) ifl += 3;
    eVertex->SetFlag(ifl);
    if (eVerRec)
    {
//      eVerRec->eVTX->RemoveAt(ind);
        if (!(eVerRec->eVTX)) eVerRec->eVTX = new TObjArray(10);
        eVerRec->eVTX->Add(eVertex);
        for(int i=0; i<ntr; i++)
        {
        eVerRec->AddVTA(eVertex->GetVTa(i));
        }
    }
    }
    eWorking = 0;
    eVertex = 0;
    TList *li = fTrigPad->GetListOfPrimitives();
    if (li)
    {
    li->Remove(fUndButton);
    li->Remove(fAccButton);
    li->Remove(fCanButton);
    li->Remove(fEnvButton);
    }
    fTrigPad->cd();
    fTrigPad->Update();
    fTrigPad->Draw();

    fPad->cd();
    if (eWait_Answer) CloseDialogModifiedVTX();
    if (fCanvasVTX) fCanvasVTX->Close();
    fCanvasVTX = 0;
    Draw();
    //if (eVe) delete eVe;
    eIndVert = -1;
}

CancelDialogModifiedParams()

void EdbDisplay::CancelDialogModifiedParams

(

)

{
    eWait_Answer = false;
    for (Int_t i = 0; i < 3; i++) SafeDelete(fNumericEntries[i]);
    fMain->SendCloseMessage();
    fMain = 0;
}

CancelDialogModifiedTrackParams()

void EdbDisplay::CancelDialogModifiedTrackParams

(

)

{
    eWait_Answer = false;
    for (Int_t i = 0; i < 4; i++) SafeDelete(fNumericEntries[i]);
    fMain->SendCloseMessage();
    fMain = 0;
}

CancelModifiedVTX()

void EdbDisplay::CancelModifiedVTX

(

)

{
    if (eArrVSave || eArrTrSave || eArrSegPSave) DrawAllObjects();
    if (eWorking)
    {
    delete eWorking;
    eWorking = 0;
    }
    if (ePrevious)
    {
    delete ePrevious;
    ePrevious = 0;
    }
    if (eVertex)
    {
    if (eVertex->ID() < 0)
    {
        if (eArrV)
        {
            eArrV->Remove(eVertex);
        eArrV->Compress();
        }
        delete eVertex;
        eVertex = 0;
    }
    else
    {
        (eVertex)->ResetTracks();
    }
    }
    TList *li = fTrigPad->GetListOfPrimitives();
    if (li)
    {
    li->Remove(fUndButton);
    li->Remove(fAccButton);
    li->Remove(fCanButton);
    li->Remove(fEnvButton);
    }

    EdbTrackP *tr = 0;

    for (int i = 0; i < eCreatedTracks.GetSize(); i++)
    {
    tr = (EdbTrackP *)eCreatedTracks.At(i);
    if (tr)
    {
        if (eArrTr) if (eArrTr->FindObject(tr))
        {
        eArrTr->Remove(tr);
        eArrTr->Compress();
        }
        if (eArrTrSave) if (eArrTrSave->FindObject(tr))
        {
        eArrTrSave->Remove(tr);
        eArrTrSave->Compress();
        }
        delete tr;
    }
    }
    eCreatedTracks.Clear();

    if (eArrV && (eIndVert >= 0) && eVertex)
    {
//      eArrV->RemoveAt(eIndVert);
        eArrV->AddAt(eVertex, eIndVert);
    }
    fTrigPad->cd();
    fTrigPad->Update();
    fTrigPad->Draw();
    fPad->cd();
    if (eWait_Answer) CloseDialogModifiedVTX();
    if (fCanvasVTX) fCanvasVTX->Close();
    fCanvasVTX = 0;
    eIndVert = -1;
    eVertex = 0;
    Draw();
}

ClearSegmentEnv()

void EdbDisplay::ClearSegmentEnv

(

)

{
    if (fPad->GetListOfPrimitives()->FindObject(eSegPM))
    {
        fPad->GetListOfPrimitives()->Remove(eSegPM);
    }
    delete eSegPM;
    eSegPM = 0;
    TList *li = fTrigPad->GetListOfPrimitives();
    if (eArrVSave || eArrSegPSave || eArrTrSave)
    {
        li->Remove(fAllButton);
        delete eArrV;
        eArrV = eArrVSave;
        eArrVSave = 0;
        if (eArrTrSave)
        {
        delete eArrTr;
        eArrTr = eArrTrSave;
        eArrTrSave = 0;
        }
        if (eArrSegPSave)
        {
        delete eArrSegP;
        eArrSegP = eArrSegPSave;
        eArrSegPSave = 0;
        }
        Draw();
    }
    else li->Remove(fEnvButton);
}

CloseDialogModifiedParams()

void EdbDisplay::CloseDialogModifiedParams

(

)

{
    eWait_Answer = false;
    fMain = 0;
}

CloseDialogModifiedTrackParams()

void EdbDisplay::CloseDialogModifiedTrackParams

(

)

{
    eWait_Answer = false;
    fMain = 0;
}

CloseDialogModifiedVTX()

void EdbDisplay::CloseDialogModifiedVTX

(

)

{
    eWait_Answer = false;
    fMain->SendCloseMessage();
    fMain = 0;
}

Delete()

void EdbDisplay::Delete

(

)

{
  DeleteModifiedVTX();

  if (gROOT->GetListOfSpecials()->FindObject(this))
    gROOT->GetListOfSpecials()->Remove(this);

  SafeDelete(fCanvasVTX);
  SafeDelete(fCanvasTRK);
  SafeDelete(eWorking);
  SafeDelete(ePrevious);

  if (eArrSegPSave) SafeDelete(eArrSegP);
  if (eArrVSave)    SafeDelete(eArrV);
  if (eArrTrSave)   SafeDelete(eArrTr);
}

DeleteModifiedVTX()

void EdbDisplay::DeleteModifiedVTX

(

)

{
    if (eWorking)
    {
    delete eWorking;
    eWorking = 0;
    }
    if (ePrevious)
    {
    delete ePrevious;
    ePrevious = 0;
    }
    if (eVertex)
    {
    if (eVertex->ID() < 0)
    {
        if (eArrV)
        {
            eArrV->Remove(eVertex);
        eArrV->Compress();
        }
        delete eVertex;
        eVertex = 0;
    }
    else
    {
        (eVertex)->ResetTracks();
    }
    }

    EdbTrackP *tr = 0;

    for (int i = 0; i < eCreatedTracks.GetSize(); i++)
    {
    tr = (EdbTrackP *)eCreatedTracks.At(i);
    if (tr)
    {
        if (eArrTr) if (eArrTr->FindObject(tr))
        {
        eArrTr->Remove(tr);
        eArrTr->Compress();
        }
        if (eArrTrSave) if (eArrTrSave->FindObject(tr))
        {
        eArrTrSave->Remove(tr);
        eArrTrSave->Compress();
        }
        delete tr;
    }
    }
    eCreatedTracks.Clear();

    if (eArrVSave || eArrTrSave || eArrSegPSave)
    {
    delete eArrV;
    eArrV = eArrVSave;
    eArrVSave = 0;
    delete eArrTr;
    eArrTr = eArrTrSave;
    eArrTrSave = 0;
    delete eArrSegP;
    eArrSegP = eArrSegPSave;
    eArrSegPSave = 0;
    eIndVert = eIndVertSave;
    }
    if (eArrV && (eIndVert >= 0) && eVertex)
    {
//      eArrV->RemoveAt(eIndVert);
        eArrV->AddAt(eVertex, eIndVert);
        eIndVert = -1;
    }
}

DialogModifiedVTX()

void EdbDisplay::DialogModifiedVTX

(

)

{
    eWait_Answer = true;
    fMain = new TGMainFrame(gClient->GetRoot(), 250, 40);
    TGMainFrame *fTra = fMain;
    TGHorizontalFrame *fFrame = new TGHorizontalFrame(fTra, 220, 30);
    char cmda[256];
    sprintf(cmda,
    "((EdbDisplay*)(gROOT->GetListOfSpecials()->FindObject(\"%s\")))->AcceptModifiedVTX()",fTitle);
    TGTextButton *abut = new TGTextButton(fFrame, "&Accept", cmda);
    fFrame->AddFrame(abut,
             new TGLayoutHints(kLHintsCenterY | kLHintsLeft,
             5,5,3,4));

    char cmdc[256];
    sprintf(cmdc,
    "((EdbDisplay*)(gROOT->GetListOfSpecials()->FindObject(\"%s\")))->CancelModifiedVTX()",fTitle);
    TGTextButton *cbut = new TGTextButton(fFrame, "&Cancel", cmdc);
    fFrame->AddFrame(cbut,
             new TGLayoutHints(kLHintsCenterY | kLHintsRight,
                 5, 5, 4, 4));
    fFrame->Resize(210, 30);

    fTra->AddFrame(fFrame,
           new TGLayoutHints(kLHintsCenterY | kLHintsCenterX,
           5, 5, 4, 4));

    fTra->MapSubwindows();
    fTra->Resize(220, fTra->GetDefaultHeight());
    fTra->SetWindowName("Modified Vertex Exist!");
    fTra->MapWindow();
}

DialogNeighborParameters()

void EdbDisplay::DialogNeighborParameters

(

)

{
    if (eRadMax == 0)
    {
    printf("No neighborhood in EdbPVGen object!\n");
    fflush(stdout);
    return;
    }

    eWait_Answer = true;

    fMain = new TGMainFrame(gClient->GetRoot(), 260, 340);
    TGMainFrame *fTra = fMain;

//    fTra->Connect("CloseWindow()", "EdbDisplay", this, "CloseDialogModifiedParams()");

   // use hierarchical cleaning
//    fTra->SetCleanup(kDeepCleanup);

    TGHorizontalFrame *fF[4] = {0,0,0,0};
    TGLabel *fLabel[4] = {0,0,0,0};
    Double_t parinit[4] = {eRadMax, eDpat,  eImpMax, eSegWmin};
    Double_t parmax[4] =  { 150000.,   50.,   10000., 1000. };
    Double_t parmin[4] =  {    0.,    0.,      0.,    0. };
    //if (eVerRec) if (eVerRec->ePVR) parmax[1] = ((eVerRec->ePVR)->Npatterns()-1);
    char *parlabel[4] = {"Maximal radius","+/- patterns", "Maximal impact", "Minimal seg W"};

    TGGC myGC = *(gClient->GetResourcePool()->GetFrameGC());
    TGFont *myfont = gClient->GetFont("-adobe-helvetica-bold-r-*-*-12-*-*-*-*-*-iso8859-1");
    if (myfont) myGC.SetFont(myfont->GetFontHandle());

    TGVerticalFrame *fF1 = new TGVerticalFrame(fTra, 240, 250);
    TGLayoutHints *fL1 = new TGLayoutHints(kLHintsTop | kLHintsLeft, 2, 2, 2, 2);
    fTra->AddFrame(fF1, fL1);
    TGLayoutHints *fL2 = new TGLayoutHints(kLHintsCenterY | kLHintsLeft, 2, 2, 2, 2);
    for (int i = 0; i < 4; i++) {
      fF[i] = new TGHorizontalFrame(fF1, 220, 35);
      fF1->AddFrame(fF[i], fL2);
      fNumericEntries[i] = new TGNumberEntry(fF[i], parinit[i], 12, i+1000,
                                 TGNumberFormat::kNESInteger,
                 TGNumberFormat::kNEANonNegative,
                 TGNumberFormat::kNELLimitMinMax,
                 parmin[i], parmax[i]);
      fF[i]->AddFrame(fNumericEntries[i], fL2);
      fLabel[i] = new TGLabel(fF[i], parlabel[i], myGC(), myfont->GetFontStruct());
      fF[i]->AddFrame(fLabel[i], fL2);
    }

    TGHorizontalFrame *fFrame = new TGHorizontalFrame(fTra, 220, 30);
    char cmda[256];
    sprintf(cmda,
    "((EdbDisplay*)((gROOT->GetListOfSpecials())->FindObject(\"%s\")))->AcceptModifiedParams()",fTitle);
    TGTextButton *abut = new TGTextButton(fFrame, "&Accept", cmda);
    fFrame->AddFrame(abut,
             new TGLayoutHints(kLHintsCenterY | kLHintsLeft,
             5,5,3,4));

    char cmdc[256];
    sprintf(cmdc,
    "((EdbDisplay*)((gROOT->GetListOfSpecials())->FindObject(\"%s\")))->CancelDialogModifiedParams()",fTitle);
    TGTextButton *cbut = new TGTextButton(fFrame, "&Cancel", cmdc);
    fFrame->AddFrame(cbut,
             new TGLayoutHints(kLHintsCenterY | kLHintsRight,
                 5, 5, 4, 4));
//    fFrame->Resize(220, 30);

    fTra->AddFrame(fFrame,
           new TGLayoutHints(kLHintsCenterY | kLHintsCenterX,
           5, 5, 4, 4));

    fTra->MapSubwindows();
    fTra->Resize(260, fTra->GetDefaultHeight());
    fTra->SetWindowName("Neighborhood Parameters");
    fTra->MapWindow();
    gClient->WaitFor(fTra);
}

DialogTrackParameters()

void EdbDisplay::DialogTrackParameters

(

)

{
    eWait_Answer = true;

    fMain = new TGMainFrame(gClient->GetRoot(), 280, 360);
    TGMainFrame *fTra = fMain;

//    fTra->Connect("CloseWindow()", "EdbDisplay", this, "CloseDialogModifiedParams()");

   // use hierarchical cleaning
//    fTra->SetCleanup(kDeepCleanup);

    TGHorizontalFrame *fF[4] = {0,0,0,0};
    TGLabel *fLabel[4] = {0,0,0,0};
    Double_t parinit[4] = {    eP,    eM, eTImpMax, eTProbMin};
    Double_t parmax[4] =  { 1000.,   10., 1000000.,        1.};
    Double_t parmin[4] =  {    0.,    0.,       0.,        0.};
    char *parlabel[4] = {"Momentum","Mass", "MaxImpact", "MinProb"};

    TGGC myGC = *(gClient->GetResourcePool()->GetFrameGC());
    TGFont *myfont = gClient->GetFont("-adobe-helvetica-bold-r-*-*-12-*-*-*-*-*-iso8859-1");
    if (myfont) myGC.SetFont(myfont->GetFontHandle());

    TGVerticalFrame *fF1 = new TGVerticalFrame(fTra, 260, 250);
    TGLayoutHints *fL1 = new TGLayoutHints(kLHintsTop | kLHintsLeft, 2, 2, 2, 2);
    fTra->AddFrame(fF1, fL1);
    TGLayoutHints *fL2 = new TGLayoutHints(kLHintsCenterY | kLHintsLeft, 2, 2, 2, 2);
    for (int i = 0; i < 4; i++) {
      fF[i] = new TGHorizontalFrame(fF1, 240, 35);
      fF1->AddFrame(fF[i], fL2);
      fNumericEntries[i] = new TGNumberEntry(fF[i], parinit[i], 12, i+2000,
                                 TGNumberFormat::kNESReal,
                 TGNumberFormat::kNEANonNegative,
                 TGNumberFormat::kNELLimitMinMax,
                 parmin[i], parmax[i]);
      fF[i]->AddFrame(fNumericEntries[i], fL2);
      fLabel[i] = new TGLabel(fF[i], parlabel[i], myGC(), myfont->GetFontStruct());
      fF[i]->AddFrame(fLabel[i], fL2);
    }

    TGHorizontalFrame *fFrame = new TGHorizontalFrame(fTra, 240, 30);
    char cmda[256];
    sprintf(cmda,
//    "((EdbDisplay*)(gROOT->GetListOfSpecials()->FindObject((TObject *)0x%08x)))->AcceptModifiedTrackParams()",this);
    "((EdbDisplay*)((gROOT->GetListOfSpecials())->FindObject(\"%s\")))->AcceptModifiedTrackParams()",fTitle);
    TGTextButton *abut = new TGTextButton(fFrame, "&Accept", cmda);
    fFrame->AddFrame(abut,
             new TGLayoutHints(kLHintsCenterY | kLHintsLeft,
             5,5,3,4));

    char cmdc[256];
    sprintf(cmdc,
    "((EdbDisplay*)((gROOT->GetListOfSpecials())->FindObject(\"%s\")))->CancelDialogModifiedTrackParams()",fTitle);
    TGTextButton *cbut = new TGTextButton(fFrame, "&Cancel", cmdc);
    fFrame->AddFrame(cbut,
             new TGLayoutHints(kLHintsCenterY | kLHintsRight,
                 5, 5, 4, 4));
//    fFrame->Resize(220, 30);

    fTra->AddFrame(fFrame,
           new TGLayoutHints(kLHintsCenterY | kLHintsCenterX,
           5, 5, 4, 4));

    fTra->MapSubwindows();
    fTra->Resize(280, fTra->GetDefaultHeight());
    fTra->SetWindowName("Track Parameters");
    fTra->MapWindow();
    gClient->WaitFor(fTra);
}

DrawAllObjects()

void EdbDisplay::DrawAllObjects

(

)

{
    fTrigPad->cd();
    fTrigPad->GetListOfPrimitives()->Remove(fAllButton);
    if (fStyle/2 == 1)
    fEnvButton->SetFillColor(33);
    else
    fEnvButton->SetFillColor(38);
    fTrigPad->GetListOfPrimitives()->Add(fEnvButton);
    fEnvButton->SetPad(0.05,0.47,0.95,0.56);
    fEnvButton->Draw();
    fTrigPad->Modified(kTRUE);
    fTrigPad->Update();
    fTrigPad->Draw();
    fPad->cd();

    if (eArrVSave || eArrTrSave || eArrSegPSave)
    {
    delete eArrV;
    eArrV = eArrVSave;
    eArrVSave = 0;
    eIndVert = eIndVertSave;
    delete eArrTr;
    eArrTr = eArrTrSave;
    eArrTrSave = 0;
    delete eArrSegP;
    eArrSegP = eArrSegPSave;
    eArrSegPSave = 0;
    }
    if (eArrV && eWorking && (eIndVert >= 0))
    {
//  eArrV->RemoveAt(eIndVert);
    eArrV->AddAt(eWorking, eIndVert);
    }
    Draw();
}

DrawRef()

void EdbDisplay::DrawRef	(	float	start[3],
		float	end[3]
	)

reference vector to indicate the direction (ie scanback track) can be drawn

{

  TPolyLine3D *line = new TPolyLine3D(2);
  line->SetPoint(0, start[0],start[1], start[2] );
  line->SetPoint(1,   end[0],  end[1],   end[2] );
  line->SetLineColor(kGreen);
  line->SetLineWidth(fLineWidth);
  line->SetBit(kCannotPick);
  line->Draw();

  TPolyMarker3D *mark = new TPolyMarker3D(1);
  mark->SetPoint(0, start[0],start[1], start[2] );
  mark->SetMarkerColor(kGreen);
  mark->SetMarkerStyle(kMultiply);
  mark->SetMarkerSize(1.2);
  mark->Draw();
}

DrawSegmentExtrapolationLine()

void EdbDisplay::DrawSegmentExtrapolationLine	(	const EdbSegP &	s,
		float	zmin,
		float	zmax
	)

{
   EdbSegP start(s);
   EdbSegP end(s);
   start.PropagateTo(zmin);
   start.PropagateTo(zmax);
   TPolyLine3D *trline = new TPolyLine3D(2);
   trline->SetPoint(0, start.X(),start.Y(),start.Z() );
   trline->SetPoint( 1,   end.X(),  end.Y(),  end.Z() );
   if (fStyle/2 == 1) trline->SetLineColor(kBlack);
   else               trline->SetLineColor(kWhite);
   trline->SetLineWidth(1);
   trline->SetBit(kCannotPick);
   trline->Draw();
   Log(3,"EdbDisplay::DrawSegmentExtrapolationLine", "(%f %f %f) -> (%f %f %f)", start.X(),start.Y(),start.Z(), end.X(),  end.Y(),  end.Z());
}

DrawVertexEnvironment()

void EdbDisplay::DrawVertexEnvironment

(

)

{
    if (eRadMax == 0)
    {
    printf("No neighborhood in EdbPVRec object!\n");
    fflush(stdout);
    return;
    }
    //if (!eVerRec) eVerRec = ((EdbVertexRec *)(gROOT->GetListOfSpecials()->FindObject("EdbVertexRec")));
    if (eVerRec) if((eVerRec->IsA()) != EdbVertexRec::Class()) eVerRec = 0;
    if (!eVerRec)
       {printf("Error: EdbDisplay:DrawVertexEnvironment: EdbVertexRec not defined, use SetVerRec(...)\n"); fflush(stdout); return;}
    if (!eVertex && !eSegment)
       {printf("Error: EdbDisplay:DrawVertexEnvironment: Working vertex (or segment) not defined\n"); fflush(stdout); return;}

    fTrigPad->cd();
    fTrigPad->GetListOfPrimitives()->Remove(fEnvButton);
    if (fStyle/2 == 1)
    fAllButton->SetFillColor(33);
    else
    fAllButton->SetFillColor(38);
    fTrigPad->GetListOfPrimitives()->Add(fAllButton);
    fAllButton->SetPad(0.05,0.47,0.95,0.56);
    fAllButton->Draw();
    fTrigPad->Modified(kTRUE);
    fTrigPad->Update();
    fTrigPad->Draw();
    fPad->cd();

    EdbVertex *eW = eVertex;
    EdbTrackP *tr = 0;
    if (eWorking) eW = eWorking;
    float Rmax = eRadMax, ImpMax = eImpMax;
    int Dpat = (int)eDpat;

    eArrTrSave  = eArrTr;
    eArrSegPSave  = eArrSegP;
    eArrVSave  = eArrV;
    eIndVertSave = eIndVert;
    eArrV = new TObjArray(20);
    eArrTr = new TObjArray(20);
    eArrSegP = new TObjArray(20);

    if (eW)
    {
    eVerRec->VertexNeighbor(eW, Rmax, Dpat, ImpMax);
    eArrV->Add(eW);
    int ntr = eW->N();
    for(int i=0; i<ntr; i++)
    {
        eArrTr->Add((tr = eW->GetTrack(i)));
    }
    int nntr = eW->Nn();
    EdbVTA *vta = 0;
    for(int i=0; i<nntr; i++)
    {
    if ((vta = eW->GetVTn(i)))
    {
        if (vta->Flag() == 0) //track
        {
        eArrTr->Add((tr = vta->GetTrack()));
        }
        else if (vta->Flag() == 1) //segment
        {
        eArrSegP->Add((EdbSegP *)(vta->GetTrack()));
        }
        else if (vta->Flag() == 3) //vertex
        {
        eArrV->Add((EdbVertex *)(vta->GetTrack()));
        }
    }
    }
    eIndVert = eArrV->IndexOf(eW);
    }
    else if (eSegment)
    {
    eIndVert = -1;
    eVerRec->SegmentNeighbor(eSegment, Rmax, Dpat, ImpMax, eSegWmin, eArrSegP, eArrTr, eArrV);
    if (eArrV->GetEntries()) eDrawVertex = 1;
    }
    Draw();
}

DrawVTXTracks()

void EdbDisplay::DrawVTXTracks	(	char *	type,
		EdbVertex *	v = 0
	)

{
  EdbVertex *vv = v;
  if (!vv)
  {
    if (!strcmp(type, "Original") && eVertex)
    {
    vv = eVertex;
    }
    else if (!strcmp(type, "Previous") && ePrevious)
    {
    vv = ePrevious;
    }
    else if (!strcmp(type, "Modified") && eWorking)
    {
    vv = eWorking;
    }
  }
  if (!vv) return;
  bool drawrem = true;
  if (vv == eVertex && eWorking) drawrem = false;
  if (vv == ePrevious) drawrem = false;

  fCanvasVTX->cd();

  if (fVTXTracks)
  {
    fVTXTracks->Clear();
  }
  else
  {
    fVTXTracks = new TPaveText(0.05, 0.05, 0.95, 0.72);
    fVTXTracks->ResetBit(kCanDelete);
  }
  char line[128];
  EdbTrackP *tr = 0;
  TText *t = 0;
  int ntr = vv->N();
  sprintf(line, "           Tracks parameters for %s vertex", type);
  t = fVTXTracks->AddText(line);
  t->SetTextColor(kBlue);
  t->SetTextSize(0.03);
  t->SetTextAlign(12);
  t->SetTextFont(102);
  strcpy(line, "    #   ID   Nseg   Mass       P       Chi2/ndf    Prob     Chi2Contrib     Impact");
  t = fVTXTracks->AddText(line);
  t->SetTextColor(kBlue);
  t->SetTextSize(0.03);
  t->SetTextAlign(12);
  t->SetTextFont(102);
  for (int i=0; i<ntr; i++)
  {
    tr = vv->GetTrack(i);
    sprintf(line,"%4d  %4d  %4d   %7.4f  %7.2f    %5.2f     %7.4f       %6.3f    %7.2f",
           i, tr->ID(), tr->N(), tr->M(), tr->P(),
              tr->Chi2()/tr->N(), tr->Prob(), vv->V()->track_chi2(i), vv->Impact(i));
    t = fVTXTracks->AddText(line);
    t->SetTextColor(kBlack);
    t->SetTextSize(0.03);
    t->SetTextAlign(12);
    t->SetTextFont(102);
  }
  t = fVTXTracks->AddText("");
  t->SetTextColor(kBlack);
  t->SetTextSize(0.03);
  t->SetTextAlign(12);
  t->SetTextFont(102);
  fVTXTracks->Draw();

  float dy = 0.67/(2+ntr+1);
  for (int i=0; i<50; i++)
  {
    if (!drawrem)
    {
    if (fRemBut[i])
    {
        fRemBut[i]->Delete();
        fRemBut[i] = 0;
    }
    continue;
    }
    if ( i < ntr )
    {
      if (!fRemBut[i])
      {
    char but[256], tit[32]="Rem";
    sprintf(but,
    "((EdbDisplay*)(gROOT->GetListOfSpecials()->FindObject(\"%s\")))->RemoveTrackFromTable(%d)",fTitle,i);
    fRemBut[i] = new TButton(tit, but, 0.88, 0.635-(i+2)*dy, 0.94, 0.675-(i+2)*dy);
    fRemBut[i]->SetToolTipText("Remove corresponding track");
    fRemBut[i]->ResetBit(kCanDelete);
    fRemBut[i]->SetFillColor(38);
    sprintf(tit,"RemTr%d",i);
    fRemBut[i]->SetName(tit);
    fRemBut[i]->Draw();
      }
      else
      {
        fRemBut[i]->SetPad(0.88,0.635-(i+2)*dy,0.94,0.675-(i+2)*dy);
    fRemBut[i]->Draw();
      }
    }
    else if (fRemBut[i])
    {
    fRemBut[i]->Delete();
    fRemBut[i] = 0;
    }
  }

  fPad->Modified(kTRUE);
  fPad->Update();
}

EdbDisplayExist()

EdbDisplay * EdbDisplay::EdbDisplayExist ( const char *  title )

static

{
  TSeqCollection *l = gROOT->GetListOfSpecials();
  if (!l) return 0;
  EdbDisplay *ds = (EdbDisplay*)(l->FindObject(title));
  return ds;
}

GuessRange()

void EdbDisplay::GuessRange	(	float	margZmin = 3000,
		float	margZmax = 1000,
		float	margR = 300
	)

guess minimum display range to fit all objects

{

  float xmin=0,xmax=1,ymin=0,ymax=1,zmin=0,zmax=1;

  if (eArrSegG) {
    EdbSegG *s=0;
    for(int i=0; i<eArrSegG->GetEntries(); i++) {
      s = (EdbSegG *)(eArrSegG->At(i));
      if(!s) continue;
      if(xmax-xmin<margR) {
        xmax=s->X()+margR;
        xmin=s->X()-margR;
        ymax=s->Y()+margR;
        ymin=s->Y()-margR;
        zmax=s->Z()+margZmax;
        zmin=s->Z()-margZmin;
      }
      if(xmax<s->X()+margR) xmax=s->X()+margR;
      if(xmin>s->X()-margR) xmin=s->X()-margR;
      if(ymax<s->Y()+margR) ymax=s->Y()+margR;
      if(ymin>s->Y()-margR) ymin=s->Y()-margR;
      if(zmax<s->Z()+margZmax) zmax=s->Z()+margZmax;
      if(zmin>s->Z()-margZmin) zmin=s->Z()-margZmin;
    }
  }

  if (eArrSegP) {
    EdbSegP *s=0;
    for(int i=0; i<eArrSegP->GetEntries(); i++) {
      s = (EdbSegP *)(eArrSegP->At(i));
      if(!s) continue;
      if(xmax-xmin<margR) {
        xmax=s->X()+margR;
        xmin=s->X()-margR;
        ymax=s->Y()+margR;
        ymin=s->Y()-margR;
        zmax=s->Z()+margZmax;
        zmin=s->Z()-margZmin;
      }
      if(xmax<s->X()+margR) xmax=s->X()+margR;
      if(xmin>s->X()-margR) xmin=s->X()-margR;
      if(ymax<s->Y()+margR) ymax=s->Y()+margR;
      if(ymin>s->Y()-margR) ymin=s->Y()-margR;
      if(zmax<s->Z()+margZmax) zmax=s->Z()+margZmax;
      if(zmin>s->Z()-margZmin) zmin=s->Z()-margZmin;
    }
  }

  if (eArrV) {
    for(int i=0; i<eArrV->GetEntries(); i++) {
      EdbVertex *v = (EdbVertex *)(eArrV->At(i));
      if(!v) continue;
      if(!v->V()) continue;
      if(!v->V()->valid()) continue;
      if(xmax-xmin<margR) {
    xmax=v->VX()+margR;
    xmin=v->VX()-margR;
    ymax=v->VY()+margR;
    ymin=v->VY()-margR;
    zmax=v->VZ()+margZmax;
    zmin=v->VZ()-margZmin;
      }
      if(xmax<v->VX()+margR) xmax=v->VX()+margR;
      if(xmin>v->VX()-margR) xmin=v->VX()-margR;
      if(ymax<v->VY()+margR) ymax=v->VY()+margR;
      if(ymin>v->VY()-margR) ymin=v->VY()-margR;
      if(zmax<v->VZ()+margZmax) zmax=v->VZ()+margZmax;
      if(zmin>v->VZ()-margZmin) zmin=v->VZ()-margZmin;
    }
  }

  if (eArrTr) {
    EdbTrackP *t;
    EdbSegP   *s;
    for(int i=0; i<eArrTr->GetEntries(); i++) {
      t = (EdbTrackP *)eArrTr->At(i);
      if(!t) continue;
      for(int j=0; j<t->N(); j++) {
    s = t->GetSegment(j);
    if(!s) continue;
    if(xmax-xmin<margR) {
      xmax=s->X()+margR;
      xmin=s->X()-margR;
      ymax=s->Y()+margR;
      ymin=s->Y()-margR;
      zmax=s->Z()+margZmax;
      zmin=s->Z()-margZmin;
    }
    if(xmax<s->X()+margR) xmax=s->X()+margR;
    if(xmin>s->X()-margR) xmin=s->X()-margR;
    if(ymax<s->Y()+margR) ymax=s->Y()+margR;
    if(ymin>s->Y()-margR) ymin=s->Y()-margR;
    if(zmax<s->Z()+margZmax) zmax=s->Z()+margZmax;
    if(zmin>s->Z()-margZmin) zmin=s->Z()-margZmin;
      }
    }
  }
  if(gEDBDEBUGLEVEL>1) {
    printf("Guess Range:\n");
    printf("X: %10.1f %10.1f\n",xmin,xmax);
    printf("Y: %10.1f %10.1f\n",ymin,ymax);
    printf("Z: %10.1f %10.1f\n",zmin,zmax);
  }
  SetRange(xmin,xmax,ymin,ymax,zmin,zmax);
  fZooms=0;
}

Refresh()

void EdbDisplay::Refresh ( )

virtual

Reimplemented from EdbDisplayBase.

{
  EdbSegP *seg=0;
  if( eArrSegP ) {
    int nseg = eArrSegP->GetEntries();
    printf("%d segments to draw...\n",nseg);
    for(int j=0;j<nseg;j++) {
      seg = (EdbSegP*)(eArrSegP->At(j));
      if (seg)
      {
        SegLine(seg)->Draw();
      }
    }
  }


  EdbTrackP *tr=0;
  if( eArrTr ) {
    int ntr = eArrTr->GetEntries();
    printf("%d tracks to draw...\n",ntr);
    for(int j=0;j<ntr;j++) {
      tr = (EdbTrackP*)(eArrTr->At(j));
      if(tr)
      {
        TrackDraw(tr);
      }
    }
  }

  EdbVertex *v=0;
  if( eArrV ) {
    int nv = eArrV->GetEntries();
    printf("%d vertices to draw...\n",nv);
    for(int j=0;j<nv;j++) {
      v = (EdbVertex*)(eArrV->At(j));
      if (v)
      {
        VertexDraw(v);
      }
    }
  }

  if( eArrSegG ) {
    int nseg = eArrSegG->GetEntries();
    printf("%d Graph segments to draw...\n",nseg);
    for(int j=0;j<nseg;j++) {
      EdbSegG *sg = (EdbSegG*)(eArrSegG->At(j));
      if (sg)        sg->Draw();
    }
  }

  if (eSegment)
  {
    eSegPM = new TPolyMarker3D(1);
    eSegPM->SetMarkerStyle(kFullCircle);
    float dz = TMath::Abs(eSegment->DZ()/2.);
    eSegPM->SetPoint(0,
                eSegment->X() + eSegment->TX()*dz,
            eSegment->Y() + eSegment->TY()*dz,
            eSegment->Z() +                dz);
    eSegPM->SetMarkerColor(kGreen);
    eSegPM->SetMarkerSize(1.2);
    eSegPM->SetBit(kCannotPick);
    eSegPM->Draw();
  }
}

RemoveTrackFromTable()

void EdbDisplay::RemoveTrackFromTable

(

int

ivt = 0

)

{
  char text[512];
  EdbTrackP *etr = 0;
  if (eWait_Answer) return;
  if (!(eVertex)) return;
  Log(3,"EdbDisplay::RemoveTrackFromTable","%d tracks in vertex before",eVertex->N());

  EdbVTA *vta = 0;
  EdbVertex *ePreviousSaved = ePrevious;
  int n = 0;
  int ntr = 0;
  if (eWorking == 0)
    {
      ntr = eVertex->N();
      if (ntr < 3)
    {

      printf("Working vertex has 2 prongs only!\n");
      fflush(stdout);
      return;
    }
      if (eVerRec) if (eVerRec->IsA() != EdbVertexRec::Class()) eVerRec = 0;
      if (!eVerRec) {
    printf("Error: EdbDisplay:RemoveTrackFromTable: EdbVertexRec not defined, use SetVerRec(...)\n");
    fflush(stdout); return;
      }
      eWorking = new EdbVertex();
      int i = 0;
      etr = eVertex->GetTrack(ivt);
      for(i=0; i<ntr; i++)
    {
      if (i == ivt)
        {
          etr->ClearVTA(eVertex->GetVTa(i));
          continue;
        }
      if ((vta = (eVerRec)->EdbVertexRec::AddTrack( *(eWorking), (eVertex)->GetTrack(i), (eVertex)->Zpos(i))))
        {
          ((eVertex)->GetTrack(i))->AddVTA(vta);
          n++;
        }
    }
    }
  else
    {
      ntr = eWorking->N();
      if (ntr < 3)
    {

      printf("Working vertex has 2 prongs only!\n");
      fflush(stdout);
      return;
    }
      if (eVerRec) if (eVerRec->IsA() != EdbVertexRec::Class()) eVerRec = 0;
      if (!eVerRec) {printf("Error: EdbDisplay:RemoveTrackFromTable: EdbVertexRec not defined, use SetVerRec(...)\n"); fflush(stdout); return;}
      etr = eWorking->GetTrack(ivt);
      ePrevious = eWorking;
      eWorking = new EdbVertex();
      int i = 0;
      for(i=0; i<ntr; i++)
    {
      if (i == ivt)
        {
          etr->ClearVTA(ePrevious->GetVTa(i));
          continue;
        }
      if ((vta = (eVerRec)->EdbVertexRec::AddTrack(*(eWorking),(ePrevious)->GetTrack(i), (ePrevious)->Zpos(i))))
        {
          ((ePrevious)->GetTrack(i))->AddVTA(vta);
          n++;
        }
    }
    }
  if ((n < 2)||(n == ntr))
    {
      delete eWorking;
      if (ePrevious)
    {
      eWorking = ePrevious;
      (eWorking)->ResetTracks();
      ePrevious = ePreviousSaved;
    }
      else
    {
      eWorking = 0;
      (eVertex)->ResetTracks();
    }
      printf("Can't create working copy of the vertex!\n");
      fflush(stdout);
      return;
    }

  if ((eVerRec)->MakeV(*(eWorking)))
    {
      EdbVertex *eW = eWorking;
      eW->ResetTracks();
      eW->SetID(eVertex->ID());
      eW->V()->rmsDistAngle();
      sprintf(text,"New     %-4d  %-4d  %-8.1f   %-8.1f   %-8.1f   %-6.1f %-7.1f  %-7.5f",
          eW->ID(), eW->N(), eW->VX(), eW->VY(), eW->VZ(), eW->V()->dist(),
          eW->V()->chi2()/eW->V()->ndf(), eW->V()->prob());
      DrawOldBut("Original");
      if (ePrevious)
    {
      DrawNewVTX(text);
      DrawNewBut("Modified");
      eW = ePrevious;
      sprintf(text,"Pre     %-4d  %-4d  %-8.1f   %-8.1f   %-8.1f   %-6.1f %-7.1f  %-7.5f",
          eW->ID(), eW->N(), eW->VX(), eW->VY(), eW->VZ(), eW->V()->dist(),
          eW->V()->chi2()/eW->V()->ndf(), eW->V()->prob());
      DrawPreVTX(text);
      DrawPreBut("Previous");
    }
      else
    {
      DrawPreVTX(text);
      DrawPreBut("Modified");
      if (eVertex->ID() >= 0)
        {
          DrawAcc();
          DrawCan();
          DrawUnd();
        }
    }
      //    DrawOldBut("Original");
      TButton *rm = fRemBut[ivt];
      fRemBut[ivt] = 0;
      DrawVTXTracks("Modified", eWorking);
      if (eArrV && (eIndVert >= 0))
    {
      //        eArrV->RemoveAt(eIndVert);
      eArrV->AddAt(eWorking, eIndVert);
    }
      //    if (eCreatedTracks.FindObject(etr))
      //    {
      //        eCreatedTracks.Remove(etr);
      //        if ( eArrTr)
      //        if (eArrTr->FindObject(etr)) eArrTr->Remove(etr);
      //        if ( eArrTrSave)
      //        if (eArrTrSave->FindObject(etr)) eArrTrSave->Remove(etr);
      //        delete etr;
      //    }
      fCanvas->cd();
      Draw();
      fPad->Update();
      if (ePreviousSaved) delete ePreviousSaved;
      ePreviousSaved = 0;
      fCanvasVTX->cd();
      if (rm) delete rm;
    }
  else
    {
      delete eWorking;
      if (ePrevious)
    {
      eWorking = ePrevious;
      (eWorking)->ResetTracks();
      ePrevious = ePreviousSaved;
    }
      else
    {
      eWorking = 0;
      (eVertex)->ResetTracks();
    }
      printf("Can't create new vertex after track removing!\n");
      fflush(stdout);
    }
}

SegLine()

EdbSegG * EdbDisplay::SegLine

(

const EdbSegP *

seg

)

---

{
  if (!seg) return 0;
  float dz = TMath::Abs(seg->DZ())/2.;
  EdbSegG *line = new EdbSegG(2, this);
  //line->SetPoint(0, seg->X(), seg->Y(), seg->Z()-dz );
  line->SetPoint(0,
                 seg->X() - seg->TX()*dz,
                 seg->Y() - seg->TY()*dz,
                 seg->Z() -           dz);
  line->SetPoint(1,
                 seg->X() + seg->TX()*dz,
                 seg->Y() + seg->TY()*dz,
                 seg->Z() +           dz);

  int npieces=eToPlate-eFromPlate;
  line->SetLineColor(gStyle->GetColorPalette(150+int(46.*(1.-1.*(seg->PID()-eFromPlate)/npieces))));
  //line->SetLineColor( 2+seg->PID()%7 );
  Width_t lwf = int(seg->W()/10.);
  if (lwf > 3) lwf = 2;
  line->SetLineWidth(lwf*fLineWidth);
  if (seg->Track() <= -2) line->SetLineWidth(3*lwf*fLineWidth);
  line->SetSeg(seg);
  return line;
}

SelectVertexTracks()

void EdbDisplay::SelectVertexTracks

(

TObjArray *

vtx

)

{
  if (!vtx) return;

  if (!eArrTr) eArrTr = new TObjArray();
  else eArrTr->Clear();

  Int_t nv = vtx->GetEntries();

  for (Int_t i = 0; i < nv; i++) {
    EdbVertex *vertex = (EdbVertex*)(vtx->At(i));
    if (!vertex || vertex->Flag() < 0) continue;
    for (Int_t j = 0; j < vertex->N(); j++) eArrTr->Add(vertex->GetTrack(j));
  }
}

Set0()

void EdbDisplay::Set0 ( )

virtual

eVerRec = ((EdbVertexRec *)(gROOT->GetListOfSpecials()->FindObject("EdbVertexRec"))); if (eVerRec) if (eVerRec->IsA() != EdbVertexRec::Class()) eVerRec = 0; if (!eVerRec) {printf("Warning: EdbDisplay:Set0: EdbVertexRec not defined, use SetVerRec(...)\n");}

Reimplemented from EdbDisplayBase.

{
  eArrSegG = 0;
  eArrSegP = 0;
  eArrTr   = 0;
  eArrV    = 0;
  eArrSegPSave = 0;
  eArrTrSave   = 0;
  eArrVSave    = 0;
  eDrawTracks = 1;
  eDrawVertex = 0;
  eColors  = 0;
  eDZs     = 0;
  eVertex  = 0;
  eWorking = 0;
  ePrevious= 0;
  eSegment = 0;
  eTrack   = 0;
  eTrack1   = 0;
  eTrack2   = 0;
  eSegPM = 0;
  eWait_Answer = false;
  eIndVert = -1;
  eIndVertSave = -1;
  eRadMax = 10000.;
  eDpat = 2;
  eImpMax = 1000.;
  eSegWmin = 9;
  eP = 0.;
  eM = 0.;
  eTImpMax = 10000.;
  eTProbMin = 0.0;
  fNumericEntries[0] = 0;
  fNumericEntries[1] = 0;
  fNumericEntries[2] = 0;
  eFromPlate=1;
  eToPlate=57;
  if (fCanvas) fCanvas->Connect("Closed()", "EdbDisplay", this, "Delete()");
}

SetArrSegG()

void EdbDisplay::SetArrSegG ( TObjArray *  arrg )

inline

{eArrSegG = arrg;}

SetArrSegP()

void EdbDisplay::SetArrSegP

(

TObjArray *

arr

)

{
  eArrSegP=arr;

  float x = 0., y = 0., z = 0;
  float wx0 = fVx0, wy0 = fVy0, wz0 = fVz0;
  float wx1 = fVx1, wy1 = fVy1, wz1 = fVz1;

  EdbSegP *seg=0;
  if( eArrSegP ) {
    int nseg = eArrSegP->GetEntries();
    for(int j=0;j<nseg;j++) {
      seg = (EdbSegP*)(eArrSegP->At(j));
      if (seg)
      {
    x = seg->X();
    y = seg->Y();
    z = seg->Z();
    if (fView == 0)
    {
        wx0 = x < wx0 ? x : wx0;
        wy0 = y < wy0 ? y : wy0;
        wz0 = z < wz0 ? z : wz0;
        wx1 = x > wx1 ? x : wx1;
        wy1 = y > wy1 ? y : wy1;
        wz1 = z > wz1 ? z : wz1;
    }
      }
    }
  }
  if (fView == 0)
  {
    if (wx0 < fVx0) fVx0 = wx0 - 500.;
    if (wy0 < fVy0) fVy0 = wy0 - 500.;
    if (wz0 < fVz0) fVz0 = wz0 - 500.;
    if (wx1 > fVx1) fVx1 = wx1 + 500.;
    if (wy1 > fVy1) fVy1 = wy1 + 500.;
    if (wz1 > fVz1) fVz1 = wz1 + 500.;
  }
}

SetArrTr()

void EdbDisplay::SetArrTr

(

TObjArray *

arr

)

{
  eArrTr=arr;

  float x = 0., y = 0., z = 0;
  float wx0 = fVx0, wy0 = fVy0, wz0 = fVz0;
  float wx1 = fVx1, wy1 = fVy1, wz1 = fVz1;

  EdbTrackP *tr=0;
  if( eArrTr ) {
    int ntr = eArrTr->GetEntries();
    for(int j=0;j<ntr;j++) {
      tr = (EdbTrackP*)(eArrTr->At(j));
      if(tr)
      {
    if (fView == 0)
    {
        if (tr->NF())
        {
        x = tr->TrackZmin()->X();
        y = tr->TrackZmin()->Y();
        z = tr->TrackZmin()->Z();
        }
        else
        {
        eRadMax = 0;
        x = tr->GetSegmentFirst()->X();
        y = tr->GetSegmentFirst()->Y();
        z = tr->GetSegmentFirst()->Z();
        }
        wx0 = x < wx0 ? x : wx0;
        wy0 = y < wy0 ? y : wy0;
        wz0 = z < wz0 ? z : wz0;
        wx1 = x > wx1 ? x : wx1;
        wy1 = y > wy1 ? y : wy1;
        wz1 = z > wz1 ? z : wz1;
        if (tr->NF())
        {
        x = tr->TrackZmax()->X();
        y = tr->TrackZmax()->Y();
        z = tr->TrackZmax()->Z();
        }
        else
        {
        eRadMax = 0;
        x = tr->GetSegmentLast()->X();
        y = tr->GetSegmentLast()->Y();
        z = tr->GetSegmentLast()->Z();
        }
        wx0 = x < wx0 ? x : wx0;
        wy0 = y < wy0 ? y : wy0;
        wz0 = z < wz0 ? z : wz0;
        wx1 = x > wx1 ? x : wx1;
        wy1 = y > wy1 ? y : wy1;
        wz1 = z > wz1 ? z : wz1;
    }
      }
    }
  }
  if (fView == 0)
  {
    if (wx0 < fVx0) fVx0 = wx0 - 500.;
    if (wy0 < fVy0) fVy0 = wy0 - 500.;
    if (wz0 < fVz0) fVz0 = wz0 - 500.;
    if (wx1 > fVx1) fVx1 = wx1 + 500.;
    if (wy1 > fVy1) fVy1 = wy1 + 500.;
    if (wz1 > fVz1) fVz1 = wz1 + 500.;
  }
}

SetArrV()

void EdbDisplay::SetArrV

(

TObjArray *

arrv

)

{
  eArrV=arrv;

  float x = 0., y = 0., z = 0;
  float wx0 = fVx0, wy0 = fVy0, wz0 = fVz0;
  float wx1 = fVx1, wy1 = fVy1, wz1 = fVz1;

  EdbVertex *v=0;
  if( eArrV ) {
    int nv = eArrV->GetEntries();
    for(int j=0;j<nv;j++) {
      v = (EdbVertex*)(eArrV->At(j));
      if (v)
      {
    if (fView == 0)
    {
        if (v->V())
        {
        x = v->VX();
        y = v->VY();
        z = v->VZ();
        }
        else
        {
        eRadMax = 0;
        x = v->X();
        y = v->Y();
        z = v->Z();
        }
        wx0 = x < wx0 ? x : wx0;
        wy0 = y < wy0 ? y : wy0;
        wz0 = z < wz0 ? z : wz0;
        wx1 = x > wx1 ? x : wx1;
        wy1 = y > wy1 ? y : wy1;
        wz1 = z > wz1 ? z : wz1;
    }
      }
    }
  }
  if (fView == 0)
  {
    if (wx0 < fVx0) fVx0 = wx0 - 500.;
    if (wy0 < fVy0) fVy0 = wy0 - 500.;
    if (wz0 < fVz0) fVz0 = wz0 - 500.;
    if (wx1 > fVx1) fVx1 = wx1 + 500.;
    if (wy1 > fVy1) fVy1 = wy1 + 500.;
    if (wz1 > fVz1) fVz1 = wz1 + 500.;
  }
}

SetDrawTracks()

void EdbDisplay::SetDrawTracks ( int  opt )

inline

{eDrawTracks=opt;}

SetDrawVertex()

void EdbDisplay::SetDrawVertex ( int  opt )

inline

{eDrawVertex=opt;}

SetVerRec()

void EdbDisplay::SetVerRec ( EdbVertexRec *  evr )

inline

{ eVerRec = evr; };

TrackDraw()

void EdbDisplay::TrackDraw	(	EdbTrackP *	tr,
		Color_t	kColor = kWhite
	)

eDrawTracks: 1 - draw fitted track dotted line only
2 - draw also white marker at zmin
3 - draw also red marker at zmax
4 - draw also measured segments
5 - draw fitted line and measured segments, no markers
6 - draw measured segments only
7 - draw measured segments only
8 - draw only solid white track line
14 - as "4" plus track extrapolation line

{

  if (!tr) return;
  TPolyLine3D *line=0;
  const EdbSegP *seg=0;
  float dz = 0.;

  if(eDrawTracks%10>0 && eDrawTracks%10<6) {   // only dotted track line
    line = new TPolyLine3D(tr->N());
    if (tr->NF())    {
      for(int is=0; is<tr->NF(); is++) {
    seg = tr->GetSegmentF(is);
    if(seg)
    {
        if (is == 0)
        {
        dz = TMath::Abs(seg->DZ());
        line->SetPoint(is, seg->X()+seg->TX()*dz,
                   seg->Y()+seg->TY()*dz,
                   seg->Z()+          dz );
        }
        else
        {
        line->SetPoint(is, seg->X(), seg->Y(), seg->Z() );
        }
    }
      }
    }
    else      {
      for(int is=0; is<tr->N(); is++) {
    seg = tr->GetSegment(is);
    if(seg)
    {
        if (is == 0)
        {
        dz = TMath::Abs(seg->DZ());
        line->SetPoint(is, seg->X()+seg->TX()*dz,
                   seg->Y()+seg->TY()*dz,
                   seg->Z()+          dz);
        }
        else
        {
        line->SetPoint(is, seg->X(), seg->Y(), seg->Z() );
        }
    }
      }
    }
    if (fStyle/2 == 1) line->SetLineColor(kBlack);
    else               line->SetLineColor(kColor);
    line->SetLineWidth(fLineWidth);
    line->SetBit(kCannotPick);
    if (tr->Flag() != -10)
    line->SetLineStyle(3);
    else
    line->SetLineStyle(4);
    line->Draw();
  }

  if(eDrawTracks%10>3 && eDrawTracks%10<8 && tr->N()>0 ) {
    for(int is=0; is<tr->N(); is++) {
      seg = tr->GetSegment(is);
      if (seg) SegLine(seg)->Draw();
    }
  }

  if(eDrawTracks%10>7) {
    line = new TPolyLine3D(tr->N());
    if (tr->NF()){
      for(int is=0; is<tr->NF(); is++) {
    seg = tr->GetSegmentF(is);
    if(seg) line->SetPoint(is, seg->X(), seg->Y(), seg->Z() );
      }
    }    else    {
      for(int is=0; is<tr->N(); is++) {
    seg = tr->GetSegment(is);
    if(seg) line->SetPoint(is, seg->X(), seg->Y(), seg->Z() );
      }
    }
    if (fStyle/2 == 1) line->SetLineColor(kBlack);
    else               line->SetLineColor(kColor);
    line->SetLineWidth(fLineWidth);
    line->SetLineStyle(1);
    line->Draw();
  }

  if(eDrawTracks%10>1 && eDrawTracks%10<5) {
    EdbTrackG *pms = new EdbTrackG(1, this);
    pms->SetTrack( tr );
    pms->SetMarkerStyle(kOpenCircle);

    if (tr->NF())      seg = tr->TrackZmin();
    else               seg = tr->GetSegmentFirst();
    if(seg) {
      pms->SetPoint(0, seg->X(), seg->Y(), seg->Z() );
      if (fStyle/2 == 1) pms->SetMarkerColor(kBlack);
      else               pms->SetMarkerColor(kColor);
      pms->SetMarkerSize(1.2);
      pms->Draw();
      //printf("White track edge, Id %d, Nseg %d.\n", tr->ID(), tr->N());
    }
  }

  if(eDrawTracks%10>2 && eDrawTracks%10<5) {
    EdbTrackG *pme = new EdbTrackG(1, this);
    pme->SetTrack( tr );
    pme->SetMarkerStyle(kOpenCircle);

    if (tr->NF())      seg = tr->TrackZmax();
    else               seg = tr->GetSegmentLast();
    if(seg) {
      pme->SetPoint(0, seg->X(), seg->Y(), seg->Z() );
//      dz = TMath::Abs(seg->DZ());
//      pme->SetPoint(0, seg->X()+seg->TX()*dz,
//                 seg->Y()+seg->TY()*dz,
//             seg->Z()+          dz);
      pme->SetMarkerColor(kRed);
      pme->SetMarkerSize(1.2);
      pme->Draw();
    }
  }

}

UndoModifiedVTX()

void EdbDisplay::UndoModifiedVTX

(

)

{
    char text[512];
    EdbTrackP *LastCreated = 0;
    int CreatedInd = eCreatedTracks.GetEntries();
    if (CreatedInd > 0) LastCreated = (EdbTrackP *)eCreatedTracks.At(CreatedInd-1);
    if (ePrevious)
    {
    int InWork = 0;
    if (LastCreated)
    {
        for (int i=0; i<eWorking->N(); i++)
        if (eWorking->GetTrack(i) == LastCreated)
            InWork = 1;
    }
    int InPrev = 0;
    if (LastCreated)
    {
        for (int i=0; i<ePrevious->N(); i++)
        if (ePrevious->GetTrack(i) == LastCreated)
            InPrev = 1;
    }
    delete eWorking;
    if (InWork && !InPrev)
    {
        eCreatedTracks.Remove(LastCreated);
        if (eArrTr) if (eArrTr->FindObject(LastCreated))
        {
        eArrTr->Remove(LastCreated);
        eArrTr->Compress();
        }
        if (eArrTrSave) if (eArrTrSave->FindObject(LastCreated))
        {
        eArrTrSave->Remove(LastCreated);
        eArrTrSave->Compress();
        }
        delete LastCreated;
    }
    eWorking = ePrevious;
    (eWorking)->ResetTracks();
    EdbVertex *eW = eWorking;
    eW->V()->rmsDistAngle();
    sprintf(text,"New     %-4d  %-4d  %-8.1f   %-8.1f   %-8.1f   %-6.1f %-7.1f  %-7.5f",
    eW->ID(), eW->N(), eW->VX(), eW->VY(), eW->VZ(), eW->V()->dist(),
    eW->V()->chi2()/eW->V()->ndf(), eW->V()->prob());
    DrawPreVTX(text);
    DrawPreBut("Modified");
    ClearNewVTX();
    if (fNewBut)
    {
        delete fNewBut;
        fNewBut = 0;
    }
    ePrevious = 0;
    DrawVTXTracks("Modified", eWorking);
    if (eIndVert >= 0)
    {
//      eArrV->RemoveAt(eIndVert);
        eArrV->AddAt(eWorking, eIndVert);
    }
    Draw();
    }
    else if (eWorking)
    {
    EdbTrackP *tr = eWorking->GetTrack(eWorking->N() - 1);
    delete eWorking;
    if (tr && eCreatedTracks.FindObject(tr))
    {
        eCreatedTracks.Remove(tr);
        if (eArrTr) if (eArrTr->FindObject(tr))
        {
        eArrTr->Remove(tr);
        eArrTr->Compress();
        }
        if (eArrTrSave) if (eArrTrSave->FindObject(tr))
        {
        eArrTrSave->Remove(tr);
        eArrTrSave->Compress();
        }
        delete tr;
    }
    (eVertex)->ResetTracks();
    EdbVertex *eW = eVertex;
    eW->V()->rmsDistAngle();
    sprintf(text,"Orig    %-4d  %-4d  %-8.1f   %-8.1f   %-8.1f   %-6.1f %-7.1f  %-7.5f",
    eW->ID(), eW->N(), eW->VX(), eW->VY(), eW->VZ(), eW->V()->dist(),
    eW->V()->chi2()/eW->V()->ndf(), eW->V()->prob());
    DrawOldVTX(text);
    ClearPreVTX();
    if (fPreBut)
    {
        delete fPreBut;
        fPreBut = 0;
    }
    if (fOldBut)
    {
        delete fOldBut;
        fOldBut = 0;
    }
    eWorking = 0;
    DrawVTXTracks("Original", eVertex);
    if (eArrV && (eIndVert >= 0))
    {
//      eArrV->RemoveAt(eIndVert);
        eArrV->AddAt(eVertex, eIndVert);
    }
    TList *li = fTrigPad->GetListOfPrimitives();
    if (li)
    {
        li->Remove(fUndButton);
        li->Remove(fAccButton);
        li->Remove(fCanButton);
    }
    Draw();
    }
}

VerRec()

EdbVertexRec * EdbDisplay::VerRec ( ) const

inline

{return eVerRec;}

VertexDraw()

void EdbDisplay::VertexDraw

(

EdbVertex *

v

)

{
  float xv,yv,zv;
  if (!vv) return;
  //if (vv->Flag() == -10) {
  Log(2,"EdbDisplay::VertexDraw","id=%d  %d-prong  flag = %d",  vv->ID(), vv->N(), vv->Flag() );
    //return;
    //}
  EdbVertexG *v = new EdbVertexG(this);
  v->SetVertex( vv );

  xv = vv->X();
  yv = vv->Y();
  zv = vv->Z();

  v->SetPoint(0, xv, yv, zv);
  v->SetMarkerStyle(kFullCircle);
  if (fStyle/2 == 1) v->SetMarkerColor(kBlack);
  else               v->SetMarkerColor(kWhite);
//  v->Draw();

  if (vv->V())
  {
//    v = new EdbVertexG(this);
//    v->SetVertex( vv );

    xv = vv->VX();
    yv = vv->VY();
    zv = vv->VZ();
    v->SetPoint(0, xv, yv, zv);
  }
  if (eWorking == vv)
  {
    v->SetMarkerColor(kGreen);
  }
  else if (eVertex == vv)
  {
    if (!eWorking) v->SetMarkerColor(kGreen);
    else
    {
        if (fStyle/2 == 1) v->SetMarkerColor(kBlack);
        else               v->SetMarkerColor(kWhite);
    }
  }
  else
  {
    if (fStyle/2 == 1) v->SetMarkerColor(kBlack);
    else               v->SetMarkerColor(kWhite);
  }

  if(vv->Flag()==-10)  v->SetMarkerStyle(kOpenStar);
  else                 v->SetMarkerStyle(kFullStar);
  v->SetMarkerSize(1.2);
  v->Draw();


  if(eDrawVertex>0) {
    TPolyLine3D *line=0;
    const EdbSegP *seg=0;
    EdbTrackP *tr=0;
    bool measured_segment = false;
    if (eVerRec) measured_segment = eVerRec->eUseSegPar;
    for(int i=0; i<vv->N(); i++ ) {
      tr = vv->GetTrack(i);
      if (!(tr->NF())) measured_segment = true;

      seg = vv->GetTrackV(i,measured_segment);         if(!seg) continue;
      line = new TPolyLine3D(2);
      line->SetPoint(0, xv,yv,zv );
      line->SetPoint(1, seg->X(), seg->Y(), seg->Z());
      if (fStyle/2 == 1) line->SetLineColor(kBlack);
      else               line->SetLineColor(kYellow);
      line->SetLineWidth(2);
      line->SetBit(kCannotPick);
      line->Draw();
      if(eDrawTracks>10)  DrawSegmentExtrapolationLine( *seg, seg->Z(), zv );
    }
    for(int i=0; i<vv->Nn(); i++ ) {    //draw auxillary tracks if any
      EdbVTA * vtn = vv->GetVTn(i);
      if (vtn->Flag() < 3){ //neighbor track
       EdbTrackP *t = vv->GetTrackN(i);
       TrackDraw(t);
       if(eDrawTracks>10)  DrawSegmentExtrapolationLine( *((EdbSegP *)t), t->Z(), zv );
      }
      else if (vtn->Flag()==3){ //neighbor vertex
       EdbVertex *neighv = (EdbVertex*) vv->GetTrackN(i);
       int currentdrawvertexopt = eDrawVertex;
       eDrawVertex= 0; //do not look for neighbors of this neighbor vertex
       VertexDraw(neighv);
       eDrawVertex = currentdrawvertexopt;
      }
    }
  }
}

Member Data Documentation

eArrSegG

TObjArray* EdbDisplay::eArrSegG

additional array of segments for the presentation purpose only

eArrSegP

TObjArray* EdbDisplay::eArrSegP

array of segments to be drawn

eArrSegPSave

TObjArray* EdbDisplay::eArrSegPSave

saved array of segments to be drawn

eArrTr

TObjArray* EdbDisplay::eArrTr

array of tracks to be drawn

eArrTrSave

TObjArray* EdbDisplay::eArrTrSave

saved array of tracks to be drawn

eArrV

TObjArray* EdbDisplay::eArrV

array of vertices to be drawn

eArrVSave

TObjArray* EdbDisplay::eArrVSave

saved array of vertices to be drawn

eColors

TArrayI* EdbDisplay::eColors

private

eCreatedTracks

TList EdbDisplay::eCreatedTracks

list of tracks, created during vertex operations

eDpat

Double_t EdbDisplay::eDpat

+/- patterns for neighborhood

eDrawTracks

Int_t EdbDisplay::eDrawTracks

private

tracks drawing option

eDrawVertex

Int_t EdbDisplay::eDrawVertex

private

vertex drawing option

eDZs

TArrayF* EdbDisplay::eDZs

private

eFromPlate

Int_t EdbDisplay::eFromPlate

plates range (for colors normalization)

eImpMax

Double_t EdbDisplay::eImpMax

Maximal impact for neighborhood.

eIndVert

Int_t EdbDisplay::eIndVert

Index of selected vertex in ArrV.

eIndVertSave

Int_t EdbDisplay::eIndVertSave

Index of selected vertex in ArrV (seved)

eM

Double_t EdbDisplay::eM

track mass (creation from segment, propagation)

eP

Double_t EdbDisplay::eP

track momentum (creation from segment, propagation)

ePrevious

EdbVertex* EdbDisplay::ePrevious

saved previous vertex modifications

eRadMax

Double_t EdbDisplay::eRadMax

Maximal Radius for neighborhood.

eSegment

EdbSegP* EdbDisplay::eSegment

working segment (for segment neighborhood)

eSegPM

TPolyMarker3D* EdbDisplay::eSegPM

green mark for segment selected as working

eSegWmin

Double_t EdbDisplay::eSegWmin

Minimal segment W for neighbouring selection.

eTImpMax

Double_t EdbDisplay::eTImpMax

Maximal impact for interactive add track.

eToPlate

Int_t EdbDisplay::eToPlate

eTProbMin

Double_t EdbDisplay::eTProbMin

Minimal probability for interactive add track.

eTrack

EdbTrackP* EdbDisplay::eTrack

working intermediate track (track creation)

eTrack1

EdbTrackP* EdbDisplay::eTrack1

working intermediate track (track splitting)

eTrack2

EdbTrackP* EdbDisplay::eTrack2

working intermediate track (track splitting)

eVerRec

EdbVertexRec* EdbDisplay::eVerRec

eVertex

EdbVertex* EdbDisplay::eVertex

current selected vertex

eWait_Answer

Bool_t EdbDisplay::eWait_Answer

set TRUE when answer received

eWorking

EdbVertex* EdbDisplay::eWorking

working vertex

fNumericEntries

TGNumberEntry* EdbDisplay::fNumericEntries[3]

private

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEdd/EdbDisplay.h
• /home/antonio/fedra_doxygen/src/libEdd/EdbDisplay.cxx
