EdbViewRec Class Reference

#include <EdbViewRec.h>

Inheritance diagram for EdbViewRec:

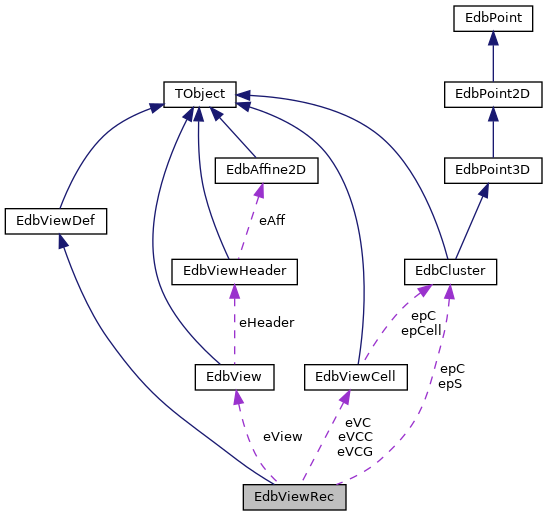

Collaboration diagram for EdbViewRec:

Public Member Functions
float	CalculateSegmentChi2 (EdbSegment &seg, float sx, float sy, float sz)
int	CheckFramesShift ()
int	CheckSeedThres ()
float	Chi2Seg (EdbSegment &s1, EdbSegment &s2)
	EdbViewRec ()
	EdbViewRec (EdbViewDef &vd)
int	FillGrainsTree ()
int	FindGrains (int option=0)
int	FindSeeds ()
bool	GoodSegment (EdbSegment &s, int wkey=0)
bool	Init ()
void	InitGrainsTree (const char *file="grains.root")
void	InitR ()
int	MergeSegments ()
int	ReconstructGrains ()
int	ReconstructSegments ()
int	RefillSegment (EdbSegment &s)
int	RefitSegments (int wkey=0)
void	ResetClustersSeg ()
bool	SaveToOutputView (EdbView &vout, int do_h=1, int do_c=2, int do_s=2, int do_tr=0, int do_f=2)
int	SelectSegments ()
void	SetAddGrainsToView (bool yesno)
void	SetClThres (int mina, int maxa)
void	SetNclGrLim (int mincl, int maxcl)
void	SetNgrMax0 (Int_t ngr)
void	SetNSeedMax (int nt, int th[])
void	SetNSeedMax0 (int n)
void	SetPrimary ()
void	SetPulsThres (int minp, int maxp=500)
void	SetRmax (float rmax)
void	SetSeedsLim (int nseedslim=100000, int seedlim=48)
void	SetSeedThres (int nt, int th[])
void	SetSeedThres0 (Short_t mins)
void	SetSigmaThres (float smin, float smax)
int	SetStep (int sfrom, int sto, int step=1)
void	SetThetaLim (float t)
bool	SetView (EdbView *v)
float	SPhiGr (float theta, float phi, float dz, float sx, float sy, float sz)
float	SThetaGr (float theta, float phi, float dz, float sx, float sy, float sz)
virtual	~EdbViewRec ()
Public Member Functions inherited from EdbViewDef
	EdbViewDef ()
void	Print ()
void	SetDef ()
	~EdbViewDef ()

Static Public Member Functions
static int	FitSegment (EdbSegment &s, int wkey=0)
static int	FitSegmentToCl (EdbSegment &s, EdbCluster &c, int wkey=0)

Public Attributes
bool	eAddGrainsToView
bool	eCheckSeedThres
bool	eDoGrainsProcessing
Float_t	eGrainNbin
bool	ePropagateToBase
Public Attributes inherited from EdbViewDef
Float_t	eClaSX
Float_t	eClaSY
Float_t	eClaSZ
Float_t	eClaSZvar
Float_t	eDZdead
Float_t	eFogDens
Float_t	eFogGrainArea
Float_t	eGrainArea
Float_t	eGrainSX
Float_t	eGrainSY
Float_t	eGrainSZ
Int_t	eNframes
Float_t	eTXopt
Float_t	eTYopt
Float_t	eX0
Float_t	eX0opt
Float_t	eXmax
Float_t	eXmin
Float_t	eY0
Float_t	eY0opt
Float_t	eYmax
Float_t	eYmin
Float_t	eZdead
Float_t	eZmax
Float_t	eZmin
Float_t	eZxy

Private Attributes
TClonesArray *	eCL
	[eNgrMax] array of grains represented as clusters More...
Int_t	eClMaxA
Int_t	eClMinA
	pointer to array of segments (output of tracking) More...
Float_t	eDmax
	pointers to clusters More...
Float_t	eDZmin
Float_t	eFact
TClonesArray *	eG
	cells with grains More...
TClonesArray *	eGCla
	pointer to eView->GetSegments() or to eGSeg as the output for grain search More...
TTree *	eGrainsTree
Short_t *	ehX
	[enYtot] - pointers to the first x[iy] More...
int	eNclGrMax
int	eNclGrMin
	debug tree More...
Int_t	eNgr
Int_t	eNgrMax
	pointer to the input view currently in processing More...
TArrayI	enP
Int_t	enPtot
TArrayI	eNseedMax
Int_t	eNseedMax0
Int_t	enSeedsLim
Int_t	eNsegMax
Int_t	enT
TArrayI	enX
Int_t	enXtot
TArrayI	enY
Int_t	enYtot
EdbCluster **	epC
	pointers to seeds list More...
Short_t ***	epP
	[enT] - pointers to the first phi[it] More...
EdbCluster ***	epS
	[enXtot] - phase histogram More...
Short_t ****	epT
Int_t	ePulsMax
Int_t	ePulsMin
Short_t **	epY
	[enPtot] - pointers to the first y[ip] More...
TArrayF	eR
Float_t	eRmax
TClonesArray *	eSA
	pointer to eView->GetClusters() or to eGCla as the input for tracking More...
Short_t	eSeedLim
TArrayI	eSeedThres
Int_t	eSeedThres0
Float_t	eSigmaMax
Float_t	eSigmaMin
TArrayF	esP
Int_t	eStep
Int_t	eStepFrom
Int_t	eStepTo
TArrayF	esX
TArrayF	esY
TArrayF	eTheta
Float_t	eThetaLim
EdbViewCell *	eVC
EdbViewCell	eVCC
	pointer to eVCC or eVCG More...
EdbViewCell	eVCG
	cells with raw clusters More...
EdbView *	eView
Float_t	eZcenter

Constructor & Destructor Documentation

EdbViewRec() [1/2]

EdbViewRec::EdbViewRec

(

)

{
  SetDef();
  SetPrimary();
}

EdbViewRec() [2/2]

EdbViewRec::EdbViewRec ( EdbViewDef &  vd )

inline

: EdbViewDef(vd) {SetPrimary();}

~EdbViewRec()

EdbViewRec::~EdbViewRec ( )

virtual

{
  printf("EdbViewRec::~EdbViewRec()\n");
  if(eGCla)        { delete eGCla;       eGCla=0;       }
  printf("1\n");
  if(eGrainsTree)  { delete eGrainsTree; eGrainsTree=0; }
  printf("2\n");

  if(epT)          { delete[] epT; epT=0; }
  if(epP)          { delete[] epP; epP=0; }
  if(epY)          { delete[] epY; epY=0; }
  if(ehX)          { delete[] ehX; ehX=0; }
  if(epS)          { delete[] epS; epS=0; }
  if(epC)          { delete[] epC; epC=0; }
  printf("3\n");

  if(eNsegMax>0)  {
    if(eSA!=eG)     if(eSA) {eSA->Clear(); delete eSA; eSA=0; }
    printf("4\n");
    if(eG) { eG->Clear(); delete eG; eG=0; }
  }
  printf("5\n");
}

Member Function Documentation

CalculateSegmentChi2()

float EdbViewRec::CalculateSegmentChi2	(	EdbSegment &	s,
		float	sx,
		float	sy,
		float	sz
	)

---

{
    //assumed that clusters are attached to segments
  TObjArray *clusters = s.GetElements();
  if(!clusters) return 0;
  int ncl = clusters->GetLast()+1;
  if(ncl<=0)     return 0;

  // segment line parametrized as 2 points
  float xyz1[3] = { s.GetX0() /sx,
            s.GetY0() /sy,
            s.GetZ0() /sz };
  float xyz2[3] = { (s.GetX0() + s.GetDz()*s.GetTx()) /sx,
            (s.GetY0() + s.GetDz()*s.GetTy()) /sy,
            (s.GetZ0() + s.GetDz())           /sz };

  bool        inside=true;
  double      d, chi2=0;
  EdbCluster  *cl=0;
  float       xyz[3];
  for(int i=0; i<ncl; i++ ) {
    cl = (EdbCluster*)clusters->At(i);
    xyz[0] = cl->GetX()/sx;
    xyz[1] = cl->GetY()/sy;
    xyz[2] = cl->GetZ()/sz;
    d = EdbMath::DistancePointLine3(xyz,xyz1,xyz2, inside);
    chi2 += d*d;
  }
  return TMath::Sqrt(chi2/ncl);
}

CheckFramesShift()

int EdbViewRec::CheckFramesShift

(

)

{
  if( eNgr<1 )  return 0;
  int nfr = eView->GetNframes();
  if( nfr<2 )  return 0;

  TArrayD     Xshift(nfr),Yshift(nfr),Zshift(nfr);
  TArrayI     Nshift(nfr);
  EdbSegment  *s=0;
  EdbCluster  *cl0=0,*cl1=0;
  TObjArray   *arr=0;
  int         ncl=0;
  int         ifr=0;

  //TNtuple *fshift = new TNtuple("fshift","frames shift","x0:y0:z0:x1:y1:z1:ifr:ncl:gr");
  for(int i=0; i<eNgr; i++) {
    s = (EdbSegment*)(eG->UncheckedAt(i));
    arr = s->GetElements();
    ncl = arr->GetEntriesFast();
    if(ncl<2) continue;
    for(int j=1; j<ncl; j++) {
      cl0 = (EdbCluster*)s->GetElements()->UncheckedAt(j-1);
      cl1 = (EdbCluster*)s->GetElements()->UncheckedAt(j);
      ifr = cl1->eFrame;
      Nshift[ifr]++;
      Xshift[ifr] += (cl1->eX - cl0->eX);
      Yshift[ifr] += (cl1->eY - cl0->eY);
      Zshift[ifr] += (cl1->eZ - cl0->eZ);
      //        fshift->Fill( cl0->eX,cl0->eY,cl0->eZ, cl1->eX,cl1->eY,cl1->eZ,1.*cl1->eFrame,1.*ncl, 1.*cl0->eSegment );
    }
  }

  for(int i=1; i<nfr; i++) {
    Xshift[i] /= Nshift[i];
    Yshift[i] /= Nshift[i];
    Zshift[i] /= Nshift[i];
    printf("Frame shift(%2d): %+6.4f %+6.4f %f\t by %d shadows\n",i, Xshift[i],Yshift[i],Zshift[i],Nshift[i] );
  }

  printf("------------------------------------------------------\n");
  printf("Total shift    : %+4.2f   %+4.2f \t by %d shadows; dz=%6.2f\n",
     Xshift.GetSum(),Yshift.GetSum(),(int)Nshift.GetSum(),Zshift.GetSum() );
  printf("Mean  angle    : %+4.3f   %+4.3f \n\n",
     Xshift.GetSum()/Zshift.GetSum(),
     Yshift.GetSum()/Zshift.GetSum() );

  return (int)Nshift.GetSum();
}

CheckSeedThres()

int EdbViewRec::CheckSeedThres

(

)

{
  Short_t *p0,*pnext, *plast = ehX+enXtot;
  Int_t nfill;
  Int_t ntot  = 0;

  for(int i=0; i<enT; i++) {
    eSeedThres[i] = eSeedThres0;
  }

  for(int it=0; it<enT; it++) {
    TArrayL spt(256);   //phase occupancy histogram
    p0    = epT[it][0][0];
    if(it==enT-1) pnext = plast;
    else          pnext = epT[it+1][0][0];
    ntot = (int)((pnext-p0)/eFact);
    nfill=0;
    while(p0<pnext) {
      spt[*p0]++;
      if(*p0>0)     nfill++;
      p0++;
    }
    printf("\nit = %3d   occup: %d / %d = %f %% \n",it, nfill, ntot, 100.*nfill/ntot );

    int thres=0, sum=0, sumthres=0;
    for (int i=255; i>0; i--)   {
        if(spt[i]<1) continue;
        printf("%3d %ld\n",i,spt[i]);
        if(!thres) sumthres=sum;
        sum += spt[i];
        if(!thres&&sum>eNseedMax[it]) thres = i+1;
    }
    if(thres>eSeedThres[it]) eSeedThres[it]=thres;
    printf("sumthres(%d) = %d   eSeedThres[%d]= %d\n\n",thres,sumthres, it, eSeedThres[it]);
  }


  //TArrayL sp(256);   //phase occupancy histogram
  //for (int i=0; i<enXtot; i++)
  //if(ehX[i]>0)      sp[ehX[i]]++;
  //printf("\n total occup: %d / %d = %f %% \n", (int)(sp.GetSum()), enXtot, 100.*eFact*sp.GetSum()/enXtot );

//   TNtuple *ntpix = new TNtuple("ntpix","pixels","i:pix:ix:iy:t:p");
//   float p,t;
//   int iphi,ix,iy;
//   int jxy=0;
//   for (int i=0; i<eNtot; i++) {
//     if(ePhist[i]<eSeedThres) continue;
//     iphi = i%eNphiTot;
//     t = eTmask[iphi];
//     p = ePmask[iphi];
//     jxy = i/eNphiTot;
//     iy  = jxy/eVC->eNx;
//     ix  = jxy%eVC->eNx;
//     ntpix->Fill(i,ePhist[i],ix,iy,t,p);
//   }
//  return thres;

  return 0;
}

Chi2Seg()

float EdbViewRec::Chi2Seg	(	EdbSegment &	s1,
		EdbSegment &	s2
	)

{
  return 1.;
}

FillGrainsTree()

int EdbViewRec::FillGrainsTree

(

)

---

{
  using namespace GRAINS_TREE;
  if( eNgr<1 ) return 0;

  eViewID = eView->GetViewID();
  eAreaID = eView->GetAreaID();
  eXview = eView->GetXview();
  eYview = eView->GetYview();
  EdbCluster *cl=0;
  int ncl=0;
  for(int i=0; i<eNgr; i++) {
    eSeg = (EdbSegment*)(eG->UncheckedAt(i));
    //printf("id=%d\n",s->GetID());
    ncl = eSeg->GetElements()->GetEntriesFast();
    if(ncl>1) {
      for(int j=0; j<ncl; j++) {
    cl = (EdbCluster*)eSeg->GetElements()->UncheckedAt(j);
    new((*eClust)[j])  EdbCluster( *cl );
      }
      eGrainsTree->Fill();
    }
    eClust->Clear();
  }
  eGrainsTree->AutoSave();
  return eNgr;
}

FindGrains()

int EdbViewRec::FindGrains

(

int

option = 0

)

{
  // if option = 0 (default) grains reconstructed as segments and added to eGSeg  array
  // if option = 1           grains reconstructed as clusters and added to eGCla array

  if(eVC->eNcl<1) return 0;
  if(eVC->eNfr<2) return 0;
  printf("FindGrains with %d clusters, %d frames:\n\n",eVC->eNcl,eVC->eNfr);
  if(eNgr) {eG->Delete(); eNgr=0;}

  EdbCluster  **arr0=0, **arr1=0;
  EdbCluster   *cl0=0,   *cl1=0;
  float dx,dy;
  int   iz1=0, jn=0;
  int   n0=0,n1=0;
  int   jcell=0, jcell1=0;

  // set to clusters eSegment attribute:

  for(int iz=0;     iz<eVC->eNfr-1; iz++) {
    iz1=iz+1;
    for(int j=0;     j<eVC->eNcellXY; j++) {
      jcell = eVC->Jcell(j,iz);
      n0 = eVC->eNC[jcell];
      if(n0<1)    continue;
      arr0 = eVC->GetCell(jcell);

      for(int i0=0; i0<n0; i0++) {
    cl0 = arr0[i0];

    for(int in=0; in<9; in++) {                 //neighbours
      jn = j + eVC->Jneib(in);
      if(jn<0)                   continue;
      if(jn>=eVC->eNcellXY)      continue;

      jcell1 = eVC->Jcell(jn,iz1);
      n1 = eVC->eNC[jcell1];
      if(n1<1)    continue;
      arr1 = eVC->GetCell(jcell1);

      for(int i1=0; i1<n1; i1++) {
        cl1 = arr1[i1];

        dx = cl1->eX - (cl0->eX + eTXopt*(cl0->eX-eX0opt)*(cl1->eZ - cl0->eZ));   // with off-axis correction
        if( Abs(dx) > eGrainNbin*eGrainSX ) continue;
        dy = cl1->eY - (cl0->eY + eTYopt*(cl0->eY-eY0opt)*(cl1->eZ - cl0->eZ));
        if( Abs(dy) > eGrainNbin*eGrainSY ) continue;

        if( cl0->eSegment < 0 )  cl0->eSegment = eNgr++;
        cl1->eSegment = cl0->eSegment;
      }
    }
      }
    }
  }

  eVC->CalcStat();

  // assemble grains lists (as a segments)

  for(int i=0; i<eVC->eNcl; i++) {
    cl0 = (EdbCluster*)eCL->UncheckedAt(i);
    if(!eG) printf("\n***** eG is 0!!!!!!\n\n");
    if( cl0->eSegment<0 ) cl0->eSegment = eNgr++;

    //printf("eNgr = %d eNgrMax = %d \n",eNgr, eNgrMax);
    //cl0->Print();

    if(eNgr>eNgrMax) {printf("ERROR: too many grains: %d - stop tracking!!\n",eNgr); eNgr--; return -1; }
    if(!eG->UncheckedAt(cl0->eSegment))  new((*eG)[cl0->eSegment]) EdbSegment();
    ((EdbSegment*)eG->UncheckedAt(cl0->eSegment))->AddElement(cl0);
  }
  printf("ncl: %d   ngr: %d ( %3.1f %% )\n", eVC->eNcl,eNgr, 100.*eNgr/eVC->eNcl );

  // fit grains to segments or to clusters:

  int iseg;
  EdbSegment *s=0;
  EdbCluster c;
  for(int i=0; i<eNgr; i++) {
    s = (EdbSegment*)eG->UncheckedAt(i);
    s->SetID(i);
    if( s->GetNelements() < eNclGrMin) s->UnSetIDE();  // release clusters
    else     {
      if(option==1)  {                                 // grains preprocessing before tracking
    if( s->GetNelements() > eNclGrMax )  {  // long grain is a segment
      GoodSegment(*s,1);
      iseg = eSA->GetLast()+1;
      s->SetIDE(iseg);
      new((*eSA)[iseg])  EdbSegment( *s );
    } else {                                                      // short grain is a cluster
      FitSegmentToCl(*s,c, 1);
      new((*eGCla)[eGCla->GetLast()+1])  EdbCluster(c);
      s->UnSetIDE();
    }
      }
      else           FitSegment(*s,1);
    }
    s->SetPuls(s->GetNelements());
  }

  if(option==1) {
    printf("%d segments has been converted from grains\n",eSA->GetLast()+1);
    if(eNclGrMax<ePulsMin)
      printf("WARNING: FindGrains: eNclGrMax(%d) < ePulsMin(%d) : can loose segments!\n",eNclGrMax,ePulsMin);
  }

  return eNgr;
}

FindSeeds()

int EdbViewRec::FindSeeds

(

)

{

  if(eVC->eNcl<1) return 0;
  if(eVC->eNfr<2) return 0;
  printf("FindSeed with %d clusters, %d frames \t eZcenter[%6.1f:%6.1f] = %6.1f   eZxy = %6.1f\n",
     eVC->eNcl,eVC->eNfr,eZmin,eZmax,eZcenter,eZxy);

#ifdef WIN32
  memset(ehX,'\0',enXtot*sizeof(Short_t));
#else
  bzero(ehX,enXtot*sizeof(Short_t));
#endif

  EdbCluster  **arr0=0, **arr1=0;
  EdbCluster *cl0=0,  *cl1=0;
  int   jcell0=0,jcell1=0;
  int   n0=0,n1=0;
  int   iz1=0, jn=0;
  long ncycle=0, ict=0, nseeds=0;
  float r2max=eVC->eBinX*eVC->eBinX;
  float r2d3max = eRmax*eRmax;
  float dx,dy,dz,r2, r2d3;
  float r,phi,t;
  float zratio,xZxy,yZxy;
  int   it,ip,ix,iy;
  float x0,x1,y0,y1, phirot;
  EdbCluster **pps;

  for(int istep=eStepFrom; istep<eStepTo; istep+=eStep) {
    for(int iz=0;     iz<eVC->eNfr-istep; iz++) {
      iz1=iz+istep;

      for(int j=0;     j<eVC->eNcellXY; j++) {
    jcell0 = eVC->Jcell(j,iz);
    n0 = eVC->eNC[jcell0];
    if(n0<1)      continue;
    arr0 = eVC->GetCell(jcell0);

    for(int i0=0; i0<n0; i0++) {
      cl0 = arr0[i0];

      for(int in=0; in<9; in++) {                 //neighbours
        jn = j + eVC->Jneib(in);
        if(jn<0)                  continue;
        if(jn>=eVC->eNcellXY)      continue;

        jcell1 = eVC->Jcell(jn,iz1);
        n1 = eVC->eNC[jcell1];
        if(n1<1)      continue;
        arr1 = eVC->GetCell(jcell1);

        for(int i1=0; i1<n1; i1++) {
          cl1 = arr1[i1];
          ncycle++;


          x0 =  cl0->eX;
          x1 =  cl1->eX;
          y0 =  cl0->eY;
          y1 =  cl1->eY;
          dx = x1 - x0;
          dy = y1 - y0;
          dz = cl1->eZ - cl0->eZ;
          r2 = dx*dx+dy*dy;
          r2d3 = r2+dz*dz;
          if(r2>r2max)                 continue;
          if(r2d3>r2d3max)             continue;
          r = Sqrt(r2);
          t   = ATan2(r,Abs(dz));
          if(t>eTheta[enT-1])          continue;
          phi = ATan2(dy,dx);      // defined in [ -pi : pi ]

          for(it=0; it<enT-1; it++) if(t<eTheta[it]) break;
          ip = (int)((Pi()+phi-0.00001)/esP[it]+0.00001);

          if(it>0)   {         //rotation:
        phirot = -((ip+0.5)*esP[it] - Pi());               // rotation angle is the same for all entries of the same phi-bin
        x0 = cl0->eX*Cos(phirot) - cl0->eY*Sin(phirot);
        y0 = cl0->eX*Sin(phirot) + cl0->eY*Cos(phirot);
        x1 = cl1->eX*Cos(phirot) - cl1->eY*Sin(phirot);
        y1 = cl1->eX*Sin(phirot) + cl1->eY*Cos(phirot);
        dx = x1-x0;
        dy = y1-y0;
          }

          //printf("dx,dy,dz: %f %f %f\n",dx,dy,dz);

          zratio = (eZcenter  - cl0->eZ)/dz;
          xZxy = eDmax/2. + x0 + dx*zratio;
          if(xZxy<0)        continue;
          if(xZxy>eDmax)    continue;

          yZxy = eDmax/2. + y0 + dy*zratio;
          if(yZxy<0)        continue;
          if(yZxy>eDmax)    continue;

          iy = (int)(yZxy/esY[it]);
          ix = (int)(xZxy/esX[it]);

          //printf("ict[ %d  %d  %d %d ]\n",it,ip,iy,ix);
          ict = epT[it][ip][iy] + ix -ehX;
          //printf("%d\n",ict);

          if(ict<0||ict>=enXtot) {
        printf("ict[ %d  %d  %d ] = %ld\n",it,ip,iy,ict);
        printf("esX,     esY: %f %f\n",esX[it], esY[it]);
        printf("eYmin, eYmax: %f %f\n",eYmin,eYmax );
        printf("eXmin, eXmax: %f %f\n",eXmin,eXmax );
        printf("yZxy,   xZxy: %f %f\n",yZxy,xZxy);
        return 0;
          }

          if(ehX[ict]<1) {
        epS[ict] = epC + nseeds*eSeedLim;
        nseeds++;
        if( nseeds >= enSeedsLim)  {
          printf("ERROR: too many seeds: %ld, abandon tracking! \n",nseeds);
          return 0;
        }
          }
          pps = epS[ict] + ehX[ict];

          if(ehX[ict]<eSeedLim) *pps = cl0;
          pps++;
          //printf("ict = %d  bin = %d\n",ict, ehX[ict]);
          ehX[ict]++;
          if(ehX[ict]<eSeedLim) *pps=cl1;
          ehX[ict]++;

        }
      }
    }
      }
    }
  }
  printf("occupancy: %ld / %d * %4.3f = %5.2f %% \n", nseeds,enXtot, eFact, 100.*eFact*nseeds/enXtot);
  return nseeds;
}

FitSegment()

int EdbViewRec::FitSegment ( EdbSegment &  s, int  wkey = 0  )

static

{
  // if wkey = 0 - equal weights (default)
  //         = 1 - weighted with cluster area

  EdbCluster *c1=0;
  TObjArray *arr = s.GetElements();
  if(!arr) return -1;
  int ncl = arr->GetEntriesFast();
  if(!ncl) return 0;

  if(ncl==1) {
    c1 = (EdbCluster*)arr->UncheckedAt(0);
    s.Set( c1->X(), c1->Y(), c1->Z(), 0.,0., 0., s.GetSide(), ncl, s.GetID() );
    return ncl;
  }
  else {
    float *X = new float[ncl];
    float *Y = new float[ncl];
    float *Z = new float[ncl];
    float *W = new float[ncl];
    for(int i=0; i<ncl; i++) {
      c1 = (EdbCluster*)arr->UncheckedAt(i);
      if(wkey==1) W[i] = c1->eArea;
      else        W[i] = 1.;
      X[i] = c1->eX;
      Y[i] = c1->eY;
      Z[i] = c1->eZ;
    }
    float zmin=Z[0],zmax=Z[0];
    for(int i=1; i<ncl; i++) {
      if(zmin>Z[i]) zmin=Z[i];
      if(zmax<Z[i]) zmax=Z[i];
    }
    float x0,y0,z0,tx,ty,ex,ey;
    EdbMath::LFIT3( X, Y, Z, W, ncl,
            x0, y0, z0, tx, ty, ex, ey );
    s.Set( x0,y0,z0, tx,ty, zmax-zmin, s.GetSide(), ncl, s.GetID());
    s.SetSigma(ex,ey);
    delete[] X;
    delete[] Y;
    delete[] Z;
    delete[] W;
  }
  return ncl;
}

FitSegmentToCl()

int EdbViewRec::FitSegmentToCl ( EdbSegment &  s, EdbCluster &  c, int  wkey = 0  )

static

{
  // Special function to calculate the grain parameters and fill the output cluster c
  // if wkey = 0 - equal weights (default)
  //         = 1 - weighted with cluster area

  EdbCluster *c1=0;
  TObjArray *arr = s.GetElements();
  if(!arr) return -1;
  int ncl = arr->GetEntriesFast();
  if(!ncl) return 0;

  if(ncl==1) {
    c1 = (EdbCluster*)arr->UncheckedAt(0);
    c.Set( c1->eX, c1->eY, c1->eZ, c1->eArea, c1->eVolume, c1->eFrame, c1->eSide, c1->eSegment );
    return ncl;
  }
  else {
    double SX=0,SY=0,SZ=0;
    float  SA=0,SV=0,SF=0,SW=0;
    float  w;
    for(int i=0; i<ncl; i++) {
      c1 = (EdbCluster*)arr->UncheckedAt(i);
      if(wkey==1) w = c1->eArea;
      else        w = 1.;
      SX += w*c1->eX;
      SY += w*c1->eY;
      SZ += w*c1->eZ;
      SF += w*c1->eFrame;
      SW += w;
      SA +=   c1->eArea;
      SV +=   c1->eVolume;
    }
    c.Set( (float)(SX/SW), (float)(SY/SW), (float)(SZ/SW), SA, SV, Nint(SF/SW), c1->eSide, c1->eSegment );
  }
  return ncl;
}

GoodSegment()

bool EdbViewRec::GoodSegment	(	EdbSegment &	s,
		int	wkey = 0
	)

{
  // TODO:
  // - probability  to be a straight line  (chi2)
  // - probability  to be a grain (big&long)
  // - probability  to be a casual coincidence of more grains

  if(!s.GetElements())            return false;
  s.SetPuls(s.GetNelements());
  if( s.GetPuls() < ePulsMin )  return false;
  s.SetSide(((EdbCluster*)(s.GetElements()->At(0)))->eSide);
  FitSegment( s, wkey );
  if( Sqrt(s.GetTx()*s.GetTx()+s.GetTy()*s.GetTy()) > eThetaLim )     return false;
  s.SetSigma( Sqrt(s.GetSigmaX()*s.GetSigmaX() + s.GetSigmaY()*s.GetSigmaY()),
           CalculateSegmentChi2(s, eGrainSX, eGrainSY, eGrainSZ) );

  if( s.GetSigmaY() > eSigmaMax )       return false;

  return true;
}

Init()

bool EdbViewRec::Init

(

void

)

{
    // allocate memory here, return true if ok
    // all settings must be done before!

  printf("\nInit reconstructor:\n\n");

  if( eSeedThres.GetSize() != enT ) {     // set default threshold for the seed value
    eSeedThres.Set(enT);
    for(int i=0; i<enT; i++) eSeedThres[i]=eSeedThres0;
  }
  if( eNseedMax.GetSize() != enT ) {     // set default threshold for the seed value
    eNseedMax.Set(enT);
    for(int i=0; i<enT; i++) eNseedMax[i]=eNseedMax0;
  }

  enP.Set(enT);        // number of Phi divisions [enT]
  eTheta.Set(enT);     // limits of theta divisions [enT]
  eR.Set(enT);         // limits of theta divisions [enT]
  esP.Set(enT);        // number of Phi divisions [enT]
  esY.Set(enT);        // step   of Y divisions [enT]
  esX.Set(enT);        // step   of X divisions [enT]

  printf("enT \t= %d\n",enT);
  float st=0, sp=0, t0=0, dt = 0.;
  for(int it=0; it<enT; it++) {
    st = 1.8*SThetaGr( t0+dt , 0., eDZmin , eGrainSX, eGrainSY, eGrainSZ);
    dt = st/2.;
    eTheta[it] = t0 + st;
    t0 = eTheta[it];
    eR[it] = eDZmin*Tan(eTheta[it]);
    sp = Min( TwoPi(), 2.*SPhiGr( eTheta[it]-st , 0., eDZmin , eGrainSX, eGrainSY, eGrainSZ) );
    enP[it] = (int)(TwoPi()/sp + 0.001);
    esP[it] = TwoPi()/enP[it];            // reset Sphi for having the exactly equal sectors

    esX[it] = st/Cos(eTheta[it])*20. * 2.;
    esY[it] = eTheta[0]/Cos(eTheta[0])*20. * 2.;
  }

  enPtot = (int)(enP.GetSum());     // total number of phi divisions
  enY.Set(enPtot);                  // number of Y divisions [enPtot]
  printf("enPtot \t= %d\n",enPtot);

  eDmax = Sqrt( (eYmax-eYmin)*(eYmax-eYmin) + (eXmax-eXmin)*(eXmax-eXmin) );
  eFact = (eDmax*eDmax) / ((eYmax-eYmin)*(eXmax-eXmin));

  int kp=0;
  for(int it=0; it<enT; it++) {
    for(int ip=0; ip<enP[it]; ip++) {
      enY[kp] = (int)(eDmax/esY[it] + 1);
      kp++;
    }
  }
  enYtot = (int)(enY.GetSum());  // total number of Y divisions
  enX.Set(enYtot);               // number of X divisions [enYtot]
  printf("enYtot \t= %d\n",enYtot);

  kp=0;
  int ky=0;
  for(int it=0; it<enT; it++) {
    for(int ip=0; ip<enP[it]; ip++) {
      for(int iy=0; iy<enY[kp]; iy++) {
    enX[ky] = (int)(eDmax/esX[it] + 1);
    ky++;
      }
      kp++;
    }
  }
  enXtot = (int)(enX.GetSum());    // total number of X divisions
  printf("enXtot \t= %d\n",enXtot);
  printf("eDmax \t= %f  eFact = %f \n",eDmax, eFact);

  ehX = new Short_t[enXtot];        //- phase histogram
  epY = new Short_t*[enYtot];       //- pointers to the first x[iy]
  epP = new Short_t**[enPtot];      //- pointers to the first y[ip]
  epT = new Short_t***[enT];        //- pointers to the first phi[it]

  epS = new EdbCluster**[enXtot];       //- pointers to seeds lists (in epC)
  epC = new EdbCluster*[enSeedsLim*eSeedLim];  //- pointers to clusters

  Short_t *px = ehX;
  epY[0] = px;
  for(int iy=1; iy<enYtot; iy++) {  px += enX[iy-1]; epY[iy]=px; }

  Short_t **py = epY;
  epP[0] = py;
  for(int ip=1; ip<enPtot; ip++) {  py += enY[ip-1]; epP[ip]=py; }

  Short_t ***pp = epP;
  epT[0] = &(epP[0]);
  for(int it=1; it<enT; it++)    {  pp += enP[it-1]; epT[it]=pp; }

  for(int it=0; it<enT; it++)
    printf("%d theta = %5.4f  (r= %4.2f)\t esP = %f x %d \t sx = %f sy = %f \tseedthres = %d \tNseedsmax = %d\n",
       it,      eTheta[it], eR[it],
       esP[it], enP[it],
       esX[it], esY[it],
       eSeedThres[it],
       eNseedMax[it]);

  eVCC.Init();
  if(eDoGrainsProcessing) {  // segments reconstruction with grains preprocessing
    eVCG.Init();
    eGCla =  new TClonesArray("EdbCluster",eNgrMax);
  }

  //  if(!eAddGrainsToView)
  if(eNgrMax>0) eG = new TClonesArray("EdbSegment",eNgrMax);

  if(eNsegMax>0) if(!eSA) eSA = new TClonesArray("EdbSegment",eNsegMax);

  return true;
}

InitGrainsTree()

void EdbViewRec::InitGrainsTree

(

const char *

file = "grains.root"

)

---

{
  using namespace GRAINS_TREE;

  TFile *f;
  f = new TFile(file,"RECREATE");
  eGrainsTree = new TTree("grains","grains");
  eClust = new TClonesArray("EdbCluster");
  eSeg   = 0;
  eGrainsTree->Branch("view",&eViewID,"view/I");
  eGrainsTree->Branch("area",&eAreaID,"area/I");
  eGrainsTree->Branch("xv",&eXview,"xv");
  eGrainsTree->Branch("yv",&eYview,"xv");
  eGrainsTree->Branch("c",&eClust);
  eGrainsTree->BranchOld("s","EdbSegment",&eSeg);
}

InitR()

void EdbViewRec::InitR

(

)

{
  eR[0] = .5;                //microns
  eR[1] =  1.;
  eR[2] =  2.;
  eR[3] =  4.;
  eR[4] =  6.;
  eR[5] =  8.;
  eR[6] =  10.;
}

MergeSegments()

int EdbViewRec::MergeSegments

(

)

{
  int nseg = eSA->GetLast()+1;
  if(nseg<2) return nseg;

  int nmerge=0;
  TObject *c;
  EdbSegment *s;
  EdbSegment *s1,*s2;
  for(int i=0; i<nseg-1; i++) {
    s1 = (EdbSegment*)(eSA->UncheckedAt(i));;
    for(int j=i+1; j<nseg; j++) {
      s2 = (EdbSegment*)(eSA->UncheckedAt(j));
      if( s1->GetPuls() < 1 )                     continue;
      if( s2->GetPuls() < 1 )                     continue;
      if( Abs(s1->GetX0() - s2->GetX0()) > 40.)   continue;
      if( Abs(s1->GetY0() - s2->GetY0()) > 40.)   continue;
      if( Abs(s1->GetTx() - s2->GetTx()) > 0.12)  continue;
      if( Abs(s1->GetTy() - s2->GetTy()) > 0.12)  continue;
      if( Chi2Seg( *s1,*s2 ) > 3. )               continue;

      s = new EdbSegment();
      s->Copy(*s1);
      int nsame=0;
      for(int ii=0; ii<s2->GetNelements(); ii++) {
    c = s2->GetElements()->UncheckedAt(ii);
    if( !(s->GetElements()->FindObject(c)) )  s->AddElement( c );
    else nsame++;
      }
      if(nsame > s->GetNelements()/2) {   // same clusters - discard the second segment
    s2->UnSetIDE();
    s2->SetPuls(0);
    nmerge++;
      } else if( GoodSegment(*s) ) {     // s1 and s2 are parts of the same segment
    s->SetID(s1->GetID());
    s1->Copy(*s);
    s2->UnSetIDE();
    s2->SetPuls(0);
    nmerge++;
      }
      delete s;
    }
  }

  int good=0;
  nseg = eSA->GetLast()+1;
  for(int i=0; i<nseg; i++) {
    s = (EdbSegment*)(eSA->UncheckedAt(i));
    if(s->GetPuls()<1)  continue;
    s->SetIDE(i);
    good++;
  }

  printf("%d segments after %d merging\n", good, nmerge);
  return good;
}

ReconstructGrains()

int EdbViewRec::ReconstructGrains

(

)

{
  // stearing function for grains reconstruction
  // options: - save grains as the segments into eView
  //          - keep them as an independent array and then save to separate grains tree

  int ngr=0;

  ngr = FindGrains();

  if(eSA!=eG) { delete eSA; eSA=eG; }    // no tracking in this routine!
  //FillGrainsTree();

  return ngr;
}

ReconstructSegments()

int EdbViewRec::ReconstructSegments

(

)

{
  // stearing function for segments reconstruction
  // options: - with    grains preprocessing
  //          - without grains preprocessing

  int nseg=0;
  int ngr=0;

  eSA->Clear();             // clear segments array

  if(eDoGrainsProcessing) {
    ngr = FindGrains(1);    // 1- fit grains to clusters
    eVC = &eVCG;
    eCL = eGCla;            // switch processing to grains
    eVC->FillCell( *(eCL) );
  }

  FindSeeds();
  printf("FindSeeds ok\n");
  if(eCheckSeedThres)   CheckSeedThres();
  SelectSegments();
  MergeSegments();

  if(eDoGrainsProcessing) {   // switch processing back to clusters
    eCL->Clear();
    eVC = &eVCC;
    eCL = eView->GetClusters();
  }

  RefitSegments(1);

  return nseg;
}

RefillSegment()

int EdbViewRec::RefillSegment

(

EdbSegment &

s

)

{
  // attach to the segment all clusters(grains) close to him
  // assumed the segment is fitted

  float SX = Sqrt(eGrainSX*eGrainSX + eClaSX*eClaSX);
  float SY = Sqrt(eGrainSY*eGrainSY + eClaSY*eClaSY);
  float SZ = Sqrt(eGrainSZ*eGrainSZ + eClaSZ*eClaSZ);

  float dz0 = s.GetZ0() - eZmin;
  float dz1 = eZmax - s.GetZ0();
  float v[3];
  // segment line in a normalized space:
  float start[3]= { (s.GetX0()-dz0*s.GetTx())/SX,
            (s.GetY0()-dz0*s.GetTy())/SY,
            eZmin/SZ };
  float end[3]  = { (s.GetX0()+dz1*s.GetTx())/SX,
            (s.GetY0()+dz1*s.GetTy())/SY,
            eZmax/SZ };

  float sx = Sqrt( eGrainSZ*eGrainSZ*s.GetTx()*s.GetTx() + eGrainSX*eGrainSX );
  float sy = Sqrt( eGrainSZ*eGrainSZ*s.GetTy()*s.GetTy() + eGrainSY*eGrainSY );

  EdbCluster  **cla=0;
  TObjArray  *ela=s.GetElements();
  ela->Clear();
  EdbCluster *c=0;
  float x0,y0,x,y,dz;
  int   n1, lx, ly, lx0,ly0;
  int   jcell=0;
  for(int i=0; i<eVC->eNfr; i++) {
    dz = eView->GetFrame(i)->GetZ() - s.GetZ0();
    x0  = s.GetX0() + s.GetTx()*dz;
    y0  = s.GetY0() + s.GetTy()*dz;
    lx0 = eVC->IXcell(x0);
    ly0 = eVC->IYcell(y0);
    for(int ix=-1; ix<2; ix++)
      for(int iy=-1; iy<2; iy++) {
    x = x0 + ix*sx;
    if(x<eVC->eXmin||x>eVC->eXmax) continue;
    y = y0 + iy*sy;
    if(y<eVC->eYmin||y>eVC->eYmax) continue;
    lx = eVC->IXcell(x);
    ly = eVC->IYcell(y);
    if(ix!=0&&iy!=0)
      if( lx == lx0 && ly == ly0 ) continue;
    jcell = eVC->Jcell(lx,ly,i);
    n1    = eVC->eNC[jcell];
    if(!n1)   continue;
    cla = eVC->GetCell(jcell);
    for(int i1=0; i1<n1; i1++) {
      c = cla[i1];
      v[0] = c->eX/SX;
      v[1] = c->eY/SY;
      v[2] = c->eZ/SZ;
      if( EdbMath::DistancePointLine3(v,start,end, true) < 2. )
        if( !(ela->FindObject(c)) )  ela->Add( c );
    }
      }
  }
  int nn = ela->GetEntriesFast();
  s.SetPuls(nn);
  return nn;
}

RefitSegments()

int EdbViewRec::RefitSegments

(

int

wkey = 0

)

{
  int good=0;
  int nseg = eSA->GetLast()+1;
  EdbSegment *s;
  for(int i=0; i<nseg; i++) {
    s = (EdbSegment*)(eSA->UncheckedAt(i));
    if(s->GetPuls()<1)  continue;
    s->UnSetIDE();
    RefillSegment(*s);
    if( !GoodSegment(*s,wkey) ) {
      s->UnSetIDE();
      s->SetPuls(0);
      continue;
    }
    if( s->GetSigmaY() < eSigmaMin || s->GetSigmaY() > eSigmaMax ) {
      s->UnSetIDE();
      s->SetPuls(0);
      continue;
    }

    s->SetIDE(i);
    good++;
  }

  printf("%d segments after refitting\n", good);
  return good;
}

ResetClustersSeg()

void EdbViewRec::ResetClustersSeg

(

)

{
  // set sl.eSegment to the default value (-1) - important only for simulation

  int ncl=eCL->GetLast()+1;
  if(ncl>0)
    for(int i=0; i<ncl; i++) ((EdbCluster*)eCL->UncheckedAt(i))->eSegment=-1;
}

SaveToOutputView()

bool EdbViewRec::SaveToOutputView	(	EdbView &	vout,
		int	do_h = 1,
		int	do_c = 2,
		int	do_s = 2,
		int	do_tr = 0,
		int	do_f = 2
	)

{
  // Put the result into the output view;  return true if successful
  //
  // do_h : 0/1   (1) - header info:   1-save; 0 - do not save;
  // do_c : 0/1/2 (2) - cluster  info: 1-save all; 2-save attached to segments; 0- do not save;
  // do_s : 0/1/2 (2) - segments info: 1-save all; 2-save selected; 0- do not save;
  // do_tr:       (0) - track info:
  // do_f : 0/1/2 (2) - frames info:   1-save all; 2-do not save images(if any); 0-do not save;

  if(do_h>0) vout.GetHeader()->Copy(eView->GetHeader());

  if(do_s>0) {
    int nseg = eSA->GetLast()+1;
    EdbSegment *s;
    for(int i=0; i<nseg; i++) {
      s = (EdbSegment*)(eSA->UncheckedAt(i));
      if(do_s==2) if(s->GetPuls()<1)  continue;
      if(ePropagateToBase) {
    s->SetX0( s->GetX0() + s->GetTx()*(eZxy-s->GetZ0()) );
    s->SetY0( s->GetY0() + s->GetTy()*(eZxy-s->GetZ0()) );
    s->SetZ0(eZxy);
      }
      vout.AddSegment(s);
    }
    printf( "%d segments saved (ot of %d)\n", vout.Nsegments(),nseg );
  }

  if(do_c>0) {
    int ncl = eCL->GetLast()+1;
    EdbCluster *c=0;
    for(int i=0; i<ncl; i++) {
      c = (EdbCluster*)(eCL->UncheckedAt(i));
      if(do_c==2) if(c->eSegment<0) continue;
      vout.AddCluster(c);
    }
  }

  if(do_f>0) {
    int nfr = eView->GetNframes();
    for(int i=0; i<nfr; i++) {
      vout.AddFrame(eView->GetFrame(i));
    }
  }

  return true;
}

SelectSegments()

int EdbViewRec::SelectSegments

(

)

{
  int good  = 0;
  int seeds = 0;

  EdbSegment *s=0;
  EdbCluster *c=0;
  EdbCluster **pps;
  int jmax, iseg;
  Short_t *p0,*pnext, *plast = ehX+enXtot;
  for(int it=0; it<enT; it++) {
    p0    = epT[it][0][0];
    if(it==enT-1) pnext = plast;
    else          pnext = epT[it+1][0][0];
    while(p0<pnext) {
      jmax = *p0;
      if( jmax>=eSeedThres[it] ) {
    int ict = p0-ehX;
    pps = epS[ict];
    jmax = (jmax<eSeedLim)?jmax:eSeedLim;
    seeds++;
    s = new EdbSegment();
    for(int j=0; j<jmax; j++) {
      c = *pps;
      if( !(s->GetElements()) ) s->AddElement(c);
      else if( !(s->GetElements()->FindObject(c)) ) s->AddElement(c);
      pps++;
    }
    if( GoodSegment(*s) )  {
      good++;
      iseg = eSA->GetLast()+1;
      s->SetIDE(iseg);
      new((*eSA)[iseg])  EdbSegment( *s );
    }
    else delete s;
      }
      p0++;
    }
  }

  printf("%d ( %d ) segments (seeds) are selected\n", good,seeds);
  return good;
}

SetAddGrainsToView()

void EdbViewRec::SetAddGrainsToView ( bool  yesno )

inline

{eAddGrainsToView=yesno;}

SetClThres()

void EdbViewRec::SetClThres ( int  mina, int  maxa  )

inline

{ eClMinA=mina; eClMaxA=maxa; }

SetNclGrLim()

void EdbViewRec::SetNclGrLim ( int  mincl, int  maxcl  )

inline

{ eNclGrMin=mincl; eNclGrMax=maxcl; }

SetNgrMax0()

void EdbViewRec::SetNgrMax0 ( Int_t  ngr )

inline

{eNgrMax=ngr;}

SetNSeedMax()

void EdbViewRec::SetNSeedMax ( int  nt, int  th[]  )

inline

{ if(nt>0){ enT=nt; eNseedMax.Set(nt,th);} };

SetNSeedMax0()

void EdbViewRec::SetNSeedMax0 ( int  n )

inline

{ eNseedMax0=n; }

SetPrimary()

void EdbViewRec::SetPrimary

(

)

{
    // define default primary values used later for the calculations in Init() function
    // before Init them can be modified by correspondent setters

  eClMinA = 1;     // by default accept all clusters
  eClMaxA = 10000; // by default accept almoust all clusters

  eVCC.SetLimits(eXmin,eXmax,eYmin,eYmax,eZmin,eZmax);
  eVCC.SetBin(10,10);                                   // cell size
  eVCC.SetCellLimits(100000,20);

  eVCG.SetLimits(eXmin,eXmax,eYmin,eYmax,eZmin,eZmax);
  eVCG.SetBin(10,10);                                   // cell size (TODO!)
  eVCG.SetCellLimits(100000,20);

  eDZmin = 5.87;   // TODO!!!
  enT = 7;         // number of Theta divisions!

  eThetaLim  = 1.5;     // max theta angle
  enSeedsLim = 100000;  // limit for the total number of seeds
  eSeedLim   = 48;      // limit for the seed value
  eNseedMax0 = 10;      // starting limit for the good seeds (segments) to be analysed (used in CheckSeedThres)/theta
  eStep     = 1;
  eStepFrom = 2;
  eStepTo   = 3;
  eRmax     = 11.;      // limit on 3-dim distance between points [microns]
  eSeedThres0   = 5;    // limit for the seed value
  eFact=1.;             // occupancy correction factor

  ePulsMin = 4;         //default threshold for the segment puls value
  ePulsMax = 500;       //default threshold for the segment puls value

  eNsegMax=10000;       // limit for the segments number

  eNgr=0;
  eNgrMax=200000;           // limit for the grains number
  //  eAddGrainsToView = false; // use a dedicated array for eG
  eNclGrMin = 1;
  eNclGrMax = 6;

  eGrainNbin = 2.;          // acceptance for grain preprocessing = eGrainNbin*eGrainSX

  eDoGrainsProcessing = true;  // when reconstruct segments do grains preprocessing
  eCheckSeedThres     = false; // if true: use adaptive seeds threshold (based on eNseedMax)
  ePropagateToBase    = false; // if true: segments are propagated to the base position

// set to 0 all pointers
  eView       = 0;
  eGrainsTree = 0;

  eG          = 0;          // grains
  eVC         = 0;
  //  eGSeg       = 0;
  eG          = 0;
  eGCla       = 0;
  eCL         = 0;
  eSA         = 0;

  epT = 0;
  epP = 0;
  epY = 0;
  ehX = 0;
  epS = 0;
  epC = 0;

}

SetPulsThres()

void EdbViewRec::SetPulsThres ( int  minp, int  maxp = 500  )

inline

{ ePulsMin=minp; ePulsMax=maxp;  }

SetRmax()

void EdbViewRec::SetRmax ( float  rmax )

inline

{ eRmax=rmax; }

SetSeedsLim()

void EdbViewRec::SetSeedsLim ( int  nseedslim = 100000, int  seedlim = 48  )

inline

{ enSeedsLim=nseedslim; eSeedLim=seedlim; }

SetSeedThres()

void EdbViewRec::SetSeedThres ( int  nt, int  th[]  )

inline

{ if(nt>0){ enT=nt; eSeedThres.Set(nt,th);} };

SetSeedThres0()

void EdbViewRec::SetSeedThres0 ( Short_t  mins )

inline

{ eSeedThres0=mins;}

SetSigmaThres()

void EdbViewRec::SetSigmaThres ( float  smin, float  smax  )

inline

{ eSigmaMin=smin; eSigmaMax=smax;  }

SetStep()

int EdbViewRec::SetStep ( int  sfrom, int  sto, int  step = 1  )

inline

{ eStepFrom=sfrom; eStepTo=sto; eStep=step; return (sto-sfrom)/step; }

SetThetaLim()

void EdbViewRec::SetThetaLim ( float  t )

inline

{ eThetaLim=t; }

SetView()

bool EdbViewRec::SetView

(

EdbView *

v

)

{
  if(!v)   return false;
  eView = v;
  eCL   = v->GetClusters();
  if(!eCL) return false;

  if     ( eView->GetNframesTop()==0 && eView->GetNframesBot()>0 ) {  //bottom side
    //eZmin = eView->GetZ1();
    //eZmax = eView->GetZ2();
    eZmin = eView->ZFrameMin();
    eZmax = eView->ZFrameMax();
    eZxy     = eZmax;        // base point
  }
  else if( eView->GetNframesBot()==0 && eView->GetNframesTop()>0 ) {  //top side
    //eZmin = eView->GetZ3();
    //eZmax = eView->GetZ4();
    eZmin = eView->ZFrameMin();
    eZmax = eView->ZFrameMax();
    eZxy     = eZmin;        // base point
  } else return false;
  eZcenter = 0.5*(eZmin+eZmax);
//   if(eAddGrainsToView) {
//     eG = eView->GetSegments();
//     if(!eG) printf("\n***** eG is 0!!!!!!\n\n");
//     printf("***** eG size is is %d \n",  eG->GetSize() );
//     if(eG->GetSize()<eNgrMax)  eG->Expand(eNgrMax);
//   }


  //eVCC.SetNfr( eView->GetNframes(), eZmin, eZmax );
  eVCC.SetNfr( eView->GetNframes(), eZmin, eZmax,1 );
  eVCG.SetNfr( 16, eZmin, eZmax, 1 );

  eVC = &eVCC;
  eVC->Print();
  eVC->FillCell( *(eCL) );

  return true;
}

SPhiGr()

float EdbViewRec::SPhiGr	(	float	theta,
		float	phi,
		float	dz,
		float	sx,
		float	sy,
		float	sz
	)

{
  // cone aperture phi angle for grain of size sx,sy,sz  visible at theta,phi,dz
  float rz = Abs(dz*Tan(theta));
  float rg = Sqrt( sx*Sin(phi)*sx*Sin(phi) + sy*Cos(phi)*sy*Cos(phi) );
  if(rz<rg) return TwoPi();
  return   ATan(rg/rz);
}

SThetaGr()

float EdbViewRec::SThetaGr	(	float	theta,
		float	phi,
		float	dz,
		float	sx,
		float	sy,
		float	sz
	)

{
  // cone aperture theta angle for grain of size sx,sy,sz  visible at theta,phi,dz
  return ATan( Sqrt( sz*Sin(theta)*sz*Sin(theta) +
             sx*Sin(phi)*sx*Sin(phi) + sy*Cos(phi)*sy*Cos(phi) )  /
           (dz/Cos(theta)) );
}

Member Data Documentation

eAddGrainsToView

bool EdbViewRec::eAddGrainsToView

eCheckSeedThres

bool EdbViewRec::eCheckSeedThres

eCL

TClonesArray* EdbViewRec::eCL

private

[eNgrMax] array of grains represented as clusters

eClMaxA

Int_t EdbViewRec::eClMaxA

private

eClMinA

Int_t EdbViewRec::eClMinA

private

pointer to array of segments (output of tracking)

eDmax

Float_t EdbViewRec::eDmax

private

pointers to clusters

eDoGrainsProcessing

bool EdbViewRec::eDoGrainsProcessing

eDZmin

Float_t EdbViewRec::eDZmin

private

eFact

Float_t EdbViewRec::eFact

private

eG

TClonesArray* EdbViewRec::eG

private

cells with grains

eGCla

TClonesArray* EdbViewRec::eGCla

private

pointer to eView->GetSegments() or to eGSeg as the output for grain search

eGrainNbin

Float_t EdbViewRec::eGrainNbin

eGrainsTree

TTree* EdbViewRec::eGrainsTree

private

ehX

Short_t* EdbViewRec::ehX

private

[enYtot] - pointers to the first x[iy]

eNclGrMax

int EdbViewRec::eNclGrMax

private

eNclGrMin

int EdbViewRec::eNclGrMin

private

debug tree

eNgr

Int_t EdbViewRec::eNgr

private

eNgrMax

Int_t EdbViewRec::eNgrMax

private

pointer to the input view currently in processing

enP

TArrayI EdbViewRec::enP

private

enPtot

Int_t EdbViewRec::enPtot

private

eNseedMax

TArrayI EdbViewRec::eNseedMax

private

eNseedMax0

Int_t EdbViewRec::eNseedMax0

private

enSeedsLim

Int_t EdbViewRec::enSeedsLim

private

eNsegMax

Int_t EdbViewRec::eNsegMax

private

enT

Int_t EdbViewRec::enT

private

enX

TArrayI EdbViewRec::enX

private

enXtot

Int_t EdbViewRec::enXtot

private

enY

TArrayI EdbViewRec::enY

private

enYtot

Int_t EdbViewRec::enYtot

private

epC

EdbCluster** EdbViewRec::epC

private

pointers to seeds list

epP

Short_t*** EdbViewRec::epP

private

[enT] - pointers to the first phi[it]

ePropagateToBase

bool EdbViewRec::ePropagateToBase

epS

EdbCluster*** EdbViewRec::epS

private

[enXtot] - phase histogram

epT

Short_t**** EdbViewRec::epT

private

ePulsMax

Int_t EdbViewRec::ePulsMax

private

ePulsMin

Int_t EdbViewRec::ePulsMin

private

epY

Short_t** EdbViewRec::epY

private

[enPtot] - pointers to the first y[ip]

eR

TArrayF EdbViewRec::eR

private

eRmax

Float_t EdbViewRec::eRmax

private

eSA

TClonesArray* EdbViewRec::eSA

private

pointer to eView->GetClusters() or to eGCla as the input for tracking

eSeedLim

Short_t EdbViewRec::eSeedLim

private

eSeedThres

TArrayI EdbViewRec::eSeedThres

private

eSeedThres0

Int_t EdbViewRec::eSeedThres0

private

eSigmaMax

Float_t EdbViewRec::eSigmaMax

private

eSigmaMin

Float_t EdbViewRec::eSigmaMin

private

esP

TArrayF EdbViewRec::esP

private

eStep

Int_t EdbViewRec::eStep

private

eStepFrom

Int_t EdbViewRec::eStepFrom

private

eStepTo

Int_t EdbViewRec::eStepTo

private

esX

TArrayF EdbViewRec::esX

private

esY

TArrayF EdbViewRec::esY

private

eTheta

TArrayF EdbViewRec::eTheta

private

eThetaLim

Float_t EdbViewRec::eThetaLim

private

eVC

EdbViewCell* EdbViewRec::eVC

private

eVCC

EdbViewCell EdbViewRec::eVCC

private

pointer to eVCC or eVCG

eVCG

EdbViewCell EdbViewRec::eVCG

private

cells with raw clusters

eView

EdbView* EdbViewRec::eView

private

eZcenter

Float_t EdbViewRec::eZcenter

private

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEMC/EdbViewRec.h
• /home/antonio/fedra_doxygen/src/libEMC/EdbViewRec.cxx
