EdbPositionAlignment Class Reference

new alignment class developed mainly for compton search More...

#include <EdbPositionAlignment.h>

Inheritance diagram for EdbPositionAlignment:

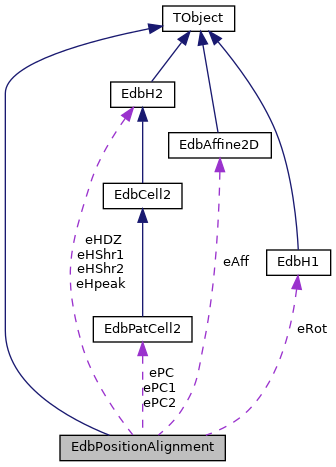

Collaboration diagram for EdbPositionAlignment:

Public Member Functions
bool	ActivatePosTree (const char *name="postree")
int	Align ()
void	AlignWithTracks (int nang=3, int npos=0)
int	DoubletsFilterOut (bool checkview=true)
int	DoubletsFilterOutSide (EdbPatCell2 &pc, bool checkview=true)
	EdbPositionAlignment ()
int	FillArrays (EdbPattern &p1, EdbPattern &p2)
int	FillArrays (TObjArray &arr1, TObjArray &arr2, float xymin[2], float xymax[2])
int	FillCombinations ()
int	FillCombinations (EdbPatCell2 &pc1, EdbPatCell2 &pc2, float dx, float dy, float dtx, float dty)
int	FillPosTree (float dz1, float dz2, int flag)
void	FindCorrections (EdbPattern &pat1, EdbPattern &pat2, float DZ, bool doShrink)
void	FindDiff (TObjArray &arr1, TObjArray &arr2, EdbPatCell2 &pc1, EdbPatCell2 &pc2, float &dx, float &dy, float &dtx, float &dty)
void	FindDiff10 (float &dx, float &dy, float &dtx, float &dty)
void	FindDiff12 (float &dx, float &dy, float &dtx, float &dty)
void	FindDiff20 (float &dx, float &dy, float &dtx, float &dty)
int	Link ()
void	PositionPlot (EdbH2 &hd)
void	PositionPlot (float dz1, float dz2, EdbH2 &hd)
void	PositionPlotA (EdbH2 &hd, float DR=0, TObjArray *arr1=0, TObjArray *arr2=0)
void	PrintStat ()
void	PrintSummary ()
void	RankCouples ()
void	RankCouples (TObjArray &arr1, TObjArray &arr2, TObjArray &arrtr)
void	RankCouples0 ()
void	RankCouplesFast (TObjArray &arrtr)
int	ReadPosTree (TTree *tree, EdbPattern *p=0, EdbPattern *p1=0, EdbPattern *p2=0, TEventList *lst=0)
void	ResetAngularCorr ()
void	ResetPeak ()
void	ResetPositionCorr ()
void	SaveAsTree (EdbPattern &pat, const char *name)
int	SelectNarrowPeakDXDY (float dr, EdbH2 &hxy)
int	SelectPeak (EdbPattern &p1, EdbPattern &p2, float dx, float dy, float dz1, float dz2)
int	SelectPeak (EdbPattern &p1, EdbPattern &p2, float dx=10, float dy=10)
int	SelectZone (float min[2], float max[2], TObjArray &arr1, TObjArray &arr2, float maxDens)
int	SelectZoneSide (EdbPatCell2 &pc, float min[2], float max[2], TObjArray &arr, int nmax=kMaxInt)
void	ShrinkageSelection (float dzbase)
int	ShrinkageSelectionSide (EdbPatCell2 &pc1, EdbPatCell2 &pc2, EdbH2 &hshr, int nstep, float deltaShr)
int	SpotsFilterOut (int nmax)
int	WideSearchXY (EdbPattern &pat1, EdbPattern &pat2, EdbH2 &hxy, float dz, float xmin, float xmax, float ymin, float ymax)
int	WritePosTree ()
float	Xcorr (EdbSegP &s, float dz)
float	Xcorr (EdbSegP &s, float dz, float dx)
float	Ycorr (EdbSegP &s, float dz)
float	Ycorr (EdbSegP &s, float dz, float dy)
void	Zselection (EdbH2 &hd)
virtual	~EdbPositionAlignment ()

Static Public Member Functions
static int	SelectBestComptons (TObjArray &a, TObjArray &arr, int nmax)

Public Attributes
EdbAffine2D *	eAff
	the found affine transformation (when applied to pattern1 gives pattern2 ) More...
Float_t	eBinX
Float_t	eBinY
	bin size for the differential hist (for example 5 microns) More...
Float_t	eChi2Max
	cut for the chi2 of the basetrack More...
TObjArray	eComb1
TObjArray	eComb2
	array with the selected combinations of segments More...
Bool_t	eDoRot
	if true - perform the rotation selection More...
Float_t	eDTXmax
Float_t	eDTXmin
Float_t	eDTYmax
	max angular acceptance (ex: 0.15) for the coinsidences More...
Float_t	eDTYmin
	min angular difference for the dublets cutout More...
Float_t	eDXmin
Float_t	eDYmin
	min position difference for the dublets cutout More...
EdbH2	eHDZ
	histogram used for Z-selection More...
EdbH2	eHpeak
	histogram used for peak selection More...
EdbH2	eHShr1
	histogram used for the shrinkage-selection More...
EdbH2	eHShr2
	histogram used for the shrinkage-selection More...
Int_t	eNpeak
	number of found combinations More...
Int_t	eNShr1step
Int_t	eNShr2step
	number of steps for the Shr-selection More...
Int_t	eNZ1step
Int_t	eNZ2step
	number of steps for the z-selection More...
EdbPatCell2	ePC
	cells with the pointers to tracks More...
EdbPatCell2	ePC1
EdbPatCell2	ePC2
	cells with the pointers to segments More...
TTree *	ePosTree
	optional: tree with s1:s2 for the selected combinations More...
EdbH1	eRot
	definition of the rotation steps More...
Float_t	eRpeak
	coordinate peak acceptance More...
Float_t	eS0tx
Float_t	eS0ty
	sigmas at 0 angle for the chi2 calculation More...
Float_t	eS0x
Float_t	eS0y
TObjArray	eSegCouples
	segment couples objects to fill couples format tree More...
Float_t	eShr1from
Float_t	eShr1to
	limits in Shr for the peak search (ePat1) More...
Float_t	eShr2from
Float_t	eShr2to
	limits in Shr for the peak search (ePat2) More...
TString	eSmoothKernel
	used to smooth histograms More...
TObjArray	eTracks
	tracks created with segments of eComb1, eComb2 More...
Float_t	eWbaseMin
	cut for the w of basetrack to accept it More...
float	eX0
Float_t	eXcell
Float_t	eXpeak
float	eY0
	coordinates of the center of the zone (for the ePeakNT only) More...
Float_t	eYcell
	cell size (for example 50 microns) More...
Float_t	eYpeak
	peak position in X,Y More...
Float_t	eZ1from
Float_t	eZ1peak
Float_t	eZ1to
	limits in Z for the peak search (ePat1) More...
Float_t	eZ2from
Float_t	eZ2peak
	peak position in Z More...
Float_t	eZ2to
	limits in Z for the peak search (ePat2) More...

Detailed Description

new alignment class developed mainly for compton search

Constructor & Destructor Documentation

EdbPositionAlignment()

EdbPositionAlignment::EdbPositionAlignment

(

)

{
  eXcell=eYcell=50;           // bin size (for example 50 microns)
  eDTXmax=eDTYmax=0.15;       // max angular acceptance (ex: 0.15) for the coincidence
  eDXmin=eDYmin=5;            // min position difference for the doublets cutout
  eDTXmin=eDTYmin=0.005;      // min angular  difference for the doublets cutout

  eX0=eY0=0;

  eZ1from=eZ1to=eZ1peak=0;
  eZ2from=eZ2to=eZ2peak=0;
  eNZ1step=eNZ2step=1;
  eNpeak = 0;
  eAff=0;

  eSmoothKernel = "0";
  ePosTree=0;

  // linking parameters
  eS0x  = eS0y  = 2.;
  eS0tx = eS0ty = 0.01;    // sigmas at 0 angle for the chi2 calculation
  eWbaseMin     = 12;      // cut for the w of basetrack to accept it
  eChi2Max      = 3.;      // cut for the chi2 of the basetrack

}

~EdbPositionAlignment()

EdbPositionAlignment::~EdbPositionAlignment ( )

virtual

{
  eComb1.Clear();
  eComb2.Clear();
  SafeDelete(eAff);
  eTracks.Delete();
}

Member Function Documentation

ActivatePosTree()

bool EdbPositionAlignment::ActivatePosTree

(

const char *

name = "postree"

)

{
  if(ePosTree) SafeDelete(ePosTree);
  ePosTree = new TTree(name,"postree (s1:s2)");
  EdbSegP *s1 =0, *s2 =0, *s=0;
  EdbSegCouple *cp=0;
  Float_t dz1,dz2;
  Int_t   flag;
  Float_t chi2;
  int pid1=0,pid2=0;
  float xv=0,yv=0;

  ePosTree->Branch("pid1", &pid1,"pid1/I");
  ePosTree->Branch("pid2", &pid2,"pid2/I");
  ePosTree->Branch("xv",   &xv,"xv/F");
  ePosTree->Branch("yv",   &yv,"yv/F");
  ePosTree->Branch("cp",   "EdbSegCouple",&cp,32000,99);
  ePosTree->Branch("s1.",  "EdbSegP",&s1,32000,99);
  ePosTree->Branch("s2.",  "EdbSegP",&s2,32000,99);
  ePosTree->Branch("s." ,  "EdbSegP",&s ,32000,99);

  ePosTree->Branch("dz1",  &dz1,"dz1/F");
  ePosTree->Branch("dz2",  &dz2,"dz2/F");
  ePosTree->Branch("flag", &flag,"flag/I");
  ePosTree->Branch("chi2", &chi2,"chi2/F");
  return true;
}

Align()

int EdbPositionAlignment::Align

(

)

find the best alignment of the given zone

{

  int n[2] = { (int)(2*(eXcell/eBinX)+1), (int)(2*(eYcell/eBinY)+1) };
  float min[2] = {-eXcell,-eYcell};
  float max[2] = { eXcell, eYcell};
  EdbH2 hd;           // define the differential hist for the peaks search
  hd.InitH2(n, min, max);
  Zselection(hd);     // roughly define eZ1peak, eZ2peak, eXpeak,eYpeak

  if(ePosTree) FillPosTree( eZ1peak, eZ2peak, 0);   // flag=0

  EdbPattern p1, p2;
  int npeak = 0;
  npeak = SelectPeak(p1,p2, eRpeak, eRpeak );
  p1.Clear(); p2.Clear();
  npeak = SelectPeak(p1,p2, eRpeak, eRpeak );
  //if(ePosTree) FillPosTree( p1, p2, 0, 0, 1);    // flag=1

  return npeak;
}

AlignWithTracks()

void EdbPositionAlignment::AlignWithTracks	(	int	nang = 3,
		int	npos = 0
	)

assuming that the combinations are found and tracks are reconstructed
correct DTX,DTY of the sides in respect of the tracks

{

  for(int i=0; i<nang; i++) {
    float dx, dy, dtx, dty;
    FindDiff10(dx, dy, dtx, dty);
    Log(3,"AlignWithTracks", "%d angle side 1 diff: %f %f %f %f with %d ", i,dx, dy, dtx, dty, eComb1.GetEntries());
    ePC1.eDTX += dtx;
    ePC1.eDTY += dty;
    FindDiff20(dx, dy, dtx, dty);
    Log(3,"AlignWithTracks", "%d angle side 2 diff: %f %f %f %f with %d ", i,dx, dy, dtx, dty, eComb2.GetEntries());
    ePC2.eDTX += dtx;
    ePC2.eDTY += dty;
  }

  for(int i=0; i<npos; i++) {
    float dx, dy, dtx, dty;
    FindDiff12(dx, dy, dtx, dty);
    Log(3,"AlignWithTracks", "%d pos side 1 diff: %f %f %f %f with %d ", i, dx, dy, dtx, dty, eComb1.GetEntries());
    ePC1.eDX += dx/2.;
    ePC1.eDY += dy/2.;
    ePC2.eDX -= dx/2.;
    ePC2.eDY -= dy/2.;
  }

}

DoubletsFilterOut()

int EdbPositionAlignment::DoubletsFilterOut

(

bool

checkview = true

)

{
  return DoubletsFilterOutSide(ePC1,checkview) + DoubletsFilterOutSide(ePC2,checkview);
}

DoubletsFilterOutSide()

int EdbPositionAlignment::DoubletsFilterOutSide	(	EdbPatCell2 &	pc,
		bool	checkview = true
	)

assign flag = -10 for the duplicated segments
if(checkview) - do not remove close segments if them are in the same view

{

  int nout =0;
  int n = FillCombinations(pc, pc, eDXmin, eDYmin, eDTXmin, eDTYmin);
  EdbSegP *s1,*s2;
  for(int i=0; i<n; i++) {
    s1 = (EdbSegP*)eComb1.UncheckedAt(i);
    s2 = (EdbSegP*)eComb2.UncheckedAt(i);
    if(checkview) if( s2->Aid(0)==s1->Aid(0) && s2->Aid(1)==s1->Aid(1) &&  s2->Side()==s1->Side() )    continue;
    if( s2->W()>s1->W() ) s1->SetFlag(-10);
    else                  s2->SetFlag(-10);
    nout++;
  }

  if(ePosTree) FillPosTree( 0., 0., -10);

  Log(2,"DubletsFilterOut","%d segments discarded with DX,DY,DTX,DTY: (%5.1f %5.1f %5.3f %5.3f) checkview =%d",
      nout,eDXmin, eDYmin, eDTXmin, eDTYmin, checkview );
  return nout;
}

FillArrays() [1/2]

int EdbPositionAlignment::FillArrays	(	EdbPattern &	p1,
		EdbPattern &	p2
	)

{
  ePC1.Reset();
  ePC2.Reset();

  float marg = eXcell/2.;
  float min1[2] = { Min(p1.Xmin(),p2.Xmin())-marg, Min(p1.Ymin(),p2.Ymin())-marg };
  float max1[2] = { Max(p1.Xmax(),p2.Xmax())+marg, Max(p1.Ymax(),p2.Ymax())+marg };
  int     n1[2] = { (int)((max1[0]-min1[0])/eXcell+1), (int)((max1[1]-min1[1])/eYcell+1) };
  //eXcell = Max((max1[0]-min1[0])/n1[0],mincell);
  //eYcell = Max((max1[1]-min1[1])/n1[1],mincell);
  float min2[2] = { min1[0]-eXcell, min1[1]-eYcell };
  float max2[2] = { max1[0]+eXcell, max1[1]+eYcell };
  int   n2[2]   = { n1[0]+2     , n1[1]+2      };

  if( n1[0]<1 || n1[1]<1 )           return 0;
  int meancell1 = (int)(p1.N()/n1[0]/n1[1]);
  int meancell2 = (int)(p2.N()/n2[0]/n2[1]);
  int maxcell1  = (int)(10 + meancell1 + 5*Sqrt(meancell1));
  int maxcell2  = (int)(10 + meancell2 + 5*Sqrt(meancell2));

  ePC1.InitCell(maxcell1, n1, min1, max1);
  ePC2.InitCell(maxcell2, n2, min2, max2);

  int nc1 = ePC1.FillCell(p1);
  int nc2 = ePC2.FillCell(p2);

  Log(3,"FillArrays","filled objects/cells: %d / %d  and  %d / %d  in cells of (%6.1f x %6.1f)",
      p1.N(), nc1, p2.N(), nc2, eXcell, eYcell);
  return nc1+nc2;
}

FillArrays() [2/2]

int EdbPositionAlignment::FillArrays	(	TObjArray &	arr1,
		TObjArray &	arr2,
		float	xymin[2],
		float	xymax[2]
	)

{
  ePC1.Reset();
  ePC2.Reset();

  float marg = 0.0001;
  float min1[2] = { xymin[0]-marg, xymin[1]-marg };
  float max1[2] = { xymax[0]+marg, xymax[1]+marg };
  int     n1[2] = { (int)((max1[0]-min1[0])/eXcell+1), (int)((max1[1]-min1[1])/eYcell+1) };
  eXcell = (max1[0]-min1[0])/n1[0];
  eYcell = (max1[1]-min1[1])/n1[1];
  float min2[2] = { min1[0]-eXcell, min1[1]-eYcell };
  float max2[2] = { max1[0]+eXcell, max1[1]+eYcell };
  int   n2[2]   = { n1[0]+2     , n1[1]+2      };

  if( n1[0]<1 || n1[1]<1 )           return 0;
  int entr1 = arr1.GetEntriesFast();
  int entr2 = arr2.GetEntriesFast();
  int meancell1 = (int)(entr1/n1[0]/n1[1]);
  int meancell2 = (int)(entr2/n2[0]/n2[1]);
  int maxcell   = (int)Max(meancell1,meancell2)+10;
  maxcell += (int)(5*Sqrt(maxcell));                         // define safe value for max/cell limit

  ePC1.InitCell(maxcell, n1, min1, max1);
  ePC2.InitCell(maxcell, n2, min2, max2);

  int nc1 = ePC1.FillCell(arr1);
  int nc2 = ePC2.FillCell(arr2);

  Log(3,"FillArrays","%d and %d cells filled", nc1,nc2);
  return nc1;
}

FillCombinations() [1/2]

int EdbPositionAlignment::FillCombinations

(

)

{
  return FillCombinations(ePC1, ePC2, eXcell, eYcell, eDTXmax, eDTYmax);
}

FillCombinations() [2/2]

int EdbPositionAlignment::FillCombinations	(	EdbPatCell2 &	pc1,
		EdbPatCell2 &	pc2,
		float	dx,
		float	dy,
		float	dtx,
		float	dty
	)

the cells must be already filled

{
  pc1.eDXlim  = dx;   pc1.eDYlim  = dy;
  pc1.eDTXlim = dtx;  pc1.eDTYlim = dty;
  eComb1.Clear();
  eComb2.Clear();
  int ir[2] = { int((dx-0.0001)/eXcell)+1, int((dy-0.0001)/eYcell)+1 };
  int ncomb = pc1.FillCombinations(pc2, ir, eComb1, eComb2);
  Log(3,"FillCombinations","%d selected with the acceptance: %7.2f %7.2f ( %d x %4.1f, %d x %4.1f )   and %7.4f %7.4f ",
      ncomb, dx,dy, ir[0], eXcell, ir[1], eYcell, dtx, dty );
  return ncomb;
}

FillPosTree()

int EdbPositionAlignment::FillPosTree	(	float	dz1,
		float	dz2,
		int	flag
	)

{
  if(!ePosTree)    return 0;
  EdbSegP      *sb1 = new EdbSegP();
  EdbSegP      *sb2 = new EdbSegP();
  EdbSegP      *sb  = new EdbSegP();
  EdbSegCouple *cp  = new EdbSegCouple();

  ePosTree->SetBranchAddress("cp"  , &cp  );
  ePosTree->SetBranchAddress("s1." , &sb1);
  ePosTree->SetBranchAddress("s2." , &sb2);
  ePosTree->SetBranchAddress("s."  , &sb);
  ePosTree->SetBranchAddress("dz1" , &dz1);
  ePosTree->SetBranchAddress("dz2" , &dz2);
  ePosTree->SetBranchAddress("flag", &flag);
  Float_t chi2;
  ePosTree->SetBranchAddress("chi2", &chi2);

  EdbSegCouple *cpt=0;
  EdbSegP *s1, *s2;
  EdbTrackP *t;
  int nsaved = 0;

  int n   = eComb1.GetEntries();
  int nt  = eTracks.GetEntries();
  int ncp = eSegCouples.GetEntries();

  for(int i=0; i<n; i++) {
    s1 = (EdbSegP*)eComb1.UncheckedAt(i);
    s2 = (EdbSegP*)eComb2.UncheckedAt(i);
    if(nt==n) {
      t = (EdbTrackP*)eTracks.UncheckedAt(i);
      if(t->Chi2()>eChi2Max) continue;
      sb->Copy( *((EdbSegP*)t) );
    }
    if(ncp==n) {
      cpt = (EdbSegCouple*)eSegCouples.UncheckedAt(i);
      *cp = *cpt;
    }
    sb1->Copy(*s1);
    sb2->Copy(*s2);
    ePosTree->Fill();
    nsaved++;
  }
  Log(2,"FillPosTree","%s %d couples saved with chi2 <= %f", ePosTree->GetName(), nsaved, eChi2Max);
  return n;
}

FindCorrections()

void EdbPositionAlignment::FindCorrections	(	EdbPattern &	pat1,
		EdbPattern &	pat2,
		float	DZ,
		bool	doShrink
	)

find corrections assuming the patterns already closely aligned (linking case)
DZ is the distance between patterns(fixed)

{

  FillArrays(pat1, pat2);     // fill at nominal quote - important for doublets and for shrinkage check
  //DoubletsFilterOut(true);
  if(doShrink)   ShrinkageSelection(DZ);

  ePC1.eDZ =  DZ/2;
  ePC2.eDZ = -DZ/2;
  ePC1.eApplyCorr = ePC2.eApplyCorr = true;
  FillArrays(pat1, pat2);                      // fill at the same quote - to increase the coinsidences
  FillCombinations();
  //Link();

  int    nxy[2]  = {51,51};                    // TODO
  float  min[2]  = {-2*eXcell, -2*eXcell };
  float  max[2]  = { 2*eXcell,  2*eXcell };
  EdbH2  hxy;
  hxy.InitH2(nxy, min, max);

  SelectNarrowPeakDXDY(10., hxy);   // only peak couples remaining in eComb1/2
  RankCouples0();                   // construct tracks (without correction)

  if(ActivatePosTree("postreeDXDY"))  { FillPosTree(0, 0, 9); WritePosTree(); }

  ResetPositionCorr();
  ResetAngularCorr();


  AlignWithTracks(3,0);      // only angular correction of segments to keep original basetrack angle

  if(ActivatePosTree("postreeDXDYalign"))  { FillPosTree(0, 0, 8); WritePosTree(); }

  Log(3,"FindCorrections","side1 (shr,dx,dy,dtx,dty): %f   %f %f   %f %f", ePC1.eShr, ePC1.eDX, ePC1.eDY, ePC1.eDTX, ePC1.eDTY);
  Log(3,"FindCorrections","side2 (shr,dx,dy,dtx,dty): %f   %f %f   %f %f", ePC2.eShr, ePC2.eDX, ePC2.eDY, ePC2.eDTX, ePC2.eDTY);
}

FindDiff()

void EdbPositionAlignment::FindDiff	(	TObjArray &	arr1,
		TObjArray &	arr2,
		EdbPatCell2 &	pc1,
		EdbPatCell2 &	pc2,
		float &	dx,
		float &	dy,
		float &	dtx,
		float &	dty
	)

{
  Log(3,"FindDiff","pc1: %f %f %f %f %f %f %f",pc1.eDX, pc1.eDY, pc1.eDZ, pc1.eDTX, pc1.eDTY, pc1.ePhi, pc1.eShr);
  Log(3,"FindDiff","pc2: %f %f %f %f %f %f %f",pc2.eDX, pc2.eDY, pc2.eDZ, pc2.eDTX, pc2.eDTY, pc2.ePhi, pc2.eShr);

  int n = arr1.GetEntries();
  EdbSegP *s1,*s2;
  Double_t sdx=0, sdy=0, sdtx=0, sdty=0;
  for(int i=0; i<n; i++) {
    s1 = (EdbSegP*)arr1.UncheckedAt(i);
    s2 = (EdbSegP*)arr2.UncheckedAt(i);
    sdx  += pc2.Xs(*s2)-pc1.Xs(*s1);
    sdy  += pc2.Ys(*s2)-pc1.Ys(*s1);
    sdtx += pc2.TXs(*s2)-pc1.TXs(*s1);
    sdty += pc2.TYs(*s2)-pc1.TYs(*s1);
  }
  if(Abs(sdtx)>10)     Log(1,"FindDiff","%f %f %f %f",sdx,sdy,sdtx,sdty);
  dx  = sdx/n;
  dy  = sdy/n;
  dtx = sdtx/n;
  dty = sdty/n;
}

FindDiff10()

void EdbPositionAlignment::FindDiff10	(	float &	dx,
		float &	dy,
		float &	dtx,
		float &	dty
	)

{
  FindDiff(eComb1, eTracks, ePC1, ePC, dx,dy,dtx,dty);
}

FindDiff12()

void EdbPositionAlignment::FindDiff12	(	float &	dx,
		float &	dy,
		float &	dtx,
		float &	dty
	)

{
  FindDiff(eComb1, eComb2, ePC1, ePC2, dx,dy,dtx,dty);
}

FindDiff20()

void EdbPositionAlignment::FindDiff20	(	float &	dx,
		float &	dy,
		float &	dtx,
		float &	dty
	)

{
  FindDiff(eComb2, eTracks, ePC2, ePC, dx,dy,dtx,dty);
}

Link()

int EdbPositionAlignment::Link

(

)

{
  //FillArrays(p1, p2);
  eComb1.Clear();
  eComb2.Clear();
  ePC1.eDXlim  = 2*eXcell;   ePC1.eDYlim  = 2*eYcell;
  ePC1.eDTXlim = 0.12;       ePC1.eDTYlim = 0.12;
  int ir[2] = {2,2};
  int ncomb = ePC1.FillCombinations(ePC2, ir, eComb1, eComb2);
  //RankCouples();

  Log(1,"WARNING: deprecated function: EdbPositionAlignment::Link"," %8d combinations found",       ncomb );
  return ncomb;
}

PositionPlot() [1/2]

void EdbPositionAlignment::PositionPlot

(

EdbH2 &

hd

)

output: hd - differential hist, should be already defined
use correction defined in ePC1, ePC2 if requested

{

  int n1 = eComb1.GetEntries();
  EdbSegP *s1,*s2;
  for(int i=0; i<n1; i++) {
    s1 = (EdbSegP*)eComb1.UncheckedAt(i);
    s2 = (EdbSegP*)eComb2.UncheckedAt(i);
    hd.Fill( ePC2.Xs(*s2) - ePC1.Xs(*s1),
         ePC2.Ys(*s2) - ePC1.Ys(*s1) );
  }
}

PositionPlot() [2/2]

void EdbPositionAlignment::PositionPlot	(	float	dz1,
		float	dz2,
		EdbH2 &	hd
	)

dz1,dz2 offsets in Z,
output: hd - differential hist, should be already defined

{

  int n1 = eComb1.GetEntries();
  EdbSegP *s1,*s2;
  for(int i=0; i<n1; i++) {
    s1 = (EdbSegP*)eComb1.UncheckedAt(i);
    s2 = (EdbSegP*)eComb2.UncheckedAt(i);
    hd.Fill( Xcorr(*s2,dz2)-Xcorr(*s1,dz1), Ycorr(*s2,dz2)-Ycorr(*s1,dz1) );
  }
}

PositionPlotA()

void EdbPositionAlignment::PositionPlotA	(	EdbH2 &	hd,
		float	DR = 0,
		TObjArray *	arr1 = 0,
		TObjArray *	arr2 = 0
	)

dz1,dz2 offsets in Z should be defined in ePC1, ePC2
output: hd - differential hist, should be already defined
fill arr1 and arr2 if requested, using dr

{

  hd.CleanCells();
  int n1 = eComb1.GetEntries();
  EdbSegP *s1,*s2;
  bool fillarr=false;
  if(arr1&&arr2&&DR>0)  fillarr=true;
  float dx, dy, dr;
  for(int i=0; i<n1; i++) {
    s1 = (EdbSegP*)eComb1.UncheckedAt(i);
    s2 = (EdbSegP*)eComb2.UncheckedAt(i);
    dx = ePC2.Xs(*s2)-ePC1.Xs(*s1);
    dy = ePC2.Ys(*s2)-ePC1.Ys(*s1);
    hd.Fill( dx, dy );
    if(fillarr) {
      dr = Sqrt(dx*dx+dy*dy);
      if(dr>DR)  continue;
      arr1->Add(s1);
      arr2->Add(s2);
    }
  }
}

PrintStat()

void EdbPositionAlignment::PrintStat

(

)

{
  ePC1.PrintStat();
  ePC2.PrintStat();
  printf("Z variate as:  pat1: %d (%6.1f %6.1f)  pat2: %d (%6.1f %6.1f) \n",
     eNZ1step,eZ1from,eZ1to,  eNZ2step,eZ2from,eZ2to);
}

PrintSummary()

void EdbPositionAlignment::PrintSummary

(

)

{
  printf("Alignment summary: ncomb = %7d\n",eComb1.GetEntries());
  printf("%5d coinsidence in the peak with    dXY: (%6.2f %6.2f)    dz12: (%6.1f %6.1f)   at XY: (%10.1f %10.1f)\n",
     eNpeak, eXpeak,eYpeak,eZ1peak,eZ2peak, eX0,eY0 );
}

RankCouples() [1/2]

void EdbPositionAlignment::RankCouples

(

)

{
  eTracks.Clear();
  RankCouples(eComb1, eComb2, eTracks);
}

RankCouples() [2/2]

void EdbPositionAlignment::RankCouples	(	TObjArray &	arr1,
		TObjArray &	arr2,
		TObjArray &	arrtr
	)

{
  int n = arr1.GetEntries();
  Log(3,"RankCouples","%d" ,n);

  EdbSegP   *s1, *s2;
  EdbTrackP *t;
  EdbTrackFitter tf;
  EdbScanCond cond1,cond2;
  cond1.SetSigma0(1.,1., 0.010,0.010);  cond1.SetDegrad(4); cond1.SetPulsRamp0(6,9); cond1.SetPulsRamp04(6,9);
  cond2.SetSigma0(1.,1., 0.010,0.010);  cond2.SetDegrad(4); cond2.SetPulsRamp0(6,9); cond2.SetPulsRamp04(6,9);
  EdbSegP seg;
  for(int i=0; i<n; i++) {
    s1 = (EdbSegP*)arr1.At(i);
    s2 = (EdbSegP*)arr2.At(i);
    seg.Copy(*s1);   // to set correctly vid, aid, etc
    //tf.Chi2SegM( *s1, *s2, seg, cond1, cond2);
    tf.Chi2ASeg( *s1, *s2, seg, cond1, cond2);
    //seg.SetChi2( tf.Chi2ACP( *s1, *s2, cond1) );   //TODO test!!

    t = new EdbTrackP(seg);
    t->AddSegment(s1);
    t->AddSegment(s2);
    //    s2->SetMC(s.MCEvt(),s.MCTrack());
    arrtr.Add( t );
  }

  RankCouplesFast(arrtr);
  Log(2,"RankCouples","%d tracks ok", arrtr.GetEntriesFast() );
}

RankCouples0()

void EdbPositionAlignment::RankCouples0

(

)

construct basetracks only using the position information

{

  eTracks.Clear();
  int n = eComb1.GetEntries();
  Log(3,"RankCouples0","%d" ,n);
  EdbSegP  *s1, *s2,  *s;
  float dz;
  for(int i=0; i<n; i++) {
    s1 = (EdbSegP*)eComb1.At(i);
    s2 = (EdbSegP*)eComb2.At(i);
    dz = s2->Z()-s1->Z();
    s = new EdbSegP( i,
             0.5*(s1->X() + s2->X()),
             0.5*(s1->Y() + s2->Y()),
             (s2->X() - s1->X())/dz,
             (s2->Y() - s1->Y())/dz,
             s1->W() + s2->W()
             );
    s->SetZ(0.5*(s1->Z() + s2->Z()));
    eTracks.Add( s );
  }

  Log(2,"RankCouples0","%d tracks ok", eTracks.GetEntriesFast() );

}

RankCouplesFast()

void EdbPositionAlignment::RankCouplesFast

(

TObjArray &

arrtr

)

{
  int ntr = arrtr.GetEntries();
  Log(1,"RankCouplesFast","%d tracks", ntr );
  TArrayF chi2arr(ntr);
  TArrayI ind(ntr);
  eSegCouples.Delete();
  eSegCouples.Expand(ntr);
  EdbTrackP *t=0;
  for(int i=0; i<ntr; i++) {
    t = ((EdbTrackP*)arrtr.At(i));
    chi2arr[i]= t->Chi2();
    t->GetSegment(0)->SetFlag(0);   //use flag as a counter
    t->GetSegment(1)->SetFlag(0);
  }
  Sort(ntr,chi2arr.GetArray(),ind.GetArray(),0);

  EdbSegP *s0=0, *s1=0;
  for(int i=0; i<ntr; i++) {
    t = ((EdbTrackP*)arrtr.At(ind[i]));
    s0 = t->GetSegment(0);
    s1 = t->GetSegment(1);
    s0->SetFlag( s0->Flag()+1 );
    s1->SetFlag( s1->Flag()+1 );
    EdbSegCouple *sc = new EdbSegCouple();
    sc->SetN1(s0->Flag());
    sc->SetN2(s1->Flag());
    eSegCouples.Add(sc);
  }

  for(int i=0; i<ntr; i++) {
    t = ((EdbTrackP*)arrtr.At(ind[i]));
    s0 = t->GetSegment(0);
    s1 = t->GetSegment(1);
    EdbSegCouple *sc = (EdbSegCouple *)eSegCouples.UncheckedAt(i);
    sc->SetCHI2P( t->Chi2() );
    sc->SetN1tot(s0->Flag());
    sc->SetN2tot(s1->Flag());
    s0->SetFlag(0);
    s1->SetFlag(0);
  }

}

ReadPosTree()

int EdbPositionAlignment::ReadPosTree	(	TTree *	tree,
		EdbPattern *	p = 0,
		EdbPattern *	p1 = 0,
		EdbPattern *	p2 = 0,
		TEventList *	lst = 0
	)

{
  if(!tree)    return 0;
  EdbSegP *sb1 = 0;//new EdbSegP();
  EdbSegP *sb2 = 0;//new EdbSegP();
  EdbSegP *sb  = 0;//new EdbSegP();
  Float_t dz1,dz2;
  Int_t flag;
  tree->SetBranchAddress("s1." , &sb1);
  tree->SetBranchAddress("s2." , &sb2);
  tree->SetBranchAddress("s."  , &sb);
  tree->SetBranchAddress("dz1" , &dz1);
  tree->SetBranchAddress("dz2" , &dz2);
  tree->SetBranchAddress("flag", &flag);
  Float_t chi2;
  tree->SetBranchAddress("chi2", &chi2);

  int     n  = tree->GetEntries();
  if(lst) n = lst->GetN();

  for(int i=0; i<n; i++) {
    if(lst) tree->GetEntry(lst->GetEntry(i));
    else    tree->GetEntry(i);
    if(p)  p->AddSegment(  *sb  );
    if(p1) p1->AddSegment( *sb1 );
    if(p2) p2->AddSegment( *sb2 );
  }
  Log(2,"ReadPosTree","%d basetracks read from %s", n,tree->GetName());
  return n;
}

ResetAngularCorr()

void EdbPositionAlignment::ResetAngularCorr ( )

inline

{ ePC1.eDTX = ePC1.eDTY = ePC2.eDTX = ePC2.eDTY = 0;}

ResetPeak()

void EdbPositionAlignment::ResetPeak ( )

inline

{ eZ1peak=eZ2peak=eXpeak=eYpeak=0; eNpeak=0; }

ResetPositionCorr()

void EdbPositionAlignment::ResetPositionCorr ( )

inline

{ ePC1.eDX = ePC1.eDY = ePC2.eDX = ePC2.eDY = 0;}

SaveAsTree()

void EdbPositionAlignment::SaveAsTree	(	EdbPattern &	pat,
		const char *	name
	)

{
  TTree *tree = new TTree(name,"pattern tree");
  EdbSegP *s=new EdbSegP();
  tree->Branch("s" ,  "EdbSegP",&s ,32000,99);
  int n = pat.N(), nsaved=0;
  for(int i=0; i<n; i++) {
    s->Copy( *(pat.GetSegment(i)) );
    tree->Fill();
    nsaved++;
  }
  tree->Write();
  SafeDelete(tree);
  Log(2,"SaveAsTree","%d segments saved", nsaved);
}

SelectBestComptons()

int EdbPositionAlignment::SelectBestComptons ( TObjArray &  a, TObjArray &  arr, int  nmax  )

static

{
  int ic=0;
  int n = a.GetEntriesFast();
  EdbSegP *s;
  if(n>nmax)     {
    TArrayF   comptonity(n);   // should be defined as: the bigger - the better
    TArrayI   ind(n);
    for(int i=0; i<n; i++) {
      s = (EdbSegP*)a.At(i);
      if(s->Flag()<0) comptonity[i] =0;
      else            comptonity[i] = s->W()*100 - s->Theta();  // proportional to ngrains and low theta
    }
    Sort(n,comptonity.GetArray(),ind.GetArray(),1);  // sort in decreasing order
    for(int i=0; i<nmax; i++) {
      s = (EdbSegP*)a.At(ind[i]);
      arr.Add(s);  ic++;
    }
  }
  else {
    for(int i=0; i<n; i++) {
      s = (EdbSegP*)a.UncheckedAt(i);
      if(s->Flag()>-1) { arr.Add(s);    ic++; }
    }
  }
  return ic;
}

SelectNarrowPeakDXDY()

int EdbPositionAlignment::SelectNarrowPeakDXDY	(	float	dr,
		EdbH2 &	hxy
	)

assuming that the combinations are found
make the position plot and find the maximum,
select only the combinations belongs to the maximum cutting out the tails

{

  float vpeak[2]={0,0};
  PositionPlotA(hxy);
  EdbPeak2 p2d(hxy);
  p2d.FindPeak(vpeak);
  ePC1.eDX +=  vpeak[0];
  ePC1.eDY +=  vpeak[1];

  for(int i=0; i<6; i++) {
    TObjArray comb1,comb2;
    PositionPlotA(hxy, dr, &comb1, &comb2);
    float dx, dy, dtx, dty;
    FindDiff(comb1,comb2,ePC1,ePC2, dx, dy, dtx, dty);
    Log(3,"SelectNarrowPeakDXDY", "diff: %f %f %f %f with %d   eDX,eDY = %f %f", dx, dy, dtx, dty, comb1.GetEntries(), ePC1.eDX,ePC1.eDY);
    ePC1.eDX += dx;
    ePC1.eDY += dy;
  }

  TObjArray comb1,comb2;
  PositionPlotA(hxy, dr, &comb1, &comb2);
  hxy.DrawH2("dxdy")->Write("dxdy");

  if(ActivatePosTree("postreeDXDYwide"))  { FillPosTree(0, 0, 9); WritePosTree(); }

  eComb1.Clear();  eComb2.Clear();
  int nsel = comb1.GetEntries();
  for(int i=0; i<nsel; i++) {
    eComb1.Add(comb1.UncheckedAt(i));
    eComb2.Add(comb2.UncheckedAt(i));
  }

  Log(2,"SelectNarrowPeakDXDY", "peak of %d found at %f %f with dr = %f", eComb1.GetEntries(), ePC1.eDX,ePC1.eDY, dr);
  return comb1.GetEntries();
}

SelectPeak() [1/2]

int EdbPositionAlignment::SelectPeak	(	EdbPattern &	p1,
		EdbPattern &	p2,
		float	dx,
		float	dy,
		float	dz1,
		float	dz2
	)

Select the couples formed the peak
assumed that the peak eXpeak, eYpeak is approximately found
Input: dz1,dz2 - for projection
dxMax, dYmax - for selection
Output p1,p2 with found segments

{

  int n1 = eComb1.GetEntries();

  TH2F *hpeak = new TH2F("hpeak","Selected peak",100,-dxMax+eXpeak,dxMax+eXpeak,100,-dyMax+eYpeak,dyMax+eYpeak);
  int ic=0;
  EdbSegP *s1,*s2;
  EdbSegP s;
  float dx,dy;
  for(int i=0; i<n1; i++) {
    s1 = (EdbSegP*)eComb1.At(i);
    s2 = (EdbSegP*)eComb2.At(i);
    dx = Xcorr(*s2,dz2) - Xcorr(*s1,dz1);
    dy = Ycorr(*s2,dz2) - Ycorr(*s1,dz1);
    if(Abs(dx-eXpeak)>dxMax) continue;
    if(Abs(dy-eYpeak)>dyMax) continue;
    s.Copy(*s1);    s.SetX(Xcorr(*s1,dz1));    s.SetY(Ycorr(*s1,dz1)); s.SetZ(0);   p1.AddSegment(s);
    s.Copy(*s2);    s.SetX(Xcorr(*s2,dz2));    s.SetY(Ycorr(*s2,dz2)); s.SetZ(0);   p2.AddSegment(s);
    hpeak->Fill(dx,dy);
    ic++;
  }
  eNpeak = ic;
  eXpeak = hpeak->GetMean(1);
  eYpeak = hpeak->GetMean(2);
  Log(2,"SelectPeak","%4d coincidences selected at XY:(%8.2f %8.2f) +-%6.2f   with RMS:(%5.2f %5.2f) Uniformity:(%5.2f %5.2f)",
      ic,  hpeak->GetMean(1), hpeak->GetMean(2), dxMax, hpeak->GetRMS(1), hpeak->GetRMS(2),
      hpeak->GetRMS(1)/(2*dxMax/Sqrt(12)), hpeak->GetRMS(2)/(2*dyMax/Sqrt(12)) );

  SafeDelete(eAff);
  eAff = new EdbAffine2D();
  eAff->ShiftX(hpeak->GetMean(1));
  eAff->ShiftY(hpeak->GetMean(2));

  SafeDelete(hpeak);

  return ic;
}

SelectPeak() [2/2]

int EdbPositionAlignment::SelectPeak ( EdbPattern &  p1, EdbPattern &  p2, float  dx = 10, float  dy = 10  )

inline

    { return SelectPeak(p1,p2,dx,dy,eZ1peak,eZ2peak); }

SelectZone()

int EdbPositionAlignment::SelectZone	(	float	min[2],
		float	max[2],
		TObjArray &	arr1,
		TObjArray &	arr2,
		float	maxDens
	)

density unit is N/100/100 microns

{
  int ic=0;
  int nmax = (int)(maxDens*(max[0]-min[0])*(max[1]-min[1]) /100/100);
  ic += SelectZoneSide(ePC1, min, max, arr1, nmax);
  float min2[2] = {min[0]-eXcell, min[1]-eYcell };
  float max2[2] = {max[0]+eXcell, max[1]+eYcell };
  nmax = (int)(maxDens*(max2[0]-min2[0])*(max2[1]-min2[1]) /100/100);
  ic += SelectZoneSide(ePC2, min2, max2, arr2, nmax);
  return ic;
}

SelectZoneSide()

int EdbPositionAlignment::SelectZoneSide	(	EdbPatCell2 &	pc,
		float	min[2],
		float	max[2],
		TObjArray &	arr,
		int	nmax = kMaxInt
	)

{
  TObjArray a(arr.GetSize());
  pc.SelectObjects(min,max,a);
  return SelectBestComptons(a,arr,nmax);
}

ShrinkageSelection()

void EdbPositionAlignment::ShrinkageSelection

(

float

dzbase

)

select the shrinkage

{
  ePC1.eShr=ePC2.eShr=1;

  ePC1.eDZ = dzbase;  ePC2.eDZ =   0;
  ShrinkageSelectionSide( *(&ePC1), *(&ePC2), eHShr1, 10, 0.5);
  ePC2.eDZ = -dzbase;  ePC1.eDZ =    0;
  ShrinkageSelectionSide( *(&ePC2), *(&ePC1), eHShr2, 10, 0.5);

  ePC1.eDZ = dzbase;  ePC2.eDZ =   0;
  ShrinkageSelectionSide( *(&ePC1), *(&ePC2), eHShr1, 50, 0.5);
  ePC2.eDZ = -dzbase;  ePC1.eDZ =    0;
  ShrinkageSelectionSide( *(&ePC2), *(&ePC1), eHShr2, 50, 0.5);

  Log(2,"ShrinkageSelection","found  %7.3f %7.3f", ePC1.eShr,  ePC2.eShr );
}

ShrinkageSelectionSide()

int EdbPositionAlignment::ShrinkageSelectionSide	(	EdbPatCell2 &	pc1,
		EdbPatCell2 &	pc2,
		EdbH2 &	hshr,
		int	nstep,
		float	deltaShr
	)

select the shrinkage for one side

{

  int   npeak=0;

  int      n[2]  = { nstep, 1 };
  float  min[2]  = {pc1.eShr-deltaShr, pc2.eShr-0.001};
  float  max[2]  = {pc1.eShr+deltaShr, pc2.eShr+0.001};
  EdbH2  h12;

  h12.InitH2(n, min, max);

  //pc1.eDXlim  = eXcell;   pc1.eDYlim  = eYcell;
  //pc1.eDTXlim = 0.1;      pc1.eDTYlim = 0.1;
  //int ir[2] = {1,1};

  pc1.eDXlim  = pc1.eDYlim  = 15;
  pc1.eDTXlim = 0.1;      pc1.eDTYlim = 0.1;
  int ir[2] = {0,0};

  pc1.eApplyCorr = pc2.eApplyCorr = true;

  eComb1.Clear();
  eComb2.Clear();

  float x1,x2;
  for(int i1=0; i1<n[0]; i1++)
    {
      for(int i2=0; i2<n[1]; i2++)
    {
      x1 = pc1.eShr = h12.X(i1);
      x2 = pc2.eShr = h12.Y(i2);
      int ncomb = pc1.FillCombinations(pc2, ir, eComb1, eComb2, 0);
      h12.Fill(x1,x2,ncomb);
      Log(3,"ShrinkageSelection:","ncomb = %6d at (%7.2f %7.2f)", ncomb, x1, x2);
    }
    }

  if(gEDBDEBUGLEVEL>2)  h12.PrintStat();

  hshr.Copy(h12);

  float vpeak[2];
  EdbPeak2 p2d(h12);
  npeak = p2d.FindPeak(vpeak);
  pc1.eShr = vpeak[0];

  Log(3,"ShrSelection","maxcomb: %6d (%7.2f %7.2f)",  npeak,vpeak[0],vpeak[1]);
  return npeak;
}

SpotsFilterOut()

int EdbPositionAlignment::SpotsFilterOut

(

int

nmax

)

discard cells with nenries > nmax

{
  int nout1 = ePC1.DiscardHighCells(nmax);
  int nout2 = ePC2.DiscardHighCells(nmax);
  Log(3,"SpotsFilterOut","%d and %d cells discarded", nout1, nout2);
  return nout1+nout2;
}

WideSearchXY()

int EdbPositionAlignment::WideSearchXY	(	EdbPattern &	pat1,
		EdbPattern &	pat2,
		EdbH2 &	hxy,
		float	dz,
		float	xmin,
		float	xmax,
		float	ymin,
		float	ymax
	)

wide prealignment (in case of the basetracks)

{

  int   npeak=0;

  ePC1.eDZ =  dz/2;
  ePC2.eDZ = -dz/2;
  ePC1.eApplyCorr = ePC.eApplyCorr = true;
  FillArrays(pat1, pat2);     // fill at central quote
  DoubletsFilterOut(false);

  int      n[2]  = { (int)((xmax-xmin)/eXcell) +1 , (int)((ymax-ymin)/eYcell) +1 };
  float  min[2]  = { -((int)(n[0]/2)+0.5)*eXcell , -((int)(n[1]/2)+0.5)*eYcell };
  float  max[2]  = {  ((int)(n[0]/2)+0.5)*eXcell ,  ((int)(n[1]/2)+0.5)*eYcell };
  EdbH2  h12;
  h12.InitH2(n, min, max);

  ePC1.eDXlim  = eXcell;   ePC1.eDYlim  = eYcell;
  ePC1.eDTXlim = 0.01;     ePC1.eDTYlim = 0.01;

  int ir[2] = {1,1};
  float x1,x2;
  for(int i1=0; i1<n[0]; i1++)
    {
      for(int i2=0; i2<n[1]; i2++)
    {
      x1 = ePC1.eDX = h12.X(i1);
      x2 = ePC1.eDY = h12.Y(i2);
      eComb1.Clear();
      eComb2.Clear();
      int ncomb = ePC1.FillCombinations(ePC2, ir, eComb1, eComb2);
      h12.Fill(x1,x2,ncomb);
      Log(3,"WideSearchXY:","ncomb = %6d at (%7.2f %7.2f)", ncomb, x1, x2);
    }
    }

  h12.PrintStat();
  hxy.Copy(h12);

  float vpeak[2];
  EdbPeak2 p2d(h12);
  npeak = p2d.FindPeak(vpeak);
  ePC1.eDX = vpeak[0];
  ePC1.eDY = vpeak[1];
  eComb1.Clear();
  eComb2.Clear();
  int ncomb = ePC1.FillCombinations(ePC2, ir, eComb1, eComb2);
  Log(3,"WideSearchXY","ncomb = %d",ncomb);

  int    nxy[2]  = {21,21};                    // TODO
  float  minxy[2]  = {-1000, -1000 };
  float  maxxy[2]  = { 1000,  1000 };
  EdbH2  hxyn;
  hxyn.InitH2(nxy, minxy, maxxy);
  SelectNarrowPeakDXDY(1000, hxyn);

  Log(2,"WideSearchXY","PC1: %f %f %f %f PC2:%f %f %f %f ", ePC1.eDX, ePC1.eDY, ePC1.eDZ,ePC1.eShr, ePC2.eDX, ePC2.eDY, ePC2.eDZ, ePC2.eShr);

  hxyn.DrawH2("hxyn")->Write("hxyn");

  ActivatePosTree("align");
  FillPosTree(dz/2, -dz/2, 0);
  WritePosTree();

  Log(2,"WideSearchXY","maxcomb: %6d (%7.2f %7.2f)",  npeak,vpeak[0],vpeak[1]);
  return npeak;
}

WritePosTree()

Int_t EdbPositionAlignment::WritePosTree

(

)

{
  if(!ePosTree)    return 0;
  ePosTree->SetAlias("x1","s1.eX+dz1*s1.eTX");
  ePosTree->SetAlias("x2","s2.eX+dz2*s2.eTX");
  ePosTree->SetAlias("y1","s1.eY+dz1*s1.eTY");
  ePosTree->SetAlias("y2","s2.eY+dz2*s2.eTY");

  ePosTree->SetAlias( "tx1c" , Form("s1.eTX/(%f)+(%f)",ePC1.eShr,ePC1.eDTX) );
  ePosTree->SetAlias( "ty1c" , Form("s1.eTY/(%f)+(%f)",ePC1.eShr,ePC1.eDTY) );
  ePosTree->SetAlias( "tx2c" , Form("s2.eTX/(%f)+(%f)",ePC2.eShr,ePC2.eDTX) );
  ePosTree->SetAlias( "ty2c" , Form("s2.eTY/(%f)+(%f)",ePC2.eShr,ePC2.eDTY) );

  ePosTree->SetAlias("x1c" ,  Form("(%f) + s1.eX + tx1c*(%f)",ePC1.eDX,ePC1.eDZ) );
  ePosTree->SetAlias("y1c" ,  Form("(%f) + s1.eY + ty1c*(%f)",ePC1.eDY,ePC1.eDZ) );
  ePosTree->SetAlias("x2c" ,  Form("(%f) + s2.eX + tx2c*(%f)",ePC2.eDX,ePC2.eDZ) );
  ePosTree->SetAlias("y2c" ,  Form("(%f) + s2.eY + ty2c*(%f)",ePC2.eDY,ePC2.eDZ) );

  ePosTree->SetAlias("dx" , "x2c-x1c" );
  ePosTree->SetAlias("dy" , "y2c-y1c" );
  ePosTree->SetAlias("dtx" , "tx2c-tx1c" );
  ePosTree->SetAlias("dty" , "ty2c-ty1c" );

  ePosTree->SetAlias("dr" , "sqrt(dx*dx+dy*dy)" );
  ePosTree->SetAlias("dt" , "sqrt(dtx*dtx+dty*dty)" );

  ePosTree->Write();
  SafeDelete(ePosTree);
  return 1;
}

Xcorr() [1/2]

float EdbPositionAlignment::Xcorr ( EdbSegP &  s, float  dz  )

inline

{return s.X() + dz*s.TX();}

Xcorr() [2/2]

float EdbPositionAlignment::Xcorr ( EdbSegP &  s, float  dz, float  dx  )

inline

{return dx + s.X() + dz*s.TX();}

Ycorr() [1/2]

float EdbPositionAlignment::Ycorr ( EdbSegP &  s, float  dz  )

inline

{return s.Y() + dz*s.TY();}

Ycorr() [2/2]

float EdbPositionAlignment::Ycorr ( EdbSegP &  s, float  dz, float  dy  )

inline

{return dy + s.Y() + dz*s.TY();}

Zselection()

void EdbPositionAlignment::Zselection

(

EdbH2 &

hd

)

{
  if(eNZ1step<1 || eNZ2step<1) {
    Log(1,"Zselection","ERROR: eNZ1step = %d, eNZ2step = %d",eNZ1step,eNZ2step);
    return;
  }

  float maxMax=0, meanMax=0, meanMean=0, meanbin=0;
  int   maxbin=0,ic=0;
  //float maxPeak = 0;

  int      nz[2]  = {eNZ1step,eNZ2step};
  float  minz[2]  = {Min(eZ1from,eZ1to), Min(eZ2from,eZ2to)};
  float  maxz[2]  = {Max(eZ1from,eZ1to), Max(eZ2from,eZ2to)};
  EdbH2  hz12;
  hz12.InitH2(nz, minz, maxz);
  //hz12.PrintStat();

  float dz1,dz2;
  for(int i1=0; i1<nz[0]; i1++)
    {
      for(int i2=0; i2<nz[1]; i2++)
    {
      dz1 = hz12.X(i1);
      dz2 = hz12.Y(i2);
      hd.CleanCells();
      PositionPlot(dz1,dz2,hd);

      EdbPeak2 p2di(hd);
      p2di.Smooth(eSmoothKernel);
      //maxbin = hd.MaxBin();
          maxbin = p2di.MaxBin();
      if(maxbin>maxMax)         maxMax=maxbin;
      hz12.Fill(dz1,dz2,maxbin);
      //meanbin   =  hd.Mean();
      meanbin   =  p2di.Mean();
      meanMax  += maxbin;
      meanMean += meanbin;
      ic++;
      Log(3,"Zselection","max: %5d mean: %8.4f at dZ(%7.2f %7.2f)", maxbin,meanbin, dz1, dz2);
    }
    }
  meanMax  /= ic;
  meanMean /= ic;

  EdbPeak2 p2z(hz12);
  p2z.Smooth("k5a");
  eHDZ.Copy(*((EdbH2*)(&p2z)));
  p2z.FindGlobalPeak(eZ1peak, eZ2peak, 0.05);

  hd.CleanCells();
  PositionPlot(eZ1peak,eZ2peak,hd);

  EdbPeak2 p2d(hd);
  p2d.Smooth(eSmoothKernel);
  eHpeak.Copy(*((EdbH2*)(&p2d)));
  p2d.FindPeak(eXpeak, eYpeak);

  //  eHpeak.Copy(hd);
  //float vpeak[2];
  //EdbPeak2 p2d(eHpeak);
  //p2d.FindPeak(vpeak);
  //eXpeak=vpeak[0];
  //eYpeak=vpeak[1];

  Log(2,"Zselection","maxMax: %8.2f meanMax: %8.4f  meanMean: %8.4f at dZ(%7.2f %7.2f)  XY(%7.2f %7.2f)",
      maxMax, meanMax, meanMean, eZ1peak, eZ2peak, eXpeak,eYpeak);
}

Member Data Documentation

eAff

EdbAffine2D* EdbPositionAlignment::eAff

the found affine transformation (when applied to pattern1 gives pattern2 )

eBinX

Float_t EdbPositionAlignment::eBinX

eBinY

Float_t EdbPositionAlignment::eBinY

bin size for the differential hist (for example 5 microns)

eChi2Max

Float_t EdbPositionAlignment::eChi2Max

cut for the chi2 of the basetrack

eComb1

TObjArray EdbPositionAlignment::eComb1

eComb2

TObjArray EdbPositionAlignment::eComb2

array with the selected combinations of segments

eDoRot

Bool_t EdbPositionAlignment::eDoRot

if true - perform the rotation selection

eDTXmax

Float_t EdbPositionAlignment::eDTXmax

eDTXmin

Float_t EdbPositionAlignment::eDTXmin

eDTYmax

Float_t EdbPositionAlignment::eDTYmax

max angular acceptance (ex: 0.15) for the coinsidences

eDTYmin

Float_t EdbPositionAlignment::eDTYmin

min angular difference for the dublets cutout

eDXmin

Float_t EdbPositionAlignment::eDXmin

eDYmin

Float_t EdbPositionAlignment::eDYmin

min position difference for the dublets cutout

eHDZ

EdbH2 EdbPositionAlignment::eHDZ

histogram used for Z-selection

eHpeak

EdbH2 EdbPositionAlignment::eHpeak

histogram used for peak selection

eHShr1

EdbH2 EdbPositionAlignment::eHShr1

histogram used for the shrinkage-selection

eHShr2

EdbH2 EdbPositionAlignment::eHShr2

histogram used for the shrinkage-selection

eNpeak

Int_t EdbPositionAlignment::eNpeak

number of found combinations

eNShr1step

Int_t EdbPositionAlignment::eNShr1step

eNShr2step

Int_t EdbPositionAlignment::eNShr2step

number of steps for the Shr-selection

eNZ1step

Int_t EdbPositionAlignment::eNZ1step

eNZ2step

Int_t EdbPositionAlignment::eNZ2step

number of steps for the z-selection

ePC

EdbPatCell2 EdbPositionAlignment::ePC

cells with the pointers to tracks

ePC1

EdbPatCell2 EdbPositionAlignment::ePC1

ePC2

EdbPatCell2 EdbPositionAlignment::ePC2

cells with the pointers to segments

ePosTree

TTree* EdbPositionAlignment::ePosTree

optional: tree with s1:s2 for the selected combinations

eRot

EdbH1 EdbPositionAlignment::eRot

definition of the rotation steps

eRpeak

Float_t EdbPositionAlignment::eRpeak

coordinate peak acceptance

eS0tx

Float_t EdbPositionAlignment::eS0tx

eS0ty

Float_t EdbPositionAlignment::eS0ty

sigmas at 0 angle for the chi2 calculation

eS0x

Float_t EdbPositionAlignment::eS0x

eS0y

Float_t EdbPositionAlignment::eS0y

eSegCouples

TObjArray EdbPositionAlignment::eSegCouples

segment couples objects to fill couples format tree

eShr1from

Float_t EdbPositionAlignment::eShr1from

eShr1to

Float_t EdbPositionAlignment::eShr1to

limits in Shr for the peak search (ePat1)

eShr2from

Float_t EdbPositionAlignment::eShr2from

eShr2to

Float_t EdbPositionAlignment::eShr2to

limits in Shr for the peak search (ePat2)

eSmoothKernel

TString EdbPositionAlignment::eSmoothKernel

used to smooth histograms

eTracks

TObjArray EdbPositionAlignment::eTracks

tracks created with segments of eComb1, eComb2

eWbaseMin

Float_t EdbPositionAlignment::eWbaseMin

cut for the w of basetrack to accept it

eX0

float EdbPositionAlignment::eX0

eXcell

Float_t EdbPositionAlignment::eXcell

eXpeak

Float_t EdbPositionAlignment::eXpeak

eY0

float EdbPositionAlignment::eY0

coordinates of the center of the zone (for the ePeakNT only)

eYcell

Float_t EdbPositionAlignment::eYcell

cell size (for example 50 microns)

eYpeak

Float_t EdbPositionAlignment::eYpeak

peak position in X,Y

eZ1from

Float_t EdbPositionAlignment::eZ1from

eZ1peak

Float_t EdbPositionAlignment::eZ1peak

eZ1to

Float_t EdbPositionAlignment::eZ1to

limits in Z for the peak search (ePat1)

eZ2from

Float_t EdbPositionAlignment::eZ2from

eZ2peak

Float_t EdbPositionAlignment::eZ2peak

peak position in Z

eZ2to

Float_t EdbPositionAlignment::eZ2to

limits in Z for the peak search (ePat2)

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libAlignment/EdbPositionAlignment.h
• /home/antonio/fedra_doxygen/src/libAlignment/EdbPositionAlignment.cxx
