EdbPoint3D Class Reference

virtual 3D point More...

#include <EdbVirtual.h>

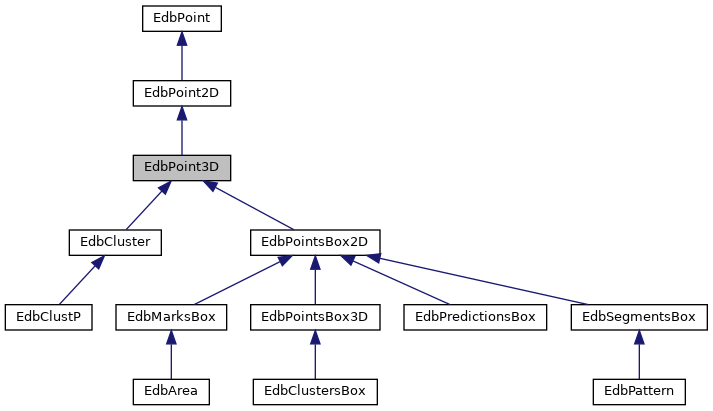

Inheritance diagram for EdbPoint3D:

Collaboration diagram for EdbPoint3D:

Public Member Functions
virtual void	Print (Option_t *opt="") const
virtual void	SetZ (float z)=0
virtual void	Substruct (EdbPoint *p)
virtual void	Test () const
virtual void	TestPoint3D () const
virtual void	Transform (const EdbAffine3D *a)
virtual Float_t	Z () const =0
virtual	~EdbPoint3D ()
Public Member Functions inherited from EdbPoint2D
virtual void	Print (Option_t *opt="") const
virtual void	SetX (float x)=0
virtual void	SetY (float y)=0
virtual void	SetZ (float z)
virtual void	Substruct (EdbPoint *p)
virtual void	Test () const
virtual void	TestPoint2D () const
virtual void	Transform (const EdbAffine2D *a)
virtual Float_t	X () const =0
virtual Float_t	Y () const =0
virtual Float_t	Z () const
virtual	~EdbPoint2D ()
Public Member Functions inherited from EdbPoint
virtual void	SetX (float x)=0
virtual void	SetY (float y)=0
virtual void	SetZ (float z)=0
virtual void	Substruct (EdbPoint *p)=0
virtual void	Test () const
virtual void	Transform (const EdbAffine2D *a)
virtual void	Transform (const EdbAffine3D *a)
virtual Float_t	X () const =0
virtual Float_t	Y () const =0
virtual Float_t	Z () const =0
virtual	~EdbPoint ()

Detailed Description

virtual 3D point

Constructor & Destructor Documentation

~EdbPoint3D()

virtual EdbPoint3D::~EdbPoint3D ( )

inlinevirtual

{}

Member Function Documentation

Print()

void EdbPoint3D::Print ( Option_t *  opt = "" ) const

virtual

Reimplemented from EdbPoint2D.

Reimplemented in EdbMarksBox, EdbPredictionsBox, EdbPointsBox2D, EdbSegmentsBox, and EdbCluster.

{
  printf("EdbPoint3D: %f %f %f\n",X(),Y(),Z() );
}

SetZ()

virtual void EdbPoint3D::SetZ ( float  z )

pure virtual

Reimplemented from EdbPoint2D.

Implemented in EdbCluster, EdbPointsBox2D, and EdbSegmentsBox.

Substruct()

void EdbPoint3D::Substruct ( EdbPoint *  p )

virtual

Reimplemented from EdbPoint2D.

{
  Float_t x =  X() - p->X();
  Float_t y =  Y() - p->Y();
  Float_t z =  Z() - p->Z();
  SetX(x);
  SetY(y);
  SetY(z);
}

Test()

virtual void EdbPoint3D::Test ( ) const

inlinevirtual

Reimplemented from EdbPoint2D.

{ printf("EdbPoint3D::Test \n"); }

TestPoint3D()

virtual void EdbPoint3D::TestPoint3D ( ) const

inlinevirtual

{ printf("EdbPoint3D::TestPoint3D \n"); }

Transform()

void EdbPoint3D::Transform ( const EdbAffine3D *  a )

virtual

Reimplemented from EdbPoint.

{
  Float_t x =  a->A11()*X() + a->A12()*Y() + a->A13()*Z() + a->B1();
  Float_t y =  a->A21()*X() + a->A22()*Y() + a->A23()*Z() + a->B2();
  Float_t z =  a->A31()*X() + a->A32()*Y() + a->A33()*Z() + a->B3();
  SetX(x);
  SetY(y);
  SetZ(z);
}

Z()

virtual Float_t EdbPoint3D::Z ( ) const

pure virtual

Reimplemented from EdbPoint2D.

Implemented in EdbCluster, EdbPointsBox2D, and EdbSegmentsBox.

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEdb/EdbVirtual.h
• /home/antonio/fedra_doxygen/src/libEdb/EdbVirtual.cxx
