EdbDecaySearch Class Reference

#include <EdbDecaySearch.h>

Inheritance diagram for EdbDecaySearch:

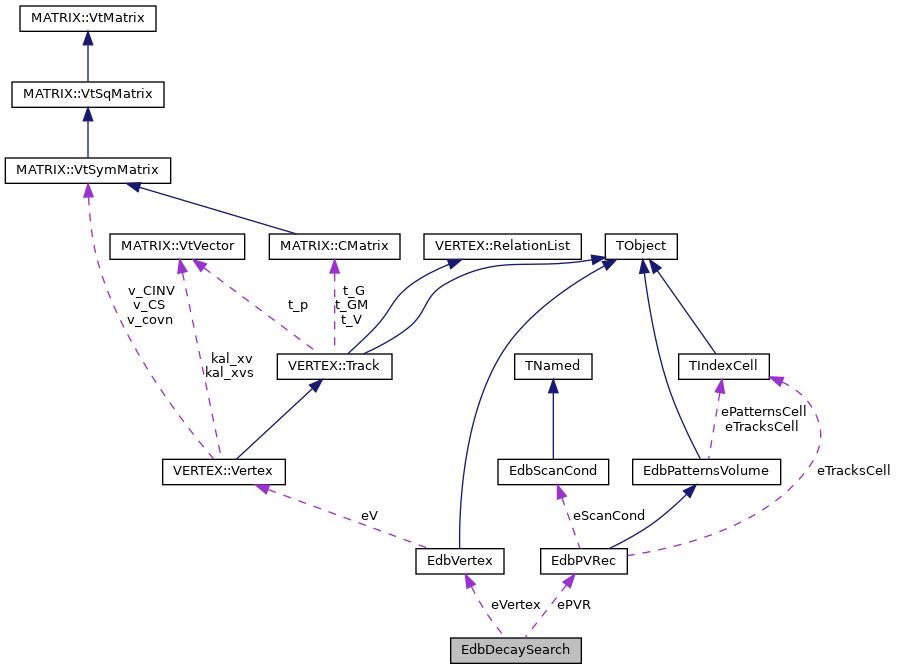

Collaboration diagram for EdbDecaySearch:

Public Types
enum	{ kParentSearch =0x01 , kBaseTrackSearch =0x02 , kDaughterSearch =0x04 }

Public Member Functions
TObjArray *	CheckInTrackKink (EdbTrackP *trk)
TObjArray *	CheckInTrackKinks (TObjArray *tracks=NULL)
TObjArray *	DoSearch ()
	EdbDecaySearch (int DSversion=2)
EdbVertex *	FindPrimaryVertex ()
EdbTrackDS *	FindTrack (EdbTrackP *t)
TObjArray *	FindUpstreamVertices ()
EdbDecayVertex *	GetDecayVertex (int i)
float	GetIPCut (EdbVertex *v, EdbSegP *s)
TObjArray *	GetKinks (void)
EdbVertex *	GetPrimaryVertex ()
EdbPVRec *	GetPVR ()
EdbTrackDS *	GetTrack (int i)
double	GetTSDauIP1 (double dz)
double	GetTSDauIP2 (double dz)
void	KinkSearch ()
EdbVertex *	MakeFakeVertex (EdbTrackP *t, double dz=1150)
void	MTSearch2seg (TObjArray *tracks)
void	MTSearchAll (TObjArray *tracks)
int	NDecayVertices ()
int	Ntracks ()
void	PrintTracks ()
void	SetBTSearch (int do_search=1, int npl_up=0, int npl_down=2, float ipcut=20, float phcut=17)
void	SetIPHist1 (TH1F *h)
void	SetIPHist2 (TH1F *h)
void	SetKinkSearch (int do_search)
void	SetParentSearch (int do_search=1, int npl=2, float ipcut=20, float phcut=17)
void	SetPVR (EdbPVRec *pvr)
void	SetShortDecaySearch (int do_search)
void	SetSmallKinkSearch (int do_search=1, int npl_down=5, float Rmin=5.)
void	SetTracks (TObjArray *array)
void	SetVertex (EdbVertex *v)
void	ShortDecaySearch ()
void	SmallKinkSearch ()
TObjArray *	TSBaseTracks (int ipl)
TObjArray *	TSDaughterTracks (TObjArray *base)
void	TSDaughterTracks2 ()
TObjArray *	TSParentTracks (TObjArray *base)
virtual	~EdbDecaySearch ()

Public Attributes
int	eBT
double	eBTIP
double	eBTPH
int	eBTPlateDown
int	eBTPlateUp
TObjArray *	eDecayVertices
int	eDSVer
TObjArray *	eKinks
int	eKinkSearch
double	eKinkSigma
int	eMT2seg
int	eMTAll
EdbPVRec *	ePVR
TObjArray *	eSegments
int	eShortDecay
int	eSmallKink
int	eSmallKinkNpl
float	eSmallKinkRmin
TObjArray *	eTracks
int	eTSDau
int	eTSDau2
TH1F *	eTSDauIPHist1
TH1F *	eTSDauIPHist2
int	eTSDauNseg
int	eTSDauNseg2
double	eTSDauPH
int	eTSPar
double	eTSParIP
int	eTSParNseg
double	eTSParPH
int	eTSParPlate
EdbVertex *	eVertex
int	eVertexPlatePID
TObjArray *	eVertices
int	eVtxUp
int	eVtxUpDZ
int	eVtxUpIP

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
kParentSearch
kBaseTrackSearch
kDaughterSearch

        {
        kParentSearch       =0x01,
        kBaseTrackSearch    =0x02,
        kDaughterSearch     =0x04
    };

Constructor & Destructor Documentation

EdbDecaySearch()

EdbDecaySearch::EdbDecaySearch ( int  DSversion = 2 )

inline

                                   :
        eDSVer     (DSversion),
        eVertex    (NULL),
        eTracks    (new TObjArray),
        eSegments  (new TObjArray),
        eVertices  (new TObjArray),
        //eSet       (NULL),

        eTSDau      (1),
        eTSDauNseg  (2),
        eTSDauPH    (17),

        eMT2seg     (0),
        eMTAll      (1),

        eTSDau2     (1),
        eTSDauNseg2 (3),

        eSmallKink    (1),
        eSmallKinkNpl (5),
        eSmallKinkRmin(5.),

        eTSPar     (1),
        eTSParPlate(2),
        eTSParNseg (1),
        eTSParIP   (20),
        eTSParPH   (17),

        eBT            (1),
        eBTPlateUp     (0),
        eBTPlateDown   (2),
        eBTIP          (20),
        eBTPH          (17),

        eVtxUp   (0),
        eVtxUpDZ (3000),
        eVtxUpIP (500),

        eKinkSearch(1),
        eKinkSigma(3.),
        eKinks (new TObjArray),

        eShortDecay(1),


        eDecayVertices(new TObjArray)

        {

            float ipcutdau_lt_1 = eDSVer==1 ? 500 : 300;
            float ipcutdau_gt_1 = eDSVer==1 ? 800 : 500;

            if(gDirectory->Get("eTSDauIPHist1")) gDirectory->Delete("eTSDauIPHist1");
            eTSDauIPHist1 = new TH1F ("eTSDauIPHist1","IP cut function along dZ, 1st.", 121, -100, 12000);
            // Fill function
            TH1F *h = eTSDauIPHist1;
            h->SetFillColor(kBlue);
            h->SetXTitle("dZ (#mum)");
            h->SetYTitle("IP cut (#mum)");
            for(int i=1;i<=100;i++){
                if(0<=h->GetBinLowEdge(i)&&h->GetBinLowEdge(i)<1000) h->SetBinContent(i, ipcutdau_lt_1);
                else if(1000<=h->GetBinLowEdge(i)&&h->GetBinLowEdge(i)<11700) h->SetBinContent(i, ipcutdau_gt_1);
                else if(11700<=h->GetBinLowEdge(i)) h->SetBinContent(i,0);
            }
            if(gDirectory->Get("eTSDauIPHist1")) gDirectory->Delete("eTSDauIPHist2");
            eTSDauIPHist2 = new TH1F ("eTSDauIPHist2","IP cut function along dZ, 2nd", 121, -100, 12000);
            // Fill function
            h = eTSDauIPHist2;
            h->SetFillColor(kBlue);
            h->SetXTitle("dZ (#mum)");
            h->SetYTitle("IP cut (#mum)");
            for(int i=1;i<=100;i++){
                if(0<=h->GetBinLowEdge(i)&&h->GetBinLowEdge(i)<1000) h->SetBinContent(i, ipcutdau_lt_1);
                else if(1000<=h->GetBinLowEdge(i)&&h->GetBinLowEdge(i)<6000) h->SetBinContent(i, ipcutdau_gt_1);
                else if(6000<=h->GetBinLowEdge(i)) h->SetBinContent(i,0);
            }
        }

~EdbDecaySearch()

virtual EdbDecaySearch::~EdbDecaySearch ( )

inlinevirtual

{}

Member Function Documentation

CheckInTrackKink()

TObjArray * EdbDecaySearch::CheckInTrackKink

(

EdbTrackP *

trk

)

                                                         {
    // Search kink. return TObjArray of EdbSmallKink

    if(trk->N()<2) {
        printf("Track %d nseg=%d, too short for kink search\n", trk->ID(), trk->N());
        return NULL;
    }
    EdbTrackP *t = CleanTrack(trk); // Remove fake segment/microtracks.

    double rms,rmst,rmsl;
    DTRMSTL1Kink(t, &rms, &rmst, &rmsl); // DTRMS for each projection.

    if(t->N()<=2) {
        printf("Track %d nseg=%d. too short to calculate delta-theta rms. use 2.0mrad.\n", t->ID(), t->N());
        rms=rmst=rmsl=2.0;
    }

    TObjArray *kinks = new TObjArray;

    int vtxpl;
    //if(gEDA) vtxpl=gEDA->GetIPLZ(eVertex->Z());
    //else {
        vtxpl=0; // TODO
        printf("VERTEX plate is not set!!!!! \n");
    //}

    for(int i=0; i<ePVR->Npatterns(); i++){
        EdbPattern *pat = ePVR->GetPattern(i);
        if( eVertex->Z()<pat->Z()) {
            vtxpl = pat->Plate();
            break;
        }
    }

    int n=t->N();
    for(int j=0;j<n-1;j++){
        EdbSegP *s1 = t->GetSegment(j);
        EdbSegP *s2 = t->GetSegment(j+1);

        // if s1 is more downstream than 5 plates from vertex, skip. search only kink between 1-x,2-x,3-x,4-x.
        if(s1->Plate()>vtxpl+eSmallKinkNpl) continue;

        // calculate kink angle in transverse and longitudinal projection.
        double dtt, dtl;
        CalcDTTransLongi(s1,s2, &dtt, &dtl);
        double dt = sqrt(dtt*dtt+dtl*dtl);

        // calculate position difference from 1st segment.
        double dxt, dxl;
        CalcDXTransLongi(t->GetSegmentFirst(),s2, &dxt, &dxl);

        if( fabs(dtt)>rmst*eSmallKinkRmin || fabs(dtl)>rmsl*eSmallKinkRmin ) {
            // if there is kink.
            // if kink angle is bigger than 5 times delta-theta rms in one of the 2 projection.

            // momentum calculation using downstream from s2.
            double p,pmin,pmax;
            CalcPPartial(t,s2,t->GetSegmentLast(), p, pmin, pmax);

            // calculate Pt at the kink, using downstream momentum.
            double Pt = p>0 ? p*dt : -1.;

            // calculate vertex point with 2 segments.
            TObjArray segs;
            segs.Add(s1);
            segs.Add(s2);
            EdbVertex *v = CalcVertex(&segs);

            int ndau = n-j-1;
            // put the data in a struct.
            EdbSmallKink *kink = new EdbSmallKink(v, t, s1, s2, dtt, dtl, dxt, dxl, ndau, p, pmin, pmax, Pt, rmst, rmsl);

            // if(gEDA) gEDA->AddVertex(v);
            kinks->Add(kink); // for this track
            eKinks->Add(kink); // for all tracks.

            {
                // Make Decay vertex
                // this is a temporary solution.
                EdbDecayVertex *vdecay = new EdbDecayVertex;
                vdecay->SetXYZ( v->X(), v->Y(), v->Z());
                vdecay->SetPrimaryVertex(eVertex);

                EdbTrackP *tp = new EdbTrackP(*t);
                tp->Clear();
                for(int i=0; i<=j; i++) tp->AddSegment( t->GetSegment(i));
                tp->SetCounters();
                vdecay->SetParent( new EdbTrackDS(tp, eVertex));

                EdbTrackP *td = new EdbTrackP(*t);
                td->Clear();
                for(int i=j+1; i<t->N(); i++) td->AddSegment( t->GetSegment(i));
                td->SetCounters();
                vdecay->SetDaughter( new EdbTrackDS(td, eVertex));
                vdecay->SetType( EdbDecayVertex::kSmallKink | EdbDecayVertex::kLong);
                eDecayVertices->Add(vdecay);
            }


            printf("Kink candidate. itrk %d plate %d - %d kink angle %.4lf P %.3lf Pt %.3lf ",
                t->ID(), s1->PID(), s2->PID(), dt, p, Pt);
            printf("(Trans, Longi) = ( %.4lf, %.4lf ) thr ( %.4lf, %.4lf )\n",
                dtt, dtl, rmst*3, rmsl*3);
            // gEDA->AddDrawObject(kink);
        }
    }

    printf("%d kink candidates are found.\n", kinks->GetEntries());

    return kinks;
}

CheckInTrackKinks()

TObjArray* EdbDecaySearch::CheckInTrackKinks ( TObjArray *  tracks = NULL )

inline

                                                           {
        if(NULL==tracks) tracks=eTracks;
        for(int i=0;i<tracks->GetEntries();i++) {
            CheckInTrackKink((EdbTrackP *) tracks->At(i));
        }
        return eKinks;
    }

DoSearch()

TObjArray * EdbDecaySearch::DoSearch

(

)

                                    {
    // Do track search


    // clear previous results.
    eTracks->Clear();
    eSegments->Clear();

    int nAll=-1;
    int nTSDau1=-1;
    int nTSDau2=-1;
    if(gEve) gEve->SetStatusLine("Start Track search");
    printf("######### Track Search #########\n");
    if(eVertex==NULL) {
        printf("Vertex is not selected!! End.\n");
        return eTracks;
    }
    if(ePVR==NULL){
        printf("No PVRec set\n");
        return eTracks;
    }

    int hall[11],hdau1[11];
    int hdau2[11],hmt[11];
    for(int i=0;i<11;i++) hall[i]=hdau1[i]=hdau2[i]=hmt[i]=0;

    printf(" target vertex = ( %8.1f, %8.1f, %8.1f) on pid%d.\n", eVertex->X(), eVertex->Y(), eVertex->Z(), eVertexPlatePID);
    printf("  with %d track\n", ePVR->Ntracks());

    TObjArray *base = ePVR->eTracks;

    for(int i=0;i<base->GetEntries();i++) hall[((EdbTrackP *) base->At(i))->N()>=10?10:((EdbTrackP *) base->At(i))->N()]++;
    nAll=base->GetEntries();

    // Daughter search 1st
    if(eTSDau) TSDaughterTracks(base);

    for(int i=0;i<eTracks->GetEntries();i++) {
        EdbTrackP *t = ((EdbTrackDS *) eTracks->At(i))->GetOriginal();
        int nseg= t->N();
        if( nseg>10) nseg=10;
        hdau1[nseg]++;
    }
    nTSDau1 = eTracks->GetEntries();
    printf("%d\n", nTSDau1);

    // Microtrack search
    if(eMT2seg&&!eMTAll) MTSearch2seg(eTracks);
    if(eMTAll) {
        MTSearchAll(eTracks);
    }
    for(int i=0;i<eTracks->GetEntries();i++) hmt[((EdbTrackDS *) eTracks->At(i))->GetOriginal()->N()>=10?10:((EdbTrackDS *) eTracks->At(i))->GetOriginal()->N()]++;

    // Daughter cut 2nd.
    if(eTSDau2){
        TObjArray tmp = *eTracks;
        TSDaughterTracks2();
    }
    for(int i=0;i<eTracks->GetEntries();i++) hdau2[((EdbTrackDS *) eTracks->At(i))->N()>=10?10:((EdbTrackDS *) eTracks->At(i))->GetOriginal()->N()]++;

    nTSDau2 = eTracks->GetEntries();

    // small kin search
    if(eSmallKink) SmallKinkSearch();

    if(eTSPar) TSParentTracks(base);

    if(eBT){
        printf(" Base track search. ");
        printf("Upstream %d plates, Downstream %d plates ip<%.1lf w>%.1lf\n",
                eBTPlateUp, eBTPlateDown, eBTIP, eBTPH);
        for(int dPlate=-eBTPlateUp+1; dPlate<=eBTPlateDown; dPlate++){
            int pid = eVertexPlatePID + dPlate -1;
            if(pid<0||ePVR->Npatterns()-1<pid) continue;
            TSBaseTracks(pid);
        }
    }

    PrintTracks();

    printf("------  SUMMARY  --------------\n");
    printf("                         nseg ");
    for(int i=1;i<11;i++) printf("%3d ", i);
    printf("\n");
    printf(" Total            %4d tracks ", nAll);
    for(int i=1;i<11;i++) printf("%3d ", hall[i]);
    printf("\n");
    printf(" Daughter search  %4d tracks ", nTSDau1);
    for(int i=1;i<11;i++) printf("%3d ", hdau1[i]);
    printf("\n");
    printf(" Microtrack search            ");
    for(int i=1;i<11;i++) printf("%3d ", hmt[i]);
    printf("\n");
    printf(" Nseg>=3 (inc.MT) %4d tracks ", nTSDau2);
    for(int i=1;i<11;i++) printf("%3d ", hdau2[i]);
    printf("\n");
    printf("-------------------------------\n");


    if( eKinkSearch) KinkSearch();
    if( eShortDecay) ShortDecaySearch();

    return eTracks;
}

FindPrimaryVertex()

EdbVertex * EdbDecaySearch::FindPrimaryVertex

(

)

                                             {
    // Find Best Vertex.
    // select best one from pvr->eVertex

    printf("FindBestVertex(): \n");
    if( ePVR->Nvtx()==0 ){
        printf("No vertex is set. make a fake vertex.");

        EdbTrackP *tup=NULL;
        for(int i=0; i<ePVR->Ntracks(); i++){
            EdbTrackP *t = ePVR->GetTrack(i);
            if(t->N()<3) continue;
            if(EdbEDAUtil::DTRMS(t)>0.02) continue;
            if(tup==NULL) tup=t;
            if(t->Z()<tup->Z()) tup=t;
        }
        if(tup==NULL) return NULL;

        EdbVertex *v = MakeFakeVertex( tup, -650);

        return v;
    }

    // select most upstream vertex
    int zero=0;
    EdbVertex *v_most_upstream = ePVR->GetVertex(zero);
    for(int i=1; i<ePVR->Nvtx(); i++){
        EdbVertex *v = ePVR->GetVertex(i);
        if(v->Z()<v_most_upstream->Z()) v_most_upstream=v;
    }

    // gather all vertex near the most upstream vertex
    // vertices within 200 micron in Z.

    printf("TODO: FindPrimaryVertex... find real vertex, especially QE like kink event.\n");
    printf("memo: currently mostly 2 track vertex is selected.");
    printf("TODO: use SB info.\n");
    printf("TODO: constraint for vertex Z < SB stop Z\n");
    TObjArray *vertices = new TObjArray;
    for(int i=0; i<ePVR->Nvtx(); i++){
        EdbVertex *v = ePVR->GetVertex(i);
        if(v->Z()<v_most_upstream->Z()+200) vertices->Add(v);
    }

    // select most high probability vertex
    EdbVertex *v_highest_prob= (EdbVertex *) vertices->At(0);
    for(int i=1; i<vertices->GetEntries(); i++){
        EdbVertex *v= (EdbVertex *) vertices->At(i);
        if(v->V()->prob()>v_highest_prob->V()->prob()) v_highest_prob = v;
    }


    printf("select upstream and high probable vertex: %d vertex\n", ePVR->Nvtx());
    for(int i=0; i<ePVR->Nvtx();i++){
        EdbVertex *v = ePVR->GetVertex(i);
        int flag = 0;
        for(int j=0; j<vertices->GetEntries(); j++) { if(v==vertices->At(j)) flag=1;}
        printf("vertex %2d, %2d tracks z=%8.1f prob=%7.5f %s %s, %s\n", i, v->N(), v->Z(), v->V()->prob(),
                v==v_most_upstream?"most":"    ",
                flag?"upstream": "         ",
                v==v_highest_prob?"highest prob":"");
    }

    delete vertices;
    return v_highest_prob;
    //return v_most_upstream;

}

FindTrack()

EdbTrackDS* EdbDecaySearch::FindTrack ( EdbTrackP *  t )

inline

                                       {
        for(int i=0;i<Ntracks();i++){
            if(GetTrack(i)->ID()==t->ID()) return GetTrack(i);
        }
        return NULL;
    }

FindUpstreamVertices()

TObjArray * EdbDecaySearch::FindUpstreamVertices

(

)

                                               {

    printf("Find upstream vertices. Nvtx_base = %d\n", ePVR->Nvtx());
    TObjArray *vertices= new TObjArray;

    for(int i=0;i<ePVR->Nvtx();i++){
        EdbVertex *v = ePVR->GetVertex(i);
        double dz = v->Z() - eVertex->Z();
        if( dz < -eVtxUpDZ || 0 < dz ) continue;

        int flag=0;
        for(int j=0;j<eVertex->N();j++){
            EdbSegP *s = eVertex->GetTrack(j)->GetSegmentFirst();
            if(CalcIP(s,v)<eVtxUpIP) flag++;
        }
        if(flag ==0) continue;
        vertices->Add(v);
    }

    return vertices;
}

GetDecayVertex()

EdbDecayVertex* EdbDecaySearch::GetDecayVertex ( int  i )

inline

{ return (EdbDecayVertex *)eDecayVertices->At(i);}

GetIPCut()

float EdbDecaySearch::GetIPCut	(	EdbVertex *	v,
		EdbSegP *	s
	)

                                                      {
    // calculate IP cut for given 1ry vertex and segment.
    // if segment is BT, Z of segment is assumed Z=s->Z()-150;
    // otherwise, use s->Z();

    float Z = s->Side()==0? s->Z()-150 : s->Z();
    float dZ = fabs( Z-v->Z());
    return 5.0+0.01*dZ;
}

GetKinks()

TObjArray* EdbDecaySearch::GetKinks ( void  )

inline

{ return eKinks;}

GetPrimaryVertex()

EdbVertex* EdbDecaySearch::GetPrimaryVertex ( )

inline

{ return eVertex;}

GetPVR()

EdbPVRec* EdbDecaySearch::GetPVR ( )

inline

{ return ePVR;}

GetTrack()

EdbTrackDS* EdbDecaySearch::GetTrack ( int  i )

inline

{ return (EdbTrackDS *) eTracks->At(i);}

GetTSDauIP1()

double EdbDecaySearch::GetTSDauIP1

(

double

dz

)

                                           {
    TH1F *h = eTSDauIPHist1;

    if(dz<h->GetXaxis()->GetXmin()) return h->GetBinContent(1);
    if(dz>h->GetXaxis()->GetXmax()) return h->GetBinContent(h->GetNbinsX());
    for(int i=1;i<h->GetNbinsX();i++){
        if(dz>=h->GetBinLowEdge(i)&&dz<h->GetBinLowEdge(i)+h->GetBinWidth(i)) return h->GetBinContent(i);
    }
    return 0.0;
}

GetTSDauIP2()

double EdbDecaySearch::GetTSDauIP2

(

double

dz

)

                                           {
    TH1F *h = eTSDauIPHist2;

    if(dz<h->GetXaxis()->GetXmin()) return h->GetBinContent(1);
    if(dz>h->GetXaxis()->GetXmax()) return h->GetBinContent(h->GetNbinsX());
    for(int i=1;i<h->GetNbinsX();i++){
        if(dz>=h->GetBinLowEdge(i)&&dz<h->GetBinLowEdge(i)+h->GetBinWidth(i)) return h->GetBinContent(i);
    }
    return 0.0;
}

KinkSearch()

void EdbDecaySearch::KinkSearch

(

)

                               {
    printf("------------------------------\n");
    printf("Kink search in selected tracks\n");
    for(int i=0; i<Ntracks(); i++){
        for(int j=0; j<Ntracks(); j++){

            if(i==j) continue;

            EdbTrackDS *t1 = GetTrack(i);
            EdbTrackDS *t2 = GetTrack(j);

            EdbSegP *s1 = t1->GetSegmentLast();
            EdbSegP *s2 = t2->GetSegmentFirst();

            if(s1->Plate() >= s2->Plate()) continue;
            // if last segment of t1 is upstream of first segment of t2.

            // ignore kink angle < 20 mrad.
            float kinkangle = sqrt((s1->TX()-s2->TX())*(s1->TX()-s2->TX())+(s1->TY()-s2->TY())*(s1->TY()-s2->TY()));
            if( kinkangle<0.02) continue;

            // remove very low momentum
            double rmss, rmst, rmsl;
            DTRMSTL(t2, &rmss, &rmst, &rmsl);
            if( rmst>0.015 && rmsl>0.015) continue;

            TObjArray segs;
            segs.Add(s1);
            segs.Add(s2);
            EdbVertex *v = EdbEDAUtil::CalcVertex(&segs);
            float ip1 = EdbEDAUtil::CalcIP(s1, v);
            float ip2 = EdbEDAUtil::CalcIP(s2, v);

            // cut with IP and Z. (Z should between 2 segments.)
            if(ip1<20 && ip2<20 && s1->Z()-500<v->Z() && v->Z()<s2->Z()+500){
                printf("Decay vertex t1 %d t2 %d ip1 %f ip2 %f\n", t1->ID(), t2->ID(), ip1, ip2);
                EdbDecayVertex *dv = new EdbDecayVertex;
                dv->SetXYZ( v->X(), v->Y(), v->Z());
                dv->SetParent(t1);
                dv->SetDaughter(t2);
                dv->SetType( EdbDecayVertex::kLong);
                printf("kink found, %d %f %f %f\n", dv->N(), dv->X(), dv->Y(), dv->Z());
                eDecayVertices->Add(dv);
            }

            delete v;
        }
    }
}

MakeFakeVertex()

EdbVertex * EdbDecaySearch::MakeFakeVertex	(	EdbTrackP *	t,
		double	dz = 1150
	)

                                                                {
    EdbSegP *s0 = t->GetSegmentFirst();

    EdbSegP s(*s0);
    s.PropagateTo(s0->Z()+dz);

    EdbVertex *v = new EdbVertex;
    v->SetID(t->ID());
    v->SetXYZ(s.X(),s.Y(),s.Z());

    EdbVTA *vta = new EdbVTA(t, v);
    vta->SetZpos(1);
    vta->SetFlag(2);
    vta->SetImp(EdbEDAUtil::CalcIP(&s,v));
    v->AddVTA(vta);
    return v;
}

MTSearch2seg()

void EdbDecaySearch::MTSearch2seg

(

TObjArray *

tracks

)

                                                  {
    // Microtrack search for 2 segment track.
    // if eSet is not set, do nothing.

    // if eSet==NULL or Preparation is failed, do nothing.
    //int ret = eSet ? eSet->PrepareScanSetForMT() : -1;
    int ret = -1;
    if(ret==-1) {
        printf("ScanSet error. stop.\n");
        return;
    }

//  for(int i=0;i<tracks->GetEntries();i++){
//      EdbTrackP *t = ((EdbTrackDS *) tracks->At(i))->GetOriginal();
//      if(t->N()==2) eSet->MicroTrackSearch(t);
//  }
}

MTSearchAll()

void EdbDecaySearch::MTSearchAll

(

TObjArray *

tracks

)

                                                 {
    // Microtrack search for all tracks.
    // if eSet is not set, do nothing.

    // if eSet==NULL or Preparation is failed, do nothing.
    //int ret = eSet ? eSet->PrepareScanSetForMT() : -1;
    int ret = -1;
    if(ret==-1) {
        printf("ScanSet error. stop.\n");
        return;
    }

//  for(int i=0;i<tracks->GetEntries();i++){
//      gEve->SetStatusLine(Form("MicroTrackSearch %d/%d", i+1, tracks->GetEntries()));
//      EdbTrackP *t = ((EdbTrackDS *) tracks->At(i))->GetOriginal();
//      eSet->MicroTrackSearch(t);
//  }

}

NDecayVertices()

int EdbDecaySearch::NDecayVertices ( )

inline

{ return eDecayVertices->GetEntries();}

Ntracks()

int EdbDecaySearch::Ntracks ( )

inline

{ return eTracks->GetEntries();}

PrintTracks()

void EdbDecaySearch::PrintTracks

(

)

                                {
    printf("ibrick trkid  flag pl ns x        y        z        tx      ty      pl pa cs dk ip1ry class PBDLU comment\n");
    for(int i=0;i<Ntracks();i++){
        EdbTrackDS *t = GetTrack(i);
        t->Print();
    }
}

SetBTSearch()

void EdbDecaySearch::SetBTSearch ( int  do_search = 1, int  npl_up = 0, int  npl_down = 2, float  ipcut = 20, float  phcut = 17  )

inline

                                                                                                    {
        eBT = do_search; eBTPlateUp = npl_up; eBTPlateDown = npl_down; eBTIP = ipcut; eBTPH = phcut;}

SetIPHist1()

void EdbDecaySearch::SetIPHist1 ( TH1F *  h )

inline

{ eTSDauIPHist1=h;}

SetIPHist2()

void EdbDecaySearch::SetIPHist2 ( TH1F *  h )

inline

{ eTSDauIPHist2=h;}

SetKinkSearch()

void EdbDecaySearch::SetKinkSearch ( int  do_search )

inline

{ eKinkSearch = do_search;}

SetParentSearch()

void EdbDecaySearch::SetParentSearch ( int  do_search = 1, int  npl = 2, float  ipcut = 20, float  phcut = 17  )

inline

                                                                                     {
        eTSPar = do_search; eTSParPlate = npl; eTSParIP = ipcut; eTSParPH = phcut;}

SetPVR()

void EdbDecaySearch::SetPVR ( EdbPVRec *  pvr )

inline

{ ePVR = pvr;}

SetShortDecaySearch()

void EdbDecaySearch::SetShortDecaySearch ( int  do_search )

inline

{ eShortDecay = do_search;}

SetSmallKinkSearch()

void EdbDecaySearch::SetSmallKinkSearch ( int  do_search = 1, int  npl_down = 5, float  Rmin = 5.  )

inline

                                                                            {
        eSmallKink = do_search; eSmallKinkNpl = npl_down; eSmallKinkRmin = Rmin;}

SetTracks()

void EdbDecaySearch::SetTracks ( TObjArray *  array )

inline

{eTracks=array;}

SetVertex()

void EdbDecaySearch::SetVertex

(

EdbVertex *

v

)

                                            {
    eVertex = v;
    if(NULL==v) return;
    double vertexplz = 1e9;

    printf("vertex z = %f\n", v->Z());
    for(int i=0;i<ePVR->Npatterns();i++){
        EdbPattern *pat = ePVR->GetPattern(i);
        if(pat==NULL) continue;
        if(pat->Z()<v->Z()) continue;
        if(pat->Z()<vertexplz) {
            vertexplz    = pat->Z();
            eVertexPlatePID = pat->ID();   // Set eVertexPlatePID
        }
    }
    printf("VertexPlatePID=%d\n", eVertexPlatePID);
}

ShortDecaySearch()

void EdbDecaySearch::ShortDecaySearch

(

)

                                     {
    printf(" --------------------------\n");
    printf("// Short decay search    //\n");
    printf("-------------------------- \n");
    printf("Using tracks which start from vertex plate and Nseg>=3\n");
    printf("TODO: Microtrack search!!\n");

    // select tracks in vertex plate
    TObjArray tracks;
    for(int i=0; i<Ntracks(); i++){
        EdbTrackDS *t = GetTrack(i);
        EdbSegP *s1 = t->GetSegmentFirst();

        // Nseg cut
        if(t->N()<=2) continue;

        // use only tracks which start from vertex plate.
        if(s1->PID()!=eVertexPlatePID) continue;

        tracks.Add(t);
    }
    printf("Tracks selection for short decay : %d -> %d\n", Ntracks(), tracks.GetEntries());

    if(tracks.GetEntries()==0) return;

    // Calculate vertex with all tracks.  First time.
    TObjArray segs;
    for(int i=0; i<tracks.GetEntries(); i++) segs.Add( ((EdbTrackDS *)tracks.At(i))->GetSegmentFirst());
    EdbVertex *v = CalcVertex(&segs);
    float ipcut = GetIPCut(v, (EdbSegP *)segs.At(0));
    printf("Vertex with all tracks: %.1f %.1f %.1f\n", v->X(), v->Y(), v->Z());
    printf("dZ=%.1f microns -> IP cut %.1f\n", ((EdbSegP *)segs.At(0))->Z()-v->Z(), ipcut);

    int flag=0;
    // check if short decay candidate exists or not.

    if(tracks.GetEntries()==2){ // 2 track case.
        EdbTrackDS *t1 = (EdbTrackDS *) tracks.At(0);
        EdbSegP *s1 = t1->GetSegmentFirst();
        EdbTrackDS *t2 = (EdbTrackDS *) tracks.At(1);
        EdbSegP *s2 = t2->GetSegmentFirst();
        float ip = CalcDmin(s1,s2);
        printf("track %5d x track %5d, dmin %4.1f %s\n", t1->ID(), t2->ID(), ip, ip>ipcut?">ipcut":"");
        if(ip>ipcut) flag=2;
    }
    else { // more tracks case
        float ipmean=0.0;
        for(int i=0; i<tracks.GetEntries(); i++){
            EdbTrackDS *t = (EdbTrackDS *) tracks.At(i);
            EdbSegP *s = t->GetSegmentFirst();
            float ip = CalcIP( s, v);

            printf("track %5d (%7.4f, %7.4f) ip %4.1f %s\n", t->ID(), t->TX(), t->TY(), ip, ip>ipcut?">ipcut":"");
            ipmean +=ip;
            if(ip>ipcut) flag++;
        }
        ipmean /= tracks.GetEntries();
        printf("IP mean %.1lf microns with %d tracks\n", ipmean, tracks.GetEntries());
    }
    if(flag==0) {
        printf("No short decay. stop.\n");
        return;
    }
    printf("%d short decay candidates\n", flag);

    printf("Vertex refinement by removing one or more tracks.\n");

    while(flag&&tracks.GetEntries()!=2){
        // loop to make vertex removing one track.
        int imax=-1;
        float ipmax = 0;
        for(int i=0; i<tracks.GetEntries(); i++){
            EdbTrackDS *t = (EdbTrackDS *) tracks.At(i);
            EdbSegP *s = t->GetSegmentFirst();

            TObjArray segs2 = segs;
            segs2.Remove( s);
            segs2.Sort();

            EdbVertex *v2 = CalcVertex(&segs2);
            float ip = CalcIP(s, v2);

            if(ip>ipmax) {
                imax=i;
                ipmax=ip;
            }
        }

        // if ipmax>ipcut.
        if(ipmax>ipcut) {
            EdbTrackDS *tsd = (EdbTrackDS *) tracks.At(imax);

            // Calculate new vertex position.
            tracks.Remove(tsd);
            tracks.Sort();
            segs.Clear();
            for(int i=0; i<tracks.GetEntries(); i++) segs.Add( ((EdbTrackDS *)tracks.At(i))->GetSegmentFirst());
            EdbVertex *v2 = CalcVertex(&segs);

            // Set as Primary vertex.
            eVertex = v2;

            // remove very low momentum
            double rmss, rmst, rmsl;
            DTRMSTL(tsd, &rmss, &rmst, &rmsl);
            if( rmst>0.015 && rmsl>0.015) continue;

            // Make Short Decay vertex
            EdbVertex *vsd = MakeFakeVertex( tsd, -150);
            EdbDecayVertex *vdecay = new EdbDecayVertex;
            vdecay->SetXYZ( vsd->X(), vsd->Y(), vsd->Z());
            vdecay->SetPrimaryVertex(v2);
            vdecay->SetDaughter( tsd);
            vdecay->SetType( EdbDecayVertex::kShort);

            eDecayVertices->Add(vdecay);


            printf("Short decay of track %d is found. ip = %5.1f.  \n", tsd->ID(), ipmax);

            // Check if no other tracks has ip>ipcut
            flag=0;
            if(tracks.GetEntries()==2){
                EdbTrackDS *t1 = (EdbTrackDS *) tracks.At(0);
                EdbSegP *s1 = t1->GetSegmentFirst();
                EdbTrackDS *t2 = (EdbTrackDS *) tracks.At(1);
                EdbSegP *s2 = t2->GetSegmentFirst();
                float ip = CalcDmin(s1,s2);
                printf("track %5d x track %5d, dmin %4.1f %s\n", t1->ID(), t2->ID(), ip, ip>ipcut?">ipcut":"");
                if(ip>ipcut) flag=2;
            }
            else {
                float ipmean=0.0;
                for(int i=0; i<segs.GetEntries(); i++){
                    EdbSegP *s = (EdbSegP *) segs.At(i);
                    float ip = CalcIP(s, v2);
                    if(ip>ipcut) flag++;
                    ipmean += ip;
                }
                ipmean /= segs.GetEntries();
                printf("IP mean %.1lf microns with %d tracks, removing track %d\n",  ipmean, tracks.GetEntries(), tsd->ID());
            }
        } else flag=0;

    }


    if( flag && tracks.GetEntries()==2){
        // Short decay with only 1 partner track. (without vertex)
        for(int i=0; i<2; i++){
            EdbTrackDS *t1 = (EdbTrackDS *) tracks.At(i);
            EdbSegP *s1 = t1->GetSegmentFirst();
            EdbTrackDS *t2 = (EdbTrackDS *) tracks.At(!i);
            EdbSegP *s2 = t2->GetSegmentFirst();

            // remove very low momentum
            double rmss, rmst, rmsl;
            DTRMSTL(t1, &rmss, &rmst, &rmsl);
            if( rmst>0.015 && rmsl>0.015) continue;

            EdbVertex *vsd = MakeFakeVertex( t1, -150);
            EdbDecayVertex *vdecay = new EdbDecayVertex;
            vdecay->SetXYZ( vsd->X(), vsd->Y(), vsd->Z());
            vdecay->SetDaughter( t1);
            vdecay->SetPartner( t2);
            vdecay->SetType(EdbDecayVertex::kShort);
            eDecayVertices->Add(vdecay);

        }
    }

    for(int i=0; i<NDecayVertices(); i++){
        EdbDecayVertex *v = GetDecayVertex(i);
        if(v->GetPrimaryVertex()) v->SetPrimaryVertex(eVertex);
    }
}

SmallKinkSearch()

void EdbDecaySearch::SmallKinkSearch

(

)

                                    {
    for(int i=0;i<Ntracks();i++){
        EdbTrackDS *t = GetTrack(i);
        TObjArray *kinks=CheckInTrackKink(t);
        /*
        // Draw plots
        if(kinks->GetEntries()!=0) {
            if(gEDA==NULL) continue;
            EdbEDAPlotTab *p = gEDA->GetPlotTab();
            if(p!=NULL) p->CheckKink(t);
        }
        */
    }
}

TSBaseTracks()

TObjArray * EdbDecaySearch::TSBaseTracks

(

int

ipl

)

                                               {
    // Search Tracks and set eTracks. return TObjArray filled with selected segments.
    TObjArray *filtered = new TObjArray();
    printf("  pid=%2d ", pid);
    EdbPattern *pat = ePVR->GetPattern(pid);

    if(pat==NULL) {
        printf("No pattern is available for pid=%d\n", pid);
        return filtered;
    }

    int found=0;
    int found_as_track=0;
    for(int i=0;i<pat->N();i++){
        EdbSegP *s = pat->GetSegment(i);
        if(s==NULL) continue;

        // IP cut
        double ip=CalcIP(s, eVertex);
        if( ip > eBTIP )  continue;

        // PH cut
        if( s->W() < eBTPH ) continue;

        found++;
        // already found as tracks to be drawn?
        int flag=0;
        for(int j=0;j<eTracks->GetEntries();j++){
            EdbTrackP *t = (EdbTrackP *)eTracks->At(j);
            for(int k=0;k<t->N();k++){
                EdbSegP *ss = t->GetSegment(k);
                if(ss->PID()==s->PID()&&ss->ID()==s->ID()){
                    flag++;
                    found_as_track++;
                }
            }
        }
        if(flag) continue;

        // add to array
        filtered->Add(s);
        eSegments->Add(s);
        // add to array
        EdbTrackP *t = new EdbTrackP(s);
        t->SetCounters();

        EdbTrackDS *t2 = new EdbTrackDS(t, eVertex);
        t2->SetTrackSearch( t2->TrackSearch()|kBaseTrackSearch);
        eTracks->Add(t2);

        printf("   Track id=%6d ip=%5.1lf pid%02d->%02d %7.4lf %7.4lf\n", t->ID(), ip,
            t->GetSegmentFirst()->PID(),
            t->GetSegmentLast()->PID(),
            t->TX(),t->TY());
    }
    printf("%5d segments from pid %2d. (%d found, %d already selected as track)\n", filtered->GetEntries(), pid, found, found_as_track);
    return filtered;
}

TSDaughterTracks()

TObjArray * EdbDecaySearch::TSDaughterTracks

(

TObjArray *

base

)

                                                           {
    // Search Tracks and set eTracks. return TObjArray filled with selected tracks.
    printf(" Daughter track search. ");
    printf("nseg>=%d, ip=func of dz, w>%.1lf\n", eTSDauNseg,eTSDauPH);
//  printf("nseg>=%d, start within %d plates, ip<%.1lf w>%.1lf\n",
//          eTSDauNseg, eTSDauPlate, 0.0 /*eTSDauIP*/, eTSDauPH);

    TObjArray *filtered = new TObjArray;

    int inew=0;

    for(int i=0;i<base->GetEntries();i++){
        EdbTrackP *t = (EdbTrackP *) base->At(i);
        if(t==NULL) continue;
        EdbSegP *s = t->GetSegmentFirst();

        // Nseg cut
        if( t->N() < eTSDauNseg ) continue;

        // dPlate cut
        //int dPlate = s->PID() - eVertexPlatePID + 1; //
        //if( dPlate < 1 || eTSDauPlate < dPlate ) continue; // 0 <= dPlate <= eTSDauPlate

        // IP cut
        double ip = CalcIP(s, eVertex);

        double dz = s->Z() - eVertex->Z();

        if( ip > GetTSDauIP1(dz) )  continue;

        // PH cut
        double ph = t->Wgrains()/t->N();
        if( ph < eTSDauPH ) continue;


        // add to array
        filtered->Add(t);
        EdbTrackDS *t2 = FindTrack(t);
        if(t2) t2->SetTrackSearch( t2->TrackSearch()|kDaughterSearch);
        else {
            inew++;
            printf("   Track id=%6d ip=%5.1lf pid%02d->%02d %7.4lf %7.4lf\n", t->ID(), ip,
            t->GetSegmentFirst()->PID(),
            t->GetSegmentLast()->PID(),
            t->TX(),t->TY());

            t2 = new EdbTrackDS(t,eVertex);
            t2->SetTrackSearch( t2->TrackSearch()|kDaughterSearch);
            eTracks->Add(t2);
        }
    }
    printf("%5d tracks are selected (new %2d tracks)\n", filtered->GetEntries(), inew);
    return filtered;
}

TSDaughterTracks2()

void EdbDecaySearch::TSDaughterTracks2

(

)

                                      {
    // Filter 2segment tracks after microtrack search.
    // sevior dz cut will be applied.

    printf(" Daughter track search2. ");
    printf("nseg>=%d, ip=func of dz\n", eTSDauNseg2);

    int ntrk=eTracks->GetEntries();
    for(int i=0;i<ntrk;i++){
        EdbTrackDS *tt = (EdbTrackDS *) eTracks->At(i);
        EdbTrackP *t = tt->GetOriginal();
        if(t==NULL) continue;

        EdbSegP *s = t->GetSegmentFirst();

        // Nseg cut
        // IP cut
        double ip = CalcIP(s, eVertex);
        double dz = s->Z() - eVertex->Z();

        if( ip < GetTSDauIP2(dz) && t->N() >= eTSDauNseg2)  continue;

        // remove this track
        eTracks->Remove(tt);
    }
    eTracks->Sort();
    printf("%5d tracks are remained. original %d tracks\n", eTracks->GetEntries(), ntrk);
}

TSParentTracks()

TObjArray * EdbDecaySearch::TSParentTracks

(

TObjArray *

base

)

                                                         {
    // Search Tracks and set eTracks. return TObjArray filled with selected tracks.

    printf(" Parent track search. ");
    printf("nseg>=%d, start within %d plates, ip<%.1lf w>%.1lf\n",
            eTSParNseg, eTSParPlate, eTSParIP, eTSParPH);

    printf("eVertexPlatePID=%d\n", eVertexPlatePID);

    TObjArray *filtered = new TObjArray;
    int inew=0;
    for(int i=0;i<base->GetEntries();i++){
        EdbTrackP *t = (EdbTrackP *) base->At(i);
        if(t==NULL) continue;
        EdbSegP *s = t->GetSegmentFirst();

        // Nseg cut
        if( t->N() < eTSParNseg ) continue;

        // dPlate cut
        int dPlate = s->PID() - eVertexPlatePID + 1;
        if( dPlate <= -eTSParPlate || eTSParPlate < dPlate ) continue; // 0 <= dPlate <= eTSParPlate

        // IP cut
        double ip = CalcIP(s, eVertex);
        if( ip > eTSParIP )  continue;

        // PH cut
        double ph = t->Wgrains()/t->N();
        if( ph < eTSParPH ) continue;


        // add to array
        filtered->Add(t);
        EdbTrackDS *t2 = FindTrack(t);
        if(t2) t2->SetTrackSearch( t2->TrackSearch()|kParentSearch);
        else {
            inew++;
            printf("   Track id=%6d ip=%5.1lf pid%02d->%02d %7.4lf %7.4lf\n", t->ID(), ip,
                t->GetSegmentFirst()->PID(),
                t->GetSegmentLast()->PID(),
                t->TX(),t->TY());
            EdbTrackDS *t2 = new EdbTrackDS( t, eVertex);
            t2->SetTrackSearch( t2->TrackSearch()|kParentSearch);
            eTracks->Add(t2);
        }
    }

    printf("%5d tracks are selected (new %2d tracks)\n", filtered->GetEntries(), inew);
    return filtered;
}

Member Data Documentation

eBT

int EdbDecaySearch::eBT

eBTIP

double EdbDecaySearch::eBTIP

eBTPH

double EdbDecaySearch::eBTPH

eBTPlateDown

int EdbDecaySearch::eBTPlateDown

eBTPlateUp

int EdbDecaySearch::eBTPlateUp

eDecayVertices

TObjArray* EdbDecaySearch::eDecayVertices

eDSVer

int EdbDecaySearch::eDSVer

eKinks

TObjArray* EdbDecaySearch::eKinks

eKinkSearch

int EdbDecaySearch::eKinkSearch

eKinkSigma

double EdbDecaySearch::eKinkSigma

eMT2seg

int EdbDecaySearch::eMT2seg

eMTAll

int EdbDecaySearch::eMTAll

ePVR

EdbPVRec* EdbDecaySearch::ePVR

eSegments

TObjArray* EdbDecaySearch::eSegments

eShortDecay

int EdbDecaySearch::eShortDecay

eSmallKink

int EdbDecaySearch::eSmallKink

eSmallKinkNpl

int EdbDecaySearch::eSmallKinkNpl

eSmallKinkRmin

float EdbDecaySearch::eSmallKinkRmin

eTracks

TObjArray* EdbDecaySearch::eTracks

eTSDau

int EdbDecaySearch::eTSDau

eTSDau2

int EdbDecaySearch::eTSDau2

eTSDauIPHist1

TH1F* EdbDecaySearch::eTSDauIPHist1

eTSDauIPHist2

TH1F* EdbDecaySearch::eTSDauIPHist2

eTSDauNseg

int EdbDecaySearch::eTSDauNseg

eTSDauNseg2

int EdbDecaySearch::eTSDauNseg2

eTSDauPH

double EdbDecaySearch::eTSDauPH

eTSPar

int EdbDecaySearch::eTSPar

eTSParIP

double EdbDecaySearch::eTSParIP

eTSParNseg

int EdbDecaySearch::eTSParNseg

eTSParPH

double EdbDecaySearch::eTSParPH

eTSParPlate

int EdbDecaySearch::eTSParPlate

eVertex

EdbVertex* EdbDecaySearch::eVertex

eVertexPlatePID

int EdbDecaySearch::eVertexPlatePID

eVertices

TObjArray* EdbDecaySearch::eVertices

eVtxUp

int EdbDecaySearch::eVtxUp

eVtxUpDZ

int EdbDecaySearch::eVtxUpDZ

eVtxUpIP

int EdbDecaySearch::eVtxUpIP

---

The documentation for this class was generated from the following files:

• src/libAnalysis/EdbDecaySearch.h
• src/libAnalysis/EdbDecaySearch.C
