AcqOdyssey Class Reference

#include <AcqOdyssey.h>

Inheritance diagram for AcqOdyssey:

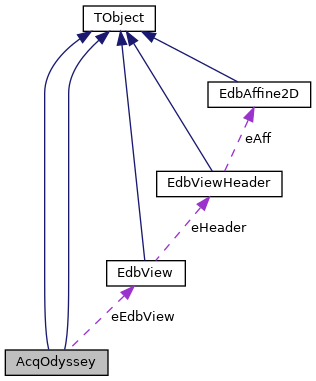

Collaboration diagram for AcqOdyssey:

Public Member Functions
	AcqOdyssey ()
	AcqOdyssey ()
long	Clusterize (int N, TClonesArray *Clusters=NULL, int Side=0)
long	Clusterize (int N, unsigned char *buf, int nc, int nr, TClonesArray *Clusters=NULL, int Side=0)
void	CopyImageToBG (int N)
void	CopyImageToBG (int N)
void	CopyImageToGC (int N, long ConstBG=0)
void	DrawCircles (float RadPitch=100.)
void	DrawClear ()
void	DrawClusters (TClonesArray *Clusters=NULL)
void	DrawGrid (float MajorPitch=100., float MinorPitch=10.)
void	DrawText (int Layer, int X, int Y, char *text)
void	DrawTrack (int N, float X, float Y, float TX, float TY)
long	FillView (int N, int Side=0, EdbView *View=NULL, bool FillImages=false)
void	FindClusters (int N)
long	FindClusters (int N, TClonesArray *Clusters=NULL, int Side=0)
void	FreeResources ()
void	FreeResources ()
void	GetBGImage (short *buf)
EdbClustersBox *	GetEdbClustersBox (int N1, int N2)
EdbFrame *	GetEdbFrame (int N)
EdbImage *	GetEdbImage (int N)
EdbImage *	GetEdbImage (int N)
void	GetGCImage (short *buf)
void	GetImage (int N, char *buf)
void	GetImage (int N, char *buf)
void	GetImageFast (int N, unsigned char **buf, long *Pitch, long *Lines)
long	GrabAndFillView (int N, float *Zs=NULL, double Timeout=0, int Side=0, EdbView *View=NULL, bool FillImages=false)
void	GrabImages (int N)
void	GrabImagesONL (int N)
int	GrabImagesONL (int N, float *Zs=NULL, double Timeout=0)
int	GrabOneImage (float Z, double Timeout=0)
int	GrabRawImagesONL (int N, float *Zs=NULL, double Timeout=0)
int	HFindEdge (int N, int Thresh, int MinWidth, int MaxWidth)
bool	Initialize (char *DCF, int N)
bool	Initialize (char *DCF, int N)
bool	IsGrabComplete ()
bool	IsGrabComplete ()
void	PlotBGImage ()
void	PlotGCImage ()
void	PlotImage1D (int N, TH1F *hist=NULL)
void	PlotImage2D (int N)
void	PutBGImage (short *buf)
void	PutBGImage (short *buf)
void	PutGCImage (short *buf)
void	PutImage (int N, char *buf)
void	PutImage (int N, char *buf)
void	SetFIRFKernel (char *Kern, int W, int H)
void	SetFIRFKernel (char *Kern, int W, int H)
void	SetFIRFNorm (int Norm)
void	SetFIRFNorm (int Norm)
void	ShowBGImage ()
void	ShowBGImage ()
void	ShowGCImage ()
void	ShowImage (int N)
void	ShowImage (int N)
void	ShowImages (int N1, int N2, int TimeInterval, int Times)
void	ShowImages (int N1, int N2, int TimeInterval, int Times)
void	StartLiveGrab ()
void	StopLiveGrab ()
void	TracksFromNImages (int N, float TX, float TY, int Dest)
void	TracksFromNImages (int N, int DX, int DY, float TX, float TY, int Dest)
void	UARTSendString (const char *s, int N)
int	VFindEdge (int N, int Thresh, int MinWidth, int MaxWidth)
void	XProjectImage (int N, long *buf)
void	YProjectImage (int N, long *buf)
virtual	~AcqOdyssey ()
virtual	~AcqOdyssey ()

Public Attributes
bool	ApplyFIRF
bool	ApplyGainCorr
bool	BGImageValid
TClonesArray *	eEdbClusters
EdbView *	eEdbView
bool	GCImageValid
int	MaxNbGrab
float	OpticalShrinkage
float	PixelToMicronX
float	PixelToMicronY
int	SizeX
int	SizeY
bool	SubtractBG
int	Threshold
char	Threshold
float	ZBuffer [MAX_NB_GRAB]

Private Attributes
long	BGImage
char	bNorm
long	Buffer [MAX_NB_GRAB]
long	BufferN
long	Camera
long	Control
long	ControlBuf
long	ConvImage
long	ConvImage2
long	ConvImage32
long	CopyOSB
long	CopyOSB1
long	Device
long	Digitizer
long	GCImage
long	GrabOSB
long	GrabThread
long	HostBuffer [MAX_NB_GRAB]
long	HostBufferLines
long	HostBufferPitch
long	Kernel
MIL_ID	MilApplication
MIL_ID	MilBGImage
MIL_ID	MilConvImage
MIL_ID	MilConvImage1
MIL_ID	MilConvImage2
MIL_ID	MilConvImage32
MIL_ID	MilDigitizer
MIL_ID	MilDisplay
MIL_ID	MilGCImage
MIL_ID	MilGCKernel
MIL_ID	MilImage [MAX_NB_GRAB]
MIL_ID	MilImageDisp
MIL_ID	MilImageN
MIL_ID	MilKernel
MIL_ID	MilOverlayImage
MIL_ID	MilProjResX
MIL_ID	MilProjResY
MIL_ID	MilSystem
long	Overlay
void *	pHostBuffer [MAX_NB_GRAB]
long	SeqThread
long	ShiftBuffer [MAX_NB_GRAB]
long	ShiftList
long	System
long	Thread
long	TransparentColor

Constructor & Destructor Documentation

AcqOdyssey() [1/2]

AcqOdyssey::AcqOdyssey

(

)

{
 BGImageValid=false;
 SubtractBG=false;
 ApplyFIRF=false;
 eEdbClusters=0;
 Threshold=50;
 PixelToMicronX=-0.292;
 PixelToMicronY=0.292;
 OpticalShrinkage=1.515;
 eEdbView=0;


}

~AcqOdyssey() [1/2]

AcqOdyssey::~AcqOdyssey ( )

virtual

{
/*
   MappFreeDefault(MilApplication, MilSystem, MilDisplay,
                                  MilDigitizer, MilImage);
*/
    FreeResources();

}

AcqOdyssey() [2/2]

AcqOdyssey::AcqOdyssey

(

)

~AcqOdyssey() [2/2]

virtual AcqOdyssey::~AcqOdyssey ( )

virtual

Member Function Documentation

Clusterize() [1/2]

long AcqOdyssey::Clusterize	(	int	N,
		TClonesArray *	Clusters = NULL,
		int	Side = 0
	)

{
  long nc ;
  long nr ;
  unsigned char *buf;
  GetImageFast(N,&buf,&nc,&nr);
  return Clusterize(N,buf,nc,nr,Clusters,Side);
}

Clusterize() [2/2]

long AcqOdyssey::Clusterize	(	int	N,
		unsigned char *	buf,
		int	nc,
		int	nr,
		TClonesArray *	Clusters = NULL,
		int	Side = 0
	)

{
// c++ remake of  good old "Fire in steppe" by Valery Tiukov ;-)

  int pix;
  int wcl;
  long   ncl=0;
  int Border=8;
            float x,y,z,a,v;
            int s,seg;
//  printf("Clusterize Image %d: %d %d....",N,nc,nr);
 // fflush(stdout);

  EdbCluster *cl=new EdbCluster();
  if(!Clusters) Clusters=eEdbClusters;
//  Clusters->Clear();

int ir,ic,l;
for(int i=0;i<nc*nr;i++)
{
    if(buf[i]==0) continue;
    ir=int(i/nc);
    if(ir<Border || ir>nr-Border) continue;
    ic=i-ir*nc;
    if(ic<Border || ic>nc-Border) continue;
      cl->Set0();
      wcl = BurnPix( buf, ic,ir, nc,nr, cl);
      cl->Normalize();
      z=ZBuffer[N];
      x=(cl->X()-SizeX/2.)*PixelToMicronX;
      y=(cl->Y()-SizeY/2.)*PixelToMicronY;
      a=cl->GetArea();
                if(a<=1) continue;
      v=cl->GetVolume();
                l = Clusters->GetLast()+1;
      new((*Clusters)[l])  EdbCluster( x,y,z, a,v,N,Side,-1 );
     ncl++;

}
  delete cl;
 // printf("found %d clusters.\n",ncl);
 // fflush(stdout);

  return ncl;
}

CopyImageToBG() [1/2]

void AcqOdyssey::CopyImageToBG

(

int

N

)

{
    MbufCopy(MilImage[N],MilBGImage);
    BGImageValid=true;

}

CopyImageToBG() [2/2]

void AcqOdyssey::CopyImageToBG

(

int

N

)

CopyImageToGC()

void AcqOdyssey::CopyImageToGC	(	int	N,
		long	ConstBG = 0
	)

{
char GCKernel[4][4]=
{
    {1,1,1,1},
    {1,1,1,1},
    {1,1,1,1},
    {1,1,1,1}
};
long ConstBG32;
long TargetConstant;
MIL_ID MilResult;
   MimAllocResult(MilSystem,1,M_EXTREME_LIST,&MilResult);
   MbufAlloc2d(MilSystem,4,4,8+M_SIGNED,M_KERNEL,&MilGCKernel);
   MbufPut(MilGCKernel,GCKernel);
   MbufControlNeighborhood(MilGCKernel,M_NORMALIZATION_FACTOR,16);
    MimClip(MilImage[N],MilGCImage,M_OUT_RANGE,0,255,0,255);
    MimConvolve(MilGCImage,MilGCImage,MilGCKernel);
    MimConvolve(MilGCImage,MilGCImage,MilGCKernel);
    MimConvolve(MilGCImage,MilGCImage,MilGCKernel);
    MimConvolve(MilGCImage,MilGCImage,MilGCKernel);
    MimConvolve(MilGCImage,MilGCImage,MilGCKernel);
    MimArith(0x00ff,MilGCImage,MilGCImage,M_CONST_SUB);
    // calculate maximum pixel PH
//  MimFindExtreme(MilGCImage,MilResult,M_MAX_VALUE);
//  MimGetResult(MilResult,M_VALUE,&MaximumPix);
//  MaximumPix=MaximumPix*256;
    ConstBG32=((ConstBG*256) & 0xffff);
    TargetConstant=0xf0ff - ConstBG32;
    MimArith(TargetConstant,MilGCImage,MilGCImage,M_CONST_DIV);
    ConstBG32=ConstBG;
    MimArith(MilGCImage,ConstBG,MilGCImage,M_ADD_CONST);
//  MimArith(MaximumPix,MilGCImage,MilGCImage,M_CONST_DIV); //normalize to MaxPix*256
//  MimConvolve(MilGCImage,MilGCImage,M_SMOOTH);
//  MimConvolve(MilGCImage,MilGCImage,M_SMOOTH);
//  MimConvolve(MilGCImage,MilGCImage,M_SMOOTH);
//  MbufCopy(MilImage[N],MilGCImage);
    GCImageValid=true;
    MbufFree(MilGCKernel);
    MimFree(MilResult);

}

DrawCircles()

void AcqOdyssey::DrawCircles

(

float

RadPitch = 100.

)

{
    //Draws measuring circles into overlay
    // the radius pitches are given in microns
    int rX,rY;
    float PixPitchX=RadPitch/fabs(PixelToMicronX);
    float PixPitchY=RadPitch/fabs(PixelToMicronY);
    for( int d=1; d*PixPitchX*2<SizeX; d++)
    {
        rX=int(d*PixPitchX);
        rY=int(d*PixPitchY);
      MgraArc(M_DEFAULT, MilOverlayImage, SizeX/2,SizeY/2,rX,rY,0,360);
    }

}

DrawClear()

void AcqOdyssey::DrawClear

(

)

{
   // Clear the overlay buffer with the keying color.
   MbufClear(MilOverlayImage, TransparentColor);
}

DrawClusters()

void AcqOdyssey::DrawClusters

(

TClonesArray *

Clusters = NULL

)

{
    //Draws circles around each cluster
    // with a diameter equal to cluster diameter;
    TClonesArray * arr;
    EdbCluster * cl;
    int r,x,y;
    if(!Clusters) arr=eEdbClusters;
    if(!arr) return;
    for(int i=0;i<arr->GetEntries();i++)
    {
        cl=(EdbCluster*)(arr->At(i));
        r=int(2.*sqrt(cl->GetArea())/3.14);
        x=int(cl->GetX()/PixelToMicronX+SizeX/2.);
        y=int(cl->GetY()/PixelToMicronY+SizeY/2.);
        MgraArc(M_DEFAULT, MilOverlayImage, x,y,r,r,0,360);
    }
}

DrawGrid()

void AcqOdyssey::DrawGrid	(	float	MajorPitch = 100.,
		float	MinorPitch = 10.
	)

{
    //Draws measuring grid into overlay
    // the pitches are given in microns
    int X,Y;
    float PixPitchX=MajorPitch/fabs(PixelToMicronX);
    float PixPitchY=MajorPitch/fabs(PixelToMicronY);
    for( int dX=0; dX*PixPitchX*2<SizeX; dX++)
    {
        X=int(SizeX/2.+dX*PixPitchX);
       MgraLine(M_DEFAULT, MilOverlayImage, X,0, X, SizeY-1);
        X=int(SizeX/2.-dX*PixPitchX);
       MgraLine(M_DEFAULT, MilOverlayImage, X,0, X, SizeY-1);
    }
    for( int dY=0; dY*PixPitchY*2<SizeY; dY++)
    {
        Y=int(SizeY/2.+dY*PixPitchY);
       MgraLine(M_DEFAULT, MilOverlayImage, 0,Y, SizeX-1, Y);
        Y=int(SizeY/2.-dY*PixPitchY);
       MgraLine(M_DEFAULT, MilOverlayImage, 0,Y, SizeX-1, Y);
    }
    PixPitchX=MinorPitch/fabs(PixelToMicronX);
    PixPitchY=MinorPitch/fabs(PixelToMicronY);
    for( int dX=0; dX*PixPitchX*2<SizeX; dX++)
    {
        X=int(SizeX/2.+dX*PixPitchX);
       MgraLine(M_DEFAULT, MilOverlayImage, X,SizeY/2-10, X, SizeY/2+10);
        X=int(SizeX/2.-dX*PixPitchX);
       MgraLine(M_DEFAULT, MilOverlayImage, X,SizeY/2-10, X, SizeY/2+10);
    }
    for( int dY=0; dY*PixPitchY*2<SizeY; dY++)
    {
        Y=int(SizeY/2.+dY*PixPitchY);
       MgraLine(M_DEFAULT, MilOverlayImage, SizeX/2-10,Y, SizeX/2+10, Y);
        Y=int(SizeY/2.-dY*PixPitchY);
       MgraLine(M_DEFAULT, MilOverlayImage, SizeX/2-10,Y, SizeX/2+10, Y);
    }
}

DrawText()

void AcqOdyssey::DrawText	(	int	Layer,
		int	X,
		int	Y,
		char *	text
	)

{
     MgraText(M_DEFAULT, MilOverlayImage, X, Y,    MIL_TEXT(text));

}

DrawTrack()

void AcqOdyssey::DrawTrack	(	int	N,
		float	X,
		float	Y,
		float	TX,
		float	TY
	)

{
    // Draw track on the display overlay according to number of layers N
    // TX, TY are frame shifts in pixels (frame x w.r.t. frame x-1)
    // DZ is calculated automatically from Image number (from 0 to N-1)
    int Ix0,Ix,Iy0,Iy;
        Ix0=int(X/PixelToMicronX+SizeX/2.);
        Iy0=int(Y/PixelToMicronY+SizeY/2.);
    //  Ix=int((X+N*TX)/PixelToMicronX+SizeX/2.);
    //  Iy=int((Y+N*TY)/PixelToMicronY+SizeY/2.);

    MgraLine(M_DEFAULT, MilOverlayImage, Ix0,Iy0, Ix0+N*TX, Iy0+N*TY);
}

FillView()

long AcqOdyssey::FillView	(	int	N,
		int	Side = 0,
		EdbView *	View = NULL,
		bool	FillImages = false
	)

{
    // Finds clusters in a given images sequence (from 0 to N) and fills the EdbView structure
    // if pointer to View is not given, result is saved into eEdbView;
    // Cluster coordinates are returned in microns with respect to image center!!!
    // returns total number of clusters found.
    printf("Filling View..."); fflush(stdout);
    long TNumber=0;
    long Number=0;
    long PixNumber=0;
    EdbView *V;
    TClonesArray * Cl;
    if(View) V=View; else V=eEdbView;
    V->Clear();
    Cl=V->GetClusters();
      V->SetNframes(N*Side,N*(1-Side));
    for(int n=0;n<N;n++)
    {
      Number=FindClusters(n,Cl,Side);
      V->AddFrame(n,ZBuffer[n],Number,0);
      if(FillImages)
      {
          ((EdbFrame*)(V->GetFrames()->At(n)))->SetImage(GetEdbImage(n));
      }

      TNumber+=Number;
    }
    printf("Done.\n"); fflush(stdout);
    return TNumber;
}

FindClusters() [1/2]

void AcqOdyssey::FindClusters

(

int

N

)

{
}

FindClusters() [2/2]

long AcqOdyssey::FindClusters	(	int	N,
		TClonesArray *	Clusters = NULL,
		int	Side = 0
	)

{
    // Finds clusters in a given image
    // if pointer to Clusters is not given, result is saved into eEdbClusters;
    // Cluster coordinates are returned in microns with respect to image center!!!
    // returns number of clusters found.
    long Result;
    long FeatList;
    long Number;
    EdbCluster * cl;
           IM_BLOB_GROUP5_ST *Group5=0;  /* Results */
           IM_BLOB_GROUP1_ST *Group1=0;  /* Results */
     MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
    int Border=8;
    int DX=SizeX-2*Border;
    int DY=SizeY-2*Border;
    int OFX,OFY;
    OFX=IM_PARENT+Border;
    OFY=IM_PARENT+Border+SizeY*N;
    imBufChildMove(Thread, ShiftBuffer[N], OFX, OFY, DX, DY);
            /* Allocate a blob feature list and result buffer */
            imBlobAllocFeatureList(Thread, &FeatList);
            imBlobAllocResult(Thread, &Result);
            imBlobSelectFeature(Thread, FeatList, IM_BLOB_NO_FEATURES, IM_DEFAULT);
            imBlobSelectFeature(Thread, FeatList, IM_BLOB_AREA, IM_DEFAULT);
           imBlobSelectFeature(Thread, FeatList, IM_BLOB_SUM_PIXEL, IM_DEFAULT);
    //       imBlobSelectFeature(Thread, FeatList, IM_BLOB_MAX_PIXEL, IM_DEFAULT);
           imBlobSelectFeature(Thread, FeatList, IM_BLOB_CENTER_OF_GRAVITY, IM_DEFAULT);

        /* Increase speed by not saving runs */
            imBlobControl(Thread, Result, IM_BLOB_SAVE_RUNS, IM_DISABLE);

        /* Calculate selected features */
 //           imBlobCalculate(Thread, Buffer[N], Buffer[N], FeatList, Result, IM_CLEAR, 0);
           imBlobCalculate(Thread, ShiftBuffer[N], ShiftBuffer[N], FeatList, Result, IM_CLEAR, 0);

        /* Get the number of blobs */
            imBlobGetNumber(Thread, Result, &Number);
         /* Allocate enough memory for the results */
            Group5 = (IM_BLOB_GROUP5_ST *) malloc(Number * sizeof(IM_BLOB_GROUP5_ST));
            Group1 = (IM_BLOB_GROUP1_ST *) malloc(Number * sizeof(IM_BLOB_GROUP1_ST));
        /* Get the results */
            imBlobGetResult(Thread, Result, IM_BLOB_GROUP5, IM_DEFAULT, Group5);
            imBlobGetResult(Thread, Result, IM_BLOB_GROUP1, IM_DEFAULT, Group1);
            if(!Clusters) Clusters=eEdbClusters;
    //      Clusters->Clear();
            int i=0;
            float x,y,z,a,v;
            int s,seg;
            int NumberReturned=0;
            if(Clusters) for(int cn=0;cn<Number;cn++)
            {
/*              cl=new EdbCluster();
                cl->SetArea(Group1[cn].area);
                cl->SetVolume(Group5[cn].sum_pixel);
                cl->SetFrame(N);
                cl->SetSide(0) ;
                cl->SetSegment(0);
                cl->SetX((Group1[cn].center_of_gravity_x-SizeX/2.)*PixelToMicronX);
                cl->SetY((Group1[cn].center_of_gravity_y-SizeY/2.)*PixelToMicronY);
                cl->SetZ(ZBuffer[N]);
                */
                a=Group1[cn].area;
                if(a<=1) continue;
                v=Group5[cn].sum_pixel;
                x=(Group1[cn].center_of_gravity_x+Border-SizeX/2.)*PixelToMicronX;
                y=(Group1[cn].center_of_gravity_y+Border-SizeY/2.)*PixelToMicronY;
                z=ZBuffer[N];
                i = Clusters->GetLast()+1;
                new((*Clusters)[i++])  EdbCluster( x,y,z, a,v,N,Side,-1 );
                NumberReturned++;
//              Clusters->Add(cl);
            }

 // imSyncControl(SeqThread, CopyOSB,IM_OSB_STATE,IM_WAITING);
 //          imBlobFill(Thread,Result,Overlay,M_ALL_BLOBS,223,CopyOSB);
//  imSyncHost(SeqThread, CopyOSB, IM_COMPLETED);

            if(Group1) { delete Group1; Group1=NULL;}
            if(Group5) { delete Group5; Group5=NULL;}
            imBlobFree(Thread, FeatList);
           imBlobFree(Thread, Result);
     MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);
     return NumberReturned;

}

FreeResources() [1/2]

void AcqOdyssey::FreeResources

(

)

{
    /* Clean up */
   /* Stop the continuous grab and free digitizer (if needed). */
   if (MilDigitizer)
      {
      MdigHalt(MilDigitizer);
      MdigFree(MilDigitizer);
      }

   /* Deselect the image from the display. */
   MdispDeselect(MilDisplay, MilImageDisp);

   /* Free image. */
   MbufFree(MilImageDisp);
   for (int n=0; n<MAX_NB_GRAB; n++)
      {
          if(MilImage[n]) MbufFree(MilImage[n]);
      }
 //  MbufFree(MilOverlayImage)   ;
   MbufFree(MilImageN);
   MbufFree(MilBGImage);
   MbufFree(MilGCImage);
   MbufFree(MilConvImage);
   MbufFree(MilConvImage2);
   MbufFree(MilConvImage32);
  // MbufFree(MilKernel)    ;
   MbufFree(MilGCKernel)    ;
      MimFree(MilProjResX);
      MimFree(MilProjResY);
       MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
   for (int n=0; n<MAX_NB_GRAB; n++)
      {
          if(HostBuffer[n]) imBufFree(Thread,HostBuffer[n]);
      }
      if(Kernel) imBufFree(Thread,Kernel);
       MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);


   /* Free defaults allocations. */
   MdispFree(MilDisplay);
   MsysFree(MilSystem);
   MappFree(MilApplication);
  // MappFreeDefault(MilApplication, MilSystem, M_NULL, M_NULL, M_NULL);


}

FreeResources() [2/2]

void AcqOdyssey::FreeResources

(

)

GetBGImage()

void AcqOdyssey::GetBGImage

(

short *

buf

)

{
    MbufGet(MilBGImage,buf);
}

GetEdbClustersBox()

EdbClustersBox * AcqOdyssey::GetEdbClustersBox	(	int	N1,
		int	N2
	)

{
//  EdbClustersBox* cb=new EdbClustersBox();
    return NULL;
}

GetEdbFrame()

EdbFrame * AcqOdyssey::GetEdbFrame

(

int

N

)

{
    EdbFrame *fr=new EdbFrame(N,ZBuffer[N],0,0);
    fr->SetImage(GetEdbImage(N));
    return fr;
}

GetEdbImage() [1/2]

EdbImage * AcqOdyssey::GetEdbImage

(

int

N

)

{
    EdbImage* im=new EdbImage();
    unsigned char *bf;
    long Sx,Sy;
//  char *bf=(char*)malloc(SizeX*SizeY);
//  MbufGet(MilImage[N],bf);
    GetImageFast(N,&bf,&Sx,&Sy);
    im->AdoptImage(Sx,Sy,(char*)bf);
    return im;
}

GetEdbImage() [2/2]

EdbImage * AcqOdyssey::GetEdbImage

(

int

N

)

GetGCImage()

void AcqOdyssey::GetGCImage

(

short *

buf

)

{
    MbufGet(MilGCImage,buf);
}

GetImage() [1/2]

void AcqOdyssey::GetImage	(	int	N,
		char *	buf
	)

{
    MbufGet(MilImage[N],buf);
}

GetImage() [2/2]

void AcqOdyssey::GetImage	(	int	N,
		char *	buf
	)

GetImageFast()

void AcqOdyssey::GetImageFast	(	int	N,
		unsigned char **	buf,
		long *	Pitch,
		long *	Lines
	)

{
    MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
            imSyncControl(SeqThread, CopyOSB1,IM_OSB_STATE,IM_WAITING);
    imBufCopyPCI(SeqThread,Buffer[N],HostBuffer[N],0,CopyOSB1);
            imSyncHost(SeqThread, CopyOSB1, IM_COMPLETED);
    MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);
    *buf=(unsigned char*)pHostBuffer[N];
    *Pitch=HostBufferPitch;
    *Lines=HostBufferLines;

}

GrabAndFillView()

long AcqOdyssey::GrabAndFillView	(	int	N,
		float *	Zs = NULL,
		double	Timeout = 0,
		int	Side = 0,
		EdbView *	View = NULL,
		bool	FillImages = false
	)

 {
// Grabs N images, process them, clusterise by Fire-In-Steep procedure, and fill the EdbView:
//if ApplyFIRF and MilKernel are set, then FIR filtering is made
// if SubtractBG flag is set - BG image is subtracted
// USING ODYSSEY NATIVE MODE
// if pointer to View is not given, result is saved into eEdbView;
// Cluster coordinates are returned in microns with respect to image center!!!
// returns total number of clusters found.
// Timeout is given in seconds, if = 0 - waits forever! (caution)
// This method is asyncronous combination of GrabImagesONL, Clusterise and FillView...

        long TNumber=0;
    long Number=0;
    long PixNumber=0;
    EdbView *V;
    TClonesArray * Cl;
    if(View) V=View; else V=eEdbView;
    V->Clear();
    Cl=V->GetClusters();
    int NtakenFrames=0;
//  V->SetNframes(N*Side,N*(1-Side));
    V->SetNframes(NtakenFrames*Side,NtakenFrames*(1-Side));

      MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
    /* Get ready to grab the sequence */
        //if(MilKernel) Kernel=MbufInquire(MilKernel,M_NATIVE_ID,M_NULL);
            printf("Starting Digitizer grab sequence...\n");
        imDigGrabSequence(GrabThread, Digitizer, Camera, BufferN, N, Control, GrabOSB);
            printf("Waiting for IM_READY from Digitizer...\n");
        if(Timeout>0) imSyncControl(Thread, GrabOSB,IM_OSB_TIMEOUT, Timeout);
        if(Timeout>0) imSyncControl(Thread, CopyOSB,IM_OSB_TIMEOUT, Timeout*10);
        if(imSyncHost(SeqThread, GrabOSB, IM_READY)==IM_ERR_TIMEOUT){
            printf("Timeout happened waiting for IM_READY :-(\n");
            //TODO:
            imSyncGrabSequence(Thread, GrabOSB, 1, IM_SEQ_ABORT);
            return 0;
        }
    int Frame=0;
    /* Sync to each block of frames and display one of them */
       for (int n = 0; n < N; n++)
        {
    //      printf("Waiting for frame %d...\n",n);
    //      if(Timeout>0) printf("...with Timeout = %f ms...\n",Timeout*1000.);
            Frame=imSyncGrabSequence(Thread, GrabOSB, n, IM_SEQ_WAIT);
            if(Frame==IM_ERR_TIMEOUT) {
                printf("Timeout happened waiting for frame %d :-(\n",n);
                //TODO:
                imSyncGrabSequence(Thread, GrabOSB, n, IM_SEQ_ABORT);
                return 0;
            }
    //      printf("Got %d frames :-) Processing frame %d...\n",Frame+1,n);
        // Now we can process frame
            if(ApplyGainCorr)
            {
                // Multiply image (0-256)  by GC map (256-65535 range) into 32 bit buffer
                imIntDyadic(Thread,Buffer[n],GCImage,ConvImage32,IM_MULT,0);
                // Shift down by 8 bits - must be back in range 0 to 256
                imIntMonadic(Thread,ConvImage32,-8,ConvImage,IM_SHIFT,0);
                // negate image (255-Image)
                imIntMonadic(Thread,ConvImage,255,ConvImage,IM_SUB_NEG,0);
            }
            else imIntMonadic(Thread,Buffer[n],255,ConvImage,IM_SUB_NEG,0); //negate only

//          if(SubtractBG && BGImageValid) {
//              imIntDyadic(Thread,ConvImage,BGImage,ConvImage,IM_SUB_SAT,CopyOSB);
//          }
            if(ApplyFIRF && Kernel) {
                imIntConvolve(Thread,ConvImage,ConvImage2,Kernel,ControlBuf,0);
                imIntMonadic(Thread,ConvImage2,bNorm,ConvImage,IM_DIV,0);
            }
            if(SubtractBG && BGImageValid) {
                imIntDyadic(Thread,ConvImage,BGImage,ConvImage,IM_SUB_SAT,0);
            }
            imIntConvert(Thread,ConvImage,Buffer[n],IM_CLIP,0);
    //      imSyncControl(SeqThread, CopyOSB,IM_OSB_STATE,IM_WAITING);
            imIntClip(Thread,Buffer[n],Buffer[n],IM_LESS,Threshold,0xff,0,0xff,IM_THRESH_CONSTANT+IM_PASS_PIXEL,CopyOSB);
// AT this moment current image processing is charged to thread Thread and we can clusterize the previous image
// and fill the EdbView....
            if(n>0) {
                Number=Clusterize(n-1,Cl,Side);
                V->AddFrame(n-1,ZBuffer[n-1],Number,0);
                if(FillImages) ((EdbFrame*)(V->GetFrames()->At(n-1)))->SetImage(GetEdbImage(n-1));
                TNumber+=Number;
                NtakenFrames++;
                V->SetNframes(NtakenFrames*Side,NtakenFrames*(1-Side));

            }
// Wait till current image processing is complete and go on with next..
        //  imSyncHost(SeqThread, CopyOSB, IM_COMPLETED);
        if(imSyncHost(Thread, CopyOSB, IM_COMPLETED)==IM_ERR_TIMEOUT){
            printf("Timeout happened waiting for IM_COMPLETED :-(\n");
            //TODO:
            imSyncGrabSequence(Thread, GrabOSB, 1, IM_SEQ_ABORT);
            return 0;
        }

            if(Zs) ZBuffer[n]=Zs[N-n-1];
//          printf("Done with frame %d. :-) \n",n);
        }
// AT this moment last image is processed and we can clusterize it
// and fill the EdbView....
                Number=Clusterize(N-1,Cl,Side);
                V->AddFrame(N-1,ZBuffer[N-1],Number,0);
                if(FillImages) ((EdbFrame*)(V->GetFrames()->At(N-1)))->SetImage(GetEdbImage(N-1));
                TNumber+=Number;
                NtakenFrames++;
                V->SetNframes(NtakenFrames*Side,NtakenFrames*(1-Side));
// Finished with the last..

     /* Wait to make sure the grab OSB is reset for next time */
      //  imSyncHost(SeqThread, GrabOSB, IM_COMPLETED);
      imSyncHost(Thread, GrabOSB, IM_COMPLETED);

       MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);
           for(int n=0;n<N;n++) MbufControl(MilImage[n],M_MODIFIED,M_DEFAULT);
           MbufControl(MilImageN,M_MODIFIED,M_DEFAULT);
   return TNumber;


 }

GrabImages()

void AcqOdyssey::GrabImages

(

int

N

)

{
// Grabs N images, process them and return:
//if ApplyFIRF and MilKernel are set, then FIR filtering is made
// if SubtractBG flag is set - BG image is subtracted

   MdigControl(MilDigitizer, M_GRAB_MODE, M_ASYNCHRONOUS);
   printf("Recording ...\n");
long NFields;
   /* Grab the sequence. */
   for (int n=0; n<N; n++)
      {
      /* Grab one buffer at a time. */
      MdigGrab(MilDigitizer, MilImage[n]);
      if( n>0 )
        {
            if(SubtractBG && BGImageValid) {
                 MimArith(255,MilImage[n-1],MilConvImage,M_CONST_SUB);
                 MimArith(MilConvImage,MilBGImage,MilConvImage,M_SUB);
            }
            else MimArith(255,MilImage[n-1],MilConvImage,M_CONST_SUB);

            if(ApplyFIRF && MilKernel) MimConvolve( MilConvImage,MilConvImage,MilKernel);
            MimClip(MilConvImage,MilImage[n-1],M_OUT_RANGE,Threshold,255,0,255);

        }
      }

   /* Wait last grab end. */
   MdigGrabWait(MilDigitizer, M_GRAB_END);
            if(SubtractBG && BGImageValid)
            {
                 MimArith(255,MilImage[N-1],MilConvImage,M_CONST_SUB);
                 MimArith(MilConvImage,MilBGImage,MilConvImage,M_SUB);
            }
            else MimArith(255,MilImage[N-1],MilConvImage,M_CONST_SUB);

            if(ApplyFIRF && MilKernel) MimConvolve( MilConvImage,MilConvImage,MilKernel);
            MimClip(MilConvImage,MilImage[N-1],M_OUT_RANGE,Threshold,255,0,255);


}

GrabImagesONL() [1/2]

void AcqOdyssey::GrabImagesONL

(

int

N

)

{
// Grabs N images, process them and return:
//if ApplyFIRF and MilKernel are set, then FIR filtering is made
// if SubtractBG flag is set - BG image is subtracted
    // USING ODYSSEY NATIVE MODE
       MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
    /* Get ready to grab the sequence */
        if(MilKernel) Kernel=MbufInquire(MilKernel,M_NATIVE_ID,M_NULL);
            printf("Programming grab sequence\n");
        imDigGrabSequence(GrabThread, Digitizer, Camera, BufferN, N, Control, GrabOSB);
            printf("WAiting for IM_READY\n");

        imSyncHost(SeqThread, GrabOSB, IM_READY);
    int Frame=0;
    /* Sync to each block of frames and display one of them */
       for (int n = 0; n < N; n++)
        {
            printf("Waiting for frame %d\n",n);
            Frame=imSyncGrabSequence(Thread, GrabOSB, n, IM_SEQ_WAIT);
            printf("Got frame %d. Processing\n",Frame);

        // Now we can process frame
            imIntMonadic(Thread,Buffer[n],255,ConvImage,IM_SUB_NEG,CopyOSB);
            if(SubtractBG && BGImageValid) {
                imIntDyadic(Thread,ConvImage,BGImage,ConvImage,IM_SUB,CopyOSB);
            }

            if(ApplyFIRF && MilKernel) {
                imIntConvolve(Thread,ConvImage,ConvImage,Kernel,0,CopyOSB);
                if(bNorm!=1) imIntMonadic(Thread,ConvImage,bNorm,ConvImage,IM_DIV,CopyOSB);
            }
            imSyncControl(SeqThread, CopyOSB,IM_OSB_STATE,IM_WAITING);
            imIntConvert(Thread,ConvImage,Buffer[n],IM_CLIP,CopyOSB);
            imSyncHost(SeqThread, CopyOSB, IM_COMPLETED);
        }

     /* Wait to make sure the grab OSB is reset for next time */
    //  imSyncGrabSequence(Thread, GrabOSB, N-1, IM_SEQ_HALT);
        imSyncHost(SeqThread, GrabOSB, IM_COMPLETED);




       MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);
           for(int n=0;n<N;n++) MbufControl(MilImage[n],M_MODIFIED,M_DEFAULT);
           MbufControl(MilImageN,M_MODIFIED,M_DEFAULT);

}

GrabImagesONL() [2/2]

int AcqOdyssey::GrabImagesONL	(	int	N,
		float *	Zs = NULL,
		double	Timeout = 0
	)

{
// Grabs N images, process them and return:
//if ApplyFIRF and MilKernel are set, then FIR filtering is made
// if SubtractBG flag is set - BG image is subtracted
// USING ODYSSEY NATIVE MODE
// returns  number of frames taken
// Timeout is given in seconds, if = 0 - waits forever! (caution)
       MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
    /* Get ready to grab the sequence */
        //if(MilKernel) Kernel=MbufInquire(MilKernel,M_NATIVE_ID,M_NULL);
            printf("Starting Digitizer grab sequence...\n");
        imDigGrabSequence(GrabThread, Digitizer, Camera, BufferN, N, Control, GrabOSB);
            printf("Waiting for IM_READY from Digitizer...\n");
        if(Timeout>0) imSyncControl(Thread, GrabOSB,IM_OSB_TIMEOUT, Timeout);
        if(imSyncHost(SeqThread, GrabOSB, IM_READY)==IM_ERR_TIMEOUT){
            printf("Timeout happened waiting for IM_READY :-(\n");
            //TODO:
            imSyncGrabSequence(Thread, GrabOSB, 1, IM_SEQ_ABORT);
            return 0;
        }
    int Frame=0;
    /* Sync to each block of frames and display one of them */
       for (int n = 0; n < N; n++)
        {
    //      printf("Waiting for frame %d...\n",n);
    //      if(Timeout>0) printf("...with Timeout = %f ms...\n",Timeout*1000.);
            Frame=imSyncGrabSequence(Thread, GrabOSB, n, IM_SEQ_WAIT);
            if(Frame==IM_ERR_TIMEOUT) {
                printf("Timeout happened waiting for frame %d :-(\n",n);
                //TODO:
                imSyncGrabSequence(Thread, GrabOSB, 1, IM_SEQ_ABORT);
                return n-1;
            }
    //      printf("Got %d frames :-) Processing frame %d...\n",Frame+1,n);
        // Now we can process frame
            if(ApplyGainCorr)
            {
                // Multiply image (0-256)  by GC map (256-65535 range) into 32 bit buffer
                imIntDyadic(Thread,Buffer[n],GCImage,ConvImage32,IM_MULT,0);
                // Shift down by 8 bits - must be back in range 0 to 256
                imIntMonadic(Thread,ConvImage32,-8,ConvImage,IM_SHIFT,0);
                // negate image (255-Image)
                imIntMonadic(Thread,ConvImage,255,ConvImage,IM_SUB_NEG,0);
            }
            else imIntMonadic(Thread,Buffer[n],255,ConvImage,IM_SUB_NEG,0); //negate only

//          if(SubtractBG && BGImageValid) {
//              imIntDyadic(Thread,ConvImage,BGImage,ConvImage,IM_SUB_SAT,CopyOSB);
//          }
            if(ApplyFIRF && Kernel) {
                imIntConvolve(Thread,ConvImage,ConvImage2,Kernel,ControlBuf,0);
                imIntMonadic(Thread,ConvImage2,bNorm,ConvImage,IM_DIV,0);
            }
            if(SubtractBG && BGImageValid) {
                imIntDyadic(Thread,ConvImage,BGImage,ConvImage,IM_SUB_SAT,0);
            }
            imIntConvert(Thread,ConvImage,Buffer[n],IM_CLIP,0);
    //      imSyncControl(SeqThread, CopyOSB,IM_OSB_STATE,IM_WAITING);
            imIntClip(Thread,Buffer[n],Buffer[n],IM_LESS,Threshold,0xff,0,0xff,IM_THRESH_CONSTANT+IM_PASS_PIXEL,CopyOSB);
        //  imSyncHost(SeqThread, CopyOSB, IM_COMPLETED);
            imSyncHost(Thread, CopyOSB, IM_COMPLETED);
            if(Zs) ZBuffer[n]=Zs[N-n-1];
//          printf("Done with frame %d. :-) \n",n);
        }

     /* Wait to make sure the grab OSB is reset for next time */
     //   imSyncHost(SeqThread, GrabOSB, IM_COMPLETED);
       imSyncHost(Thread, GrabOSB, IM_COMPLETED);

       MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);
           for(int n=0;n<N;n++) MbufControl(MilImage[n],M_MODIFIED,M_DEFAULT);
           MbufControl(MilImageN,M_MODIFIED,M_DEFAULT);
   return N;

}

GrabOneImage()

int AcqOdyssey::GrabOneImage	(	float	Z,
		double	Timeout = 0
	)

{
   // Sets trigger input of Timer1 from output of Timer2, which runs continuously
   // with 50Hz rep. rate (see DCF file)
       MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
       imCamControl(GrabThread,Camera,IM_DIG_EXP_SOURCE,IM_TIMER2);
// here we grab one image
       if(GrabAndFillView(1, &Z, Timeout, 0, eEdbView, true)==0) return 0;
       MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
       imCamControl(GrabThread,Camera,IM_DIG_EXP_SOURCE,IM_DEFAULT);
       MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);
//     StopLiveGrab();

    return 1;
}

GrabRawImagesONL()

int AcqOdyssey::GrabRawImagesONL	(	int	N,
		float *	Zs = NULL,
		double	Timeout = 0
	)

{
// test function
// Grabs N images,  and return: no processing is done
// USING ODYSSEY NATIVE MODE
// returns  number of frames taken
// Timeout is given in seconds, if = 0 - waits forever! (caution)
       MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
    /* Get ready to grab the sequence */
        //if(MilKernel) Kernel=MbufInquire(MilKernel,M_NATIVE_ID,M_NULL);
            printf("Starting Digitizer grab sequence...\n");
        imDigGrabSequence(GrabThread, Digitizer, Camera, BufferN, N, Control, GrabOSB);
            printf("Waiting for IM_READY from Digitizer...\n");
        if(Timeout>0) imSyncControl(Thread, GrabOSB,IM_OSB_TIMEOUT, Timeout);
        if(imSyncHost(SeqThread, GrabOSB, IM_READY)==IM_ERR_TIMEOUT){
            printf("Timeout happened waiting for IM_READY :-(\n");
            //TODO:
            imSyncGrabSequence(Thread, GrabOSB, 1, IM_SEQ_ABORT);
            return 0;
        }
    int Frame=0;
    /* Sync to each block of frames and display one of them */
       for (int n = 0; n < N; n++)
        {
    //      printf("Waiting for frame %d...\n",n);
    //      if(Timeout>0) printf("...with Timeout = %f ms...\n",Timeout*1000.);
            Frame=imSyncGrabSequence(Thread, GrabOSB, n, IM_SEQ_WAIT);
            if(Frame==IM_ERR_TIMEOUT) {
                printf("Timeout happened waiting for frame %d :-(\n",n);
                //TODO:
                imSyncGrabSequence(Thread, GrabOSB, 1, IM_SEQ_ABORT);
                return n-1;
            }
    //      printf("Got %d frames :-) Processing frame %d...\n",Frame+1,n);
        // Now we can process frame
            //imSyncControl(SeqThread, CopyOSB,IM_OSB_STATE,IM_WAITING);
            imIntClip(Thread,Buffer[n],Buffer[n],IM_LESS,Threshold,0xff,0,0xff,IM_THRESH_CONSTANT+IM_PASS_PIXEL,CopyOSB);
            //imSyncHost(SeqThread, CopyOSB, IM_COMPLETED);
            imSyncHost(Thread, CopyOSB, IM_COMPLETED);
            if(Zs) ZBuffer[n]=Zs[N-n-1];
//          printf("Done with frame %d. :-) \n",n);
        }

     /* Wait to make sure the grab OSB is reset for next time */
       // imSyncHost(SeqThread, GrabOSB, IM_COMPLETED);
      imSyncHost(Thread, GrabOSB, IM_COMPLETED);

       MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);
           for(int n=0;n<N;n++) MbufControl(MilImage[n],M_MODIFIED,M_DEFAULT);
           MbufControl(MilImageN,M_MODIFIED,M_DEFAULT);
   return N;

}

HFindEdge()

int AcqOdyssey::HFindEdge	(	int	N,
		int	Thresh,
		int	MinWidth,
		int	MaxWidth
	)

  {
      // Fing horisontal emulsion edge in image sequence 0-N
    long *buf;
    buf=new long[SizeY];
    long MaxDeriv[MAX_NB_GRAB];
    long MinDeriv[MAX_NB_GRAB];
    long MaxDerivY[MAX_NB_GRAB];
    long MinDerivY[MAX_NB_GRAB];
    long MaxDer,MinDer,MaxDerY,MinDerY;
    int Delta=30;
    for(int n=0;n<N;n++)
    {
     for(int i=0;i<SizeY;i++) buf[i]=0;
     YProjectImage(n,buf);
     MaxDeriv[n]=0; MinDeriv[n]=0;
     MaxDerivY[n]=0; MinDerivY[n]=0;
     for(int i=Delta;i<SizeY-2*Delta;i++)
     {
         if(MaxDeriv[n]<buf[i]-buf[i+Delta]){ MaxDeriv[n]=buf[i]-buf[i+Delta]; MaxDerivY[n]=i+Delta/2;}
         if(MinDeriv[n]>buf[i]-buf[i+Delta]) {MinDeriv[n]=buf[i]-buf[i+Delta]; MinDerivY[n]=i+Delta/2;}
     }
    }
    MaxDer=0;MinDer=0;
    for(int n=0;n<N;n++)
    {
        if(MaxDer<MaxDeriv[n]) {MaxDer=MaxDeriv[n]; MaxDerY=MaxDerivY[n];}
        if(MinDer>MinDeriv[n]) {MinDer=MinDeriv[n]; MinDerY=MinDerivY[n];}
    }
    printf("Max derivative %d detected at Y= %d\n",MaxDer,MaxDerY);
    printf("Min derivative %d detected at Y= %d\n",MinDer,MinDerY);
      delete [] buf;

    if(MinDer>-Thresh || MaxDer<Thresh || MaxDerY-MinDerY<MinWidth || MaxDerY-MinDerY>MaxWidth) {printf("No edge detected\n");  return -1;}
    else printf("Edge detected at %f\n",(MaxDerY+MinDerY)/2.);

      return (MaxDerY+MinDerY)/2.;
  }

Initialize() [1/2]

bool AcqOdyssey::Initialize	(	char *	DCF,
		int	N
	)

{
//Initialises the ODYSSEY board with default OPERA  parameters
// N defines maximum number of layers to take in one grab
    BGImageValid=false;
    GCImageValid=false;
      eEdbClusters=new  TClonesArray("EdbCluster",5000);
      eEdbView=new EdbView();
      Kernel=0;

   if(N>MAX_NB_GRAB) N=MAX_NB_GRAB;
   MaxNbGrab=N;
   float ImageScale=1;
   // Allocations.
   MappAlloc(M_DEFAULT, &MilApplication);
   MsysAlloc(M_DEF_SYSTEM_TYPE, M_DEF_SYSTEM_NUM, M_SETUP, &MilSystem);

   MdigAlloc(MilSystem, M_DEFAULT, (MIL_TEXT_PTR)DCF,
                                   M_DEFAULT, &MilDigitizer);
   MdispAlloc(MilSystem, M_DEF_DISPLAY_NUM, M_DEF_DISPLAY_FORMAT, M_DEFAULT, &MilDisplay);
 //  MdispControl(MilDisplay,M_THREAD_PRIORITY,31);
 // MdispControl(MilDisplay,M_WINDOW_OVR_DESTRUCTIVE,M_ENABLE);
  MdispControl(MilDisplay,M_WINDOW_OVR_WRITE,M_ENABLE);
 // MdispControl(MilDisplay,M_WINDOW_OVR_FLICKER,M_ENABLE);


  MdispZoom(MilDisplay,-2,-2);
    SizeX=MdigInquire(MilDigitizer, M_SIZE_X, M_NULL)*ImageScale;
   SizeY=MdigInquire(MilDigitizer, M_SIZE_Y, M_NULL)*ImageScale;
   printf("Image size aquired from Digitizer : %d X %d\n",SizeY,SizeX);

   /* Allocate display buffer. */
   MbufAlloc2d(MilSystem,SizeX,SizeY,8L+M_UNSIGNED,M_IMAGE+M_PROC+M_GRAB+M_DISP, &MilImageDisp);
   MbufClear(MilImageDisp, 0x0);
   MdispSelect(MilDisplay, MilImageDisp);
   /* Prepare overlay buffer. */
   /***************************/

   /* Disable overlay display while preparing the data. */
   MdispControl(MilDisplay, M_OVERLAY_SHOW, M_DISABLE);

   /* Enable writing Overlay graphics on top of display buffer. */
   MdispControl(MilDisplay, M_OVERLAY, M_ENABLE);

   /* Inquire the Overlay buffer associated with the displayed buffer. */
   MdispInquire(MilDisplay, M_OVERLAY_ID, &MilOverlayImage);

   /* Inquire the current transparent color. */
   MdispInquire(MilDisplay, M_TRANSPARENT_COLOR, &TransparentColor);

   /* Clear the overlay buffer with the keying color. */
   MbufClear(MilOverlayImage, TransparentColor);

   /* Enable the overlay display. */
   MdispControl(MilDisplay, M_OVERLAY_SHOW, M_ENABLE);
   /* Set graphic text to transparent background. */
   MgraControl(M_DEFAULT, M_BACKGROUND_MODE, M_TRANSPARENT);

   /* Set drawing color to white. */
   MgraColor(M_DEFAULT, 255);


   MbufAlloc2d(MilSystem,SizeX,SizeY, 8L+M_UNSIGNED,M_IMAGE+M_PROC+M_ON_BOARD, &MilBGImage);
     MbufAlloc2d(MilSystem,SizeX,SizeY, 16L+M_SIGNED,M_IMAGE+M_PROC+M_ON_BOARD, &MilConvImage);
     MbufAlloc2d(MilSystem,SizeX,SizeY, 16L+M_SIGNED,M_IMAGE+M_PROC+M_ON_BOARD, &MilConvImage2);
     MbufAlloc2d(MilSystem,SizeX,SizeY, 32L+M_UNSIGNED,M_IMAGE+M_PROC+M_ON_BOARD, &MilConvImage32);
     MbufAlloc2d(MilSystem,SizeX,SizeY, 16L+M_UNSIGNED,M_IMAGE+M_PROC+M_ON_BOARD, &MilGCImage);
 //    MbufAlloc2d(MilSystem,SizeX,SizeY, 16L+M_SIGNED,M_IMAGE+M_PROC, &MilConvImage1);


    MbufAlloc2d(MilSystem, SizeX, SizeY*N, 8L+M_UNSIGNED,M_IMAGE+M_GRAB+M_PROC+M_ON_BOARD, &MilImageN);
      MbufClear(MilImageN, 0);
   for (int n=0; n<N; n++)
      {
      MbufChild2d(MilImageN, 0, SizeY*n, SizeX, SizeY, &MilImage[n]);
      }
        printf("Initialized for grabbing %i frames", N);

   // Getting ONL handlers for sequence async grab
        System=MsysInquire(MilSystem,M_NATIVE_ID,M_NULL);
        Thread=MsysInquire(MilSystem,M_NATIVE_THREAD_ID,M_NULL);
        Camera=MdigInquire(MilDigitizer,M_NATIVE_CAMERA_ID,M_NULL);
        Control=MdigInquire(MilDigitizer,M_NATIVE_CONTROL_ID,M_NULL);
        Digitizer=MdigInquire(MilDigitizer,M_NATIVE_ID,M_NULL);
        BufferN=MbufInquire(MilImageN,M_NATIVE_ID,M_NULL);
        BGImage=MbufInquire(MilBGImage,M_NATIVE_ID,M_NULL);
        GCImage=MbufInquire(MilGCImage,M_NATIVE_ID,M_NULL);
        ConvImage=MbufInquire(MilConvImage,M_NATIVE_ID,M_NULL);
        ConvImage2=MbufInquire(MilConvImage2,M_NATIVE_ID,M_NULL);
        ConvImage32=MbufInquire(MilConvImage32,M_NATIVE_ID,M_NULL);
        Overlay=MbufInquire(MilOverlayImage,M_NATIVE_ID,M_NULL);
   for (int n=0; n<N; n++)
      {
        Buffer[n]=MbufInquire(MilImage[n],M_NATIVE_ID,M_NULL);
        imBufAlloc2d(Thread,SizeX,SizeY,IM_UBYTE,IM_HOST,&HostBuffer[n]);
        imBufMap(Thread,HostBuffer[n],0,0,&pHostBuffer[n],&HostBufferPitch,&HostBufferLines);
        printf("Host buffer %d mapped with pitch %d, %d lines.\n",n,HostBufferPitch,HostBufferLines);
        if(HostBufferPitch==0) {printf("Can't map buffer! Aborting.\n"); return false;}
      }
        imThrAlloc(Digitizer, 0, &GrabThread);
        imThrAlloc(Digitizer, 0, &SeqThread);
    //  imThrAlloc(Digitizer, 0, &Thread);
        /* OSB for synchronization */
    imSyncAlloc(Thread, &GrabOSB);
    imSyncAlloc(Thread, &CopyOSB);
    imBufAlloc1d( Thread,N,IM_LONG,IM_PROC,&ShiftList);
    for(int n=0;n<N;n++){
    imBufChild(Thread,BufferN, 0, SizeY*n, SizeX, SizeY, &ShiftBuffer[n]);
    }
    imBufPut(Thread,ShiftList,ShiftBuffer);

       MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);
       MbufControl(MilImageN,M_MODIFIED,M_DEFAULT);

      MimAllocResult(MilSystem, SizeX, M_PROJ_LIST, &MilProjResX);
      MimAllocResult(MilSystem, SizeY, M_PROJ_LIST, &MilProjResY);

      printf("Framegrabber initialized successfully with following parameters:\n");
      Dump();
    return true;

}

Initialize() [2/2]

bool AcqOdyssey::Initialize	(	char *	DCF,
		int	N
	)

IsGrabComplete() [1/2]

bool AcqOdyssey::IsGrabComplete

(

)

{
    return true;
}

IsGrabComplete() [2/2]

bool AcqOdyssey::IsGrabComplete

(

)

PlotBGImage()

void AcqOdyssey::PlotBGImage

(

)

{
    MbufCopy(MilBGImage,MilImageDisp);
}

PlotGCImage()

void AcqOdyssey::PlotGCImage

(

)

{
unsigned short *bf;
bf=(unsigned short *)malloc(SizeX*SizeY*2);
GetGCImage((short*)bf);
TH1F *hist= new TH1F("GC","GC",65536,0,65536);
for(int c=0;c<SizeX*SizeY;c++) { hist->Fill(bf[c]); }
hist->Draw();

}

PlotImage1D()

void AcqOdyssey::PlotImage1D	(	int	N,
		TH1F *	hist = NULL
	)

{
            unsigned char *bf;
    long Sx,Sy;
    if(!hist)
    {
    TCanvas *c=new TCanvas();
//  c->Divide(2);
//  c->cd(1);
//  GetEdbImage(N)->GetHist2()->Draw("colz");
    c->cd();
    GetEdbImage(N)->GetHist1()->Draw();
    }
    else
    {
    GetImageFast(N,&bf,&Sx,&Sy);
    for(int c=0;c<Sx*Sy;c++) { hist->Fill(bf[c]); }
    }
}

PlotImage2D()

void AcqOdyssey::PlotImage2D

(

int

N

)

{
    TCanvas *c=new TCanvas();
    c->Divide(2);
    c->cd(1);
    GetEdbImage(N)->GetHist2()->Draw("colz");
    c->cd(2);
    GetEdbImage(N)->GetHist1()->Draw();
}

PutBGImage() [1/2]

void AcqOdyssey::PutBGImage

(

short *

buf

)

{
    MbufPut(MilBGImage,buf);
    BGImageValid=true;
}

PutBGImage() [2/2]

void AcqOdyssey::PutBGImage

(

short *

buf

)

PutGCImage()

void AcqOdyssey::PutGCImage

(

short *

buf

)

{
    MbufPut(MilGCImage,buf);
    GCImageValid=true;
}

PutImage() [1/2]

void AcqOdyssey::PutImage	(	int	N,
		char *	buf
	)

{
    MbufPut(MilImage[N],buf);
}

PutImage() [2/2]

void AcqOdyssey::PutImage	(	int	N,
		char *	buf
	)

SetFIRFKernel() [1/2]

void AcqOdyssey::SetFIRFKernel	(	char *	Kern,
		int	W,
		int	H
	)

{
//   if(MilKernel) MbufFree(MilKernel);
//  MbufAlloc2d(MilSystem,H,W,8+M_SIGNED,M_KERNEL,&MilKernel);
//   MbufPut(MilKernel,Kern);

    MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
       imBufAlloc2d(Thread,H,W,IM_BYTE,IM_PROC,&Kernel);
       imBufPut(Thread,Kernel,Kern);
       imBufAllocControl(Thread,&ControlBuf);
       imBufPutField(Thread,ControlBuf,IM_CTL_OVERSCAN, IM_REPLACE);
       imBufPutField(Thread,ControlBuf,IM_CTL_OVERSCAN_VAL, 0);
    MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);


 //  MbufControlNeighborhood(MilKernel,M_SATURATION,M_ENABLE);
 //  MbufControlNeighborhood(MilKernel,M_ABSOLUTE_VALUE,M_ENABLE);
 //  MbufControlNeighborhood(MilKernel,M_ABSOLUTE_VALUE,M_ENABLE);
}

SetFIRFKernel() [2/2]

void AcqOdyssey::SetFIRFKernel	(	char *	Kern,
		int	W,
		int	H
	)

SetFIRFNorm() [1/2]

void AcqOdyssey::SetFIRFNorm

(

int

Norm

)

{
    //   if(MilKernel) MbufControlNeighborhood(MilKernel,M_NORMALIZATION_FACTOR,Norm);
       bNorm=(char)Norm;
}

SetFIRFNorm() [2/2]

void AcqOdyssey::SetFIRFNorm

(

int

Norm

)

ShowBGImage() [1/2]

void AcqOdyssey::ShowBGImage

(

)

{
    MbufCopy(MilBGImage,MilImageDisp);
}

ShowBGImage() [2/2]

void AcqOdyssey::ShowBGImage

(

)

ShowGCImage()

void AcqOdyssey::ShowGCImage

(

)

{
                //imIntMonadic(Thread,ConvImage32,-8,ConvImage,IM_SHIFT,CopyOSB);
    MimClip(MilGCImage,MilImageDisp,M_OUT_RANGE,0,255,0,255);
//  MbufCopy(MilGCImage,MilImageDisp);
}

ShowImage() [1/2]

void AcqOdyssey::ShowImage

(

int

N

)

{
    char ztext[64];
    sprintf(ztext,"Z=%f",ZBuffer[N]);
    MbufCopy(MilImage[N],MilImageDisp);
    DrawClear();
    DrawText(0,0,0,ztext);
}

ShowImage() [2/2]

void AcqOdyssey::ShowImage

(

int

N

)

ShowImages() [1/2]

void AcqOdyssey::ShowImages	(	int	N1,
		int	N2,
		int	TimeInterval,
		int	Times
	)

{
// Displays images from N1 to N2 and back with a given time gap
// Times times.

    char ztext[64];
    sprintf(ztext,"Z from %f to %f",ZBuffer[N1],ZBuffer[N2]);
//      DrawClear();
        DrawText(0,0,0,ztext);
    for(int i=0;i<Times;i++)
    {
        for(int N=N1;N<N2;N++)
        {
         MbufCopy(MilImage[N],MilImageDisp);
         Sleep(TimeInterval);
        }
        for(int N=N2;N>N1;N--)
        {
         MbufCopy(MilImage[N],MilImageDisp);
         Sleep(TimeInterval);
        }
    }
}

ShowImages() [2/2]

void AcqOdyssey::ShowImages	(	int	N1,
		int	N2,
		int	TimeInterval,
		int	Times
	)

StartLiveGrab()

void AcqOdyssey::StartLiveGrab

(

)

{
   // Sets exposure from output of Timer2, which runs continuously
   // with 50Hz rep. rate (see DCF file)
       MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
       imCamControl(GrabThread,Camera,IM_DIG_EXP_SOURCE,IM_TIMER2);
       MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);
       MdigGrabContinuous(MilDigitizer,MilImageDisp);

}

StopLiveGrab()

void AcqOdyssey::StopLiveGrab

(

)

{
   // Sets trigger input of Timer1 from HW input 0 on DB9 connector, which
    // is triggered by BreakPoint output from the stage controller
    // This configuration must be default one saved in DCF file
    // This function waits for last frame to be completed, so
    // if it must be called only when digitizer is in LiveGrab mode!!
       MdigHalt(MilDigitizer);
       MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
       imCamControl(GrabThread,Camera,IM_DIG_EXP_SOURCE,IM_DEFAULT);
       MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);


}

TracksFromNImages() [1/2]

void AcqOdyssey::TracksFromNImages	(	int	N,
		float	TX,
		float	TY,
		int	Dest
	)

{
    for(int n=0;n<N;n++)
    {
    imBufChildMove(Thread, ShiftBuffer[n], IM_PARENT+N*TX+n*TX, IM_PARENT+SizeY*n+N*TY+n*TY, SizeX-2*N*TX, SizeY-2*N*TY);
    }
    imSyncControl(SeqThread, CopyOSB,IM_OSB_STATE,IM_WAITING);
    imIntAverage(Thread,ShiftList,0,0,Buffer[Dest],N,N,0,CopyOSB);
    imSyncHost(SeqThread, CopyOSB, IM_COMPLETED);
}

TracksFromNImages() [2/2]

void AcqOdyssey::TracksFromNImages	(	int	N,
		int	DX,
		int	DY,
		float	TX,
		float	TY,
		int	Dest
	)

{
    // Calculate average of shifted by TX,TY stack of images a la UTS
    // TX, TY are frame shifts in pixels (frame x w.r.t. frame x-1)
    // in the centered ROI of the size DY x DX pixels
    // Puts the result into Dest Mil buffer
    // Sync
       MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
    if(DX>SizeX-2*N*TX) DX=SizeX-2*N*TX;
    if(DY>SizeY-2*N*TY) DY=SizeY-2*N*TY;
    int OFX,OFY;
    OFX=IM_PARENT+(SizeX-DX)/2;
    OFY=IM_PARENT+(SizeY-DY)/2;
    for(int n=0;n<N;n++)
    {
    imBufChildMove(Thread, ShiftBuffer[n], OFX+n*TX, OFY+SizeY*n+n*TY, DX, DY);
    }
    imBufChildMove(Thread, ShiftBuffer[Dest], OFX, OFY+SizeY*Dest, DX, DY);

    imBufClear(Thread,Buffer[Dest],0,CopyOSB); //clear destination buffer
//  imSyncControl(SeqThread, CopyOSB,IM_OSB_STATE,IM_WAITING);
    imIntAverage(Thread, ShiftList, 0, 0, ShiftBuffer[Dest], N, N, 0,CopyOSB);
    if(ApplyFIRF && Kernel)
    {
            imIntConvolve(Thread,Buffer[Dest],ConvImage,Kernel,0,CopyOSB);
            if(bNorm!=1) imIntMonadic(Thread,ConvImage,bNorm,ConvImage,IM_DIV,CopyOSB);
            imIntConvert(Thread,ConvImage,Buffer[Dest],IM_CLIP,CopyOSB);

    }
//  imIntClip(Thread,ShiftBuffer[Dest],ShiftBuffer[Dest],IM_OUT_RANGE,Threshold,255,0,255,IM_PASS_PIXEL,CopyOSB);
    imSyncControl(SeqThread, CopyOSB,IM_OSB_STATE,IM_WAITING);
    imIntClip(Thread,Buffer[Dest],Buffer[Dest],IM_LESS,Threshold,0xff,0,0xff,IM_THRESH_CONSTANT+IM_PASS_CONSTANT,CopyOSB);
    imSyncHost(SeqThread, CopyOSB, IM_COMPLETED);
           MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);

}

UARTSendString()

void AcqOdyssey::UARTSendString	(	const char *	s,
		int	N
	)

  {
      long adc=(long)s;
     MsysControl(MilSystem,M_NATIVE_MODE_ENTER,M_NULL);
     imDigControl(Thread,Digitizer,IM_UART_BAUD_RATE+IM_CHANNEL_0,9600);
     imDigControl(Thread,Digitizer,IM_UART_WRITE_LENGTH+IM_CHANNEL_0,1);
     for(int i=0;i<N;i++){
     imDigControl(Thread,Digitizer,IM_UART_WRITE_STRING+IM_CHANNEL_0,adc+i);
     }
     MsysControl(MilSystem,M_NATIVE_MODE_LEAVE,M_NULL);

  }

VFindEdge()

int AcqOdyssey::VFindEdge	(	int	N,
		int	Thresh,
		int	MinWidth,
		int	MaxWidth
	)

  {
      // Fing horisontal emulsion edge in image sequence 0-N
    long *buf;
    buf=new long[SizeX];
    long MaxDeriv[MAX_NB_GRAB];
    long MinDeriv[MAX_NB_GRAB];
    long MaxDerivX[MAX_NB_GRAB];
    long MinDerivX[MAX_NB_GRAB];
    long MaxDer,MinDer,MaxDerX,MinDerX;
    int Delta=30;
    for(int n=0;n<N;n++)
    {
     for(int i=0;i<SizeX;i++) buf[i]=0;
     XProjectImage(n,buf);
     MaxDeriv[n]=0; MinDeriv[n]=0;
     MaxDerivX[n]=0; MinDerivX[n]=0;
     for(int i=Delta;i<SizeX-2*Delta;i++)
     {
         if(MaxDeriv[n]<buf[i]-buf[i+Delta]){ MaxDeriv[n]=buf[i]-buf[i+Delta]; MaxDerivX[n]=i+Delta/2;}
         if(MinDeriv[n]>buf[i]-buf[i+Delta]) {MinDeriv[n]=buf[i]-buf[i+Delta]; MinDerivX[n]=i+Delta/2;}
     }
    }
    MaxDer=0;MinDer=0;
    for(int n=0;n<N;n++)
    {
        if(MaxDer<MaxDeriv[n]) {MaxDer=MaxDeriv[n]; MaxDerX=MaxDerivX[n];}
        if(MinDer>MinDeriv[n]) {MinDer=MinDeriv[n]; MinDerX=MinDerivX[n];}
    }
    printf("Max derivative %d detected at X= %d\n",MaxDer,MaxDerX);
    printf("Min derivative %d detected at X= %d\n",MinDer,MinDerX);
      delete [] buf;

    if(MinDer>-Thresh || MaxDer<Thresh || MaxDerX-MinDerX<MinWidth || MaxDerX-MinDerX>MaxWidth) {printf("No edge detected\n");  return -1;}
    else printf("Edge detected at %f\n",(MaxDerX+MinDerX)/2.);

      return (MaxDerX+MinDerX)/2.;
  }

XProjectImage()

void AcqOdyssey::XProjectImage	(	int	N,
		long *	buf
	)

  {
      // Projects image to horisontal axis and fill the linear buffer buf
      MimProject(MilImage[N],MilProjResX,M_0_DEGREE);
      MimGetResult1d(MilProjResX,0,SizeX,M_VALUE,buf);

  }

YProjectImage()

void AcqOdyssey::YProjectImage	(	int	N,
		long *	buf
	)

  {
      // Projects image to horisontal axis and fill the linear buffer buf
      MimProject(MilImage[N],MilProjResY,M_90_DEGREE);
      MimGetResult1d(MilProjResY,0,SizeY,M_VALUE,buf);

  }

Member Data Documentation

ApplyFIRF

bool AcqOdyssey::ApplyFIRF

ApplyGainCorr

bool AcqOdyssey::ApplyGainCorr

BGImage

long AcqOdyssey::BGImage

private

BGImageValid

bool AcqOdyssey::BGImageValid

bNorm

char AcqOdyssey::bNorm

private

Buffer

long AcqOdyssey::Buffer

private

BufferN

long AcqOdyssey::BufferN

private

Camera

long AcqOdyssey::Camera

private

Control

long AcqOdyssey::Control

private

ControlBuf

long AcqOdyssey::ControlBuf

private

ConvImage

long AcqOdyssey::ConvImage

private

ConvImage2

long AcqOdyssey::ConvImage2

private

ConvImage32

long AcqOdyssey::ConvImage32

private

CopyOSB

long AcqOdyssey::CopyOSB

private

CopyOSB1

long AcqOdyssey::CopyOSB1

private

Device

long AcqOdyssey::Device

private

Digitizer

long AcqOdyssey::Digitizer

private

eEdbClusters

TClonesArray* AcqOdyssey::eEdbClusters

eEdbView

EdbView* AcqOdyssey::eEdbView

GCImage

long AcqOdyssey::GCImage

private

GCImageValid

bool AcqOdyssey::GCImageValid

GrabOSB

long AcqOdyssey::GrabOSB

private

GrabThread

long AcqOdyssey::GrabThread

private

HostBuffer

long AcqOdyssey::HostBuffer[MAX_NB_GRAB]

private

HostBufferLines

long AcqOdyssey::HostBufferLines

private

HostBufferPitch

long AcqOdyssey::HostBufferPitch

private

Kernel

long AcqOdyssey::Kernel

private

MaxNbGrab

int AcqOdyssey::MaxNbGrab

MilApplication

MIL_ID AcqOdyssey::MilApplication

private

MilBGImage

MIL_ID AcqOdyssey::MilBGImage

private

MilConvImage

MIL_ID AcqOdyssey::MilConvImage

private

MilConvImage1

MIL_ID AcqOdyssey::MilConvImage1

private

MilConvImage2

MIL_ID AcqOdyssey::MilConvImage2

private

MilConvImage32

MIL_ID AcqOdyssey::MilConvImage32

private

MilDigitizer

MIL_ID AcqOdyssey::MilDigitizer

private

MilDisplay

MIL_ID AcqOdyssey::MilDisplay

private

MilGCImage

MIL_ID AcqOdyssey::MilGCImage

private

MilGCKernel

MIL_ID AcqOdyssey::MilGCKernel

private

MilImage

MIL_ID AcqOdyssey::MilImage

private

MilImageDisp

MIL_ID AcqOdyssey::MilImageDisp

private

MilImageN

MIL_ID AcqOdyssey::MilImageN

private

MilKernel

MIL_ID AcqOdyssey::MilKernel

private

MilOverlayImage

MIL_ID AcqOdyssey::MilOverlayImage

private

MilProjResX

MIL_ID AcqOdyssey::MilProjResX

private

MilProjResY

MIL_ID AcqOdyssey::MilProjResY

private

MilSystem

MIL_ID AcqOdyssey::MilSystem

private

OpticalShrinkage

float AcqOdyssey::OpticalShrinkage

Overlay

long AcqOdyssey::Overlay

private

pHostBuffer

void* AcqOdyssey::pHostBuffer[MAX_NB_GRAB]

private

PixelToMicronX

float AcqOdyssey::PixelToMicronX

PixelToMicronY

float AcqOdyssey::PixelToMicronY

SeqThread

long AcqOdyssey::SeqThread

private

ShiftBuffer

long AcqOdyssey::ShiftBuffer

private

ShiftList

long AcqOdyssey::ShiftList

private

SizeX

int AcqOdyssey::SizeX

SizeY

int AcqOdyssey::SizeY

SubtractBG

bool AcqOdyssey::SubtractBG

System

long AcqOdyssey::System

private

Thread

long AcqOdyssey::Thread

private

Threshold [1/2]

int AcqOdyssey::Threshold

Threshold [2/2]

char AcqOdyssey::Threshold

TransparentColor

long AcqOdyssey::TransparentColor

private

ZBuffer

float AcqOdyssey::ZBuffer[MAX_NB_GRAB]

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libACQ/AcqOdyssey.h
• /home/antonio/fedra_doxygen/src/libACQ/AcqOdyssey_ONL.h
• /home/antonio/fedra_doxygen/src/libACQ/AcqOdyssey.cxx
• /home/antonio/fedra_doxygen/src/libACQ/AcqOdyssey_ONL.cxx
