TiXmlBase Class Reference

#include <tinyxml.h>

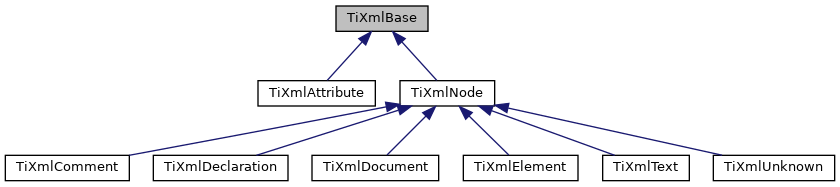

Inheritance diagram for TiXmlBase:

Collaboration diagram for TiXmlBase:

Classes
struct	Entity

Public Types
enum	{   TIXML_NO_ERROR = 0 , TIXML_ERROR , TIXML_ERROR_OPENING_FILE , TIXML_ERROR_PARSING_ELEMENT ,   TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME , TIXML_ERROR_READING_ELEMENT_VALUE , TIXML_ERROR_READING_ATTRIBUTES , TIXML_ERROR_PARSING_EMPTY ,   TIXML_ERROR_READING_END_TAG , TIXML_ERROR_PARSING_UNKNOWN , TIXML_ERROR_PARSING_COMMENT , TIXML_ERROR_PARSING_DECLARATION ,   TIXML_ERROR_DOCUMENT_EMPTY , TIXML_ERROR_EMBEDDED_NULL , TIXML_ERROR_PARSING_CDATA , TIXML_ERROR_DOCUMENT_TOP_ONLY ,   TIXML_ERROR_STRING_COUNT }

Public Member Functions
int	Column () const
	See Row() More...
void *	GetUserData ()
	Get a pointer to arbitrary user data. More...
const void *	GetUserData () const
	Get a pointer to arbitrary user data. More...
virtual const char *	Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)=0
virtual void	Print (FILE *cfile, int depth) const =0
int	Row () const
void	SetUserData (void *user)
	Set a pointer to arbitrary user data. More...
	TiXmlBase ()
virtual	~TiXmlBase ()

Static Public Member Functions
static void	EncodeString (const TIXML_STRING &str, TIXML_STRING *out)
static bool	IsWhiteSpaceCondensed ()
	Return the current white space setting. More...
static void	SetCondenseWhiteSpace (bool condense)

Static Public Attributes
static const int	utf8ByteTable [256]

Static Protected Member Functions
static void	ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)
static const char *	GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)
static const char *	GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)
static int	IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)
static int	IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)
static bool	IsWhiteSpace (char c)
static bool	IsWhiteSpace (int c)
static const char *	ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)
static const char *	ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
static const char *	SkipWhiteSpace (const char *, TiXmlEncoding encoding)
static bool	StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
static int	ToLower (int v, TiXmlEncoding encoding)

Protected Attributes
TiXmlCursor	location
void *	userData
	Field containing a generic user pointer. More...

Static Protected Attributes
static const char *	errorString [TIXML_ERROR_STRING_COUNT]

Private Types
enum	{ NUM_ENTITY = 5 , MAX_ENTITY_LENGTH = 6 }

Private Member Functions
void	operator= (const TiXmlBase &base)
	TiXmlBase (const TiXmlBase &)

Static Private Attributes
static bool	condenseWhiteSpace = true
static Entity	entity [NUM_ENTITY]

Friends
class	TiXmlDocument
class	TiXmlElement
class	TiXmlNode

Detailed Description

TiXmlBase is a base class for every class in TinyXml. It does little except to establish that TinyXml classes can be printed and provide some utility functions.

In XML, the document and elements can contain other elements and other types of nodes.

A Document can contain: Element (container or leaf)
                        Comment (leaf)
                        Unknown (leaf)
                        Declaration( leaf )

An Element can contain: Element (container or leaf)
                        Text    (leaf)
                        Attributes (not on tree)
                        Comment (leaf)
                        Unknown (leaf)

A Decleration contains: Attributes (not on tree)

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
TIXML_NO_ERROR
TIXML_ERROR
TIXML_ERROR_OPENING_FILE
TIXML_ERROR_PARSING_ELEMENT
TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME
TIXML_ERROR_READING_ELEMENT_VALUE
TIXML_ERROR_READING_ATTRIBUTES
TIXML_ERROR_PARSING_EMPTY
TIXML_ERROR_READING_END_TAG
TIXML_ERROR_PARSING_UNKNOWN
TIXML_ERROR_PARSING_COMMENT
TIXML_ERROR_PARSING_DECLARATION
TIXML_ERROR_DOCUMENT_EMPTY
TIXML_ERROR_EMBEDDED_NULL
TIXML_ERROR_PARSING_CDATA
TIXML_ERROR_DOCUMENT_TOP_ONLY
TIXML_ERROR_STRING_COUNT

    {
        TIXML_NO_ERROR = 0,
        TIXML_ERROR,
        TIXML_ERROR_OPENING_FILE,
        TIXML_ERROR_PARSING_ELEMENT,
        TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME,
        TIXML_ERROR_READING_ELEMENT_VALUE,
        TIXML_ERROR_READING_ATTRIBUTES,
        TIXML_ERROR_PARSING_EMPTY,
        TIXML_ERROR_READING_END_TAG,
        TIXML_ERROR_PARSING_UNKNOWN,
        TIXML_ERROR_PARSING_COMMENT,
        TIXML_ERROR_PARSING_DECLARATION,
        TIXML_ERROR_DOCUMENT_EMPTY,
        TIXML_ERROR_EMBEDDED_NULL,
        TIXML_ERROR_PARSING_CDATA,
        TIXML_ERROR_DOCUMENT_TOP_ONLY,

        TIXML_ERROR_STRING_COUNT
    };

anonymous enum

anonymous enum

private

Enumerator
NUM_ENTITY
MAX_ENTITY_LENGTH

    {
        NUM_ENTITY = 5,
        MAX_ENTITY_LENGTH = 6

    };

Constructor & Destructor Documentation

TiXmlBase() [1/2]

TiXmlBase::TiXmlBase ( )

inline

:   userData(0)     {}

~TiXmlBase()

virtual TiXmlBase::~TiXmlBase ( )

inlinevirtual

{}

TiXmlBase() [2/2]

TiXmlBase::TiXmlBase ( const TiXmlBase &  )

private

Member Function Documentation

Column()

int TiXmlBase::Column ( ) const

inline

See Row()

ConvertUTF32ToUTF8()

void TiXmlBase::ConvertUTF32ToUTF8 ( unsigned long  input, char *  output, int *  length  )

staticprotected

{
    const unsigned long BYTE_MASK = 0xBF;
    const unsigned long BYTE_MARK = 0x80;
    const unsigned long FIRST_BYTE_MARK[7] = { 0x00, 0x00, 0xC0, 0xE0, 0xF0, 0xF8, 0xFC };

    if (input < 0x80)
        *length = 1;
    else if ( input < 0x800 )
        *length = 2;
    else if ( input < 0x10000 )
        *length = 3;
    else if ( input < 0x200000 )
        *length = 4;
    else
        { *length = 0; return; }    // This code won't covert this correctly anyway.

    output += *length;

    // Scary scary fall throughs.
    switch (*length)
    {
        case 4:
            --output;
            *output = (char)((input | BYTE_MARK) & BYTE_MASK);
            input >>= 6;
        case 3:
            --output;
            *output = (char)((input | BYTE_MARK) & BYTE_MASK);
            input >>= 6;
        case 2:
            --output;
            *output = (char)((input | BYTE_MARK) & BYTE_MASK);
            input >>= 6;
        case 1:
            --output;
            *output = (char)(input | FIRST_BYTE_MARK[*length]);
    }
}

EncodeString()

void TiXmlBase::EncodeString ( const TIXML_STRING &  str, TIXML_STRING *  out  )

static

Expands entities in a string. Note this should not contian the tag's '<', '>', etc, or they will be transformed into entities!

{
    int i=0;

    while( i<(int)str.length() )
    {
        unsigned char c = (unsigned char) str[i];

        if (    c == '&'
             && i < ( (int)str.length() - 2 )
             && str[i+1] == '#'
             && str[i+2] == 'x' )
        {
            // Hexadecimal character reference.
            // Pass through unchanged.
            // &#xA9;   -- copyright symbol, for example.
            //
            // The -1 is a bug fix from Rob Laveaux. It keeps
            // an overflow from happening if there is no ';'.
            // There are actually 2 ways to exit this loop -
            // while fails (error case) and break (semicolon found).
            // However, there is no mechanism (currently) for
            // this function to return an error.
            while ( i<(int)str.length()-1 )
            {
                outString->append( str.c_str() + i, 1 );
                ++i;
                if ( str[i] == ';' )
                    break;
            }
        }
        else if ( c == '&' )
        {
            outString->append( entity[0].str, entity[0].strLength );
            ++i;
        }
        else if ( c == '<' )
        {
            outString->append( entity[1].str, entity[1].strLength );
            ++i;
        }
        else if ( c == '>' )
        {
            outString->append( entity[2].str, entity[2].strLength );
            ++i;
        }
        else if ( c == '\"' )
        {
            outString->append( entity[3].str, entity[3].strLength );
            ++i;
        }
        else if ( c == '\'' )
        {
            outString->append( entity[4].str, entity[4].strLength );
            ++i;
        }
        else if ( c < 32 )
        {
            // Easy pass at non-alpha/numeric/symbol
            // Below 32 is symbolic.
            char buf[ 32 ];

            #if defined(TIXML_SNPRINTF)
                TIXML_SNPRINTF( buf, sizeof(buf), "&#x%02X;", (unsigned) ( c & 0xff ) );
            #else
                sprintf( buf, "&#x%02X;", (unsigned) ( c & 0xff ) );
            #endif

            //*ME:  warning C4267: convert 'size_t' to 'int'
            //*ME:  Int-Cast to make compiler happy ...
            outString->append( buf, (int)strlen( buf ) );
            ++i;
        }
        else
        {
            //char realc = (char) c;
            //outString->append( &realc, 1 );
            *outString += (char) c; // somewhat more efficient function call.
            ++i;
        }
    }
}

GetChar()

static const char * TiXmlBase::GetChar ( const char *  p, char *  _value, int *  length, TiXmlEncoding  encoding  )

inlinestaticprotected

    {
        assert( p );
        if ( encoding == TIXML_ENCODING_UTF8 )
        {
            *length = utf8ByteTable[ *((const unsigned char*)p) ];
            assert( *length >= 0 && *length < 5 );
        }
        else
        {
            *length = 1;
        }

        if ( *length == 1 )
        {
            if ( *p == '&' )
                return GetEntity( p, _value, length, encoding );
            *_value = *p;
            return p+1;
        }
        else if ( *length )
        {
            //strncpy( _value, p, *length );    // lots of compilers don't like this function (unsafe),
                                                // and the null terminator isn't needed
            for( int i=0; p[i] && i<*length; ++i ) {
                _value[i] = p[i];
            }
            return p + (*length);
        }
        else
        {
            // Not valid text.
            return 0;
        }
    }

GetEntity()

const char * TiXmlBase::GetEntity ( const char *  in, char *  value, int *  length, TiXmlEncoding  encoding  )

staticprotected

{
    // Presume an entity, and pull it out.
    TIXML_STRING ent;
    int i;
    *length = 0;

    if ( *(p+1) && *(p+1) == '#' && *(p+2) )
    {
        unsigned long ucs = 0;
        ptrdiff_t delta = 0;
        unsigned mult = 1;

        if ( *(p+2) == 'x' )
        {
            // Hexadecimal.
            if ( !*(p+3) ) return 0;

            const char* q = p+3;
            q = strchr( q, ';' );

            if ( !q || !*q ) return 0;

            delta = q-p;
            --q;

            while ( *q != 'x' )
            {
                if ( *q >= '0' && *q <= '9' )
                    ucs += mult * (*q - '0');
                else if ( *q >= 'a' && *q <= 'f' )
                    ucs += mult * (*q - 'a' + 10);
                else if ( *q >= 'A' && *q <= 'F' )
                    ucs += mult * (*q - 'A' + 10 );
                else
                    return 0;
                mult *= 16;
                --q;
            }
        }
        else
        {
            // Decimal.
            if ( !*(p+2) ) return 0;

            const char* q = p+2;
            q = strchr( q, ';' );

            if ( !q || !*q ) return 0;

            delta = q-p;
            --q;

            while ( *q != '#' )
            {
                if ( *q >= '0' && *q <= '9' )
                    ucs += mult * (*q - '0');
                else
                    return 0;
                mult *= 10;
                --q;
            }
        }
        if ( encoding == TIXML_ENCODING_UTF8 )
        {
            // convert the UCS to UTF-8
            ConvertUTF32ToUTF8( ucs, value, length );
        }
        else
        {
            *value = (char)ucs;
            *length = 1;
        }
        return p + delta + 1;
    }

    // Now try to match it.
    for( i=0; i<NUM_ENTITY; ++i )
    {
        if ( strncmp( entity[i].str, p, entity[i].strLength ) == 0 )
        {
            assert( strlen( entity[i].str ) == entity[i].strLength );
            *value = entity[i].chr;
            *length = 1;
            return ( p + entity[i].strLength );
        }
    }

    // So it wasn't an entity, its unrecognized, or something like that.
    *value = *p;    // Don't put back the last one, since we return it!
    //*length = 1;  // Leave unrecognized entities - this doesn't really work.
                    // Just writes strange XML.
    return p+1;
}

GetUserData() [1/2]

void * TiXmlBase::GetUserData ( )

inline

Get a pointer to arbitrary user data.

GetUserData() [2/2]

const void * TiXmlBase::GetUserData ( ) const

inline

Get a pointer to arbitrary user data.

IsAlpha()

int TiXmlBase::IsAlpha ( unsigned char  anyByte, TiXmlEncoding  encoding  )

staticprotected

{
    // This will only work for low-ascii, everything else is assumed to be a valid
    // letter. I'm not sure this is the best approach, but it is quite tricky trying
    // to figure out alhabetical vs. not across encoding. So take a very
    // conservative approach.

//  if ( encoding == TIXML_ENCODING_UTF8 )
//  {
        if ( anyByte < 127 )
            return isalpha( anyByte );
        else
            return 1;   // What else to do? The unicode set is huge...get the english ones right.
//  }
//  else
//  {
//      return isalpha( anyByte );
//  }
}

IsAlphaNum()

int TiXmlBase::IsAlphaNum ( unsigned char  anyByte, TiXmlEncoding  encoding  )

staticprotected

{
    // This will only work for low-ascii, everything else is assumed to be a valid
    // letter. I'm not sure this is the best approach, but it is quite tricky trying
    // to figure out alhabetical vs. not across encoding. So take a very
    // conservative approach.

//  if ( encoding == TIXML_ENCODING_UTF8 )
//  {
        if ( anyByte < 127 )
            return isalnum( anyByte );
        else
            return 1;   // What else to do? The unicode set is huge...get the english ones right.
//  }
//  else
//  {
//      return isalnum( anyByte );
//  }
}

IsWhiteSpace() [1/2]

static bool TiXmlBase::IsWhiteSpace ( char  c )

inlinestaticprotected

    {
        return ( isspace( (unsigned char) c ) || c == '\n' || c == '\r' );
    }

IsWhiteSpace() [2/2]

static bool TiXmlBase::IsWhiteSpace ( int  c )

inlinestaticprotected

    {
        if ( c < 256 )
            return IsWhiteSpace( (char) c );
        return false;   // Again, only truly correct for English/Latin...but usually works.
    }

IsWhiteSpaceCondensed()

static bool TiXmlBase::IsWhiteSpaceCondensed ( )

inlinestatic

Return the current white space setting.

{ return condenseWhiteSpace; }

operator=()

void TiXmlBase::operator= ( const TiXmlBase &  base )

private

Parse()

virtual const char * TiXmlBase::Parse ( const char *  p, TiXmlParsingData *  data, TiXmlEncoding  encoding  )

pure virtual

Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.

Print()

virtual void TiXmlBase::Print ( FILE *  cfile, int  depth  ) const

pure virtual

All TinyXml classes can print themselves to a filestream or the string class (TiXmlString in non-STL mode, std::string in STL mode.) Either or both cfile and str can be null.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.

ReadName()

const char * TiXmlBase::ReadName ( const char *  p, TIXML_STRING *  name, TiXmlEncoding  encoding  )

staticprotected

{
    // Oddly, not supported on some comilers,
    //name->clear();
    // So use this:
    *name = "";
    assert( p );

    // Names start with letters or underscores.
    // Of course, in unicode, tinyxml has no idea what a letter *is*. The
    // algorithm is generous.
    //
    // After that, they can be letters, underscores, numbers,
    // hyphens, or colons. (Colons are valid ony for namespaces,
    // but tinyxml can't tell namespaces from names.)
    if (    p && *p
         && ( IsAlpha( (unsigned char) *p, encoding ) || *p == '_' ) )
    {
        const char* start = p;
        while(      p && *p
                &&  (       IsAlphaNum( (unsigned char ) *p, encoding )
                         || *p == '_'
                         || *p == '-'
                         || *p == '.'
                         || *p == ':' ) )
        {
            //(*name) += *p; // expensive
            ++p;
        }
        if ( p-start > 0 ) {
            name->assign( start, p-start );
        }
        return p;
    }
    return 0;
}

ReadText()

const char * TiXmlBase::ReadText ( const char *  in, TIXML_STRING *  text, bool  ignoreWhiteSpace, const char *  endTag, bool  ignoreCase, TiXmlEncoding  encoding  )

staticprotected

{
    *text = "";
    if (    !trimWhiteSpace         // certain tags always keep whitespace
         || !condenseWhiteSpace )   // if true, whitespace is always kept
    {
        // Keep all the white space.
        while (    p && *p
                && !StringEqual( p, endTag, caseInsensitive, encoding )
              )
        {
            int len;
            char cArr[4] = { 0, 0, 0, 0 };
            p = GetChar( p, cArr, &len, encoding );
            text->append( cArr, len );
        }
    }
    else
    {
        bool whitespace = false;

        // Remove leading white space:
        p = SkipWhiteSpace( p, encoding );
        while (    p && *p
                && !StringEqual( p, endTag, caseInsensitive, encoding ) )
        {
            if ( *p == '\r' || *p == '\n' )
            {
                whitespace = true;
                ++p;
            }
            else if ( IsWhiteSpace( *p ) )
            {
                whitespace = true;
                ++p;
            }
            else
            {
                // If we've found whitespace, add it before the
                // new character. Any whitespace just becomes a space.
                if ( whitespace )
                {
                    (*text) += ' ';
                    whitespace = false;
                }
                int len;
                char cArr[4] = { 0, 0, 0, 0 };
                p = GetChar( p, cArr, &len, encoding );
                if ( len == 1 )
                    (*text) += cArr[0]; // more efficient
                else
                    text->append( cArr, len );
            }
        }
    }
    if ( p && *p )
        p += strlen( endTag );
    return ( p && *p ) ? p : 0;
}

Row()

int TiXmlBase::Row ( ) const

inline

Return the position, in the original source file, of this node or attribute. The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also

TiXmlDocument::SetTabSize()

{ return location.row + 1; }

SetCondenseWhiteSpace()

static void TiXmlBase::SetCondenseWhiteSpace ( bool  condense )

inlinestatic

The world does not agree on whether white space should be kept or not. In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this value is not thread safe.

{ condenseWhiteSpace = condense; }

SetUserData()

void TiXmlBase::SetUserData ( void *  user )

inline

Set a pointer to arbitrary user data.

SkipWhiteSpace()

const char * TiXmlBase::SkipWhiteSpace ( const char *  p, TiXmlEncoding  encoding  )

staticprotected

{
    if ( !p || !*p )
    {
        return 0;
    }
    if ( encoding == TIXML_ENCODING_UTF8 )
    {
        while ( *p )
        {
            const unsigned char* pU = (const unsigned char*)p;

            // Skip the stupid Microsoft UTF-8 Byte order marks
            if (    *(pU+0)==TIXML_UTF_LEAD_0
                 && *(pU+1)==TIXML_UTF_LEAD_1
                 && *(pU+2)==TIXML_UTF_LEAD_2 )
            {
                p += 3;
                continue;
            }
            else if(*(pU+0)==TIXML_UTF_LEAD_0
                 && *(pU+1)==0xbfU
                 && *(pU+2)==0xbeU )
            {
                p += 3;
                continue;
            }
            else if(*(pU+0)==TIXML_UTF_LEAD_0
                 && *(pU+1)==0xbfU
                 && *(pU+2)==0xbfU )
            {
                p += 3;
                continue;
            }

            if ( IsWhiteSpace( *p ) )       // Still using old rules for white space.
                ++p;
            else
                break;
        }
    }
    else
    {
        while ( *p && IsWhiteSpace( *p ) )
            ++p;
    }

    return p;
}

StringEqual()

bool TiXmlBase::StringEqual ( const char *  p, const char *  endTag, bool  ignoreCase, TiXmlEncoding  encoding  )

staticprotected

{
    assert( p );
    assert( tag );
    if ( !p || !*p )
    {
        assert( 0 );
        return false;
    }

    const char* q = p;

    if ( ignoreCase )
    {
        while ( *q && *tag && ToLower( *q, encoding ) == ToLower( *tag, encoding ) )
        {
            ++q;
            ++tag;
        }

        if ( *tag == 0 )
            return true;
    }
    else
    {
        while ( *q && *tag && *q == *tag )
        {
            ++q;
            ++tag;
        }

        if ( *tag == 0 )        // Have we found the end of the tag, and everything equal?
            return true;
    }
    return false;
}

ToLower()

static int TiXmlBase::ToLower ( int  v, TiXmlEncoding  encoding  )

inlinestaticprotected

    {
        if ( encoding == TIXML_ENCODING_UTF8 )
        {
            if ( v < 128 ) return tolower( v );
            return v;
        }
        else
        {
            return tolower( v );
        }
    }

Friends And Related Function Documentation

TiXmlDocument

friend class TiXmlDocument

friend

TiXmlElement

friend class TiXmlElement

friend

TiXmlNode

friend class TiXmlNode

friend

Member Data Documentation

condenseWhiteSpace

bool TiXmlBase::condenseWhiteSpace = true

staticprivate

entity

TiXmlBase::Entity TiXmlBase::entity

staticprivate

Initial value:

=
{
    { "&",  5, '&' },
    { "&lt;",   4, '<' },
    { "&gt;",   4, '>' },
    { "&quot;", 6, '\"' },
    { "&apos;", 6, '\'' }
}

errorString

const char * TiXmlBase::errorString

staticprotected

Initial value:

=
{
    "No error",
    "Error",
    "Failed to open file",
    "Error parsing Element.",
    "Failed to read Element name",
    "Error reading Element value.",
    "Error reading Attributes.",
    "Error: empty tag.",
    "Error reading end tag.",
    "Error parsing Unknown.",
    "Error parsing Comment.",
    "Error parsing Declaration.",
    "Error document empty.",
    "Error null (0) or unexpected EOF found in input stream.",
    "Error parsing CDATA.",
    "Error when TiXmlDocument added to document, because TiXmlDocument can only be at the root.",
}

location

TiXmlCursor TiXmlBase::location

protected

userData

void* TiXmlBase::userData

protected

Field containing a generic user pointer.

utf8ByteTable

const int TiXmlBase::utf8ByteTable

static

Initial value:

=
{

        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,
        4,  4,  4,  4,  4,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1
}

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libScan/tinyxml.h
• /home/antonio/fedra_doxygen/src/libScan/tinyxml.cpp
• /home/antonio/fedra_doxygen/src/libScan/tinyxmlerror.cpp
• /home/antonio/fedra_doxygen/src/libScan/tinyxmlparser.cpp
