FEDRA emulsion software from the OPERA Collaboration
Public Member Functions | Private Attributes | List of all members
ProcessRawData Class Reference

#include <ProcessRawData.h>

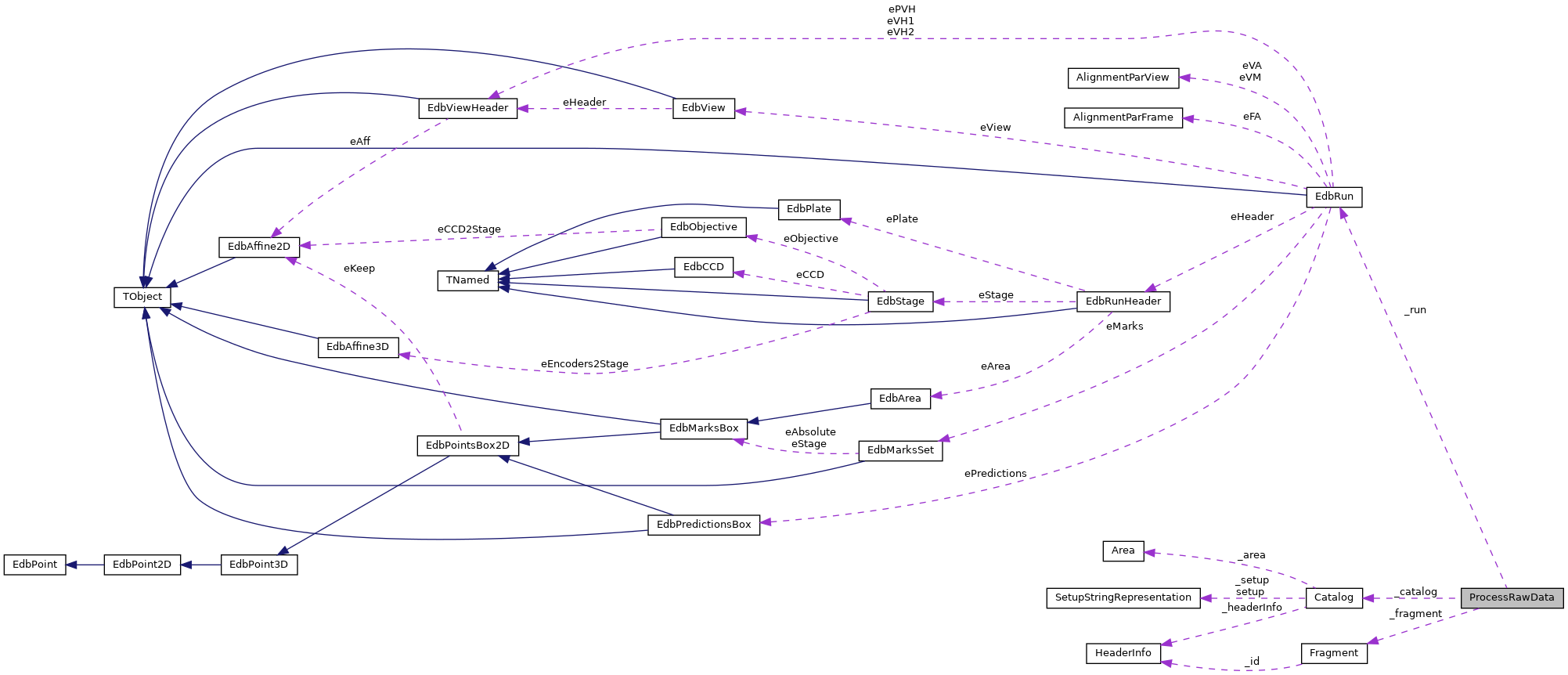

Collaboration diagram for ProcessRawData:
Collaboration graph
[legend]

Public Member Functions

bool dumpCatalogInEdbStructure ()

bool dumpFragmentInEdbStructure ()

void filterTracks (bool filterTracks)

const char * getCatalogName ()

bool getClOption ()

bool getFilterTracksOption ()

const char * getFragmentName ()

unsigned int getFragmentsNumberFromCatalog ()

const char * getRootName ()

void initCatalog ()

void initFragment ()

int makeTracksPlot (const char *plotFileName)

 ProcessRawData ()

bool readCatalog ()

bool readFragment ()

void setCatalogName (std::string fileName)

void setClOption (bool noCl)

void setFilterTrackOption (bool filterTracks)

void setFragmentName (std::string fileName)

void setRootName (std::string fileName)

 ~ProcessRawData ()


Private Attributes

Catalog * _catalog

std::string _catFileName

bool _clusters

bool _filterTracks

std::string _fragFileName

Fragment * _fragment

std::string _outputRootFileName

EdbRun * _run


Constructor & Destructor Documentation

◆ ProcessRawData()

ProcessRawData::ProcessRawData ( )
5 {
6  _run = 0;
7  _fragment = 0;
8  _catalog = 0;
9  _clusters = false;
10  _filterTracks = false;
11 }
ProcessRawData::_run
EdbRun * _run
Definition: ProcessRawData.h:33
ProcessRawData::_fragment
Fragment * _fragment
Definition: ProcessRawData.h:35
ProcessRawData::_clusters
bool _clusters
Definition: ProcessRawData.h:39
ProcessRawData::_catalog
Catalog * _catalog
Definition: ProcessRawData.h:34
ProcessRawData::_filterTracks
bool _filterTracks
Definition: ProcessRawData.h:40

◆ ~ProcessRawData()

ProcessRawData::~ProcessRawData ( )
14 {
15  if (_run) { _run->Close(); delete _run; _run=0; }
16  if (_fragment) { delete _fragment; _fragment=0; }
17  if (_catalog) { delete _catalog; _catalog = 0; }
18 }
EdbRun::Close
void Close()
Definition: EdbRun.cxx:466

Member Function Documentation

◆ dumpCatalogInEdbStructure()

bool ProcessRawData::dumpCatalogInEdbStructure ( )
743 {
744  if(!_run) _run = new EdbRun(_outputRootFileName.c_str(), "RECREATE" );
745
746 // _run->GetTree()->SetMaxTreeSize(static_cast<long long>(10e9));
747  EdbRunHeader *Header = _run->GetHeader();
748  Header->SetFlag(0,2);
749  Header->SetFlag(1,1);
750  Header->SetFlag(2,1);
751  Header->SetLimits(static_cast<float>(_catalog->getXmin()),
752  static_cast<float>(_catalog->getXmax()),
753  static_cast<float>(_catalog->getYmin()),
754  static_cast<float>(_catalog->getYmax()));
755  //int index = _catalog->findConfig("Vertigo");
756  std::string retValue = _catalog->getConfigValue(_catalog->findConfig("Vertigo"),"VLayers");
757
758
759  Header->SetArea(static_cast<int>(_catalog->getXviews()*_catalog->getYviews()),
760  static_cast<float>(_catalog->getXstep()),static_cast<float>(_catalog->getYstep())
761  , atoi(retValue.c_str()),atoi(retValue.c_str()), 0);
762
763  Header->SetCCD(atoi(_catalog->getConfigValue(_catalog->findConfig("Objective"),"Width").c_str()),
764  atoi(_catalog->getConfigValue(_catalog->findConfig("Objective"),"Height").c_str()),
765  -999, // physical pixel size in microns along X
766  -999, // physical pixel size in microns along Y
767  "", // es. "Dalsa CAD4"
768  ""); // es. "Bologna"
769  Header->SetObjective(-999, // magnification
770  static_cast<float>(atof(_catalog->getConfigValue(_catalog->findConfig("Objective"),"Width").c_str())*
771  fabs(atof(_catalog->getConfigValue(_catalog->findConfig("Objective"),"PixelToMicronX").c_str()))),
772  0,0,
773  static_cast<float>(atof(_catalog->getConfigValue(_catalog->findConfig("Objective"),"Height").c_str())*
774  fabs(atof(_catalog->getConfigValue(_catalog->findConfig("Objective"),"PixelToMicronY").c_str()))),
775  0,0,
776  "", // es. "Nikon CFI - oil"
777  ""); // es, "50x"
778  float vStepTop = static_cast<float>(atof(_catalog->getConfigValue(_catalog->findConfig("Vertigo"),"TopStep").c_str()));
779  float vStepBottom = static_cast<float>(atof(_catalog->getConfigValue(_catalog->findConfig("Vertigo"),"BottomStep").c_str()));
780  float shr = static_cast<float>(atof(_catalog->getConfigValue(_catalog->findConfig("Vertigo"),"Shrinkage").c_str()));
781  float base = static_cast<float>(atof(_catalog->getConfigValue(_catalog->findConfig("Vertigo"),"BaseThickness").c_str()));
782  Header->SetPlate(-999, // plate ID
783  vStepTop*shr,
784  base,
785  vStepBottom*shr,shr,shr,
786  "", // es. "Test Plate"
787  "");
788  // Store the catalog file as TObjString
789  TObjString objstr ;
790  int i, ch;
791  FILE *stream;
792  if( (stream = fopen( _catFileName.c_str(), "rb" )) == NULL ) return false;
793  ch = fgetc( stream );
794  for( i=0; feof( stream ) == 0 ; i++ )
795  {
796  objstr.String().Append( ch );
797  ch = fgetc( stream );
798  }
799  fclose( stream );
800  objstr.Write("catalog");
801  _run->Save() ;
802  //_run->Close();
803  return true;
804 }
fabs
Expr< UnaryOp< Fabs< T >, Expr< A, T, D >, T >, T, D > fabs(const Expr< A, T, D > &rhs)
Definition: UnaryOperators.hh:96
Catalog::getXstep
double getXstep()
Definition: Catalog.h:45
Catalog::getYmin
double getYmin()
Definition: Catalog.h:43
Catalog::getXmax
double getXmax()
Definition: Catalog.h:42
Catalog::getXmin
double getXmin()
Definition: Catalog.h:41
Catalog::getYmax
double getYmax()
Definition: Catalog.h:44
Catalog::getYstep
double getYstep()
Definition: Catalog.h:46
Catalog::getYviews
unsigned int getYviews()
Definition: Catalog.h:40
Catalog::getXviews
unsigned int getXviews()
Definition: Catalog.h:39
Catalog::getConfigValue
std::string getConfigValue(int index, std::string configName)
Definition: Catalog.cpp:67
Catalog::findConfig
int findConfig(std::string configName)
Definition: Catalog.cpp:21
EdbRunHeader
Definition: EdbRunHeader.h:94
EdbRun
Definition: EdbRun.h:74
EdbRun::Save
void Save()
Definition: EdbRun.cxx:451
EdbRun::GetHeader
EdbRunHeader * GetHeader() const
Definition: EdbRun.h:137
ProcessRawData::_catFileName
std::string _catFileName
Definition: ProcessRawData.h:36
ProcessRawData::_outputRootFileName
std::string _outputRootFileName
Definition: ProcessRawData.h:38
fclose
fclose(pFile)
Header
Definition: tlg2pattern.C:66
NULL
#define NULL
Definition: nidaqmx.h:84

◆ dumpFragmentInEdbStructure()

bool ProcessRawData::dumpFragmentInEdbStructure ( )
808 {
809  if(!_run) {
810  if ( gSystem->AccessPathName( _outputRootFileName.c_str() ) )
811  _run = new EdbRun( _outputRootFileName.c_str(), "RECREATE" );
812  else
813  _run = new EdbRun( _outputRootFileName.c_str(), "UPDATE" );
814  }
815  //run->GetTree()->SetMaxTreeSize(static_cast<long long>(10e9));
816
817  EdbView* edbView = _run->GetView();
818  //EdbSegment* edbSegment = new EdbSegment(0,0,0,0,0,0,0,0);
819  std::auto_ptr<EdbSegment> edbSegment( new EdbSegment(0,0,0,0,0,0,0,0) );
820
821  int v, t, p; // v=view, s=side, t=track, p=point
822  int tracks; // number of tracks in the fragment
823  int fclusters; // number of clusters in the fragment
824  int vclusters; // number of clusters in the view
825  float dz ; // z-length of the track segment
826  int tr_clusters; // number of cluster of the track
827  int puls ; // ePuls = (number of clusters ) OR (sum of clust areas)*1000 + (number of clusters)
828  float volume = 0;
829  int frameId = 0;
830  tracks = 0;
831  fclusters = 0;
832  _run->GetHeader()->SetNareas(_run->GetHeader()->GetNareas()+1);
833  for (v = 0; v < _fragment->getViews(); v++) //TOP
834  {
835  View *rwdView = _fragment->getView(v);
836  Side *topSide = rwdView->getTopSide();
837  vclusters = 0;
838  tracks+=topSide->getTracks();
839  edbView->Clear();
840  EdbViewHeader* edbViewHeader = edbView->GetHeader();
841  edbViewHeader->SetAffine(static_cast<float>(topSide->getMXX()),
842  static_cast<float>(topSide->getMXY()),static_cast<float>(topSide->getMYX()),
843  static_cast<float>(topSide->getMYY()),static_cast<float>(topSide->getMappedFovPosX()),
844  static_cast<float>(topSide->getMappedFovPosY()));
845
846  edbViewHeader->SetAreaID(_fragment->getIndex());
847  edbViewHeader->SetCoordXY(static_cast<float>(topSide->getStageFovPosX()), static_cast<float>(topSide->getStageFovPosY()));
848  edbViewHeader->SetCoordZ(static_cast<float>(topSide->getTopZ()),static_cast<float>(topSide->getBottomZ()),
849  static_cast<float>(rwdView->getBottomSide()->getTopZ()),static_cast<float>(rwdView->getBottomSide()->getBottomZ())); // NON capito i relevant Z
850
851  edbViewHeader->SetNframes(topSide->getLayers(),0);
852  edbViewHeader->SetNsegments(topSide->getTracks());
853  edbViewHeader->SetViewID(rwdView->getId());
854  edbViewHeader->SetColRow(rwdView->getTileX() ,rwdView->getTileY() );
855  int nframes = topSide->getLayers();
856  for( int nlvl=0; nlvl<nframes; nlvl++ )
857  {
858  edbView->AddFrame(nlvl,static_cast<float>(topSide->getLayerAt(nlvl)->zLayer),
859  topSide->getLayerAt(nlvl)->grains);
860  }
861  for (t = 0; t < topSide->getTracks(); t++) {
862  Track *tr = topSide->getTrackAt(t);
863  tr_clusters = tr->getCount();
864  puls = tr->getCount(); // dovrei mettere l'if per le opzioni di rwc2edb
865  if (tr->getGrains().size()!=0)
866  dz = static_cast<float>(tr->getGrains().at(0).z - tr->getGrains().at(tr_clusters-1).z);
867  else dz = 0.;
868
869  edbSegment->Set( static_cast<float>(tr->getX()),static_cast<float>(tr->getY()),
870  static_cast<float>(tr->getZ()),static_cast<float>(tr->getSX()),static_cast<float>(tr->getSY()),
871  dz, 0 , puls, t);
872  edbSegment->SetSigma(static_cast<float>(tr->getSigma()),-999.);
873  if (tr->getGrains().size()!=0 ) { // fixare opzioni nocl
874  volume = 0;
875  frameId = 0;
876  }
877  if (_clusters)
878  {
879  for ( p=0; p<tr_clusters;p++) {
880  for(int nlvl=frameId;nlvl<nframes;nlvl++) {
881  if(tr->getGrains().at(p).z == rwdView->getTopSide()->getLayerAt(nlvl)->zLayer) {
882  frameId=nlvl;
883  break;
884  }
885  }
886
887  edbView->AddCluster( static_cast<float>(tr->getGrains().at(p).x),
888  static_cast<float>(tr->getGrains().at(p).y),
889  static_cast<float>(tr->getGrains().at(p).z),
890  static_cast<float>(tr->getGrains().at(p).area),
891  volume,
892  frameId,
893  0,t);
894
895  }
896  }
897  edbViewHeader->SetNclusters(vclusters);
898  edbView->AddSegment(edbSegment.get()) ;
899  vclusters += tr_clusters;
900  } // end of tracks (t)
901  _run->AddView(edbView);
902  fclusters += vclusters;
903  } //end of views (v)
904
905
906
907
908  for (v = 0; v < _fragment->getViews(); v++) //BOTTOM
909  {
910  View *rwdView = _fragment->getView(v);
911  Side *bottomSide = rwdView->getBottomSide();
912  vclusters = 0;
913  tracks+=bottomSide->getTracks();
914  edbView->Clear();
915  EdbViewHeader* edbViewHeader = edbView->GetHeader();
916  edbViewHeader->SetAffine(static_cast<float>(bottomSide->getMXX()),static_cast<float>(bottomSide->getMXY()),
917  static_cast<float>(bottomSide->getMYX()),static_cast<float>(bottomSide->getMYY()),
918  static_cast<float>(bottomSide->getMappedFovPosX()),static_cast<float>(bottomSide->getMappedFovPosY()));
919  //edbViewHeader->SetAreaID(run->GetHeader()->GetNareas());
920  edbViewHeader->SetAreaID(_fragment->getIndex());
921  edbViewHeader->SetCoordXY(static_cast<float>(bottomSide->getStageFovPosX()), static_cast<float>(bottomSide->getStageFovPosY()));
922  edbViewHeader->SetCoordZ(static_cast<float>(rwdView->getTopSide()->getTopZ()),static_cast<float>(rwdView->getTopSide()->getBottomZ()),
923  static_cast<float>(rwdView->getBottomSide()->getTopZ()),static_cast<float>(rwdView->getBottomSide()->getBottomZ())); // NON capito i relevant Z
924  //edbViewHeader->SetNframes(bottomSide->getLayers(),0);
925  edbViewHeader->SetNframes(0,bottomSide->getLayers());
926  edbViewHeader->SetNsegments(bottomSide->getTracks());
927  edbViewHeader->SetViewID(rwdView->getId());
928  edbViewHeader->SetColRow(rwdView->getTileX() ,rwdView->getTileY() );
929  int nframes = bottomSide->getLayers();
930  for( int nlvl=0; nlvl<nframes; nlvl++ )
931  {
932  edbView->AddFrame(nlvl,static_cast<float>(bottomSide->getLayerAt(nlvl)->zLayer),
933  bottomSide->getLayerAt(nlvl)->grains);
934  }
935  for (t = 0; t < bottomSide->getTracks(); t++) {
936  Track *tr = bottomSide->getTrackAt(t);
937  tr_clusters = tr->getCount();
938  puls = tr->getCount(); // dovrei mettere l'if per le opzioni di rwc2edb
939  if (tr->getGrains().size()!=0)
940  dz = static_cast<float>(tr->getGrains().at(0).z - tr->getGrains().at(tr_clusters-1).z);
941  else dz = 0;
942
943  edbSegment->Set( static_cast<float>(tr->getX()),static_cast<float>(tr->getY()),
944  static_cast<float>(tr->getZ()),static_cast<float>(tr->getSX()),
945  static_cast<float>(tr->getSY()), dz, 1 , puls, t);
946  edbSegment->SetSigma(static_cast<float>(tr->getSigma()),-999.);
947  if (tr->getGrains().size()!=0 ) { // fixare opzioni nocl
948  volume = 0;
949  frameId = 0;
950  }
951  if (_clusters)
952  {
953  for ( p=0; p<tr_clusters;p++) {
954  for(int nlvl=frameId;nlvl<nframes;nlvl++) {
955  if(tr->getGrains().at(p).z == rwdView->getTopSide()->getLayerAt(nlvl)->zLayer) {
956  frameId=nlvl;
957  break;
958  }
959  }
960  edbView->AddCluster( static_cast<float>(tr->getGrains().at(p).x),
961  static_cast<float>(tr->getGrains().at(p).y),
962  static_cast<float>(tr->getGrains().at(p).z),
963  static_cast<float>(tr->getGrains().at(p).area),
964  volume,
965  frameId,
966  1,t);
967  }
968  }
969  edbViewHeader->SetNclusters(vclusters);
970  edbView->AddSegment(edbSegment.get()) ;
971  vclusters += tr_clusters;
972  } // end of tracks (t)
973  _run->AddView(edbView);
974  fclusters += vclusters;
975  } //end of views (v)
976
977 // _run->Close();
978  std::cout<< "Fragment: " << _fragment->getIndex() << "\tmicrotracks: " << tracks << "\tclusters: " << fclusters << std::endl;
979  return true;
980 }
dz
brick dz
Definition: RecDispMC.C:107
tr
TTree * tr
Definition: Shower_E_FromShowerRoot.C:5
t
TTree * t
Definition: check_shower.C:4
EdbRunHeader::SetNareas
void SetNareas(int n)
Definition: EdbRunHeader.h:133
EdbRunHeader::GetNareas
Int_t GetNareas() const
Definition: EdbRunHeader.h:147
EdbRun::AddView
void AddView()
Definition: EdbRun.cxx:332
EdbRun::GetView
EdbView * GetView() const
Definition: EdbRun.h:109
EdbSegment
Definition: EdbSegment.h:61
EdbViewHeader
Definition: EdbView.h:26
EdbViewHeader::SetColRow
void SetColRow(int col, int row)
Definition: EdbView.h:105
EdbViewHeader::SetCoordZ
void SetCoordZ(float z1, float z2, float z3, float z4)
Definition: EdbView.h:102
EdbViewHeader::SetNsegments
void SetNsegments(int nseg)
Definition: EdbView.h:86
EdbViewHeader::SetAreaID
void SetAreaID(int id)
Definition: EdbView.h:100
EdbViewHeader::SetViewID
void SetViewID(int id)
Definition: EdbView.h:99
EdbViewHeader::SetNclusters
void SetNclusters(int nclu)
Definition: EdbView.h:85
EdbViewHeader::SetNframes
void SetNframes(int top, int bot)
Definition: EdbView.h:104
EdbViewHeader::SetAffine
void SetAffine(float a11, float a12, float a21, float a22, float b1, float b2)
Definition: EdbView.h:67
EdbViewHeader::SetCoordXY
void SetCoordXY(float x, float y)
Definition: EdbView.h:101
EdbView
Definition: EdbView.h:134
EdbView::GetHeader
EdbViewHeader * GetHeader() const
Definition: EdbView.h:163
EdbView::AddSegment
EdbSegment * AddSegment(float x, float y, float z, float tx, float ty, float dz=0, int side=0, int puls=0, int id=-1)
Definition: EdbView.h:231
EdbView::AddFrame
void AddFrame(int id, float z, int ncl=0, int npix=0)
Definition: EdbView.cxx:268
EdbView::AddCluster
EdbCluster * AddCluster(EdbCluster *c)
Definition: EdbView.h:225
EdbView::Clear
void Clear()
Definition: EdbView.cxx:79
Fragment::getIndex
unsigned int getIndex()
Definition: Fragment.h:32
Fragment::getView
View * getView(int index)
Definition: Fragment.h:35
Fragment::getViews
int getViews()
Definition: Fragment.h:34
Side
Definition: Side.h:11
Side::getTopZ
double getTopZ() const
Definition: Side.h:59
Side::getLayers
int getLayers() const
Definition: Side.h:66
Side::getBottomZ
double getBottomZ() const
Definition: Side.h:60
Side::getMXX
double getMXX() const
Definition: Side.h:67
Side::getMappedFovPosX
double getMappedFovPosX() const
Definition: Side.h:64
Side::getTrackAt
Track * getTrackAt(int id)
Definition: Side.h:76
Side::getStageFovPosY
double getStageFovPosY() const
Definition: Side.h:63
Side::getMYX
double getMYX() const
Definition: Side.h:69
Side::getTracks
int getTracks() const
Definition: Side.h:80
Side::getMXY
double getMXY() const
Definition: Side.h:68
Side::getMappedFovPosY
double getMappedFovPosY() const
Definition: Side.h:65
Side::getLayerAt
Layer * getLayerAt(int id)
Definition: Side.h:75
Side::getStageFovPosX
double getStageFovPosX() const
Definition: Side.h:62
Side::getMYY
double getMYY() const
Definition: Side.h:70
Track
Definition: Track.h:10
View::getBottomSide
Side getBottomSide() const
Definition: View.h:28
View::getTileX
int getTileX() const
Definition: View.h:29
View::getId
int getId() const
Definition: View.h:31
View::getTileY
int getTileY() const
Definition: View.h:30
View::getTopSide
Side getTopSide() const
Definition: View.h:27
tracks
TTree * tracks
Definition: check_tr.C:19
View
Definition: tlg2pattern.C:90
Layer::grains
unsigned int grains
Definition: Struct.h:28
Layer::zLayer
double zLayer
Definition: Struct.h:29
p
p
Definition: testBGReduction_AllMethods.C:8

◆ filterTracks()

void ProcessRawData::filterTracks ( bool  filterTracks)
inline
53 {_filterTracks = filterTracks;}
ProcessRawData::filterTracks
void filterTracks(bool filterTracks)
Definition: ProcessRawData.h:53

◆ getCatalogName()

const char* ProcessRawData::getCatalogName ( )
inline
54 {return _catFileName.c_str();}

◆ getClOption()

bool ProcessRawData::getClOption ( )
inline
57 {return _clusters;}

◆ getFilterTracksOption()

bool ProcessRawData::getFilterTracksOption ( )
inline
58 {return _filterTracks;}

◆ getFragmentName()

const char* ProcessRawData::getFragmentName ( )
inline
55 {return _fragFileName.c_str();}
ProcessRawData::_fragFileName
std::string _fragFileName
Definition: ProcessRawData.h:37

◆ getFragmentsNumberFromCatalog()

unsigned int ProcessRawData::getFragmentsNumberFromCatalog ( )
33 {
34  if (_catalog)
35  return _catalog->getNfragments();
36  return 0;
37 }
Catalog::getNfragments
unsigned int getNfragments()
Definition: Catalog.h:47

◆ getRootName()

const char* ProcessRawData::getRootName ( )
inline
56 {return _outputRootFileName.c_str();}

◆ initCatalog()

void ProcessRawData::initCatalog ( )
21 {
22  if (_catalog)
23  delete _catalog;
24  _catalog = new Catalog();
25 }
Catalog
Definition: Catalog.h:7

◆ initFragment()

void ProcessRawData::initFragment ( )
27 {
28  if (_fragment)
29  delete _fragment;
30  _fragment = new Fragment();
31 }
TrackIndexEntry::Fragment
Int_t Fragment
Definition: tlg2pattern.C:135

◆ makeTracksPlot()

int ProcessRawData::makeTracksPlot ( const char *  plotFileName)
984 {
985  int nViews = _fragment->getViews();
986  int counter = 0;
987  for (int i = 0; i < nViews; i++)
988  {
989  counter += _fragment->getView(i)->getTopSide()->getTracks();
990  counter += _fragment->getView(i)->getBottomSide()->getTracks();
991  }
992  if (counter == 0)
993  return 0;
994
995  double x0,y0,z0,tx,ty,dz,sigma; // segments parameters
996  unsigned int side,puls,id; // segments parameters
997  unsigned int areasum; // segments parameters
998  double meanDeltaTheta3D; // mean 3D angular variation (computed between adiacent clusters)
999  double sigmaDeltaTheta3D; // sigma 3D angular variation (computed between adiacent clusters)
1000  double meanDeltaThetaXZ; // mean 2D angular variation - plane XZ
1001  double sigmaDeltaThetaXZ; // sigma 2D angular variation - plane XZ
1002  double meanDeltaThetaYZ; // mean 2D angular variation - plane YZ
1003  double sigmaDeltaThetaYZ; // sigma 2D angular variation - plane YZ
1004  double meanDistanceClustersTo3DLine; // mean Distance beetween cluster and 3D line fit
1005  double meanGapClusterToCluster; // mean gap beetween adiacent clusters
1006  double mx, mxSigma, qx, qxSigma, rx, xCov, xChi2; // 2D fit parameters for XZ plane
1007  double my, mySigma, qy, qySigma, ry, yCov, yChi2; // 2D fit parameters for YZ plane
1008
1009  TTree *tree = 0;
1010  TFile *outf = 0;
1011
1012  if(gSystem->AccessPathName(plotFileName))
1013  {
1014
1015  outf = new TFile(plotFileName,"UPDATE"); // update an existing file (to super-impose all fragments in the same file)
1016  tree = new TTree("plots","plots");
1017
1018  tree->Branch("x0",&x0,"x0/D");
1019  tree->Branch("y0",&y0,"y0/D");
1020  tree->Branch("z0",&z0,"z0/D");
1021  tree->Branch("tx",&tx,"tx/D");
1022  tree->Branch("ty",&ty,"ty/D");
1023  tree->Branch("dz",&dz,"dz/D");
1024  tree->Branch("side",&side,"side/i");
1025  tree->Branch("puls",&puls,"puls/i");
1026  tree->Branch("id",&id,"id/i");
1027  tree->Branch("areasum",&areasum,"areasum/i");
1028  tree->Branch("sigma",&sigma,"sigma/D");
1029  tree->Branch("meanDeltaTheta3D",&meanDeltaTheta3D,"meanDeltaTheta3D/D");
1030  tree->Branch("sigmaDeltaTheta3D",&sigmaDeltaTheta3D,"sigmaDeltaTheta3D/D");
1031  tree->Branch("meanDeltaThetaXZ",&meanDeltaThetaXZ,"meanDeltaThetaXZ/D");
1032  tree->Branch("sigmaDeltaThetaXZ",&sigmaDeltaThetaXZ,"sigmaDeltaThetaXZ/D");
1033  tree->Branch("meanDeltaThetaYZ",&meanDeltaThetaYZ,"meanDeltaThetaYZ/D");
1034  tree->Branch("sigmaDeltaThetaYZ",&sigmaDeltaThetaYZ,"sigmaDeltaThetaYZ/D");
1035  tree->Branch("meanDistanceClustersTo3DLine",&meanDistanceClustersTo3DLine,"meanDistanceClustersTo3DLine/D");
1036  tree->Branch("meanGapClusterToCluster",&meanGapClusterToCluster,"meanGapClusterToCluster/D");
1037  tree->Branch("mx",&mx,"mx/D");
1038  tree->Branch("mxSigma",&mxSigma,"mxSigma/D");
1039  tree->Branch("qx",&qx,"qx/D");
1040  tree->Branch("qxSigma",&qxSigma,"qxSigma/D");
1041  tree->Branch("xCov",&xCov,"xCov/D");
1042  tree->Branch("xChi2",&xChi2,"xChi2/D");
1043  tree->Branch("rx",&rx,"rx/D");
1044  tree->Branch("my",&my,"my/D");
1045  tree->Branch("qy",&qy,"qy/D");
1046  tree->Branch("mySigma",&mySigma,"mySigma/D");
1047  tree->Branch("qySigma",&qySigma,"qySigma/D");
1048  tree->Branch("yCov",&yCov,"yCov/D");
1049  tree->Branch("yChi2",&yChi2,"yChi2/D");
1050  tree->Branch("ry",&ry,"ry/D");
1051
1052  }
1053  else
1054  {
1055  outf = new TFile(plotFileName,"UPDATE");
1056  tree = (TTree*)(outf->Get("plots"));
1057  tree->SetBranchAddress("x0",&x0);
1058  tree->SetBranchAddress("y0",&y0);
1059  tree->SetBranchAddress("z0",&z0);
1060  tree->SetBranchAddress("tx",&tx);
1061  tree->SetBranchAddress("ty",&ty);
1062  tree->SetBranchAddress("dz",&dz);
1063  tree->SetBranchAddress("side",&side);
1064  tree->SetBranchAddress("puls",&puls);
1065  tree->SetBranchAddress("id",&id);
1066  tree->SetBranchAddress("areasum",&areasum);
1067  tree->SetBranchAddress("sigma",&sigma);
1068  tree->SetBranchAddress("meanDeltaTheta3D",&meanDeltaTheta3D);
1069  tree->SetBranchAddress("sigmaDeltaTheta3D",&sigmaDeltaTheta3D);
1070  tree->SetBranchAddress("meanDeltaThetaXZ",&meanDeltaThetaXZ);
1071  tree->SetBranchAddress("sigmaDeltaThetaXZ",&sigmaDeltaThetaXZ);
1072  tree->SetBranchAddress("meanDeltaThetaYZ",&meanDeltaThetaYZ);
1073  tree->SetBranchAddress("sigmaDeltaThetaYZ",&sigmaDeltaThetaYZ);
1074  tree->SetBranchAddress("meanDistanceClustersTo3DLine",&meanDistanceClustersTo3DLine);
1075  tree->SetBranchAddress("meanGapClusterToCluster",&meanGapClusterToCluster);
1076  tree->SetBranchAddress("mx",&mx);
1077  tree->SetBranchAddress("qx",&qx);
1078  tree->SetBranchAddress("xChi2",&xChi2);
1079  tree->SetBranchAddress("rx",&rx);
1080  tree->SetBranchAddress("my",&my);
1081  tree->SetBranchAddress("qy",&qy);
1082  tree->SetBranchAddress("yChi2",&yChi2);
1083  tree->SetBranchAddress("ry",&ry);
1084  }
1085
1086
1087  std::cout << "Saving plots into the file " << plotFileName << ": " << std::setw(2) << std::setprecision(2) << 0 << "%" << std::flush;;
1088  std::cout << "\b\b\b";
1089
1090
1091  for (int i = 0; i < nViews; i++)
1092  {
1093  View *view = _fragment->getView(i);
1094  Side *top = view->getTopSide();
1095  Side *bottom = view->getBottomSide();
1096  int nTracksTop = top->getTracks();
1097  int nTracksBottom = bottom->getTracks();
1098
1099  for (int t = 0; t < nTracksTop; t++)
1100  {
1101  Track *tr = top->getTrackAt(t);
1102  x0 = tr->getX();
1103  y0 = tr->getY();
1104  z0 = tr->getZ();
1105  tx = tr->getSX();
1106  ty = tr->getSY();
1107  sigma = tr->getSigma();
1108  dz = tr->dz;
1109  side = 1;
1110  puls = tr->getCount();
1111  id = t;
1112  areasum = tr->getAreaSum();
1113  meanDeltaTheta3D = tr->meanDeltaTheta3D;
1114  sigmaDeltaTheta3D = tr->sigmaDeltaTheta3D;
1115  meanDeltaThetaXZ = tr->meanDeltaThetaXZ;
1116  sigmaDeltaThetaXZ = tr->sigmaDeltaThetaXZ;
1117  meanDeltaThetaYZ = tr->meanDeltaThetaYZ;
1118  sigmaDeltaThetaYZ = tr->sigmaDeltaThetaYZ;
1119  meanDistanceClustersTo3DLine = tr->meanDistanceClustersTo3DLine;
1120  meanGapClusterToCluster = tr->meanGapClusterToCluster;
1121  mx = tr->mx;
1122  qx = tr->qx;
1123  rx = tr->rx;
1124  xChi2 = tr->xChi2;
1125  my = tr->my;
1126  qy = tr->qy;
1127  ry = tr->ry;
1128  yChi2 = tr->yChi2;
1129  tree->Fill();
1130  counter++;
1131  }
1132
1133  for (int b = 0; b < nTracksBottom; b++)
1134  {
1135  Track *tr = bottom->getTrackAt(b);
1136  x0 = tr->getX();
1137  y0 = tr->getY();
1138  z0 = tr->getZ();
1139  tx = tr->getSX();
1140  ty = tr->getSY();
1141  sigma = tr->getSigma();
1142  dz = tr->dz;
1143  side = 2;
1144  puls = tr->getCount();
1145  id = b;
1146  areasum = tr->getAreaSum();
1147  meanDeltaTheta3D = tr->meanDeltaTheta3D;
1148  sigmaDeltaTheta3D = tr->sigmaDeltaTheta3D;
1149  meanDeltaThetaXZ = tr->meanDeltaThetaXZ;
1150  sigmaDeltaThetaXZ = tr->sigmaDeltaThetaXZ;
1151  meanDeltaThetaYZ = tr->meanDeltaThetaYZ;
1152  sigmaDeltaThetaYZ = tr->sigmaDeltaThetaYZ;
1153  meanDistanceClustersTo3DLine = tr->meanDistanceClustersTo3DLine;
1154  meanGapClusterToCluster = tr->meanGapClusterToCluster;
1155  mx = tr->mx;
1156  qx = tr->qx;
1157  rx = tr->rx;
1158  xChi2 = tr->xChi2;
1159  my = tr->my;
1160  qy = tr->qy;
1161  ry = tr->ry;
1162  yChi2 = tr->yChi2;
1163  tree->Fill();
1164  counter++;
1165
1166  }
1167  std::cout << std::setw(2) << std::setprecision(2) << int((double) i/(nViews-1)*100) << "%" << std::flush;
1168  std::cout << "\b\b\b";
1169  }
1170  std::cout << std::endl;
1171
1172  //outf->Write();
1173  //tree->Write();
1174  tree->Write("", TObject::kOverwrite);
1175  outf->Close();
1176  return counter;
1177
1178 }
z0
brick z0
Definition: RecDispMC.C:106
MIPBaseTrack::id
UInt_t id
Definition: tlg2pattern.C:118

◆ readCatalog()

bool ProcessRawData::readCatalog ( )
39 {
40  std::ifstream infile(_catFileName.c_str(),std::ios::binary);
41
42  if (infile.fail())
43  {
44  std::cout << "Failed to open file" << std::endl;
45  return false;
46  }
47  initCatalog();
48
49  char byteInfo;
50  infile.read((char*)&byteInfo,SIZE_OF_CHAR);
51  unsigned short headerFormat;
52  infile.read((char*)&headerFormat,SIZE_OF_UNSIGNED_SHORT_INT);
53  //if (something) format not supported!
54  HeaderInfo id;
55  infile.read((char*)&(id.part0),SIZE_OF_INT);
56  infile.read((char*)&(id.part1),SIZE_OF_INT);
57  infile.read((char*)&(id.part2),SIZE_OF_INT);
58  infile.read((char*)&(id.part3),SIZE_OF_INT);
59
60  std::cout << "infoType: " << byteInfo << "\nheaderFormat: " << headerFormat << std::endl;
61  std::cout << "Part0: " << id.part0 <<
62  "\nPart1: " << id.part1 <<
63  "\nPart2: " << id.part2 <<
64  "\nPart3: " << id.part3 << std::endl;
65
66  _catalog->setHeaderInfo(id);
67  double minx,miny,maxx,maxy,stepx,stepy;
68  unsigned int xviews,yviews,nFragments;
69  if (headerFormat == 1795) // NormalDouble = 0x705
70  {
71
72  infile.read((char*)&(minx),SIZE_OF_DOUBLE);
73  _catalog->setXmin(minx);
74  infile.read((char*)&(maxx),SIZE_OF_DOUBLE);
75  _catalog->setXmax(maxx);
76  infile.read((char*)&(miny),SIZE_OF_DOUBLE);
77  _catalog->setYmin(miny);
78  infile.read((char*)&(maxy),SIZE_OF_DOUBLE);
79  _catalog->setYmax(maxy);
80  infile.read((char*)&(stepx),SIZE_OF_DOUBLE);
81  _catalog->setXstep(stepx);
82  infile.read((char*)&(stepy),SIZE_OF_DOUBLE);
83  _catalog->setYstep(stepy);
84  infile.read((char*)&(xviews),SIZE_OF_UNSIGNED_INT);
85  _catalog->setXviews(xviews);
86  infile.read((char*)&(yviews),SIZE_OF_UNSIGNED_INT);
87  _catalog->setYviews(yviews);
88  infile.read((char*)&(nFragments),SIZE_OF_UNSIGNED_INT);
89  _catalog->setNfragments(nFragments);
90  _catalog->initFragmentIndexes(yviews,xviews);
91  SetupStringRepresentation *set = _catalog->getSetup();
92  set->name = "Setup Info";
93  //unsigned char readUInt;
94  unsigned int readUInt;
95  infile.read((char*)&(readUInt),SIZE_OF_UNSIGNED_INT);
96  set->length = readUInt;
97  for (unsigned int i = 0; i < set->length; i++)
98  {
99  ConfigStringRepresentation cfg;
100  std::string className; infile.read((char*)(&className),64);
101  std::string name; infile.read((char*)(&name),64);
102  infile.read((char*)&(readUInt),SIZE_OF_UNSIGNED_INT);
103  cfg.className = className;
104  cfg.name = name;
105  cfg.length = readUInt;
106  std::cout << " === ClassName === \n\n" << className.c_str() <<
107  "\n\n ==== name === \n\n" << name.c_str() << std::endl;
108  for (unsigned int j=0; j<cfg.length; j++)
109  {
110  KeyStringRepresentation *keys = new KeyStringRepresentation();
111  std::string name; infile.read((char*)(&name),64);
112  std::string value; infile.read((char*)(&value),64);
113  keys->name = name;
114  keys->value = value;
115  cfg.keys.push_back(*keys);
116  }
117  }
118  for (unsigned int i = 0; i < _catalog->getXviews(); i++)
119  {
120  for (unsigned int j = 0; i < _catalog->getYviews(); j++)
121  {
122  unsigned int value; infile.read((char*)(&value),SIZE_OF_UNSIGNED_INT);
123  _catalog->setFragmentIndexes(j,i,value);
124  }
125  }
126  std::string reservedBytes; infile.read((char*)(&reservedBytes),256);
127
128  }
129  else // --- USED IN SCANGRID MODE ----
130  {
131  infile.read((char*)&(minx),SIZE_OF_INT);
132  _catalog->setXmin(minx);
133  infile.read((char*)&(maxx),SIZE_OF_INT);
134  _catalog->setXmax(maxx);
135  infile.read((char*)&(miny),SIZE_OF_INT);
136  _catalog->setYmin(miny);
137  infile.read((char*)&(maxy),SIZE_OF_INT);
138  _catalog->setYmax(maxy);
139  infile.read((char*)&(stepx),SIZE_OF_INT);
140  _catalog->setXstep(stepx);
141  infile.read((char*)&(stepy),SIZE_OF_INT);
142  _catalog->setYstep(stepy);
143  infile.read((char*)&(xviews),SIZE_OF_UNSIGNED_INT);
144  _catalog->setXviews(xviews);
145  infile.read((char*)&(yviews),SIZE_OF_UNSIGNED_INT);
146  _catalog->setYviews(yviews);
147  infile.read((char*)&(nFragments),SIZE_OF_UNSIGNED_INT);
148  _catalog->setNfragments(nFragments);
149  _catalog->initFragmentIndexes(yviews,xviews);
150  SetupStringRepresentation *set = _catalog->getSetup();
151  set->name = "Setup Info";
152  unsigned int readUInt;
153  infile.read((char*)&(readUInt),SIZE_OF_UNSIGNED_INT);
154  set->length = readUInt;
155  std::cout << "nFragments: " << nFragments << std::endl;
156  for (unsigned int i = 0; i < set->length; i++)
157  {
158  ConfigStringRepresentation cfg;
159  char className[65], name[65], value[65];
160  infile.read((char*)(&className),64);
161  infile.read((char*)(&name),64);
162  cfg.className = className;
163  cfg.name = name;
164  //long a;
165  unsigned int a;
166
167  infile.read((char*)&(a),4);
168  cfg.length = a;
169  //std::cout << "a: " << a << std::endl;
170
171  for (unsigned int j = 0; j < cfg.length; j++)
172  {
173
174  KeyStringRepresentation key;
175  infile.read((char*)(&name),64);
176  infile.read((char*)(&value),64);
177  key.name = name;
178  key.value = value;
179  cfg.keys.push_back(key);
180  }
181  set->configs.push_back(cfg);
182  }
183
184  for (unsigned int i = 0; i < _catalog->getYviews(); i++)
185  {
186  for (unsigned int j = 0; j < _catalog->getXviews(); j++)
187  {
188  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
189  _catalog->setFragmentIndexes(i,j,readUInt);
190
191  }
192
193  }
194  infile.seekg(256,std::ios::cur);
195  }
196  infile.close();
197  return true;
198 }
SIZE_OF_CHAR
#define SIZE_OF_CHAR
Definition: ProcessRawData.h:23
SIZE_OF_UNSIGNED_SHORT_INT
#define SIZE_OF_UNSIGNED_SHORT_INT
Definition: ProcessRawData.h:25
SIZE_OF_DOUBLE
#define SIZE_OF_DOUBLE
Definition: ProcessRawData.h:27
SIZE_OF_INT
#define SIZE_OF_INT
Definition: ProcessRawData.h:24
SIZE_OF_UNSIGNED_INT
#define SIZE_OF_UNSIGNED_INT
Definition: ProcessRawData.h:26
a
void a()
Definition: check_aligned.C:59
Catalog::setNfragments
void setNfragments(unsigned int n)
Definition: Catalog.h:33
Catalog::setXmin
void setXmin(double xMin)
Definition: Catalog.h:27
Catalog::initFragmentIndexes
void initFragmentIndexes(unsigned int yviews, unsigned int xviews)
Definition: Catalog.h:23
Catalog::setFragmentIndexes
bool setFragmentIndexes(unsigned int y, unsigned int x, unsigned int value)
Definition: Catalog.cpp:13
Catalog::getSetup
SetupStringRepresentation * getSetup()
Definition: Catalog.h:48
Catalog::setHeaderInfo
void setHeaderInfo(HeaderInfo headerInfo)
Definition: Catalog.cpp:4
Catalog::setYmax
void setYmax(double yMax)
Definition: Catalog.h:30
Catalog::setXstep
void setXstep(double xStep)
Definition: Catalog.h:31
Catalog::setXviews
void setXviews(unsigned int x)
Definition: Catalog.h:25
Catalog::setYviews
void setYviews(unsigned int y)
Definition: Catalog.h:26
Catalog::setYmin
void setYmin(double yMin)
Definition: Catalog.h:29
Catalog::setXmax
void setXmax(double xMax)
Definition: Catalog.h:28
Catalog::setYstep
void setYstep(double yStep)
Definition: Catalog.h:32
ProcessRawData::initCatalog
void initCatalog()
Definition: ProcessRawData.cpp:20
set
EdbScanSet * set
Definition: emtraceback.cpp:14
name
const char * name
Definition: merge_Energy_SytematicSources_Electron.C:24
ConfigStringRepresentation
Definition: Struct.h:54
ConfigStringRepresentation::className
std::string className
Definition: Struct.h:55
ConfigStringRepresentation::length
unsigned int length
Definition: Struct.h:58
ConfigStringRepresentation::keys
std::vector< KeyStringRepresentation > keys
Definition: Struct.h:57
ConfigStringRepresentation::name
std::string name
Definition: Struct.h:56
HeaderInfo
Definition: Struct.h:20
KeyStringRepresentation
Definition: Struct.h:48
KeyStringRepresentation::name
std::string name
Definition: Struct.h:49
KeyStringRepresentation::value
std::string value
Definition: Struct.h:50
SetupStringRepresentation
Definition: Struct.h:62

◆ readFragment()

bool ProcessRawData::readFragment ( )
202 {
203  initFragment();
204
205
206  View view;
207  std::vector<View> viewArr;
208  std::vector<Track> trackArr;
209
210
211  std::ifstream infile(_fragFileName.c_str(),std::ios::binary);
212  for(int i=0; i<5; i++) {
213  if (infile.fail()) {
214  infile.clear();
215  infile.open(_fragFileName.c_str(),std::ios::binary);
216  } else
217  break;
218  }
219  if (infile.fail())
220  {
221  std::cout << "Failed to open file: " << _fragFileName.c_str() << std::endl;
222  return false;
223  }
224  char infoType;
225  unsigned short headerFormat;
226  int codingMode;
227  unsigned int index, startView, nViews, fitCorrectionDataSize;
228
229  infile.read((char*)&infoType,SIZE_OF_CHAR);
230  infile.read((char*)&headerFormat,SIZE_OF_UNSIGNED_SHORT_INT);
231
232 // if header && infotype da implementare
233  HeaderInfo id;
234  infile.read((char*)&id.part0,SIZE_OF_INT);
235  infile.read((char*)&id.part1,SIZE_OF_INT);
236  infile.read((char*)&id.part2,SIZE_OF_INT);
237  infile.read((char*)&id.part3,SIZE_OF_INT);
238  infile.read((char*)&index,SIZE_OF_UNSIGNED_INT);
239  infile.read((char*)&startView,SIZE_OF_UNSIGNED_INT);
240  infile.read((char*)&nViews,SIZE_OF_UNSIGNED_INT);
241  infile.read((char*)&fitCorrectionDataSize,SIZE_OF_UNSIGNED_INT);
242  infile.read((char*)&codingMode,SIZE_OF_INT);
243
244  _fragment->setId(id);
245  _fragment->setIndex(index);
246  _fragment->setStartView(startView);
247  _fragment->setViews(nViews);
248  _fragment->setFragmentCoding(codingMode);
249
250
251  if (!(codingMode == 0 || codingMode == 258)) // 0x0 == Normal, 0x102 == GrainSuppresion
252  {
253  std::cerr << "Unsupported fragment coding mode" << std::endl;
254  return -3;
255  }
256  infile.seekg(256,std::ios::cur);
257
258  if (headerFormat == 1795) // NormalDouble --> SCANGRID MODE
259  {
260  double readDouble;
261  int readInt;
262  char readChar;
263  for (unsigned int i = 0; i < nViews; i++)
264  {
265  view.setId(i);
266  Side topSide, bottomSide;
267  infile.read((char*)&readInt,SIZE_OF_INT);
268  view.setTileX(readInt);
269  infile.read((char*)&readInt,SIZE_OF_INT);
270  view.setTileY(readInt);
271  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
272  topSide.setStageFovPosX(readDouble);
273  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
274  bottomSide.setStageFovPosX(readDouble);
275  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
276  topSide.setStageFovPosY(readDouble);
277  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
278  bottomSide.setStageFovPosY(readDouble);
279  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
280  topSide.setMappedFovPosX(readDouble);
281  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
282  bottomSide.setMappedFovPosX(readDouble);
283  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
284  topSide.setMappedFovPosY(readDouble);
285  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
286  bottomSide.setMappedFovPosY(readDouble);
287
288  double mxx,mxy,myx,myy;
289  infile.read((char*)&mxx,SIZE_OF_DOUBLE);
290  infile.read((char*)&mxy,SIZE_OF_DOUBLE);
291  infile.read((char*)&myx,SIZE_OF_DOUBLE);
292  infile.read((char*)&myy,SIZE_OF_DOUBLE);
293  topSide.setM(mxx,mxy,myx,myy);
294  infile.read((char*)&mxx,SIZE_OF_DOUBLE);
295  infile.read((char*)&mxy,SIZE_OF_DOUBLE);
296  infile.read((char*)&myx,SIZE_OF_DOUBLE);
297  infile.read((char*)&myy,SIZE_OF_DOUBLE);
298  bottomSide.setM(mxx,mxy,myx,myy);
299  infile.read((char*)&readInt,SIZE_OF_INT);
300  topSide.setLayers(readInt);
301  infile.read((char*)&readInt,SIZE_OF_INT);
302  bottomSide.setLayers(readInt);
303  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
304  topSide.setTopZ(readDouble);
305  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
306  topSide.setBottomZ(readDouble);
307  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
308  bottomSide.setTopZ(readDouble);
309  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
310  bottomSide.setBottomZ(readDouble);
311
312  infile.read((char*)&readChar,SIZE_OF_CHAR);
313  topSide.setFlag(readChar);
314  infile.read((char*)&readChar,SIZE_OF_CHAR);
315  bottomSide.setFlag(readChar);
316
317  infile.read((char*)&readInt,SIZE_OF_INT);
318  topSide.setTracks(readInt);
319  infile.read((char*)&readInt,SIZE_OF_INT);
320  bottomSide.setTracks(readInt);
321
322  view.setTopSide(topSide);
323  view.setBottomSide(bottomSide);
324  viewArr.push_back(view);
325  }
326  for (unsigned int i = 0; i < nViews; i++)
327  {
328
329  for (int j = 0; j < viewArr.at(i).getTopSide()->getLayers(); j++)
330  {
331  unsigned int grains;
332  double z;
333  if(headerFormat == 1794 || headerFormat == 1795)
334  {
335  infile.read((char*)&grains,SIZE_OF_UNSIGNED_INT);
336  }
337  else
338  grains = 0;
339  infile.read((char*)&z,SIZE_OF_DOUBLE);
340  viewArr.at(i).getTopSide()->addLayer(grains,z);
341
342  }
343
344  for (int j = 0; j < viewArr.at(i).getBottomSide()->getLayers(); j++)
345  {
346
347  unsigned int grains;
348  double z;
349  if(headerFormat == 1794 || headerFormat == 1795)
350  {
351  infile.read((char*)&grains,SIZE_OF_UNSIGNED_INT);
352  }
353  else
354  grains = 0;
355  infile.read((char*)&z,SIZE_OF_DOUBLE);
356  viewArr.at(i).getBottomSide()->addLayer(grains,z);
357
358  }
359
360  }
361  for (unsigned int i = 0; i < nViews; i++)
362  {
363  Track tr;
364  unsigned int readUInt;
365  for (int j = 0; j < viewArr.at(i).getTopSide()->getTracks(); j++)
366  {
367
368  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
369  tr.setAreaSum(readUInt);
370  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
371  tr.setCount(static_cast<short>(readUInt));
372  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
373  tr.setX(readDouble);
374  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
375  tr.setY(readDouble);
376  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
377  tr.setZ(readDouble);
378  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
379  tr.setSX(readDouble);
380  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
381  tr.setSY(readDouble);
382  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
383  tr.setSZ(readDouble);
384  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
385  tr.setSigma(readDouble);
386  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
387  tr.setTopZ(readDouble);
388  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
389  tr.setBottomZ(readDouble);
390  viewArr.at(i).getTopSide()->addTrack(tr);
391
392  }
393  for (int j = 0; j < viewArr.at(i).getBottomSide()->getTracks(); j++)
394  {
395  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
396  tr.setAreaSum(readUInt);
397  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
398  tr.setCount(static_cast<short>(readUInt));
399  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
400  tr.setX(readDouble);
401  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
402  tr.setY(readDouble);
403  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
404  tr.setZ(readDouble);
405  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
406  tr.setSX(readDouble);
407  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
408  tr.setSY(readDouble);
409  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
410  tr.setSZ(readDouble);
411  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
412  tr.setSigma(readDouble);
413  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
414  tr.setTopZ(readDouble);
415  infile.read((char*)&readDouble,SIZE_OF_DOUBLE);
416  tr.setBottomZ(readDouble);
417  viewArr.at(i).getBottomSide()->addTrack(tr);
418  }
419  }
420  if (codingMode == 0)
421  {
422
423  for (unsigned int i = 0; i < nViews; i++)
424  {
425  for (int j = 0; j < viewArr.at(i).getTopSide()->getTracks(); j++)
426  {
427  Grain gr;
428  Track *tr = viewArr.at(i).getTopSide()->getTrackAt(j);
429  for (int k = 0; k < tr->getCount(); k++)
430  {
431  if (headerFormat == 1795)
432  {
433  unsigned int readUInt;
434  infile.read((char*)&readUInt,4);
435  gr.area = readUInt;
436  }
437  else
438  gr.area = 0;
439  infile.read((char*)&readDouble,8);
440  gr.x = readDouble;
441  infile.read((char*)&readDouble,8);
442  gr.y = readDouble;
443  infile.read((char*)&readDouble,8);
444  gr.z = readDouble;
445  tr->addGrain(gr);
446  }
447  if (_filterTracks)
448  tr->evaluateEstimators();
449  }
450  for (int j = 0; j < viewArr.at(i).getBottomSide()->getTracks(); j++)
451  {
452  Grain gr;
453  Track *tr = viewArr.at(i).getBottomSide()->getTrackAt(j);
454  for (int k = 0; k < tr->getCount(); k++)
455  {
456  if (headerFormat == 1795)
457  {
458  unsigned int readUInt;
459  infile.read((char*)&readUInt,4);
460  gr.area = readUInt;
461  }
462  else
463  gr.area = 0;
464  infile.read((char*)&readDouble,8);
465  gr.x = readDouble;
466  infile.read((char*)&readDouble,8);
467  gr.y = readDouble;
468  infile.read((char*)&readDouble,8);
469  gr.z = readDouble;
470  tr->addGrain(gr);
471  }
472  if (_filterTracks)
473  tr->evaluateEstimators();
474  }
475  }
476  }
477  }
478  else
479  {
480
481
482  float readFloat;
483  int readInt;
484
485
486
487  for (unsigned int i = 0; i < nViews; i++)
488  {
489  view.setId(i);
490  Side topSide, bottomSide;
491  infile.read((char*)&readInt,SIZE_OF_INT);
492  view.setTileX(readInt);
493  infile.read((char*)&readInt,SIZE_OF_INT);
494  view.setTileY(readInt);
495
496
497  infile.read((char*)&readFloat,4);
498  topSide.setStageFovPosX(readFloat);
499  infile.read((char*)&readFloat,4);
500  bottomSide.setStageFovPosX(readFloat);
501  infile.read((char*)&readFloat,4);
502  topSide.setStageFovPosY(readFloat);
503  infile.read((char*)&readFloat,4);
504  bottomSide.setStageFovPosY(readFloat);
505  infile.read((char*)&readFloat,4);
506  topSide.setMappedFovPosX(readFloat);
507  infile.read((char*)&readFloat,4);
508  bottomSide.setMappedFovPosX(readFloat);
509  infile.read((char*)&readFloat,4);
510  topSide.setMappedFovPosY(readFloat);
511  infile.read((char*)&readFloat,4);
512  bottomSide.setMappedFovPosY(readFloat);
513
514  float mxx4bytes,mxy4bytes,myx4bytes,myy4bytes;
515  infile.read((char*)&mxx4bytes,4);
516  infile.read((char*)&mxy4bytes,4);
517  infile.read((char*)&myx4bytes,4);
518  infile.read((char*)&myy4bytes,4);
519  topSide.setM(mxx4bytes,mxy4bytes,myx4bytes,myy4bytes);
520
521  infile.read((char*)&mxx4bytes,4);
522  infile.read((char*)&mxy4bytes,4);
523  infile.read((char*)&myx4bytes,4);
524  infile.read((char*)&myy4bytes,4);
525  bottomSide.setM(mxx4bytes,mxy4bytes,myx4bytes,myy4bytes);
526
527  infile.read((char*)&readInt,SIZE_OF_INT);
528  topSide.setLayers(readInt);
529  infile.read((char*)&readInt,SIZE_OF_INT);
530  bottomSide.setLayers(readInt);
531
532
533  infile.read((char*)&readFloat,4);
534  topSide.setTopZ(readFloat);
535  infile.read((char*)&readFloat,4);
536  topSide.setBottomZ(readFloat);
537  infile.read((char*)&readFloat,4);
538  bottomSide.setTopZ(readFloat);
539  infile.read((char*)&readFloat,4);
540  bottomSide.setBottomZ(readFloat);
541
542  unsigned int readUInt;
543  infile.read((char*)&readUInt,SIZE_OF_CHAR);
544  topSide.setFlag(readUInt);
545  infile.read((char*)&readUInt,SIZE_OF_CHAR);
546  bottomSide.setFlag(readUInt);
547
548  infile.read((char*)&readInt,SIZE_OF_INT);
549  topSide.setTracks(readInt);
550  infile.read((char*)&readInt,SIZE_OF_INT);
551  bottomSide.setTracks(readInt);
552
553  view.setTopSide(topSide);
554  view.setBottomSide(bottomSide);
555  viewArr.push_back(view);
556  }
557  for (unsigned int i = 0; i < nViews; i++)
558  {
559
560  for (int j = 0; j < viewArr.at(i).getTopSide()->getLayers(); j++)
561  {
562  unsigned int grains;
563  double z;
564  if(headerFormat == 1794 || headerFormat == 1795)
565  {
566  infile.read((char*)&grains,SIZE_OF_UNSIGNED_INT);
567  }
568  else
569  grains = 0;
570  infile.read((char*)&readFloat,4);
571  z = readFloat;
572  viewArr.at(i).getTopSide()->addLayer(grains,z);
573
574  }
575
576  for (int j = 0; j < viewArr.at(i).getBottomSide()->getLayers(); j++)
577  {
578
579  unsigned int grains;
580  double z;
581  if(headerFormat == 1794 || headerFormat == 1795)
582  {
583  infile.read((char*)&grains,SIZE_OF_UNSIGNED_INT);
584  }
585  else
586  grains = 0;
587  infile.read((char*)&readFloat,4);
588  z = readFloat;
589  viewArr.at(i).getBottomSide()->addLayer(grains,z);
590
591  }
592
593  }
594  for (unsigned int i = 0; i < nViews; i++)
595  {
596  Track tr;
597  unsigned int readUInt;
598  for (int j = 0; j < viewArr.at(i).getTopSide()->getTracks(); j++)
599  {
600
601  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
602  tr.setAreaSum(readUInt);
603  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
604  tr.setCount(static_cast<short>(readUInt));
605
606  infile.read((char*)&readFloat,4);
607  tr.setX(readFloat);
608  infile.read((char*)&readFloat,4);
609  tr.setY(readFloat);
610  infile.read((char*)&readFloat,4);
611  tr.setZ(readFloat);
612  infile.read((char*)&readFloat,4);
613  tr.setSX(readFloat);
614  infile.read((char*)&readFloat,4);
615  tr.setSY(readFloat);
616  infile.read((char*)&readFloat,4);
617  tr.setSZ(readFloat);
618  infile.read((char*)&readFloat,4);
619  tr.setSigma(readFloat);
620  infile.read((char*)&readFloat,4);
621  tr.setTopZ(readFloat);
622  infile.read((char*)&readFloat,4);
623  tr.setBottomZ(readFloat);
624  if(headerFormat == 1793) //old format
625  {
626  infile.read((char*)&readFloat,4);infile.read((char*)&readFloat,4);
627  infile.read((char*)&readFloat,4);infile.read((char*)&readFloat,4);
628  infile.read((char*)&readFloat,4);infile.read((char*)&readFloat,4);
629  infile.read((char*)&readFloat,SIZE_OF_UNSIGNED_INT);
630
631  }
632  viewArr.at(i).getTopSide()->addTrack(tr);
633
634
635  }
636  for (int j = 0; j < viewArr.at(i).getBottomSide()->getTracks(); j++)
637  {
638
639  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
640  tr.setAreaSum(readUInt);
641  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
642  tr.setCount(static_cast<short>(readUInt));
643
644  infile.read((char*)&readFloat,4);
645  tr.setX(readFloat);
646  infile.read((char*)&readFloat,4);
647  tr.setY(readFloat);
648  infile.read((char*)&readFloat,4);
649  tr.setZ(readFloat);
650  infile.read((char*)&readFloat,4);
651  tr.setSX(readFloat);
652  infile.read((char*)&readFloat,4);
653  tr.setSY(readFloat);
654  infile.read((char*)&readFloat,4);
655  tr.setSZ(readFloat);
656  infile.read((char*)&readFloat,4);
657  tr.setSigma(readFloat);
658  infile.read((char*)&readFloat,4);
659  tr.setTopZ(readFloat);
660  infile.read((char*)&readFloat,4);
661  tr.setBottomZ(readFloat);
662  if(headerFormat == 1793) //old format
663  {
664  infile.read((char*)&readFloat,4);infile.read((char*)&readFloat,4);
665  infile.read((char*)&readFloat,4);infile.read((char*)&readFloat,4);
666  infile.read((char*)&readFloat,4);infile.read((char*)&readFloat,4);
667  infile.read((char*)&readFloat,SIZE_OF_UNSIGNED_INT);
668
669  }
670  viewArr.at(i).getBottomSide()->addTrack(tr);
671
672  }
673  }
674  if (codingMode == 0)
675  {
676  for (unsigned int i = 0; i < nViews; i++)
677  {
678  for (int j = 0; j < viewArr.at(i).getTopSide()->getTracks(); j++)
679  {
680  Grain gr;
681  Track *tr = viewArr.at(i).getTopSide()->getTrackAt(j);
682  for (int k = 0; k < tr->getCount(); k++)
683  {
684  if (headerFormat == 1794)
685  {
686  unsigned int readUInt;
687  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
688  gr.area = readUInt;
689  }
690  else
691  gr.area = 0;
692  infile.read((char*)&readFloat,4);
693  gr.x = readFloat;
694  infile.read((char*)&readFloat,4);
695  gr.y = readFloat;
696  infile.read((char*)&readFloat,4);
697  gr.z = readFloat;
698  tr->addGrain(gr);
699  }
700  if (_filterTracks)
701  tr->evaluateEstimators();
702
703  }
704  for (int j = 0; j < viewArr.at(i).getBottomSide()->getTracks(); j++)
705  {
706  Grain gr;
707  Track *tr = viewArr.at(i).getBottomSide()->getTrackAt(j);
708  for (int k = 0; k < tr->getCount(); k++)
709  {
710  if (headerFormat == 1794)
711  {
712  unsigned int readUInt;
713  infile.read((char*)&readUInt,SIZE_OF_UNSIGNED_INT);
714  gr.area = readUInt;
715  }
716  else
717  gr.area = 0;
718  infile.read((char*)&readFloat,4);
719  gr.x = readFloat;
720  infile.read((char*)&readFloat,4);
721  gr.y = readFloat;
722  infile.read((char*)&readFloat,4);
723  gr.z = readFloat;
724  tr->addGrain(gr);
725  }
726  if (_filterTracks)
727  tr->evaluateEstimators();
728
729  }
730  }
731
732
733  }
734  }
735  _fragment->setViewsArray(viewArr);
736
737  infile.close();
738  return true;
739
740 }
Fragment::setViewsArray
void setViewsArray(std::vector< View > vArr)
Definition: Fragment.cpp:13
Fragment::setFragmentCoding
void setFragmentCoding(int fragmentCoding)
Definition: Fragment.h:23
Fragment::setId
void setId(HeaderInfo id)
Definition: Fragment.cpp:22
Fragment::setStartView
void setStartView(unsigned int startView)
Definition: Fragment.h:25
Fragment::setViews
void setViews(int nViews)
Definition: Fragment.h:26
Fragment::setIndex
void setIndex(unsigned int index)
Definition: Fragment.h:24
ProcessRawData::initFragment
void initFragment()
Definition: ProcessRawData.cpp:26
Side::setLayers
void setLayers(int nLayers)
Definition: Side.h:46
Side::setBottomZ
void setBottomZ(double bottomZ)
Definition: Side.h:37
Side::setTopZ
void setTopZ(double topZ)
Definition: Side.h:36
Side::setMappedFovPosY
void setMappedFovPosY(double posy)
Definition: Side.h:42
Side::setTracks
void setTracks(int nTracks)
Definition: Side.h:44
Side::setM
void setM(double mxx, double mxy, double myx, double myy)
Definition: Side.cpp:45
Side::setFlag
void setFlag(int flag)
Definition: Side.h:45
Side::setMappedFovPosX
void setMappedFovPosX(double posx)
Definition: Side.h:41
Side::setStageFovPosX
void setStageFovPosX(double posx)
Definition: Side.h:39
Side::setStageFovPosY
void setStageFovPosY(double posy)
Definition: Side.h:40
View::setTopSide
void setTopSide(Side side)
Definition: View.h:39
View::setId
void setId(int id)
Definition: View.h:41
View::setTileY
void setTileY(int y)
Definition: View.h:48
View::setBottomSide
void setBottomSide(Side side)
Definition: View.h:40
View::setTileX
void setTileX(int x)
Definition: View.h:47
grains
grains()
Definition: grains.C:3
Grain
Definition: Struct.h:33
Grain::y
double y
Definition: Struct.h:36
Grain::x
double x
Definition: Struct.h:35
Grain::area
unsigned short area
Definition: Struct.h:34
Grain::z
double z
Definition: Struct.h:37

◆ setCatalogName()

void ProcessRawData::setCatalogName ( std::string  fileName)
inline
48 {_catFileName = fileName;}

◆ setClOption()

void ProcessRawData::setClOption ( bool  noCl)
inline
51 {_clusters = noCl;}

◆ setFilterTrackOption()

void ProcessRawData::setFilterTrackOption ( bool  filterTracks)
inline
52 {_filterTracks = filterTracks;}

◆ setFragmentName()

void ProcessRawData::setFragmentName ( std::string  fileName)
inline
49 {_fragFileName = fileName;}

◆ setRootName()

void ProcessRawData::setRootName ( std::string  fileName)
inline
50 {_outputRootFileName = fileName;}

Member Data Documentation

◆ _catalog

Catalog* ProcessRawData::_catalog
private

◆ _catFileName

std::string ProcessRawData::_catFileName
private

◆ _clusters

bool ProcessRawData::_clusters
private

◆ _filterTracks

bool ProcessRawData::_filterTracks
private

◆ _fragFileName

std::string ProcessRawData::_fragFileName
private

◆ _fragment

Fragment* ProcessRawData::_fragment
private

◆ _outputRootFileName

std::string ProcessRawData::_outputRootFileName
private

◆ _run

EdbRun* ProcessRawData::_run
private
The documentation for this class was generated from the following files:
