FEDRA emulsion software from the OPERA Collaboration
Public Member Functions | List of all members
EdbShowAlg_SA Class Reference

#include <EdbShowAlg.h>

Inheritance diagram for EdbShowAlg_SA:
Inheritance graph
[legend]

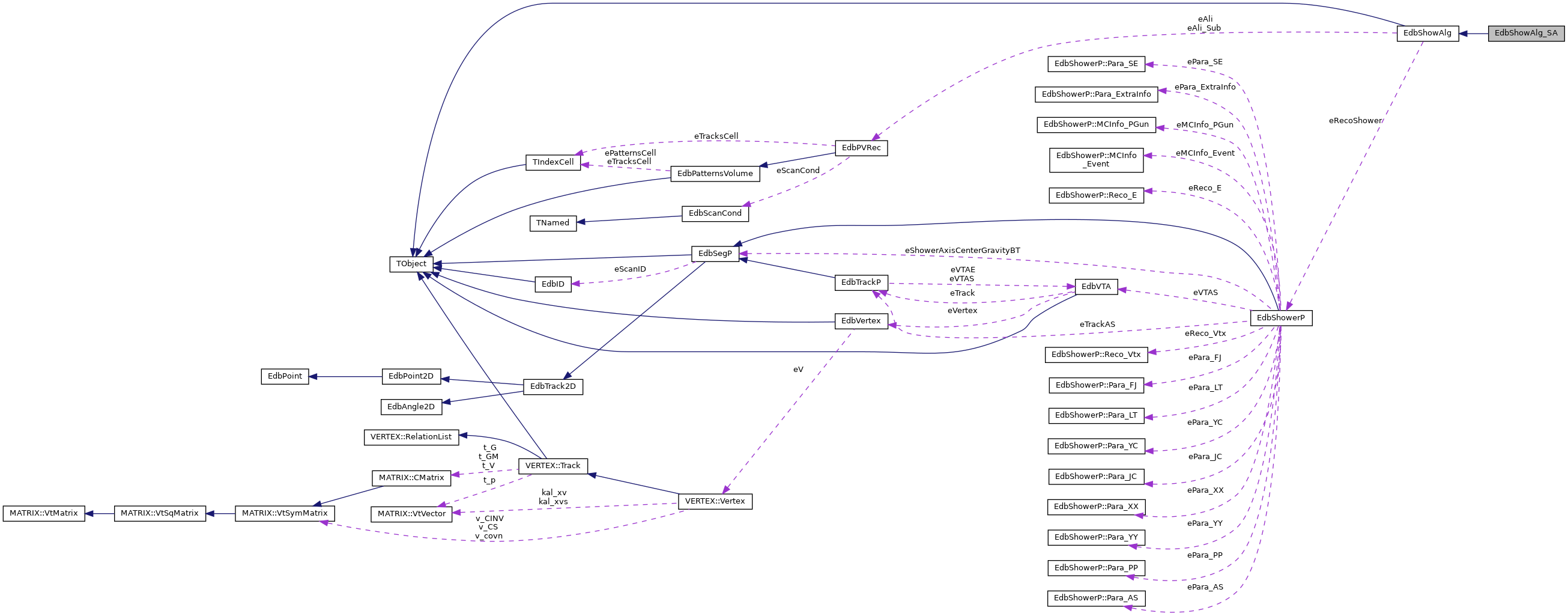

Collaboration diagram for EdbShowAlg_SA:
Collaboration graph
[legend]

Public Member Functions

 ClassDef (EdbShowAlg_SA, 1)

 EdbShowAlg_SA ()

void Execute ()

void Finalize ()

void Init ()

void Initialize ()

virtual ~EdbShowAlg_SA ()

- Public Member Functions inherited from EdbShowAlg
void AddRecoShowerArray (EdbShowerP *shower)

 ClassDef (EdbShowAlg, 1)

Double_t DeltaR_NoPropagation (EdbSegP *s, EdbSegP *stest)

Double_t DeltaR_WithoutPropagation (EdbSegP *s, EdbSegP *stest)

Double_t DeltaR_WithPropagation (EdbSegP *s, EdbSegP *stest)

Double_t DeltaTheta (EdbSegP *s1, EdbSegP *s2)

Double_t DeltaThetaComponentwise (EdbSegP *s1, EdbSegP *s2)

Double_t DeltaThetaSingleAngles (EdbSegP *s1, EdbSegP *s2)

 EdbShowAlg ()

 EdbShowAlg (TString AlgName, Int_t AlgValue)

virtual void Execute ()

virtual void Finalize ()

TString GetAlgName () const

Int_t GetAlgValue () const

Double_t GetMinimumDist (EdbSegP *seg1, EdbSegP *seg2)

TObjArray * GetRecoShowerArray () const

Int_t GetRecoShowerArrayN () const

EdbShowerP * GetShower (Int_t i) const

Double_t GetSpatialDist (EdbSegP *s1, EdbSegP *s2)

void Help ()

virtual void Initialize ()

Bool_t IsInConeTube (EdbSegP *sTest, EdbSegP *sStart, Double_t CylinderRadius, Double_t ConeAngle)

void Print ()

void PrintAll ()

void PrintMore ()

void PrintParameters ()

void PrintParametersShort ()

void SetActualAlgParameterset (Int_t ActualAlgParametersetNr)

void SetEdbPVRec (EdbPVRec *Ali)

void SetEdbPVRecPIDNumbers (Int_t FirstPlate_eAliPID, Int_t LastPlate_eAliPID, Int_t MiddlePlate_eAliPID, Int_t NumberPlate_eAliPID)

void SetInBTArray (TObjArray *InBTArray)

void SetParameter (Int_t parNr, Float_t par)

void SetParameters (Float_t *par)

void SetRecoShowerArray (TObjArray *RecoShowerArray)

void SetRecoShowerArrayN (Int_t RecoShowerArrayN)

void SetUseAliSub (Bool_t UseAliSub)

void Transform_eAli (EdbSegP *InitiatorBT, Float_t ExtractSize)

void UpdateShowerIDs ()

void UpdateShowerMetaData ()

virtual ~EdbShowAlg ()


Additional Inherited Members

- Protected Member Functions inherited from EdbShowAlg
void Set0 ()

- Protected Attributes inherited from EdbShowAlg
Int_t eActualAlgParametersetNr

TString eAlgName

Int_t eAlgValue

EdbPVRec * eAli

EdbPVRec * eAli_Sub

Int_t eAli_SubNpat

Int_t eAliNpat

Int_t eFirstPlate_eAliPID

TObjArray * eInBTArray

Int_t eInBTArrayN

Int_t eLastPlate_eAliPID

Int_t eMiddlePlate_eAliPID

Int_t eNumberPlate_eAliPID

Int_t eParaN

TString eParaString [10]

Float_t eParaValue [10]

EdbShowerP * eRecoShower

TObjArray * eRecoShowerArray

Int_t eRecoShowerArrayN

Int_t eUseAliSub


Constructor & Destructor Documentation

◆ EdbShowAlg_SA()

EdbShowAlg_SA::EdbShowAlg_SA ( )
569{
570// Default Constructor
571 cout << "EdbShowAlg_SA::EdbShowAlg_SA() Default Constructor SA stands for ?????? To be filled..."<<endl;
572
573// Reset all:
574 Set0();
575
576 eAlgName="SA";
577 eAlgValue=5; // see default.par_SHOWREC for labeling (labling identical with ShowRec program)
578 eParaN =2; // depends on the algorithm, how much parameters it has got.
579
580// Set the two Cuts and their names:
581 Init();
582}
EdbShowAlg_SA::Init
void Init()
Definition: EdbShowAlg.cxx:595
EdbShowAlg::eAlgName
TString eAlgName
Definition: EdbShowAlg.h:49
EdbShowAlg::Set0
void Set0()
Definition: EdbShowAlg.cxx:53
EdbShowAlg::eAlgValue
Int_t eAlgValue
Definition: EdbShowAlg.h:50
EdbShowAlg::eParaN
Int_t eParaN
Definition: EdbShowAlg.h:51

◆ ~EdbShowAlg_SA()

EdbShowAlg_SA::~EdbShowAlg_SA ( )
virtual
587{
588 cout << "EdbShowAlg_SA::~EdbShowAlg_SA()"<<endl;
589// Default Destructor
590}

Member Function Documentation

◆ ClassDef()

EdbShowAlg_SA::ClassDef ( EdbShowAlg_SA  ,
1
)

◆ Execute()

void EdbShowAlg_SA::Execute ( )
virtual

Reimplemented from EdbShowAlg.

623{
624 cout << "EdbShowAlg_SA::Execute()" << endl;
625 cout << "EdbShowAlg_SA::Execute DOING MAIN SHOWER RECONSTRUCTION HERE" << endl;
626
627 EdbSegP* InBT;
628 EdbSegP* Segment;
629 EdbShowerP* RecoShower;
630
631 Bool_t StillToLoop=kTRUE;
632 Int_t ActualPID;
633 Int_t newActualPID;
634 Int_t STEP=-1;
635 Int_t NLoopedPattern=0;
636 if (eFirstPlate_eAliPID-eLastPlate_eAliPID<0) STEP=1;
637 if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- STEP for patternloop direction = " << STEP << endl;
638
639//--- Loop over InBTs:
640
641// Since eInBTArray is filled in ascending ordering by zpositon
642// We use the descending loop to begin with BT with lowest z first.
643 for (Int_t i=eInBTArrayN-1; i>=0; --i) {
644
645// CounterOutPut
646 if (gEDBDEBUGLEVEL==2) if ((i%100)==0) cout << eInBTArrayN <<" InBT in total, still to do:"<<Form("%4d",i)<< "\r\r\r\r"<<flush;
647
648//-----------------------------------
649// 1) Make local_gAli with cut parameters:
650//-----------------------------------
651
652// Create new EdbShowerP Object for storage;
653// See EdbShowerP why I have to call the Constructor as "unique" ideficable value
654 RecoShower = new EdbShowerP(i,eAlgValue,eActualAlgParametersetNr);
655
656// Get InitiatorBT from eInBTArray
657 InBT=(EdbSegP*)eInBTArray->At(i);
658 if (gEDBDEBUGLEVEL>2) InBT->PrintNice();
659
660// Add InBT to RecoShower:
661// This has to be done, since by definition the first BT in the RecoShower is the InBT.
662// Otherwise, also the definition of shower axis and transversal profiles is wrong!
663 RecoShower -> AddSegment(InBT);
664 if (gEDBDEBUGLEVEL>4) cout << "Segment (InBT) " << Segment << " was added to RecoShower." << endl;
665
666// Transform (make size smaller, extract only events having same MC) the eAli object:
667// See in Execute_CA for description.
668 Transform_eAli(InBT,eParaValue[1]); // here with ExtractSize set!
669
670// Add InBT to RecoShower // obsolete, since we loop also over the plate containing the InBT
671//RecoShower --> AddSegment(InBT);
672
673//-----------------------------------
674// 2) Loop over (whole) eAli, check BT for Cuts
675//-----------------------------------
676 ActualPID= InBT->PID() ;
677 newActualPID= InBT->PID() ;
678
679 while (StillToLoop) {
680 if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- --- Doing patterloop " << ActualPID << endl;
681
682 for (Int_t btloop_cnt=0; btloop_cnt<eAli->GetPattern(ActualPID)->GetN(); ++btloop_cnt) {
683
684 Segment = (EdbSegP*)eAli->GetPattern(ActualPID)->GetSegment(btloop_cnt);
685 if (gEDBDEBUGLEVEL>4) Segment->PrintNice();
686
687// Now apply cut conditions: SA Simple Alg --------------------
688// ___ TO FILL IN HERE ___
689 if (Segment->MCEvt()!=InBT->MCEvt()) continue;
690 if (Segment->P()<eParaValue[0]) continue;
691// end of cut conditions: SA Simple Alg --------------------
692
693// If we arrive here, Basetrack Segment has passed criteria
694// and is then added to the RecoShower:
695// Check if its not the InBT which is already added:
696 if (Segment->X()==InBT->X()&&Segment->Y()==InBT->Y()) {
697 ; // is InBT, do nothing;
698 }
699 else {
700 RecoShower -> AddSegment(Segment);
701 }
702 if (gEDBDEBUGLEVEL>4) cout << "Segment " << Segment << " was added at &Segment : " << &Segment << endl;
703
704 } // of btloop_cnt
705
706//------------
707 newActualPID=ActualPID+STEP;
708 ++NLoopedPattern;
709
710 if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- --- newActualPID= " << newActualPID << endl;
711 if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- --- NLoopedPattern= " << NLoopedPattern << endl;
712 if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- --- eNumberPlate_eAliPID= " << eNumberPlate_eAliPID << endl;
713 if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- --- StillToLoop= " << StillToLoop << endl;
714
715// This if holds in the case of STEP== +1
716 if (STEP==1) {
717 if (newActualPID>eLastPlate_eAliPID) StillToLoop=kFALSE;
718 if (newActualPID>eLastPlate_eAliPID) cout << "EdbShowAlg_SA::Execute--- ---Stop Loop since: newActualPID>eLastPlate_eAliPID"<<endl;
719 }
720// This if holds in the case of STEP== -1
721 if (STEP==-1) {
722 if (newActualPID<eLastPlate_eAliPID) StillToLoop=kFALSE;
723 if (newActualPID<eLastPlate_eAliPID && gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- ---Stop Loop since: newActualPID<eLastPlate_eAliPID"<<endl;
724 }
725// This if holds general, since eNumberPlate_eAliPID is not dependent of the structure of the gAli subject:
726 if (NLoopedPattern>eNumberPlate_eAliPID) StillToLoop=kFALSE;
727 if (NLoopedPattern>eNumberPlate_eAliPID && gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- ---Stop Loop since: NLoopedPattern>eNumberPlate_eAliPID"<<endl;
728
729 ActualPID=newActualPID;
730 } // of // while (StillToLoop)
731
732// Obligatory when Shower Reconstruction is finished!
733 RecoShower ->Update();
734//RecoShower ->PrintBasics();
735
736
737// if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- Before adding to array delete the histograms...by finalize() of shower."<<endl;
738// RecoShower ->Finalize();
739// if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_SA::Execute--- Finalize done..."<<endl;
740
741
742// Add Shower Object to Shower Reco Array.
743// Not, if its empty:
744// Not, if its containing only one BT:
745 if (RecoShower->N()>1) {
746 AddRecoShowerArray(RecoShower);
747 }
748 else {
749 // Delete the created shower object. Saves _lots_ of memory and speeds up reconstruction for large #InBTs!
750 // TODO Also Include this in the other RecoAlgs ...
751 Log(3,"EdbShowAlg_SA::Execute()","InBT # %d RecoShower->N()<=1: Dont add shower to RecoShowerArray. Delete this shower for memory safing.");
752 delete RecoShower;
753 RecoShower=NULL;
754 }
755
756// Set back loop values:
757 StillToLoop=kTRUE;
758 NLoopedPattern=0;
759 } // of // for (Int_t i=eInBTArrayN-1; i>=0; --i) {
760
761
762// Set new value for eRecoShowerArrayN (may now be < eInBTArrayN).
763 SetRecoShowerArrayN(eRecoShowerArray->GetEntries());
764
765 cout << "EdbShowAlg_SA::eRecoShowerArray() Entries: " << eRecoShowerArray->GetEntries() << endl;
766 cout << "EdbShowAlg_SA::Execute()...done." << endl;
767 return;
768}
Log
bool Log(int level, const char *location, const char *fmt,...)
Definition: EdbLog.cxx:75
EdbPatternsVolume::GetPattern
EdbPattern * GetPattern(int id) const
Definition: EdbPattern.cxx:1721
EdbSegP
Definition: EdbSegP.h:21
EdbSegP::X
Float_t X() const
Definition: EdbSegP.h:173
EdbSegP::P
Float_t P() const
Definition: EdbSegP.h:152
EdbSegP::Y
Float_t Y() const
Definition: EdbSegP.h:174
EdbSegP::PrintNice
void PrintNice() const
Definition: EdbSegP.cxx:392
EdbSegP::PID
Int_t PID() const
Definition: EdbSegP.h:148
EdbSegP::MCEvt
Int_t MCEvt() const
Definition: EdbSegP.h:145
EdbSegmentsBox::GetSegment
EdbSegP * GetSegment(int i) const
Definition: EdbPattern.h:66
EdbShowAlg::Transform_eAli
void Transform_eAli(EdbSegP *InitiatorBT, Float_t ExtractSize)
Definition: EdbShowAlg.cxx:107
EdbShowAlg::eParaValue
Float_t eParaValue[10]
Definition: EdbShowAlg.h:52
EdbShowAlg::AddRecoShowerArray
void AddRecoShowerArray(EdbShowerP *shower)
Definition: EdbShowAlg.h:120
EdbShowAlg::SetRecoShowerArrayN
void SetRecoShowerArrayN(Int_t RecoShowerArrayN)
Definition: EdbShowAlg.h:117
EdbShowAlg::eRecoShowerArray
TObjArray * eRecoShowerArray
Definition: EdbShowAlg.h:70
EdbShowAlg::eFirstPlate_eAliPID
Int_t eFirstPlate_eAliPID
Definition: EdbShowAlg.h:65
EdbShowAlg::eLastPlate_eAliPID
Int_t eLastPlate_eAliPID
Definition: EdbShowAlg.h:66
EdbShowAlg::eInBTArrayN
Int_t eInBTArrayN
Definition: EdbShowAlg.h:63
EdbShowAlg::eInBTArray
TObjArray * eInBTArray
Definition: EdbShowAlg.h:62
EdbShowAlg::eAli
EdbPVRec * eAli
Definition: EdbShowAlg.h:59
EdbShowAlg::eNumberPlate_eAliPID
Int_t eNumberPlate_eAliPID
Definition: EdbShowAlg.h:68
EdbShowAlg::eActualAlgParametersetNr
Int_t eActualAlgParametersetNr
Definition: EdbShowAlg.h:54
EdbShowerP
Definition: EdbShowerP.h:28
EdbShowerP::N
Int_t N() const
Definition: EdbShowerP.h:412
EdbShowerP::Update
void Update()
Definition: EdbShowerP.cxx:975
gEDBDEBUGLEVEL
gEDBDEBUGLEVEL
Definition: energy.C:7
NULL
#define NULL
Definition: nidaqmx.h:84

◆ Finalize()

void EdbShowAlg_SA::Finalize ( )
virtual

Reimplemented from EdbShowAlg.

774{
775 cout << "EdbShowAlg_SA::Finalize()" << endl;
776 return;
777}

◆ Init()

void EdbShowAlg_SA::Init ( void  )
596{
597 Log(2,"EdbShowAlg_SA::EdbShowAlg_SA","Init()");
598
599// Init with values according to ?? Alg:
600
601// threshold cut on s->P()
602 eParaValue[0]=0;
603 eParaString[0]="MINIMUM_P";
604
605// size cut on the eAliSub to choose
606 eParaValue[1]=1000;
607 eParaString[1]="EXTRACTIONSIZE";
608
609 return;
610}
EdbShowAlg::eParaString
TString eParaString[10]
Definition: EdbShowAlg.h:53

◆ Initialize()

void EdbShowAlg_SA::Initialize ( )
virtual

Reimplemented from EdbShowAlg.

616{
617 cout << "EdbShowAlg_SA::Initialize()" << endl;
618 return;
619}
The documentation for this class was generated from the following files:
