#include <EdbShowAlg.h>

Inheritance diagram for EdbShowAlg_OI:

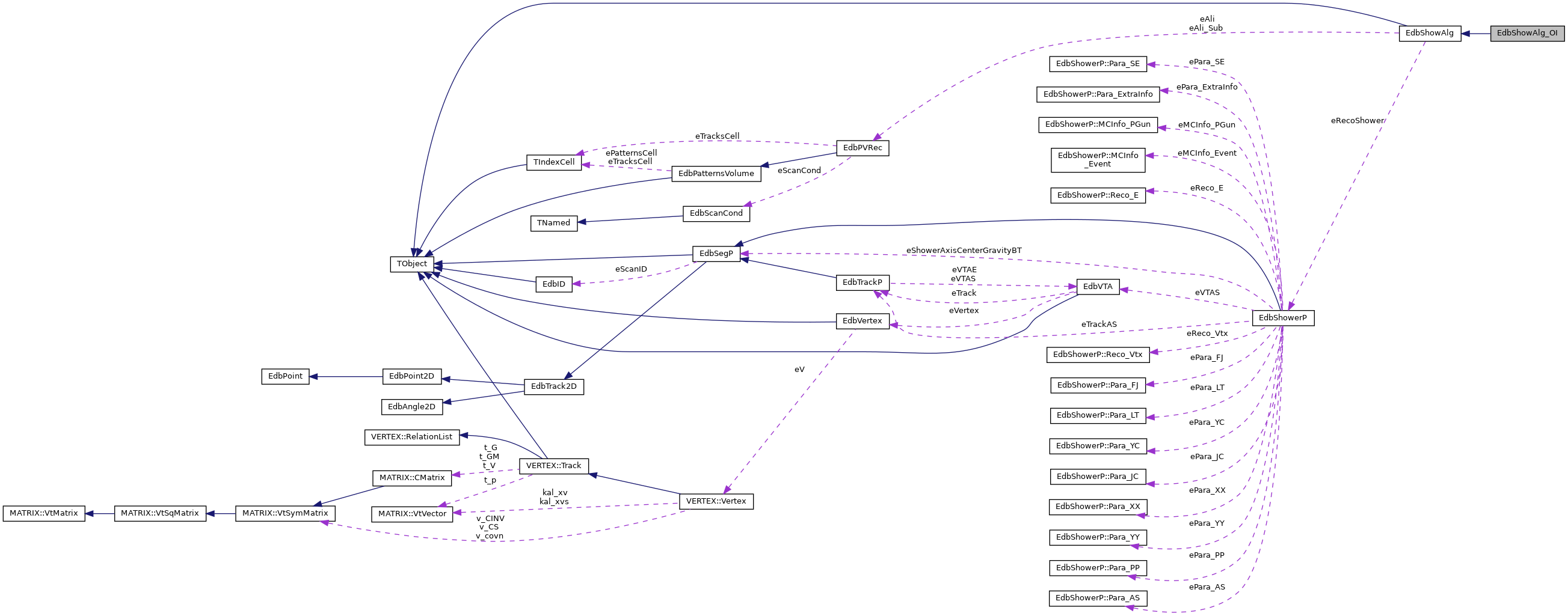

Collaboration diagram for EdbShowAlg_OI:

[legend]

Public Member Functions
	ClassDef (EdbShowAlg_OI, 1)

	EdbShowAlg_OI ()

void	Execute ()

void	Finalize ()

void	Initialize ()

virtual	~EdbShowAlg_OI ()

Public Member Functions inherited from EdbShowAlg
void	AddRecoShowerArray (EdbShowerP *shower)

	ClassDef (EdbShowAlg, 1)

Double_t	DeltaR_NoPropagation (EdbSegP s, EdbSegP stest)

Double_t	DeltaR_WithoutPropagation (EdbSegP s, EdbSegP stest)

Double_t	DeltaR_WithPropagation (EdbSegP s, EdbSegP stest)

Double_t	DeltaTheta (EdbSegP s1, EdbSegP s2)

Double_t	DeltaThetaComponentwise (EdbSegP s1, EdbSegP s2)

Double_t	DeltaThetaSingleAngles (EdbSegP s1, EdbSegP s2)

	EdbShowAlg ()

	EdbShowAlg (TString AlgName, Int_t AlgValue)

TString	GetAlgName () const

Int_t	GetAlgValue () const

Double_t	GetMinimumDist (EdbSegP seg1, EdbSegP seg2)

TObjArray *	GetRecoShowerArray () const

Int_t	GetRecoShowerArrayN () const

EdbShowerP *	GetShower (Int_t i) const

Double_t	GetSpatialDist (EdbSegP s1, EdbSegP s2)

void	Help ()

Bool_t	IsInConeTube (EdbSegP sTest, EdbSegP sStart, Double_t CylinderRadius, Double_t ConeAngle)

void	Print ()

void	PrintAll ()

void	PrintMore ()

void	PrintParameters ()

void	PrintParametersShort ()

void	SetActualAlgParameterset (Int_t ActualAlgParametersetNr)

void	SetEdbPVRec (EdbPVRec *Ali)

void	SetEdbPVRecPIDNumbers (Int_t FirstPlate_eAliPID, Int_t LastPlate_eAliPID, Int_t MiddlePlate_eAliPID, Int_t NumberPlate_eAliPID)

void	SetInBTArray (TObjArray *InBTArray)

void	SetParameter (Int_t parNr, Float_t par)

void	SetParameters (Float_t *par)

void	SetRecoShowerArray (TObjArray *RecoShowerArray)

void	SetRecoShowerArrayN (Int_t RecoShowerArrayN)

void	SetUseAliSub (Bool_t UseAliSub)

void	Transform_eAli (EdbSegP *InitiatorBT, Float_t ExtractSize)

void	UpdateShowerIDs ()

void	UpdateShowerMetaData ()

virtual	~EdbShowAlg ()

Private Member Functions
Bool_t	FindPrecedingBTs (EdbSegP s, EdbSegP InBT, EdbPVRec gAli, EdbShowerP shower)

Additional Inherited Members
Protected Member Functions inherited from EdbShowAlg
void	Set0 ()

Protected Attributes inherited from EdbShowAlg
Int_t	eActualAlgParametersetNr

TString	eAlgName

Int_t	eAlgValue

EdbPVRec *	eAli

EdbPVRec *	eAli_Sub

Int_t	eAli_SubNpat

Int_t	eAliNpat

Int_t	eFirstPlate_eAliPID

TObjArray *	eInBTArray

Int_t	eInBTArrayN

Int_t	eLastPlate_eAliPID

Int_t	eMiddlePlate_eAliPID

Int_t	eNumberPlate_eAliPID

Int_t	eParaN

TString	eParaString [10]

Float_t	eParaValue [10]

EdbShowerP *	eRecoShower

TObjArray *	eRecoShowerArray

Int_t	eRecoShowerArrayN

Int_t	eUseAliSub

Constructor & Destructor Documentation

◆ EdbShowAlg_OI()

EdbShowAlg_OI::EdbShowAlg_OI ( )

 {
     // Default Constructor
     Log(2,"EdbShowAlg_OI::EdbShowAlg_OI()","Default Constructor (OfficialImplementation, as it is in libShower module)");

 // Reset all:
     Set0();

     eAlgName="OI";
     eAlgValue=4; // see default.par_SHOWREC for labeling (labeling identical with ShowRec program)
     eParaN =4; // depends on the algorithm, how much parameters it has got.

     eParaValue[0]=700.0;
     eParaString[0]="CylinderRadius";  // micrometer
     eParaValue[1]=0.025;
     eParaString[1]="ConeAngle";       // MILLIradiant
     eParaValue[2]=150.0;
     eParaString[2]="DeltaRToPreceedingBT";  // micrometer
     eParaValue[3]=0.13;
     eParaString[3]="DeltaThetaComponentwiseToPreceedingBT";  // radiant

 // 700  0.025  150  0.13
     Log(2,"EdbShowAlg_OI::EdbShowAlg_OI()","Default Constructor (OfficialImplementation, as it is in libShower module)...done.");
 }

◆ ~EdbShowAlg_OI()

EdbShowAlg_OI::~EdbShowAlg_OI ( )

virtual

 {
     Log(2,"EdbShowAlg_OI::~EdbShowAlg_OI()","Default Destructor called.");
 // Default Destructor
 }

Member Function Documentation

◆ ClassDef()

EdbShowAlg_OI::ClassDef	(	EdbShowAlg_OI	,
		1
	)

◆ Execute()

void EdbShowAlg_OI::Execute ( )

virtual

WARNING ... Somehow the calculation of "STEP" is not correct, when having data ordered patterns, it might go the wrong direction. Better use GetPatternNext(..,+1) to be sure to get the next pattern with increasing Z positions. To be checked: does it work also on Simulated ORFEO data? To be checked: does it work also on the testbeam data?

newActualPID=ActualPID+STEP; // old, mixes up downstream and upstream directions

Reimplemented from EdbShowAlg.

 {
     Log(2,"EdbShowAlg_OI::Execute()","DOING MAIN SHOWER RECONSTRUCTION HERE");

     EdbSegP* InBT;
     EdbSegP* Segment;
     EdbShowerP* RecoShower;

     Bool_t    StillToLoop=kTRUE;
     Int_t     ActualPID;
     Int_t     newActualPID;
     Int_t     STEP=-1;
     Int_t     NLoopedPattern=0;

     Int_t newZ_next_ascending_Z=0;
     Int_t newPID_next_ascending_Z=0;


     if (eFirstPlate_eAliPID-eLastPlate_eAliPID<0) STEP=1;
 //     cout << "eFirstPlate_eAliPID = " << eFirstPlate_eAliPID << endl;
 //     cout << "eLastPlate_eAliPID  = " << eLastPlate_eAliPID << endl;
     if (gEDBDEBUGLEVEL>2) cout << "EdbShowAlg_OI::Execute--- STEP for patternloop direction =  " << STEP << endl;


 //--- Loop over InBTs:
     if (gEDBDEBUGLEVEL>2) cout << "EdbShowAlg_OI::Execute    Loop over InBTs:" << endl;


 // Since eInBTArray is filled in ascending ordering by zpositon
 // We use the descending loop to begin with BT with lowest z first.

     for (Int_t i=eInBTArrayN-1; i>=0; --i) {

 // CounterOutPut, only at gEDBDEBUGLEVEL==2
         if (gEDBDEBUGLEVEL==2) if ((i%100)==0) cout << eInBTArrayN <<" Initiator Basetracks (InBT) in total, still to do: " << Form("%06d",i) << "\r\r\r\r\r\r" << flush;

 //-----------------------------------
 // 1) Make local_gAli with cut parameters:
 //-----------------------------------

 // Create new EdbShowerP Object for storage;
 // See EdbShowerP why I have to call the Constructor as "unique" ideficable value
         RecoShower = new EdbShowerP(i,eAlgValue,eActualAlgParametersetNr);

 // Get InitiatorBT from eInBTArray
         InBT=(EdbSegP*)eInBTArray->At(i);
         if (gEDBDEBUGLEVEL>2) InBT->PrintNice();
         Float_t X0=InBT->X();
         Float_t Y0=InBT->Y();

 // Add InBT to RecoShower:
 // This has to be done, since by definition the first BT in the RecoShower is the InBT.
 // Otherwise, also the definition of shower axis and transversal profiles is wrong!
         RecoShower -> AddSegment(InBT);
         if (gEDBDEBUGLEVEL>4)  cout << "Segment  (InBT) " << Segment << " was added to RecoShower." <<  endl;

 // Transform (make size smaller, extract only events having same MC) the  eAli  object:
         Transform_eAli(InBT);
         if (gEDBDEBUGLEVEL>3) eAli_Sub->Print();

 //-----------------------------------
 // 2) Loop over (whole) eAli, check BT for Cuts
 // eAli_Sub
 //-----------------------------------
         ActualPID= InBT->PID() ;
         newActualPID= InBT->PID() ;

         while (StillToLoop) {
             if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_OI::Execute--- --- Doing patterloop " << ActualPID << " for patterns Z position=" << eAli_Sub->GetPattern(ActualPID)->Z() << endl;

             for (Int_t btloop_cnt=0; btloop_cnt<eAli_Sub->GetPattern(ActualPID)->GetN(); ++btloop_cnt) {

                 Segment = (EdbSegP*)eAli_Sub->GetPattern(ActualPID)->GetSegment(btloop_cnt);
                 if (gEDBDEBUGLEVEL>4) Segment->PrintNice();

         // Quick Continue Statements:
                 if ( Segment->MCEvt() > 0 ) if ( Segment->MCEvt()!=InBT->MCEvt() ) continue; // MCEvtNr (>0) or BgMCNr (-999)
                 if ( Abs(Segment->X()-X0) > 7000 ) continue;
                 if ( Abs(Segment->Y()-Y0) > 7000 ) continue;
         // Now apply cut conditions: OI OfficialImplementation Alg  --------------------
                 if ( !IsInConeTube(Segment, InBT, eParaValue[0], eParaValue[1]) ) continue;
                 if ( !FindPrecedingBTs(Segment, InBT, eAli_Sub, RecoShower)) continue;
         // end of    cut conditions: OI OfficialImplementation Alg  --------------------


 // If we arrive here, Basetrack  Segment  has passed criteria
 // and is then added to the RecoShower:
 // Check if its not the InBT which is already added:
 // Use compare function of EdbSegP, which is safer instead of comparison of adresses
                 // (in eAli_Sub, Adresses can be new and then it doesnt work)
                 if ( Segment->Compare(InBT) == 0) {
 //        cout << "Segment->X()==InBT->X()&&Segment->Y()==InBT->Y()  segments have same coord, so dont add" << endl;
 //        cout << "check the compare-function" << endl;
 //        cout << "Segment->Compare(InBT) = " <<  Segment->Compare(InBT)     << endl;
 //        int EdbSegP::Compare( const TObject *obj ) const
                     ;    // is InBT, do nothing;
                 }
                 else {
                     RecoShower -> AddSegment(Segment);
                 }
                 if (gEDBDEBUGLEVEL>4)  cout << "Segment  " << Segment << " was added at  &Segment : " << &Segment  <<  endl;

             } // of btloop_cnt


             if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_OI::Execute--- --- ActualPID= " << ActualPID << " at Z= " << eAli_Sub->GetPattern(ActualPID)->Z()  << " done. Reconstructed shower has up to now: " << RecoShower->N()  << " Segments." << endl;

 // // // // // // // // // // // // // // // // // XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
             // cout << " DETERMINE NEXT PATTERN in ASCENDING (INCREASING) Z  DIRECTION now: " << endl;
             EdbPattern* currentPat = eAli_Sub->GetPattern(ActualPID);
             EdbPattern* newPat_next_ascending_Z = eAli_Sub->GetPatternNext(currentPat->Z(),1);  // in ascending Z

             // cout << "What if there is no next ascending Z pattern? Check it here...... " << endl;
             // cout << "newPat_next_ascending_Z = " << newPat_next_ascending_Z << endl;

             if ( NULL == newPat_next_ascending_Z ) {
                 if (gEDBDEBUGLEVEL>2) {
                     cout << "newPat_next_ascending_Z   is NULL pointer !  So it is nonexisting! (possibly last plate); " << endl;
                     cout << "EdbShowAlg_OI::Execute--- ---Stop Loop since: newPat_next_ascending_Z   is NULL pointer "<<endl;
                 }
                 StillToLoop=kFALSE;
             }
             else {
                 newZ_next_ascending_Z    = newPat_next_ascending_Z->Z();
                 newPID_next_ascending_Z  = newPat_next_ascending_Z->PID();
             }

             // cout  << "Set new values for the next ascending pattern:   newZ_next_ascending_Z    = " <<   newZ_next_ascending_Z << endl;
             // cout  << "Set new values for the next ascending pattern:   newPID_next_ascending_Z  = " <<   newPID_next_ascending_Z << endl;
             // cout << " NEXT PATTERN in ASCENDING (INCREASING) Z  DIRECTION has PID()= " <<  newPID_next_ascending_Z    << "  and a z-Position of Z= " << newZ_next_ascending_Z  <<    endl;
 // // // // // // // // // // // // // // // // // XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

 //------------
             newActualPID=newPID_next_ascending_Z;
             ++NLoopedPattern;

             if (gEDBDEBUGLEVEL>3) {
                 cout << "EdbShowAlg_OI::Execute--- --- newActualPID= " << newActualPID << endl;
                 cout << "EdbShowAlg_OI::Execute--- --- newActualZ= " << eAli_Sub->GetPattern(newActualPID)->Z()  << endl;
                 cout << "EdbShowAlg_OI::Execute--- --- NLoopedPattern= " << NLoopedPattern << endl;
                 cout << "EdbShowAlg_OI::Execute--- --- eNumberPlate_eAliPID= " << eNumberPlate_eAliPID << endl;
                 cout << "EdbShowAlg_OI::Execute--- --- StillToLoop= " << StillToLoop << endl;
                 cout << "EdbShowAlg_OI::Execute--- --- We have to decide, if to loop on for the next pattern... (out of the " << eAli_Sub->Npatterns()  << " patterns)." << endl;
             }

             /* NOT NECESSARY ANYMORE SINCE WE DO THE OUT OF BOUNDS CHECK IN ANOTHER WAY .....
              * TO BE  REMOVED ...
             // This if holds in the case of STEP== +1
                 if (STEP==1) {
                     if (newActualPID>eLastPlate_eAliPID) StillToLoop=kFALSE;
                     if (newActualPID>eLastPlate_eAliPID) cout << "EdbShowAlg_OI::Execute--- ---Stop Loop since: newActualPID>eLastPlate_eAliPID"<<endl;
                 }
             // This if holds in the case of STEP== -1
                 if (STEP==-1) {
                     if (newActualPID<eLastPlate_eAliPID) StillToLoop=kFALSE;
                     if (newActualPID<eLastPlate_eAliPID && gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_OI::Execute--- ---Stop Loop since: newActualPID<eLastPlate_eAliPID"<<endl;
                 }
                 */

             // What is the constraint? 0  <= newActualPID <= Npatterns-1, these patterns are valid....
             if (newActualPID<0)
             {   StillToLoop=kFALSE;
                 // cout << CStop Loop since: newActualPID<0"<<endl;
             }
             if (newActualPID>=eNumberPlate_eAliPID-1) {
                 StillToLoop=kFALSE;
                 // cout << "EdbShowAlg_OI::Execute--- ---Stop Loop since: newActualPID>=eNumberPlate_eAliPID-1   [0 <= newActualPID <= Npatterns-1]"<<endl;
             }

 // This if holds  general, since eNumberPlate_eAliPID is not dependent of the structure of the gAli subject:
             if (NLoopedPattern>eNumberPlate_eAliPID) StillToLoop=kFALSE;
             if (NLoopedPattern>eNumberPlate_eAliPID && gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_OI::Execute--- ---Stop Loop since: NLoopedPattern>eNumberPlate_eAliPID"<<endl;

             ActualPID=newActualPID;
         } // of // while (StillToLoop)


 // Obligatory when Shower Reconstruction is finished:
 // Set Numbers, plates etc. correct
         RecoShower ->Update();

         // Debung Print Information:
         if (gEDBDEBUGLEVEL>2) RecoShower ->PrintBasics();
         if (gEDBDEBUGLEVEL>3) RecoShower ->PrintNice();
         if (gEDBDEBUGLEVEL>3) RecoShower ->PrintSegments();


 //     if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_OI::Execute--- Before adding to array delete the histograms...by finalize() of shower."<<endl;
 //     RecoShower ->Finalize();
 //     if (gEDBDEBUGLEVEL>3) cout << "EdbShowAlg_OI::Execute--- Finalize done..."<<endl;


 // Add Shower Object to Shower Reco Array.
 // Not, if its empty or containing only one BT:
 // Note, this function add also eRecoShowerArrayN directly.
         if (RecoShower->N()>1) {
       AddRecoShowerArray(RecoShower);
     }
     else {
       // Delete the created shower object. Saves _lots_ of memory and speeds up reconstruction for large #InBTs!
       // TODO Also Include this in the other RecoAlgs ...
       Log(3,"EdbShowAlg_OI::Execute()","InBT # %d RecoShower->N()<=1: Dont add shower to RecoShowerArray. Delete this shower for memory safing.");
       delete RecoShower;
       RecoShower=NULL;
     }



 // Set back loop values:
         StillToLoop=kTRUE;
         NLoopedPattern=0;
     } // of  //   for (Int_t i=eInBTArrayN-1; i>=0; --i)
     // Finished Loop over all InBTs here.



     // Set ID of the shower, otherwise all reco showers have ID=0:
     // TO BE DONE: auch in den anderen reco-Algorithmen die ID() nachträglich setzen!
     UpdateShowerIDs();

     // Write the MetaData of the Algorithm Values into the showers, that
     // information on reconstruction parameters can be retrieved
     // (usefull when more parametersets are reconstructed)
     // TO BE DONE::: Also put this in the other Execute Functions TODO
     cout << "================================================================================="<<endl;
     UpdateShowerMetaData();
     cout << "================================================================================="<<endl;

     if (gEDBDEBUGLEVEL==2) cout << endl << "Done reco!" << endl;
     cout << "EdbShowAlg_OI::eRecoShowerArray         = " << eRecoShowerArray << endl;
     cout << "EdbShowAlg_OI::eRecoShowerArrayN        = " << eRecoShowerArrayN << endl;

     Log(2,"EdbShowAlg_OI::Execute()","DOING MAIN SHOWER RECONSTRUCTION HERE...done.");
     return;
 }

◆ Finalize()

void EdbShowAlg_OI::Finalize ( )

virtual

Reimplemented from EdbShowAlg.

 {
     return;
 }

◆ FindPrecedingBTs()

Bool_t EdbShowAlg_OI::FindPrecedingBTs	(	EdbSegP *	s,
		EdbSegP *	InBT,
		EdbPVRec *	gAli,
		EdbShowerP *	shower
	)

private

 {
     if (gEDBDEBUGLEVEL>3) {
         cout << "EdbShowAlg_OI::FindPrecedingBTs   Find BTs to be connected with the Test BT:" << endl;
         cout << "s_TestBT X,Y,Z " << s->X() << " " <<  s->Y() << " " <<  s->Z() << "  versus InBT  X,Y,Z  " << InBT->X() << " " <<  InBT->Y() << " " <<  InBT->Z() << endl;
     }

     EdbSegP* s_TestBT;
     Int_t nentries=shower->N();
     Double_t dZ;

 // In case the shower is empty we do not have to search for a preceeding BT:
     if (nentries==0) return kTRUE;

 // We do not test BaseTracks which are before the initiator BaseTrack!
     if (s->Z()<InBT->Z()) {
         if (gEDBDEBUGLEVEL>3) cout << "--- --- EdbShowAlg_OI::FindPrecedingBTs(): s->Z()<InBT->Z()..: We do not test BaseTracks which are before the initiator BaseTrack!  return kFALSE;" << endl;
         return kFALSE;
     }

 // For the very first Z position we do not test.
 // If testBT has Preceeders, only if it it has a BT around (case for e+e- coming from gammma):
 // Take 50microns and 80mrad in (dR/dT) around.
 // This does not affect the normal results, but helps for
 // events which may have a second BT close to InBT (like in e+e-)
     if (s->Z()==InBT->Z()) {
         if (DeltaThetaComponentwise(s, InBT) < 0.08 && DeltaR_WithoutPropagation(s, InBT) < 50.0 ) return kTRUE;
     }

     if (gEDBDEBUGLEVEL>3) cout << "--- --- EdbShowAlg_OI::FindPrecedingBTs(): Testing " << nentries << " entries of the shower." << endl;

     for (Int_t i=nentries-1; i>=0; --i) {
         s_TestBT = (EdbSegP*)( shower->GetSegment(i) );

         if (gEDBDEBUGLEVEL>3) cout << "--- --- EdbShowAlg_OI::FindPrecedingBTs(): Do  s_TestBT->ID()  s->ID()  s_TestBT->MCEvt() s_TestBT->Z()  s->Z() "<< s_TestBT->ID() << " " << s->ID() << "    " << s_TestBT->MCEvt() << "     " << s_TestBT->Z() << "  " <<  s->Z()  <<endl;
         if (gEDBDEBUGLEVEL>3) s_TestBT->PrintNice();
         if (gEDBDEBUGLEVEL>3) s->PrintNice();


         dZ=TMath::Abs(s_TestBT->Z()-s->Z());
         if (dZ<30) continue;                  // Exclude the case of same Zpositions...
         if (dZ>(3.5*(1300.0+30.0))) continue;     // Exclude the case of more than 3 plates before...  // modified
         // often, experimentally observed, dZ approx 1350 ... so the upper cut really does not
         // look for 3 plates, but only for two ...: seems to work now. (24.Oct.2016)


         if (gEDBDEBUGLEVEL>3) cout << "--- --- EdbShowAlg_OI::FindPrecedingBTs(): Checking dT,dR and dZ for i:  " << i << "  " << DeltaThetaComponentwise(s, s_TestBT)  << "  " << DeltaR_WithPropagation(s, s_TestBT) << "  "<<dZ << endl;

         if (DeltaThetaComponentwise(s, s_TestBT) >  eParaValue[3] ) continue;
         if (DeltaR_WithPropagation(s, s_TestBT) > eParaValue[2]) continue;

         if (gEDBDEBUGLEVEL>3) cout << "--- --- EdbShowAlg_OI::FindPrecedingBTs(): Checking dT,dR and dZ for i:  " << i << "  " << DeltaThetaComponentwise(s, s_TestBT)  << "  " << DeltaR_WithPropagation(s, s_TestBT) << "  "<<dZ << "   ok!"<<endl;
         return kTRUE;
     }
 //---------------------------------------------
     return kFALSE;
 }

◆ Initialize()

void EdbShowAlg_OI::Initialize ( )

virtual

Reimplemented from EdbShowAlg.

 {
     return;
 }

The documentation for this class was generated from the following files:

src/libShowRec/EdbShowAlg.h
src/libShowRec/EdbShowAlg.cxx

Public Member Functions

Private Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

◆ EdbShowAlg_OI()

◆ ~EdbShowAlg_OI()

Member Function Documentation

◆ ClassDef()

◆ Execute()

◆ Finalize()

◆ FindPrecedingBTs()

◆ Initialize()
