EdbScanClientBase Class Reference

remote scanning from Bern More...

#include <EdbScanClientBase.h>

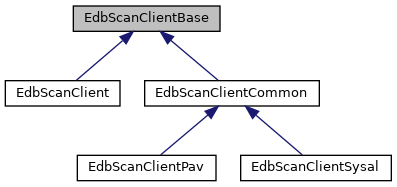

Inheritance diagram for EdbScanClientBase:

Public Types
enum	ScanType { stPred , stVolume }

Public Member Functions
virtual int	AddRWC_ (EdbRun *run, char *rwcname, int bAddRWD=true, const char *options="")=0
virtual void	AsyncScanAreaS (int id1, int id2, int id3, int id4, float x1, float x2, float y1, float y2, const char *fname)=0
virtual void	AsyncScanPreloadAreaS (int id1, int id2, int id3, int id4, float x1, float x2, float y1, float y2, const char *fname, float x1n, float x2n, float y1n, float y2n)=0
virtual int	AsyncWaitForScanResult ()=0
virtual int	ConvertAreas (int id[4], EdbPattern &areas, EdbRun &run, const char *options="")=0
	EdbScanClientBase ()
virtual int	InitializeSocket ()=0
virtual int	LoadPlate (int BRICK, int PLATE, const char *mapext, int nAttempts=1)=0
virtual void	Print ()=0
virtual int	ScanAreas (ScanType st, int id[4], EdbPattern &areas, EdbRun *run, const char *options="")=0
virtual int	ScanPreloadAreaS (int id1, int id2, int id3, int id4, float x1, float x2, float y1, float y2, const char *fname, float x1n, float x2n, float y1n, float y2n)=0
virtual void	SetClusterThresholds (int TOP, int BOT)=0
virtual int	SetFragmentSize (int X, int Y)=0
virtual void	SetOdysseyThresholds (int itop, int ibottom, int size, int TOP, int BOT)=0
virtual void	SetParameter (const char *Object, const char *Parameter, const char *Value)=0
virtual Short_t	ShortBrick (Int_t brick)=0
virtual int	UnloadPlate ()=0
virtual	~EdbScanClientBase ()

Detailed Description

remote scanning from Bern

Member Enumeration Documentation

ScanType

enum EdbScanClientBase::ScanType

Enumerator
stPred
stVolume

{ stPred, stVolume};

Constructor & Destructor Documentation

EdbScanClientBase()

EdbScanClientBase::EdbScanClientBase ( )

inline

{};

~EdbScanClientBase()

virtual EdbScanClientBase::~EdbScanClientBase ( )

inlinevirtual

{};

Member Function Documentation

AddRWC_()

virtual int EdbScanClientBase::AddRWC_ ( EdbRun *  run, char *  rwcname, int  bAddRWD = true, const char *  options = ""  )

pure virtual

Implemented in EdbScanClient, and EdbScanClientCommon.

AsyncScanAreaS()

virtual void EdbScanClientBase::AsyncScanAreaS ( int  id1, int  id2, int  id3, int  id4, float  x1, float  x2, float  y1, float  y2, const char *  fname  )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

AsyncScanPreloadAreaS()

virtual void EdbScanClientBase::AsyncScanPreloadAreaS ( int  id1, int  id2, int  id3, int  id4, float  x1, float  x2, float  y1, float  y2, const char *  fname, float  x1n, float  x2n, float  y1n, float  y2n  )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

AsyncWaitForScanResult()

virtual int EdbScanClientBase::AsyncWaitForScanResult ( )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

ConvertAreas()

virtual int EdbScanClientBase::ConvertAreas ( int  id[4], EdbPattern &  areas, EdbRun &  run, const char *  options = ""  )

pure virtual

Implemented in EdbScanClient, and EdbScanClientCommon.

InitializeSocket()

virtual int EdbScanClientBase::InitializeSocket ( )

pure virtual

Implemented in EdbScanClient, and EdbScanClientCommon.

LoadPlate()

virtual int EdbScanClientBase::LoadPlate ( int  BRICK, int  PLATE, const char *  mapext, int  nAttempts = 1  )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

Print()

virtual void EdbScanClientBase::Print ( )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

ScanAreas()

virtual int EdbScanClientBase::ScanAreas ( ScanType  st, int  id[4], EdbPattern &  areas, EdbRun *  run, const char *  options = ""  )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

ScanPreloadAreaS()

virtual int EdbScanClientBase::ScanPreloadAreaS ( int  id1, int  id2, int  id3, int  id4, float  x1, float  x2, float  y1, float  y2, const char *  fname, float  x1n, float  x2n, float  y1n, float  y2n  )

pure virtual

Implemented in EdbScanClient, and EdbScanClientCommon.

SetClusterThresholds()

virtual void EdbScanClientBase::SetClusterThresholds ( int  TOP, int  BOT  )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

SetFragmentSize()

virtual int EdbScanClientBase::SetFragmentSize ( int  X, int  Y  )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

SetOdysseyThresholds()

virtual void EdbScanClientBase::SetOdysseyThresholds ( int  itop, int  ibottom, int  size, int  TOP, int  BOT  )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

SetParameter()

virtual void EdbScanClientBase::SetParameter ( const char *  Object, const char *  Parameter, const char *  Value  )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

ShortBrick()

virtual Short_t EdbScanClientBase::ShortBrick ( Int_t  brick )

pure virtual

Implemented in EdbScanClient, and EdbScanClientCommon.

UnloadPlate()

virtual int EdbScanClientBase::UnloadPlate ( )

pure virtual

Implemented in EdbScanClient, EdbScanClientPav, EdbScanClientSysal, and EdbScanClientCommon.

---

The documentation for this class was generated from the following file:

• /home/antonio/fedra_doxygen/src/libScan/EdbScanClientBase.h
