EdbEDAMCTab Class Reference

#include <EdbEDATabs.h>

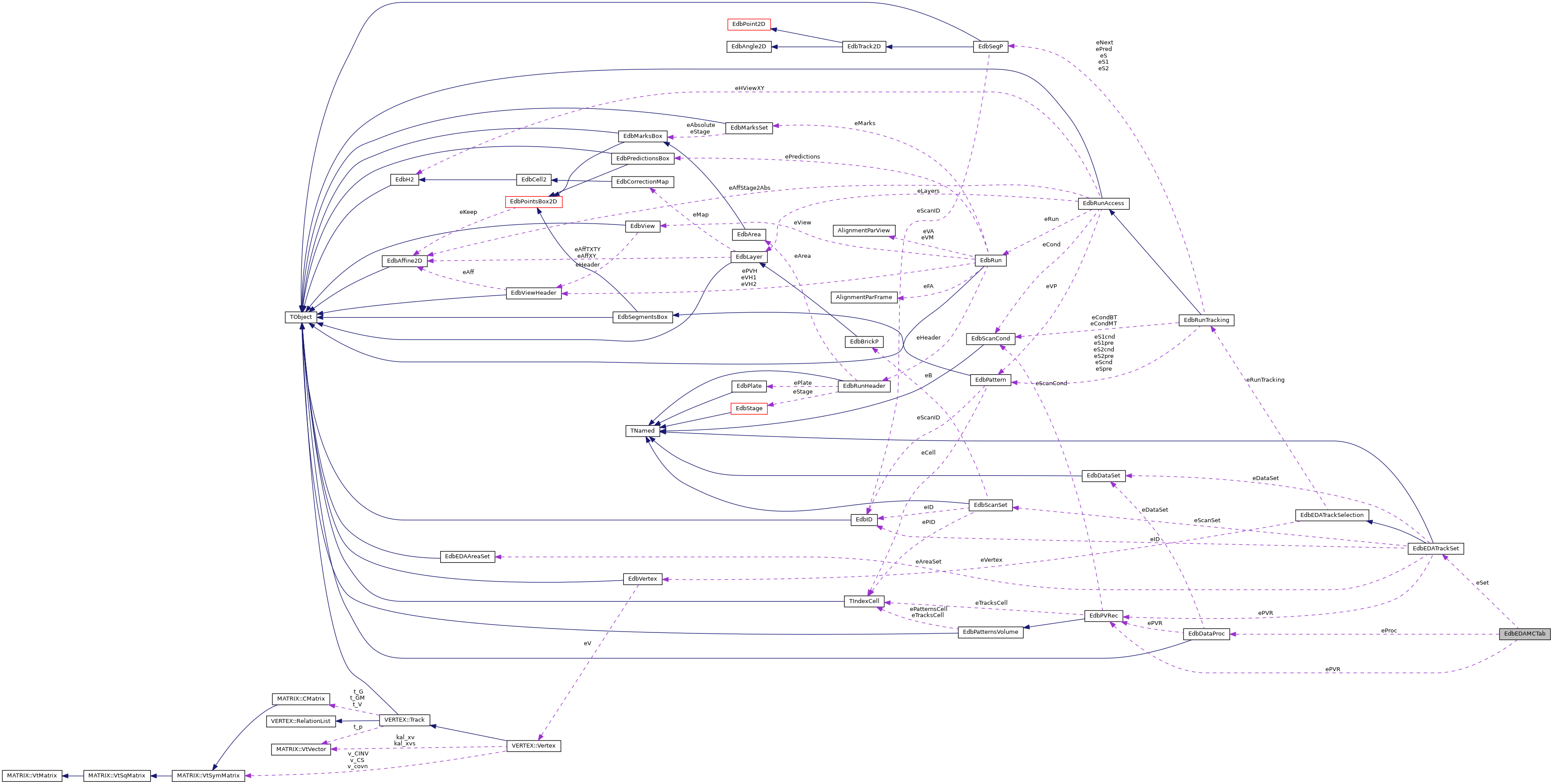

Collaboration diagram for EdbEDAMCTab:

Public Member Functions
void	Draw (int iMCEvt)
	EdbEDAMCTab ()
void	MakeGUI ()
void	ShowMCEvt ()
void	ShowMCEvtMM ()
void	ShowMCEvtPP ()

Private Attributes
bool	eLoaded
EdbDataProc *	eProc
EdbPVRec *	ePVR
EdbEDATrackSet *	eSet
TGNumberEntry *	fMCEvt

Constructor & Destructor Documentation

EdbEDAMCTab()

EdbEDAMCTab::EdbEDAMCTab ( )

inline

                  : eLoaded(kFALSE), eProc(0){
        MakeGUI();
    }

Member Function Documentation

Draw()

void EdbEDAMCTab::Draw

(

int

iMCEvt

)

                                {

    TObjArray *segments = new TObjArray;
    EdbPVRec *ali = gEDA->GetTrackSet("TS")->GetPVRec();
    for(int i=0;i<ali->Npatterns();i++){
        EdbPattern *pat = ali->GetPattern(i);
        for(int j=0;j<pat->N();j++){
            EdbSegP *s = pat->GetSegment(j);
            if(s->MCEvt()==iMCEvt) {
                segments->Add( s);
            }
        }
    }

    EdbEDATrackSet *set = gEDA->GetTrackSet("BT");
    set->Clear();
    set->AddSegments(segments);

    gEDA->GetTrackSet("TS")->SetDraw(kFALSE);
    gEDA->GetTrackSet("SB")->SetDraw(kFALSE);
    gEDA->GetTrackSet("SF")->SetDraw(kFALSE);
    gEDA->GetTrackSet("MN")->SetDraw(kFALSE);

    gEDA->Redraw();
    return;
}

MakeGUI()

void EdbEDAMCTab::MakeGUI

(

)

                         {
    TEveBrowser* browser = gEve->GetBrowser();
    browser->StartEmbedding(TRootBrowser::kBottom);

    TGMainFrame* frmMain = new TGMainFrame(gClient->GetRoot());
    frmMain->SetWindowName("XX GUI");
    frmMain->SetCleanup(kDeepCleanup);
    frmMain->SetLayoutBroken(kTRUE);

    TGLabel *fLabel;
    int posy=10;
    int posx=10;
    int dx=50;

    fLabel = new TGLabel(frmMain,"MCEvt = ");
    fLabel->MoveResize(posx,posy,dx,20);
    posx+=dx+5;
    fMCEvt = new TGNumberEntry(frmMain,0,11,-1,(TGNumberFormat::EStyle) 5);
    fMCEvt->MoveResize(posx,posy,dx,20);

    posx+=dx+10;
    TGTextButton *fb = new TGTextButton(frmMain,"Previous");
    fb->MoveResize(posx,posy,dx=80,20);
    fb->Connect("Clicked()","EdbEDAMCTab", this,"ShowMCEvtMM()");

    posx+=dx+10;
    fb = new TGTextButton(frmMain,"Show");
    fb->MoveResize(posx,posy,dx=80,20);
    fb->Connect("Clicked()","EdbEDAMCTab", this,"ShowMCEvt()");

    posx+=dx+10;
    fb = new TGTextButton(frmMain,"Next");
    fb->MoveResize(posx,posy,dx=80,20);
    fb->Connect("Clicked()","EdbEDAMCTab", this,"ShowMCEvtPP()");

    frmMain->MapSubwindows();
    frmMain->Resize();
    frmMain->MapWindow();

    browser->StopEmbedding();
    browser->SetTabTitle("MC", 2);
}

ShowMCEvt()

void EdbEDAMCTab::ShowMCEvt

(

)

                           {
    int iMCEvt = fMCEvt->GetIntNumber();
    Draw(iMCEvt);
}

ShowMCEvtMM()

void EdbEDAMCTab::ShowMCEvtMM

(

)

                             {
    int iMCEvt = fMCEvt->GetIntNumber();
    iMCEvt--;
    fMCEvt->SetNumber(iMCEvt);
    ShowMCEvt();
}

ShowMCEvtPP()

void EdbEDAMCTab::ShowMCEvtPP

(

)

                             {
    int iMCEvt = fMCEvt->GetIntNumber();
    iMCEvt++;
    fMCEvt->SetNumber(iMCEvt);
    ShowMCEvt();
}

Member Data Documentation

eLoaded

bool EdbEDAMCTab::eLoaded

private

eProc

EdbDataProc* EdbEDAMCTab::eProc

private

ePVR

EdbPVRec* EdbEDAMCTab::ePVR

private

eSet

EdbEDATrackSet* EdbEDAMCTab::eSet

private

fMCEvt

TGNumberEntry* EdbEDAMCTab::fMCEvt

private

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEDA/EdbEDATabs.h
• /home/antonio/fedra_doxygen/src/libEDA/EdbEDATabs.C
