EGraphTool Class Reference

#include <EGraphTool.h>

Inheritance diagram for EGraphTool:

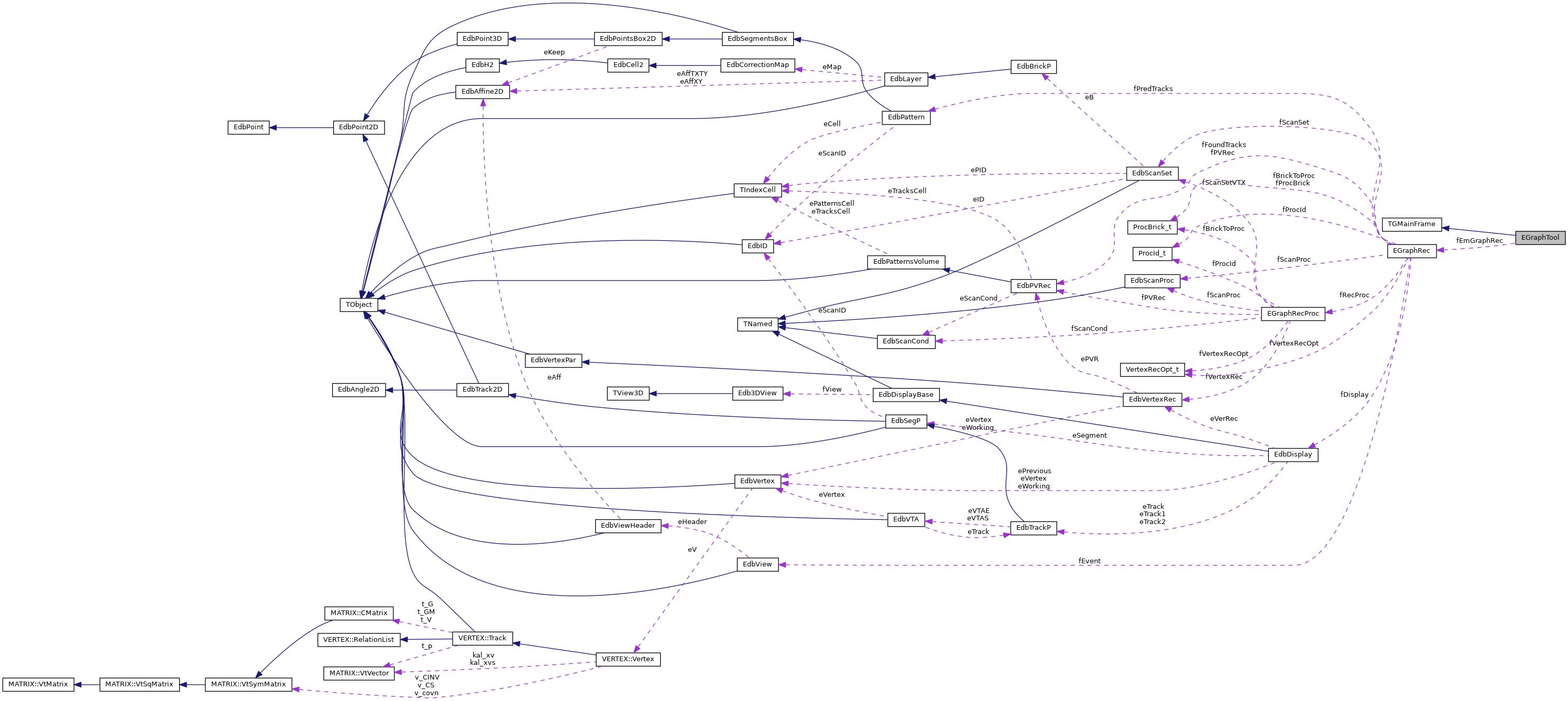

Collaboration diagram for EGraphTool:

Public Member Functions
	EGraphTool (const TGWindow *p, UInt_t w, UInt_t h)
void	ExitApplication ()
void	ProcessEvent ()
Bool_t	ProcessMessage (Long_t msg, Long_t param, Long_t)
virtual	~EGraphTool ()

Private Member Functions
void	AddMenuBar (TGVerticalFrame *frame)
void	CloseInputFile ()
void	DrawFrame ()
void	InitDrawVariables ()
void	InitInputFile (TString inputFileName)
void	InitVariables ()

Private Attributes
EGraphRec *	fEmGraphRec
Int_t	fEventId
Int_t	fEvtNumber
TTree *	fEvtTree
TFile *	fInputTreeFile
TGLayoutHints *	fLayout1
TGLayoutHints *	fLayout2
TGLayoutHints *	fLayout3
TGVerticalFrame *	fMainFrame
TGPopupMenu *	fMenuFile
TGToolBar *	fToolBar

Constructor & Destructor Documentation

EGraphTool()

EGraphTool::EGraphTool	(	const TGWindow *	p,
		UInt_t	w,
		UInt_t	h
	)

                                                            : TGMainFrame(p, w, h)
{
  InitVariables();
  InitDrawVariables();

  fEmGraphRec = new EGraphRec(); // Init Graph Reconstruction Toolkit
  DrawFrame();                   // drawing main frame

  SetWindowName("Emulsion Graphical Tool");
  MapSubwindows();
  Resize(GetDefaultSize());
  MapWindow();
}

~EGraphTool()

EGraphTool::~EGraphTool ( )

virtual

{
  delete fMainFrame;
}

Member Function Documentation

AddMenuBar()

void EGraphTool::AddMenuBar ( TGVerticalFrame *  frame )

private

{
  TGDockableFrame *MenuDock = new TGDockableFrame(workframe);

  // Section File

  fMenuFile = new TGPopupMenu(gClient->GetRoot());
  fMenuFile->AddEntry("Open...",         M_FILE_OPEN);
  fMenuFile->AddEntry("Save picture...", M_FILE_SAVE_PICTURE);
  fMenuFile->AddSeparator();
  fMenuFile->AddEntry("Exit",            M_FILE_EXIT);
  fMenuFile->DisableEntry(M_FILE_SAVE_PICTURE);
  fMenuFile->Associate(this);

  workframe->AddFrame(MenuDock, new TGLayoutHints(kLHintsTop | kLHintsExpandX,
                          0, 0, 1, 0));

  TGMenuBar *MenuBar = new TGMenuBar(MenuDock, 1, 1, kHorizontalFrame);
  MenuBar->AddPopup("File", fMenuFile, new TGLayoutHints(kLHintsTop | kLHintsLeft, 0, 4, 0, 0));
  MenuDock->AddFrame(MenuBar, new TGLayoutHints(kLHintsTop | kLHintsExpandX));

  // Toolbar

  Int_t spacing = 8;
  fToolBar = new TGToolBar(workframe, 60, 20, kHorizontalFrame | kRaisedFrame);
  for (Int_t i = 0; EGraphToolXpmNames[i]; i++) {
    TString iconname = (TString)getenv("FEDRA_ROOT") +
      "/src/appl/display/icons/" + EGraphToolXpmNames[i];
    EGraphToolTbData[i].fPixmap = iconname.Data();
    if (strlen(EGraphToolXpmNames[i]) == 0) {
      spacing = 8;
      continue;
    }
    fToolBar->AddButton(this, &EGraphToolTbData[i], spacing);
    spacing = 0;
  }

  fToolBar->GetButton(M_FILE_SAVE_PICTURE)->SetState(kButtonDisabled);
  // fToolBar->GetButton(M_SHOW_3D)->SetState(kButtonDisabled);
  // fToolBar->GetButton(M_ZOOM_IN)->SetState(kButtonDisabled);
  // fToolBar->GetButton(M_ZOOM_OUT)->SetState(kButtonDisabled);

  workframe->AddFrame(fToolBar, new TGLayoutHints(kLHintsTop | kLHintsExpandX, 0, 0, 0, 0));
}

CloseInputFile()

void EGraphTool::CloseInputFile ( )

private

{
  fEventId = fEvtNumber = 0;
  fEvtTree = NULL;
  fEmGraphRec->ClearEvent();
  if (fInputTreeFile) {SafeDelete(fInputTreeFile); fInputTreeFile = NULL;}
}

DrawFrame()

void EGraphTool::DrawFrame ( )

private

Correct close window

{

  Connect("CloseWindow()", "EGraphTool", this, "ExitApplication()");

  SetCleanup(kDeepCleanup);

  // Create main frame

  fMainFrame = new TGVerticalFrame(this, 1000, 850);
  fMainFrame->SetCleanup(kDeepCleanup);

  AddMenuBar(fMainFrame);                 // Create a menu bar
  TGHorizontalFrame *workframe = new TGHorizontalFrame(fMainFrame);

  // buttons frame

  TGVerticalFrame *ButtonFrame = new TGVerticalFrame(workframe);

  // create Brick Id frame

  fEmGraphRec->AddProcBrickFrame(ButtonFrame);

  // create tab for options frame

  TGTab *OptTab = new TGTab(ButtonFrame);
  // fEmGraphRec->AddRecOptFrame(OptTab); // Create a button frame
  fEmGraphRec->AddScanBackFrame(OptTab);  // Create scan back frame
  fEmGraphRec->AddVertexRecFrame(OptTab); // Craete vertex reconstruction frame
  ButtonFrame->AddFrame(OptTab, fLayout2);

  // create process list frame

  // fEmGraphRec->AddProcListFrame(ButtonFrame);

  // Process Event

//   TGTextButton *process = new TGTextButton(ButtonFrame, "Execute event");
//   process->Connect("Clicked()", "EGraphTool", this, "ProcessEvent()");
//   process->Associate(this);
//   ButtonFrame->AddFrame(process, fLayout1);
  workframe->AddFrame(ButtonFrame, new TGLayoutHints(kLHintsLeft, 2, 2, 2, 2));

  TGVerticalFrame *CanvasFrame = new TGVerticalFrame(workframe);

  // create tab for canvas frame

  TGTab *CanvasTab = new TGTab(CanvasFrame);
  fEmGraphRec->AddCanvasFrame(CanvasTab); // Create a canvas frame
  CanvasFrame->AddFrame(CanvasTab, fLayout3);

  // create text info frame

  fEmGraphRec->AddInfoFrame(CanvasFrame);

  workframe->AddFrame(CanvasFrame, fLayout3);
  fMainFrame->AddFrame(workframe, fLayout3);
  AddFrame(fMainFrame, fLayout3);
}

ExitApplication()

void EGraphTool::ExitApplication

(

)

{
  gApplication->Terminate(0);
}

InitDrawVariables()

void EGraphTool::InitDrawVariables ( )

private

{
  fLayout1 = new TGLayoutHints(kLHintsExpandX, 2, 2, 2, 2);
  fLayout2 = new TGLayoutHints(kLHintsExpandY, 2, 2, 2, 2);
  fLayout3 = new TGLayoutHints(kLHintsExpandX | kLHintsExpandY, 2, 2, 2, 2);
}

InitInputFile()

void EGraphTool::InitInputFile ( TString  inputFileName )

private

{
  CloseInputFile(); // close previously initalized files

  // Open the input file

  fInputTreeFile = new TFile(inputFileName, "read");

  if (!fInputTreeFile->IsOpen()) return;

  // get the input tree

  fEvtTree = (TTree*)fInputTreeFile->Get("Views");

  if (fEvtTree) {
    fEmGraphRec->SetTree(fEvtTree);
    fEvtNumber = fEvtTree->GetEntries() - 1;
    cout << "number of events " << fEvtNumber << endl;
  }
  else
    cout << "\"Views\" tree does not exist in this file" << endl;
}

InitVariables()

void EGraphTool::InitVariables ( )

private

{
  fEventId       = 0;
  fEvtTree       = NULL;
  fInputTreeFile = NULL;
}

ProcessEvent()

void EGraphTool::ProcessEvent

(

)

{
  // if (fEvtTree) fEmGraphRec->ProcessEvent(fEvtNumber);
  // fEmGraphRec->ProcessEvent(fEvtNumber);
}

ProcessMessage()

Bool_t EGraphTool::ProcessMessage	(	Long_t	msg,
		Long_t	param,
		Long_t
	)

Handle messages send to the TDisplayMainFrame object.
E.g. all menu button messages.

{

  const char *filetypes[] = {"ROOT files", "*.root", 0, 0};

  switch (GET_MSG(msg)) {
  case kC_COMMAND:
    switch (GET_SUBMSG(msg)) {
    case kCM_BUTTON:
    case kCM_MENU:
      switch (param1)
    {
    case M_FILE_OPEN:
      {
        static TString dir(".");
        TGFileInfo fi;
        fi.fFileTypes = filetypes;
        fi.fIniDir    = StrDup(dir.Data());

        new TGFileDialog(gClient->GetRoot(), fMainFrame, kFDOpen, &fi);
        dir = fi.fIniDir;

        // open new file

        if (fi.fFilename) InitInputFile((TString)fi.fFilename);
        break;
      }
    case M_FILE_SAVE_PICTURE:
      // save picture
      break;
    case M_FILE_EXIT:
      ExitApplication();           // terminate the Application
      break;
    case M_SHOW_3D:
      fEmGraphRec->Set3DViewer();  // GL viewer
      break;
    case M_ZOOM_IN:
      fEmGraphRec->ZoomIn();       // zoom in
      break;
    case M_ZOOM_OUT:
      fEmGraphRec->ZoomOut();      // zoom out
      break;
    }
      break;
    }
    break;
  }

  return kTRUE;
}

Member Data Documentation

fEmGraphRec

EGraphRec* EGraphTool::fEmGraphRec

private

fEventId

Int_t EGraphTool::fEventId

private

fEvtNumber

Int_t EGraphTool::fEvtNumber

private

fEvtTree

TTree* EGraphTool::fEvtTree

private

fInputTreeFile

TFile* EGraphTool::fInputTreeFile

private

fLayout1

TGLayoutHints* EGraphTool::fLayout1

private

fLayout2

TGLayoutHints* EGraphTool::fLayout2

private

fLayout3

TGLayoutHints* EGraphTool::fLayout3

private

fMainFrame

TGVerticalFrame* EGraphTool::fMainFrame

private

fMenuFile

TGPopupMenu* EGraphTool::fMenuFile

private

fToolBar

TGToolBar* EGraphTool::fToolBar

private

---

The documentation for this class was generated from the following files:

• /home/antonio/fedra_doxygen/src/libEGraphTool/EGraphTool.h
• /home/antonio/fedra_doxygen/src/libEGraphTool/EGraphTool.cxx
