ShowRecCalculatingFunctions.cpp File Reference

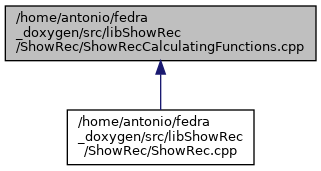

This graph shows which files directly or indirectly include this file:

Functions
Double_t	CalcIP (EdbSegP *s, double x, double y, double z)
Double_t	CalcIP (EdbSegP *s, EdbVertex *v)
EdbVertex *	CalcVertex (TObjArray *segments)
void	FillShowerAxis ()
Double_t	GetDistToAxis (EdbSegP *segAxis, EdbSegP *segTest)
Double_t	GetMinimumDist (EdbSegP *seg1, EdbSegP *seg2)
Bool_t	IsSameSegment (EdbSegP *seg1, EdbSegP *seg2)

Function Documentation

CalcIP() [1/2]

Double_t CalcIP	(	EdbSegP *	s,
		double	x,
		double	y,
		double	z
	)

                                                          {
    // Calculate IP between a given segment and a given x,y,z.
    // return the IP value.
    double ax = s->TX();
    double ay = s->TY();
    double bx = s->X()-ax*s->Z();
    double by = s->Y()-ay*s->Z();
    double a;
    double r;
    double xx,yy,zz;
    a = (ax*(x-bx)+ay*(y-by)+1.*(z-0.))/(ax*ax+ay*ay+1.);
    xx = bx +ax*a;
    yy = by +ay*a;
    zz = 0. +1.*a;
    r = sqrt((xx-x)*(xx-x)+(yy-y)*(yy-y)+(zz-z)*(zz-z));
    return r;
}

CalcIP() [2/2]

Double_t CalcIP	(	EdbSegP *	s,
		EdbVertex *	v
	)

                                          {
    // calculate IP for the selected tracks wrt the given vertex.
    // if the vertex is not given, use the selected vertex.
    if (NULL==v) {
        printf("select a vertex!\n");
        return 0;
    }
    if (gEDBDEBUGLEVEL>3) printf(" /// Calc IP w.r.t. Vertex %d %8.1lf %8.1lf %8.1lf (red vertex) ///\n",v->ID(), v->X(),v->Y(),v->Z() );
    double r = CalcIP(s,v->X(),v->Y(),v->Z());
    return r;
}

CalcVertex()

EdbVertex * CalcVertex

(

TObjArray *

segments

)

                                           {

    // Exactly same implementation as in EdbEDAUtil.C
    // but I do not want to link in hardcoded all eda libraries.
    // calc vertex point with given segments. just topological calculation.
    // VTA is currently not set.
    // in case of Single-stop. make a vertex 650 micron upstream ob base.
    double xx,yy,zz,Det,Ax,Ay,Az,Bx,By,Bz,Cx,Cy,Cz,Dx,Dy,Dz;
    Ax=0.;
    Ay=0.;
    Az=0.;
    Bx=0.;
    By=0.;
    Bz=0.;
    Cx=0.;
    Cy=0.;
    Cz=0.;
    Dx=0.;
    Dy=0.;
    Dz=0.;

    if (segments->GetEntries()==1) {
        // in case of Single-stop. make a vertex 650 micron upstream ob base.
        EdbSegP *s = new EdbSegP(*((EdbSegP *) segments->At(0)));
        s->PropagateTo(s->Z()-650);
        xx=s->X();
        yy=s->Y();
        zz=s->Z();
        delete s;
    }
    else {
        for (int i=0; i<segments->GetEntries(); i++) {
            EdbSegP *s = (EdbSegP *) segments->At(i);
            double ax = s->TX();
            double ay = s->TY();
            double az = 1.0;
            double x  = s->X();
            double y  = s->Y();
            double z  = s->Z();
            double a = ax*ax+ay*ay+az*az;
            double c = -ax*x-ay*y-az*z;
            double b = (ax*ax+ay*ay);
            //  double w = 1.0/a/a; // weight for small angle tracks.
            double w = 1.0; // no weight

            Ax+=2.0*w/b*( a*(ay*ay+az*az) );
            Bx+=2.0*w/b*( -a*ax*ay );
            Cx+=2.0*w/b*( -a*ax*az );
            Dx+=2.0*w/b*( -(a*x+c*ax)*(ax*ax-a)-(a*y+c*ay)*ax*ay-(a*z+c*az)*az*ax );

            Ay+=2.0*w/b*( -a*ay*ax );
            By+=2.0*w/b*( a*(az*az+ax*ax) );
            Cy+=2.0*w/b*( -a*ay*az );
            Dy+=2.0*w/b*( -(a*y+c*ay)*(ay*ay-a)-(a*z+c*az)*ay*az-(a*x+c*ax)*ax*ay );

            Az+=2.0*w/b*( -a*az*ax );
            Bz+=2.0*w/b*( -a*az*ay );
            Cz+=2.0*w/b*( a*b );
            Dz+=2.0*w/b*( -(a*z+c*az)*(az*az-a)-(a*x+c*ax)*az*ax-(a*y+c*ay)*ay*az );

        }

        Det=fabs( Ax*(By*Cz-Cy*Bz)-Bx*(Ay*Cz-Cy*Az)+Cx*(Ay*Bz-By*Az) );
        xx=( (By*Cz-Cy*Bz)*Dx-(Bx*Cz-Cx*Bz)*Dy+(Bx*Cy-Cx*By)*Dz)/Det;
        yy=(-(Ay*Cz-Cy*Az)*Dx+(Ax*Cz-Cx*Az)*Dy-(Ax*Cy-Cx*Ay)*Dz)/Det;
        zz=( (Ay*Bz-By*Az)*Dx-(Ax*Bz-Bx*Az)*Dy+(Ax*By-Bx*Ay)*Dz)/Det;
    }

    EdbVertex *v = new EdbVertex();
    v->SetXYZ(xx,yy,zz);

    return v;
}

FillShowerAxis()

void FillShowerAxis

(

)

                       {
    cout << "IMPLEMENTED IN ... TransferShowerObjectArrayIntoEntryOfTreebranchShowerTree ... CHECK THERE..."<<endl;
    return;
}

GetDistToAxis()

Double_t GetDistToAxis	(	EdbSegP *	segAxis,
		EdbSegP *	segTest
	)

                                                          {

//     cout << "GetDistToAxis(EdbSegP* segAxis,EdbSegP* segTest)" << endl;
    // Calculates distance of the segTest to the Axis defined by the segAxis segment.
    // Uses code from EdbMath, thats why it cannot simply be put in the EdbSegP class code.
    float Point[3];
    float LineStart[3];
    float LineEnd[3];

//     cout << "segTest->PrintNice();"  << endl;
// segTest->PrintNice();

    Point[0]=segTest->X();
    Point[1]=segTest->Y();
    Point[2]=segTest->Z();

    LineStart[0]=segAxis->X();
    LineStart[1]=segAxis->Y();
    LineStart[2]=segAxis->Z();

// cout << "segAxis->PrintNice();"  << endl;
// segAxis->PrintNice();

// cout << "Propagate segment Z + 10000" << endl;
    segAxis->PropagateTo(segAxis->Z()+10000);
// segAxis->PrintNice();
    LineEnd[0]=segAxis->X();
    LineEnd[1]=segAxis->Y();
    LineEnd[2]=segAxis->Z();

// cout << "Propagate segment Z - 10000" << endl;
    segAxis->PropagateTo(segAxis->Z()-10000);
// segAxis->PrintNice();

    double dist = EdbMath::DistancePointLine3(Point, LineStart, LineEnd, 1);
// cout << dist << endl;

// segAxis->PrintNice();

// cout << "TO CHECK  .... IF SEG IS PROPAGATET, IS IT THEN MODIFIED ? IF SO  PROPAGATE IT BACK AGAIN, OR COPY THE SEGMENT FIRST ...." << endl;
    return dist;
}

GetMinimumDist()

Double_t GetMinimumDist	(	EdbSegP *	seg1,
		EdbSegP *	seg2
	)

                                                     {
    // calculate minimum distance of 2 lines.
    // use the data of (the selected object)->X(), Y(), Z(), TX(), TY().
    // means, if the selected object == segment, use the data of the segment. or it == track, the use the fitted data.
    // original code from Tomoko Ariga
    // double calc_dmin(EdbSegP *seg1, EdbSegP *seg2, double *dminz = NULL){

    double x1,y1,z1,ax1,ay1;
    double x2,y2,z2,ax2,ay2;
    double s1,s2,s1bunsi,s1bunbo,s2bunsi,s2bunbo;
    double p1x,p1y,p1z,p2x,p2y,p2z,p1p2;

    if (seg1->ID()==seg2->ID()&&seg1->PID()==seg2->PID()) return 0.0;

    x1 = seg1->X();
    y1 = seg1->Y();
    z1 = seg1->Z();
    ax1= seg1->TX();
    ay1= seg1->TY();

    x2 = seg2->X();
    y2 = seg2->Y();
    z2 = seg2->Z();
    ax2= seg2->TX();
    ay2= seg2->TY();

    s1bunsi=(ax2*ax2+ay2*ay2+1)*(ax1*(x2-x1)+ay1*(y2-y1)+z2-z1) - (ax1*ax2+ay1*ay2+1)*(ax2*(x2-x1)+ay2*(y2-y1)+z2-z1);
    s1bunbo=(ax1*ax1+ay1*ay1+1)*(ax2*ax2+ay2*ay2+1) - (ax1*ax2+ay1*ay2+1)*(ax1*ax2+ay1*ay2+1);
    s2bunsi=(ax1*ax2+ay1*ay2+1)*(ax1*(x2-x1)+ay1*(y2-y1)+z2-z1) - (ax1*ax1+ay1*ay1+1)*(ax2*(x2-x1)+ay2*(y2-y1)+z2-z1);
    s2bunbo=(ax1*ax1+ay1*ay1+1)*(ax2*ax2+ay2*ay2+1) - (ax1*ax2+ay1*ay2+1)*(ax1*ax2+ay1*ay2+1);
    s1=s1bunsi/s1bunbo;
    s2=s2bunsi/s2bunbo;
    p1x=x1+s1*ax1;
    p1y=y1+s1*ay1;
    p1z=z1+s1*1;
    p2x=x2+s2*ax2;
    p2y=y2+s2*ay2;
    p2z=z2+s2*1;
    p1p2=sqrt( (p1x-p2x)*(p1x-p2x)+(p1y-p2y)*(p1y-p2y)+(p1z-p2z)*(p1z-p2z) );

    return p1p2;
}

IsSameSegment()

Bool_t IsSameSegment	(	EdbSegP *	seg1,
		EdbSegP *	seg2
	)

                                                  {
    // This function checks on absolute values rather
    // on adress of segments.
    // This might be safer when dealing with copies
    // of SegP objects in memory.
    if (TMath::Abs(seg1->X()-seg2->X())<0.01) {
        if (TMath::Abs(seg1->Y()-seg2->Y())<0.01) {
            if (TMath::Abs(seg1->TY()-seg2->TY())<0.01) {
                if (TMath::Abs(seg1->TX()-seg2->TX())<0.01) {
                    return kTRUE;
                }
            }
        }
    }
    return kFALSE;
}
