SDistance.hh File Reference

#include "smatrix/SVector.hh"
#include "smatrix/Functions.hh"
#include "smatrix/SVertex.hh"
#include "smatrix/BinaryOperators.hh"

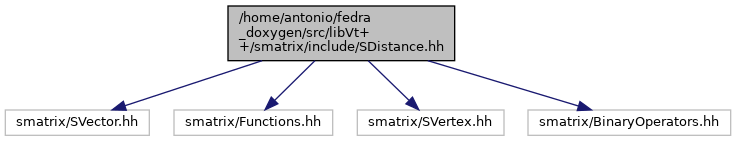

Include dependency graph for SDistance.hh:

Go to the source code of this file.

Functions
template<unsigned int NTR>
double	Chi2distance (const SVertex< NTR > &v, const SVector< double, 3 > &x)
template<unsigned int NTR, unsigned int NTR2>
double	Chi2distance (const SVertex< NTR > &v1, const SVertex< NTR2 > &v2)
double	Chi2distance (const Track &t1, const Track &t2)
double	Sdistance (const SVector< double, 3 > &x1, const SVector< double, 3 > &x2)
double	Sdistance (const Vertex &v, const SVector< double, 3 > &x)
double	Sdistance (const Vertex &v1, const Vertex &v2)
double	SGNdistance (const Track &t, const Vertex &v)
double	SGNVVdistance (const Vertex &v1, const Vertex &v2)
double	Tdistance (const Track &t1, const Track &t2)
double	TVdistance (const Track &t, const Vertex &v)

Function Documentation

Chi2distance() [1/3]

template<unsigned int NTR>

double Chi2distance ( const SVertex< NTR > &  v, const SVector< double, 3 > &  x  )

inline

$\chi^2$ distance between SVertex and space point.\ Assumption: SVertex has been fitted with findVertexVt().

                                                                              {
  return product(v.kalman(0).KCINV(),v.vposR()-x);
}

Chi2distance() [2/3]

template<unsigned int NTR, unsigned int NTR2>

double Chi2distance ( const SVertex< NTR > &  v1, const SVertex< NTR2 > &  v2  )

inline

$\chi^2$ distance between two SVertex objects.\ Assumption: Both SVertex objects have been fitted with findVertexVt().

                                                                            {
  const SMatrix<double,3>& cinv1 = v1.kalman(0).KCINV();
  const SMatrix<double,3>& cinv2 = v2.kalman(0).KCINV();
  const SMatrix<double,3> Cmat = cinv1 + cinv2;

  if(Cmat.sinvert() == false) { return 1.e10; }

  const SVector<double,3> xav = Cmat * (cinv1*v1.vposR() + cinv2*v2.vposR());
  return product(cinv1, xav - v1.vposR()) + product(cinv2, xav - v2.vposR());
}

Chi2distance() [3/3]

double Chi2distance ( const Track &  t1, const Track &  t2  )

inline

$\chi^2$ distance between two tracks. Determined by Kalman filter vertex fit.

                                                             {
  SVertex<2> vtx(t1,t2);
  if(vtx.findVertexVt() == true)
    return vtx.chi2();
  else
    return 1.e10;
}

Sdistance() [1/3]

double Sdistance ( const SVector< double, 3 > &  x1, const SVector< double, 3 > &  x2  )

inline

Spatial distance between two space points. \begin{displaymath} d = |\vec{x}_1 - \vec{x}_2| \end{displaymath}

                                                                                  {
  return mag(x1 - x2);
}

Sdistance() [2/3]

double Sdistance ( const Vertex &  v, const SVector< double, 3 > &  x  )

inline

Spatial distance between Vertex and space point. \begin{displaymath} d = |\vec{x}_v - \vec{x}| \end{displaymath}

                                                                     {
  return mag(v.vpos() - x);
}

Sdistance() [3/3]

double Sdistance ( const Vertex &  v1, const Vertex &  v2  )

inline

Spatial distance between two Vertex objects. \begin{displaymath} d = |\vec{v}_1 - \vec{v}_2| \end{displaymath}

                                                            {
  return mag(v1.vpos() - v2.vpos());
}

SGNdistance()

double SGNdistance ( const Track &  t, const Vertex &  v  )

inline

Closest spatial distance between Track and Wire. \begin{displaymath} d = \frac{(\vec{t}_w\times\vec{t}_t) \cdot (\vec{x}_t - \vec{x}_w)}{|\vec{t}_w\times\vec{t}_t|^2} \end{displaymath} $g: \vec{x}_t + m\cdot\vec{t}_t$ track definition\ $w: \vec{x}_w + m'\cdot\vec{t}_w$ wire definition Signed closest distance between Track and Vertex object. The sign is determined by the z component and tells whether the point of closest approach is upstream or downstream of the vertex position. \begin{displaymath} \rho = \frac{\vec{t}\cdot(\vec{x}_t-\vec{x}_v)}{|\vec{t}|} \end{displaymath} \begin{displaymath} d\vec{x} = \vec{x}_t - \rho\cdot\vec{t} - \vec{x}_v \end{displaymath} \begin{displaymath} d = \textrm{sgn}(d\vec{x}_z)\cdot|d\vec{x}| \end{displaymath} $g: \vec{x}_t + m\cdot\vec{t}$ track definition\ $\vec{x}_v$: vertex position\ $\vec{x}_t - \rho\cdot\vec{t}$: point of track closest to vertex

                                                           {
  // dx = point of track closest to vertex - vertex position
  const SVector<double,3> dx =
    t.xvec() - t.tvec() * dot(t.evec(), t.xvec()-v.vpos()) - v.vpos();
  return sign(dx[2]) * mag(dx);
}

SGNVVdistance()

double SGNVVdistance ( const Vertex &  v1, const Vertex &  v2  )

inline

Signed spatial distance between two Vertex objects. \begin{displaymath} d = |\vec{v}_1 - \vec{v}_2|\times\texttt{sgn}(v_{z,1} - v_{z,2}) \end{displaymath}

                                                                {
  return mag(v1.vpos() - v2.vpos()) * sign(v1.vpos()[2] - v2.vpos()[2]);
}

Tdistance()

double Tdistance ( const Track &  t1, const Track &  t2  )

inline

Clostest spatial distance between two Track objects. \begin{eqnarray*} d\vec{x} = \vec{x}_2 - \vec{x}_1\ f_1 = d\vec{x}\cdot\frac{\vec{t}_1}{|\vec{t}_1|}\ f_2 = d\vec{x}\cdot\frac{\vec{t}_2}{|\vec{t}_2|} \end{eqnarray*} \begin{displaymath} d = \left| d\vec{x} + f_2\cdot\frac{\vec{t}_2}{|\vec{t}_2|} - f_1\cdot\frac{\vec{t}_1}{|\vec{t}_1|}\right| \end{displaymath} $g: \vec{x}_1 + m\cdot\vec{t}_1$ track definition 1st track\ $g: \vec{x}_2 + m'\cdot\vec{t}_2$ track definition 2nd track\

                                                          {
  const double a  = t1.tx();
  const double b  = t1.ty();
  const double c  = 1;
  const double a1 = t2.tx();
  const double b1 = t2.ty();
  const double c1 = 1;

  const double det = square(a*b1 - b*a1) + square(b*c1 - c*b1) + square(c*a1 - a*c1);
  const SVector<double,3> dx = t2.xvec() - t1.xvec();
  // are tracks parallel?
  if(det==0) return mag(cross(dx,t1.evec()));

  const double det2 = dx[0]*(b*c1 - c*b1) + dx[1]*(c*a1 - a*c1) + dx[2]*(a*b1 - b*a1);

  return fabs(det2/sqrt(det));
}

TVdistance()

double TVdistance ( const Track &  t, const Vertex &  v  )

inline

Clostest spatial distance between Track and Vertex object. \begin{displaymath} d = \frac{|(\vec{x}_t - \vec{x}_v) \times \vec{t}|}{|\vec{t}|} \end{displaymath} $g: \vec{x}_t + m\cdot\vec{t}$ track definition\ $\vec{x}_v$: vertex position

                                                          {
  return mag(cross(t.xvec()-v.vpos(), t.evec()));
}
